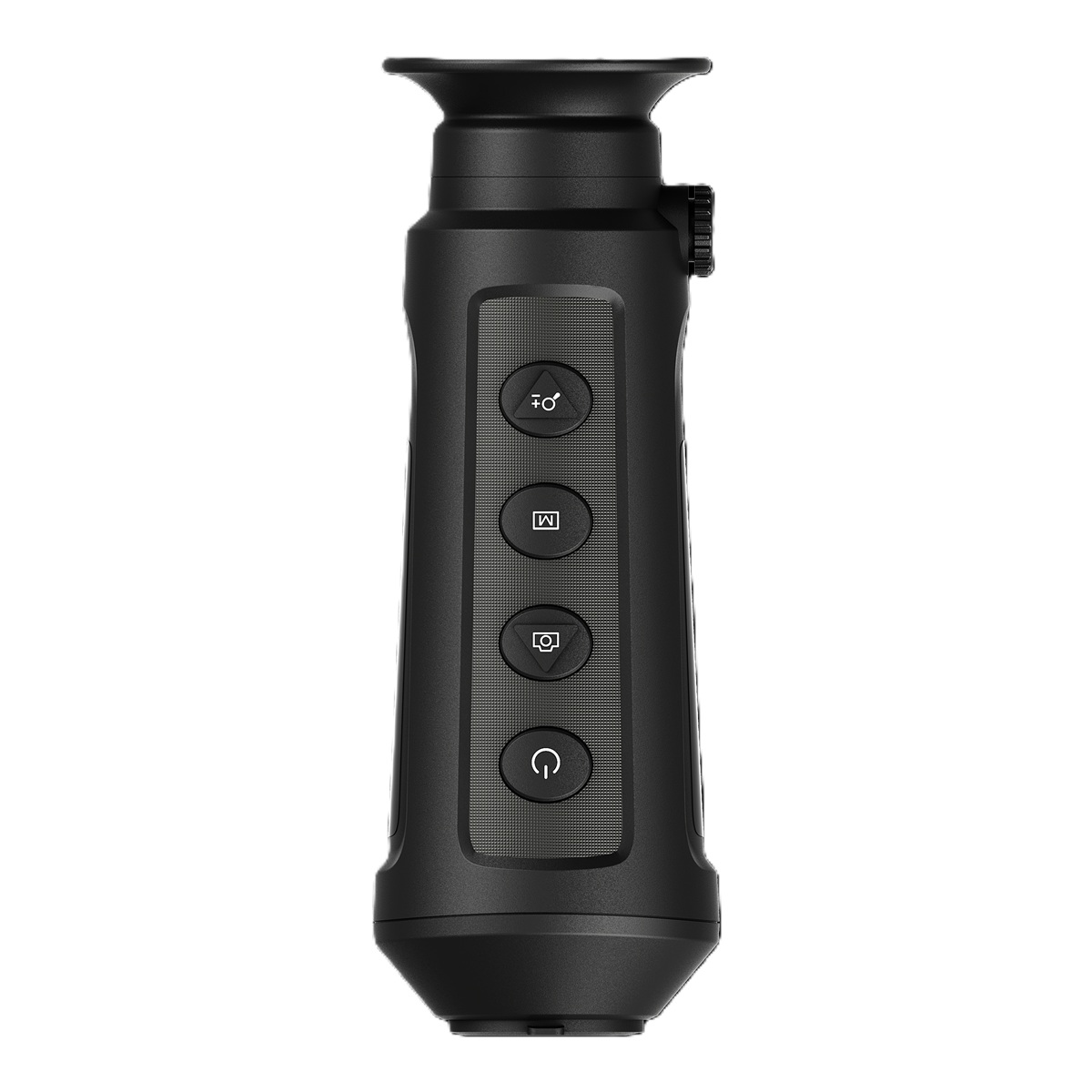

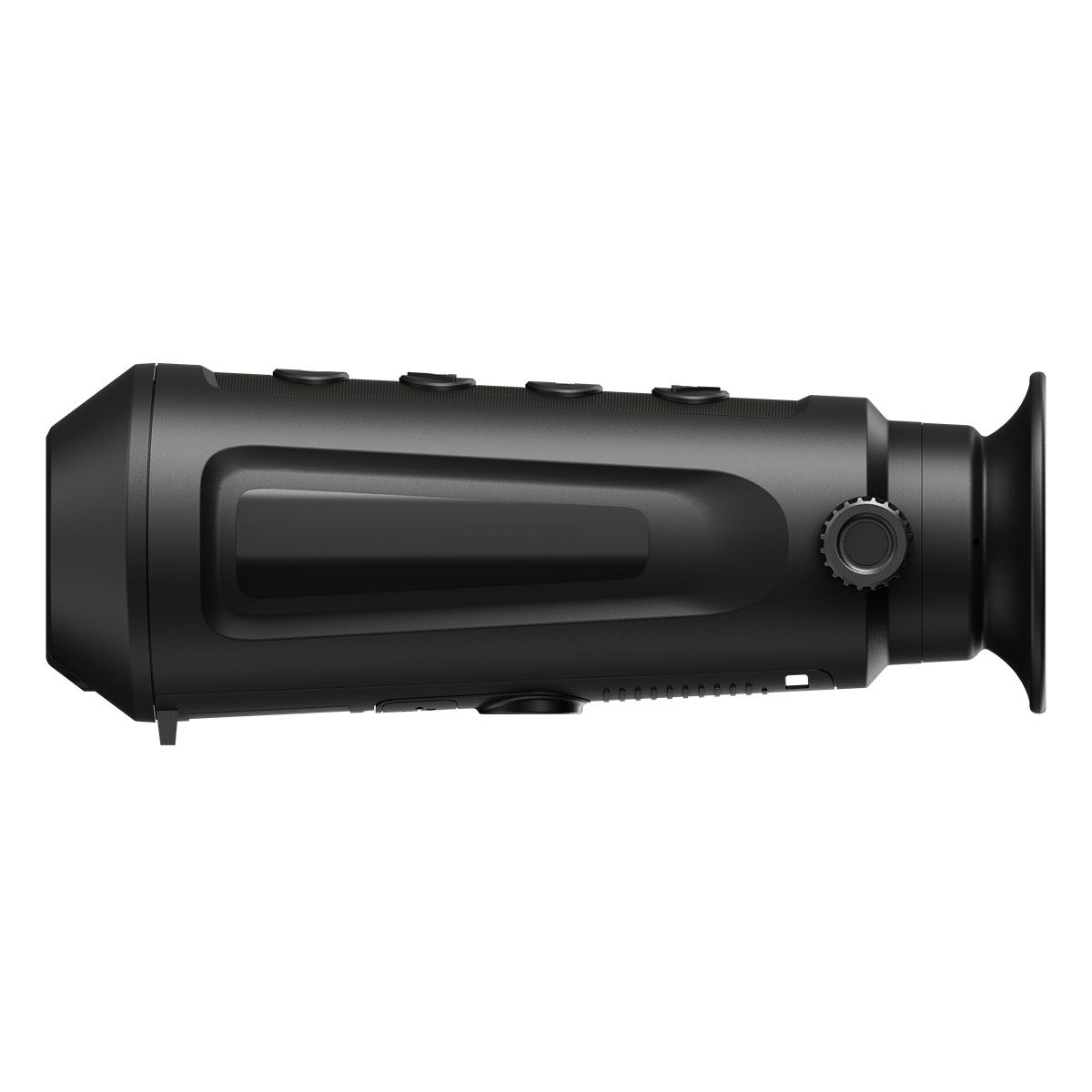

HIKMICRO Lynx-S LC06S Smart Thermal Monocular - 6mm <35mK 160x120px 17µm
- Compact, high-performance thermal imaging: Ideal for hunting, outdoor exploration, and search and rescue.
- 160 × 120 thermal sensor with <35mK sensitivity: Provides crisp, detailed imagery for accurate detection.
- 800 × 600 OLED display: Delivers clear and vibrant thermal images.
- Hot tracking, PIP mode, and distance measurement: Enhances target identification and precision.
- Up to 10 hours of battery life: Supports extended use during outdoor activities.
- 8GB internal storage and IP67-rated durability: Reliable and built for all-weather conditions, with ample space for recording.
#821
#818
#816
#819
#820
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

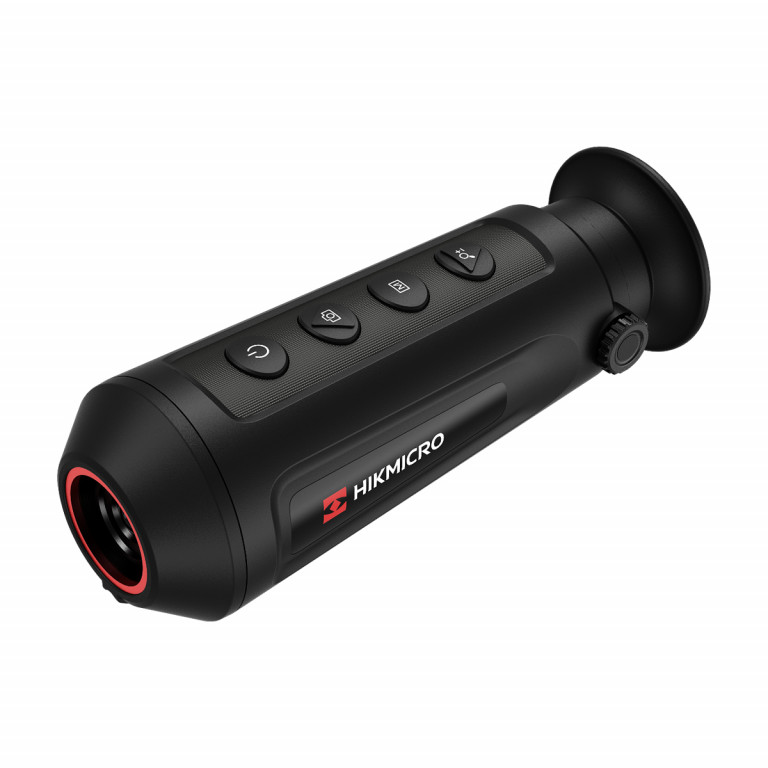

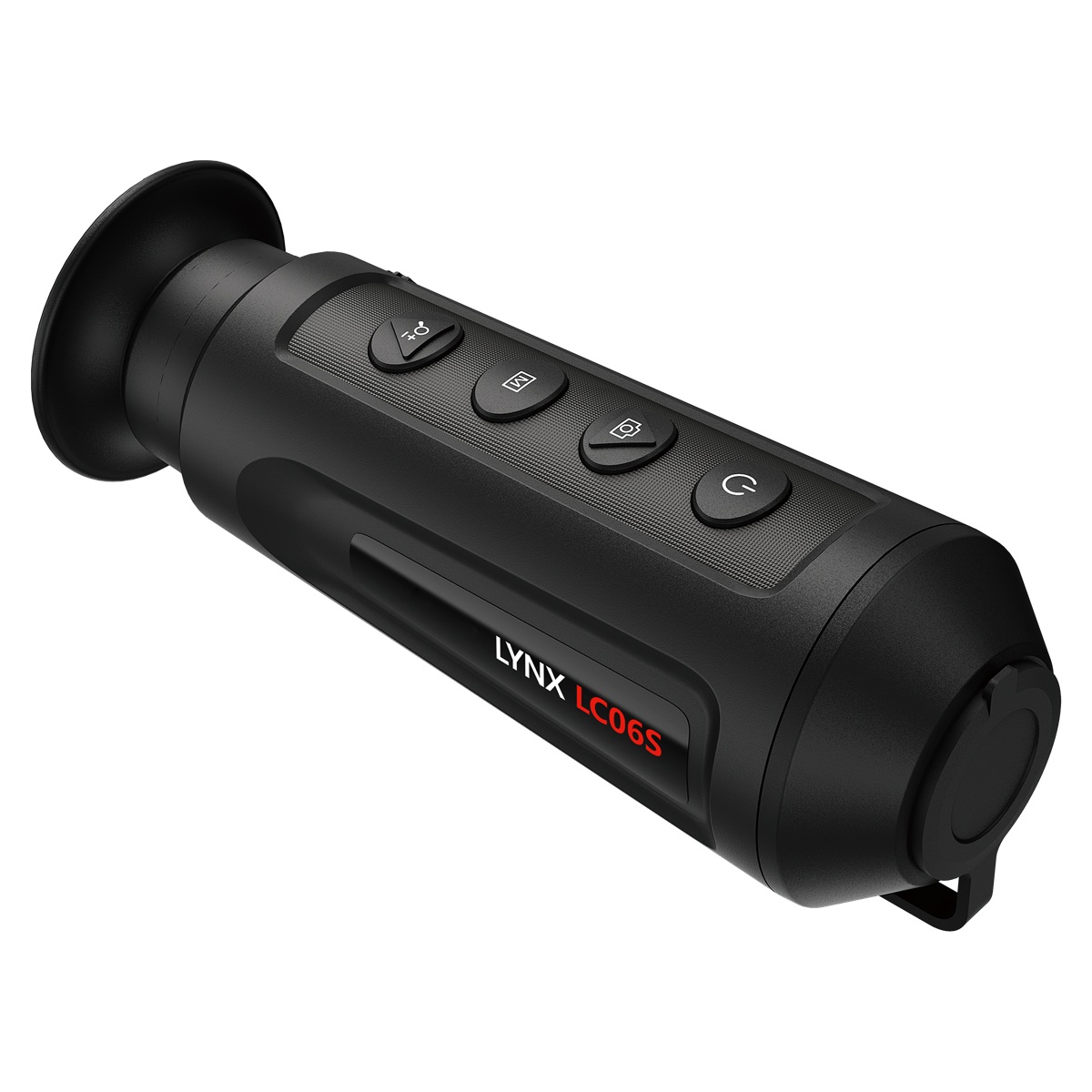

The HIKMICRO Lynx-S LC06S Smart Thermal Monocular is a compact and highly capable thermal imaging device, designed to provide crystal-clear vision even in complete darkness. Equipped with a 160 × 120 infrared detector and an 800 × 600 OLED display, this monocular offers an advanced imaging experience that ensures reliable target identification in various conditions. Whether you are hunting, hiking, conducting search and rescue operations, or simply exploring the outdoors, the Lynx-S LC06S is built to deliver performance when it matters most.
At the core of the Lynx-S LC06S is its high-sensitivity thermal detector, boasting a NETD rating of <35mK, ensuring exceptional detail recognition even in low-contrast environments. Its VOx uncooled focal plane arrays operate at a 50Hz frame rate, providing smooth, real-time imagery with Adaptive AGC, DDE, and 3D DNR thermal processing technologies enhancing clarity and contrast. With a 6mm focal length lens, the device offers a detection range of up to 250 metres, making it a powerful tool for close to mid-range thermal detection.
The 0.32-inch OLED display delivers sharp, high-contrast imagery with multiple colour palettes, including Black Hot, White Hot, Red Hot, and Fusion, allowing users to customise their viewing experience based on different environments and preferences. Features such as hot tracking, picture-in-picture (PIP) mode, and distance measurement add further functionality, ensuring a comprehensive thermal imaging experience. The monocular also includes a built-in 8GB memory module for storing snapshots and video recordings, with audio recording capabilities for enhanced documentation.
Built for extended use, the rechargeable lithium battery provides up to 10 hours of continuous operation, ensuring reliability during long expeditions. The device supports Type-C charging and external power supply compatibility, adding convenience for users on the move. Its IP67 protection rating ensures durability in harsh environments, safeguarding against dust, heavy rain, and submersion in water up to one metre.
Weighing just 250g and featuring an ergonomic design, the HIKMICRO Lynx-S LC06S is a lightweight yet powerful thermal monocular that offers unmatched portability without compromising on performance.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture image, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 160 × 120
- Frame Rate 50 Hz
- Pixel Interval 17 μm
- Response Waveband 8 μm to 14 μm
- NETD <35 mK (@25°C, F# = 1.1)
- Lens (Focal Length) 6.2 mm, F1.1
- Detection Range 250 m
- Focus Mode Focus Free
- Min. Focusing Distance 1 m
- Magnification 1.0× to 4.0× (4×)
- Field of View (H × V) 24.7° × 18.7° / 43.8 m × 32.9 m at 100 m
- Display 800 × 600, 0.32-inch OLED
- Colour Palettes Black Hot, White Hot, Red Hot, Fusion
- Flat Field Correction (FFC) Mode Auto, Manual, External Correction
- Exit Pupil 20 mm
- Eye Relief 6 mm
- Diopter Adjustment -5D to +4D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- Video Recording Yes
- Snapshot Capture Yes
- Audio Recording Yes
- Standby Mode Yes
- Storage Built-in 8GB memory module
- Picture-in-Picture (PIP) Yes
- Hotspot Sharing Yes
- Hot Track Yes
- Distance Measurement Yes
- Battery Type Rechargeable Lithium Battery
- Battery LifeUp to 10 hours (CVBS & hotspot off @25°C)/Up to 8.5 hours (CVBS & hotspot on @25°C)
- Charging Interface Type-C (DC 5 V/2 A)
- Supports External Power Supply Yes
- Protection Level IP67 (Water and Dust Resistant)
- Dimensions 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24")
- Operating Temperature -20°C to 55°C (-4°F to 131°F)
- Weight 250 g (0.55 lbs)
- High-resolution thermal imaging: Provides detailed and clear thermal images for effective target detection.
- Advanced thermal processing: Includes Adaptive AGC, DDE, and 3D DNR technologies for enhanced image clarity and contrast in varying environments.
- Multiple color palettes: Offers Black Hot, White Hot, Red Hot, and Fusion modes for custom viewing in different conditions.
- Hot tracking: Automatically detects and highlights the hottest spot in the scene for quick target identification.
- Picture-in-Picture (PIP) mode: Overlays a magnified area over the main image, providing a detailed view of specific targets.
- Distance measurement: Uses built-in algorithms to estimate distances to targets, improving targeting accuracy.
- Wi-Fi connectivity: Enables pairing with the HIKMICRO Sight app for remote control and settings adjustments.
- Long battery life: Lasts up to 10 hours of continuous use, perfect for extended outdoor activities.
- IP67 rating: Dustproof and waterproof, making it resistant to harsh weather conditions.
- Rechargeable lithium battery: Offers flexible charging options and ensures prolonged use.
- 8GB internal storage: Stores snapshots and video recordings for later review.
- Audio recording: Captures audio alongside thermal imaging for enhanced documentation.
- Type-C charging: Supports modern and efficient Type-C charging for quick power replenishment.
HIK Micro/Vision - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
- HIKMICRO Lynx-S LC06S Smart Thermal Monocular - 6mm <35mK 160x120px 17µm
- Quick start guide
- Non-dust cloth
- USB cable
- Protective bag
- Wrist strap
What is it?
A compact thermal monocular that allows you to see heat signatures in complete darkness. Ideal for spotting wildlife, search and rescue, and outdoor navigation.
Does it need light to work?
No. It detects heat, not light—so it works in complete darkness
What does 160 × 120 mean?
That’s the resolution of the thermal sensor. It captures 160 pixels across and 120 down. Lower than some models, but still effective for short- to mid-range detection.
What is NETD?
NETD stands for Noise Equivalent Temperature Difference. This model has <35 mK, meaning it can detect even subtle differences in heat, giving a clearer image.
What is 17 µm?
That’s the pixel pitch—the distance between each pixel on the thermal sensor. Smaller values generally offer better image detail.
What is the range?
It can detect heat signatures up to 250 metres away but can identify up to 50m (in ideal conditions with a clear view).
Do I need to focus it?
No. It’s focus-free—just power it on and start scanning.
Does it zoom?
Yes. It has up to 4× digital zoom (no optical zoom).
Can I change colour modes?
Yes—choose from Black Hot, White Hot, Red Hot, and Fusion to suit different environments and targets.
Can I take photos or videos?
Yes. It records both photos and videos, and also supports audio recording. Files are saved to its built-in 8GB memory.
Does it connect to a phone?
Yes, via Wi-Fi using the HIKMICRO Sight app. You can live view, record, control settings, and share media.
What is Hot Tracking?
It automatically highlights the hottest spot in the scene—perfect for locating people, animals, or other heat sources quickly.
What is Picture-in-Picture?
It adds a zoomed-in window inside your main view—so you get both detail and overall situational awareness.
How long does the battery last?
Up to 10 hours (8.5 hours with hotspot on).
How do I charge it?
Via USB-C cable. It also supports external power banks for longer sessions.
How heavy is it?
Only 250 grams—lightweight and easy to carry in one hand or pocket.
Can I buy it outside the UK?
No. It’s only available to UK customers due to distribution agreements.
Can I get spare parts?
Yes. Visit hikmicroassist.co.uk for replacement lens covers, eyepieces, and other parts.
3 Year UK warranty
HIK Micro is a global company with global service.
Should you experience any technical issues with your Lynx-S Thermal, it can be quickly repaired in the UK at HIK’s London service centre.
3 Years - Main unit
2 Years - Battery
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
