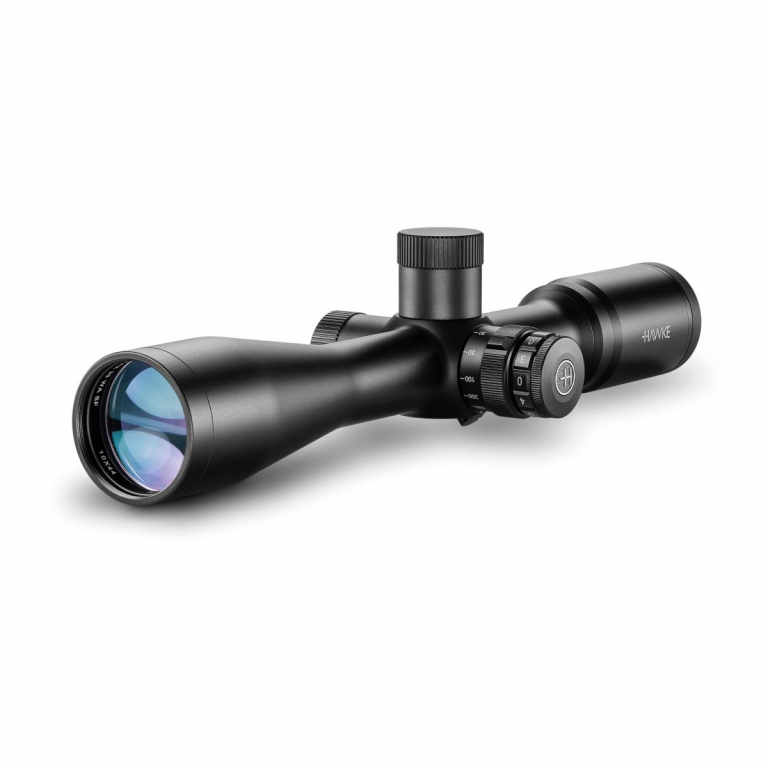

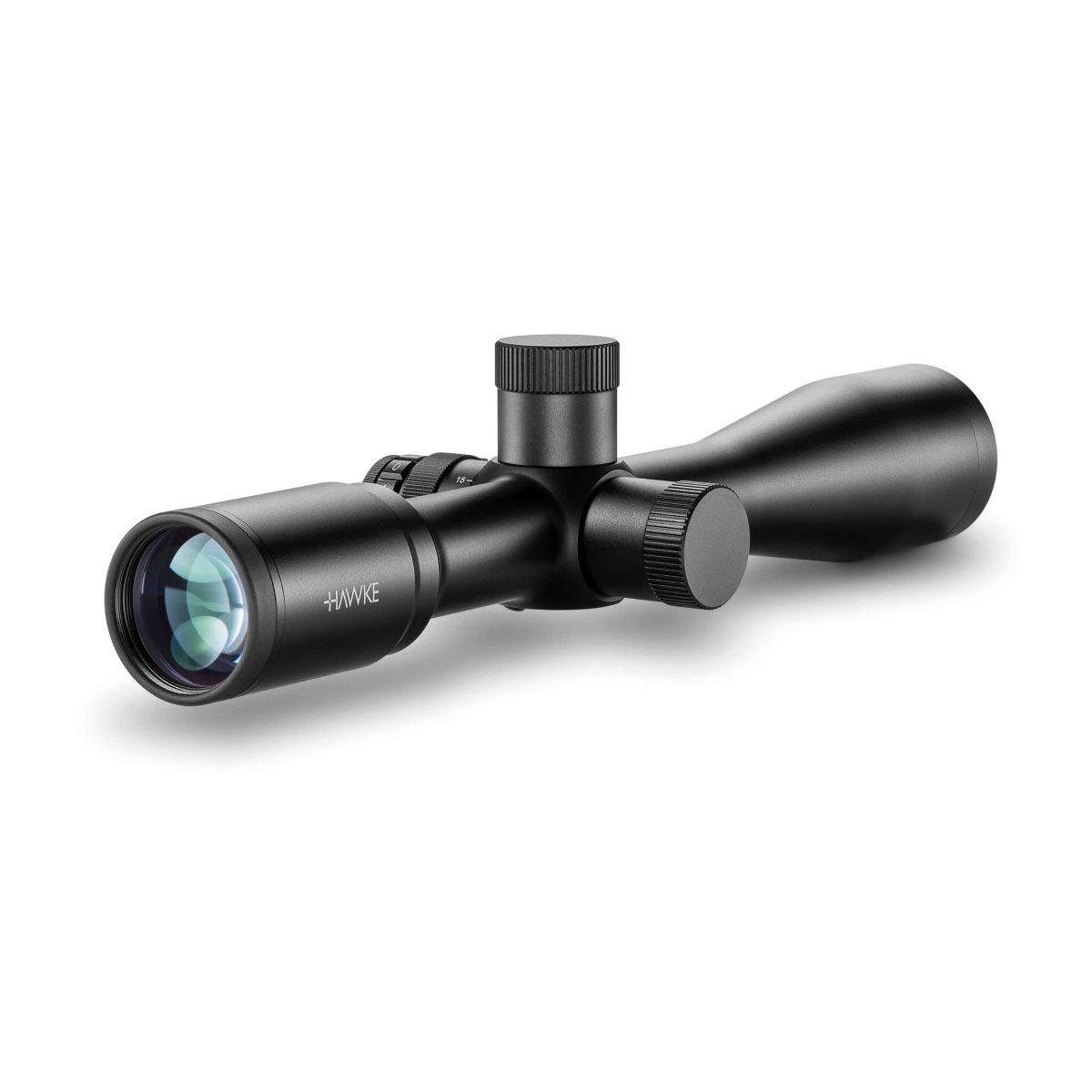

Hawke Airmax 30 WA 10x44 SF Illuminated AMX 0.1 MRAD Rifle Scope
- Fixed 10x magnification with glass-etched AMX IR reticle for precise airgun targeting
- Wide-angle field of view of 12ft at 100 yards for enhanced situational awareness
- 16-layer fully multi-coated lenses for superior clarity and light transmission
- Side focus parallax adjustment from 10 yards to infinity for pinpoint accuracy
- Six levels of red illumination controlled by a stepped rheostat for adaptable visibility
- Durable 30mm mono-tube chassis with capped target turrets for reliable, rugged use
#832
#829
#833
#830
#831
The Hawke Airmax 30 WA 10x44 SF Illuminated AMX 0.1 MRAD rifle scope is purpose-built for airgun shooters, offering precision and clarity through the advanced H2 optical system. Its fixed 10x magnification is perfectly matched to the AMX IR reticle, which provides multiple aim points and half mil-dot spacing, ideal for the loopy trajectories of airgun pellets. The reticle’s etched design enhances accuracy with calculated spacing for bracketing and holdover at range.
Engineered with a robust 30mm mono-tube chassis, this scope features a wide-angle field of view of 12 feet at 100 yards, giving shooters greater situational awareness. The image remains crisp and bright thanks to 16-layer fully multi-coated lenses, while the side focus parallax adjustment ensures precise aiming from just 10 yards to infinity. The stepped rheostat offers six levels of red illumination, allowing for clear reticle visibility in changing light conditions.
With capped target turrets, a fast-focus eyebell, and a high torque zoom ring, the Airmax 30 WA is designed for ease of use and field reliability. Fully nitrogen purged, shockproof, waterproof, and fog proof, it performs in all weather and is rated for all calibres. Backed by the Hawke No-Fault Lifetime Warranty, it’s a dependable, high-performance optic tailored for airgun precision.
- Optical System System H2
- Scope Tube 30mm
- Magnification 10x (fixed)
- Objective Lens 44mm
- Reticle AMX IR
- Illumination 6 Levels (Red)
- Illumination Control Stepped Rheostat with Off Positions In-between
- Parallax Side Focus
- Field of View 12ft @ 100yds / 4m @ 100m
- Field of View (°) 2.3
- Eye Relief 4in / 102mm
- PX/Focus (Error free from) 10yds - ∞ / 9m - ∞
- Click Value 1/10 MRAD
- Turret Type (Elevation) Target

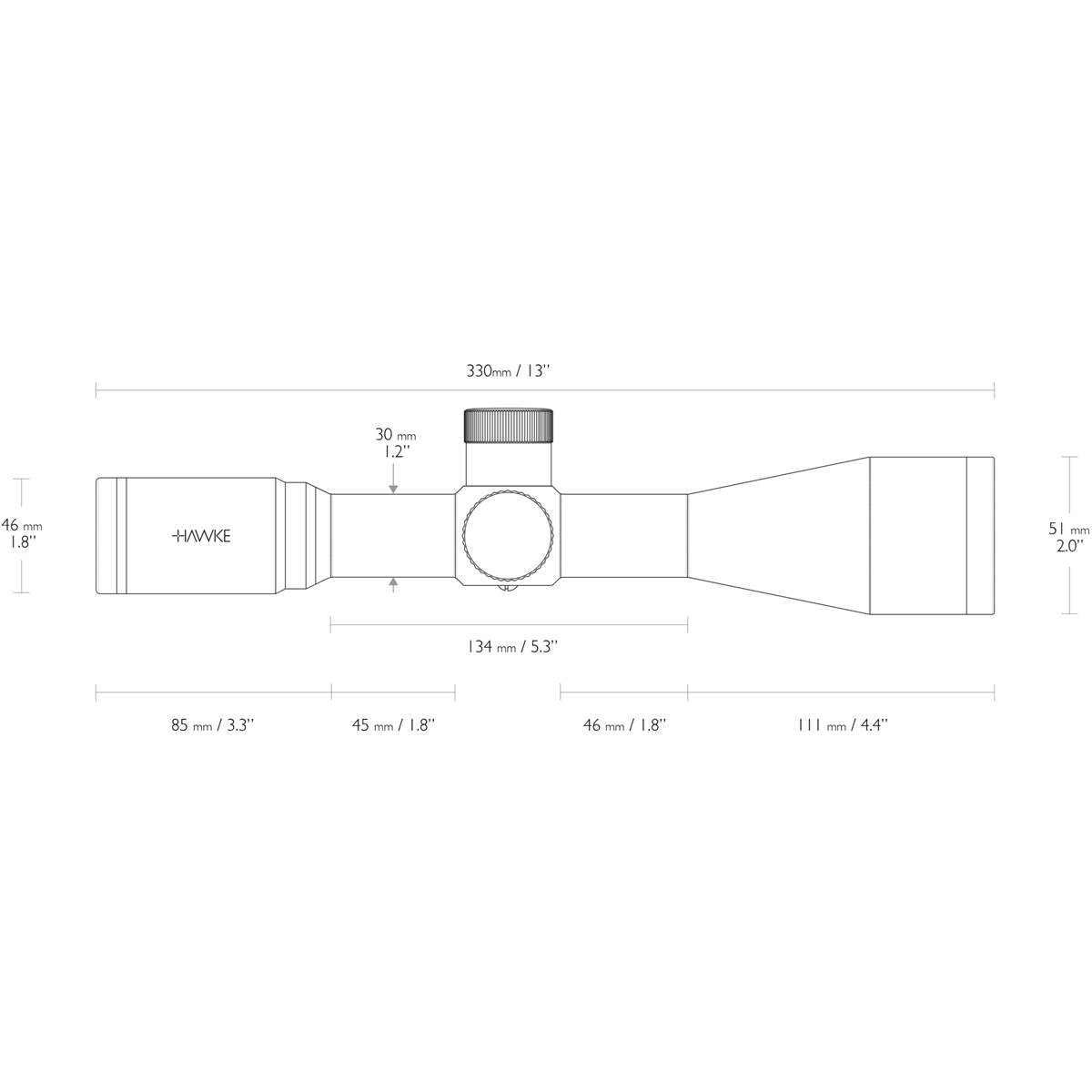

- Length 13in / 330mm
- Weight 22.6oz / 640g
-
Designed specifically for airgun use, optimised for the unique ballistic characteristics of air rifles
-
AMX IR reticle with glass-etched design, offering multiple aim points and half mil-dot spacing for accurate holdover and bracketing
-
Wide-angle viewing for increased situational awareness and easier target acquisition
-
16-layer fully multi-coated lenses to deliver bright, sharp, high-contrast images
-
Side focus parallax adjustment for precise focus from short to long range, starting from just 10 yards
-
Six-step red illumination with a stepped rheostat and off positions between levels for flexible brightness control
-
Capped target turrets to protect windage and elevation adjustments from accidental movement
-
Fast-focus eyebell for quick and easy reticle clarity adjustments
-
High torque zoom ring (though fixed magnification in this model, this ensures structural consistency across the range)
-
Fully nitrogen purged, making it shockproof, waterproof, and fog proof for all-weather reliability
-
Rated for all calibres, ensuring compatibility across a wide range of rifles
-
Supported by the Hawke No-Fault Lifetime Warranty, providing long-term peace of mind

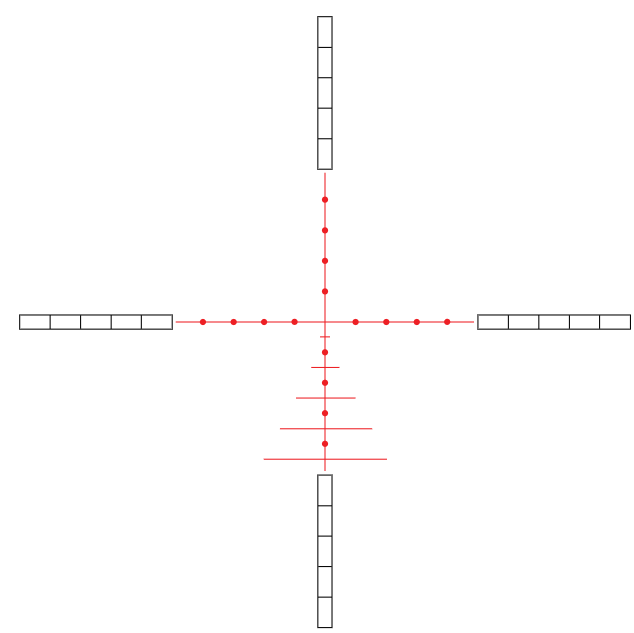

AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- Hawke Airmax 30 WA 10x44 SF Illuminated AMX 0.1 MRAD Rifle Scope.
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- 4" Sunshade
- Metal Flip-Up Lens Covers (61052 & 61007)
- Flip-Up Removal Tool
- 4" Sidewheel
- Hex Key
- CR2032 Battery
- Hawke No-Fault Lifetime Warranty.
