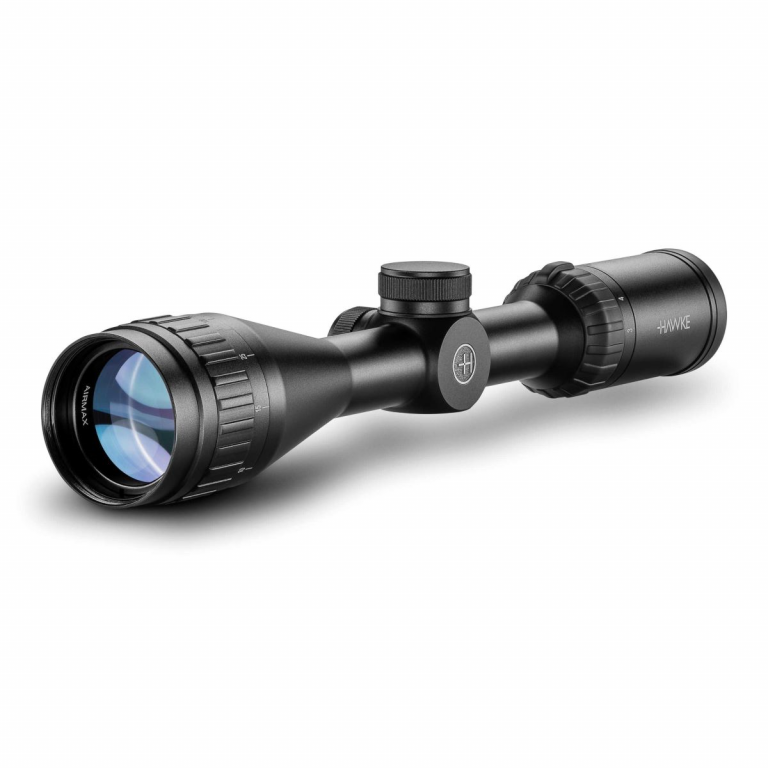

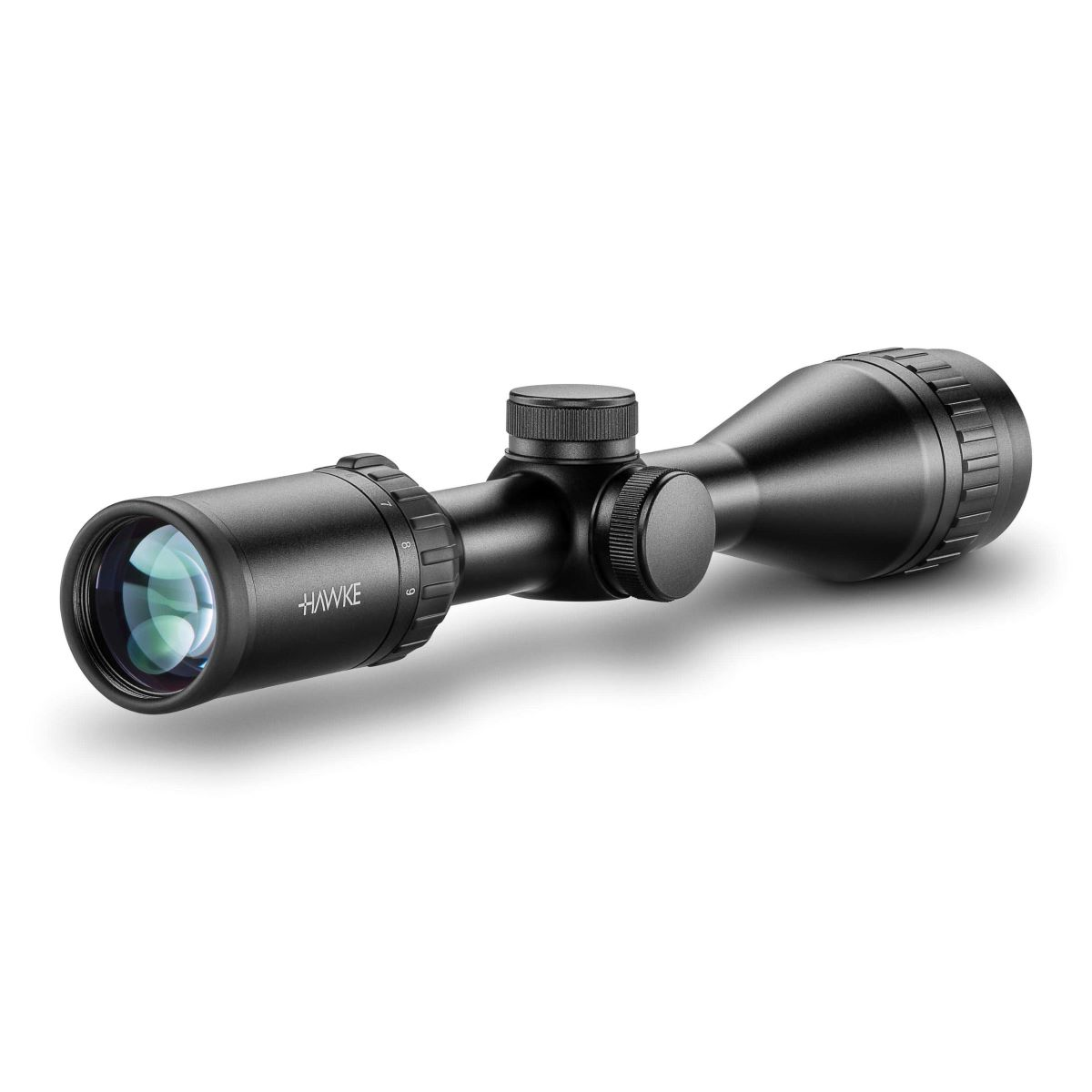

Hawke Airmax 3-9x40 AO AMX Rifle Scope
Details
The Hawke Airmax 3-9×40 AO AMX Rifle Scope comes with 16 layers of fully multi-coated optics for exceptional clarity as well as a glass etched reticle to withstand high recoils. The Hawke Airmax 3-9×40 AO is constructed along with a 1-inch mono-tube chassis for superior strength and comes with an integrated adjustable objective for parallax adjustment. The Hawke Airmax 3-9×40 AO gives the user a wide view optical system which makes it ideal for airguns.
The 1/4 moa value turrets are found under low profile caps these can be easily adjusted via your fingertips and they offer the no-snag feature so you know your clicks are precise and accurate. The fast focus eyeball and high torque zoom ring come as standard and will ensure click reticle focusing and fast target acquisition. The threaded objective/ocular allows for optional accessories to be added to this scope which is available.
Brand | Hawke |
---|---|
Product Name A-Z | Hawke Airmax 3-9x40 AO AMX Rifle Scope |
SKU | 13110 |
Highest Magnification | 1x-10x |
Minimum Parallax | 10yd-∞ |
Objective Lens Diameter | 40mm |
Reticle Plane | Second |
Tube Diameter | 1 inch |
Turret Click Value | 1/4 MOA (0.25) |
Manuals | Download Manual HERE |
Specs
- Material: Aluminium
- Exit Pupil: 13 – 4mm / 0.5 – 0.2″
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated – 16 Layers
- Power Selector Style: Rubber Coated Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Warranty: Hawke Worldwide Warranty
- Elevation Increment: ¼ MOA
- Elevation Adjustment Range: 80 MOA
- Windage Increment: ¼ MOA
- Windage Adjustment Range: 80 MOA
- Turret Caps: YES
- Turret Type: Low Profile
- Made in China
Features
- Hawke Airmax 3-9×40 AO AMX Riflescope
- 16 layer fully multi-coated optics for exceptional clarity
- Wide view optical system ideal for airguns
- Glass etched reticle to withstand high recoil
- Integrated adjustable objective for parallax adjustment
- 1-inch mono-tube chassis for superior strength
- ¼ MOA low profile no-snag fingertip turrets
- Fast focus eyeball and high torque zoom ring
- Threaded objective/ocular for optional accessories
Reticle

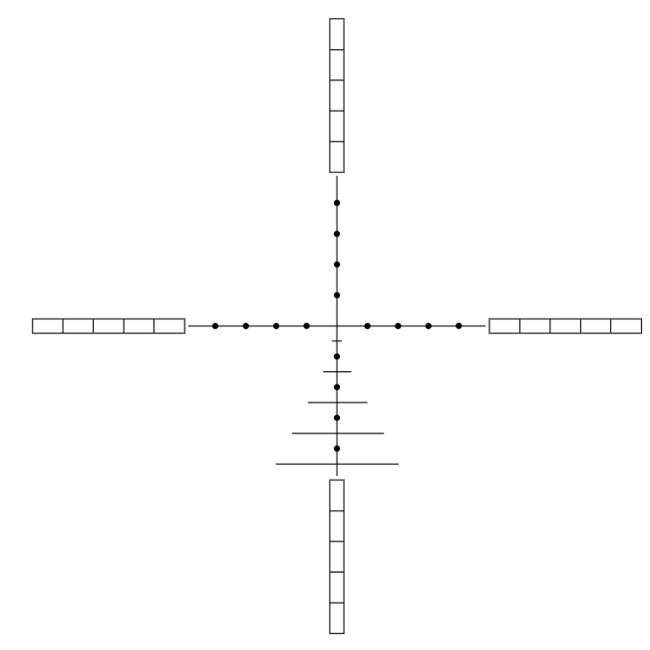

AMX Reticle:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
In the box?
- Hawke Airmax 3-9x40 AO AMX Rifle Scope
- Box
- Instruction Manual
- Lens Cloth
- Lens Covers
Warranty
- Hawke Worldwide Warranty
