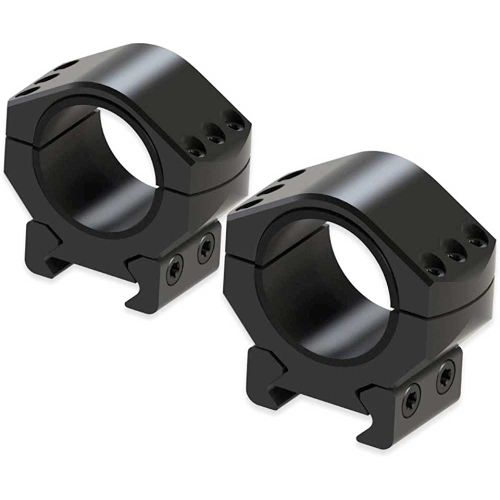

Burris XTR Signature 1 inch High Rings
The Burris XTR Signature Rings represent the pinnacle of mounting precision, engineered specifically for the shooter who demands both rugged durability and surgical accuracy. What truly sets these apart is the revolutionary Pos-Align® Insert technology, which provides 100% scope-to-ring contact—meaning you get a rock-solid grip that won't mar your optic's finish—while simultaneously allowing you to add between 5 and 40 MOA of custom cant without the need for expensive tapered bases or messy lapping. Whether you are choosing the 1-inch, 30mm, or 34mm diameter in Low, Medium, or High profiles, you are investing in a 6-screw wide-clamping system that corrects for misaligned receiver holes and maximizes your scope's elevation travel, ensuring that your zero stays locked in even under the heaviest recoil. - George
#1332
#1364
#1362
#1365
#1363
Burris XTR Signature 1 inch High Rings
These new Burris XTR Signature Rings were designed for the tactical shooter. They deliver plenty of holding power, with less weight & allow the shooter to add between 5 – 40 MOA of customizable cant to their scope with no lapping required.
Burris XTR Signature Rings are available in 1 inch, 30mm and 34mm.
- Burris XTR Signature Rings are Unique, self-centring, dual steel clamps with full cross-through connection assure proper centre on any width Picatinny rail while adding extra strength
- Revolutionary Pos-Align® Inserts technology, in a tactical ring configuration
- Pos-Align Inserts guarantee perfect centring and maximum scope-to-ring contact for tremendous gripping power without damaging the scope finish
- Lets you virtually sight in your gun without moving the scope adjustments
- Corrects misalignment caused by off-centre receiver holes
- Hard aluminium construction with solid steel weaver locking bases
- Corrects for bases or rings being slightly off-centre
- Wide 6 screw locking design
- No need for expensive tapered bases or shimming for thousand-yard shooting
- Rugged, robust aluminium tactical rings save weight and mount on any Weaver or Picatinny-style rail
Each ring set of the Burris XTR Signature Rings include two sets of +/-20 MOA and one set each of the following offset inserts: +/-5 MOA, +/-10 MOA, +/-0 MOA
Ring Height - 38.1mm
- Height: 1.50 in.
- Size: 30mm
Pos-Align Inserts
Pos-Align Inserts guarantee perfect centring and maximum scope-to-ring contact, so you get all the clarity, sharpness, and brightness your optic can deliver.
Virtually sight in your gun without moving the scope adjustments
Corrects any misalignment caused by receiver holes drilled off-centre
Corrects for bases or rings being slightly off centre
Makes expensive tapered bases or shimming for thousand-yard shooting a thing of the past
1. What makes Burris XTR Signature Rings different from standard tactical rings? Unlike traditional rings, the XTR Signature series features a revolutionary Pos-Align® Insert system. These synthetic inserts provide 100% scope-to-ring contact, which prevents the "pinching" or scratching of your scope tube while offering massive gripping power. Additionally, they allow you to adjust the cant of your optic internally without needing to buy a separate 20 MOA base.
2. Can these rings add MOA to my scope setup? Yes! Each set of XTR Signature Rings comes with various sets of offset inserts (including +/- 5, 10, and 20 MOA). By swapping these inserts, you can add between 5 and 40 MOA of cant to your setup. This is perfect for long-range shooters who have run out of internal elevation adjustment on their turrets.
3. Do I need to lap Burris XTR Signature Rings? No, lapping is not required or recommended for these rings. The self-centering Pos-Align inserts automatically compensate for any minor misalignments in the rifle’s receiver or base. This ensures a perfectly centered fit that protects your optic’s internal components and outer finish from stress.
4. Will these rings fit a Weaver or Picatinny rail? Burris XTR Signature Rings are designed with unique, self-centering dual steel clamps. These allow the rings to mount securely to any Picatinny or Weaver-style rail, regardless of slight width variations between manufacturers. This ensures a rock-solid, centered fit every time.
5. How do I choose between 1-inch, 30mm, and 34mm rings? The size you need depends entirely on the main tube diameter of your rifle scope. For example, a Burris Eliminator 6 requires the 34mm version, while many classic hunting scopes require 1-inch or 30mm. Always check your scope's technical specifications before purchasing.
6. Which height should I choose: Low, Medium, or High? Ring height is determined by the size of your scope's objective lens (the front bell) and your rifle's barrel profile. Generally:
-
Low: Best for scopes with smaller objectives (up to 40mm) on rifles with no full-length rail.
-
Medium: The standard choice for 42mm to 50mm objectives.
-
High: Required for large 52mm+ objectives (like the Eliminator 6) or rifles with full-length Picatinny rails to ensure the scope bell doesn't touch the handguard.
7. Are the XTR Signature Rings heavy-duty enough for high-recoil rifles? Absolutely. These are tactical-grade rings constructed from high-strength aluminum with solid steel cross-bolts. The wide, 6-screw design provides significantly more surface area and clamping force than standard 2- or 4-screw rings, making them ideal for magnum calibers and heavy-recoil precision rifles.
Our aim is to ensure that your order arrives with you as soon as possible and in the safest, most cost-effective means.
Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.
Please Note: DPD SHIPMENTS REQUIRE THE CUSTOMER TO SHOW A PIN CODE ON DELIVERY - READ MORE: HERE
COURIERS
 |
 |
 |
 |
We use DPD , RoyalMail, TNT and UPS courier services for all our orders whether dispatching to the UK or International. As soon as your order has been dispatched you will receive an email with your unique tracking number. We are unable to add delivery notes to your order regarding safe spaces or neighbour deliveries. If you require this service it can be arranged directly with the courier once the parcel is in their network.
IN-STORE ITEMS
These are items that we have in-stock and will be sent out for delivery as soon as possible. We aim to dispatch all orders within 1-2 working days, but during busy periods dispatch may be delayed by a day or so. If you would like to purchase the item in person then please call ahead to arrange an appointment: 01803 611 895.
PRE-ORDER ITEMS
These are usually items that are going to be out-of-stock for a number of weeks or are in short supply. By purchasing a Pre-Order Item you are in effect paying a deposit for your goods. As soon as the item is back in stock yours will be dispatched within 24 hours where possible. Please see individual product pages for current back-in-stock dates. In rare occasions, these dates can be changed by the manufacturers so we recommend staying in contact with Optics Warehouse depending on the product lead time.
INTERNATIONAL DELIVERY & TAXES
In addition to the above information If your delivery address is outside of the UK you may be subject to import duties and taxes, which are levied once a shipment reaches your country. Any such additional charges for customs clearance must be borne by you. You should note that customs policies vary widely from country to country. Optics Warehouse advises each customer to contact their local customs office for further information if they are in any way unsure of local duties or liabilities. Cross border shipments are subject to opening and inspection by customs authorities which means some packages may be opened and re-sealed.
NEED HELP?
If you require any further assistance, please call us on 01803 611 895 or email sales@opticswarehouse.co.uk
-
A NOTE ABOUT DPD SHIPMENTS:
- Please be advised that we have now introduced DPD Pins to all DPD orders from Optics Warehouse.
- If your shipment is being sent from Optics Warehouse via DPD you will be sent a Pin Code that must be shown to the courier upon delivery.
- The pincode is sent VIA email & TEXT message. A valid email address and mobile number must be provided at checkout. Emails will be sent from "Riviera House 3PL" - if you do not receive this email please check your junk or spam folders.
- Please note that if you do not display your pin code to the courier driver upon delivery, you will not be able to have your item and you may need to schedule another delivery date to show a valid pin.
- Please view the attached slides HERE for further information!
Please note: All clearance calculations are based on mounts with 0 MOA. While MOA can be factored in, actual clearance may vary due to variables that can't always be accurately calculated. If you're considering an MOA mount and are unsure about the required height, we recommend contacting our sales team directly.
Measure the outermost diameter of your scope’s objective bell (including any flare).
Measure the thickness of any scope cover if used. If none, leave as 0.
Measure from the top of the rail to the highest point of the barrel.
We add a little extra clearance to account for real-world variation. Default is +1 mm.
Enter your measurements above to calculate the lowest ring height (base-to-centre) you can realistically use.
(A + 2×B) / 2 − C + TWhere A = objective outer diameter, B = cover thickness, C = rail-to-barrel clearance, T = tolerance.
Downloads
Modified XTR Signature Rings User Guide PDF October 29, 2015 Download
2016 Burris Optics Catalog PDF January 18, 2016 Download
