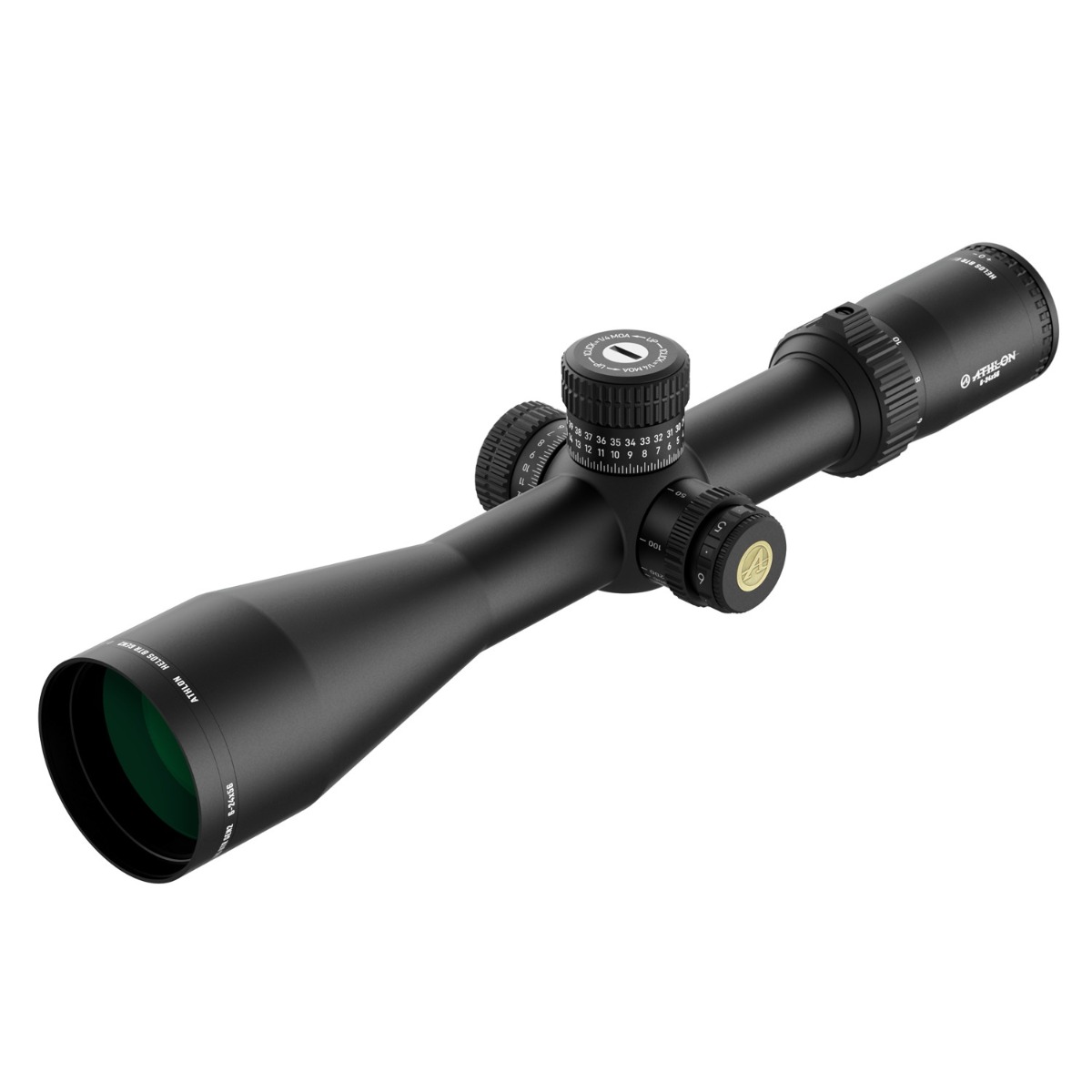

Athlon Helos BTR GEN2 6-24x56 APLR6 FFP IR MOA Rifle Scope

• Magnification: 6-24x
• Objective Lens Diameter: 56 mm
• Reticle: APLR6 FFP IR MOA, Glass Etched
• Surface Finish: Matte
• Lens Coating: Wide Band Fully Multicoated
• Extra Coating: Xtra Protective Coating
• Tube Material: Aircraft Grade Aluminium
• Tube Diameter: 34 mm
• Eye Relief: 3.7 inches
• Field of View @100 yards: 19.9-5.12 feet
• Click Value: 0.25 MOA
• Adjustment range per rotation: 25MOA
• Total Elevation Adjustment: 100MOA
• Total Windage Adjustment: 80MOA
• Turret Style: Exposed
• Parallax Adjustment: Side Focus – 10 yards to infinity
• Purging Material: Argon
• Length: 14.3 inches
• Weight: 34.5 ounces

First Focal Plane Reticle:

• The first focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.

Locking Turrets:

• The locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to the next during your competition or putting them away for your next hunting trip.

Illuminated Reticle:

• The illuminated reticle provides greater visibility during dusk and dawn and another low ambient light environment.

Etched Glass Reticle:

• Reticle etched on the glass provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil

Advanced Fully Multicoated:

• Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses

Precision Zero Stop:

• The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even if you are turning it in pitch-dark.

Heat Treated One-Piece Tube Construction:

• The heat-treated one-piece tube gives the scope extra strength over multi-piece tubes. A one-piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product

Waterproof:

• Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater

Fogproof:

• Fogproof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside

Shockproof:

• Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.

Argon Purged:

• Argon Purging uses inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability.

APLR6 FFP IR MOA, Glass Etched

• Athlon Helos BTR GEN2 6-24x56 APLR6 FFP IR MOA Rifle Scope.

• What magnification range does the Athlon Helos BTR GEN2 offer?
  The scope features a versatile 6-24x magnification range designed for precision and long-range shooting applications.
• What does FFP mean?
  FFP stands for First Focal Plane, meaning the reticle scales with magnification so holdovers and ranging remain accurate at all zoom levels.
• Is the reticle illuminated?
  Yes, the APLR6 MOA reticle features illumination for improved visibility during low-light shooting conditions.
• Is this scope suitable for long-range shooting in the UK?
  Yes, it is ideal for long-range target shooting, PRS-style competition, precision rimfire setups, and extended-range rifle shooting.
• Does the scope feature locking turrets?
  Yes, the Helos BTR GEN2 includes pull-up locking turrets to prevent accidental adjustment while transporting or handling your rifle.
• Does the scope include a zero stop system?
  Yes, Athlon’s Precision Zero Stop system allows fast and reliable return-to-zero adjustments after dialing elevation.
• What tube size does the scope use?
  The scope uses a robust 34mm aircraft-grade aluminium tube for increased adjustment range and strength.
• Is the scope waterproof and fog proof?
  Yes, the Helos BTR GEN2 is waterproof, fog proof, shockproof, and argon purged for dependable all-weather reliability.
• How is the optical quality at higher magnification?
  The scope delivers strong clarity and brightness for its price range, although some users note the image softens slightly near maximum magnification compared to premium-tier optics.
• What type of shooting is this scope best suited for?
  It is best suited for precision rifle shooting, long-range target shooting, PRS-style competition, rimfire precision setups, and general extended-range shooting applications.
