American Defense AD-RECON 30mm TAC Quick Detach Cantilever Mount - 1.93 inch offset
- Does not require proprietary tools for adjustment.
- Can be adjusted with your finger or a flat blade screwdriver.
- Lever can be configured to lock to the front or the rear.
- Superior clamping surface to insure maximum rail engagement.
#1451
#1450
#1440
#1443
#1433

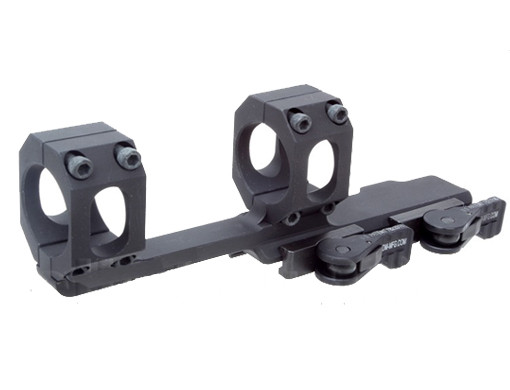

The American Defense AD-RECON Quick Detach Cantilever mount is made for putting high power glass which objective sizes up to 56mm onto a flattop style AR-15 rifle.
The American Defense AD-RECON Quick Detach Cantilever mount throws the scope out front by 1.93 inches which will allow the shooter to get the right eye relief. Each American Defense AD-RECON is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodising.
The AD-RECON features the Patented QD Auto Lock Lever system to accommodate both in spec and out of spec rail systems. With the AD-Recon Mount you are giving the option of the tactical lever or the standard lever, their is no difference in function or price just aesthetics.
American Defense AD-RECON Quick Detach Cantilever Mount - 1.93 inch offset - Specifications
The AD-RECON mount has the following specifications:
- Weight: 8.40 ounces
American Defense AD-RECON Quick Detach Cantilever Mount - 1.93 inch offset - Features

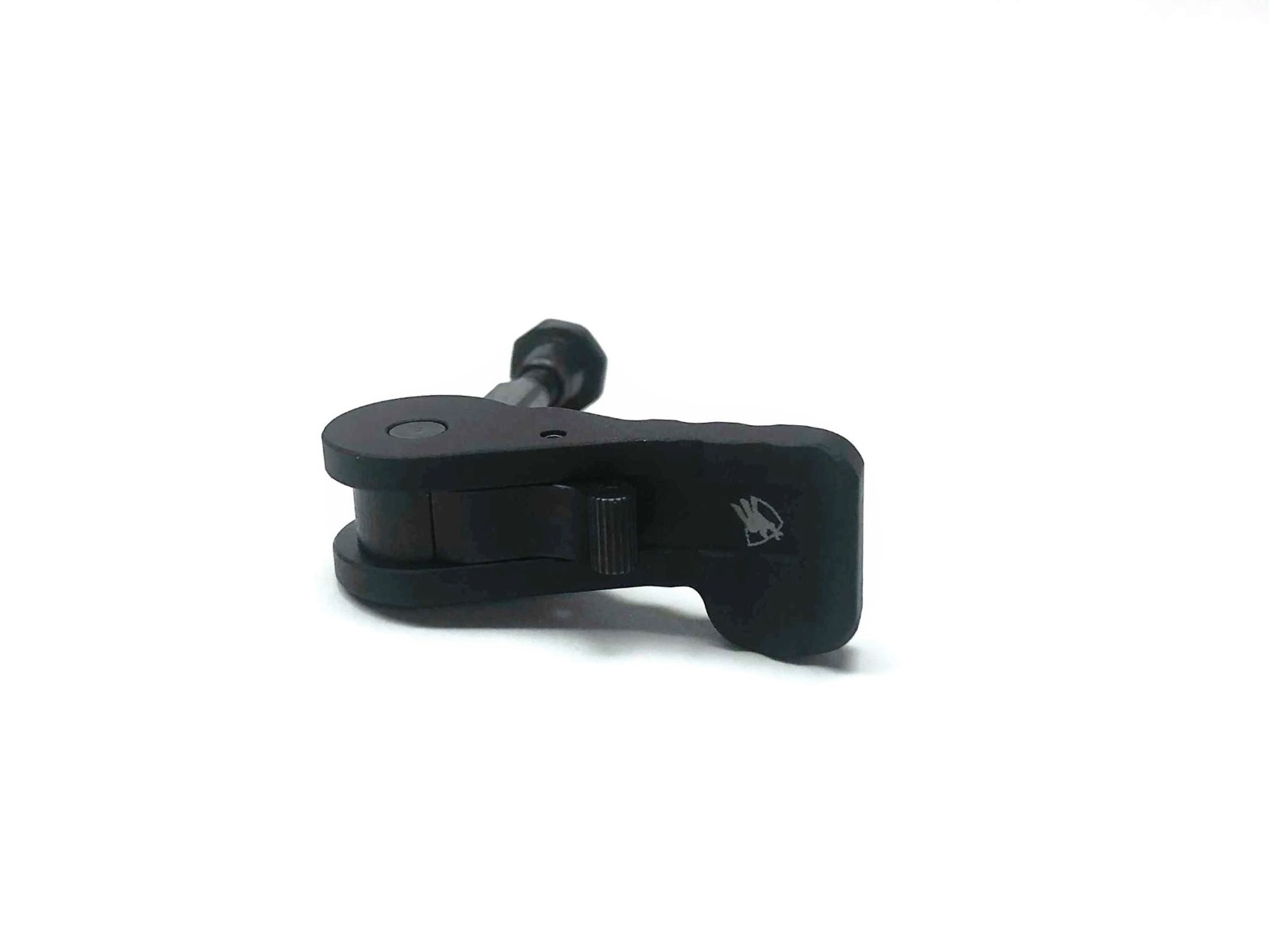

The AD-RECON mount features the Patented QD Auto Lock Lever system which has the following advantages:
- Does not require proprietary tools for adjustment.
- Can be adjusted with your finger or a flat blade screwdriver.
- Lever can be configured to lock to the front or the rear.
- Superior clamping surface to insure maximum rail engagement.
1. What is the American Defense AD-RECON TAC mount?
The AD-RECON TAC is a quick-detach cantilever scope mount designed for rifles using a Picatinny rail. It allows you to mount 30mm optics forward of the receiver for correct eye relief and a stable, repeatable setup.
2. What does the 1.93" offset mean?
The 1.93" offset refers to how far the scope is pushed forward (cantilevered) from the base of the mount. This helps you achieve proper eye relief, especially on AR-style rifles with longer or variable-length optics setups.
3. What size scopes does this mount fit?
It is designed for 30mm tube optics, typically used with larger hunting and tactical scopes, including those with objective lenses up to around 56mm.
4. What is the Quick Detach (QD) system?
The mount uses American Defense’s patented QD Auto Lock lever system, allowing you to attach or remove the scope quickly without tools while maintaining a secure lock on the rail.
5. Will it hold zero after removing and reinstalling?
Yes, in normal use the QD system is designed to return very close to the original zero when reattached, making it useful for swapping optics or transport without full re-zeroing.
6. What is it made from?
The mount is precision machined from 6061-T6 aluminium and finished with a mil-spec hard coat anodizing, giving it strong durability and corrosion resistance.
7. How heavy is the mount?
It weighs approximately 8.4 oz (about 238 g), keeping it relatively light for a full cantilever QD mount.
8. Is it suitable for AR-15 rifles?
Yes. It’s specifically designed for AR-style flat-top rifles and similar platforms where forward scope positioning and eye relief are important.
9. Can the QD lever be adjusted?
Yes. The lever tension can be fine-tuned by hand or with a simple tool, and the lever can be configured to lock forward or rearward depending on preference.
10. Why choose this mount over a standard fixed mount?
The main advantages are quick removal, repeatable return-to-zero capability, and stronger rail engagement, making it ideal for shooters who switch optics or want faster setup changes without sacrificing rigidity.
Our aim is to ensure that your order arrives with you as soon as possible and in the safest, most cost-effective means.
Please Note: Shipping charges may be subject to additional surcharges if out of area or over weight restrictions.
Please Note: DPD SHIPMENTS REQUIRE THE CUSTOMER TO SHOW A PIN CODE ON DELIVERY - READ MORE: HERE
COURIERS
 |
 |
 |
 |
We use DPD , RoyalMail, TNT and UPS courier services for all our orders whether dispatching to the UK or International. As soon as your order has been dispatched you will receive an email with your unique tracking number. We are unable to add delivery notes to your order regarding safe spaces or neighbour deliveries. If you require this service it can be arranged directly with the courier once the parcel is in their network.
IN-STORE ITEMS
These are items that we have in-stock and will be sent out for delivery as soon as possible. We aim to dispatch all orders within 1-2 working days, but during busy periods dispatch may be delayed by a day or so. If you would like to purchase the item in person then please call ahead to arrange an appointment: 01803 611 895.
PRE-ORDER ITEMS
These are usually items that are going to be out-of-stock for a number of weeks or are in short supply. By purchasing a Pre-Order Item you are in effect paying a deposit for your goods. As soon as the item is back in stock yours will be dispatched within 24 hours where possible. Please see individual product pages for current back-in-stock dates. In rare occasions, these dates can be changed by the manufacturers so we recommend staying in contact with Optics Warehouse depending on the product lead time.
INTERNATIONAL DELIVERY & TAXES
In addition to the above information If your delivery address is outside of the UK you may be subject to import duties and taxes, which are levied once a shipment reaches your country. Any such additional charges for customs clearance must be borne by you. You should note that customs policies vary widely from country to country. Optics Warehouse advises each customer to contact their local customs office for further information if they are in any way unsure of local duties or liabilities. Cross border shipments are subject to opening and inspection by customs authorities which means some packages may be opened and re-sealed.
NEED HELP?
If you require any further assistance, please call us on 01803 611 895 or email sales@opticswarehouse.co.uk
-
A NOTE ABOUT DPD SHIPMENTS:
- Please be advised that we have now introduced DPD Pins to all DPD orders from Optics Warehouse.
- If your shipment is being sent from Optics Warehouse via DPD you will be sent a Pin Code that must be shown to the courier upon delivery.
- The pincode is sent VIA email & TEXT message. A valid email address and mobile number must be provided at checkout. Emails will be sent from "Riviera House 3PL" - if you do not receive this email please check your junk or spam folders.
- Please note that if you do not display your pin code to the courier driver upon delivery, you will not be able to have your item and you may need to schedule another delivery date to show a valid pin.
- Please view the attached slides HERE for further information!
Please note: All clearance calculations are based on mounts with 0 MOA. While MOA can be factored in, actual clearance may vary due to variables that can't always be accurately calculated. If you're considering an MOA mount and are unsure about the required height, we recommend contacting our sales team directly.
Measure the outermost diameter of your scope’s objective bell (including any flare).
Measure the thickness of any scope cover if used. If none, leave as 0.
Measure from the top of the rail to the highest point of the barrel.
We add a little extra clearance to account for real-world variation. Default is +1 mm.
Enter your measurements above to calculate the lowest ring height (base-to-centre) you can realistically use.
(A + 2×B) / 2 − C + TWhere A = objective outer diameter, B = cover thickness, C = rail-to-barrel clearance, T = tolerance.
