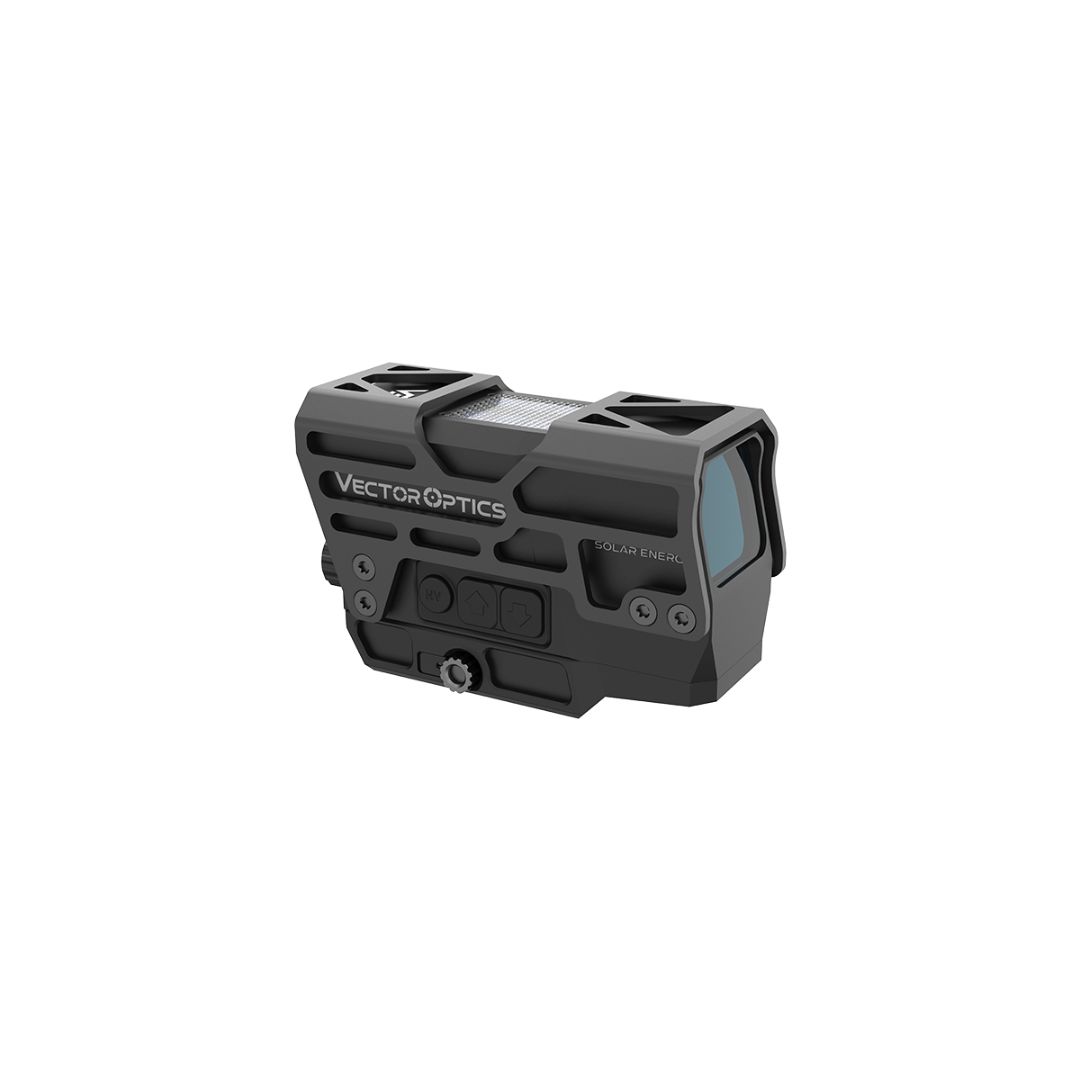

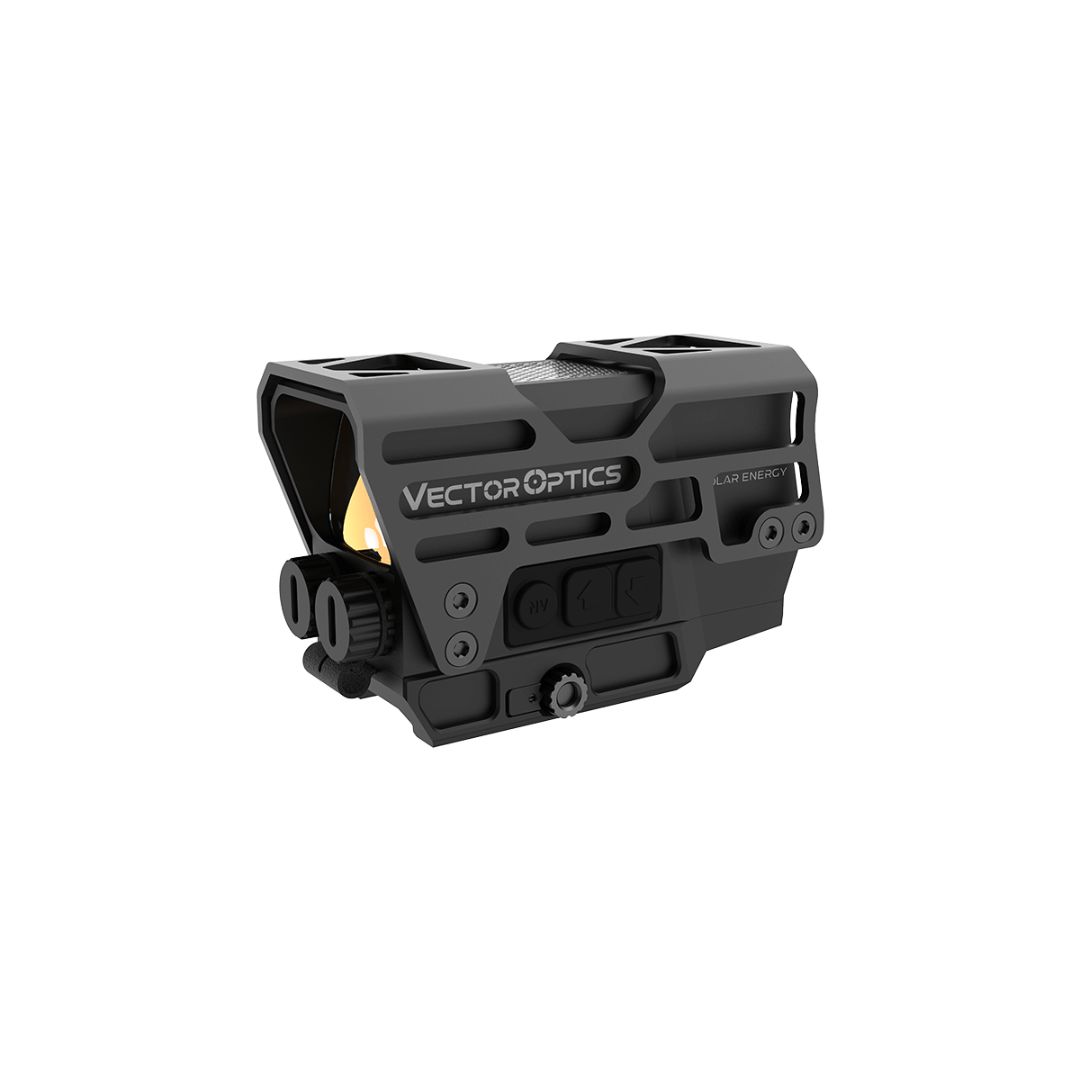

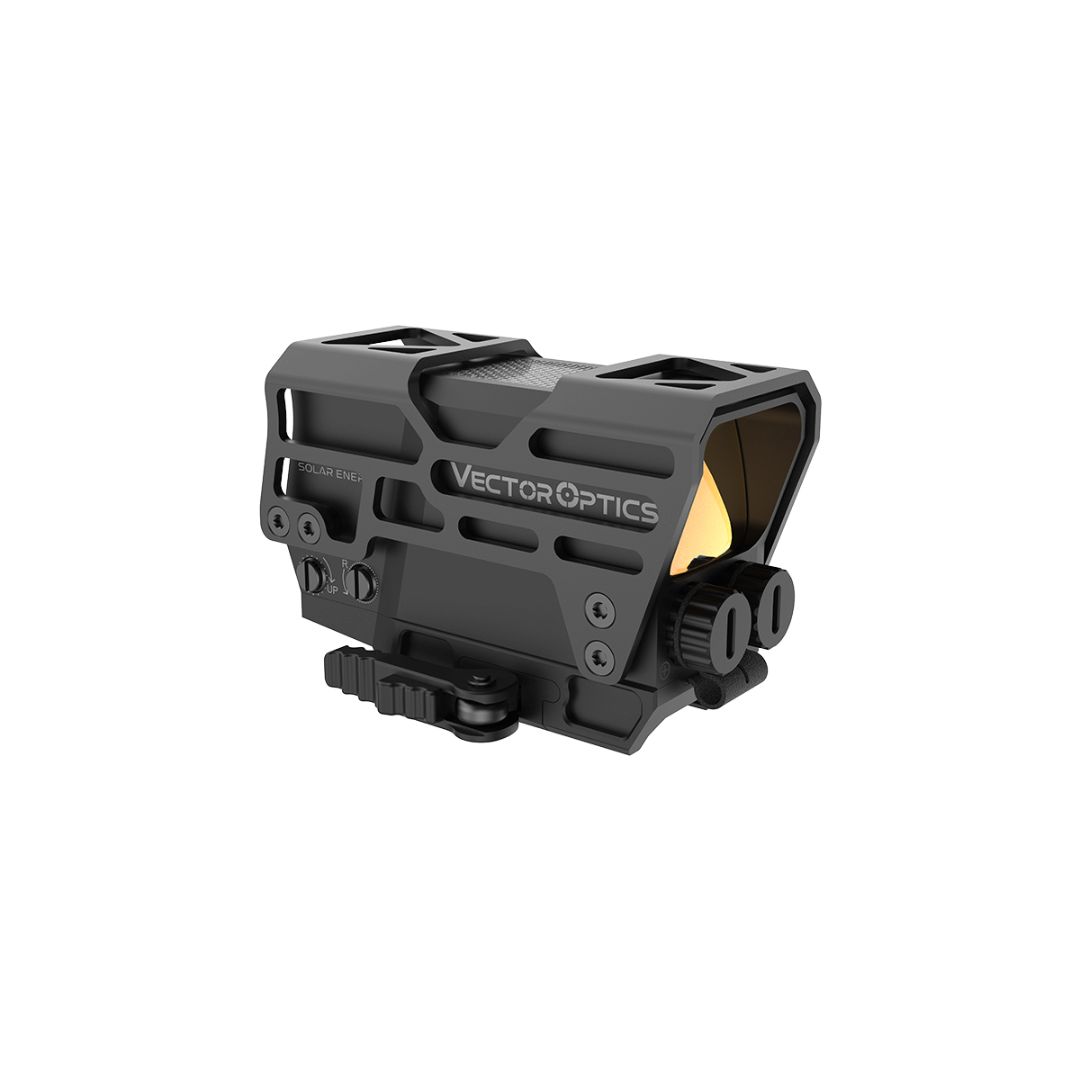

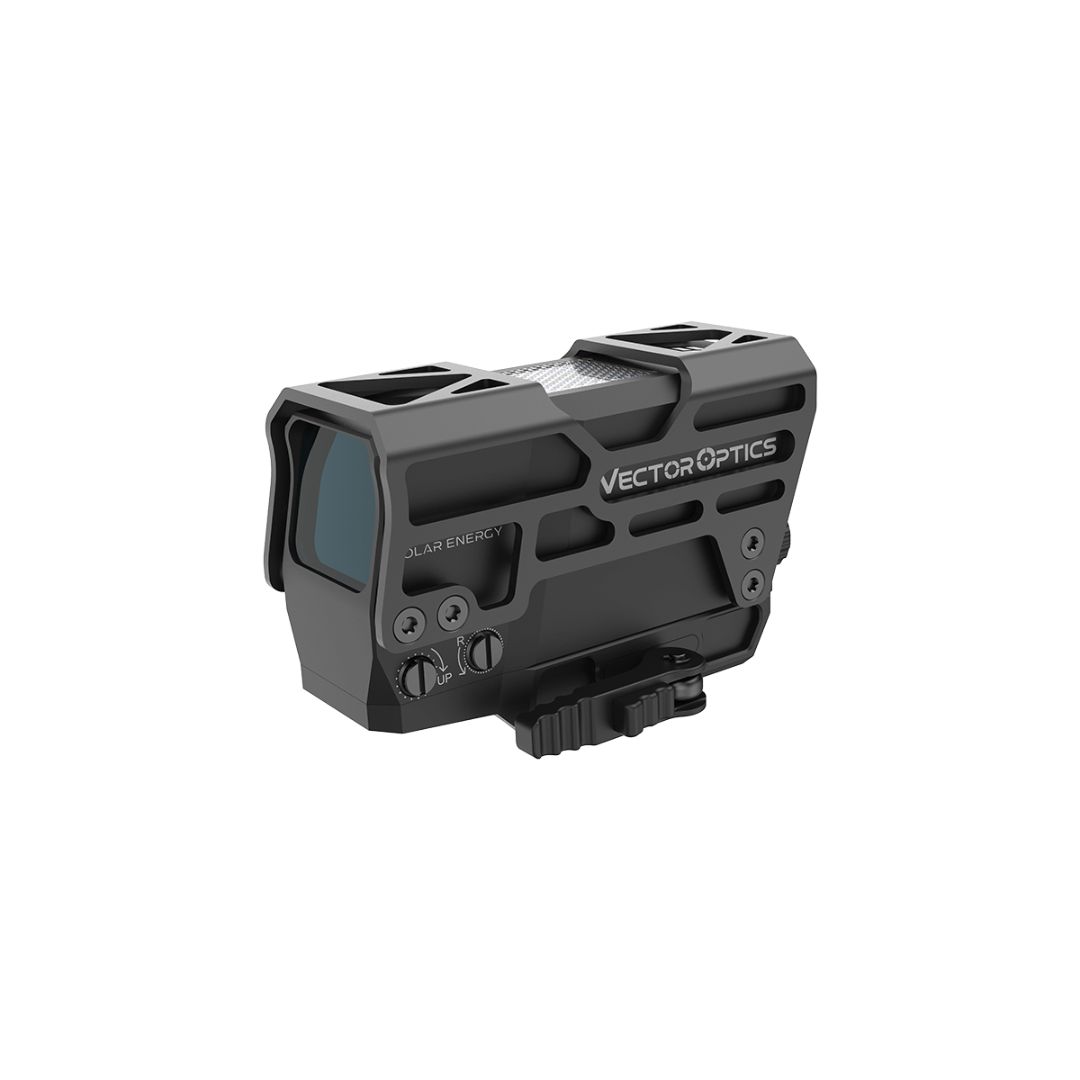

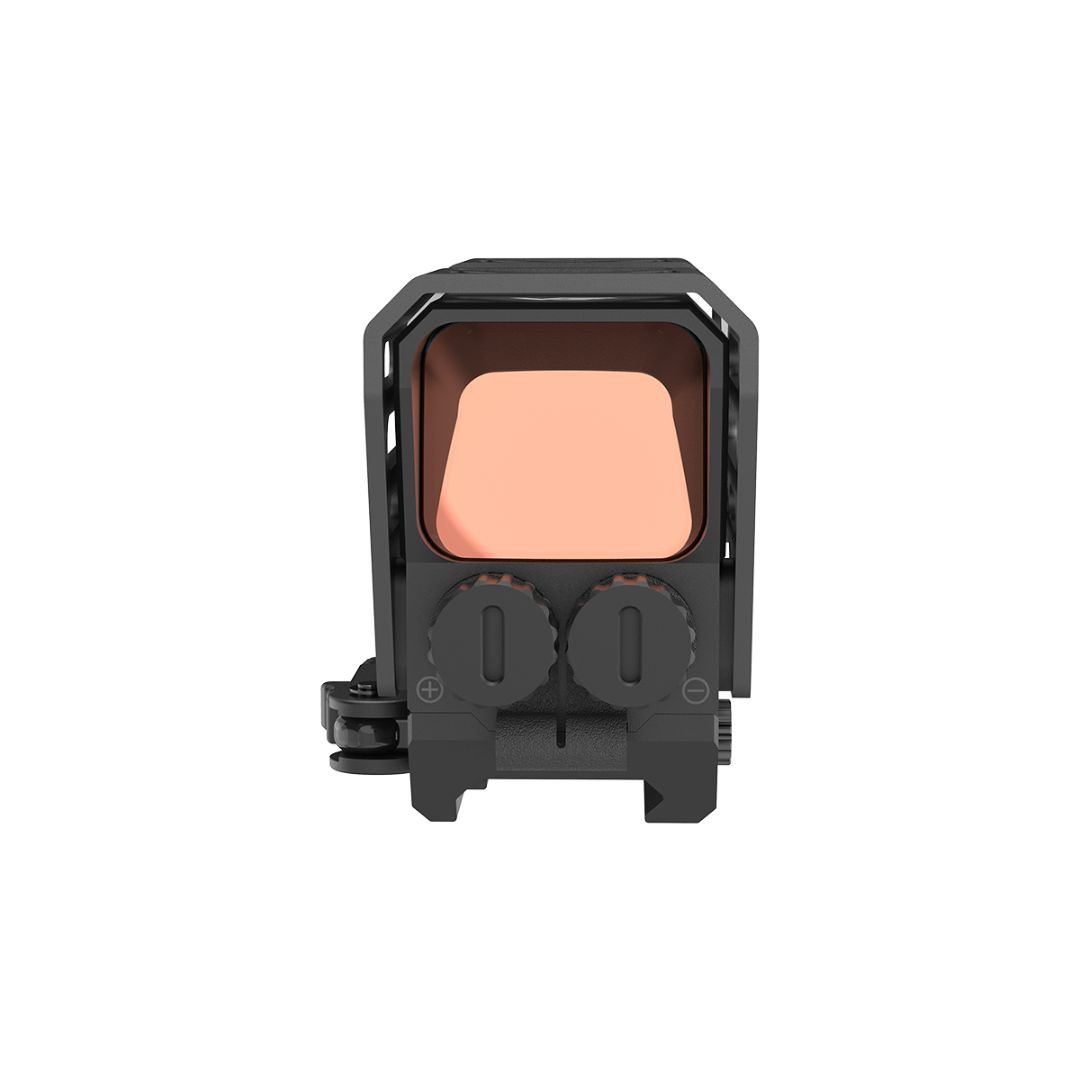

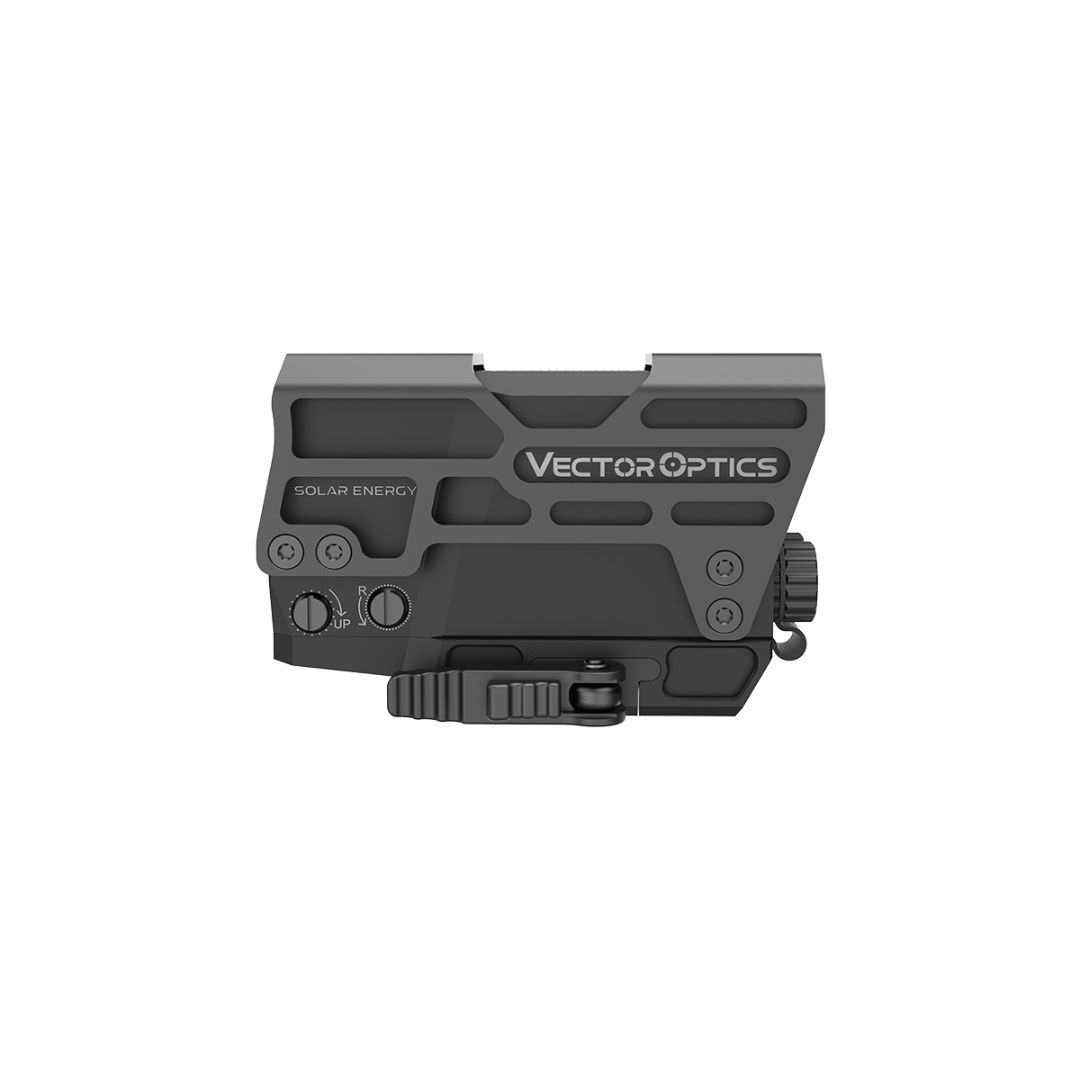

WIN A: Vector Optics Frenzy Plus 1x31x26 Solar Reflex
| Product Name A-Z | WIN A: Vector Optics Frenzy Plus 1x31x26 Solar Reflex |
|---|---|
| SKU | OPTICSDRAWS#1125 |
Specs
- Window Lens Size: 26x31 mm / 1.02 x1.22 in
- Parallax: Free (<2 MOA)
- Dot Size: 3 MOA
- Sensor: Motion Sensor
- Click Value: 1/2 MOA
- Elevation Adjustment Range: 190 MOA
- Windage Adjustment Range: 200 MOA
- Mounting Rail: Picatinny
- Illumination Setting: 9 Daylight & 2 Night Vision
- Battery Type: AAAx2
- Battery Life: 50,000 Hours
- Battery Placement: Front
- Waterproof: IP67
- Shockproof: 800 G
- Working Temperature: -20~+55 °C
- Finish: Black Matte
- Weight(net): 297 g / 10.5 oz (with mount)
-
To operate the red dot sight:
1. Press any Arrow button to turn on red dot sight.
2. Use Arrow button to adjust illumination intensities. The red dot will flicker three times if pressing the Up-Arrow button at the highest illumination setting.
3. Press NV button to enter night visiom mode. Switch between two gears by pressing the Arrow button. Press and hold NV button for 2 seconds to exit NV mode.
4. To enter solar mode: The device will automatically enter solar mode when closed or no batteries in it. When the red dot sight is on: Press and hold the Up-Arrow button for 2 seconds to turn it off and enter solar mode.
5. Press and hold Down-Arrow for 2 seconds to turn off red dot sight.
Features
- Extra Large Window Size with 3 MOA Dot Size, Spacious Field of View

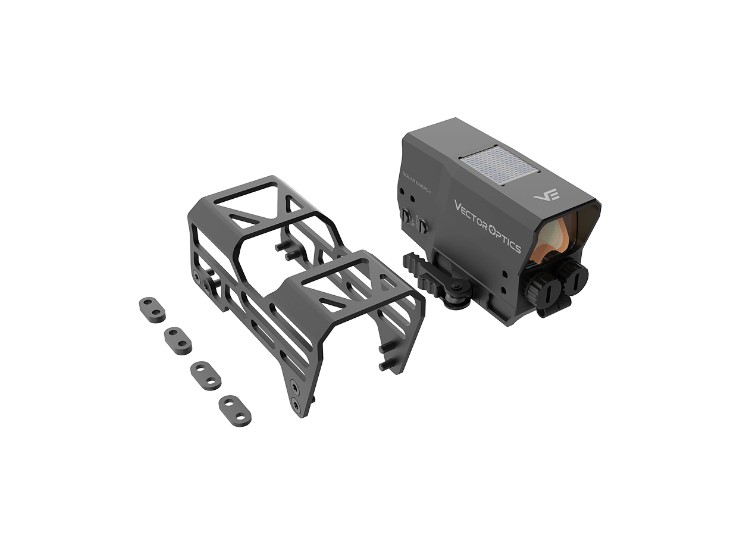

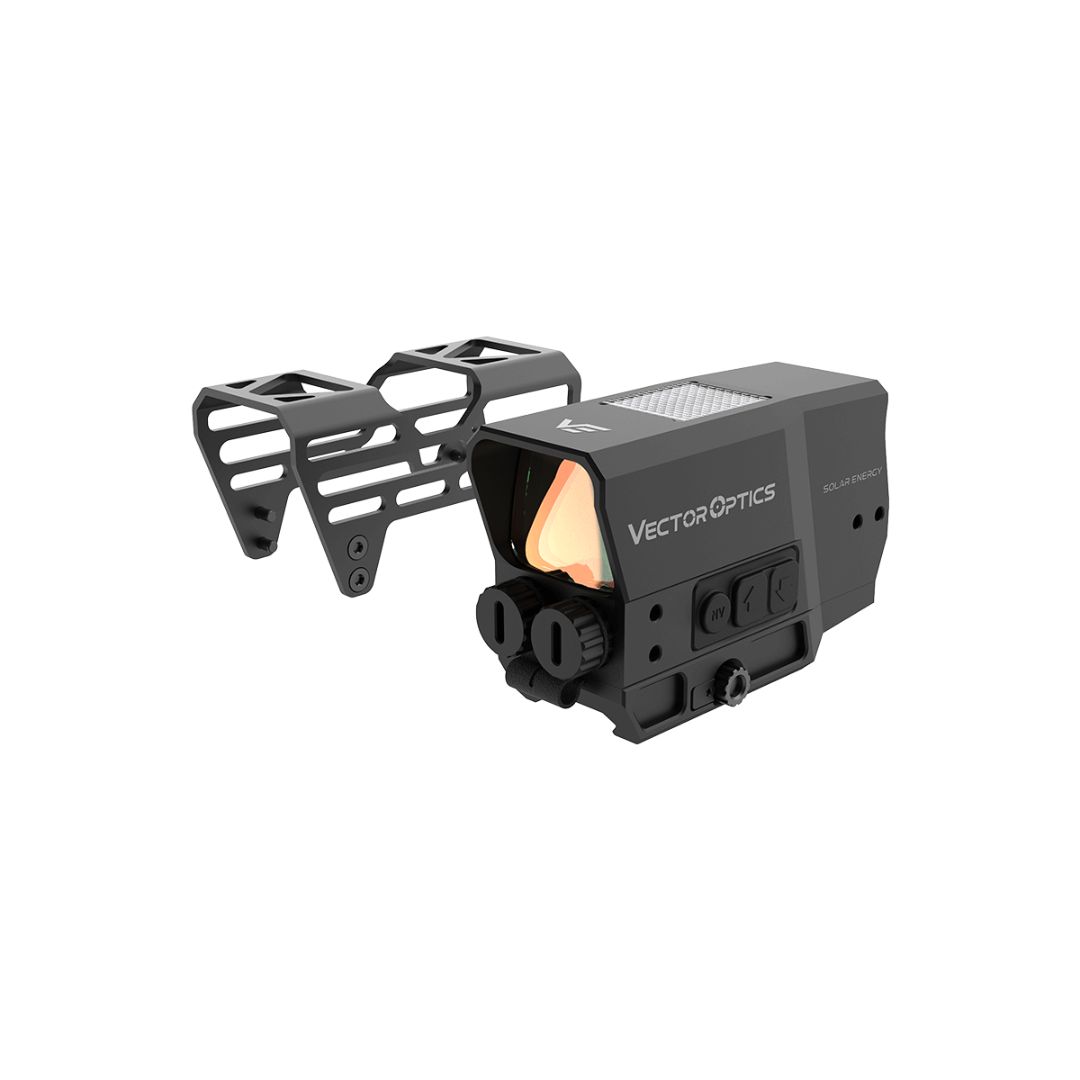

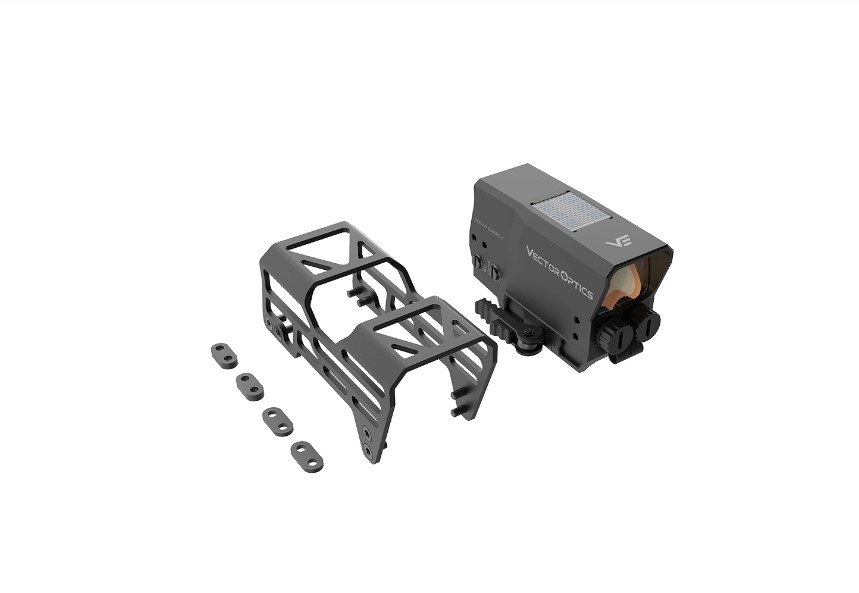

- Removable Protective Shroud, Better Protect from Scratches or Drops
- Up to 80,000 Hours of Battery Life, Equipped with Motion Sensor Feature
- 9 Red Illumination and 2 Night Vision Mode, Versatile Both in Day and Night
- With Quick Detach Picatinny Mount, Quickly and Easily Installed or Detached
- IP67 Waterproof, One Meter Deep for 30 Mins
In the box?
- Vector Optics Frenzy Plus 1x31x26 Solar Reflex
- Aluminium Alloy Protective Shroud
- Vekey
- User Manual
- Cleaning Cloth
Warranty
- T-VIP Lifetime Warranty
