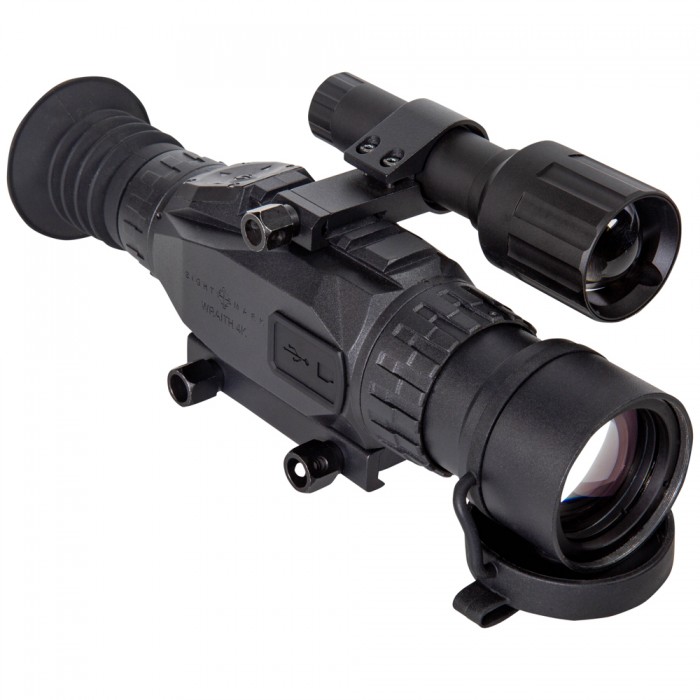

The Sightmark Wraith 4K Ultra 4-32x40 Digital Night Vision Rifle Scope with Long Mount is built for serious shooters who demand precision around the clock. At its core is a powerful 4K (3840x2160) CMOS sensor, delivering stunning image detail both day and night. During daylight hours, it operates in full-colour HD, while at night it switches to digital night vision with a detection range of up to 274 metres (300 yards), supported by an 850nm IR illuminator for clarity in complete darkness.
With a variable 4-32x magnification range and a 40mm objective lens, the Wraith 4K offers excellent versatility across a wide range of distances. The 1280x720 FLCOS display ensures a crisp, detailed sight picture, while the 10 reticle styles in 9 colours allow for tailored aiming to suit any environment or target.
The scope includes built-in video recording with audio in 4K, allowing users to record hunts or sessions directly to a microSD card (up to 256GB supported), with approximately 1.75 hours of video on a 64GB card at 4K quality. It also captures high-resolution still images, stored in JPEG format.
Designed for rugged use, the Wraith 4K is IP55 water resistant, shockproof, and recoil-rated up to .308 calibre. It runs on 4x AA batteries, providing up to 4.4 hours of operation, and also supports external 5V power via USB-C for extended sessions. The long mount version provides enhanced eye relief and better positioning for a wider range of rifles.
| Product Name A-Z | WIN A: Sightmark Wraith 4K Ultra 4-32x40 Digital Night Vision Rifle Scope w/Long Mount |
|---|---|
| SKU | OPTICSDRAW#98 |
Specs
Electronic Components
- Type of sensor: CMOS sensor
- Sensor resolution: 4K (3840x2160)
- Display type: FLCOS
- Display resolution: 1280x720 pixels
- Built-in video recorder: Yes
- Maximum memory card supported: 256GB
- Video clip format: AVI
- Video resolution: 1080p / 4K
- Photo file format: JPEG
- Photo resolution: 4K
- Approximate memory capacity: 1.75 hours of video on a 64GB SD card at 4K@30fps
Optical Characteristics
-
Lens diameter: 40mm
Magnification
- Model: Wraith 4K 4-32x40 (SM18040/SM18040EU)
- Magnification range: 4–32x
Field of View @ 100m
-
Field of view: 7 metres
IR Illuminator
- Emitter: LED
- IR wavelength: 850nm
- Equivalent IR power: ~1060mW (High), ~540mW (Medium), ~400mW (Low)
- Battery life: 2 hours on High
- Battery type: 2x non rechargeable CR123A (do NOT attempt to charge the CR123A batteries)
Range of Detection
-
Night vision detection range: 274 metres / 300 yards
Power Supply
- Power supply voltage: 6V
- Battery type: 4x AA
- Battery life: 3.6 hours (Video Mode) / 4.4 hours (Preview Mode)
- External power supply: 5V via USB-C
Reticle
- Windage & elevation click value: 1/4 MOA
- Elevation adjustment range: ~92 MOA
- Windage adjustment range: ~215 MOA
- Number of reticle options: 10 patterns
- Reticle colours: Black, White, Red, Blue, Green, Cyan, Orange, Yellow, Magenta
Physical & Operational Characteristics
- Body material: Aluminium
- Mount type: Picatinny
- Operating temperature: -6°C to 50°C / 20°F to 122°F
- Waterproof rating: IP55 (Water resistant)
- Nitrogen purged: No
- Shockproof: Yes (Drop tested to 3ft)
- Maximum recoil resistance: Up to .308 calibre
- Tube diameter: N/A
- Length: 266mm
- Width: 63mm
- Height: 75mm
- Weight (with batteries): 1066g
Features
- Day and night use with full-colour HD imaging by day and digital night vision after dark
- 4K video recording with audio for capturing hunts and shooting sessions
- Still image capture in high resolution for documenting key moments
- Digital zoom from 4x to 32x for versatile short- to long-range targeting
- 850nm IR illuminator included to enhance visibility in complete darkness
- 10 reticle styles in 9 colours for user-customisable aiming solutions
- User-friendly on-screen display and interface for easy navigation and settings adjustment
- Long mount version for improved eye relief and compatibility with more rifles
- Built-in USB-C port for external power supply and data transfer
- Water-resistant IP55-rated aluminium body for durability in harsh weather
- Shockproof and recoil-rated up to .308 calibre, making it suitable for a wide range of firearms
- Fixed Picatinny mount for secure and easy installation
- Lens cap with integrated daytime filter for quick adaptation to changing light conditions
- Compact and rugged design that balances performance and portability
In the box?
- Sightmark Wraith 4K Ultra 4-32x40 Digital Night Vision Rifle Scope
- M13025.001 Sightmark Locking QD Mount
- IR Flashlight
- 2x non-rechargeable CR123A batteries (do not attempt to recharge these batteries)
- Objective Lens Cover
- Fixed Picatinny Long Mount
- User Manual
Warranty
- Sightmark Lifetime Warranty
