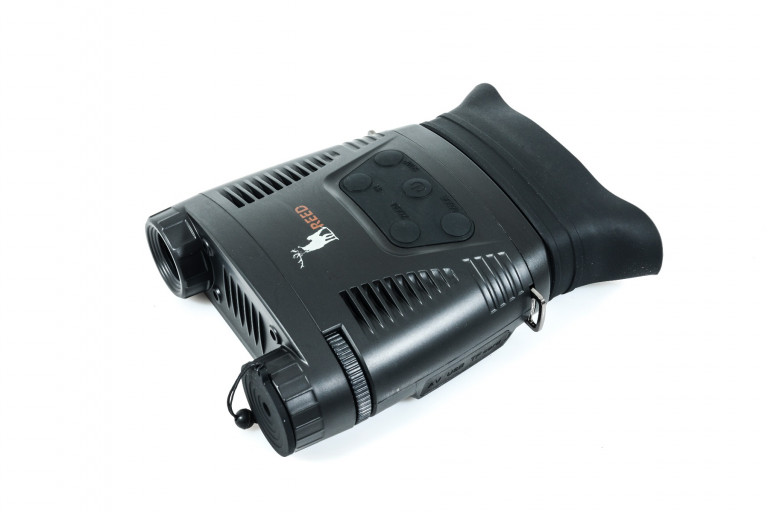

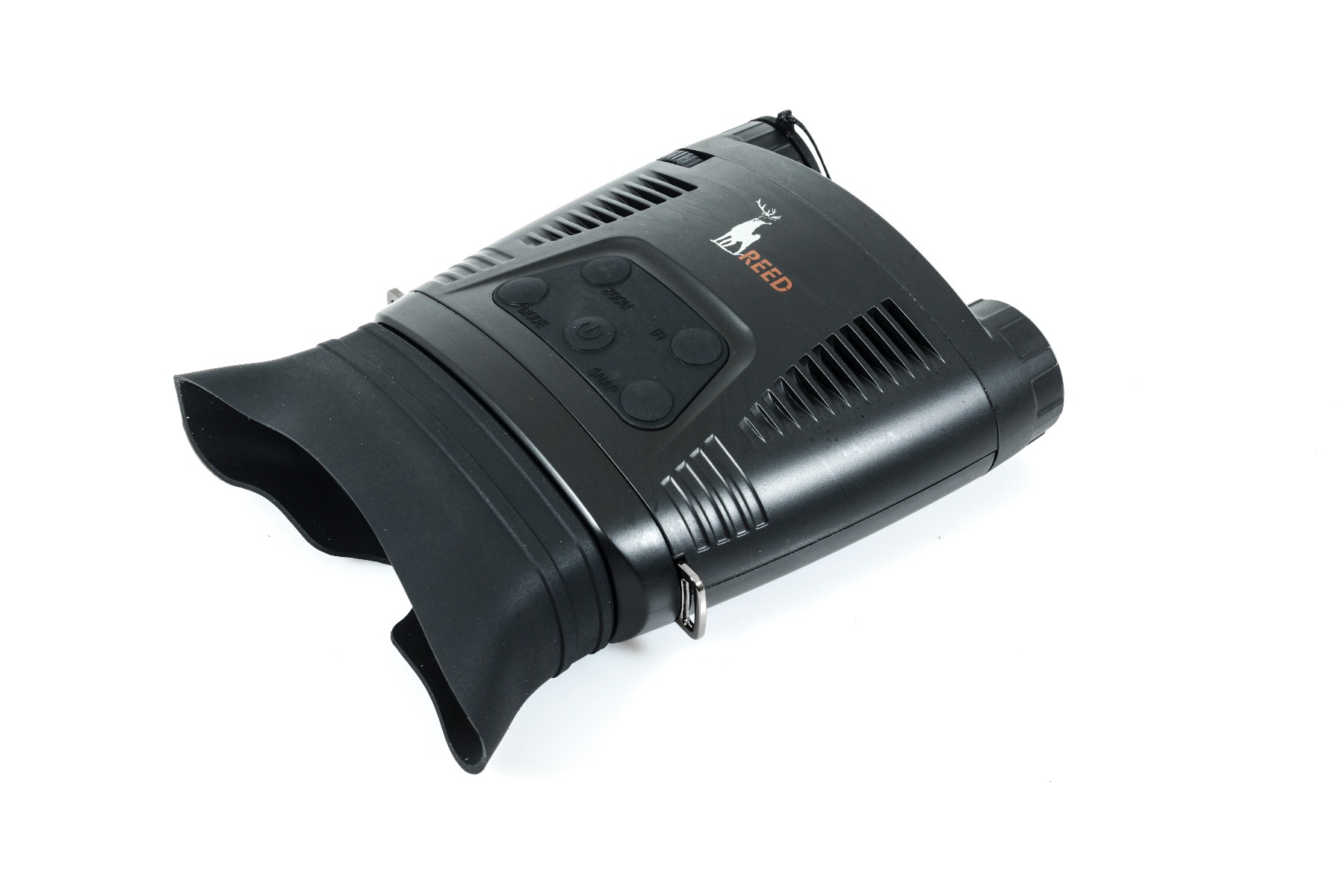

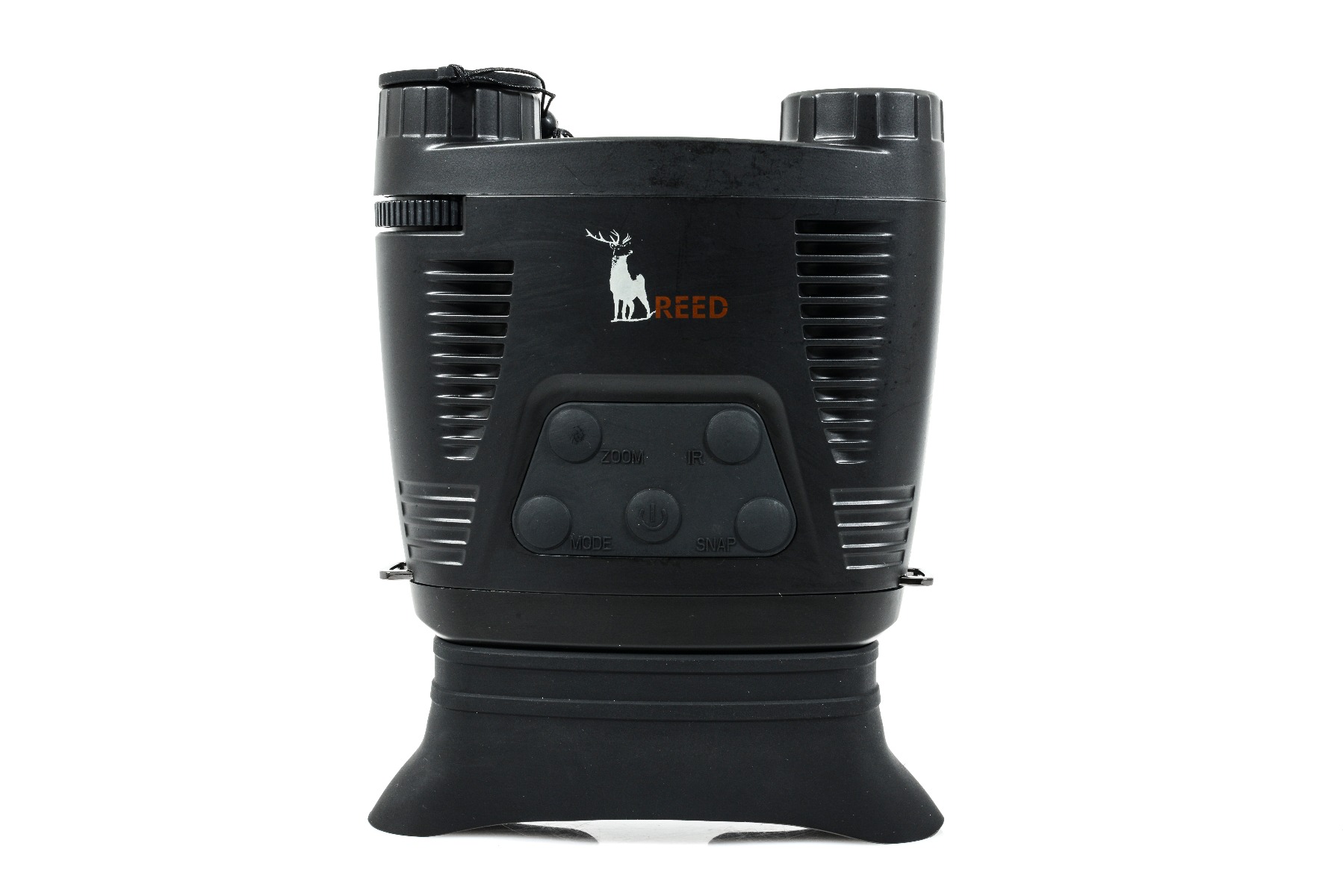

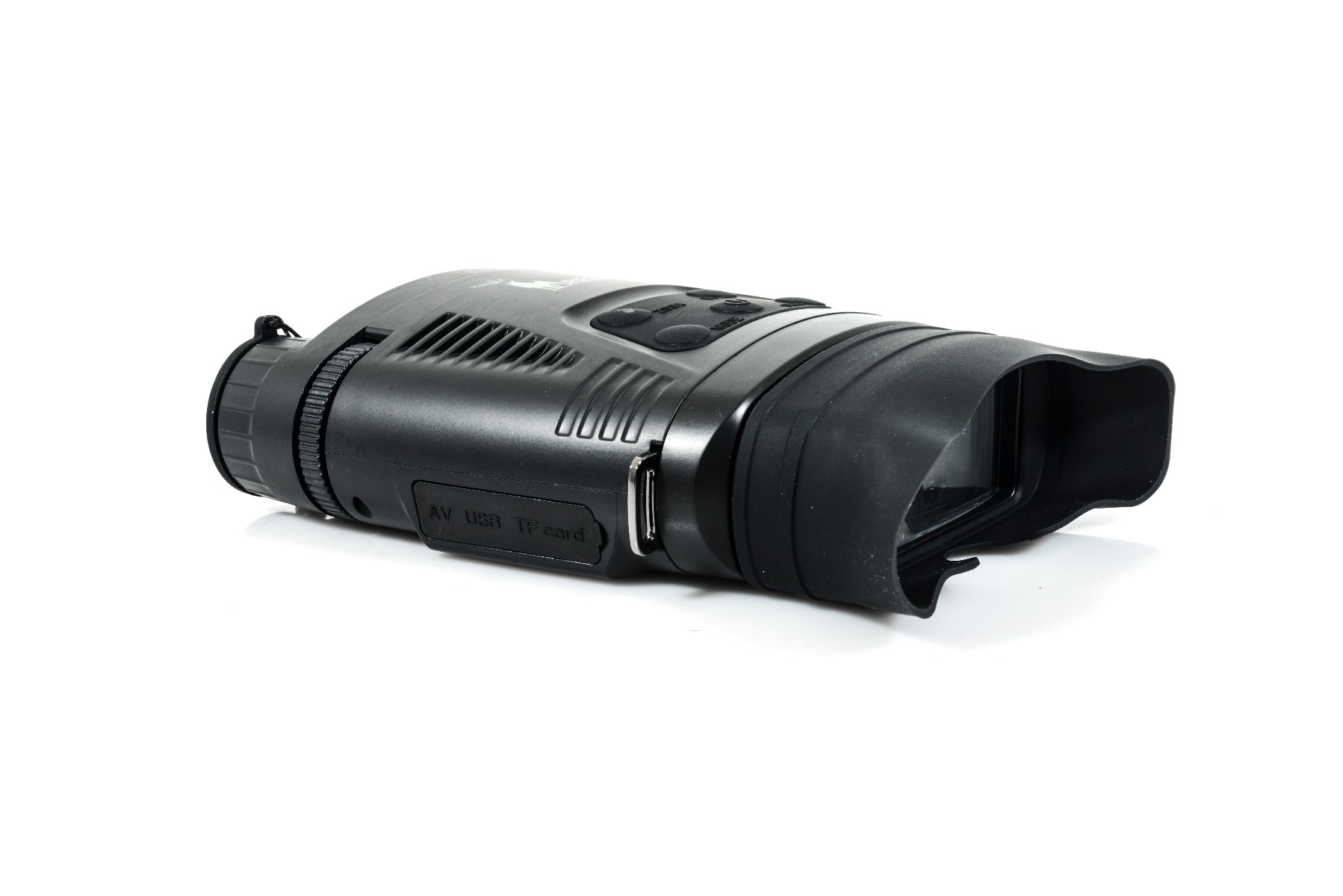

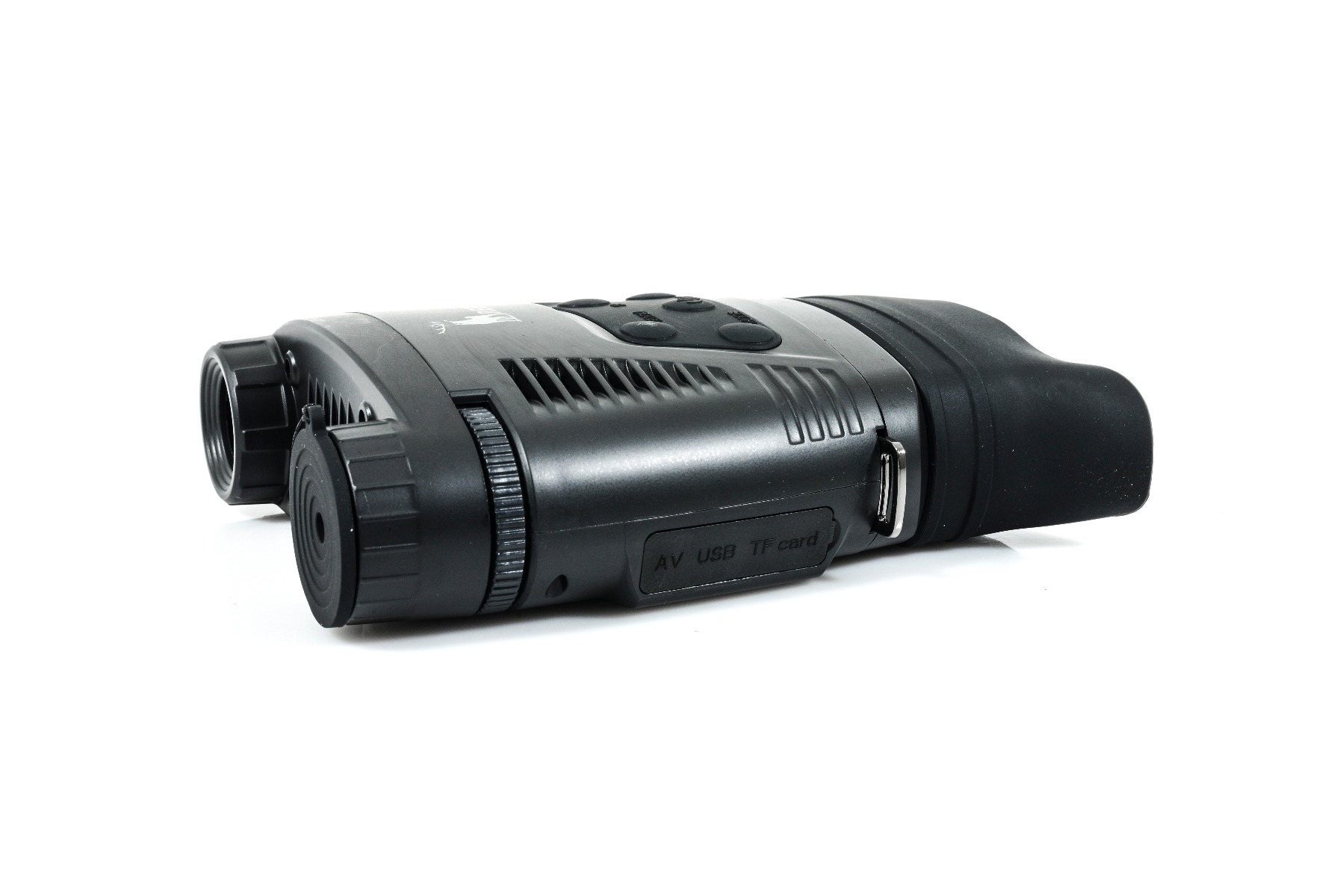

The REED 200m Day/Night Vision viewer provides the user with a more convenient and concealable unit.
These viewers come with a high definition CMOS sensor that provides the user with a viewing distance of 200m thanks to its 3.5x optical magnification and 2x digital zoom.
The REED 200m Day / Night Vision Viewer comes with a 640×480 resolution sensor which is paired with an onboard 850nm IR to help provide a clear image at night.
Product Name A-Z | WIN A: REED 200m Day / Night Vision Widescreen Binocular |
---|---|
SKU | OPTICSDRAWS#90 |
Specs
Catalog | Function Description |
Optical performance | Magnification power 3.5~7X21 |
Digital Zoom magnification, Max 2x | |
Angle Of View 9° | |
Objective Aperture 21mm | |
Exit Pupil Distance 60mm | |
F# for Objective lens 1.3 | |
3m~∞ in daytime (color); Viewing in the darkness up to 200M (monochrome) | |
Video Output | 320×240 resolution TFT LCD |
OSD menu display | |
CVBS always output with VGA resolution | |
Imager | CMOS High-sensitivity Sensor |
Size 1/4” | |
Resolution 640X480 | |
IR LED | 3W Infared LED with 850nm |
Micro SD Card | Support SDHC 4GB~32GB SD Card |
Hardware Buttons | Power on/off |
Snap | |
Mode selection | |
Zoom | |
IR switch | |
Operation | Preview |
Record AVI file in SD storage | |
Capture JPEG file in SD storage | |
Playback media file from SD storage | |
Power | External power supply – USB 5V/1A |
4 pcs AA battery 4.5V-6V | |
Battery life: 6 hours working time with IR off | |
Low battery warning | |
System | 4 modes (Capture, Video, Playback,Menu) |
Single frame Image Capture | |
Video image Record | |
Playback image | |
Delete image | |
5 levels IR switch for USB power,3 levels IR switch for battery. | |
Auto Power Off (Off/1 min/ 3min/5 min) | |
Language: English/French/Spanish/Portuguese/Deutsch/9 LANGUAGES | |
TV mode(PAL/NTSC) | |
Light Freq. 50/60HZ | |
Format | |
LCD Brightness 4 Levels adjustment | |
Version | |
Size | size 144mmx105mmx46mm |
Weight 400g (without battery) | |
package | USB cable/ AV cable/ Micro SD card/ Bag/Manual |
Features
-
Superb Night viewing up to 200m away
-
On board 850nm IR Illuminator
-
Easy viewing through single LCD screen
-
3.5x optical magnification
-
2x digital zoom
-
Large 320×240 viewing black & white screen
-
Wide dynamic range high sensitivity CMOS sensor with 640×480 resolution
-
Built in photo & video recording
-
Includes 8GB TF card – allows for on board recording
-
Specifically designed for nature observation, search & rescue and pest control
Video
Warranty
2 Year Warranty
