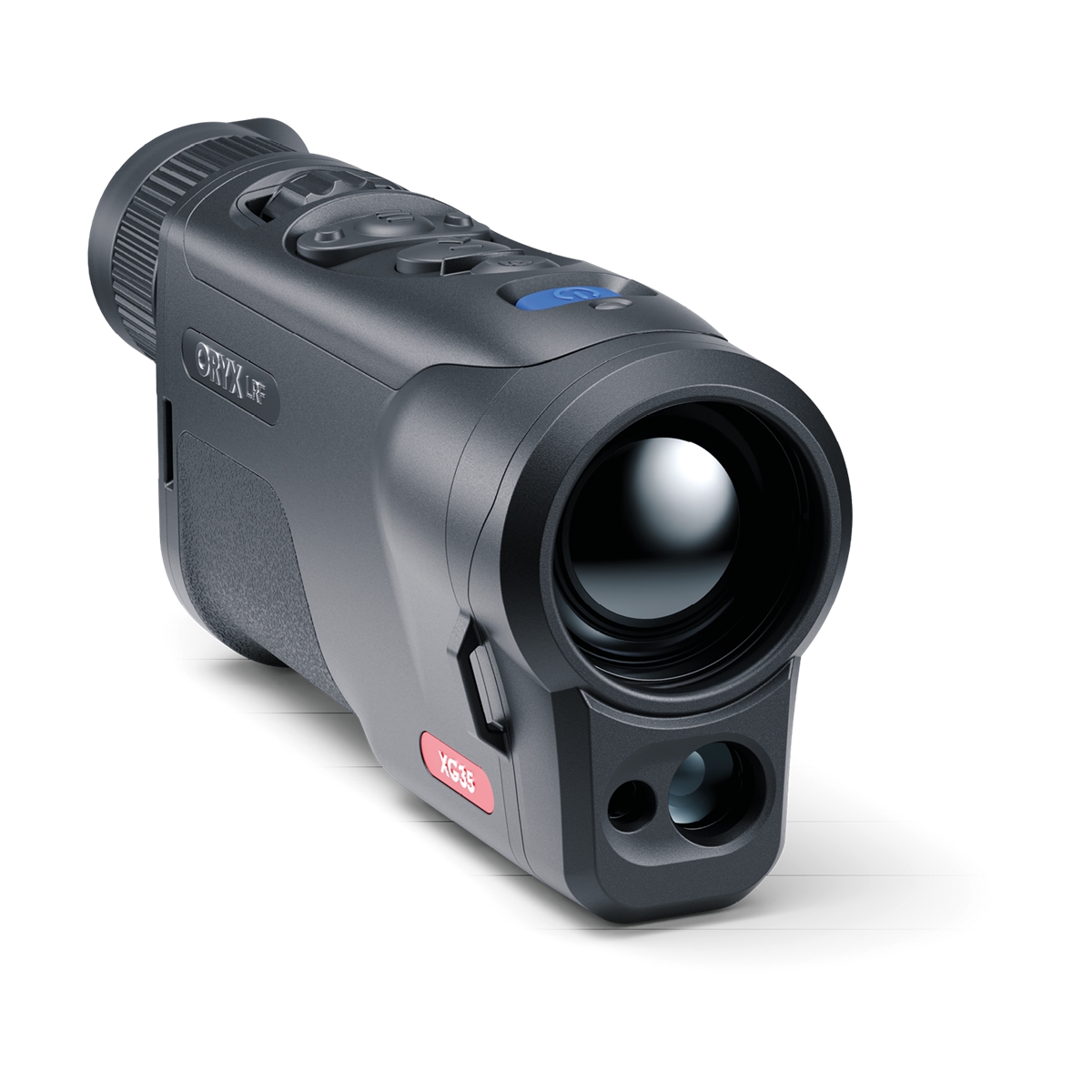

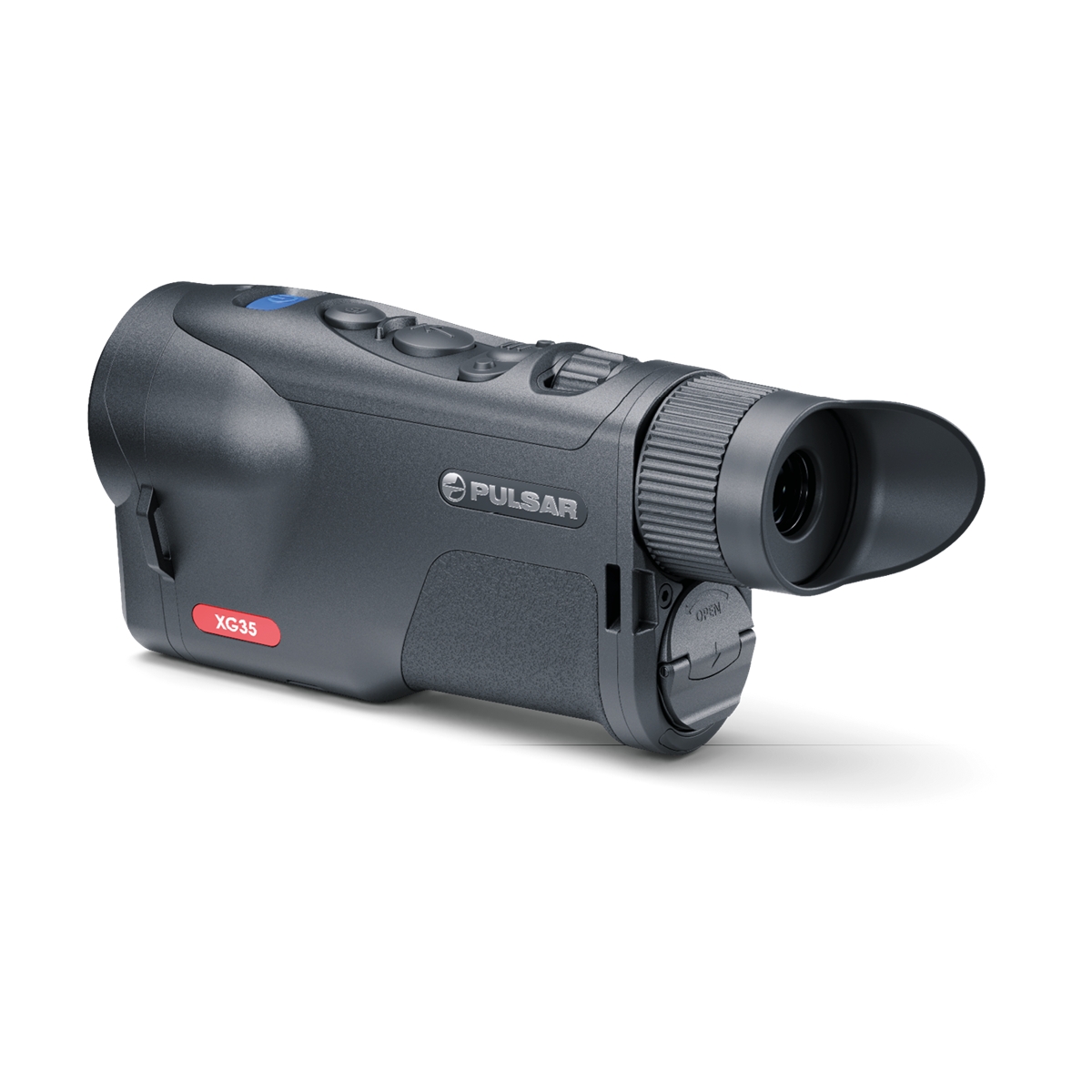

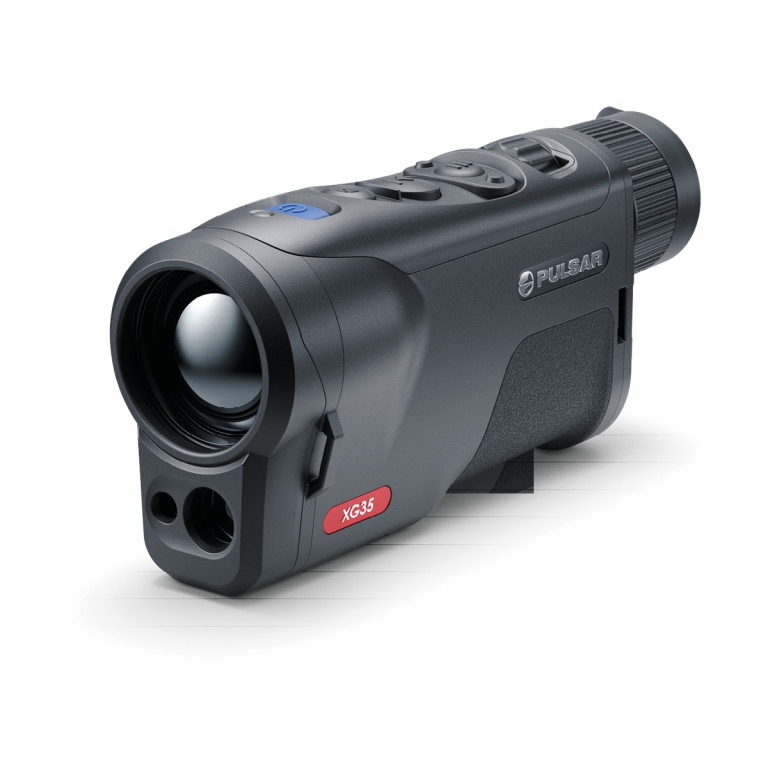

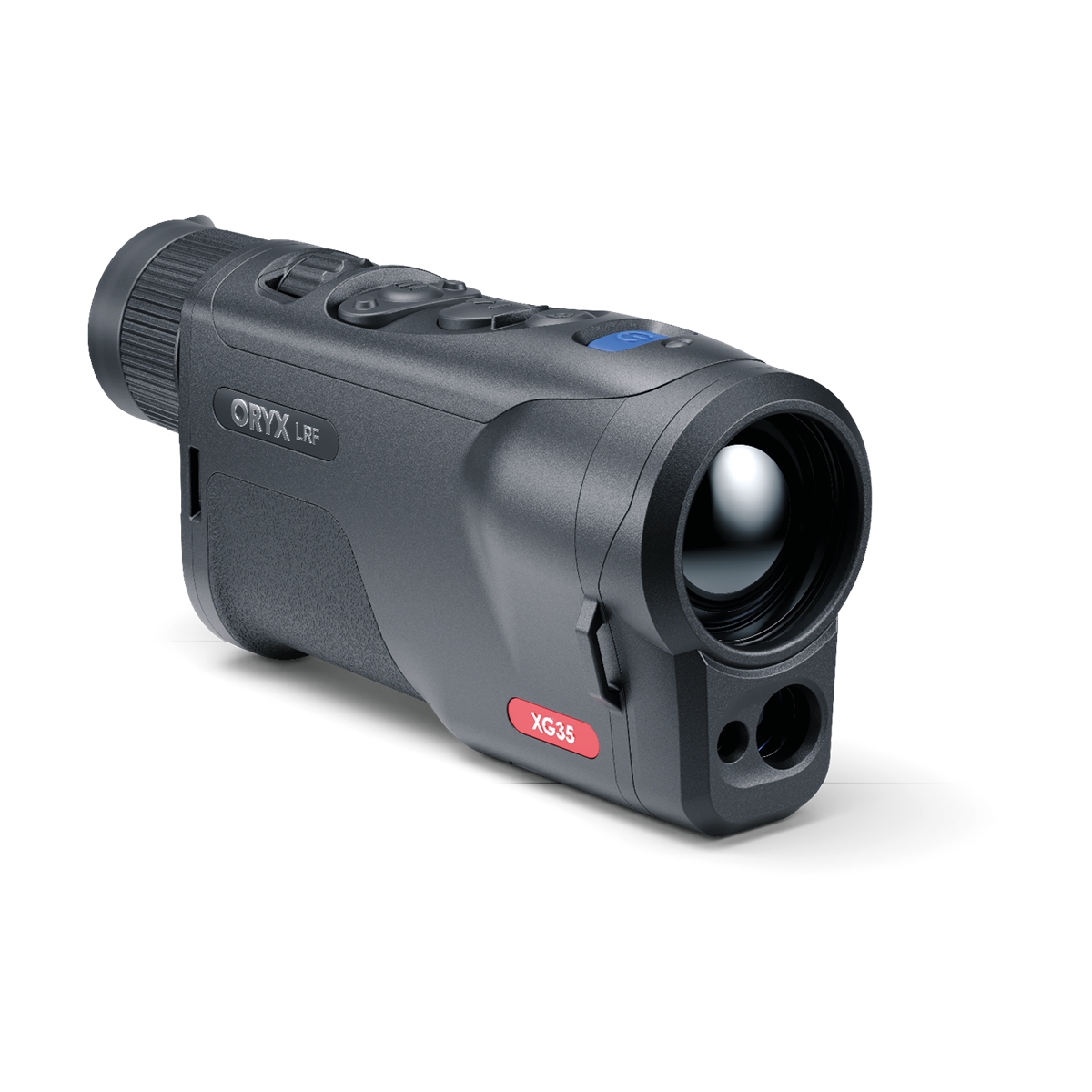

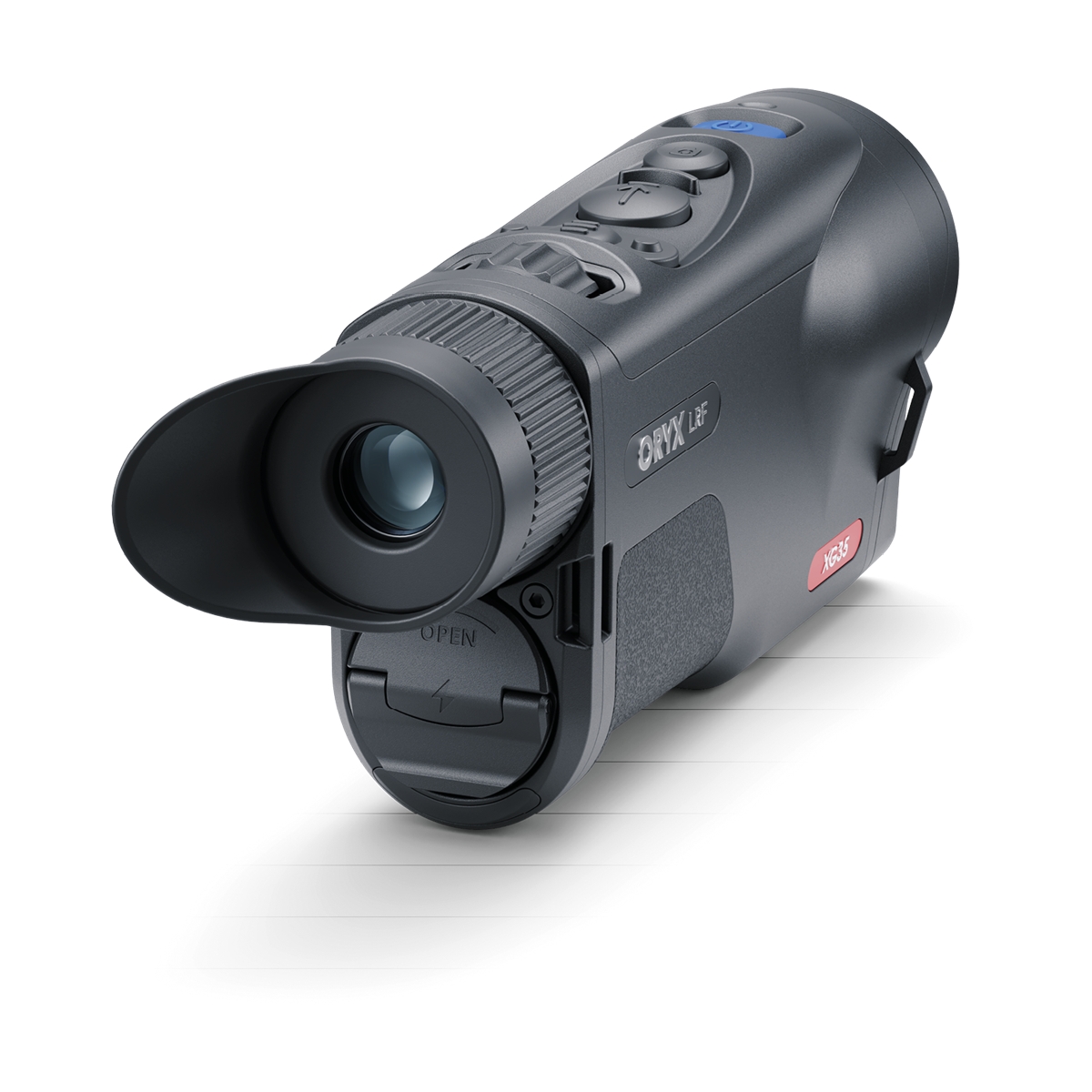

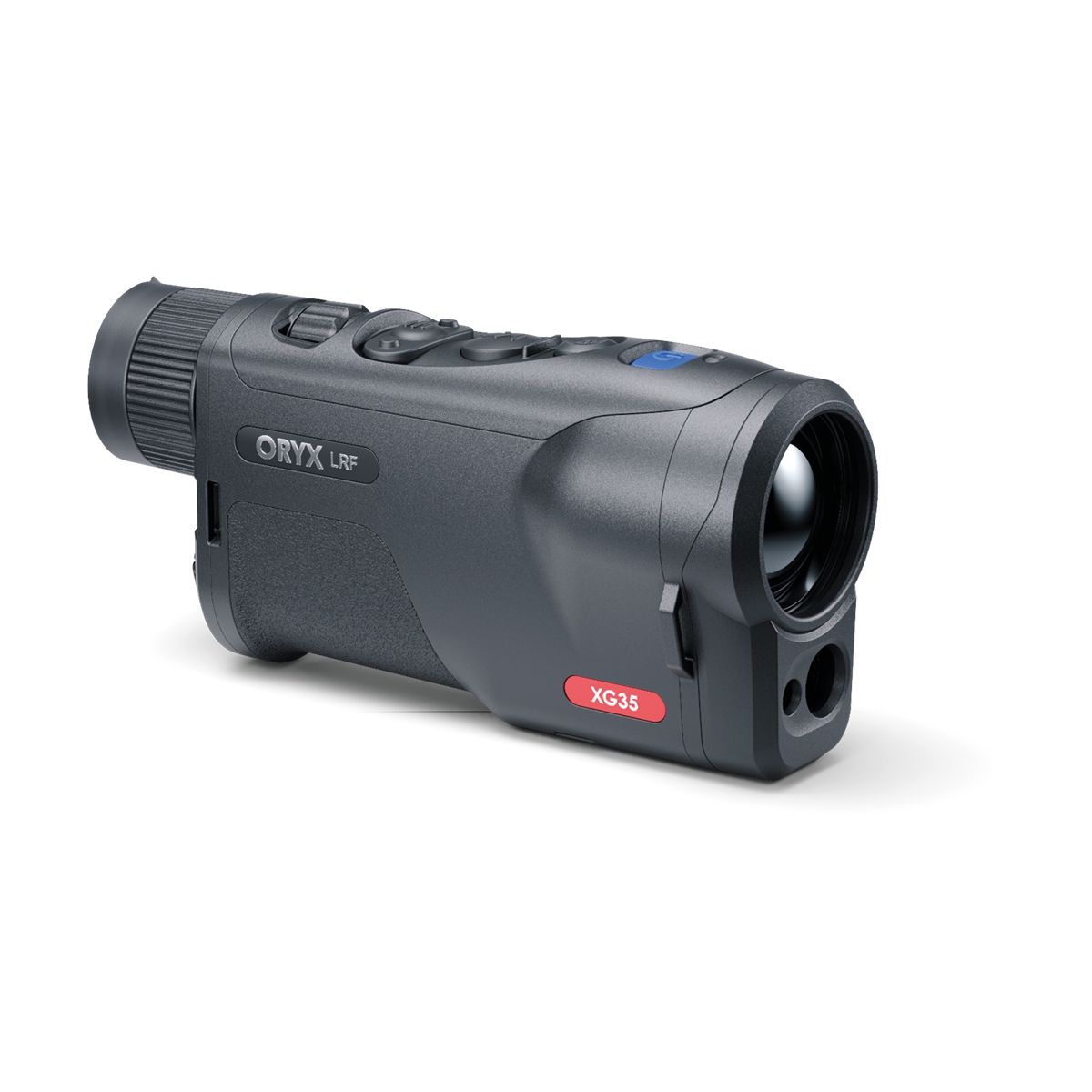

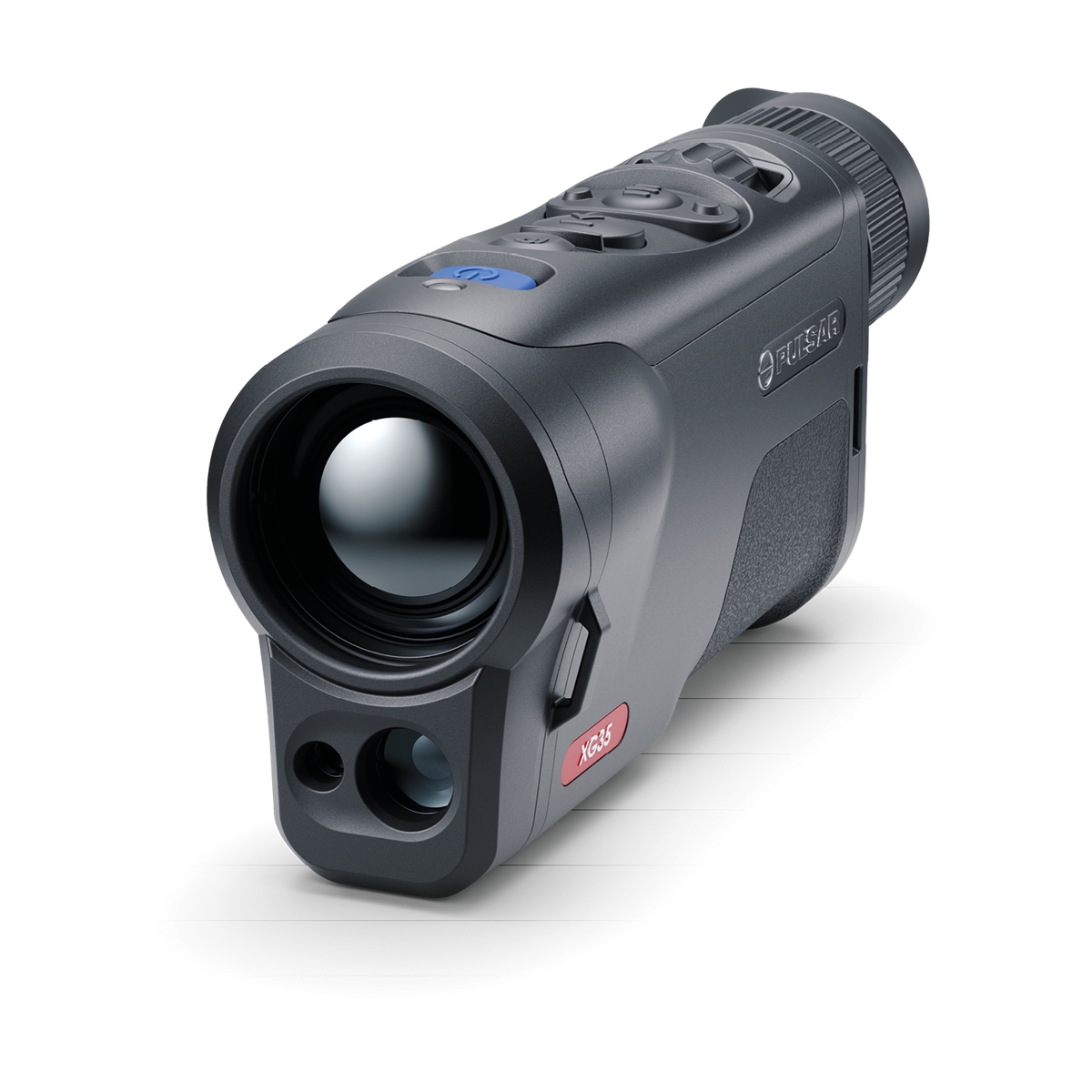

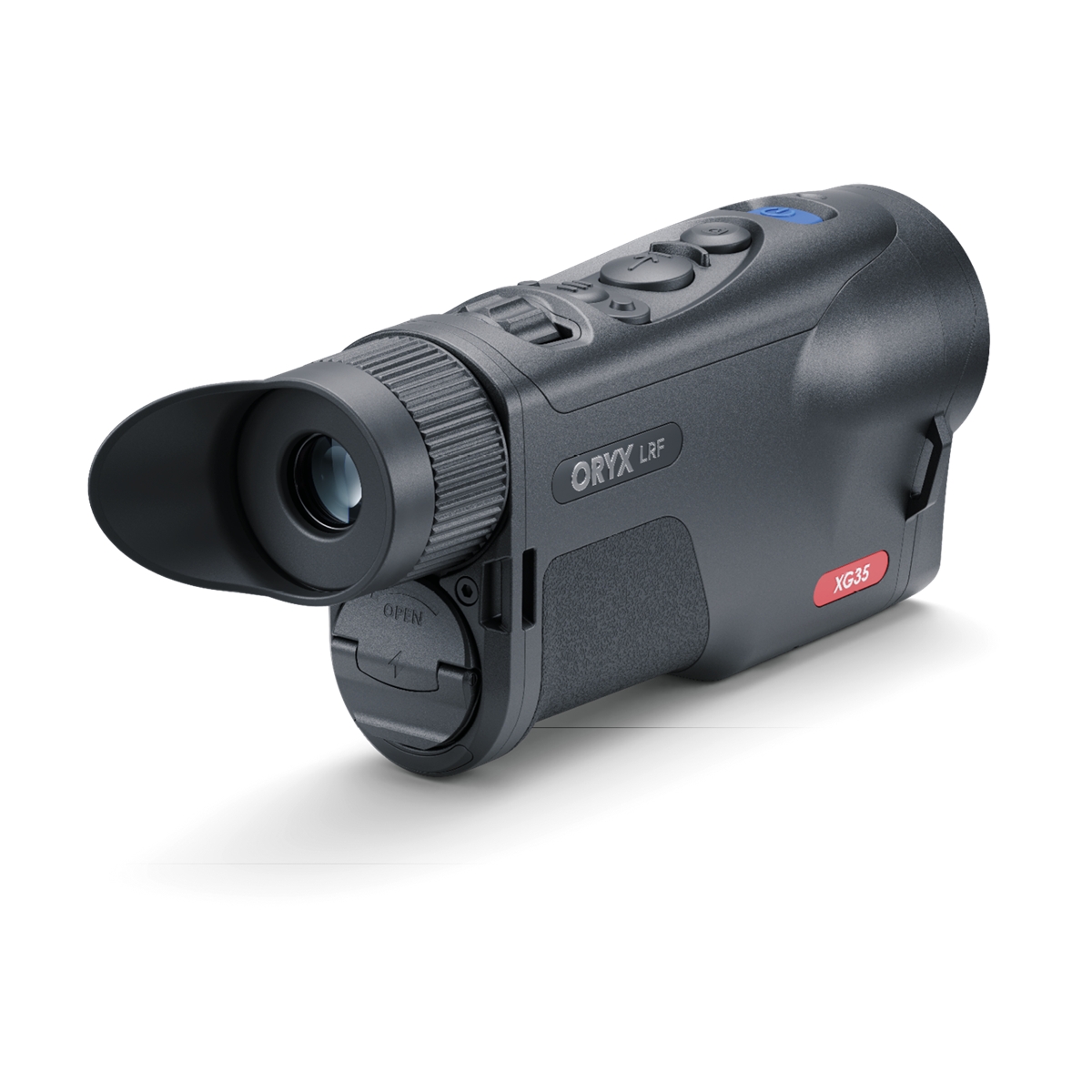

WIN A: Pulsar Oryx LRF XG35 Thermal Imaging Monocular - 640x480, 12um, <40mK

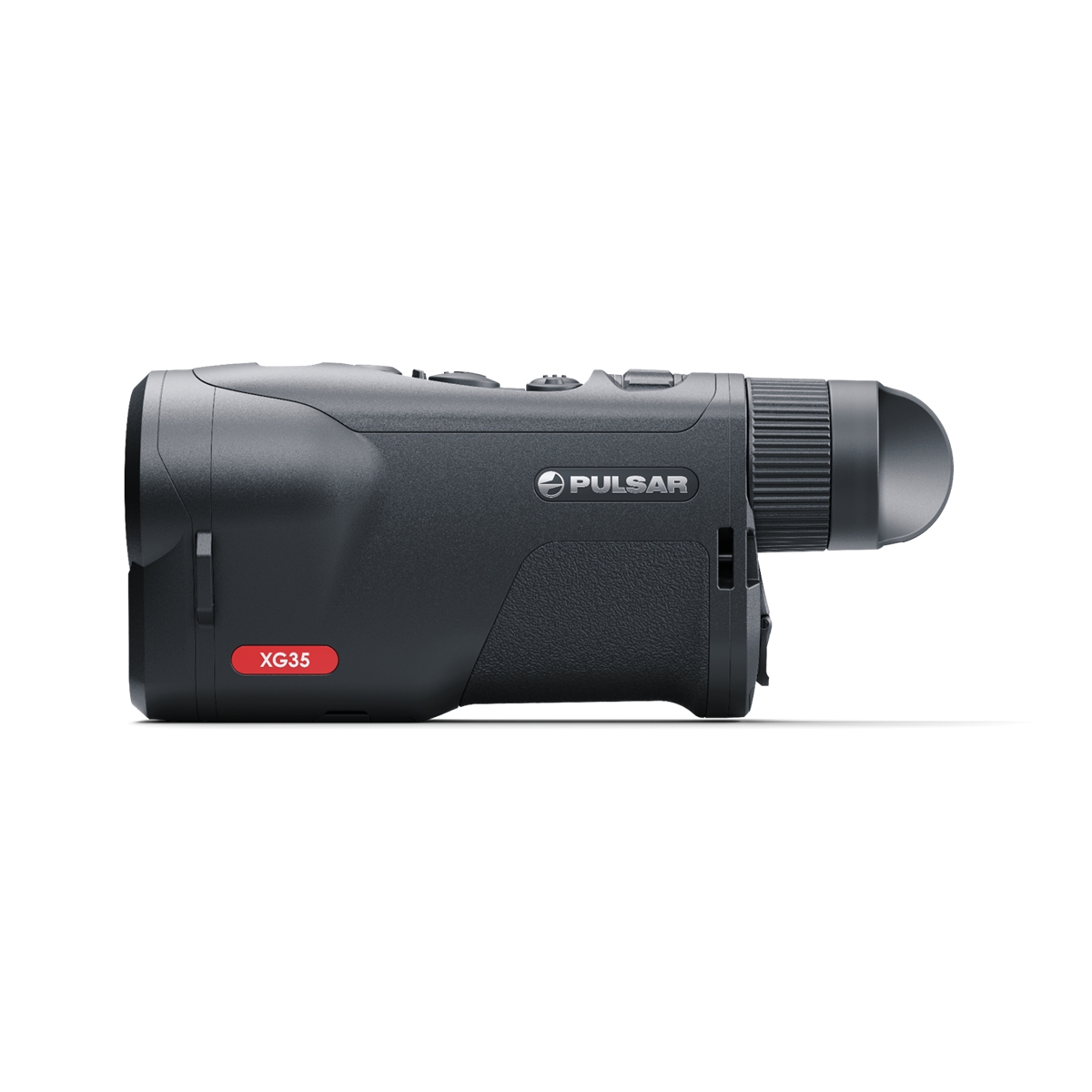

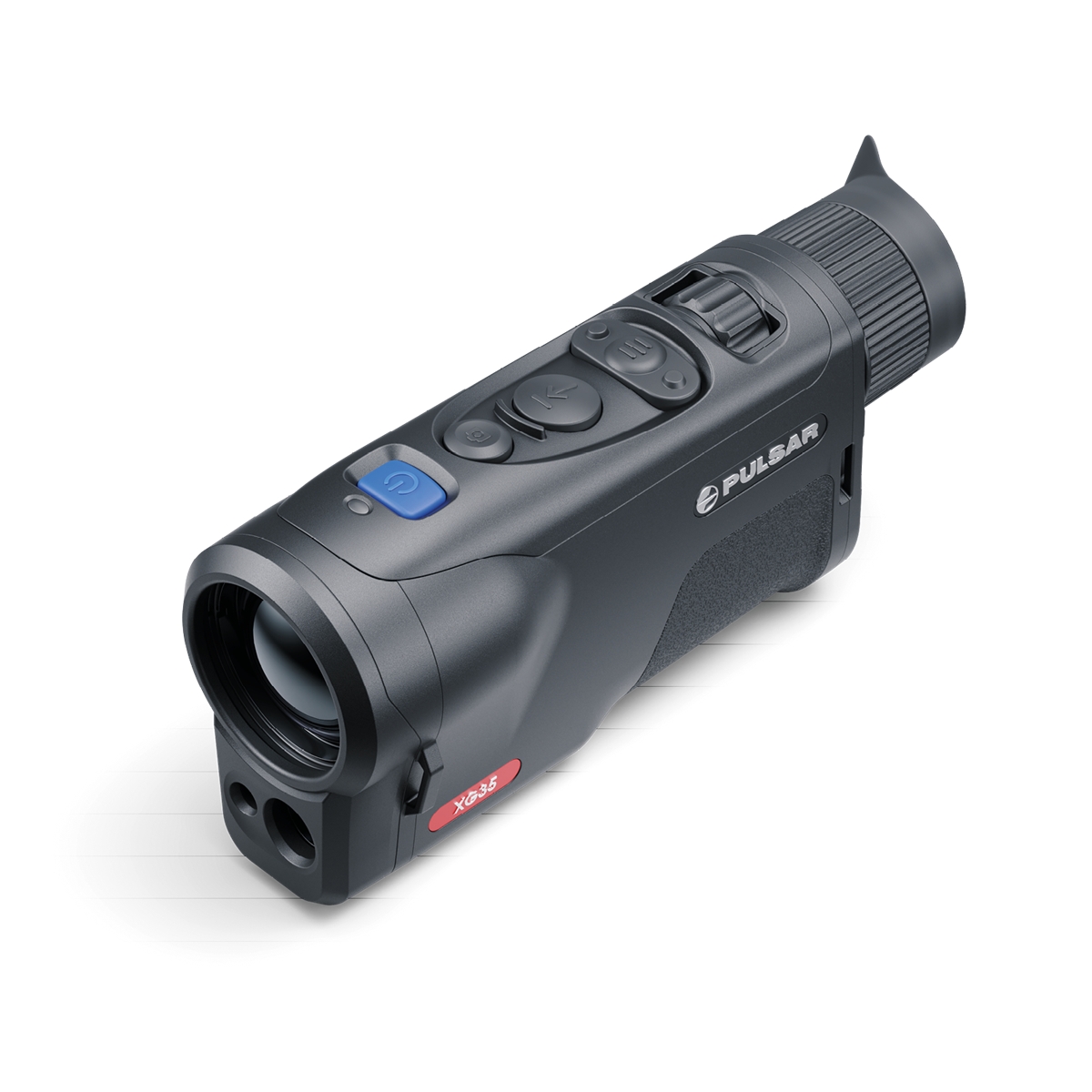

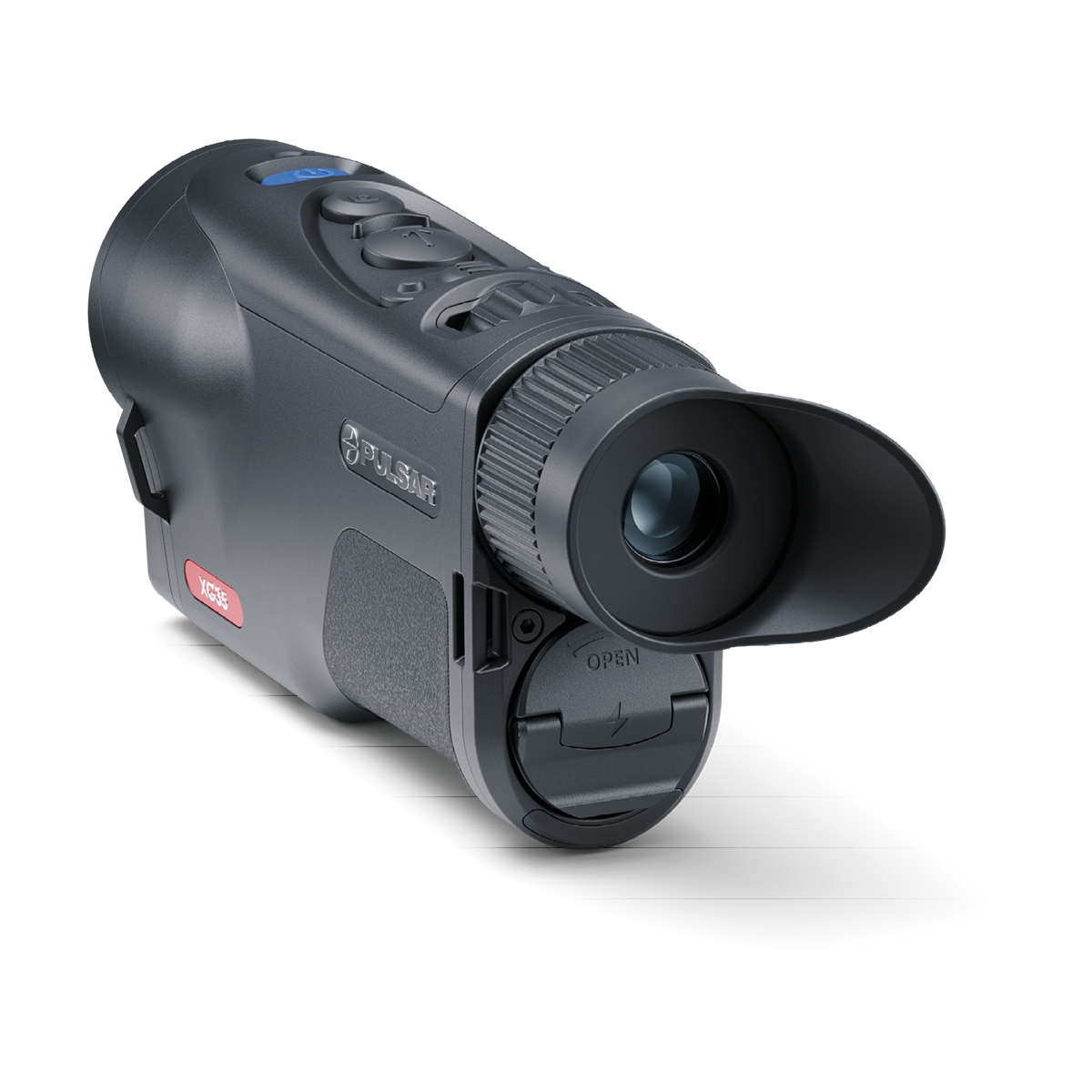

The Pulsar Oryx LRF XG35 Thermal Imaging Monocular redefines handheld thermal performance, offering powerful capabilities in a compact, ergonomic design. Equipped with a highly sensitive 640x480, 12µm thermal sensor and a fast 35mm f1.0 objective lens, this unit delivers superb image detail, even in challenging conditions. With a thermal sensitivity of <20mK sNETD system, and <40mK NETD sensor, it ensures exceptional contrast and clarity, making detection and identification possible at distances up to 1800 metres.

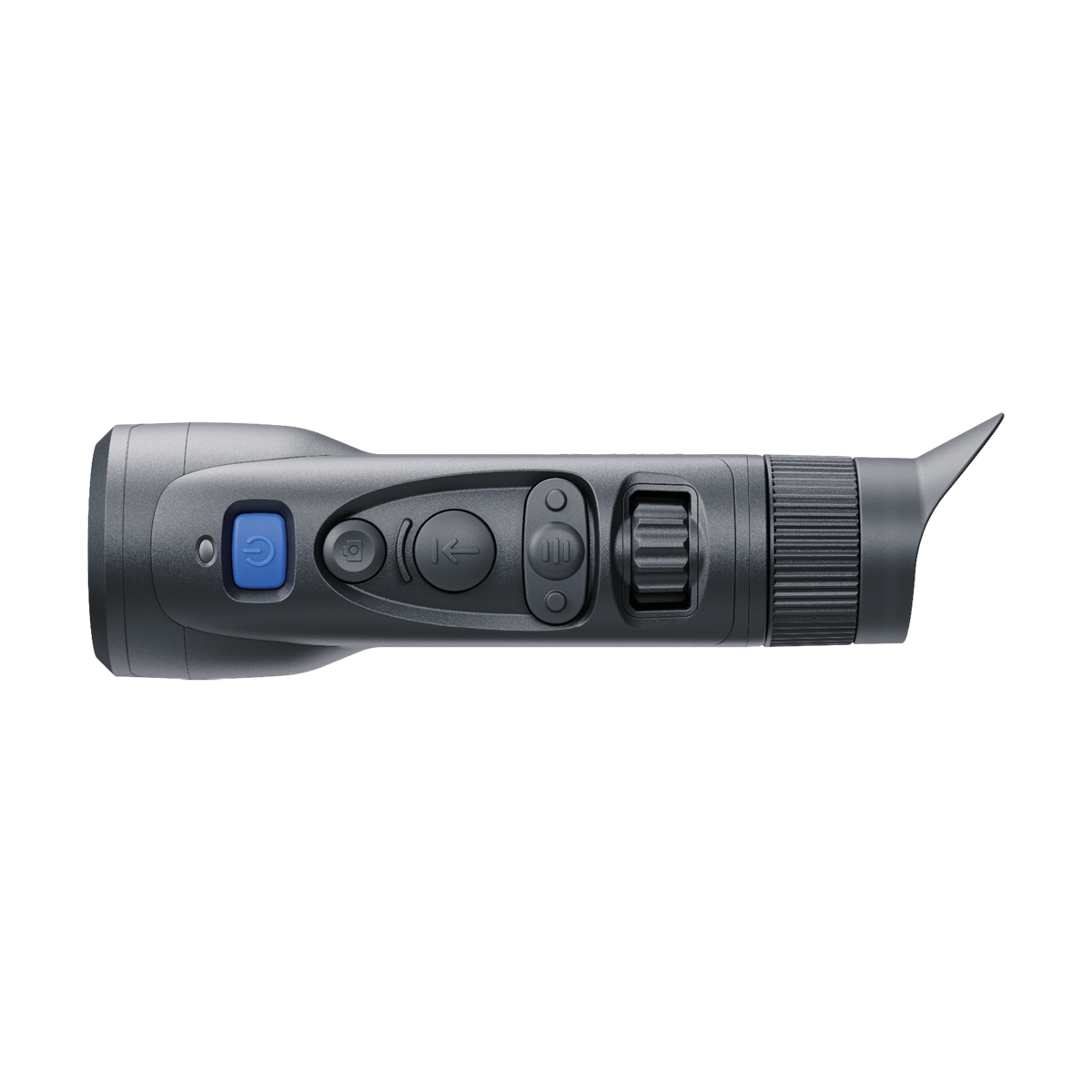

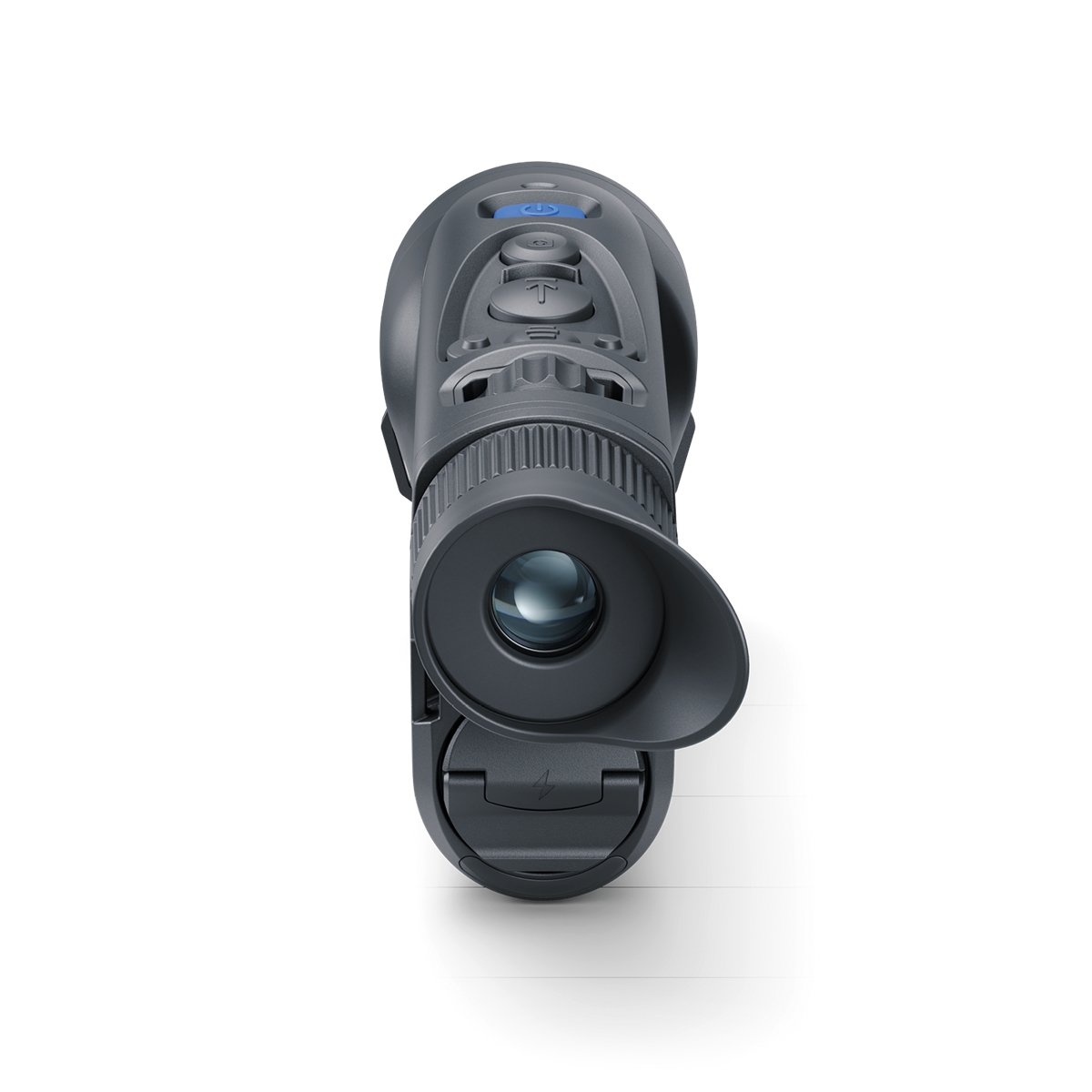

Designed for intuitive use in the field, the Oryx LRF XG35 introduces a rear-positioned focus wheel for effortless one-handed operation, while a symmetrical body and ambidextrous wrist strap allow comfortable use in either hand. Digital image stabilisation, previously seen in Pulsar’s flagship models, ensures smooth, shake-free viewing when scanning or observing over distance.

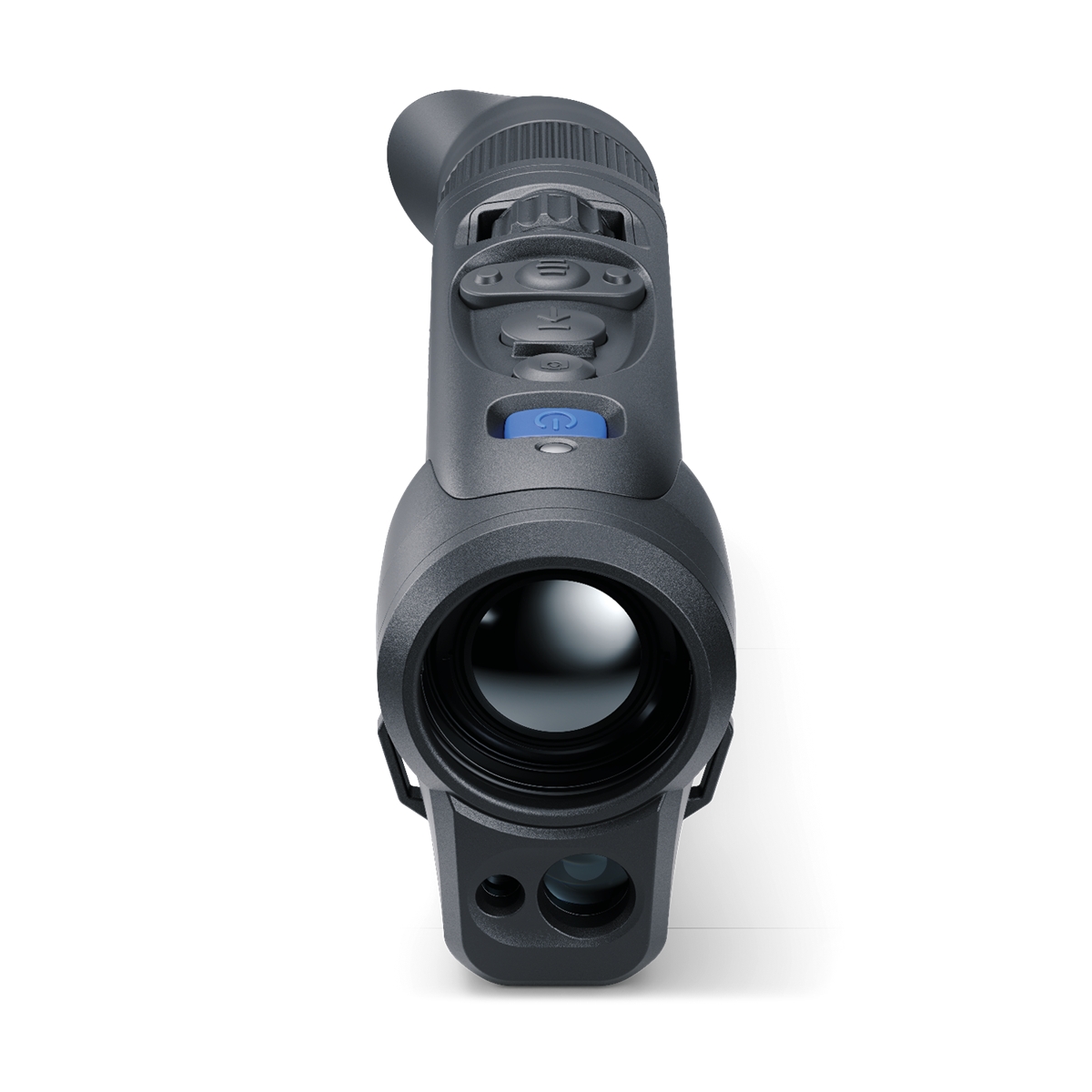

A discreet yet powerful built-in laser rangefinder sits beneath the lens, offering precise distance measurements up to 1500m with ±1m accuracy. Perfect for hunters, surveyors, and professionals who need real-time range data without compromise on size or handling.
Packed with modern digital functionality, the Oryx LRF XG35 features 2.5–20x magnification with 8x digital zoom, picture-in-picture mode, and nine colour palettes, all displayed on a crisp 1024x768 AMOLED HD screen. It also supports video recording with audio and still image capture, storing content to the device’s 64GB internal memory. Media can be accessed via USB-C or shared through the Stream Vision 2 app, which also enables wireless control, live streaming, and firmware updates.
The device runs on a dual battery system, combining internal power with a swappable APS5 battery for up to 12 hours of runtime, ensuring long-lasting performance in the field. Rated IP67 waterproof and operational between -25 to +40°C, the Oryx LRF XG35 is built to endure with a rugged magnesium alloy body that weighs just 500g.
Product Name A-Z | WIN A: Pulsar Oryx LRF XG35 Thermal Imaging Monocular - 640x480, 12um, <40mK |
---|---|
SKU | OPTICSDRAWS#956 |
Specs
- Thermal Sensor: 640×480, 12µm
- Thermal Sensitivity (sNETD): <20 mK
- NETD: <40 mK
- Frame Rate: 50 Hz
- Objective Lens: 35mm f1.0
- Magnification: 2.5 to 20x
- Field of View (HxV): 12.5°
- Eye Relief: 14 mm
- Display: 1024×768 AMOLED HD
- Detection Range: 1800 m
- Rangefinder: Built-in Laser Rangefinder
- Rangefinder Measuring Distance: Up to 1500 m
- Rangefinder Measuring Accuracy: ±1 m
- Laser Safety Class: 1 (IEC 60825-1:2014)
- Rangefinder Wavelength: 905 nm
- Video Recording: Yes, with audio + still image capture
- Video / Photo Resolution: 1024×768
- Video / Photo Format: .mp4 / .jpg
- Built-in Memory: 64 GB
- Wireless Protocol: Wi-Fi
- Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
- Wireless Frequency: 2.5 / 5 GHz
- Ingress Protection Rating: IP67 (IEC60529)
- Operating Temperature Range: -25 to +40°C
- Supported App: Stream Vision 2
- Output Voltage: 3.0 – 4.2 V
- Battery Type: APS 5 Li-ion Battery Pack
- Battery Capacity: 4900 mAh
- Battery Life: Up to 12 hours (tested at 22°C)
- External Power Supply: 5V; 9V (USB Type-C Power Delivery)
- Body Material: Magnesium Alloy
- Dimensions: 179×52×77 mm
- Weight: 500 g
Features
- Compact, ergonomic design optimised for one-handed use, with a focus wheel conveniently placed behind the eyepiece.
- Built-in precision laser rangefinder with up to 1500m measuring distance, seamlessly integrated beneath the objective lens.
- Digital image stabilisation reduces blurring caused by shaky hands or movement, providing clearer, more stable imagery.
- Stream Vision 2 app compatibility enables wireless connectivity, live streaming, firmware updates, and remote control functionality.
- Dual battery system combining internal and removable power sources for up to 12 hours of operation and on-screen charge monitoring.
- Haptic feedback provides tactile confirmation of button presses for intuitive, no-look operation in low light or high-pressure situations.
- Integrated photo and video recording with audio, allowing easy capture of observations, stored to 64GB of internal memory.
- Picture-in-Picture mode for magnified views while maintaining situational awareness with the main field of view.
- Nine customisable colour palettes, letting users tailor image display for different environments and personal preference.
- IP67 waterproof and dustproof rating, built to perform reliably in harsh conditions, including rain, mud, and snow.
- Magnesium alloy housing for superior durability without adding unnecessary weight.
- Ambidextrous design with adjustable wrist strap, ensuring comfortable use for both left- and right-handed users.
- Auto brightness control to optimise screen visibility across varying lighting conditions.
- Three levels of sensitivity amplification, enhancing thermal detection based on the scenario or environment.
- Lightweight and palm-sized, making it ideal for mobile use across hunting, wildlife observation, and professional surveillance.
In the box?
- Pulsar Oryx LRF XG35 Thermal Imaging Monocular - 640x480, 12um, <40mK
Warranty
- Pulsar 3 year warranty
