Prize Winner
OPTICS DRAW #55
WINNER: Warren Burman
WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) (RRP: £1,069.95) Congratulations to Warren Burman who won with ticket number 11664
CHARITY: CoppaFeel
DONATION: £100.00
CoppaFeel
Draw #55 WINNER
1st December 22
WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY)
WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY)
Auto Draws

WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY)

THIS DRAW IS NOW CLOSED
WINNER: Warren Burman
CHARITY: CoppaFeel
DONATION: £100.00
0 remaining 300
Competition will close early if all entries are sold/allocated prior to the end date
per ticket
You must answer the question correctly when you enter:
TRY YOUR CHANCE AT WINNING
Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.
What you need to know COMPETITION DETAILS
COMP NAME WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY) RRP: £1,069.95
TICKET INFO Only £3.99 a ticket 300 tickets in total
DATES Competition ends: 1st December 22 Winner announced by: 1st December 22
CHARITY A portion of the profits from this draw will be donated to as charity of the winners choice
NOTES If all tickets sell before the closing date we will close the draw early! See terms for postal enter method. T&C's (Optics Draws is valid for UK citizens with a UK shipping address only.) HAVE FUN AND GOOD LUCK!

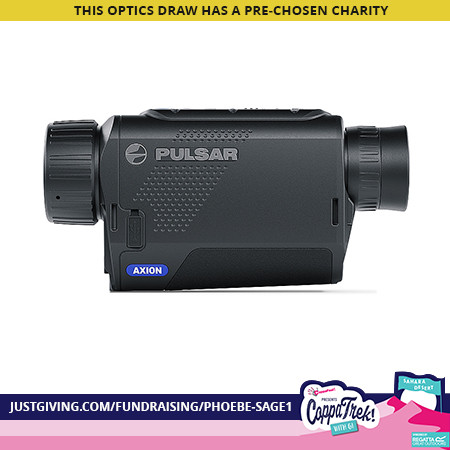

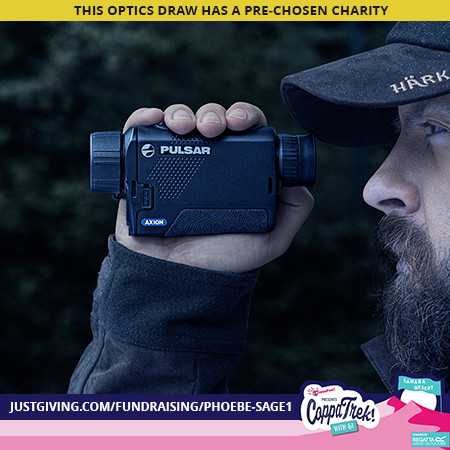

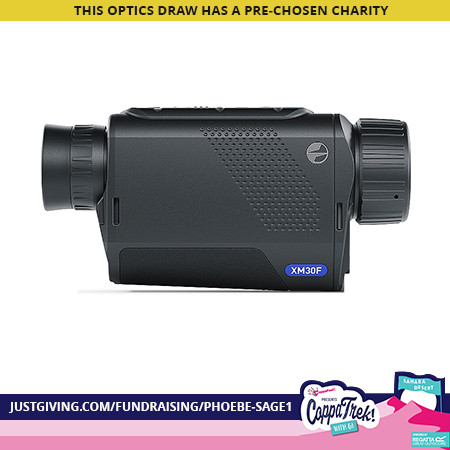

THE PRIZE: Pulsar Axion XM30F 3.2x 320x240 12µm <50mK Thermal Imaging Monocular

Pulsar Axion XM30F 3.2x 320x240 12µm <50mK Thermal Imaging Monocular

This 250g pocket sized ultra compact thermal imager is superb. The Lightweight Pulsar Axion 2 XM30F monocular features a 320x240, 12 µm thermal sensor with a <50mK thermal sensitivty offering a performance to price ratio that is helping really push its competition to the max. Your Pulsar Axion XM30F will provide a detection range of up to 1300m of a standard 1.8m tall object and a clear identification range of 350m-400m. The compact Pulsar Axion XM30F has an ideal optical magnifiication range of 3.2x and a digital magnfication of 4x.

For something so lightweight and compact the Pulsar Axion XM30F is incredibly rugged magnesium alloy housing has been designed with constant, hard use in mind, meaning the Axion XM30F is both light and strong in equal measure.

The Pulsar Axion XM30F has a quick-change rechargeable battery that offers up to 5 hours of battery life on a single charge thanks to the lowe power consumption APS3 battery system. The IPX7 waterproof rating provides protection from heavy rain and snow and is even submersible in 1m of water for up to 30 minutes.

The Pulsar Axion XM30F comes with a frost-resistant, high-contrast AMOLED display that uses improved colour rendering to provide a sharp and smooth image, even in adverse weather conditions.

Each Pulsar Axion XM30F comes with 8 colour palettes to give the observer the chance to find the best pallette and set up for every weather condition.

White Hot, Black Hot, and Red Hot are perfect for object detection; Rainbow and Ultramarine for recognition and identification; and Red Monochrome, Sepia, and Violet for night-time observation.

The Axion XM30F comes with video and still image recording capabilities, as well as Stream Vision 2 connectivity. You now have the chance to capture and store videos or photos on the Axion XM30F 's 16GB of internal storage, or share with friends via the cloud using the Stream Vision 2 App which is shows a step up from the previous Axion XM30.

Please Note: A Battery Dock Charger is Not Provided with this unit.

MORE INFORMATION

More Information

More Information
Product Name A-Z WIN A: Pulsar Axion XM30F 3.2x 320x240 12µm Thermal Imaging Monocular (PRE-CHOSEN CHARITY)
SKU OPTICSDRAWS#55
SPECS

Specs

Main
Sensor 320x240 pix. @ 12 µm
Objective lens F30/1.2
Magnification, x 3 - 12 (4x zoom)
Field of view (HxV), degrees / m@100m 7.8x5.9 / 13.7
Detection range, m 1300

Sensor
Type uncooled
Resolution, pixels 320x240
Pixel pitch, µm 12
NETD, mK <50
Frame rate, Hz 50

Optics
Objective lens F30/1.2
Magnification, x 3 – 12
Field of view (HxV), degrees / m @ 100 m 7.8x5.9 / 13.7
Eye relief, mm 14

Display
Type AMOLED
Resolution, pixels 640x400

Range Performance
Detection range, m 1300

Video Recorder
Video/photo resolution, pixel 528х400
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5 GHz

Environmental Characteristics
Degree of protection, IP code (IEC60529) IPХ7
Operating temperature range, °С -25 – +40

Connections and Compatibilities
Supported Application
Stream Vision, Stream Vision 2

Power Supply
Output voltage, V 3.0 - 4.2
Battery type Li-Ion Battery Pack APS 3
Capacity, mAh 3200
Operating time on the battery pack (at t=22°C), h * 7
External power supply, V 5 (USB)

Weight & Size
Body material Magnesium Alloy
Dimensions, mm 144x40x69
Weight, kg 0.25
FEATURES

Features

  • Pocket-sized dimensions and lightweight

Axion XM has a space-saving and pocket-sized design and weighs less than 250 grams. This is a classic option for running hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

  • Detection Range up to 1300 m

In Axion XM30F thermal imaging devices, space-saving dimensions fit together with a high detection potential. High-quality optics and a thermal imaging sensor with a 12-micron pixel will help to observe an object 1.8 meters high on distant approaches, up to 1300 meters.

  • Ideal optical magnification

Thermal imaging device solves practical problems of observation during the hunting already at the starting magnification. The 3x magnification of Axion XM30F is optimal for a comfortable study of the trophy at short and medium distances, the field of view is sufficient for observing dynamic scenes. The magnification is increased up to 4 times by means of digital zoom to identify distant objects.

  • Rugged magnesium-alloy housing

Axion XM is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases the consistency of the device operation during long-term observation.

  • Low power consumption. 7 hours of battery life on a single charge

A quick-change APS3 rechargeable battery provides 7 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for the external power supply of a thermal imaging device.

  • Frost-resistant AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power-saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

  • A selection of 8 colour palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation at night.

  • Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 GB of internal memory provide many hours of recorded video and tons of photos.

  • Stream Vision 2. WiFi integration with iOS and Android devices

The built-in WiFi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

  • IPX7 Waterproof Rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

VIDEO

Video

IN THE BOX

In the box?

  • Pulsar Axion XM30F
  • Carry Case
  • APS3 Battery
  • Charging cable
WARRANTY

Warranty

  • 3 Years Manufacturer's Warranty (1 Year on Batteries)
