Prize Winner
OPTICS DRAW #65
WINNER: Terence Edwards
WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit (RRP: £1,839.95) Congratulations to Terence Edwards who won with ticket number 14033
CHARITY: Cancer Research UK
DONATION: £85.29
Cancer Research UK
Draw #65 WINNER
30th January 23
Optics Draw #65 Winner WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit
Optics Draw #65 Winner
Thermal Imager

WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit

THIS DRAW IS NOW CLOSED
WINNER: Terence Edwards
CHARITY: Cancer Research UK
DONATION: £85.29
0 remaining 350
Competition will close early if all entries are sold/allocated prior to the end date
per ticket
You must answer the question correctly when you enter:
TRY YOUR CHANCE AT WINNING
Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.
What you need to know COMPETITION DETAILS
COMP NAME WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit RRP: £1,839.95
TICKET INFO Only £5.63 a ticket 350 tickets in total
DATES Competition ends: 27th January 23 Winner announced by: 30th January 23
CHARITY A portion of the profits from this draw will be donated to as charity of the winners choice
NOTES If all tickets sell before the closing date we will close the draw early! See terms for postal enter method. T&C's (Optics Draws is valid for UK citizens with a UK shipping address only.) HAVE FUN AND GOOD LUCK!

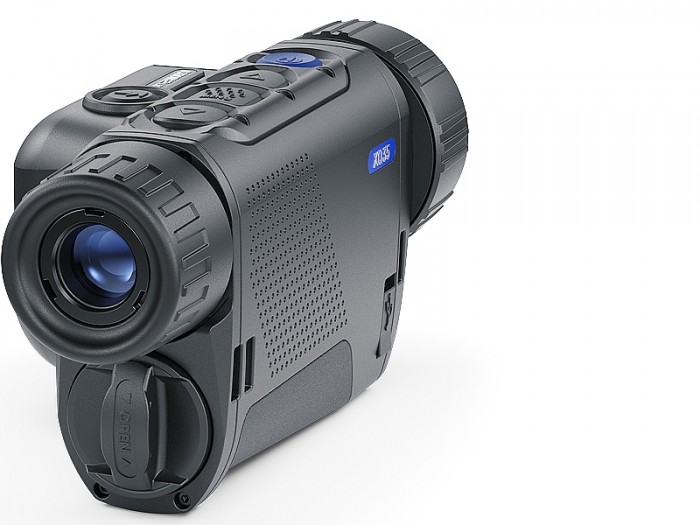

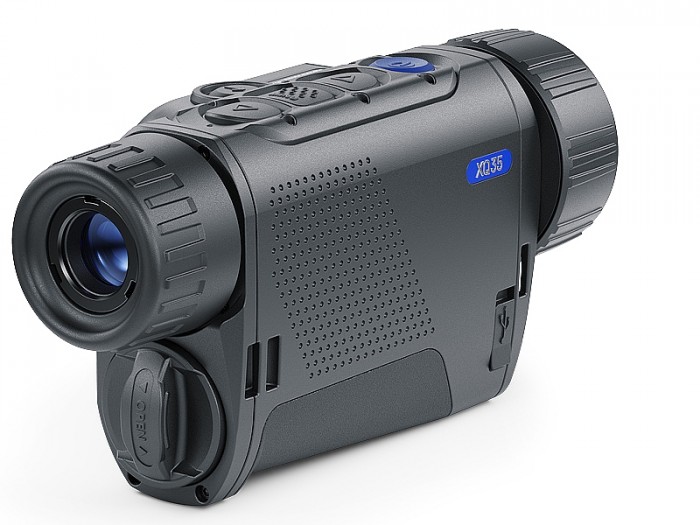

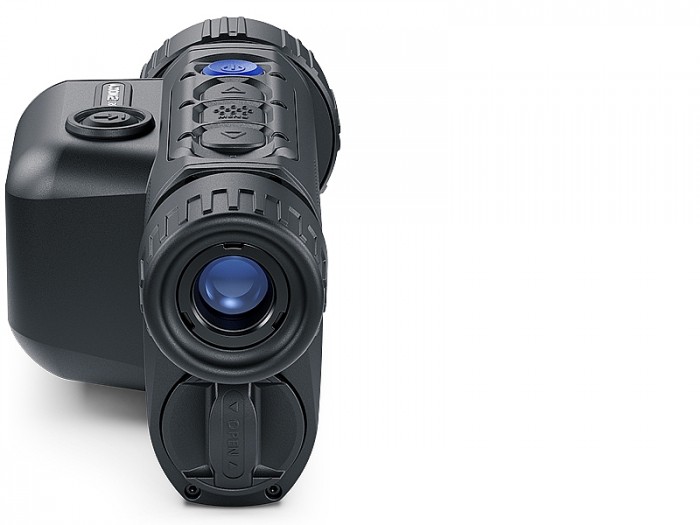

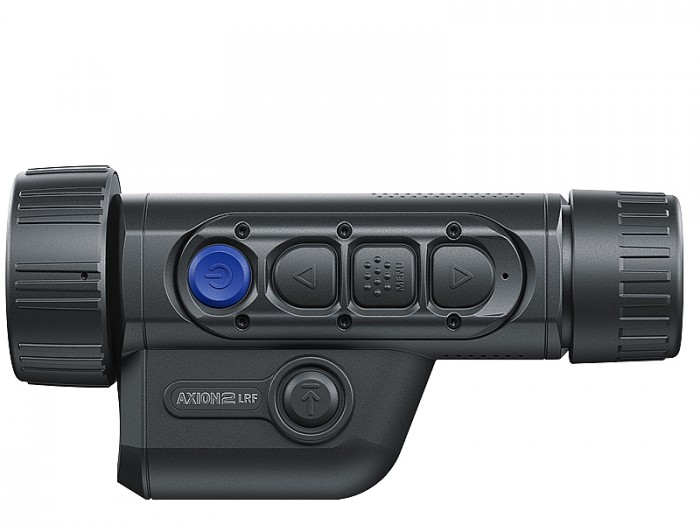

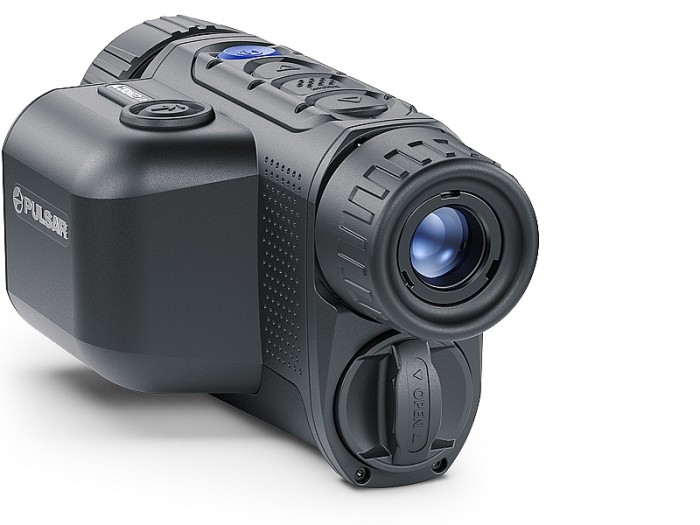

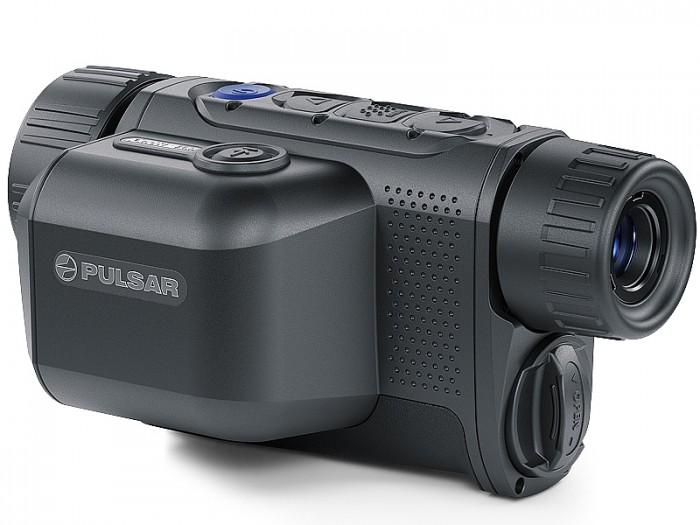

THE PRIZE: Pulsar Axion 2 LRF XQ35 384x288 17µm 40mk Thermal Imaging Handheld Monocular

The new Pulsar Axion 2 LRF XQ35 offers complete power in your pocket giving the user a 1300m detection distance. This 384x288 Pulsar Axion 2 XQ35 LRF Thermal Monocular is one of best thermal monoculars currently on the market providing the user with a true in depth feel thanks to its highly sensitive european made sensor, built-in precision laser rangefinder out to 1000m, F35/1.0 fast aperture lens.

All of this groups together to provide a greatly improved image quality. Construction and eletronic imporovements have been made which include  a battery life offering up to 11 hours of power on a single charge, improved algorithms, and an impressive 2.4/5GHz WiFi range. And to top it all off, the Axion 2 LRF thermal imaging monocular is now compatible with Stream Vision 2.

With a wide range of features packed into a compact and lightweight design, this thermal imaging monocular is easy to grip and can be comfortably operated thanks to the in-line button arrangement on the upper panel. And, with the added precision laser rangefinder, distances of up to 1000m can be measured in single measurements with an accuracy of ± 1 meters.

When it comes to size and construction the Pulsar Axion 2 XQ35 is one of the most compact units on the market, this pocket size Thermal monocular is really no bigger then a conventional laser range monocular yet with the performance that will blow your mind. Each Pulsar Axion XQ35 comes in a super high quality reinforced magnesium and alloy house which is designed for hard continuous use.

At the heart of the Pulsar Axion 2 LRF XQ35 is the highly sensitive European Lynred 384x288 17 µm thermal imaging sensor, combined with a powerful Germanium F35/1.0 objective lens, provides an impressive 1300m detection range of a standard 1.8m object in total darkness, even under difficult conditions such as fog, rain, and high levels of humidity.

One component of the device that has seen a great improvement when you look back at the previous Axion housing and component list is the new fast aperture lens system. The Pulsar Axion XQ35 LRF features a F35 1.0 Germanium lens which means the 384x288 thermal sensor of the Pulsar Axion XQ35 will now have a greater ability to receive as much thermal information through its front lens which ultimately helps provide the user with a better image and ability to identify their target. This new F35 1.0 lens features high infrared transmission in the LWIR range. Due to all the high quality components that Pulsar have chosen the ultimate image generated by the Pulsar Axion 2 XQ35 LRF is one full of clarity and detail.

The Pulsar Axion 2 XQ35 LRF 384x288 provides the user with three levels of signal amplification in combination with a system smoothing filter which includes a fine brightness and contrast adjustments.

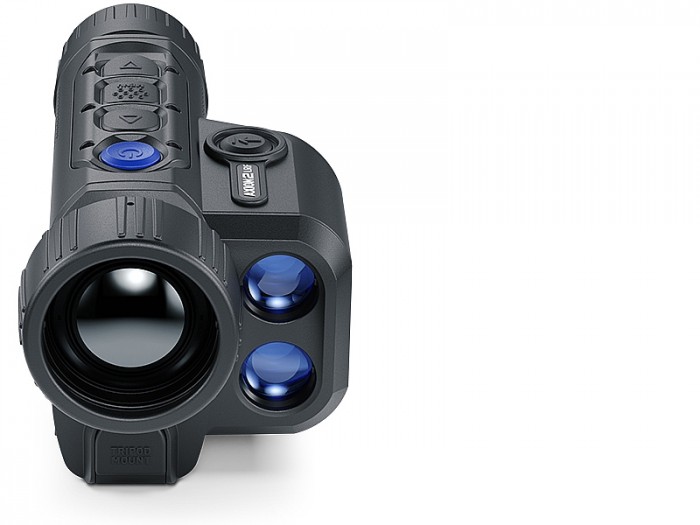

The built-in precision laser rangefinder offers a range of up to 1000m, allowing the user to accurately measure distances in a single measurement and continuous scanning modes with an accuracy of ± 1 meters. This allows the user to quickly and accurately make error-free assessments within the observation area.

As the years pass technology and components improve and Pulsar have ensured with the Pulsar Axion 2 XQ35 LRF that it has kept up with the times. The Pulsar Axion XQ now comes with a high capacity Pulsar APS5 rechargeable battery that will provide 7 hours of continuous use even off a single charge. Making this one of the longest battery capacities of any thermal monocular on the market.


The Pulsar Axion 2 LRF XQ35 will complement the standard smartphone 2.4 GHz WiFi frequency range with an effective 5 GHz connection range, vastly improving the bandwidth and connection stability, as well as providing a faster rate of data transfer and noise immunity, all for more a more reliable operation of thermal imager and smartphone.

The base magnification of this thermal monocular increases by four times at 2x - 8x, with a zoom that can change either by 2x steps or continuously, allowing the user to set the ideal magnification ratio and visible field of view to suit any situation.

8 colour palettes are visible to the user on the new AMOLED display which features a high contrast VGA resolition which give enhanced colour rendering and helps provide a clear and smooth picture while on the move. It is important to experiment with the colour pallette choices of the Pulsar Axion XQ35 LRF because each pallette has its pros and cons.

The Pulsar Axion XQ35 LRF comes with Picture in Picture (PiP) mode allowing the user to display a zoomed-in zeroing frame at the top of the display, in which the observation area can be magnified by x2 or x4, whilst simultaneously retaining visual control over the entire field of view.

The Pulsar Axion 2 XQ35 LRF has the ability to record and take photos thanks to its in built video recorder. The unit has an internal memory that can store hours of video and tens of thousands of photos. If you do wish to free up the devices memory though you are supported with a free 16 GB cloud space.

Connecting the Stream Vision 2 mobile app will provide a variety of intuitive features and functionalities, including the ability to use your mobile phone or tablet as a second screen, remote control of digital functions, viewing and sharing videos and still images, remotely installing all the latest firmware updates, and much more.

The Pulsar Axion 2 XQ35 LRF's IPX7 waterproof rating means that this thermal imaging monocular will work in heavy rain, high humidity, and will even withstand immersion in water to a depth of 1 meter for up to 30 minutes.

Please Note: The Axion 2 does NOT come with a battery dock charger.

MORE INFORMATION

More Information

More Information
Product Name A-Z WIN A: Pulsar Axion 2 LRF XQ35 17µm 40mk Handheld Monocular OR £1000 OPW Store Credit
SKU OPTICSDRAWS#65
SPECS

Specs

Main
Sensor 384x288 pix. @ 17 µm
Objective lens
F35/1.0
Magnification, x
2 - 8 (x4 zoom)
Field of view (HxV), degrees / m@100m
10.7х8 / 18.2
Detection range, m
1300

Sensor
Type uncooled
Resolution, pixels 384x288
Pixel pitch, µm 17
NETD, mK <40
Frame rate, Hz 50

Optics
Objective lens F35/1.0
Magnification, x 2 - 8 (x4 zoom)
Field of view (HxV), degrees / m @ 100 m 10.7х8 / 18.2

Display
Type AMOLED
Resolution, pixels 640x400

Range Performance
Detection range, m 1300

Laser Rangefinder
Wavelength, nm 905
Max. measuring range, m 1000
Measurement accuracy, m ± 1

Video Recorder
Video/photo resolution, pixel 528x400
Video / photo format .mp4 / .jpg
Built-in memory, GB 16

Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4 / 5 GHz

Environmental Characteristics
Degree of protection, IP code (IEC60529) IPХ7
Operating temperature range, °С -25 – +40

Power Supply
Output voltage, V 3.0 - 4.2
Battery type APS 5 Li-ion Battery Pack
Capacity, mAh 4900
Operating time on the battery pack (at t=22°C), h * 11
External power supply, V 5 V, 9 V (USB Type-C)

Weight & Size
Body material Magnesium Alloy
Dimensions, mm 152x74x75
Weight, kg

0.35



FEATURES

Features

  • Enhanced image processing algorithms

The Axion 2 XQ thermal imaging devices use a new approach to image optimisation depending on the purposes and conditions of observation and provide a high-quality rendering of both target objects and background. Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

  • High-quality reinforced magnesium alloy housing

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases the consistency of the device operation during long-term observation.

  • Extended battery life. Up to 11 hours on a single charge

A high-capacity APS5 rechargeable battery provides up to 11 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special charger or inside the device from a PC, household power system or power bank via USB-C. The same sources are used for the external power supply of a thermal imaging device.

  • Improved Wi-Fi connectivity with 2.4 / 5 GHz waveband support

In Axion 2 XQ thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

  • Fast aperture lens

Germanium F35/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Axion 2 XQ thermal imaging device sensor is distinguished for its clarity and detail.

  • Long-distance laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

  • Highly-sensitive European-made Lynred sensor

The Axion 2 XQ35 is equipped with a European Lynred sensor with a resolution of 384x288 pixels (pixel size 17 microns), which qualitatively captures a useful signal under difficult observation conditions, such as rain, fog and high atmospheric humidity at the observation site.

  • Built-in photo and video recorder. Free 16 GB cloud space

The Axion 2 XQ has a built-in video recorder. The internal memory of the Axion 2 XQ can store hours of video and tens of thousands of photos. One-touch of a button is enough to take a photo of an interesting scene or start recording a video. The footage is copied to a computer hard drive via a USB-C port. The Axion 2 XQ owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via WiFi.

  • 1300 m detection range

A powerful F35/1.0 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1300 m away in complete darkness.

  • Variable magnification from 2x to 8x

Digital zoom, up to 4x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for a specific situation.

  • Field of view over 10 degrees

The Axion 2 XQ thermal imaging devices are suitable for viewing wide areas, observing in motion or for moving objects – the linear field of view is 18.2 m at 100 m distance or 10.7° in angular values. The "Picture in Picture" function activates an additional window at the top of the display, in which the central area of the observed scene is shown magnified 2 or 4 times. This makes it possible to combine the information content of a wide field of view with detailed observation of the selected object.

  • A selection of 8 colour palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation at night.

  • Distant operation and firmware update from a smartphone via Stream Vision 2 App

Built-in WiFi connects the Axion 2 XQ to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

  • Pocket-sized dimensions and lightweight

Axion 2 XQ has a space-saving and pocket-sized design and weighs 350 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

  • High-contrast AMOLED Display

A high-contrast VGA-resolution AMOLED display has an improved colour rendering, power-saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

  • Fast start-up

The Axion 2 XQ features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button. Quick start-up helps save battery power: when hunting, the Axion 2 XQ doesn't need to be kept ready at all times, simply turn it on when needed.

  • IPX7 Fully Waterproof

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.


Please Note: The Axion 2 does NOT come with a battery dock charger.
VIDEO

Video

IN THE BOX

In the box?

  • A soft carrying case with a shoulder/neck strap
  • APS5 battery pack with a spare battery cap
  • USB Type-C cable, charger
  • Plastic tripod accessor
  • Lens cleaning cloth.
  • Pulsar Axion 2 manual
  • Quick guide to Stream Vision 2 mobile application.
WARRANTY

Warranty

  • 3 Years Manufacturer's Warranty (1 Year on Batteries)
