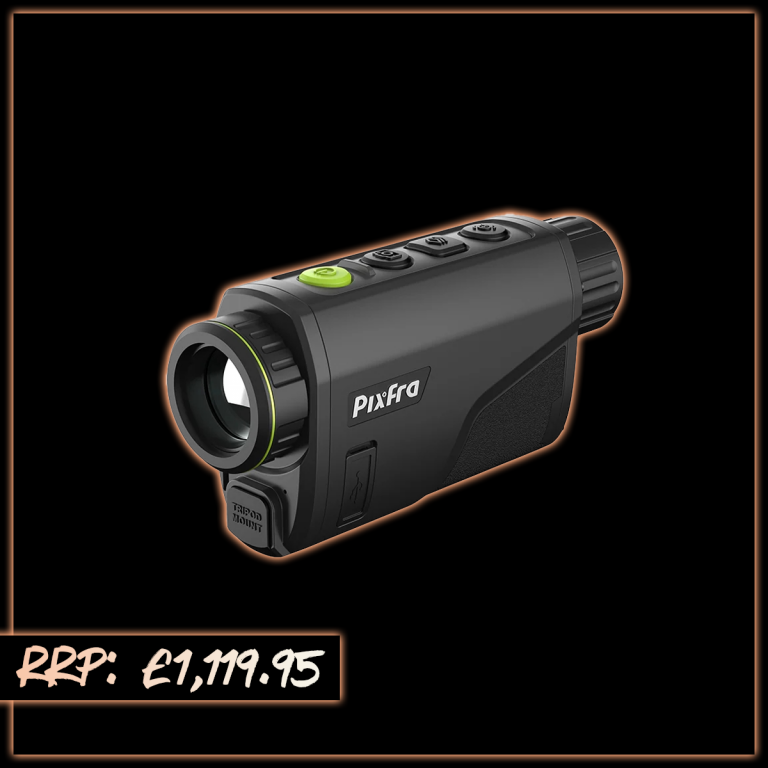

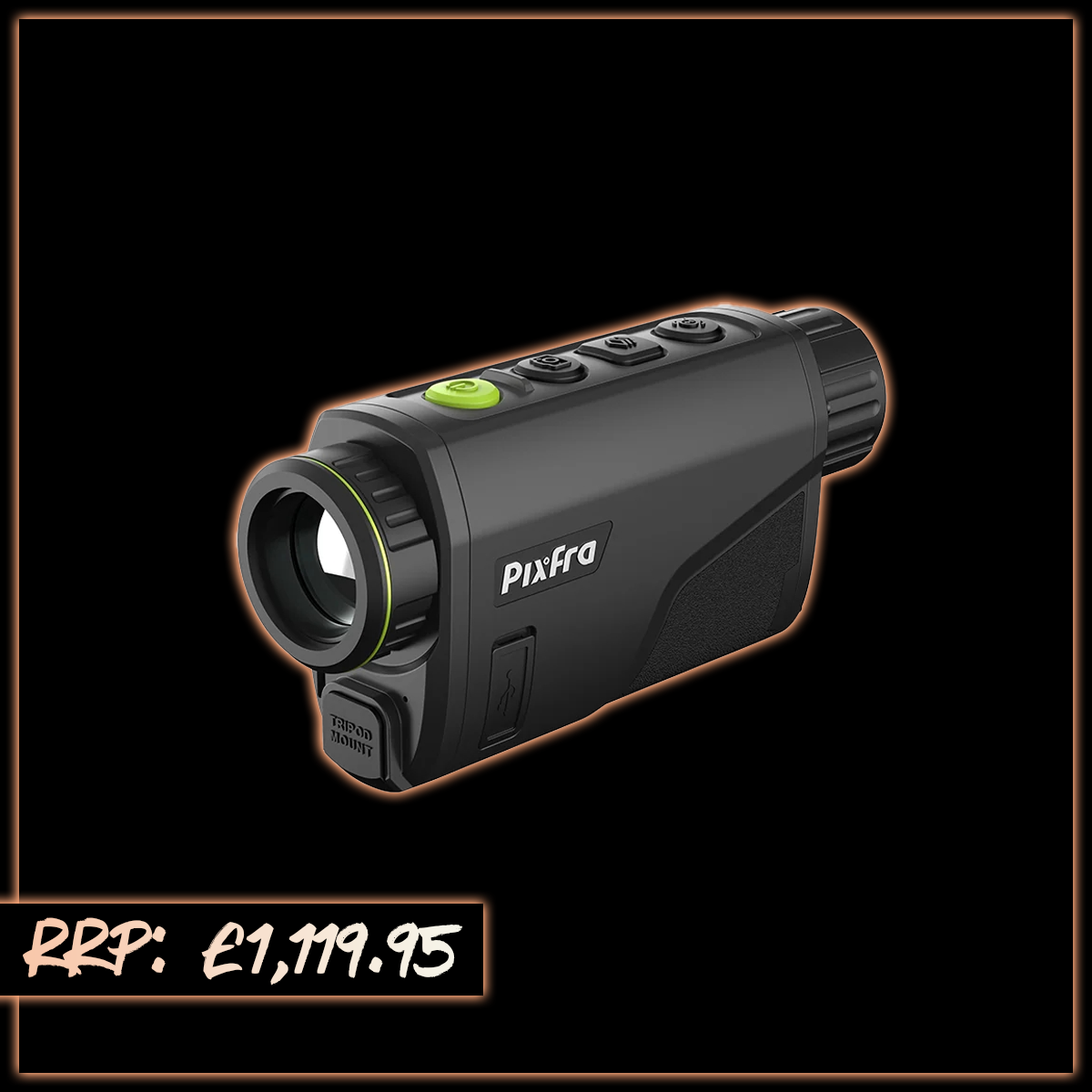

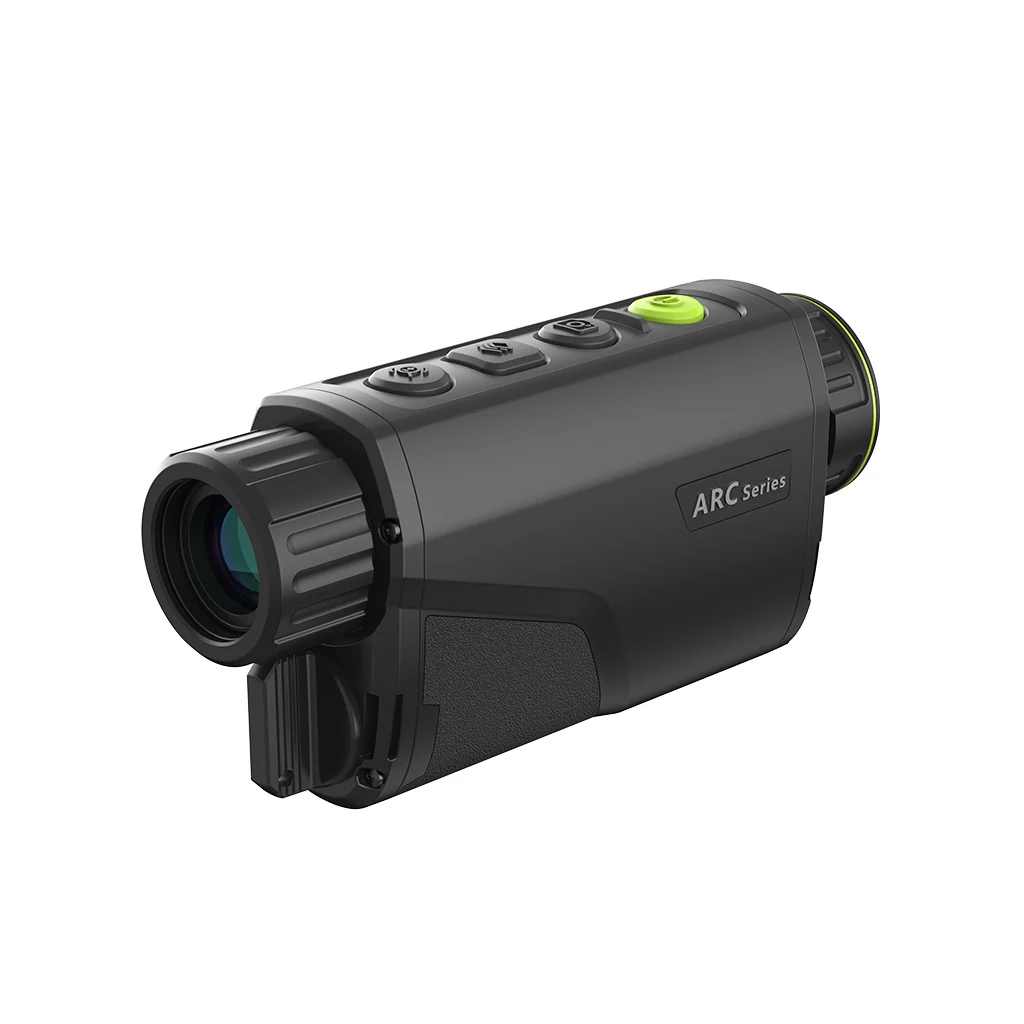

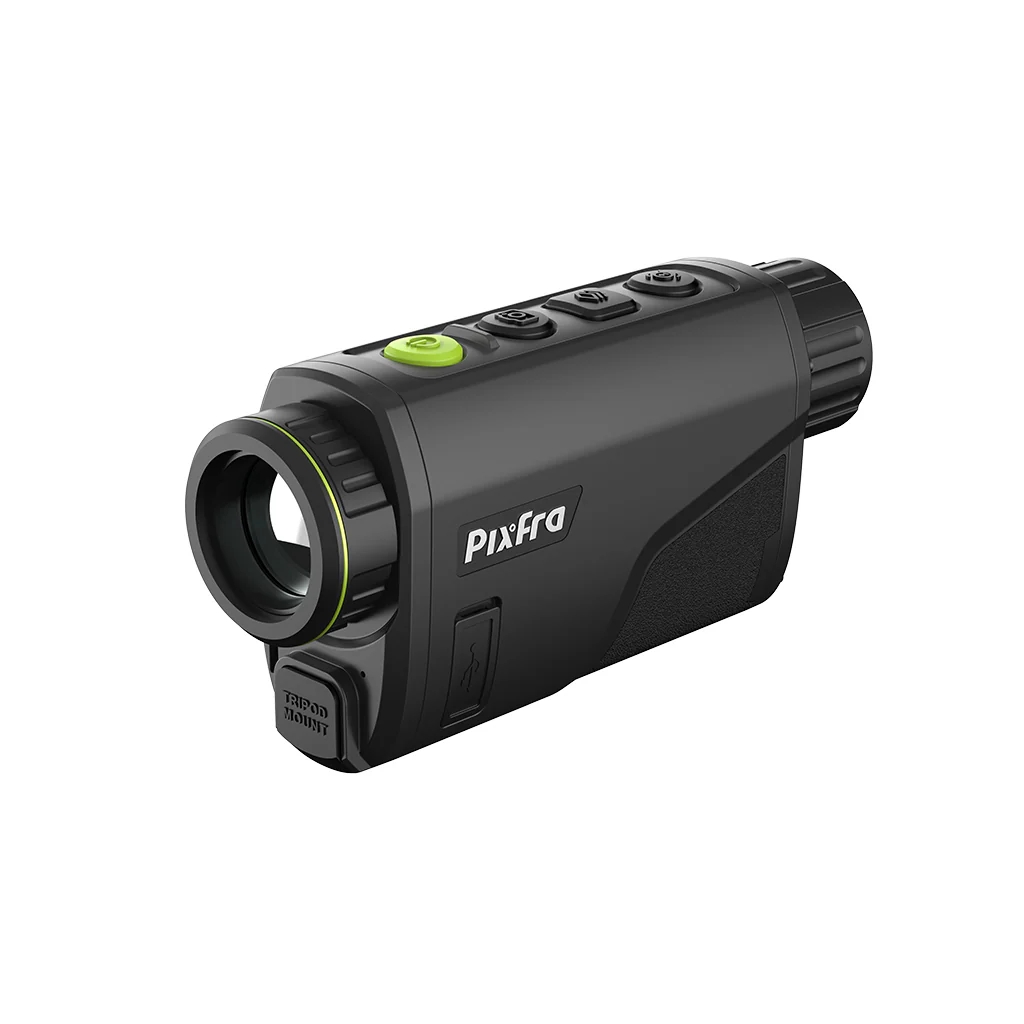

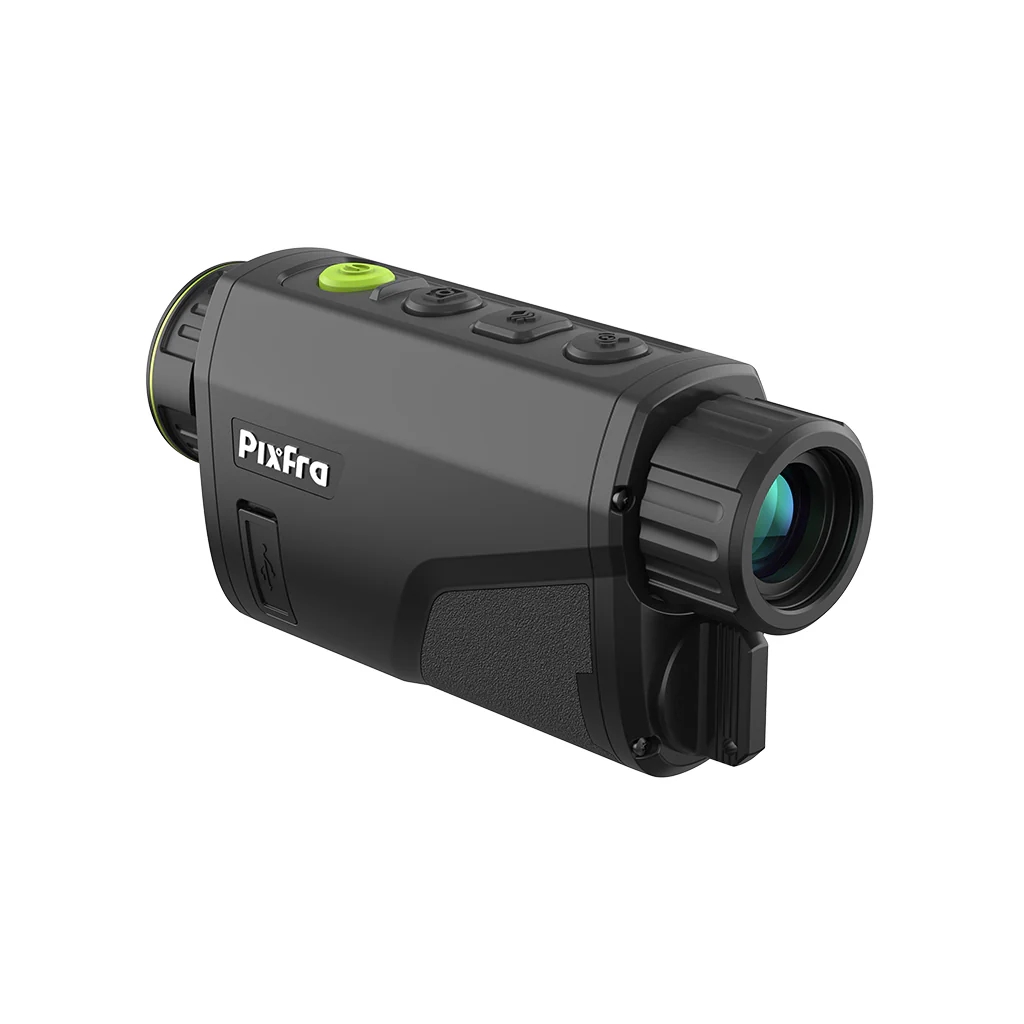

WIN A: Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk
#1266
#1313
#1316
#1319
#1311
Packed with user-friendly features, the ARC A425 enhances every aspect of thermal observation. With its built-in video recorder, you can capture up to two hours of video footage per clip, while six color palettes (including white hot, black hot, and iron red) offer visual customization to suit various observation needs and preferences. Through the Pixfra app, users can stream live footage from the monocular to up to four smart devices simultaneously, allowing group observations with ease. With a range of digital zoom options from 1x to 8x, the ARC A425 ensures you can hone in on specific details, all from a comfortable viewing distance.
Equipped with two rechargeable batteries, each providing 7.5 hours of power, the ARC A425 can deliver up to 15 hours of uninterrupted operation. The batteries are easily replaceable and can be charged with the included USB-C dual bay charger, ensuring that the monocular is ready whenever you are. Its lightweight build, weighing less than 350 grams, paired with its ergonomic design, makes it comfortable to hold and easy to carry in a bag or pocket. Built with durability in mind, the ARC A425 is crafted from robust magnesium alloy and is IP67-rated, offering dependable waterproof protection and resilience against impacts. Additionally, it operates flawlessly in extreme temperatures, from -30°C to +50°C, ensuring reliable performance in challenging environments.
This thermal monocular is perfect for professionals, including ecologists and field researchers, who demand a combination of reliability, accuracy, and ease of use. Every purchase includes the Pixfra ARC A425, two 18650 Li-ion batteries, a USB-C dual bay charger, an L-shaped tripod adapter, a rubber eyecup, a carry case and pouch, a lens cleaning cloth, and a user manual for quick setup and ongoing care. With its powerful optics, intuitive functionality, and robust construction, the Pixfra ARC A425 is designed to meet the demands of serious observers looking for an efficient and high-quality thermal imaging solution.
| Product Name A-Z | WIN A: Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk |
|---|---|
| SKU | OPTICSDRAWS#1326 |
Specs
- Thermal Sensor: 384×288, 12μm, <30mK NETD
- Detector Type: Vanadium oxide uncooled focal plane detector
- Spectral Range: 8μm～14μm
- Frame Rate: 50 Hz
- Objective Lens: 25mm f1.0
- Field of View: Horizontal: 10.9°; Vertical: 8.2°
- Detection Range: 1300m
- Magnification: 2.76x
- Colour Palettes: 6 (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald)
- Close Focus Distance: 2m
- Digital Zoom: 1x, 2x, 4x, 8x
- Display Screen Dimensions: 0.41 inch, OLED
- Screen Resolution: 1440 x 1080
- Diopter Adjustment: -4D ~ +5D
- Eye Relief: 15mm
- Uniformity Correction: Auto; Manual
- Storage: Built-in EMMC (32 GB)
- Video Recording: Yes (up to 2 hours per clip)
- Audio Recording: Yes
- Hot Spot Trace: Yes
- Wi-Fi: Yes
- Power Supply: 5V Type-C
- Battery Type: 1 rechargeable Lithium battery
- Battery Capacity: 3,200 mAh
- Battery Operating Life: Up to 7.5 hours
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Protection: IP67 (Waterproof and Dustproof)
- Product Dimensions: 148.5 mm × 42.3 mm × 74.3 mm (5.85” × 1.67” × 2.93”)
- Packaging Dimensions: 245 mm × 150 mm × 144 mm (9.65” × 5.91” × 5.67”)
- Net Weight: ≤330 g (excluding battery weight)
Features
-
High-Resolution Thermal Imaging: Equipped with a 384x288, 12µm thermal sensor for clear, accurate detection of heat signatures up to 1300m.
-
OLED Display: A vibrant 1440x1080 OLED screen provides a high-quality, full-color view of the thermal image for better clarity and detail.
-
Built-in Video Recorder: Capture up to two hours of thermal video per clip for later review or analysis.
-
Multiple Color Palettes: Choose from six color options (white hot, black hot, iron red, alarm, amber, and emerald) to customize your viewing experience based on your observation needs.
-
Digital Zoom: Offers 1x, 2x, 4x, and 8x zoom options, enabling users to focus on distant or small heat sources for detailed analysis.
-
App-Based Screen Sharing: Share your view with up to four smart devices via the free Pixfra app, allowing group observations without sharing the device itself.
-
Long Battery Life: Two replaceable, rechargeable batteries provide up to 15 hours of continuous use, ensuring prolonged observations without frequent recharging.
-
Ergonomic Design: The lightweight, compact design (under 350g) and ergonomic body make the monocular comfortable to hold and easy to carry.
-
Rugged Build: Constructed with a magnesium alloy casing, the ARC A425 is durable and designed to withstand field conditions. It is also IP67-rated for waterproof protection, ensuring it is resistant to splashes and water ingress.
-
Extreme Temperature Tolerance: Operates in a wide temperature range from -30°C to +50°C, allowing for reliable use in harsh environments.
-
Convenient Accessories: Includes a carry case, pouch, lens cleaning cloth, L-shaped tripod adapter, and a rubber eyecup for added comfort and protection.
-
User-Friendly Interface: Intuitive button layout and easy operation, making it suitable for both professionals and casual users.
In the box?
- Pixfra ARC A425 Handheld Thermal Monocular - 384x288/12µm/25mm 30mk
- 2 x 18650 Li-ion Batteries
- USB-C Dual Bay Charger
- L-Shaped Tripod Adapter
- Rubber Eyecup
- Carry Case
- Carry Pouch
- User Manual
- Lens Cleaning Cloth
Warranty
- Pixfra 2 year warranty
