WINNER: Craig Smith
DONATION: £TBC

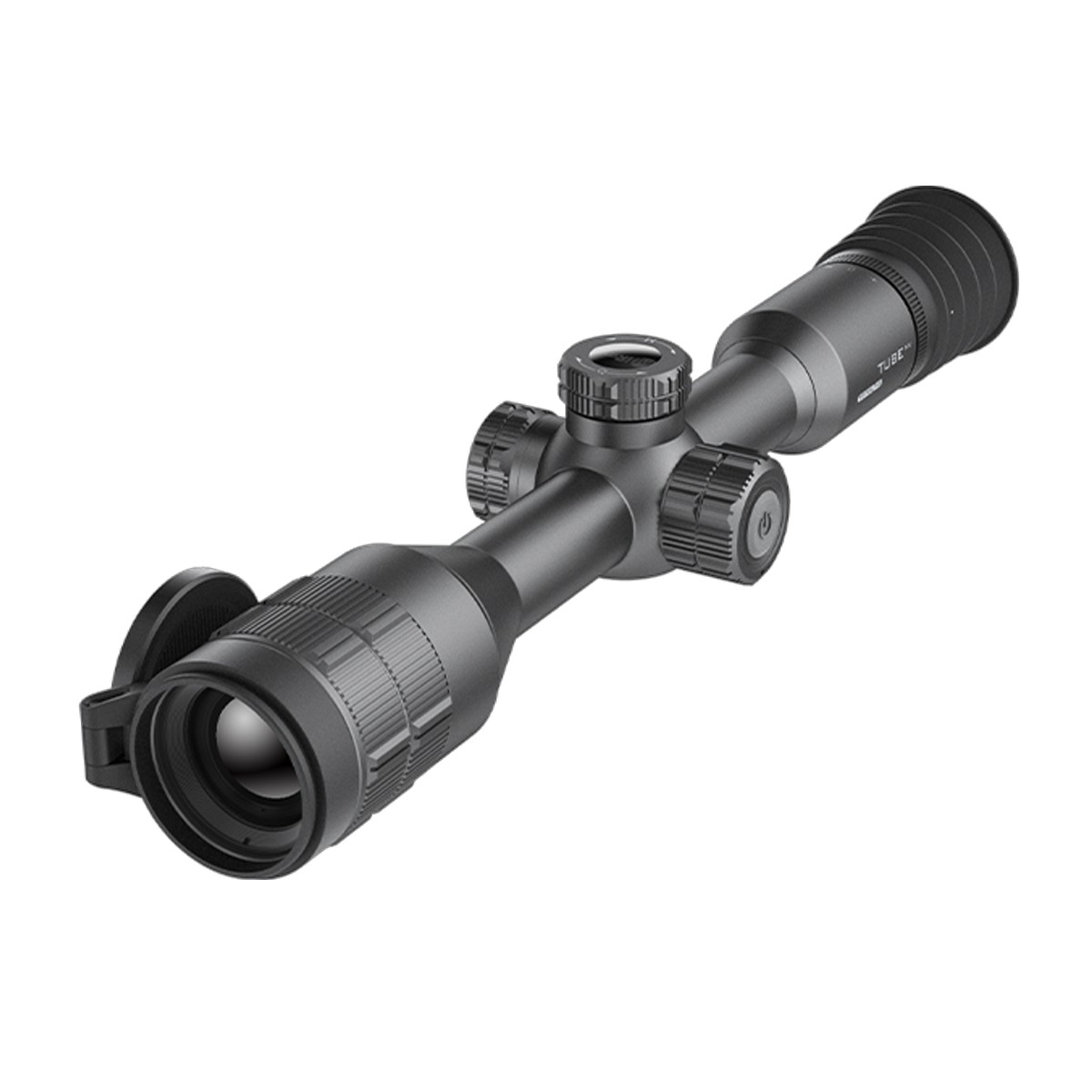

WIN A: InfiRay TD70L V2 70mm Tube Series Day/NightVision Scope
WINNER: Craig Smith CHARITY: -
DONATION: £TBC

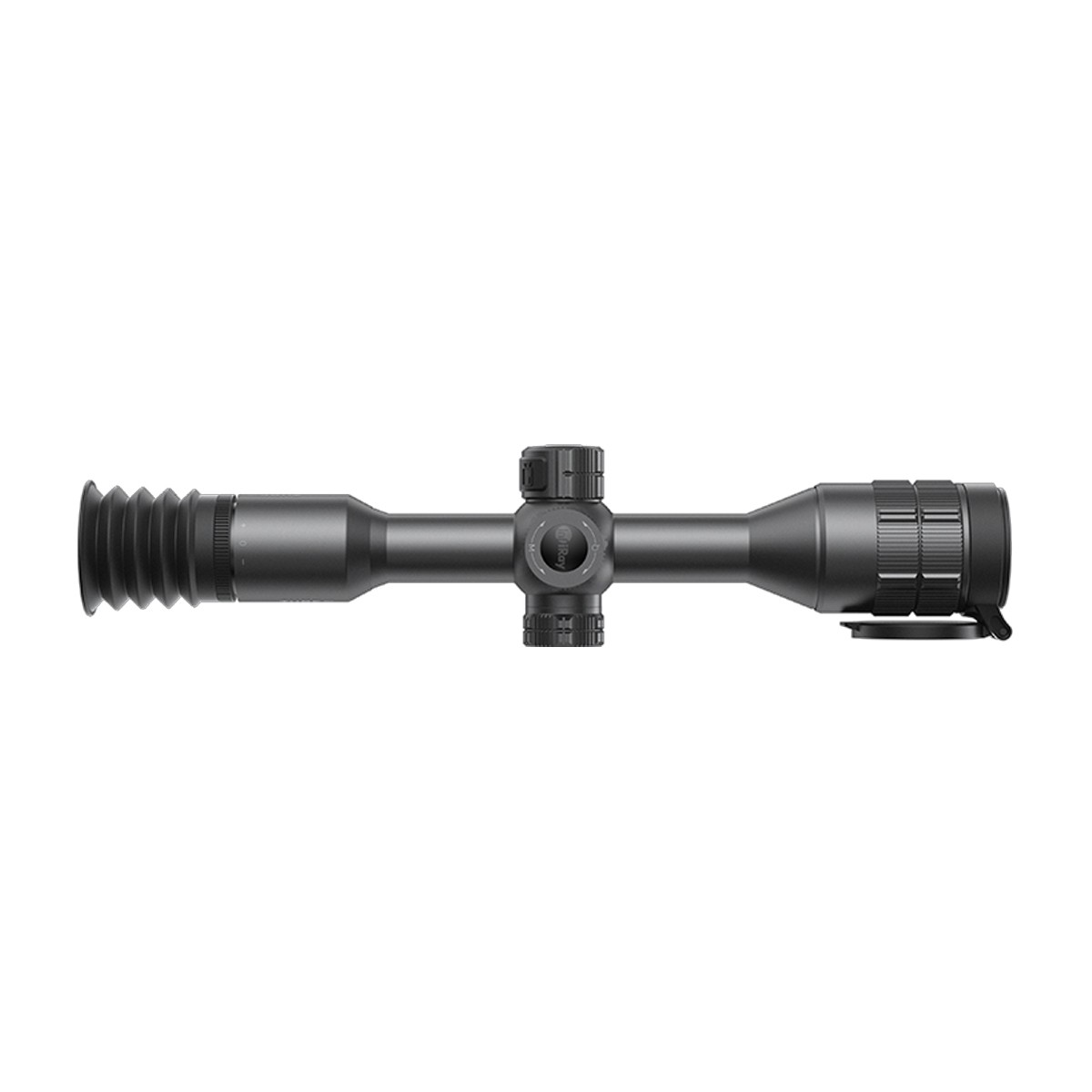

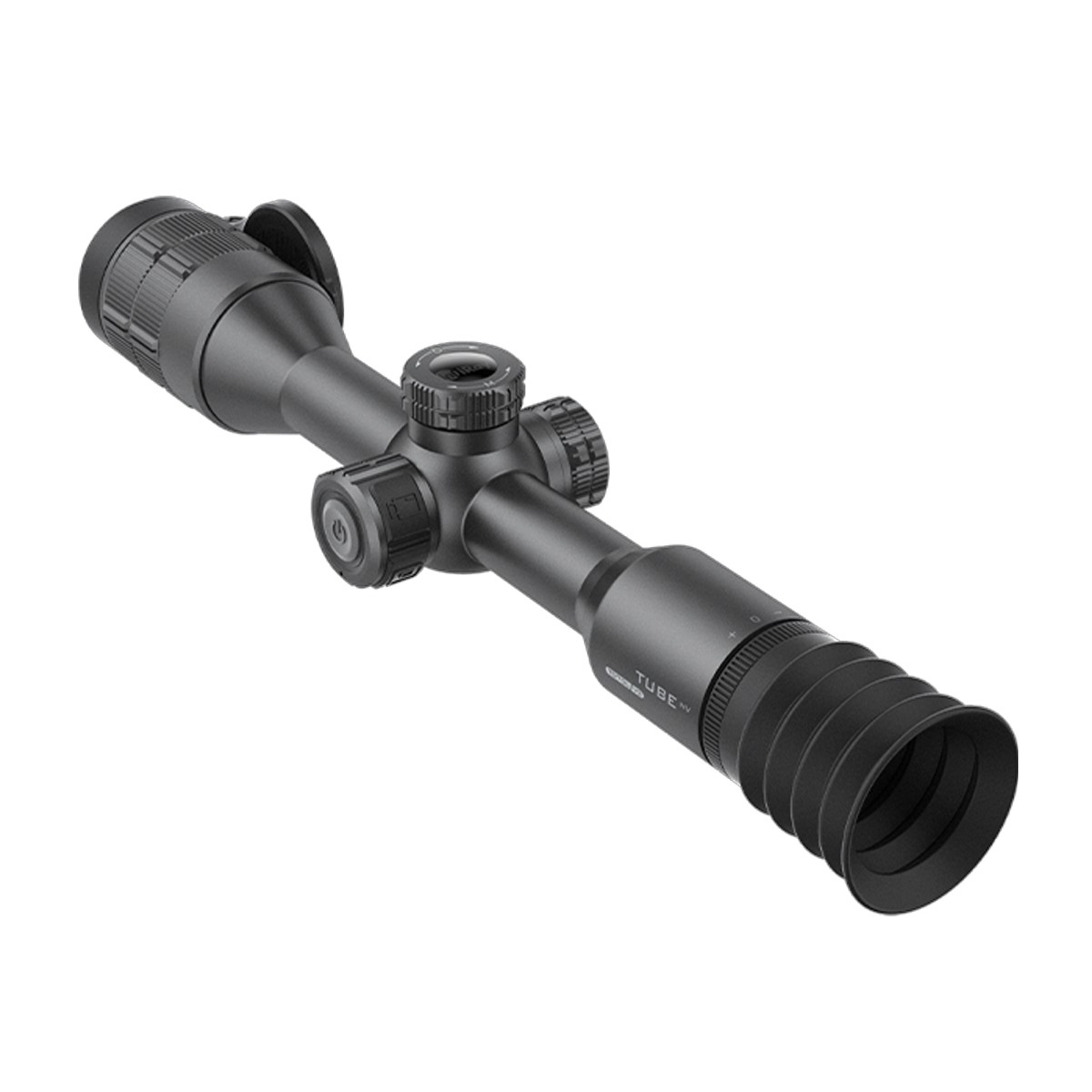

The InfiRay TD70L V2 70mm Tube Series Day/Night Vision Scope excels at capturing clear target details. Leverage the power of a 1980x1080 sensor with 4μm pixels for exceptional low-light sensitivity. Paired with a vibrant 1440x1080 OLED display, experience unparalleled precision and clarity in night shooting. Elevate your shooting experience with this unbeatable technology combination.
| Product Name A-Z | WIN A: InfiRay TD70L V2 70mm Tube Series Day/NightVision Scope |
|---|---|
| SKU | OPTICSDRAWS#332 |
Specs
| Specs | TD70LV2 | |
| Detector Specifications | Sensor Resolution, pixels | 1920 × 1080 |
| Pixel Size, μm | 4 | |
| Frame Rate, Hz | 50/25/Auto | |
| Optical Specifications | Objective Lens, mm | 70mmF1.8 |
| Field of View, º | 4.7×3.5 | |
| Linear Field of View(H×V),m@100m | 8.2×6.2 | |
| Optical Magnification, × | 5.5~22.0 | |
| Digital Zoom, × | 1 ~ 4 | |
| Eye Relief, mm | 45 | |
| Diopter Adjustment, D | -4 ~ +4 | |
| Detection Range, m | 300 | |
| Display Specifications | Type | OLED |
| Resolution, pixels | 1440×1080 | |
| Battery Power Supply | Battery Type | Built-in 6600mAh Battery Pack |
| Max. Operating Time(t=22ºC)*, h | 9 | |
| External Power Supply | 5V (Type C) | |
| Physical Specifications | Wi-Fi / APP | Support (InfiRay outdoor) |
| Photo / Video Recorder | Support | |
| Memory Capacity, GB | 32 | |
| IP Rating | IP67 | |
| Operating Temperature,°C | -20 ~ +50 | |
| Weight(Without the 18500 Battery), g | 945 | |
| Dimension, mm | 383 × 86 × 75 | |
| Body Material | Aluminum | |
| Connections and Compatibilities | Max. Recoil Power on Rifled Weapon (Eo), Joules | 6000 |
| Aim Point, MOA/CLICK | 0.2 (5.6mm@100m) | |
| Mount | Standard 30mmrings | |
| Function | IR Illuminator**, nm | 850 / 940 (Optional) |
| IR Power, w | 3 | |
| Mount | 30mm Rings | |
Features
Next Level Low-Light Hunting Experience
The larger the pixel size, the more light each pixel can collect. With a pixel size of 4um, the Tube NV sensor demonstrates exceptional low-light sensitivity. Even one hour after sunset, Tube NV devices can display clear color images. In moonlit conditions, Tube NV excels at capturing clear target details. Leverage the power of a 1980x1080 sensor with 4μm pixels for exceptional low-light sensitivity. Paired with a vibrant 1440x1080 OLED display, experience unparalleled precision and clarity in night shooting. Elevate your shooting experience with this unbeatable technology combination.
1:1 Lossless Image Transmission
We use direct full-field screen capture for transmitting without any resolution missing, providing lossless images to achieve the clearest vision.
70mm Focal Length
A longer focal length of lens could provide a better hunting experience for distant targets with an improvement in magnification.
High Zeroing Precision
For a digital NV riflescope, each pixel corresponds to a specific angle of view. The smaller the angle (measured in mil or MOA), the greater the shooting precision. Our TUBE NV riflescope boasts a remarkable precision of 0.2 MOA (5.7mm@100m), ensuring unparalleled accuracy during zeroing. With this high-precision riflescope, you'll be able to consistently achieve precise and accurate shots.
Unveiling Day and Night's Secrets
During daylight hours, from dawn to dusk, when it's challenging for the human eye to discern target details, TUBE NV enhances your target recognition capabilities.
Recoil Activated Video
The Tube NV offers an impressive array of features, including the Recoil Activated Video (RAV) function and the Mic function. Never miss a captivating moment again with RAV, as it automatically records the moments before and after your shot. Plus, with the Mic function, you can capture not only the visuals but also the accompanying audio, enhancing the overall experience. Experience the power of complete sensory immersion with the Tube NV.

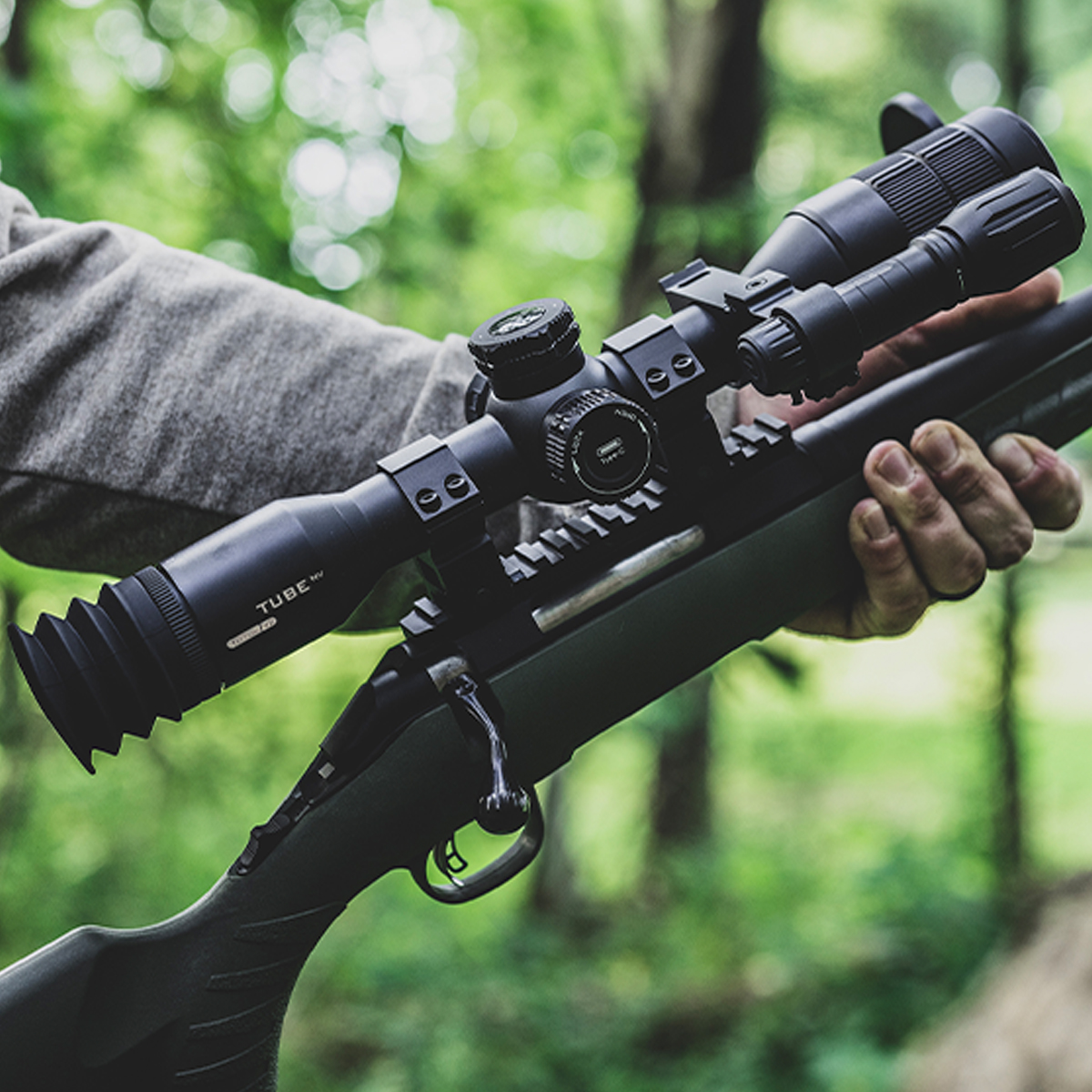

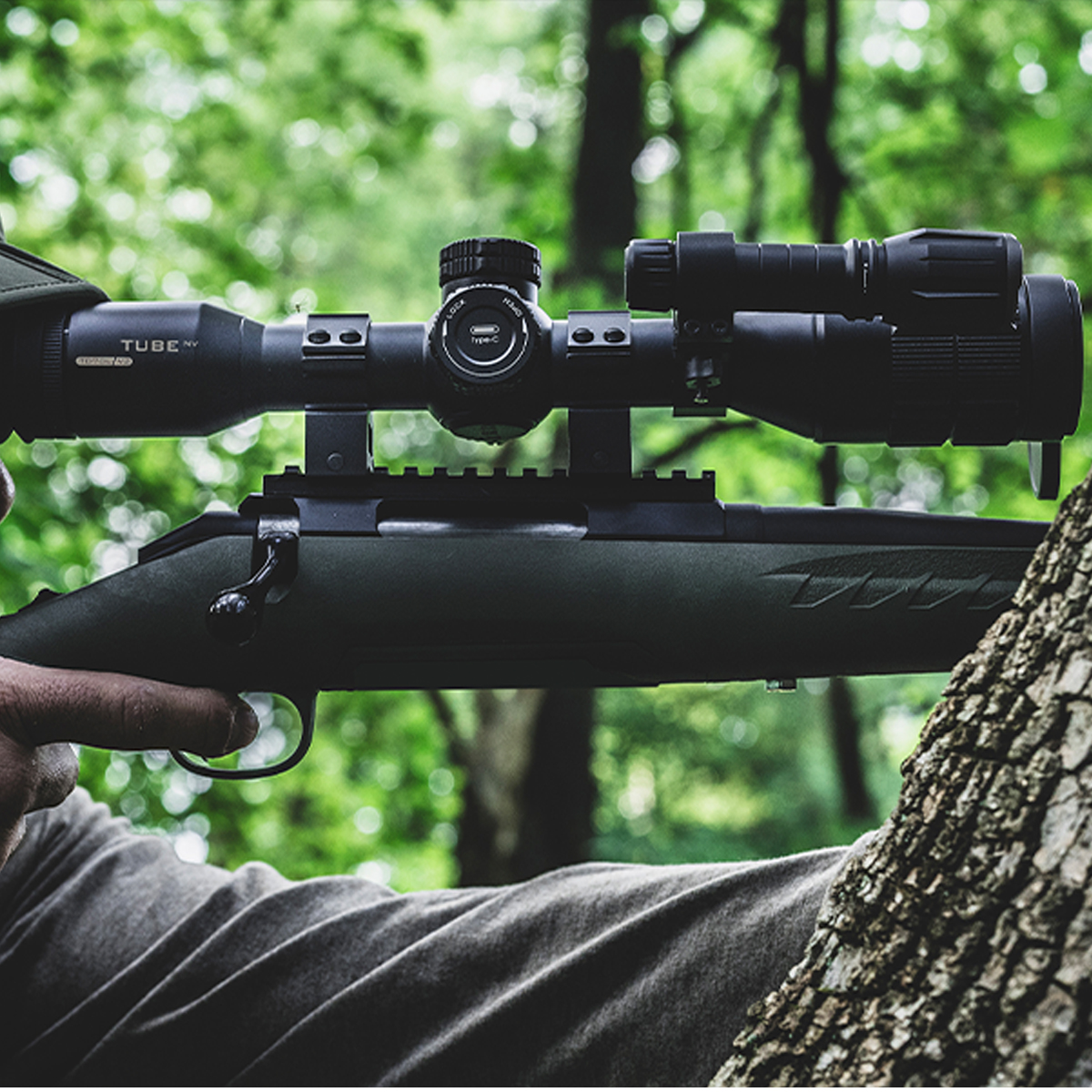

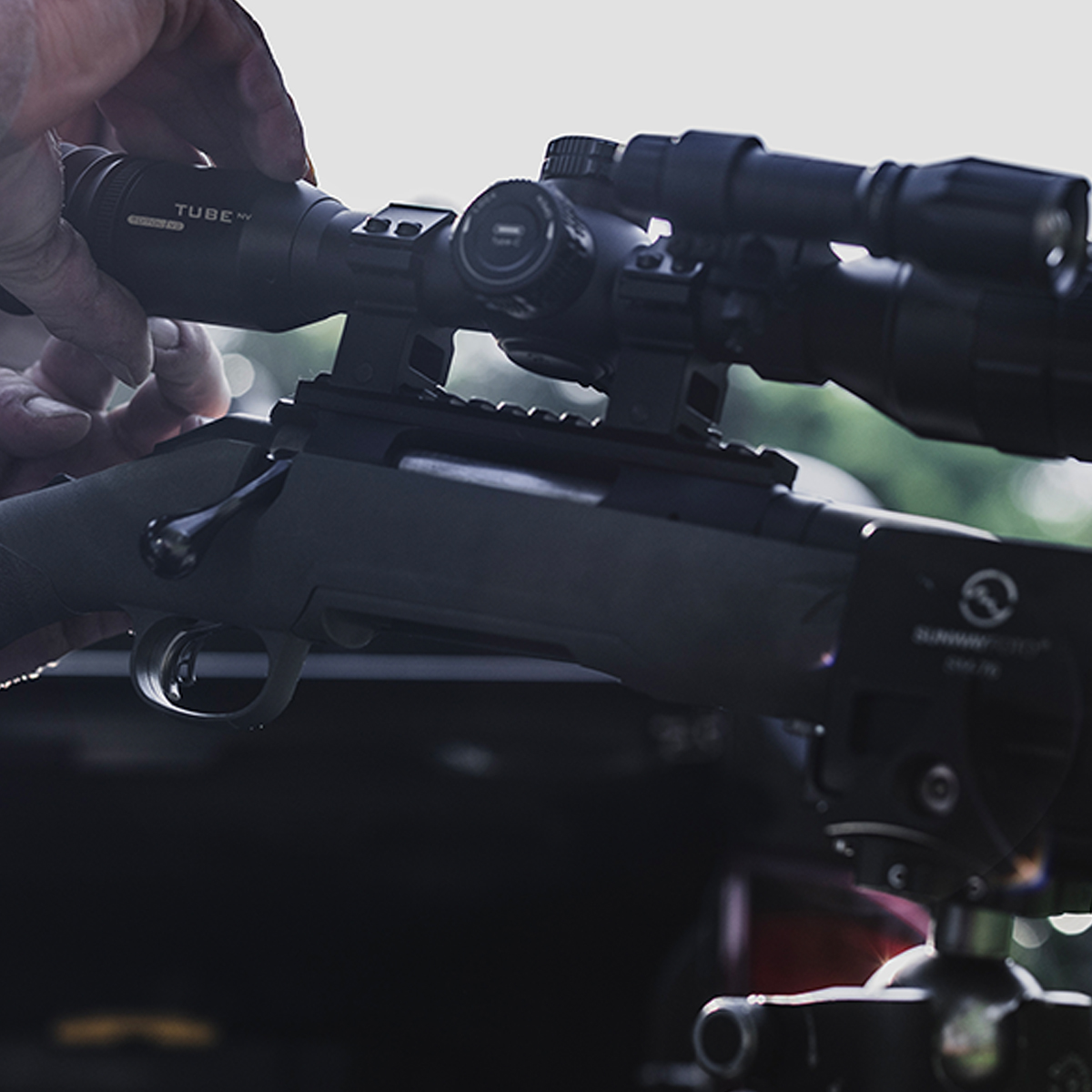

Classic Aesthetics
The Tube NV not only boasts a timeless and classical-style design that perfectly complements 30 mm standard mount rings, but it also allows for easy switching between traditional white light scopes and the Tube NV without the need for changing mount fixtures. This combination caters to the discerning needs of professional hunters who hold tradition in high regard, while also appreciating the convenience of modern technology. Experience the perfect fusion of aesthetics, functionality, and user-friendly design with the Tube NV.
More Amazing benefits
5.5x magnification | Only 945g Weight | IP67 Waterproof | Picture-in-picture
Video
In the box?
- Tube NV Digital Night Vision Scope
- Eyeshade
- Mounting for picatinny rail × 2
- IR Illuminator
- USB-C cable
- Lens cleaning cloth
- Certificate of qualification
