WINNER: Richard Silvester
DONATION: £17.40

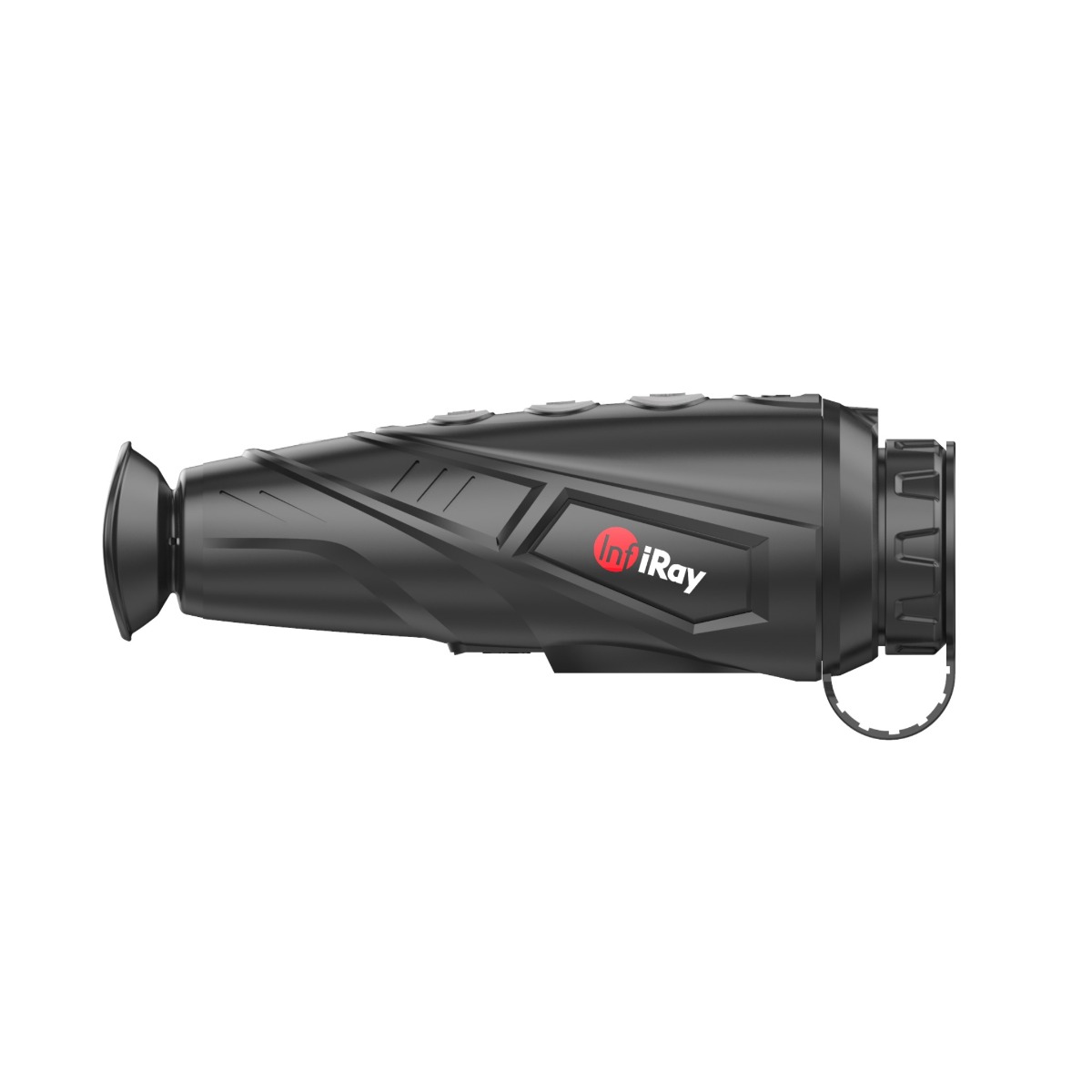

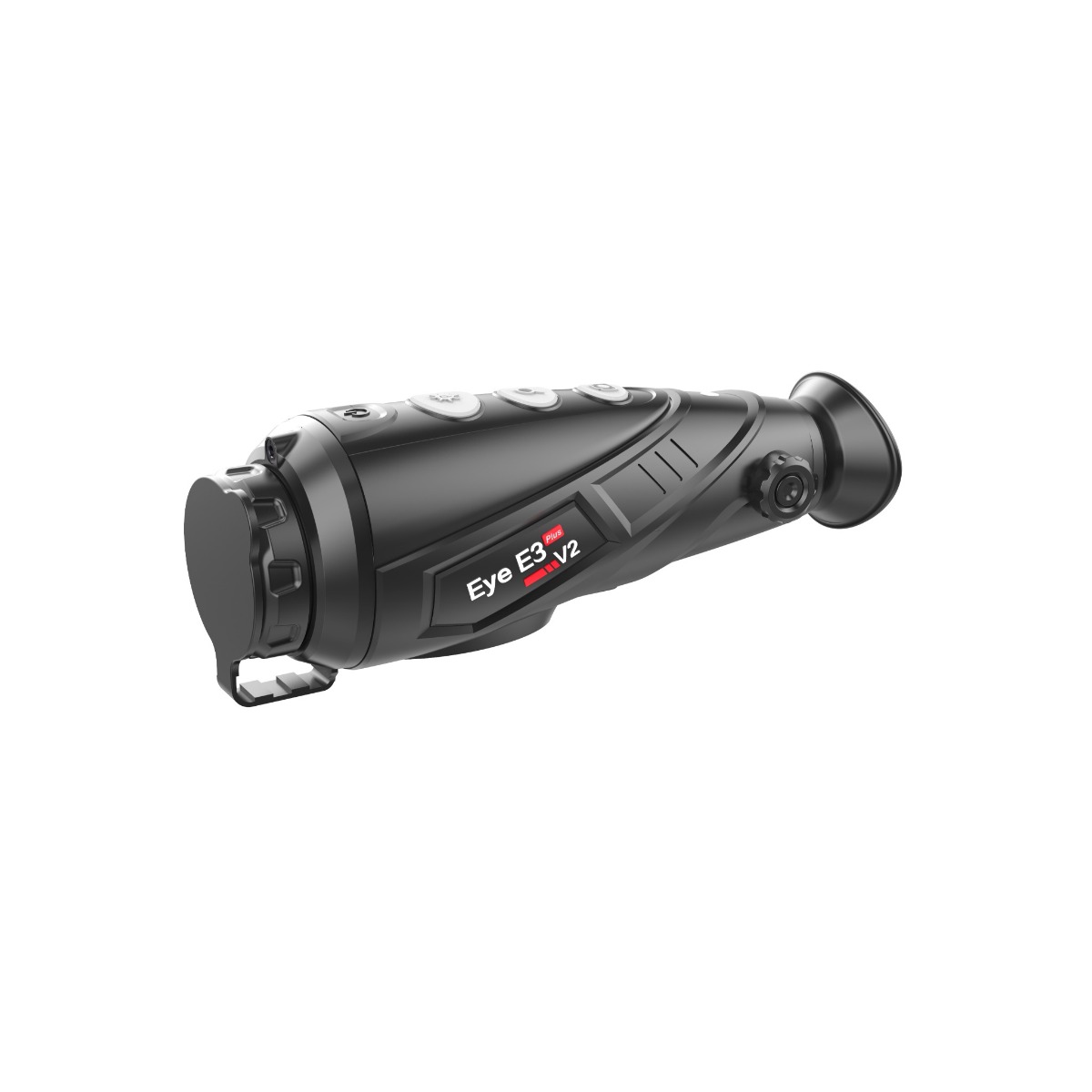

WIN A: InfiRay 25mm 384x288 EYE II E3 PLUS V2.0 Series Thermal Monocular with WIFI - 12μm 50mK
WINNER: Richard Silvester CHARITY: Prostate Cancer UK
DONATION: £17.40
Eye Ⅱ Series V2.0
With a 12μm detector, lower power consumption and multifunctional operations, you can now enhance and record your outdoor activities.
Pocket-Sized Thermal Vision Monocular
The InfiRay EYE Ⅱ series is a pocket-sized thermal vision monocular for exploring the outdoors at night and in lowlight conditions. EYE Ⅱ reveals your surroundings and helps you see people, objects and animals over one thousand meters away! Simple to use, with still image and video recording, EYE Ⅱ is the perfect companion, whether in the backcountry or your own backyard.
High Image Quality
The EyeⅡ series is embedded with the IRay independently developed, high-performance Vox detector, which allows you to receive high detailed thermal images. The EyeⅡ series performs excellently in critical temperature ranges.
Please Note: A 3 pin plug adaptor is required for use in the UK. This is not supplied.
Product Name A-Z | WIN A: InfiRay 25mm 384x288 EYE II E3 PLUS V2.0 Series Thermal Monocular with WIFI - 12μm 50mK |
---|---|
SKU | OPTICSDRAWS#252 |
Specs
- Model: E3 Plus V2.0
- Resolution, pixels: 384x288
- Pixel Size, μm: 12
- NETD, mk: ≤50
- Frame Rate, Hz: 50
- Objective Lens, mm: 25
- Field of View: 10.5°×7.9°
- Display: 1280x960 LCOS
- Optical Magnification, x: 2.5-10
- Digital Zoom, x: 2x - 4x
- Max. Battery Life, h: 7
- Built in Memory (gb): 16
- Dimension, mm: 181x65x64
- Weight, g: <420
- Detection Range, m: 1298
Features
12μm Ceramic Detector
The V2.0 series is equipped with the new ceramic encapsulated detector, which is lighter, of lower power consumption and lasts longer.
HD Micro-Display
1280×960 high-resolution display that offers crisp image and vivid colors.
Long Detection Range
The E3 Plus V2.0 series is capable of detecting an average human-size target at a range of up to 1300m in complete darkness.
Standby Function
When it's necessary to temporarily stop observation the user can apply the standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when the display is turned off, all other systems are working; for normal operation, it is enough just to power on the display again).
High Image Frequency
The 50Hz refresh rate guarantees you to capture every moment.
PIP Functions
Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target whilst keeping the rest of the field of view visible.
5 Colour Palettes
The Eye II series provides more than 5 colour palettes for true colourised temperature mapping, including “white hot”, “black hot”, “red hot”, “color” and “hot target highlight”. Switching between different colour palettes is fast and easy.
Stadiametric Rangefinder
Based on estimated heights of targets, users can get the rough distance from the target with the built-in stadiametric rangefinder, fast and easy.
Hot Target Tracking
Track the hottest spot in the scene automatically and discover the target quickly.
Built-in Video Recorder and WiFi Connection
The monocular has 16 GB built-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.
Warranty
- 3 Year Warranty
Manuals
User Manual [DOWNLOAD]
