Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

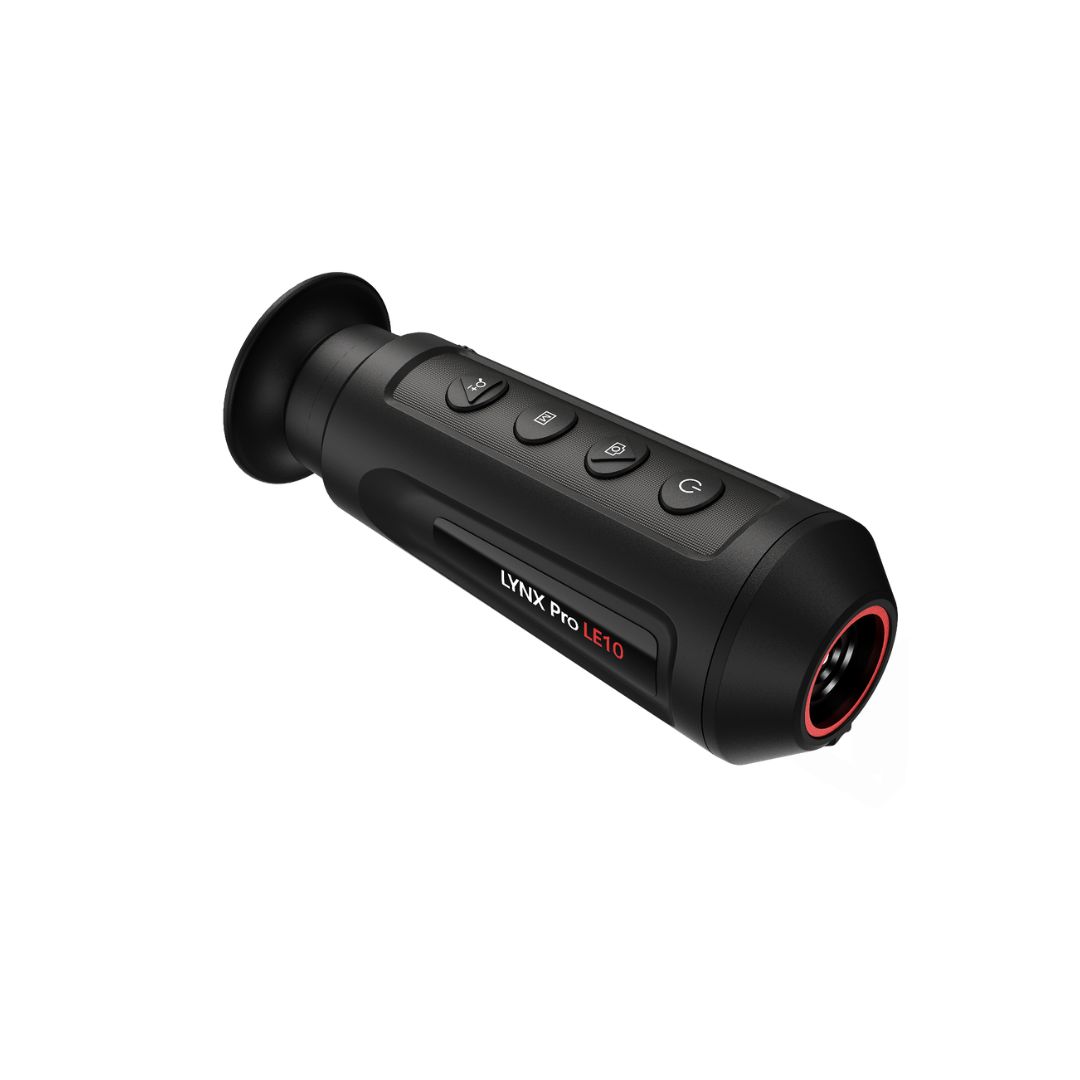

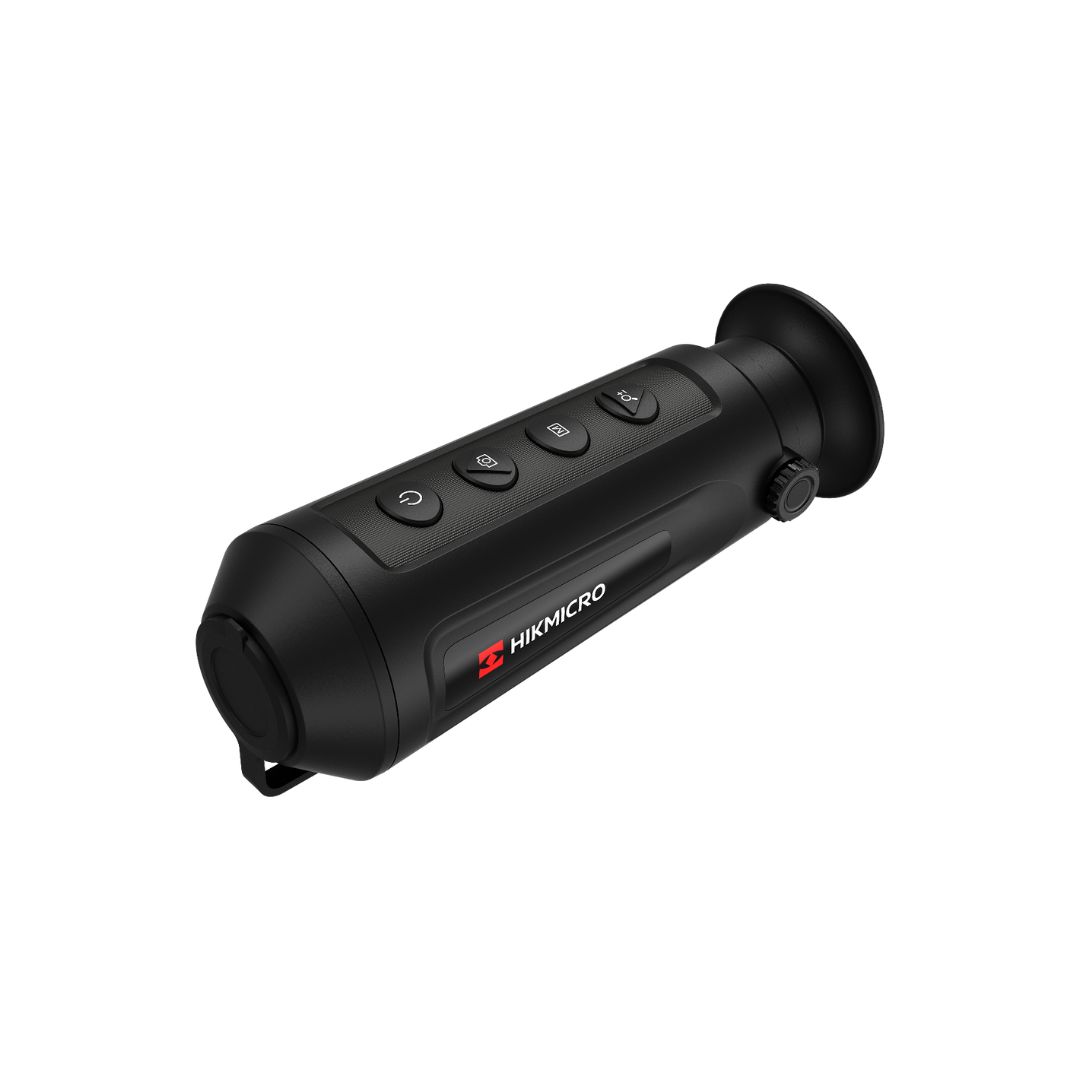

HIKMICRO Lynx-S PRO LE10 Smart Thermal Hand Held Monocular - 10mm 35mK 256x192px 12um
Joining the range of HIK Micro thermal monoculars – the HikMicro Lynx-S Pro 10mm is focused on delivering high-level thermal performance at an entry-level price point.
At the heart of the HikMicro Lynx-S Pro 10mm is an enhanced performance which is produced by its 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.
The HikMicro Lynx-S Pro 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The HikMicro Lynx-S Pro 10mm can also record video or images with the onboard memory.
The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture images, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
| Product Name A-Z | WIN A: HIKMICRO Lynx-S PRO LE10 10mm 35mK 256x192 12um Smart Thermal Hand Held Monocular |
|---|---|
| SKU | OPTICSDRAWS#182 |
Specs
Main
- Sensor: 256x192px @ 12µm
- Objective Lens (Focal Length): 10 mm
- Detection Range (Human 1.8m x 0.5m): 458 m
Sensor
- Type: VOx Uncooled Focal Plane Arrays
- Resolution, pixels: 256 x 192 PX
- Pixel pitch, um: 12µm
- Frame rate, Hz: 25 Hz
- NETD: <35mK
Optics
- Objective lens: F1.0
- Magnification (optical): 1x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 18.00° × 13.55° (H × V)°
Display
- Type: 5.08mm, LCOS
- Resolution, Pixels: 720 × 540
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Video Recorder
- Built-in memory, GB: 8
Additional features
- Hot tracking: Yes
- WIKI Hot spot: Yes
- T-Vision App support: Yes
Environmental
- Degree of protection, IP code: IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
Weight & size
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight, Kg: 0.26 kg
Power Supply
- Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
Warranty
- Main Unit: 3 Years
- Battery: 2 Years
Features
- 10mm focal length - 1.0 Aperture
- 256x192px sensor
- 12um pixel pitch
- Pocket sized
- Wifi Enabled
- 458m detection range - Human Size
- 25hz Refresh rate
- 4 colour palletes
- Around a 150m Detection Range - Fox
- 35mK Sensitivity
Video
HIKMICRO Lynx PRO 10mm 35mK 256x192 12um Smart Thermal Monocular
HIK Micro/Vision Lynx/Owl - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
In the box?
HIKMICRO Lynx-S PRO LE10 Smart Thermal Hand Held Monocular - 10mm 35mK 256x192px 12umWarranty
- Main Unit: 3 Years
- Battery: 2 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
