WIN A: HIKMICRO Lynx-S LC06S Smart Thermal Monocular - 6mm <35mK 160x120px 17µm
WINNER: Aaron Kelly CHARITY: Clatterbridge Cancer Charity
DONATION: £5.00
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

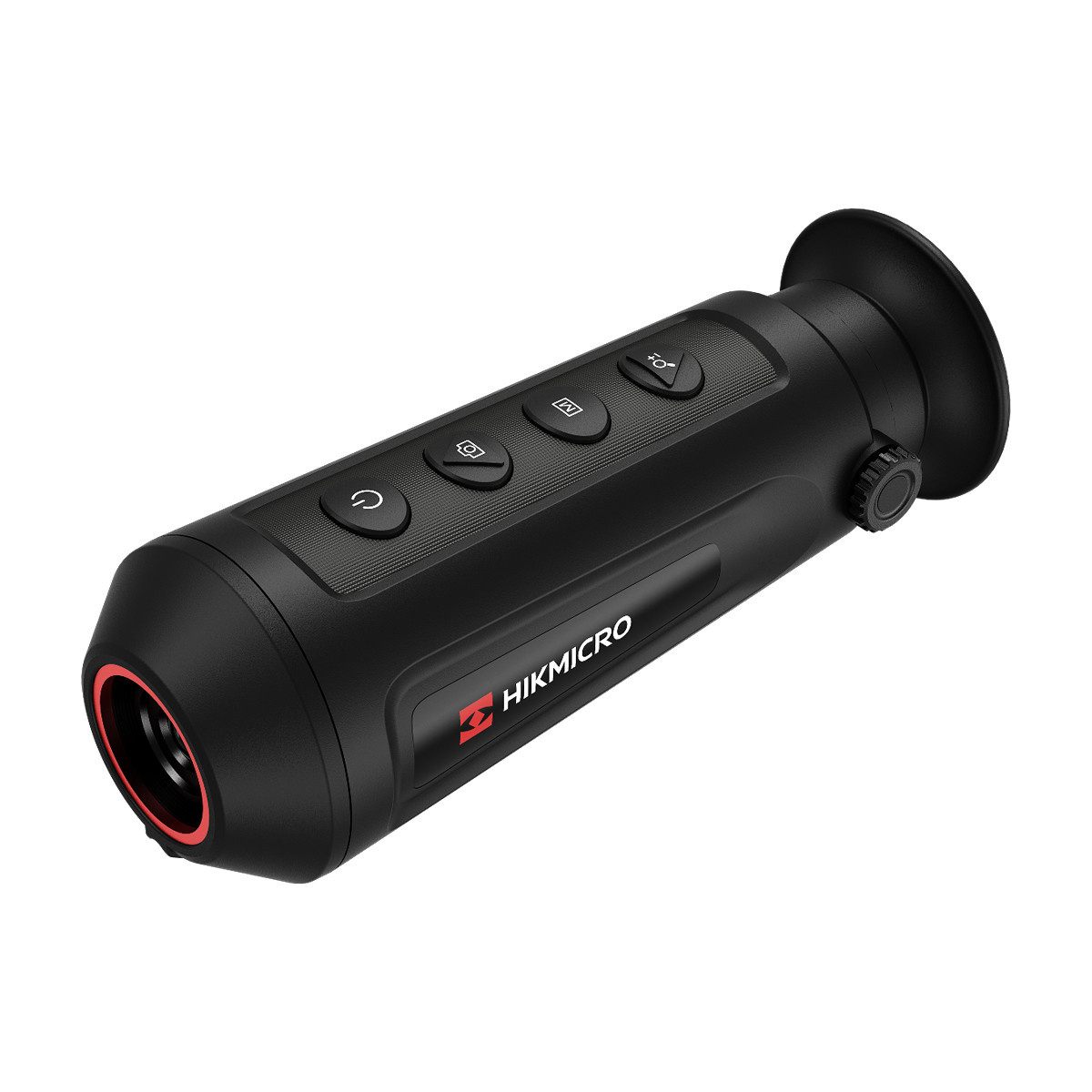

The HIKMICRO Lynx-S LC06S Smart Thermal Monocular is a compact and highly capable thermal imaging device, designed to provide crystal-clear vision even in complete darkness. Equipped with a 160 × 120 infrared detector and an 800 × 600 OLED display, this monocular offers an advanced imaging experience that ensures reliable target identification in various conditions. Whether you are hunting, hiking, conducting search and rescue operations, or simply exploring the outdoors, the Lynx-S LC06S is built to deliver performance when it matters most.
At the core of the Lynx-S LC06S is its high-sensitivity thermal detector, boasting a NETD rating of <35mK, ensuring exceptional detail recognition even in low-contrast environments. Its VOx uncooled focal plane arrays operate at a 50Hz frame rate, providing smooth, real-time imagery with Adaptive AGC, DDE, and 3D DNR thermal processing technologies enhancing clarity and contrast. With a 6mm focal length lens, the device offers a detection range of up to 250 metres, making it a powerful tool for close to mid-range thermal detection.
The 0.32-inch OLED display delivers sharp, high-contrast imagery with multiple colour palettes, including Black Hot, White Hot, Red Hot, and Fusion, allowing users to customise their viewing experience based on different environments and preferences. Features such as hot tracking, picture-in-picture (PIP) mode, and distance measurement add further functionality, ensuring a comprehensive thermal imaging experience. The monocular also includes a built-in 8GB memory module for storing snapshots and video recordings, with audio recording capabilities for enhanced documentation.
Built for extended use, the rechargeable lithium battery provides up to 10 hours of continuous operation, ensuring reliability during long expeditions. The device supports Type-C charging and external power supply compatibility, adding convenience for users on the move. Its IP67 protection rating ensures durability in harsh environments, safeguarding against dust, heavy rain, and submersion in water up to one metre.
Weighing just 250g and featuring an ergonomic design, the HIKMICRO Lynx-S LC06S is a lightweight yet powerful thermal monocular that offers unmatched portability without compromising on performance.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture image, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
| Product Name A-Z | WIN A: HIKMICRO Lynx-S LC06S Smart Thermal Monocular - 6mm <35mK 160x120px 17µm |
|---|---|
| SKU | OPTICSDRAWS#664 |
Specs
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 160 × 120
- Frame Rate: 50 Hz
- Pixel Interval: 17 μm
- Response Waveband: 8 μm to 14 μm
- NETD: <35 mK (@25°C, F# = 1.1)
- Lens (Focal Length): 6.2 mm, F1.1
- Detection Range: 250 m
- Focus Mode: Focus Free
- Min. Focusing Distance: 1 m
- Magnification: 1.0× to 4.0× (4×)
- Field of View (H × V): 24.7° × 18.7° / 43.8 m × 32.9 m at 100 m
- Display: 800 × 600, 0.32-inch OLED
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
- Flat Field Correction (FFC) Mode: Auto, Manual, External Correction
- Exit Pupil: 20 mm
- Eye Relief: 6 mm
- Diopter Adjustment: -5D to +4D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Video Recording: Yes
- Snapshot Capture: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Storage: Built-in 8GB memory module
- Picture-in-Picture (PIP): Yes
- Hotspot Sharing: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Battery Type: Rechargeable Lithium Battery
- Battery Life:Up to 10 hours (CVBS & hotspot off @25°C)/Up to 8.5 hours (CVBS & hotspot on @25°C)
- Charging Interface: Type-C (DC 5 V/2 A)
- Supports External Power Supply: Yes
- Protection Level: IP67 (Water and Dust Resistant)
- Dimensions: 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24")
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Weight: 250 g (0.55 lbs)
Features
- High-resolution thermal imaging: Provides detailed and clear thermal images for effective target detection.
- Advanced thermal processing: Includes Adaptive AGC, DDE, and 3D DNR technologies for enhanced image clarity and contrast in varying environments.
- Multiple color palettes: Offers Black Hot, White Hot, Red Hot, and Fusion modes for custom viewing in different conditions.
- Hot tracking: Automatically detects and highlights the hottest spot in the scene for quick target identification.
- Picture-in-Picture (PIP) mode: Overlays a magnified area over the main image, providing a detailed view of specific targets.
- Distance measurement: Uses built-in algorithms to estimate distances to targets, improving targeting accuracy.
- Wi-Fi connectivity: Enables pairing with the HIKMICRO Sight app for remote control and settings adjustments.
- Long battery life: Lasts up to 10 hours of continuous use, perfect for extended outdoor activities.
- IP67 rating: Dustproof and waterproof, making it resistant to harsh weather conditions.
- Rechargeable lithium battery: Offers flexible charging options and ensures prolonged use.
- 8GB internal storage: Stores snapshots and video recordings for later review.
- Audio recording: Captures audio alongside thermal imaging for enhanced documentation.
- Type-C charging: Supports modern and efficient Type-C charging for quick power replenishment.
Video
HIK Micro/Vision - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
In the box?
- HIKMICRO Lynx-S LC06S Smart Thermal Monocular - 6mm <35mK 160x120px 17µm
- Quick start guide
- Non-dust cloth
- USB cable
- Protective bag
- Wrist strap
Warranty
3 Year UK warranty
HIK Micro is a global company with global service.
Should you experience any technical issues with your Lynx-S Thermal, it can be quickly repaired in the UK at HIK’s London service centre.
3 Years - Main unit
2 Years - Battery
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
Manuals
HIK Micro Lynx-S 6mm 35mK 160x120 17um Smart Thermal Monocular
HIK Thermal Monocular User Manual: DOWNLOAD
