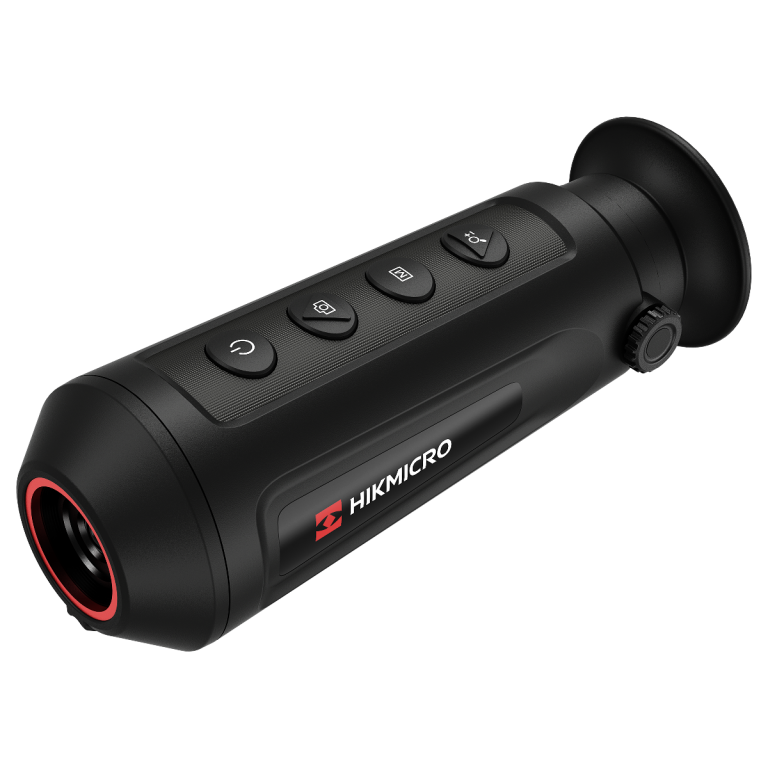

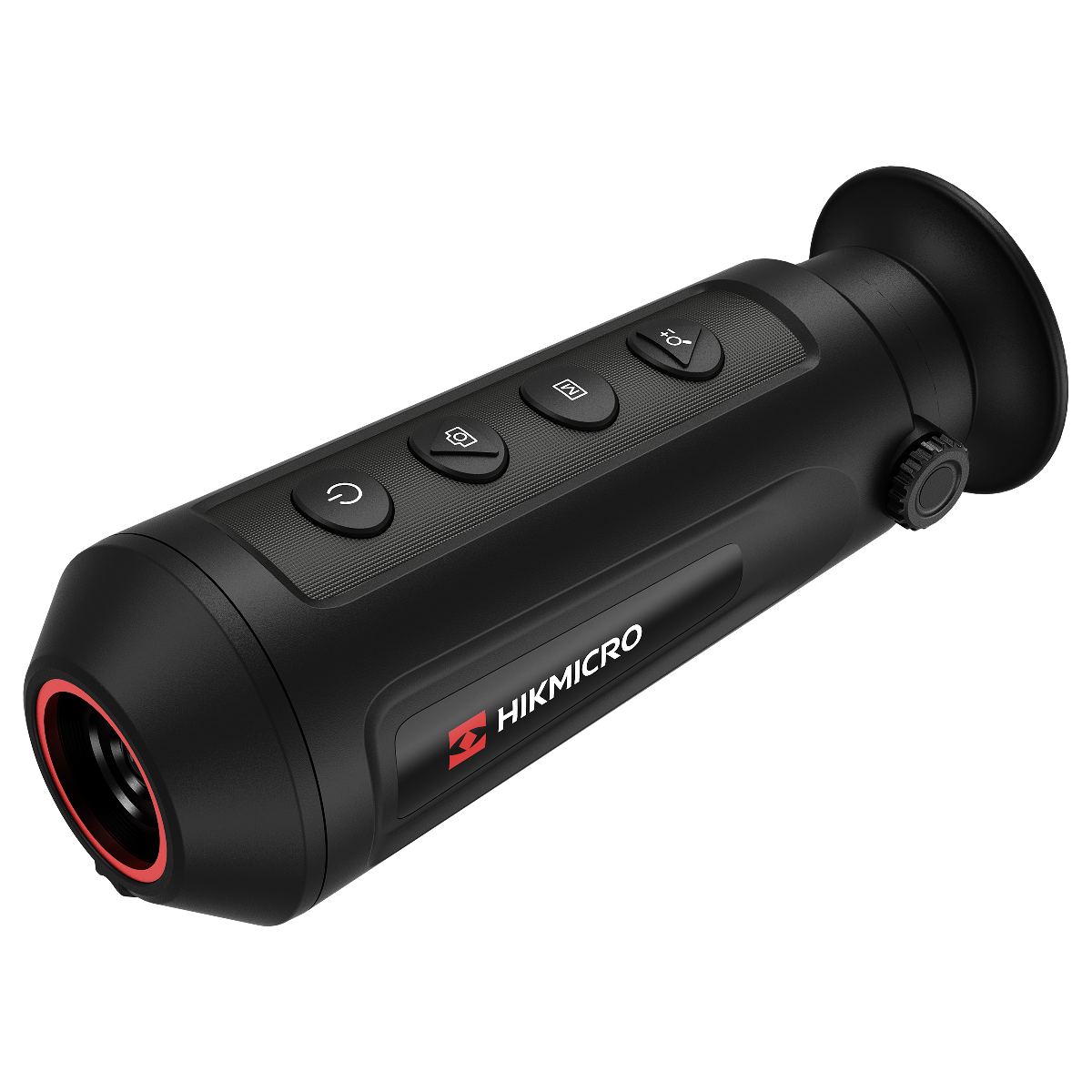

HIKMICRO Lynx-S LC06 Smart Thermal Monocular - 6mm 35mK 160x120px 17um
Welcome HikMicros best sell thermal monocular the HIKMicro Lynx-S 6mm featuring a superb sub 35mK 160x120 thermal sensor with a 17um micron pixel pitch which delivers a high-quality thermal image especially when you take into account that thermal imagers retail usually at 10x this price point. The HikMicro Lynx-S 6mm is Wifi enabled allowing you to pair up with the HikMicro Sight APP and it is filled with features that are normally reserved for high-end thermal spotters.
The HIKMicro Lynx-S 6mm with its 160x120px, 17µm thermal sensor (35mK NETD Rating) and HIK software deliver a detailed image to the screen which makes this a great unit for rat or rabbit control out to 50m. The HikMicro Lynx-S 6mm is definitely a multi talented unit that can be used for security work or even in professional environments such as plumbing where detecting for a heat source and working panel can usually be a difficult job. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone aswell as giving you the ability to share your view through the thermal monocular to your friends or colleagues.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
Battery life = 10hrs of continuous running!
This is all backed up by a 3 year UK warranty.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture image, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
| Product Name A-Z | WIN A: HIKMICRO Lynx-S LC06 6mm 35mK 160x120 17um Smart Thermal Monocular |
|---|---|
| SKU | OPTICSDRAWS#241 |
Specs
MAIN
Sensor 160×120px @ 17µm
Objective Lens 6mm
Detection Range (Vehicle 1.4 x 4m) 559m
Detection Range (Human 1.8 x 0.5m) 182m
SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 160×120 px
Pixel pitch, µm 17µm
Frame rate, Hz 50 Hz
NETD Rating 35mK
OPTICS
Objective lens F1.1
Magnification (Optical) 0.6x
Magnification (Digital) 1x, 2x, 4x,
Field of view 24.7° × 18.7° (H × V)
DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 720 × 540
Colour Palettes - 4 in total: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 158 mm × 61 mm × 57 mm
Weight, kg 0.25 kg
POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 10 hours continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%
Features
HIK VISION THERMAL SENSOR
The HIK Micro 160x120px, 17µm thermal sensor with a NETD rating of 35mK produces a high-quality thermal image.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-VISION APP: Connect – Control – Stream
Connect your smartphone and take control of all features of the Lynx-S 6mm.
The T-Vision app allows you to stream the output in real time allowing you to share your viewpoint with a friend.
You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.
HOT TRACK
Activate Hot Tracking and your Lynx-S 6mm will highlight the hottest spot detected in the current frame with a green crosshair.
This is useful to highlight small heat sources as you scan around.
This feature can also be deactivated in the menu or controlled in the App.
Video
HIK Micro/Vision - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
In the box?
HIKMICRO Lynx-S LC06 Smart Thermal Monocular - 6mm 35mK 160x120px 17umWarranty
HIK Micro Lynx-S 6mm 35mK 160x120 17um Smart Thermal Monocular
3 Year UK warranty
HIK Micro is a global company with global service.
Should you experience any technical issues with your Lynx-S Thermal, it can be quickly repaired in the UK at HIK’s London service centre.
3 Years - Main unit
2 Years - Battery
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
Manuals
HIK Micro Lynx-S 6mm 35mK 160x120 17um Smart Thermal Monocular
HIK Thermal Monocular User Manual: DOWNLOAD
Download the HIK App here:
Apple: https://apps.apple.com/us/app/t-vision/id1478705944
Android: https://www.app-st.net/ZdMM
T-Vision App Tutorial
