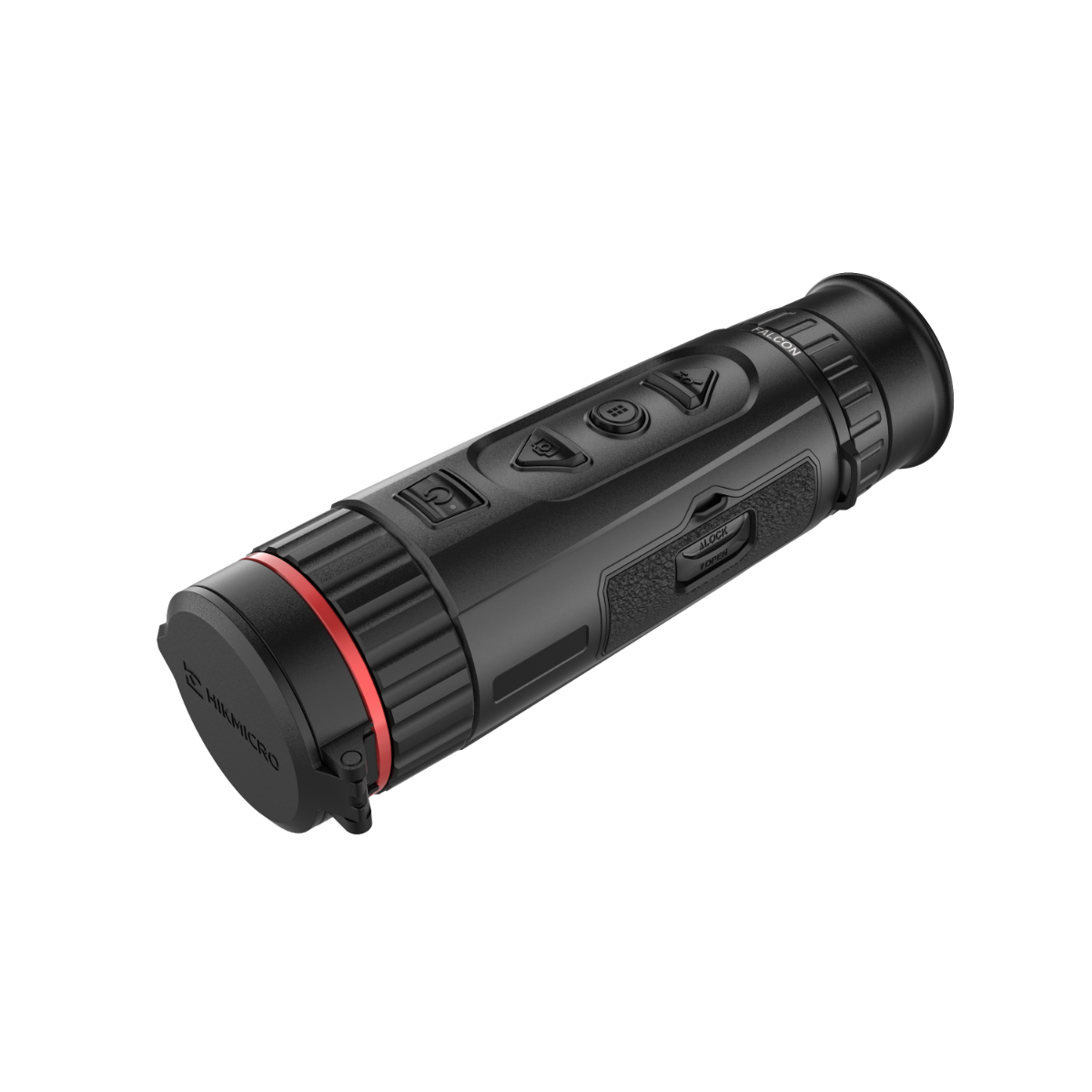

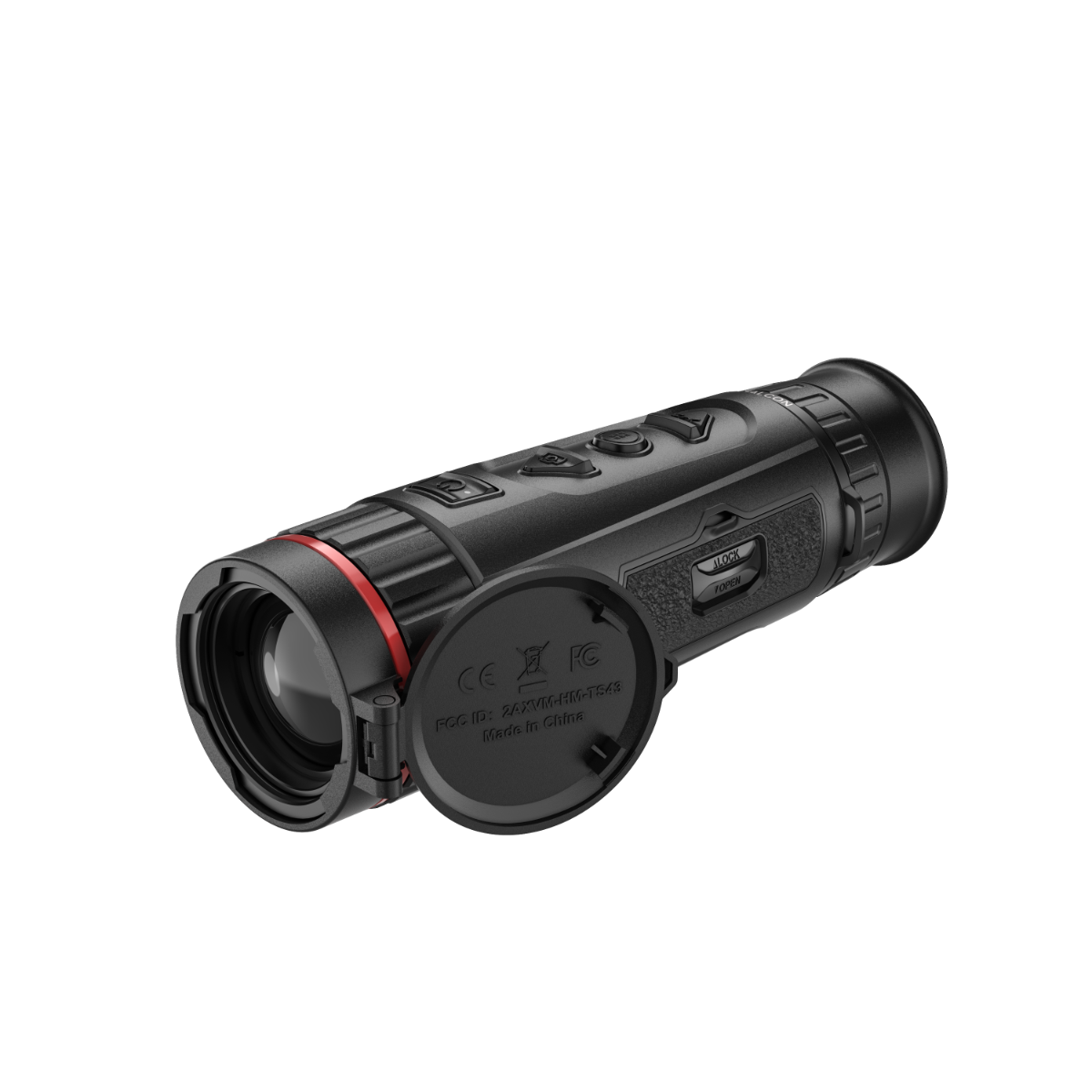

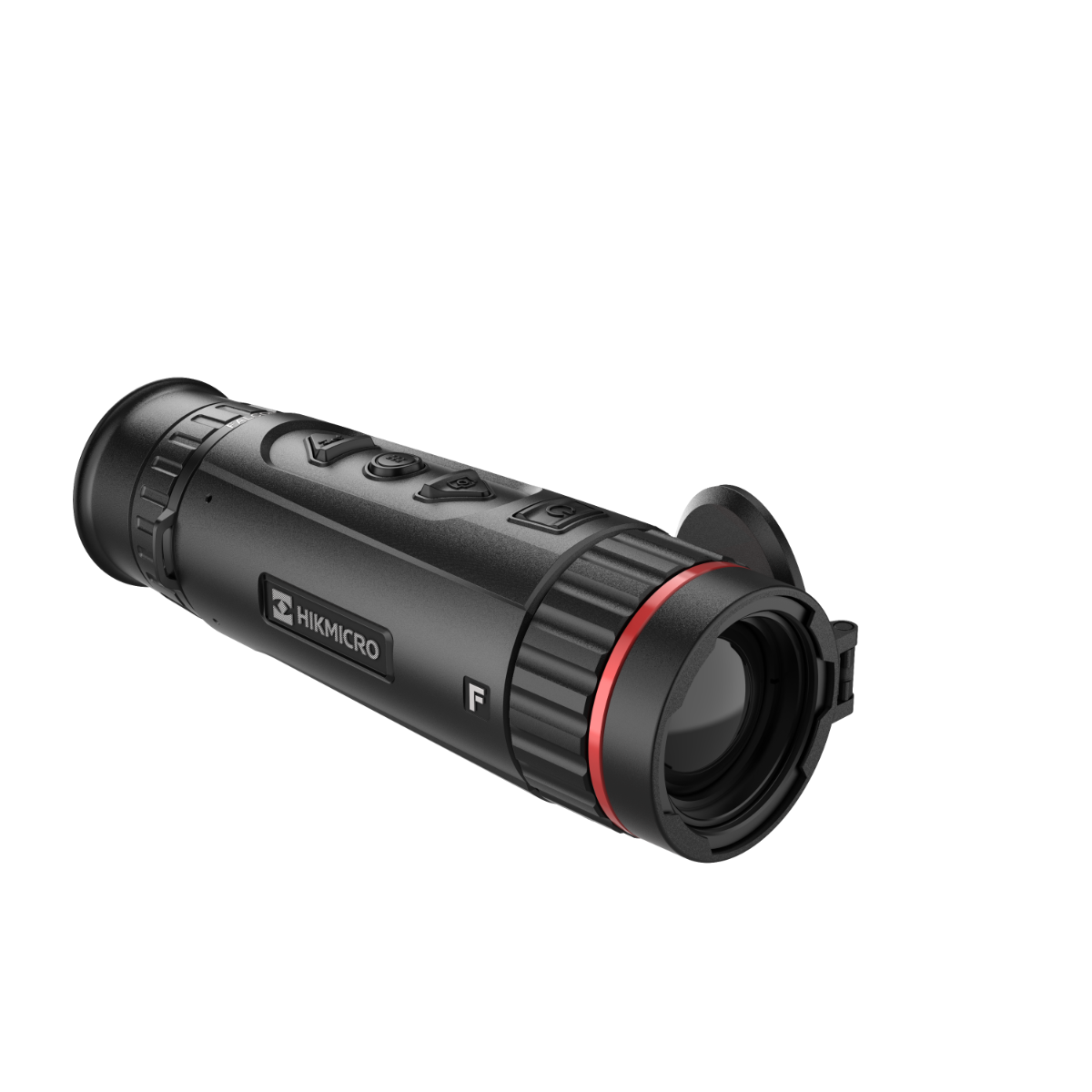

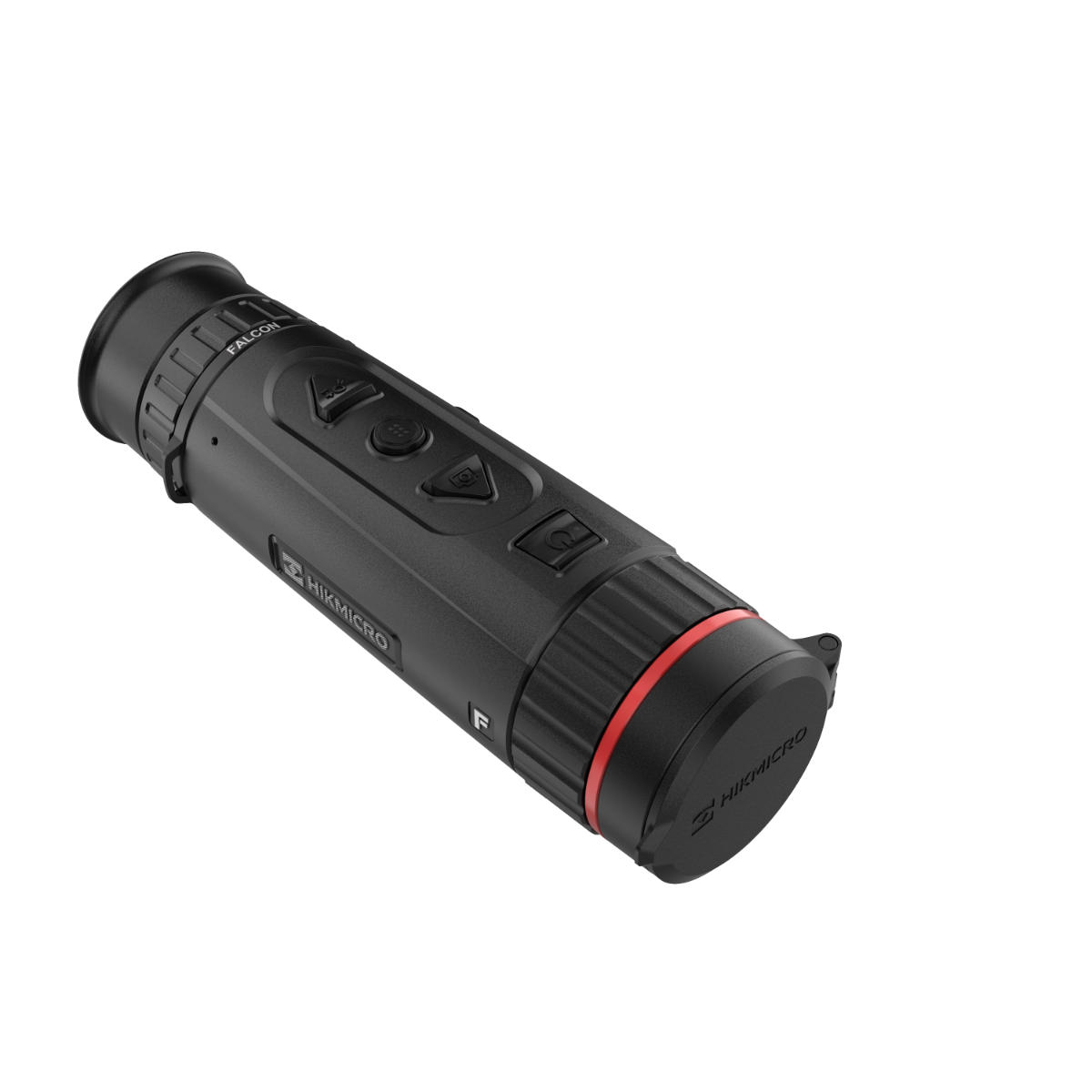

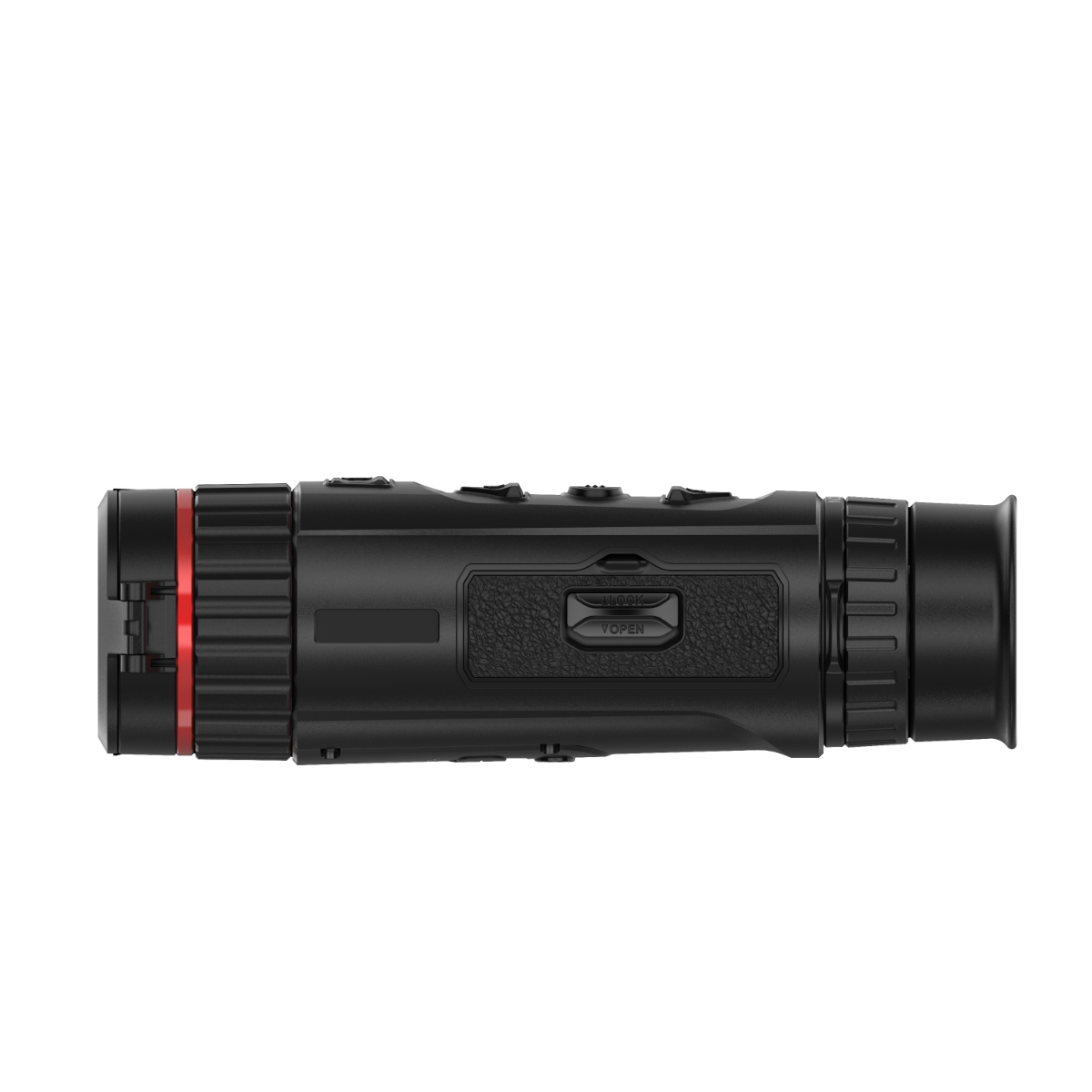

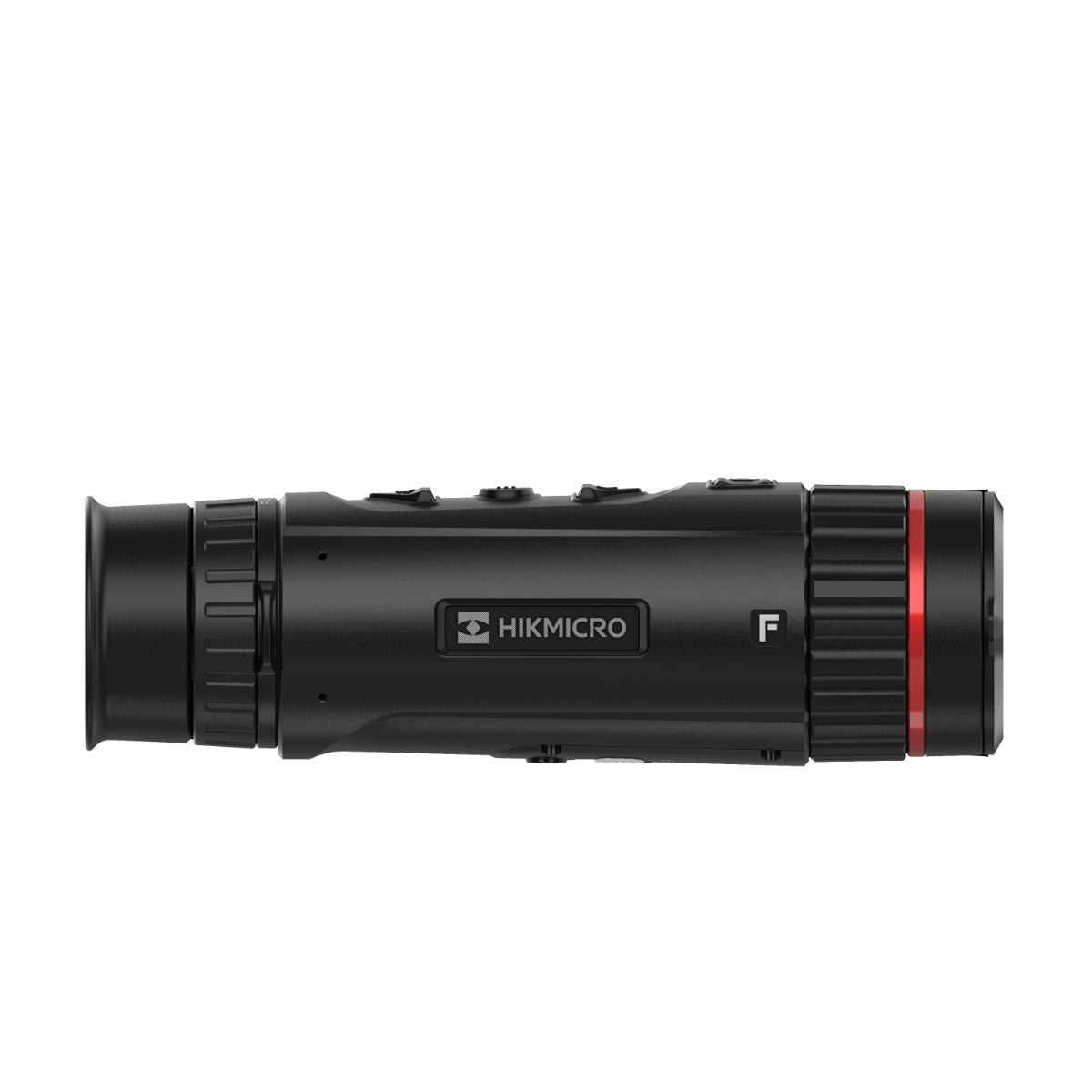

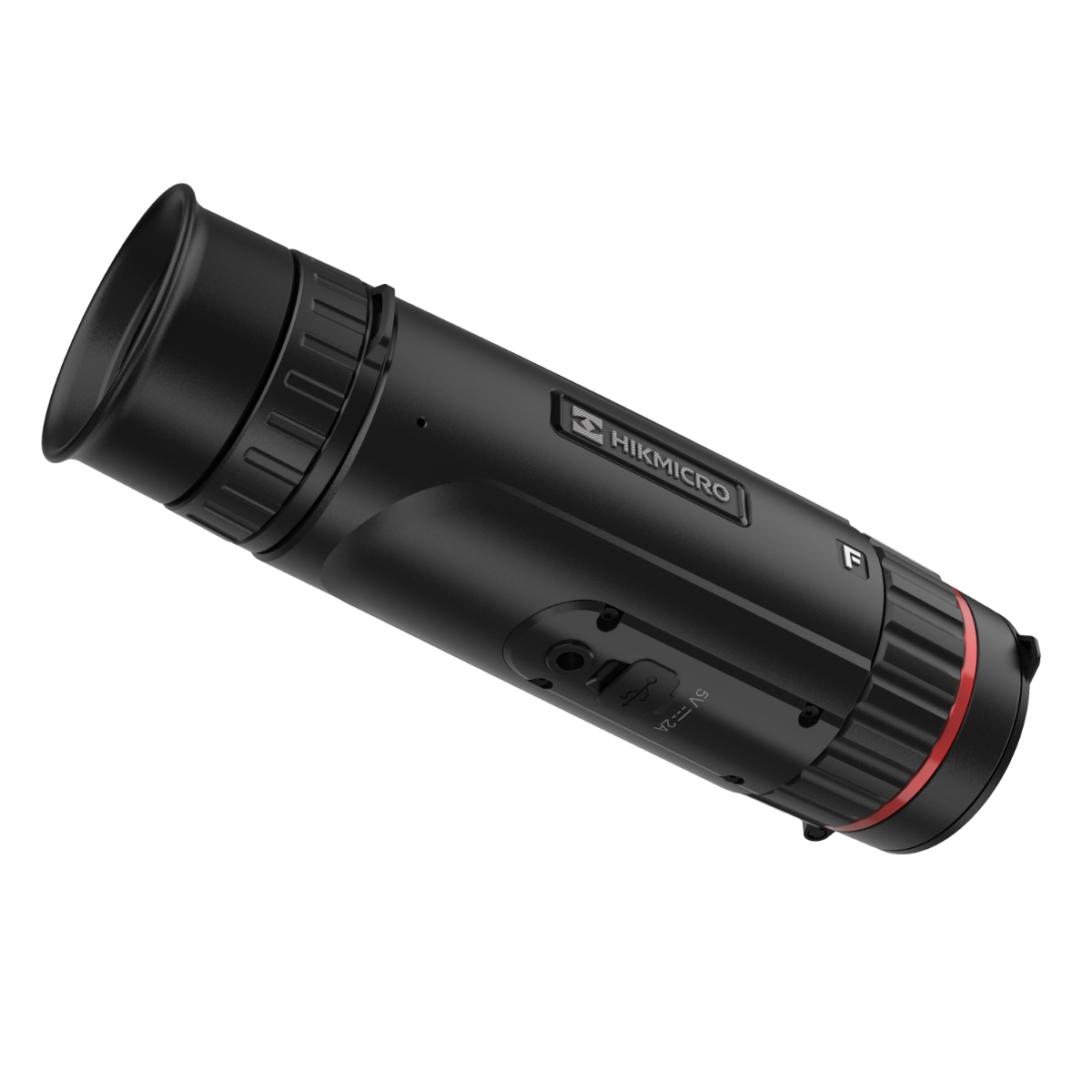

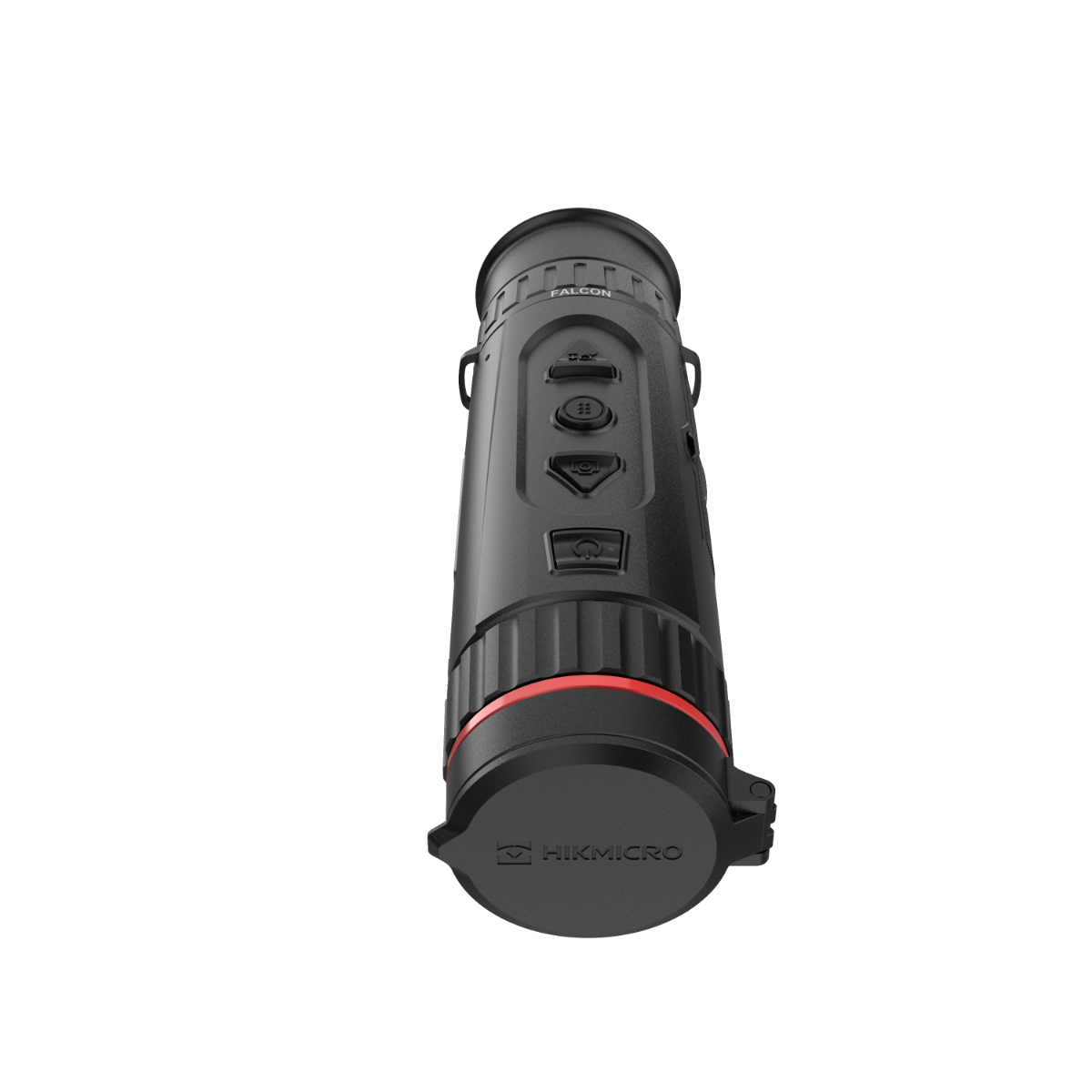

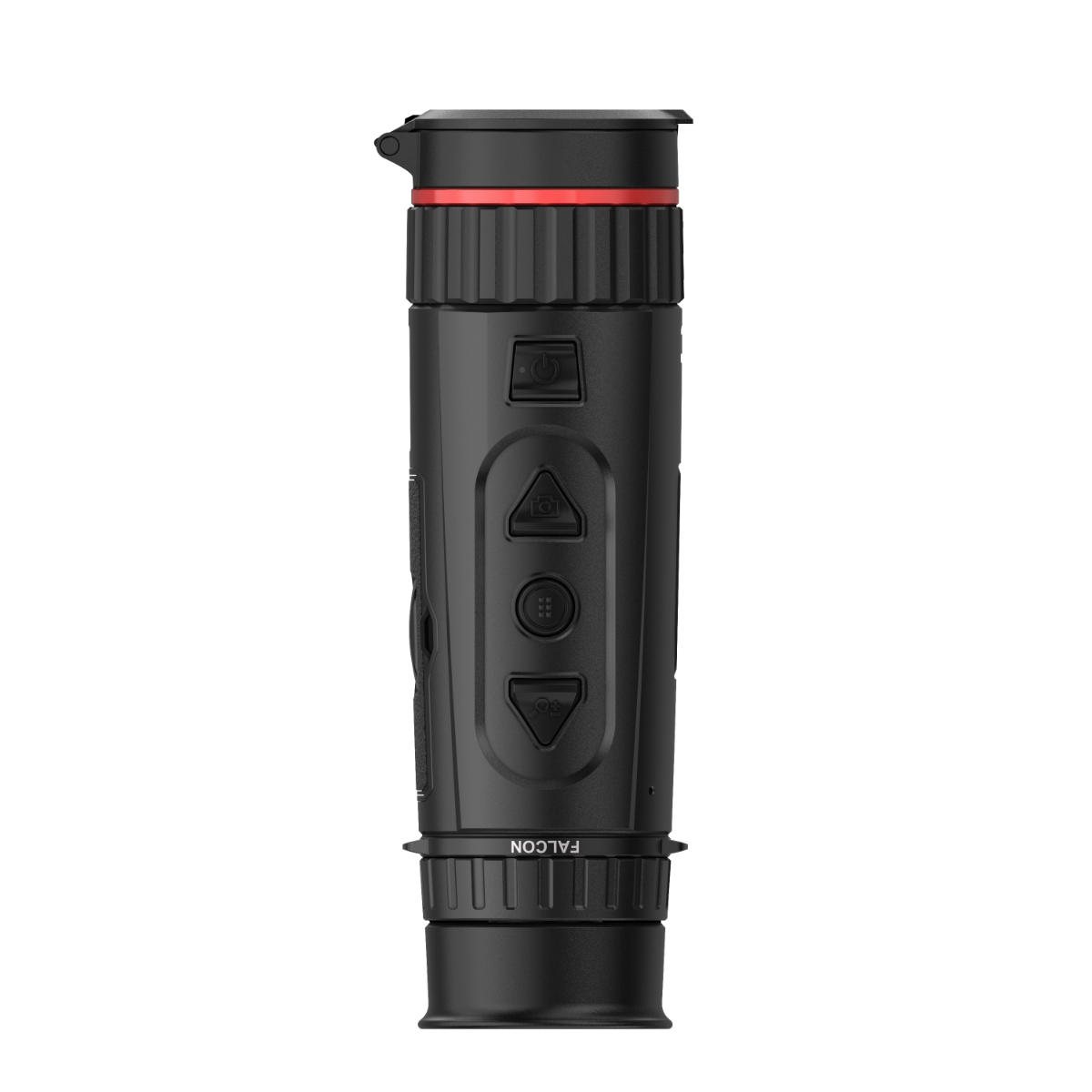

WIN A: HIKMICRO Falcon FQ35 Pro 35mm 640 x 512 12µm 20mk Hand Held Thermal Imager Monocular
WINNER: Simon Helliwell CHARITY: Diabetes UK
DONATION: £25.68
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
The HIKMICRO Falcon FQ35 Pro Thermal Imager Monocular is engineered for users who demand exceptional performance in the field. Equipped with a highly sensitive <20mK NETD sensor, a 640x512 high-definition thermal detector, and a fast f/0.9 germanium lens, it delivers crystal-clear images with outstanding detail recognition in all conditions. Whether scanning wide areas or identifying heat signatures at long distances, the Falcon FQ35 Pro provides a perfect overview with its wide field of view and flexible magnification. Its ergonomic cylindrical design ensures comfort and intuitive operation, while the long-lasting, replaceable battery system and external Type-C power compatibility keep you operating for extended sessions.
Product Name A-Z | WIN A: HIKMICRO Falcon FQ35 Pro 35mm 640 x 512 12µm 20mk Hand Held Thermal Imager Monocular |
---|---|
SKU | OPTICSDRAWS#144 |
Specs
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640x512
- Frame Rate: 50Hz
- Pixel Interval: 12µm
- Response Waveband: 8µm to 14µm
- NETD: <20mK (@25°C, F#=1.0)
- Lens (Focal Length): 35mm, f/1.0
- Detection Range: 1800m
- Focus Mode: Focus Ring
- Field of View (H × V): 12.5° × 10.0° / 21.9m × 17.5m @100m
- Minimum Focusing Distance: 3.5m
- Magnification: 1.8× – 14.4× (8x continuous zoom)
- Display: 1024x768, 0.39 inch OLED
- Contrast/Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction): Auto, Manual, External
- Exit Pupil: 4mm
- Eye Relief: 15mm
- Dioptre Adjustment: -5D to +3D
- Image Pro: Yes
- Protection Level: IP67
- Weight: 455g (without battery)
- Dimensions: 190.3mm × 58.3mm × 65.2mm
- Operating Temperature: -30°C to 55°C; Humidity ≤90%
- Video Recording: Yes
- Snapshot Capture: Yes
- Hotspot/Wi-Fi: Yes
- Standby Mode: Yes
- Storage: Built-in 64GB memory
- PIP (Picture-in-Picture): Yes
- Hot Tracking: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- Battery Type: Replaceable and Rechargeable Li-ion Battery
- Battery Operating Time: ≥5h (25°C, Hotspot Off)
- External Power Supply: Type-C, 5V DC, 2A
Features
- Outstanding thermal sensitivity: The <20mK NETD sensor, built with advanced VOx vanadium oxide technology, ensures exceptional image clarity by detecting the smallest heat differences between objects and background.
- High-resolution thermal detector: The 640x512 pixel sensor with a 12µm pixel pitch provides precise temperature readings and detailed imagery, ensuring accurate identification at any distance.
- Enhanced optical performance: A premium aspheric germanium lens with an f/0.9 aperture improves infrared capture by 19% compared to standard f/1.0 lenses, producing clearer and brighter thermal images.
- User-friendly design: The cylindrical body is compact, lightweight, and made from skin-friendly materials for comfort during extended use. It allows one-handed operation and is designed for both left- and right-handed users.
- Optimised controls: Large, tactile buttons with unique shapes allow fast, intuitive operation without visual confirmation, ensuring ease of use in total darkness or while wearing gloves.
- Reliable power options: The replaceable, rechargeable Li-ion battery provides up to 7 hours of operation, with the option to swap for a spare battery or connect to an external Type-C power bank for continuous use.
- Versatile functionality: Built-in video and audio recording, snapshots, hotspot sharing, picture-in-picture (PIP), hot tracking, and distance measurement enhance user capability in the field.
- Durable construction: IP67-rated for protection against dust and water ingress, ensuring dependable operation in harsh environments.
Video
In the box?
- HIKMICRO Falcon FQ35 Pro Hand Held Thermal Imager Monocular - 35mm 640x512px 12µm 20mk
- USB-C Data Cable
- Micro USB Cable
- Dual 18650 Battery Charger
- Neck Strap
- Neoprene carry bag
Warranty
- Warranty period (main unit): 3 years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
