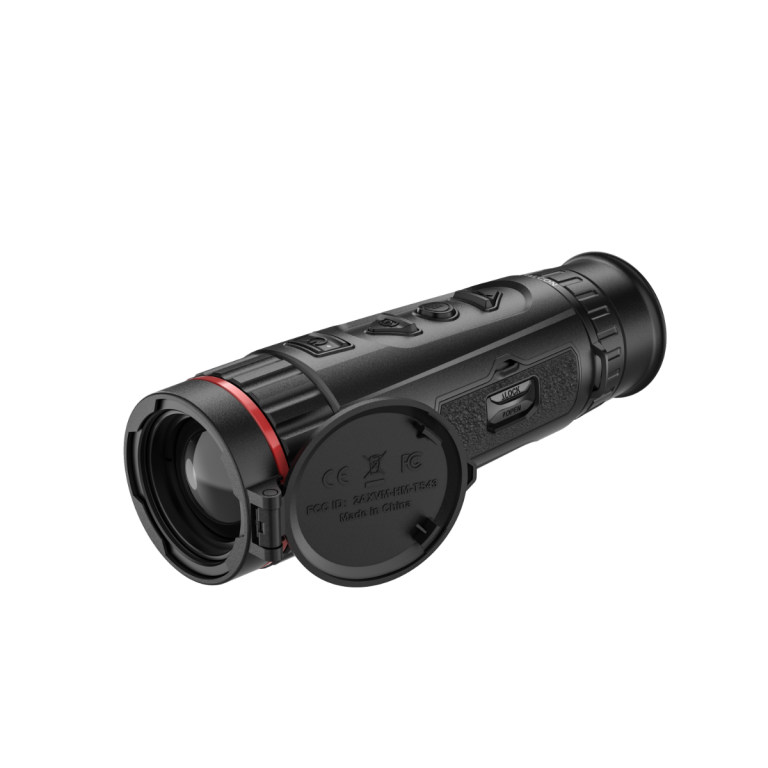

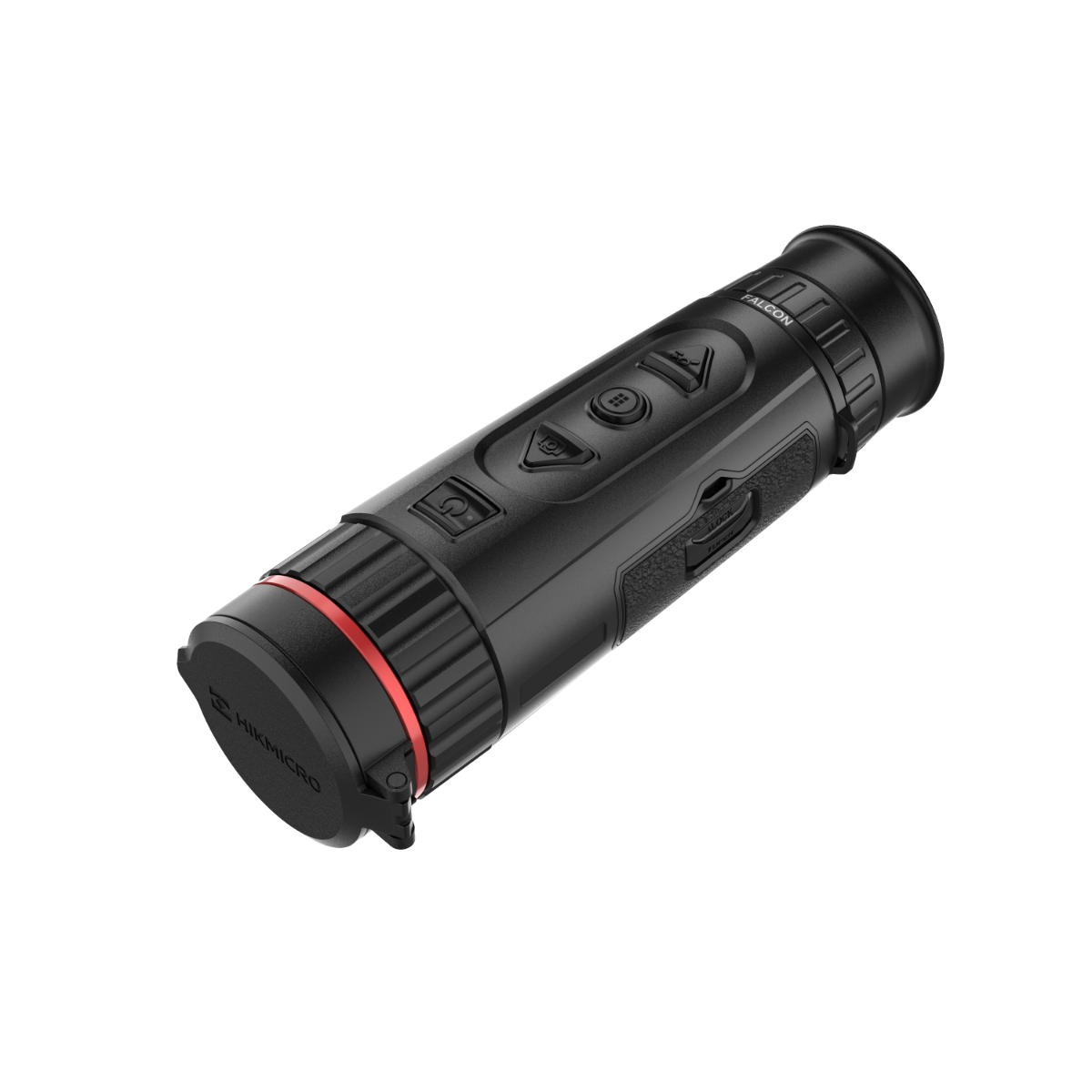

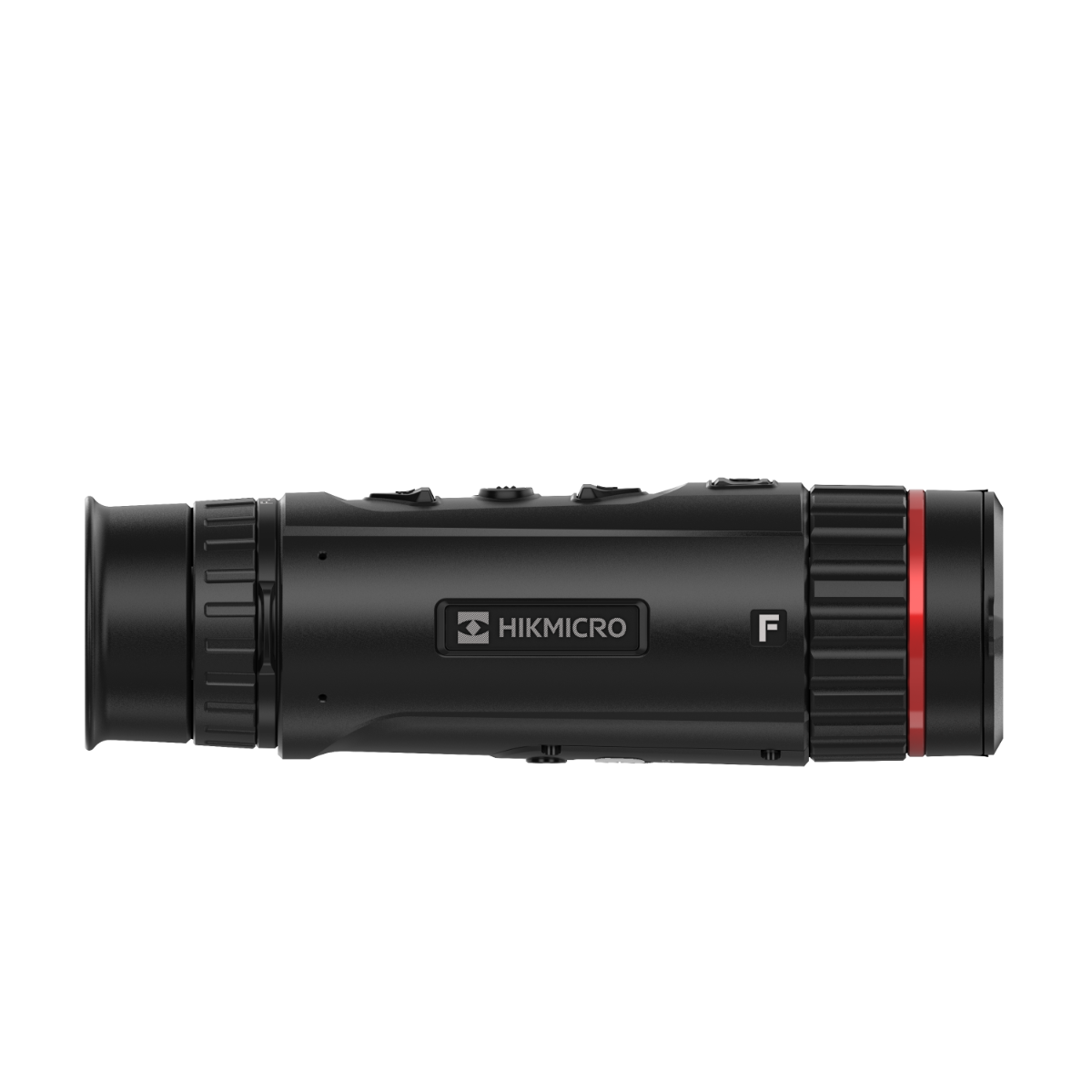

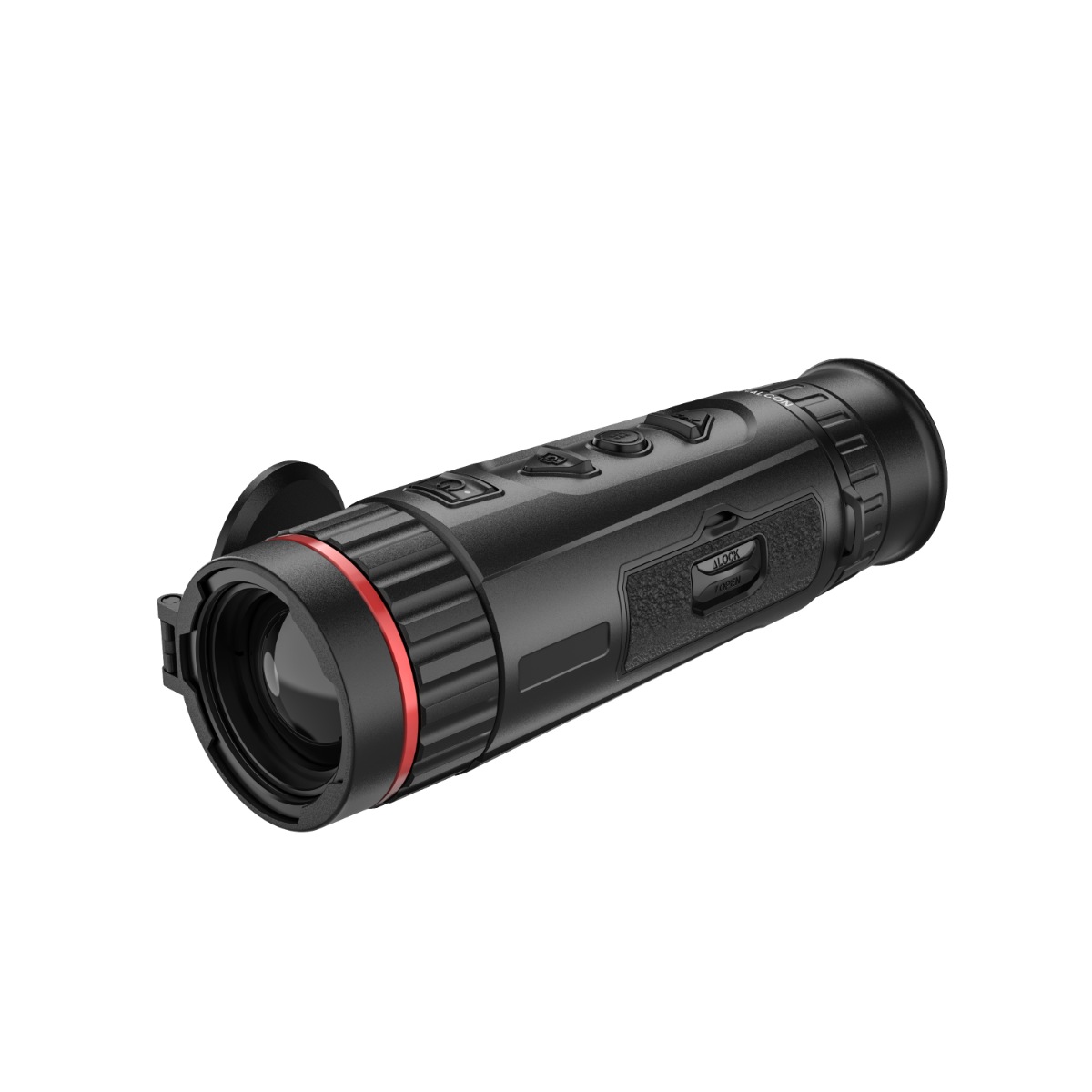

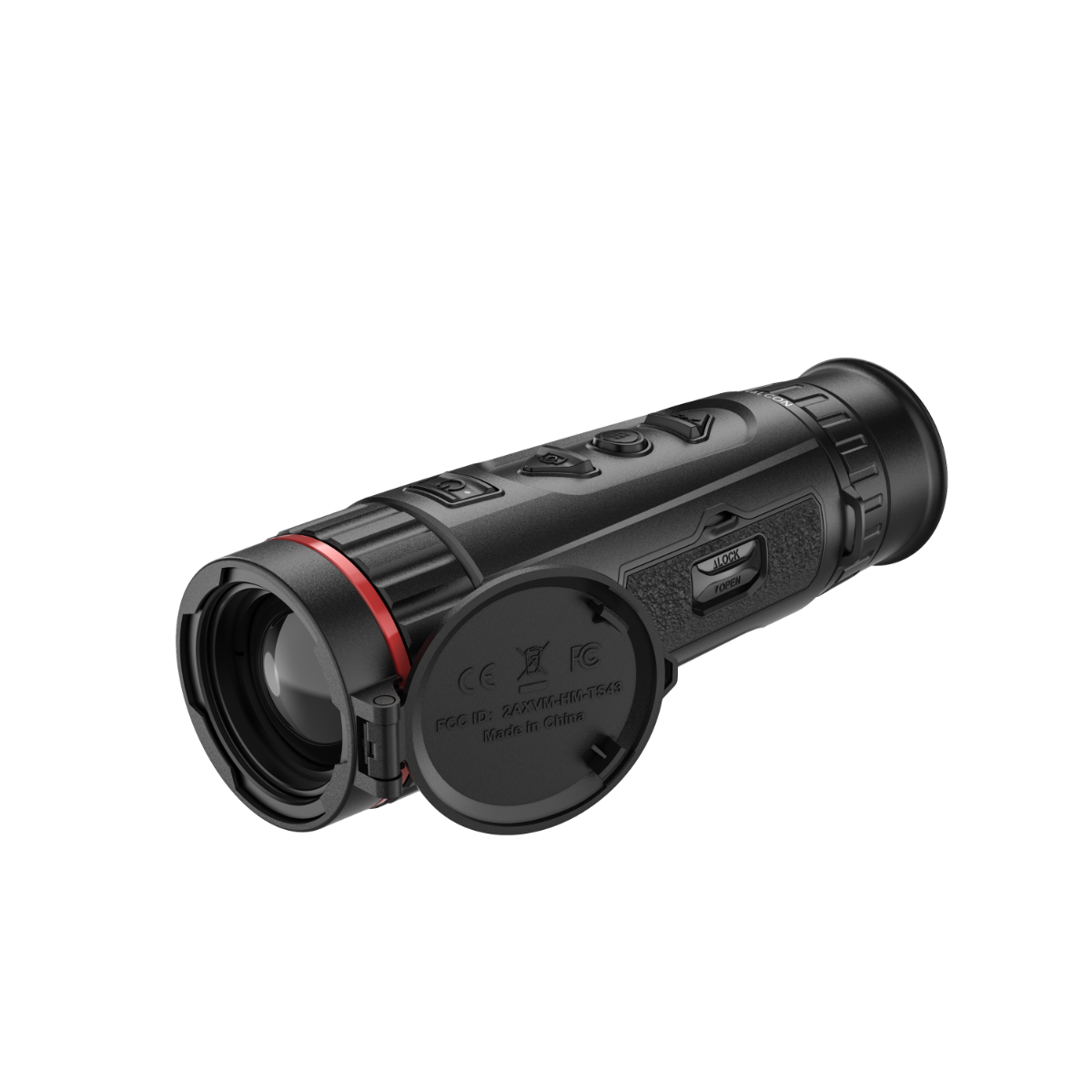

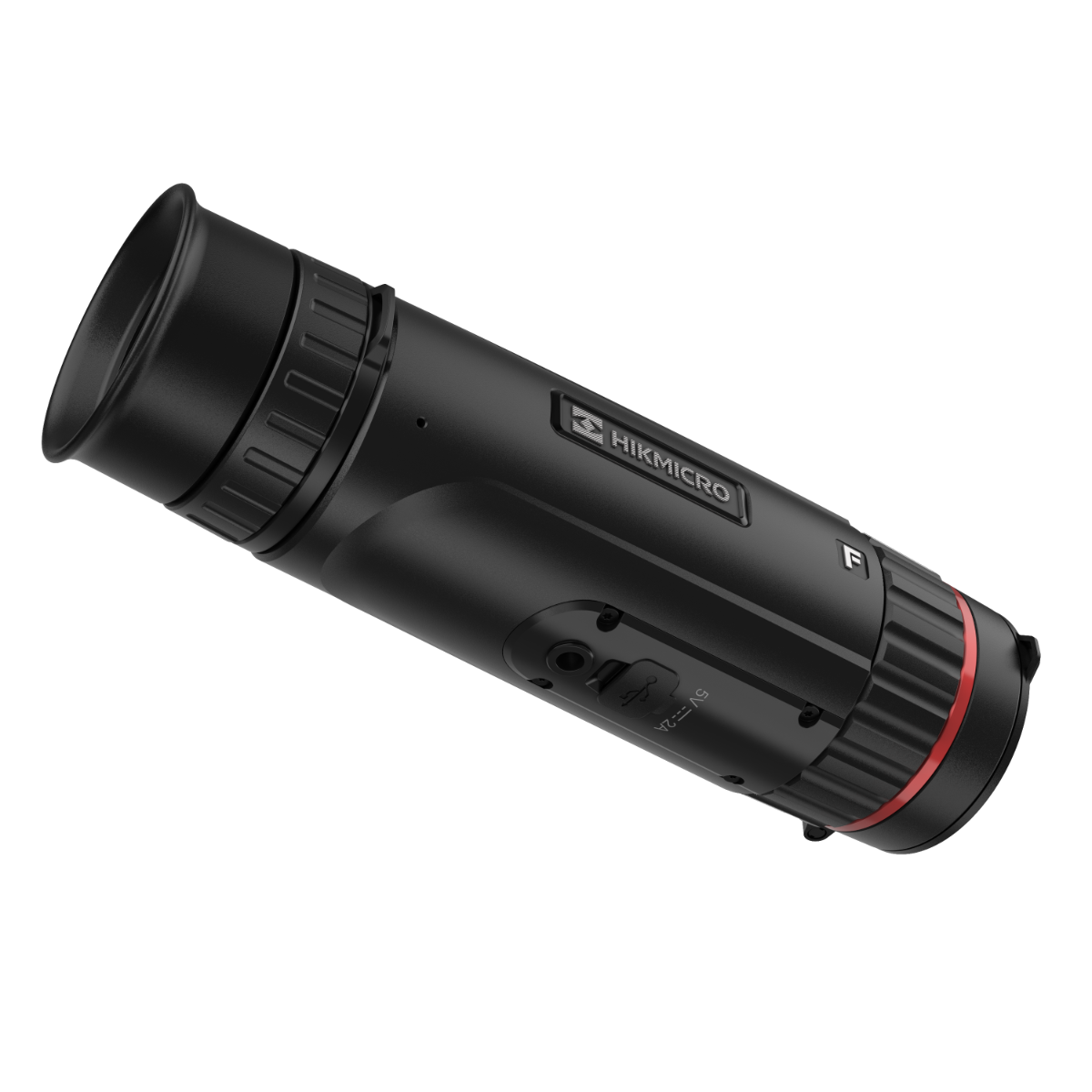

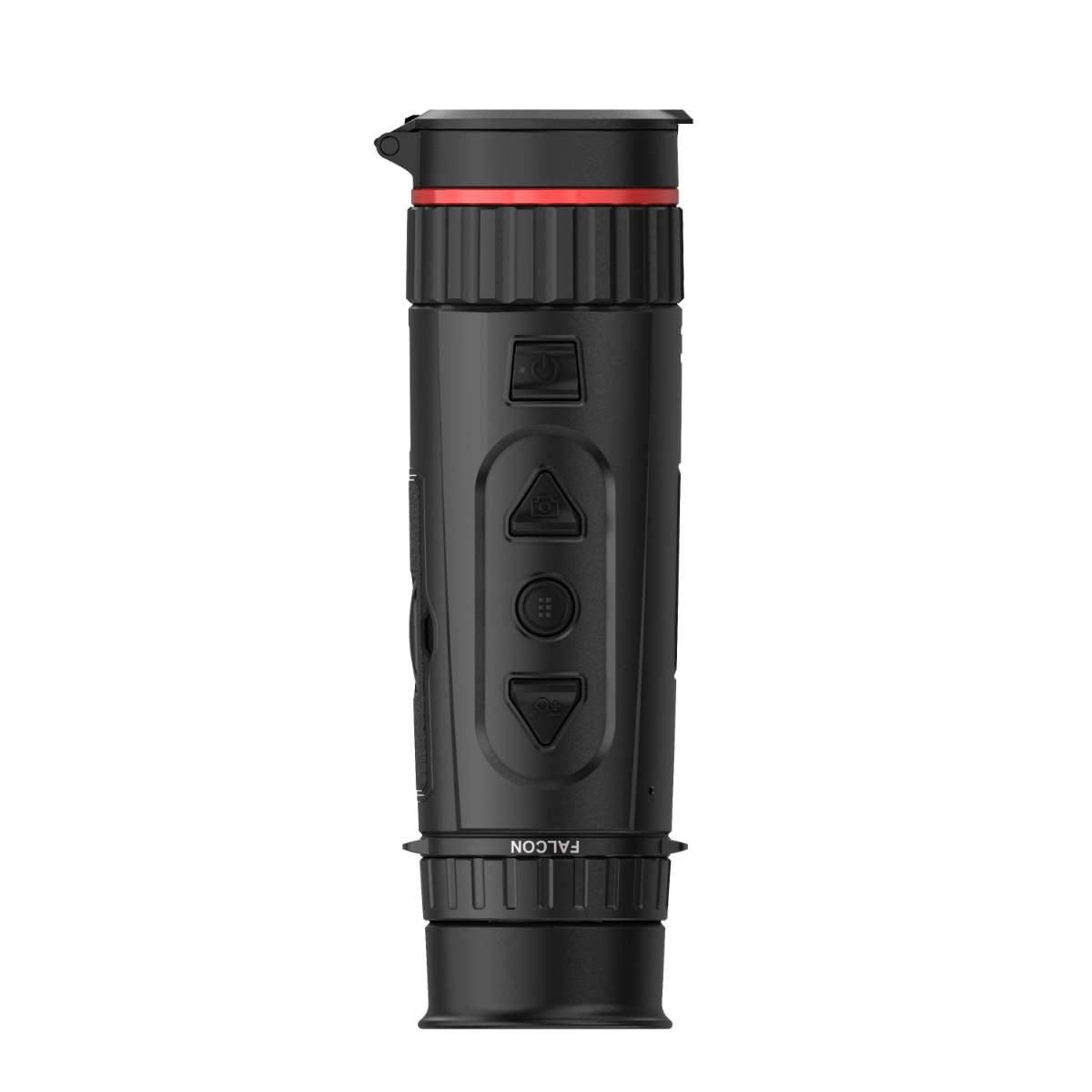

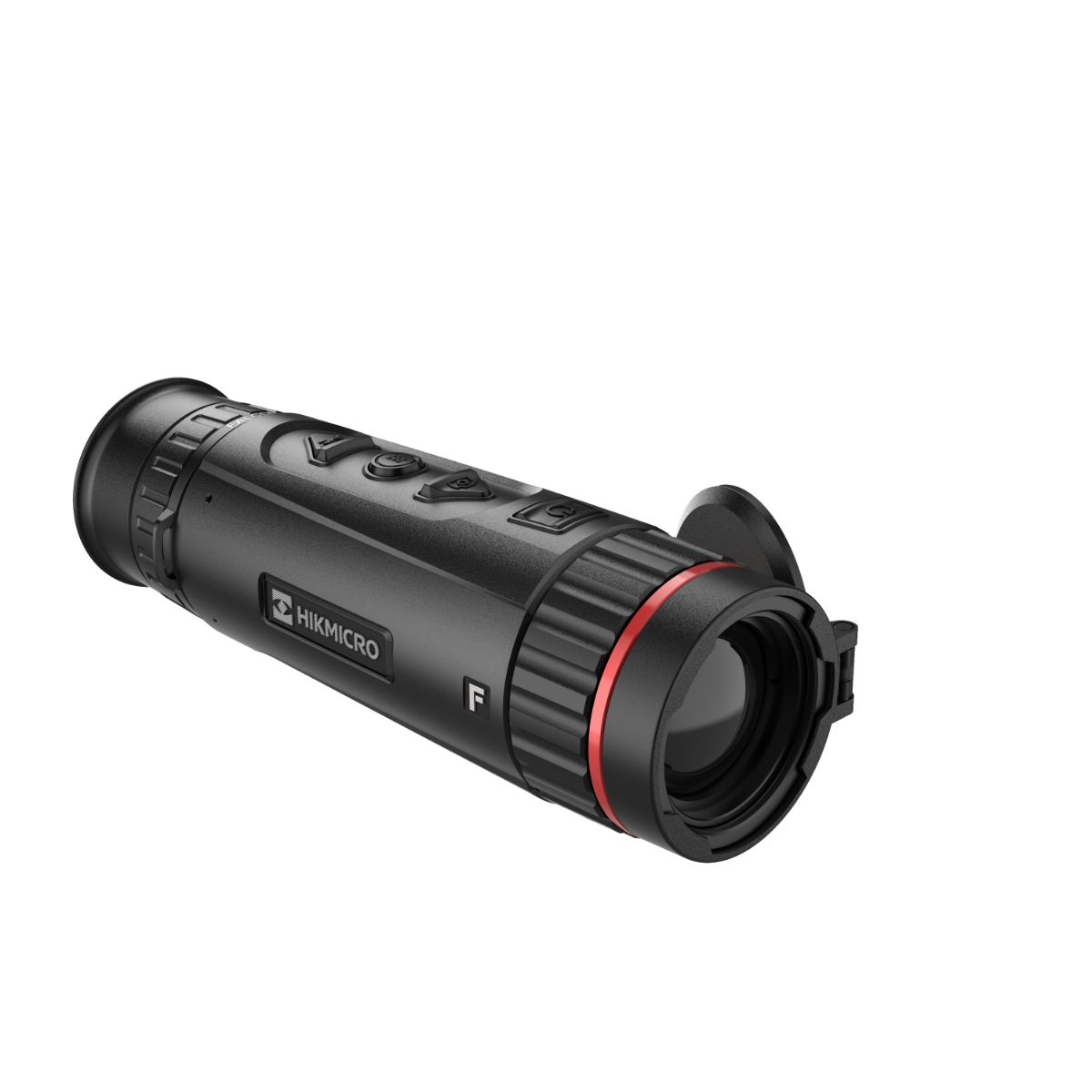

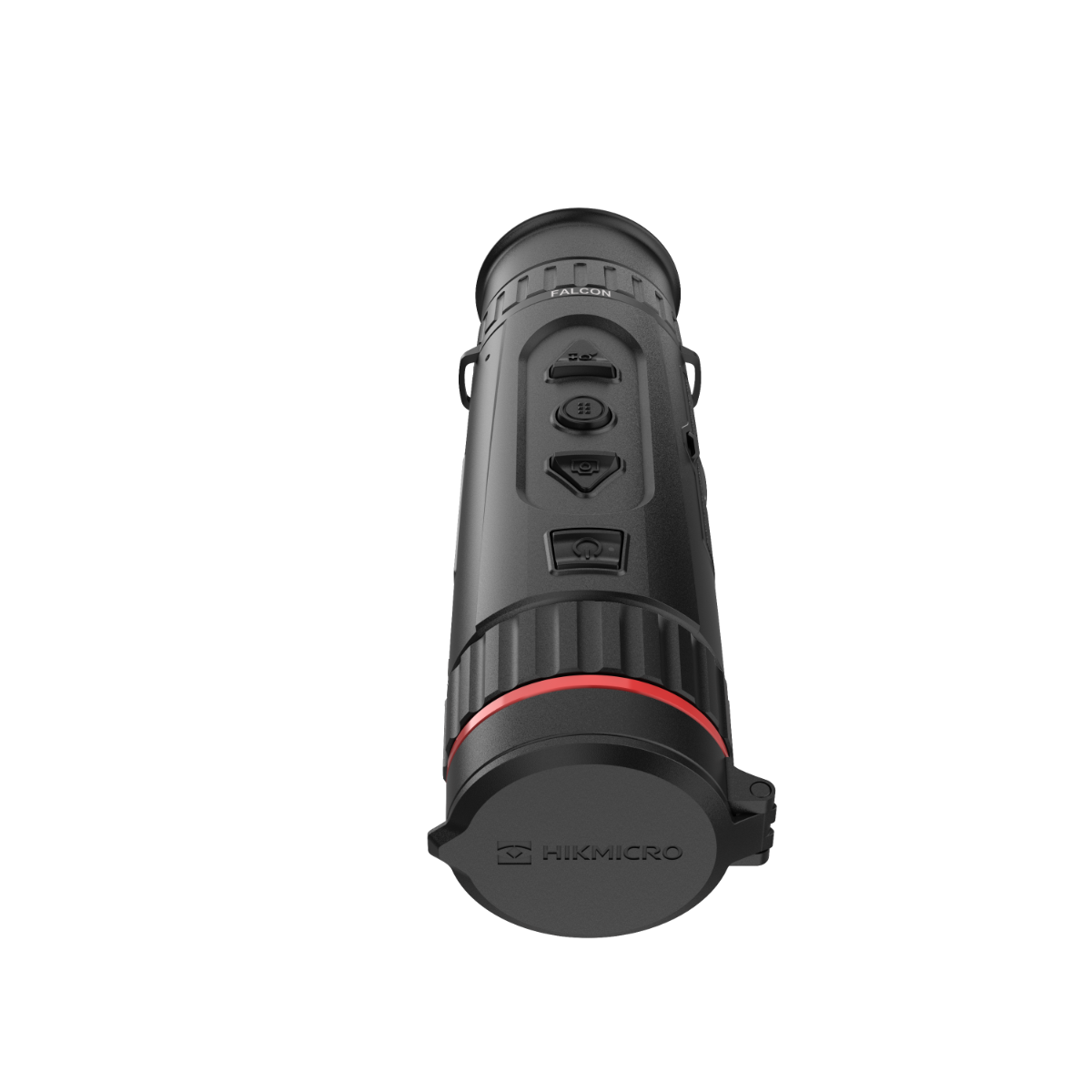

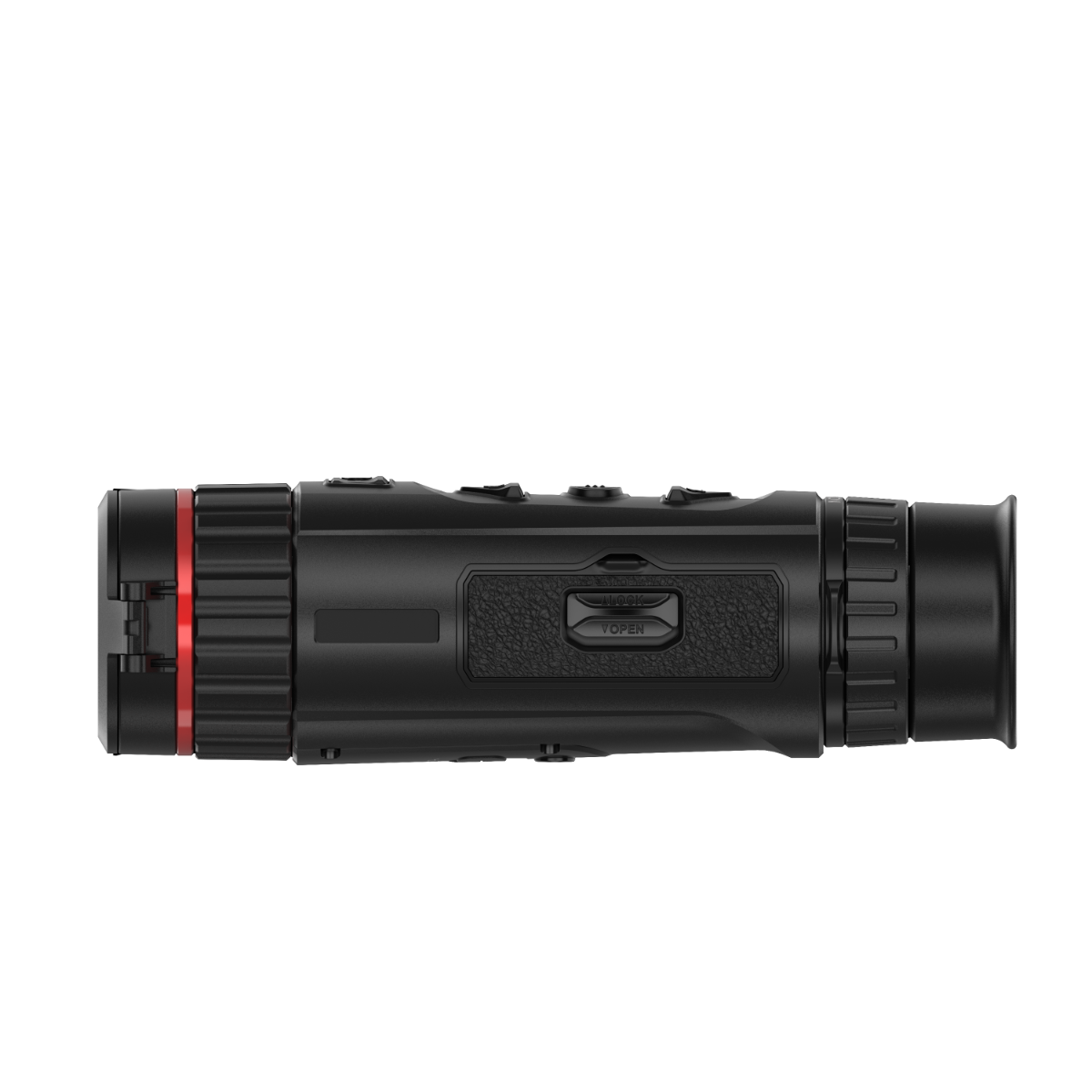

WIN A: HIKMICRO Falcon FH35 35mm 384x288 12µm 20mk Hand Held Thermal Imager Monocular
WINNER: Mark Flannery CHARITY: Children with Cancer
DONATION: £23.45
The HIKMICRO Falcon FH35 is a high-performance thermal monocular designed for users who demand precision and clarity in the field. Featuring a 35mm focal length lens and a 3.0x base magnification, the FH35 is ideal for open terrain and field hunting, offering a detection range of up to 1800 metres and a clear 13.1m field of view at 100m.
At the core of this thermal imaging monocular is a high-definition 384 × 288 thermal sensor with an advanced 12μm pixel pitch and NETD <20mK sensitivity, allowing it to produce incredibly detailed and contrast-rich thermal images, even when the temperature difference between object and background is minimal. Combined with HIKMICRO’s Image Pro 2.0 processing algorithm and a super-large f/0.9 aperture lens, the FH35 delivers top-tier image quality in fog, rain, or total darkness.
The Falcon FH35 is built with a rugged magnesium alloy housing, making it durable and IP67-rated waterproof. Its ergonomic cylindrical design ensures intuitive, one-handed operation, perfect for both left- and right-handed users, even when wearing gloves. A replaceable Li-ion battery provides up to 7 hours of runtime, and external USB-C power is supported for extended use.
Whether you’re engaged in wildlife monitoring, search and rescue, or security patrols, this thermal monocular UK model offers the visibility, performance, and reliability needed for professional and recreational applications. The thermal vision monocular also features built-in photo and video recording, 64GB storage, Wi-Fi connectivity, and compatibility with the HIKMICRO Sight App.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
| Product Name A-Z | WIN A: HIKMICRO Falcon FH35 35mm 384x288 12µm 20mk Hand Held Thermal Imager Monocular |
|---|---|
| SKU | OPTICSDRAWS#190 |
Specs
- Sensor Type: VOx uncooled focal plane arrays
- Resolution: 384 × 288 pixels
- Frame Rate: 50Hz
- Pixel Pitch: 12μm
- Spectral Range: 8μm to 14μm
- Thermal Sensitivity (NETD): <20mK (@25°C, F#=1.0)
- Lens: 35mm focal length, f/1.0 aperture
- Detection Range: Up to 1800 metres
- Focus Mode: Manual (focus ring)
- Field of View (H × V): 7.5° × 5.7°
- Field of View at 100m: 13.1m × 10.0m
- Minimum Focusing Distance: 3.5 metres
- Magnification: 3.0× optical, up to 24.0× with 8x digital zoom
- Zoom Type: Supports continuous zooming
- Display Type: 0.39-inch OLED
- Display Resolution: 1024 × 768 (Full Colour HD)
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
- Flat Field Correction (FFC): Auto, Manual, External
- Exit Pupil: 4mm
- Eye Relief: 15mm
- Dioptre Adjustment: -5D to +3D
- Image Enhancement: Image Pro (Version 2.0 on supported firmware)
- Ingress Protection: IP67
- Weight (Without Battery): 455g
- Dimensions: 193.8 × 66.9 × 58.3mm
- Operating Temperature: -30°C to +55°C
- Humidity Resistance: ≤90%
- Video Recording: Yes
- Photo Capture: Yes
- Built-in Memory: 64GB
- Wi-Fi Hotspot: Yes
- Standby Mode: Yes
- Picture-in-Picture (PIP): Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- App Compatibility: HIKMICRO Sight App
- Battery Type: Replaceable rechargeable Li-ion battery
- Battery Runtime: ≥7 hours (at 25°C with hotspot off)
- External Power: Supported (5V DC, 2A via USB Type-C)
Features
- NETD <20mK thermal sensitivity enables clear imaging in fog, rain, and low-contrast conditions
- 384 × 288 resolution sensor with 12μm pixel pitch delivers crisp thermal images
- Image Pro 2.0 algorithm optimises clarity of targets and backgrounds (with supported firmware)
- Super-large f/0.9 aperture germanium lens captures 19% more thermal radiation than f/1.0 alternatives
- 35mm lens with 3.0x optical magnification, ideal for open terrain or long-distance observation
- Detection range of up to 1800 metres ensures precise identification of distant targets
- Field of view at 100m: 13.1m × 10.0m, balancing detail and situational awareness
- Ergonomic cylindrical body for one-handed use, suitable for both left- and right-handed users
- Soft-touch housing for comfort during extended use
- Intuitive tactile button layout for operation with gloves or in complete darkness
- Magnesium alloy body resists corrosion from sweat, moisture, and weather
- SDLC-coated lens protects from scratches and wear
- IP67 waterproof rating, submersible to 1 metre for up to 30 minutes
- Operates in extreme temperatures from -30°C to +55°C
- Replaceable and rechargeable Li-ion battery with up to 7 hours of operation
- External power support via USB-C for extended usage in the field
- Digital zoom up to 8x, delivering total magnification up to 24.0x
- 1024 × 768 full-colour OLED display for sharp and vibrant visuals
- Four colour palettes: White Hot, Black Hot, Red Hot, Fusion
- Picture-in-Picture (PIP) mode for enhanced target focus
- Hot Track feature automatically highlights the warmest object in view
- Distance measurement function for better range estimation
- Built-in 64GB memory for photo and video recording
- Audio recording support
- Wi-Fi hotspot for smartphone connection
- HIKMICRO Sight App compatibility for remote control, image streaming and sharing
Video
In the box?
- HIKMICRO Falcon FH35 Hand Held Thermal Imager Monocular - 35mm 384x288px 12µm 20mk
- USB-C Data Cable
- Micro USB Cable
- Dual 18650 Battery Charger
- Neck Strap
- Neoprene carry bag
Warranty
- Warranty period (main unit): 3 Years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
Manuals
Download Manual HERE
