WINNER: Martin Waugh
DONATION: £11.55
WIN A: HIKMICRO EXPLORER E20 Smartphone Clip-In Thermal Imager for Android
WINNER: Martin Waugh CHARITY: Great North Air Ambulance Service
DONATION: £11.55
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

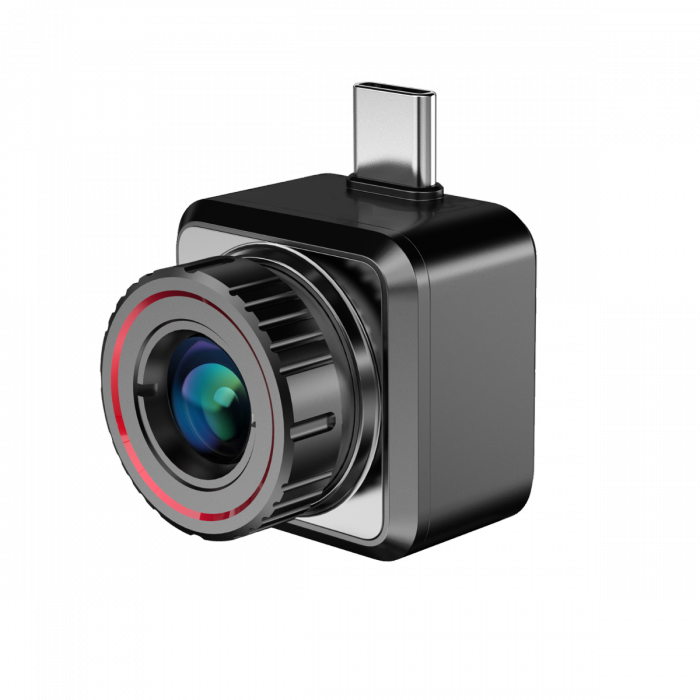

The HIKMICRO EXPLORER E20 is a pocket-sized thermal imaging camera designed to transform your Android smartphone into a powerful observation tool. Weighing less than 26 g and smaller than a watch, it slips easily into your pocket, ready for instant use whenever adventure calls.
Fitted with a high-performance 256 × 192 resolution, 12 µm thermal detector and a 9.7 mm lens, the EXPLORER delivers a wide 18.1° × 13.6° field of view for scanning large areas and detecting heat signatures up to 970 m away. The 50 Hz frame rate ensures smooth, fluid imagery, while HDR processing enhances clarity in challenging conditions.
Ideal for camping, wildlife spotting, birdwatching, climbing, and general outdoor exploration, the EXPLORER offers six colour palettes – including a dedicated Birdwatching mode – for optimised image rendering in any scenario. With a simple plug-and-go design, adjustable brightness and contrast, and features such as picture-in-picture, hot track, and a digital compass, it combines portability with powerful performance.
Drawing less than 0.35 W from your smartphone via USB Type-C, the EXPLORER has no internal battery, making it lightweight, reliable, and ready for all-day use. Whether by day or night, it delivers clear, precise thermal imaging for both recreation and professional fieldwork.
iPhone version coming soon!
Click HERE to check phone compatibility.
| Product Name A-Z | WIN A: HIKMICRO EXPLORER E20 Smartphone Clip-In Thermal Imager for Android |
|---|---|
| SKU | OPTICSDRAW#115 |
Specs
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 256 × 192
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 50 mK (@25°C, F#=1.0)
- Lens (Focal Length): 9.7 mm
- Detection Range: 970 m
- Field of View (H × V), Degrees / m @100m: 18.1° × 13.6° / 31.8 m × 23.8 m
- Aperture: F1.0
- Magnification: 1×–2× (Digital zoom 2×)
- Image Display – Contrast Adjustment: Adjustable from 0 to 100 by slider control
- Image Display – Brightness Adjustment: Adjustable from 0 to 100 by slider control
- Image Mode: Birdwatching / Red Hot / White Hot / Black Hot / Rainbow / Ironbow
- General – Power Consumption: 360 mW
- General – Protection Level: IP40
- General – Weight: 26 g
- General – Dimension: 26.6 mm × 26.6 mm × 27.2 mm
- General – Working Temperature: From -10 °C to 50 °C
- General – Power Supply: USB Type-C interface
- System – Record Video: Yes
- System – Capture Snapshot: Yes
- System – Digital Magnetic Compass: Yes
- System – PIP: Yes
- System – Hot Track: Yes
Features
- Ultra-Compact and Lightweight – Weighing less than 26 g and smaller than a watch, the EXPLORER E20 is designed for ultimate portability, making it easy to carry in a pocket for instant use.
- Instant Plug-and-Go Operation – Attaches directly to compatible Android smartphones via USB Type-C, with installation taking less than one second. Simply plug in and start exploring through the HIKMICRO Sight app.
- High-Performance Thermal Imaging – Equipped with a 256 × 192 resolution, 12 µm VOx uncooled focal plane array and a 9.7 mm lens, delivering sharp, detailed heat signatures in both day and night conditions.
- Wide Field of View for Better Coverage – Offers an expansive 18.1° × 13.6° field of view (31.8 m × 23.8 m at 100 m), enabling easy location and identification of hidden or distant targets in complex environments.
- Long Detection Range – Despite its small size, it can detect heat sources up to 970 m away, ensuring reliable performance in wide-open areas and challenging terrains.
- Six Customisable Colour Palettes – Includes Birdwatching, Red Hot, White Hot, Black Hot, Rainbow, and Ironbow modes for optimised viewing in different environments and applications.
- Specialised Birdwatching Mode – Tailored image processing enhances fine details in birds and other wildlife, making it ideal for nature observation and conservation work.
- Smooth, High-Refresh Imaging – Operates at 50 Hz with HDR enhancement for fluid, lag-free visuals, even when tracking fast-moving subjects.
- Battery-Free, Low Power Design – Draws less than 0.35 W of power directly from your smartphone, eliminating the need for internal batteries and enabling all-day operation without interruption.
- Multi-Scenario Outdoor Use – Perfect for camping, hiking, wildlife spotting, alpine climbing, conservation, adventure travel, and outdoor filming.
- Versatile Imaging Controls – Adjustable brightness and contrast (0–100 via slider) allow users to fine-tune the display for different lighting and environmental conditions.
- Built-In Observation Tools – Features include picture-in-picture (PIP) mode, hot track for automatic subject detection, and a digital magnetic compass for precise orientation.
- Integrated Recording Functions – Capture both still images and video directly to your smartphone for sharing, analysis, or documentation.
Video
In the box?
- HIKMICRO EXPLORER E20 Smartphone Clip-In for Android
- USB Type-C Cable
- Bag
- Quick Start Guide
Warranty
- Battery: 1 Year
- Full Product: 3 Years
- Detector: 10 Years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
