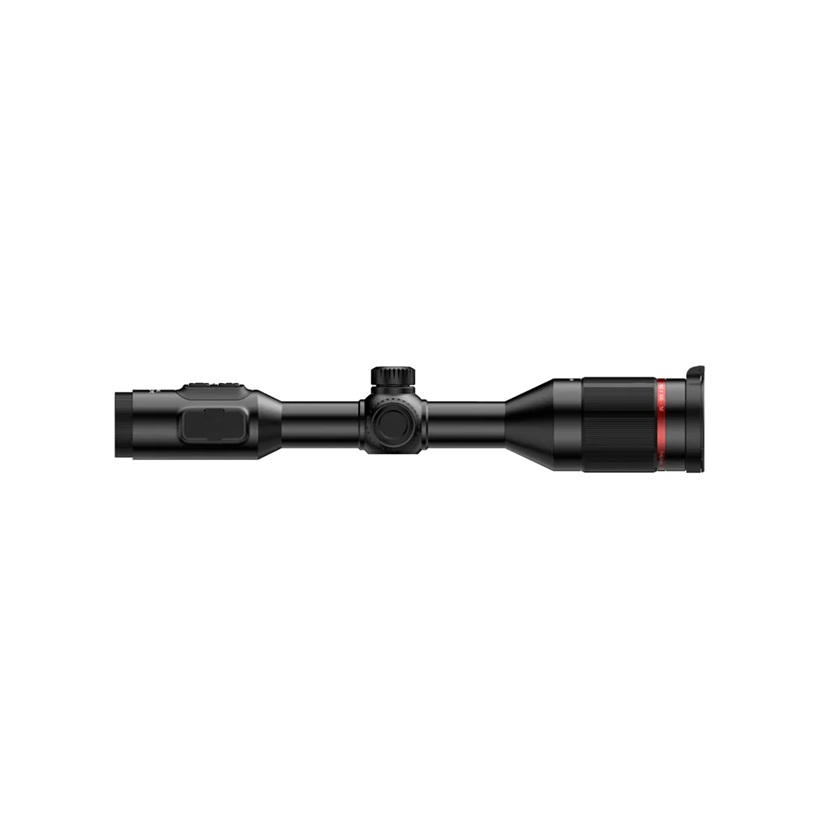

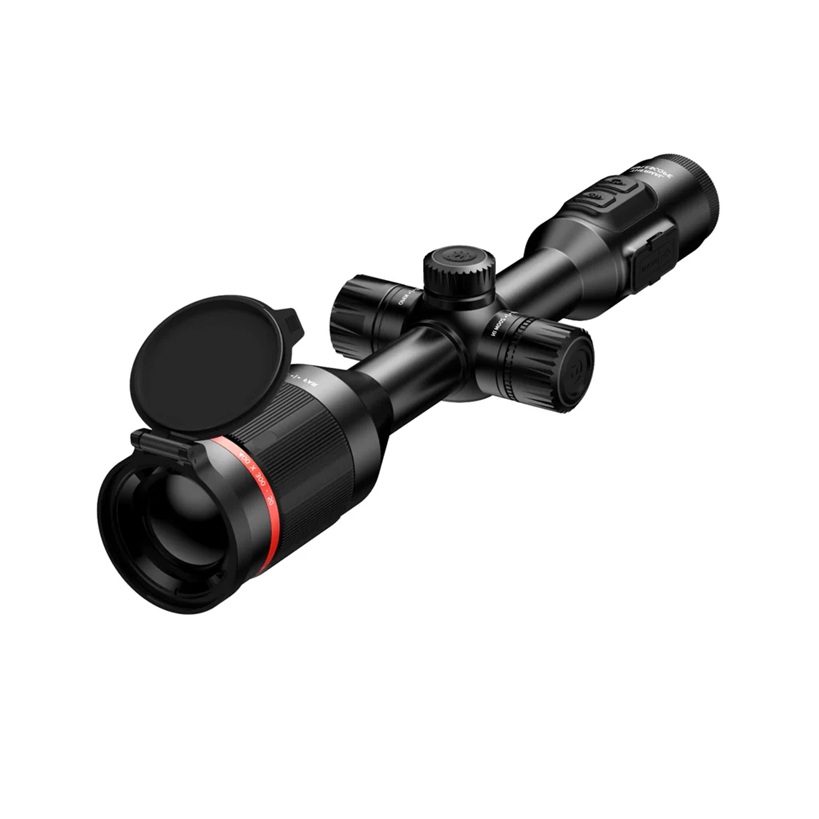

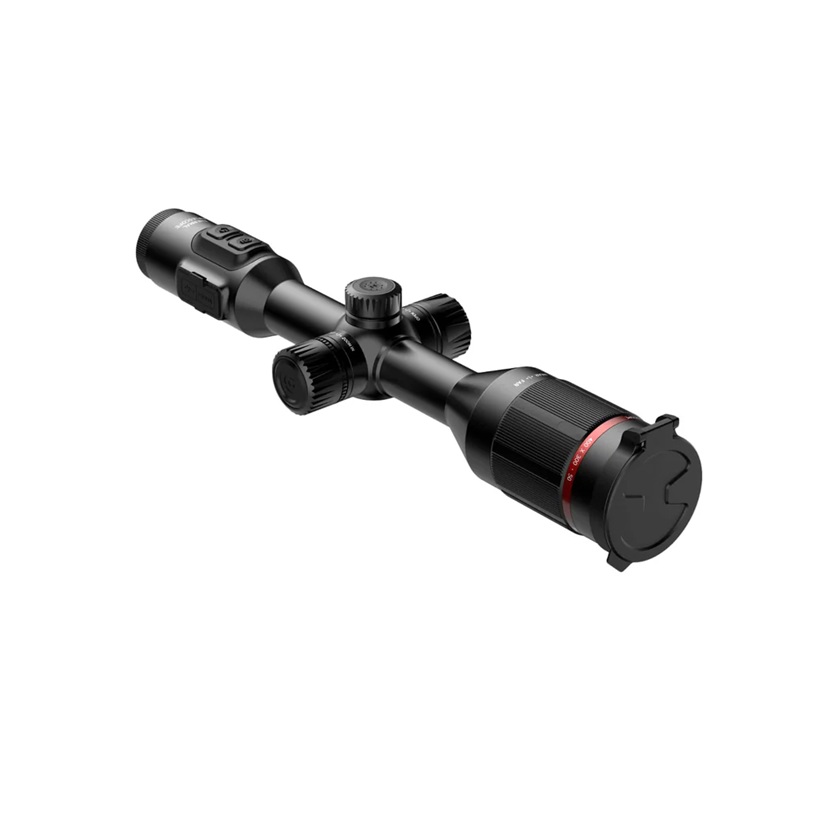

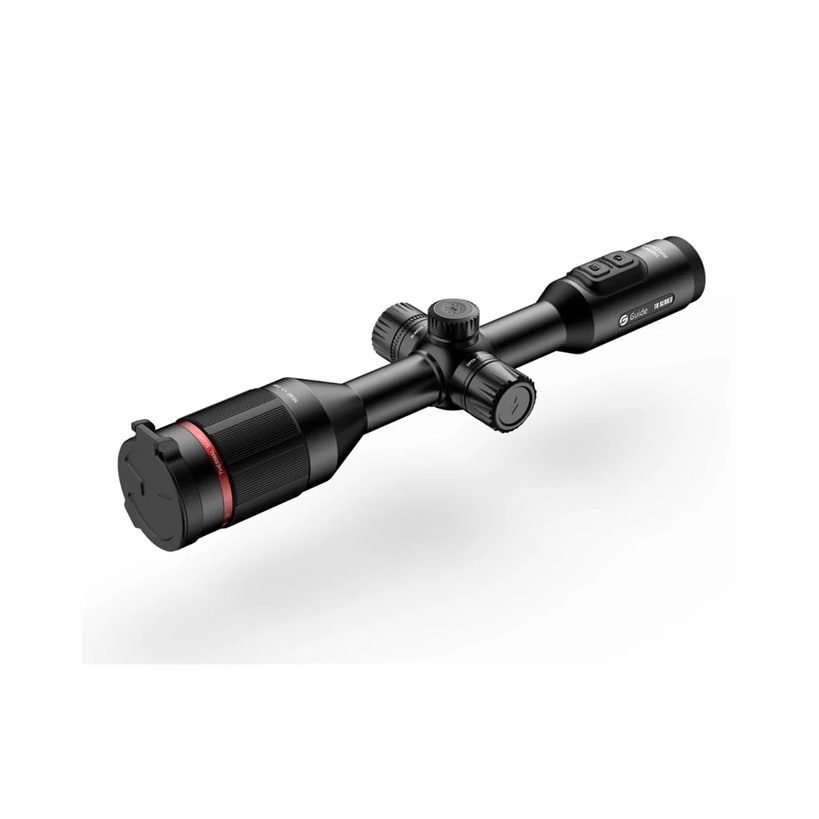

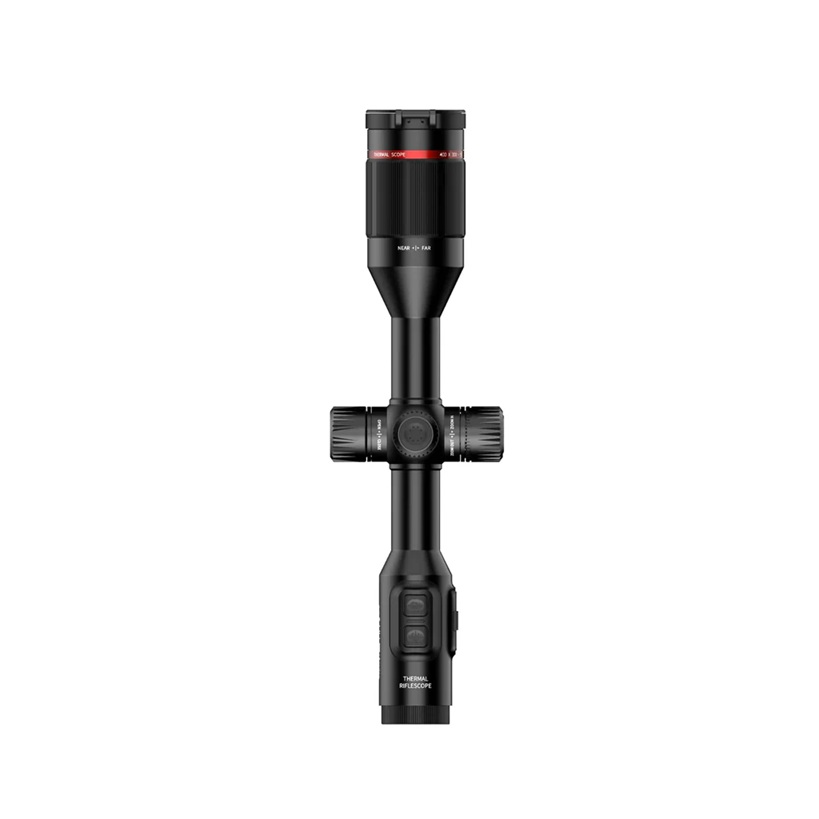

WIN A: Guide TU450 Thermal Imaging Rifle Scope - 400x300, 17µm, <30mK NETD
The Guide TU450 Thermal Imaging Rifle Scope combines the familiar design of a traditional daylight optic with advanced thermal imaging technology, delivering outstanding performance for professional hunters. Featuring a 400×300, 17µm <30mK NETD thermal detector paired with a 50mm lens, the TU450 provides sharp, high-contrast images with a detection range of up to 1,400m. Its full-colour 1024×768 OLED display, smooth zoom, multiple scene modes, and versatile colour palettes ensure clear target acquisition in all weather conditions. With photo and video recording, Wi-Fi connectivity, and an extended dual-battery system offering up to 10 hours of operation, the TU450 is built to perform in the toughest outdoor environments.
Product Name A-Z | WIN A: Guide TU450 Thermal Imaging Rifle Scope - 400x300, 17µm, <30mK NETD |
---|---|
SKU | OPTICSDRAWS#902 |
Specs
- Detector Resolution: 400×300, 17µm
- NETD: ≤30mK @ F1.0, 25°C
- Lens: 50mm F1.2, manual focus
- Field of View: 7.78° × 5.84°
- Detection Range: 1,400m (human-sized target)
- Frame Rate: 50Hz
- Magnification: 3.2× optical, up to 12.8× with 4× digital zoom
- Display: 0.39" OLED, 1024×768 resolution
- Eyepiece: Exit pupil distance ≥48mm; dioptre ±4
- PIP (Picture-in-Picture): Upper left, middle, right, or off
- Recording: Photo and video with 16GB internal memory
- Connectivity: Wi-Fi, Micro HDMI, Type-C
- Operation Time: Up to 10 hours (dual battery system)
- Operating Temperature: -30°C to +50°C
- Protection Rating: IP67 waterproof, shock and vibration resistant
- Certifications: UN38.3, RoHS, CE, FCC, EAC
- Dimensions: 367 × 107 × 69mm
- Weight: ≤950g
Features
- High-Sensitivity Thermal Detector – Delivers precise heat detection with <30mK sensitivity, ensuring reliable performance in fog, rain, or low-contrast environments.
- Optimised for Hunting – Traditional riflescope design with 10 zero calibration options for switching between rifles with ease.
- Full-Colour OLED Display – 1024×768 resolution enhances image clarity and comfort during extended use.
- Smooth Zoom Functionality – Easily zoom in or out on targets with a long press of the control button, maintaining accuracy while scanning or aiming.
- Multiple Colour Palettes – Choose from six options (White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Heat) to highlight targets in any scenario.
- Reticle Scaling – Reticle density zooms alongside the image without distortion, helping maintain precision at all magnifications.
- Scene Modes – Switch between Enhance, Highlight, and Natural modes to adapt the display for different environments and target clarity.
- Photo & Video Capture – Record key moments in the field, with Wi-Fi support for real-time transmission and social media sharing via app.
- Extended Battery Life – Dual battery system provides up to 10 hours of runtime; the external battery can be swapped without powering down.
- Built for the Outdoors – IP67 waterproof-rated and shock-resistant, designed to withstand harsh conditions and extreme temperatures (-30°C to +50°C).
In the box?
- Guide TU450 Thermal Imaging Rifle Scope
- Lens cap
- Customised battery
- Customised battery charger (desktop charger)
- Type-C cable
- 5V2A power adapter (China, US, UK, Australia, EU plugs)
- Micro HDMI cable
- Eye mask
- Two Picatinny rail clips
- Quick start guide
- Hard carry case
Warranty
- GuideIR 2 Year Warranty
