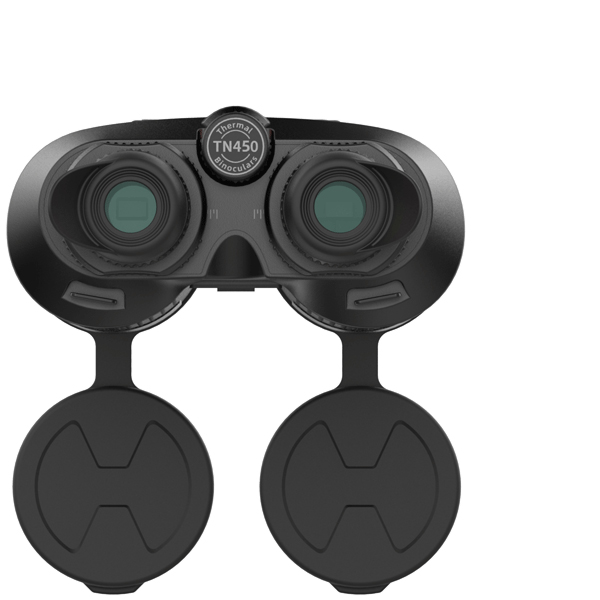

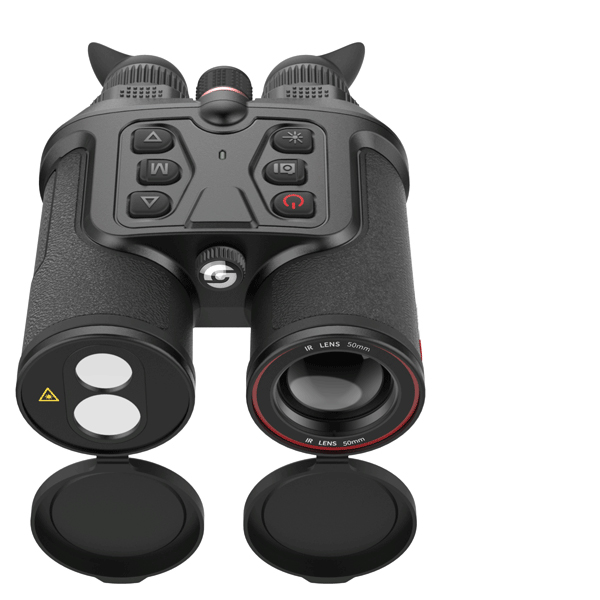

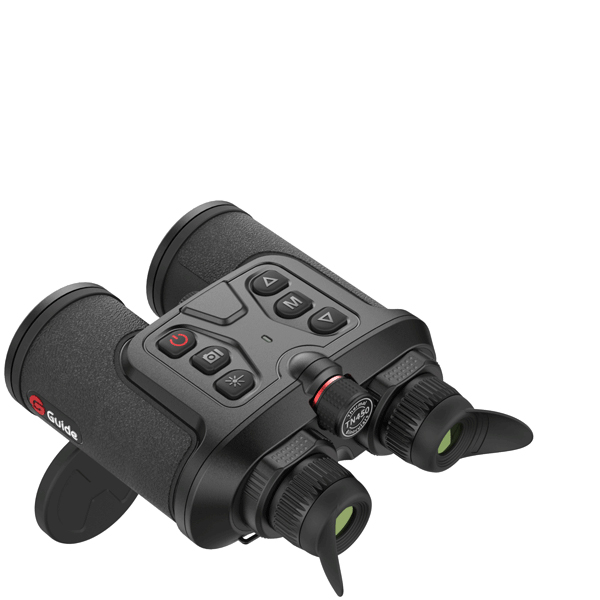

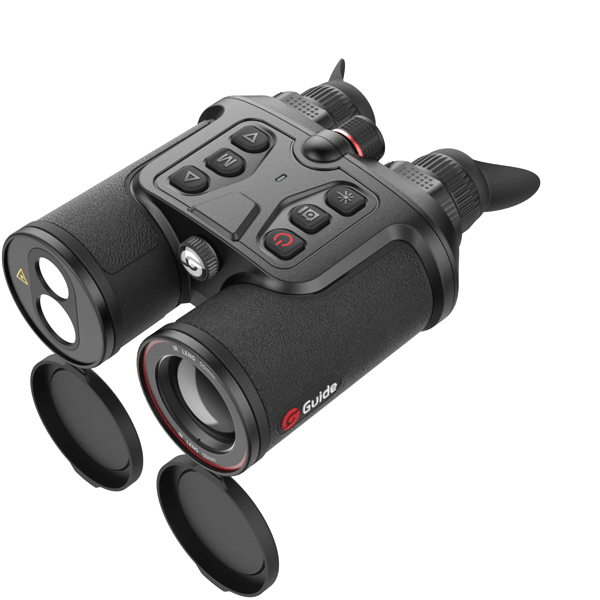

The Guide TN450 Handheld Thermal Imaging Binoculars combine professional-grade thermal performance with ergonomic binocular design, making long-duration observation comfortable and effective. Featuring a sensitive 400×300 VOx uncooled infrared detector with a 17µm pixel pitch and ≤30mK NETD, the TN450 ensures crisp, high-contrast thermal images day or night.
Equipped with a 50mm f/1.2 lens and 3.2×–12.8× magnification, these binoculars offer a detection range of up to 1,800m. The full-colour 0.39" AMOLED display (1024×768) delivers immersive viewing, while multiple colour palettes and scene modes adapt to varied environments. Advanced functions include photo/video recording, Wi-Fi streaming, GPS, compass, and a built-in 1,000m laser rangefinder for precise distance measurement.
Built to endure harsh outdoor conditions, the TN450 is IP66-rated, drop-tested to 1m, and operates in temperatures from –30°C to +50°C. With 5.5 hours of runtime from two replaceable 18650 batteries and intuitive raised button controls, it’s a powerful tool for hunters, search and rescue teams, and outdoor professionals who demand accuracy, durability, and comfort.
| Product Name A-Z | WIN A: Guide Infrared TN450 400×300 17μm, ≤50mK Thermal Binocular |
|---|---|
| SKU | OPTICSDRAWS#950 |
Specs
- Detector Type: Uncooled VOx Infrared Detector, 8–14µm
- Resolution: 400×300 @ 17µm
- NETD: ≤30mK
- Frame Rate: 50Hz
- Lens: 50mm f/1.2
- Field of View: 7.78° × 5.84° (14m × 10m at 100m)
- Magnification: 3.2×–12.8×
- Detection Range: 1,800m (man-size target)
- Display: 0.39″ AMOLED, 1024×768
- Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
- Eyepiece: 16mm eye relief; dioptre –6 to +6; interpupillary distance 60–70mm
- Laser Rangefinder: Up to 1,000m
- Connectivity: Wi-Fi 2.4G, USB Type-C, Micro HDMI
- Additional Features: GPS, Compass, Gyroscope, Bluetooth
- Recording: Photo/Video with 16GB internal memory
- Battery Type: 2× replaceable 18650 batteries
- Operating Time: ~5.5 hours
- Operating Temperature: –30°C to +50°C
- Encapsulation: IP66 waterproof & dustproof, 1m drop tested
- Dimensions: 162 × 146 × 70mm
- Weight: 880g
Features
- Superior Thermal Imaging: The 400×300 VOx infrared detector with ≤30mK NETD ensures clear, high-contrast images in all lighting and weather conditions.
- Flexible Zoom: Smooth magnification from 3.2× to 12.8× makes searching and tracking efficient across different ranges.
- Immersive Viewing: A 0.39" full-colour 1024×768 AMOLED display provides enhanced contrast and improved comfort for extended use.
- Precise Targeting: Built-in 1,000m laser rangefinder, GPS, compass, and gyroscope enable accurate distance and positional awareness.
- Custom Viewing Options: Choose from six colour palettes and three scene modes (Enhance/Highlight/Natural) to adapt visuals for varied environments.
- Recording & Sharing: Capture photos and videos, then transfer via Wi-Fi or HDMI for real-time sharing and review.
- Rugged & Reliable: IP66 waterproofing, 1m drop-test certification, and –30°C to +50°C operating range guarantee dependable performance in demanding conditions.
- User-Friendly Design: Binocular layout reduces eye fatigue; adjustable interpupillary distance (60–70mm) ensures comfort for all users.
Warranty
- 1 Year Manufacturer's Warranty
