WIN A BUNDLE: HIKMICRO Alpex A50EL 4K UHD Sensor LRF Digital Day & Night Rifle Scope w/ Ballistics Calculator + Habrok 4K HE25L 25mm Multi-Spectrum LRF Thermal Binoculars

Specs

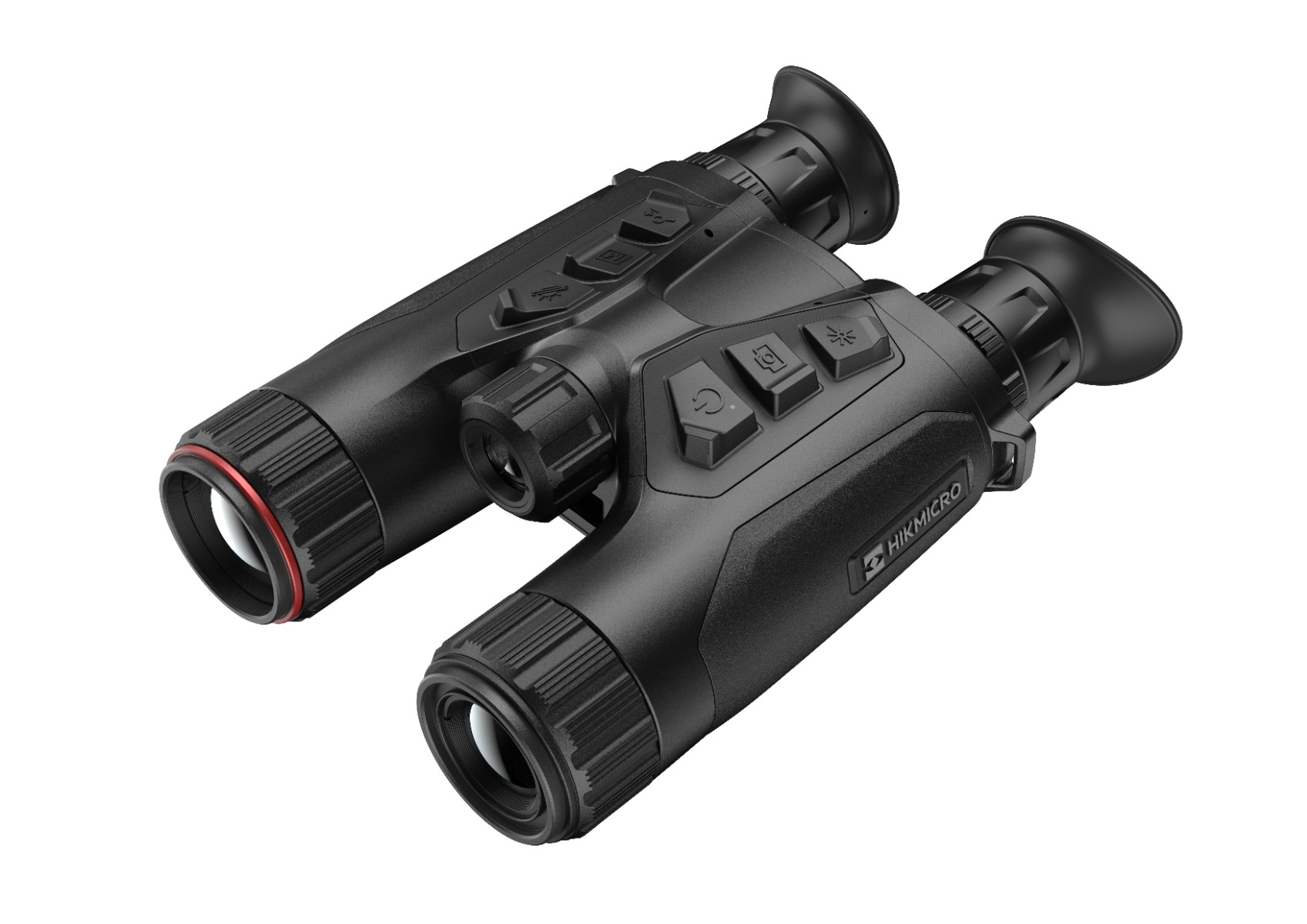

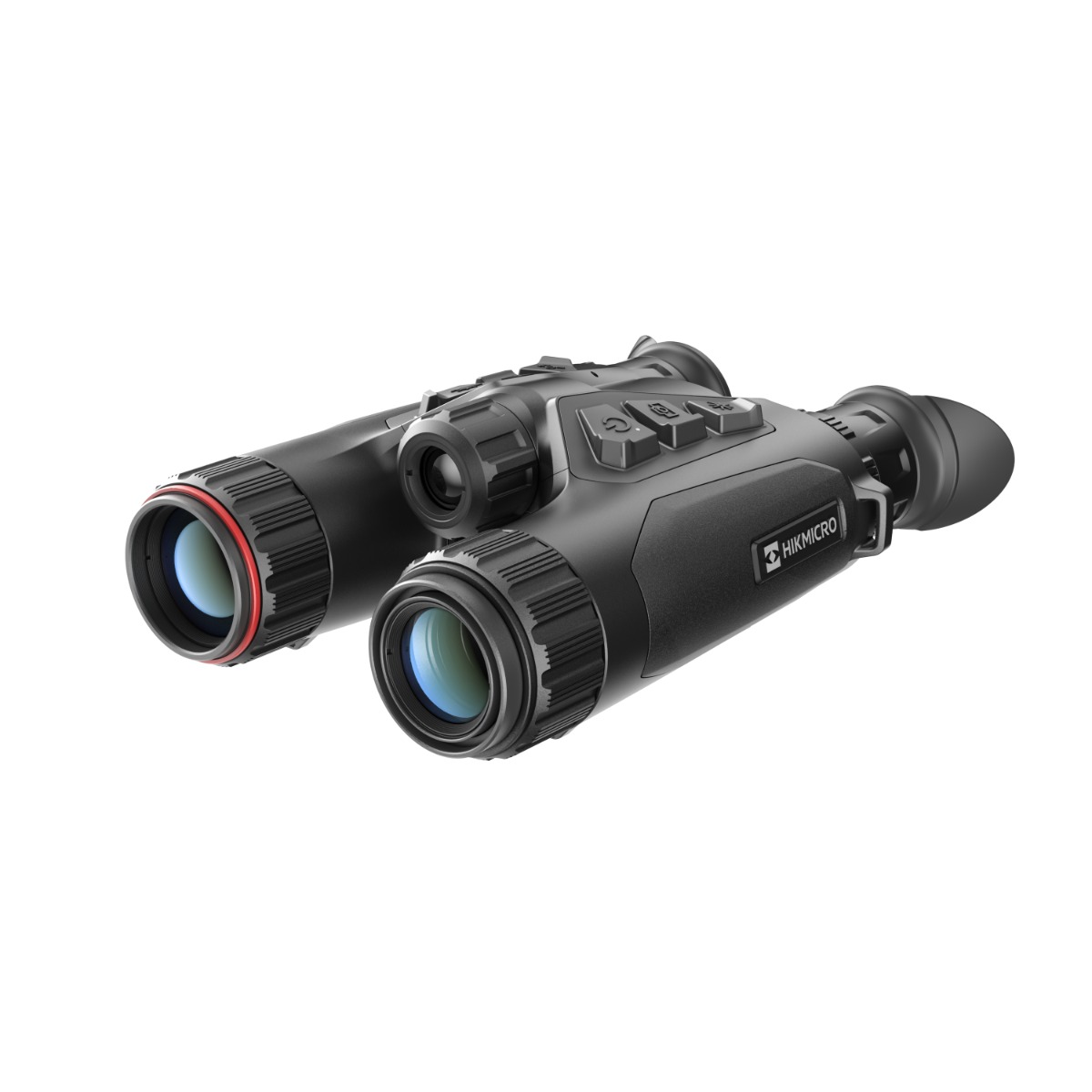

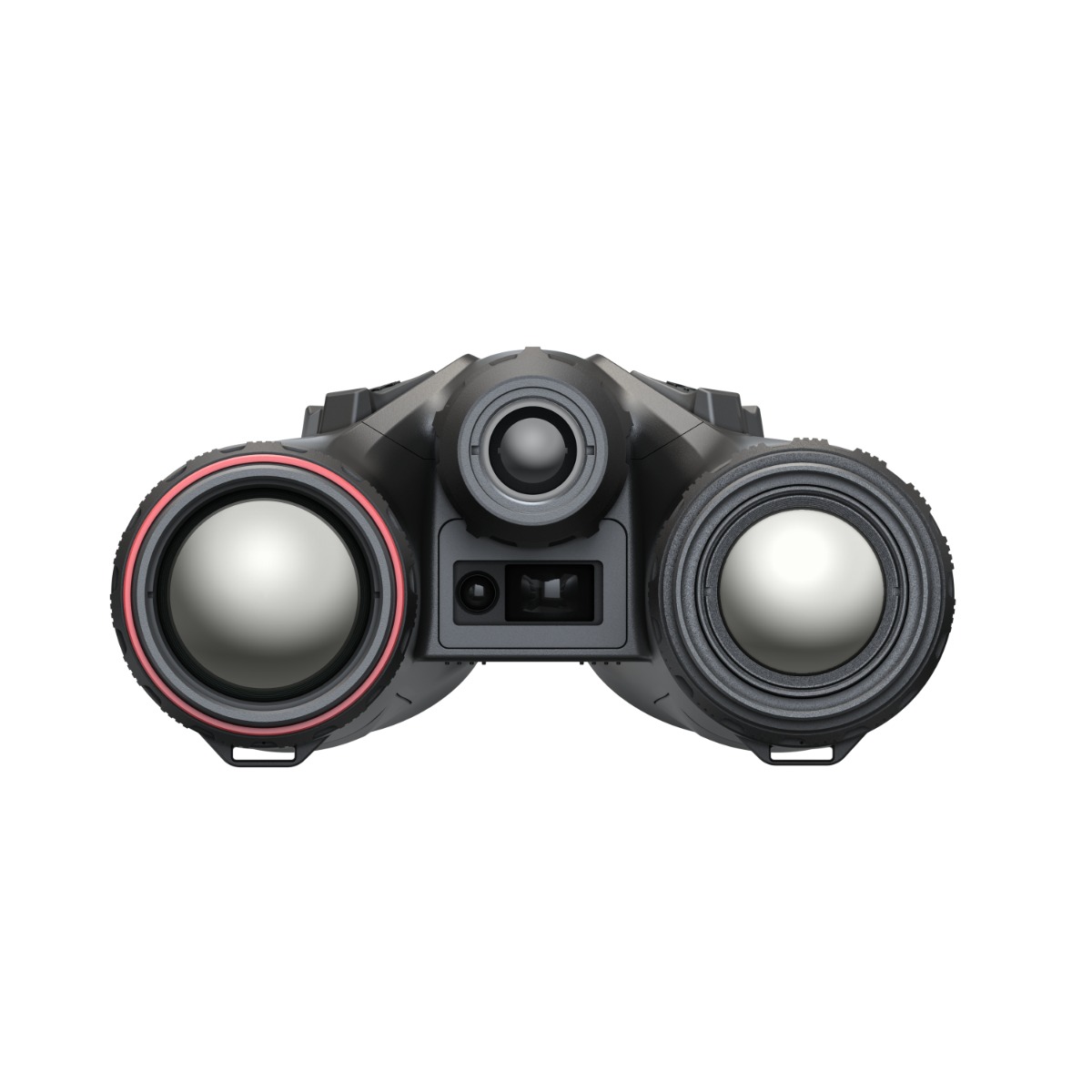

HIKMICRO Habrok 4K HQ35L Multi-Spectrum Thermal Binocular with LRF - 640px 35mm with 4K Optical Camera and Harness

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array

• Resolution: 640 × 512

• Frame Rate: 50 Hz

• Pixel Pitch: 12 μm

• Spectral Range: 8 μm – 14 μm

• Thermal Sensitivity (NETD): < 20 mK (@25°C, F#=1.0)

• Lens: 35 mm, F1.0

• Focus Mode: Manual (Focus Ring)

• Detection Range: 1800 m

• Minimum Focusing Distance: 3.5 m

• Magnification: 3.0× to 22.0× (7.3× base)

• Field of View (H × V):

  • 12.5° × 10.1°

  • 22.0 m × 17.6 m @ 100 m

Optical Module

• Sensor Type: 1/1.8" Progressive Scan CMOS

• Resolution: 3840 × 2160

• Lens: 60 mm, F2.2

• Minimum Working Distance: 3 m

• Focus Mode: Manual (Focus Ring)

• Magnification: 5.5× to 22.0× (4× base)

• Field of View (H × V):

  • 7.3° × 4.1°

  • 12.6 m × 7.2 m @ 100 m

Infrared Illumination

• Smart IR: Yes

• IR Illuminator: Replaceable

  • Default: 940 nm

  • Optional: 850 nm

• Night Viewing Range: 400 m

Image Display

• Display: 0.49 inch OLED, 1920 × 1080

• Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion

• Optical Modes: Day, Night, Auto

• Flat Field Correction (FFC): Auto / Manual / External

• Exit Pupil: 8 mm

• Eye Relief: 15 mm

• Diopter Adjustment: -5 D to +3 D

• Adjustments:

  • Brightness: Yes

  • Contrast: Yes

  • Tone: Cold / Warm

• Zoom Pro: Yes

System Features

• Video Recording: Yes

• Snapshot Capture: Yes

• Audio Recording: Yes

• Standby Mode: Yes

• Onboard Storage: 64 GB Built-in EMMC

• Picture-in-Picture (PIP): Yes

• Wi-Fi Hotspot: Yes

• Hot Track: Yes

• Digital Magnetic Compass: Yes

• GPS Module: Yes

• Local Album Access: Yes

Power Supply

• Battery Type: Replaceable & Rechargeable 18650 Li-ion

• Operating Time: ≥8 hours (@25°C, Hotspot off)

• Charging & Power:

  • USB Type-C: 5 V DC, 2 A

  • Supports external power and direct charging

General

• Protection Level: IP67

• Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")

• Weight: 798 g (without battery)

• Interpupillary Adjustment Range: 60 mm – 74 mm

• Mounting: 1/4"-20 UNC Adapter

• Operating Temperature: -30°C to +55°C

Laser Rangefinder

• Laser Class: Class 1

• Wavelength: 905 nm

• Measuring Range:

  • Minimum: 10 m

  • Maximum: 1000 m

• Accuracy: ±1 m

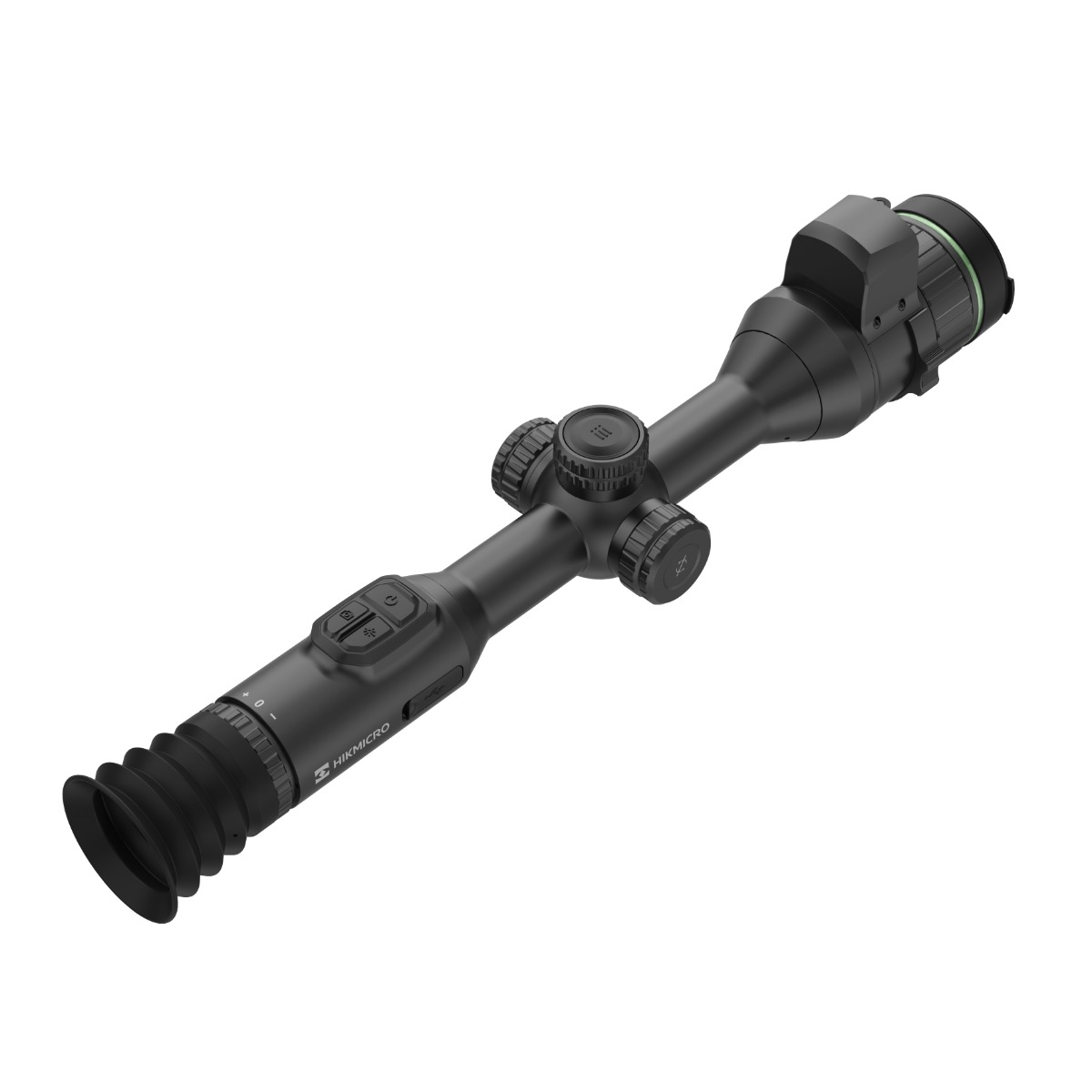

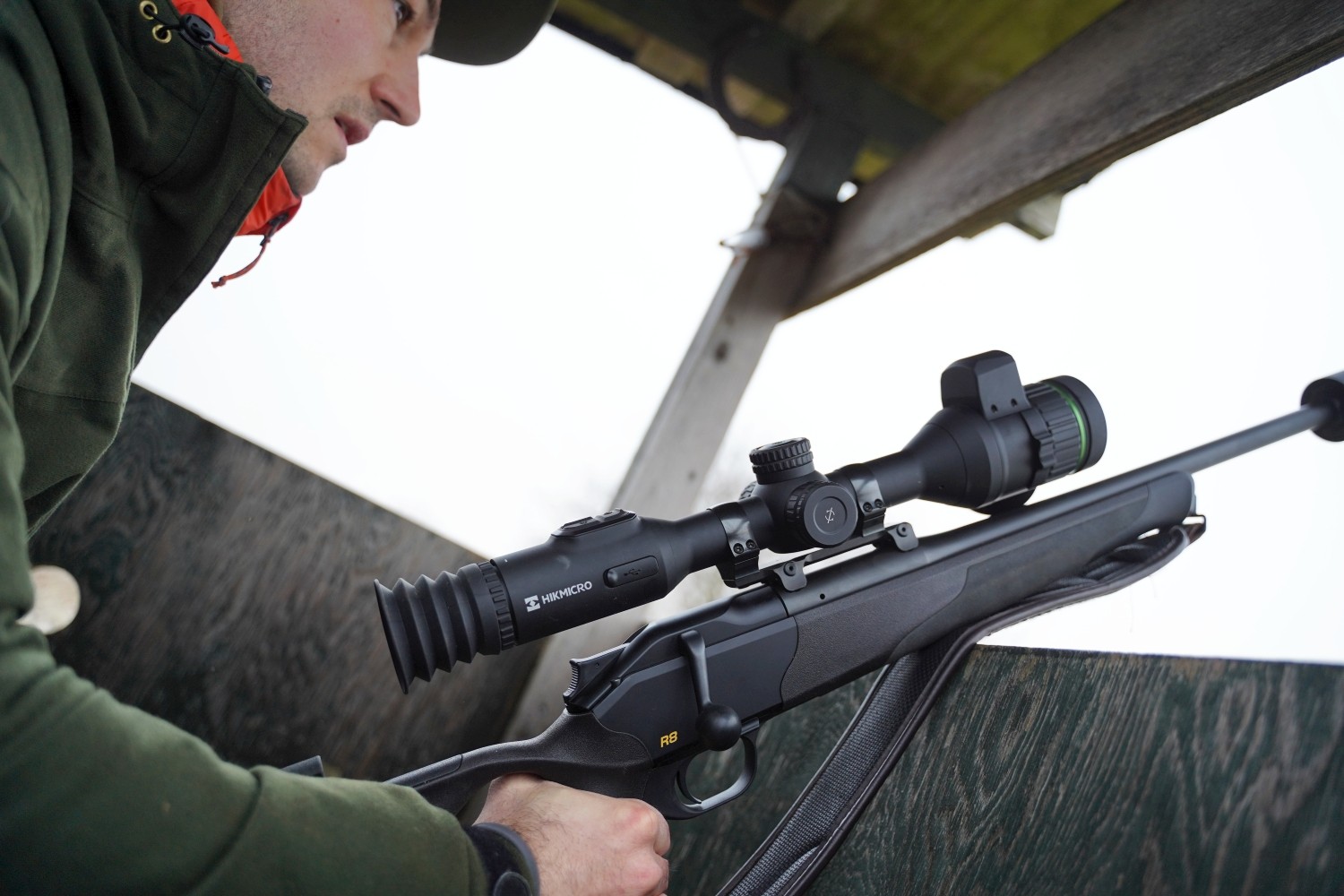

HIKMICRO Alpex 4K LITE LRF A40EL Digital Day and Night Vision Rifle Scope - 40mm, 3840x2160px, UHD

Main

• Max. Resolution: 3840 × 2160

• Frame Rate: 50 Hz (4K), 100 Hz (1080P)

• Lens: 40 mm, F2.0

• Detection Range (Day): 800 m

• Min. Focusing Distance: 2 m

• Magnification: 3.5× to 20.5× (5.8× base)

  • Continuous zoom

  • Step values: 0.5×, 1×, 2×, 3×, 4×

• Field of View:

  • 10.7° × 6.1°

  • 18.7 m × 10.1 m @ 100 m

Image Display

• Display Type: OLED

• Display Size: 0.49 inch

• Display Resolution: 1920 × 1080

• Image Modes: Day, Night, Auto, Green, Yellow

• Exit Pupil: 6 mm

• Eye Relief: 45 mm

• Diopter Adjustment: -5 D to +5 D

System Features

• Video Recording: On-board (1920 × 1080)

• Photo Capture: Yes

• Audio Recording: Yes

• Recoil-Activated Recording: Yes

• Standby Mode: Yes

• Storage: 32 GB Built-in EMMC

• Picture-in-Picture (PIP): Yes

• Freeze Zeroing: Yes

• Zeroing Profiles: 5

• Maximum Recoil Resistance: 1000 g / 0.4 ms

• Wi-Fi Hotspot: Yes

• Ballistic Calculation: Yes

• Click Value: 1 click = 1 cm @ 100 m

Power Supply

• Battery Type:

  • Internal: Rechargeable Lithium Battery

  • External: Replaceable & Rechargeable 18650 Battery

• Operating Time: Up to 7 hours (@25°C, Hotspot off)

• Charging Interface: USB Type-C (5 VDC / 2 A)

  • Only internal battery supports direct charging

General

• Mounting: Standard 30 mm

• Protection Level: IP67

• Operating Temperature: -30°C to 55°C (-22°F to 131°F)

• Dimensions: 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)

• Weight: 474 g (without external battery)

Laser Rangefinder

• Laser Safety Class: Class 1

• Wavelength: 905 nm

• Minimum Measuring Range: 3 m

• Maximum Measuring Range: 1000 m

• Measurement Accuracy: ±1 m
