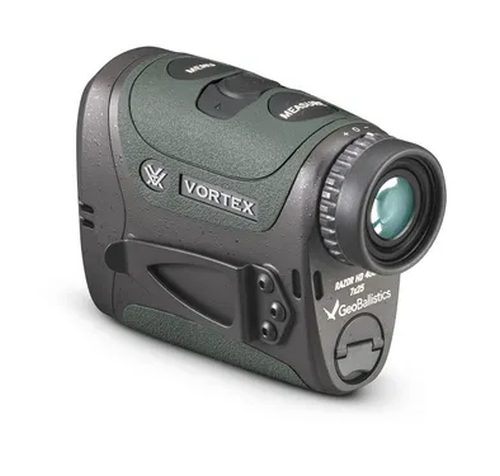

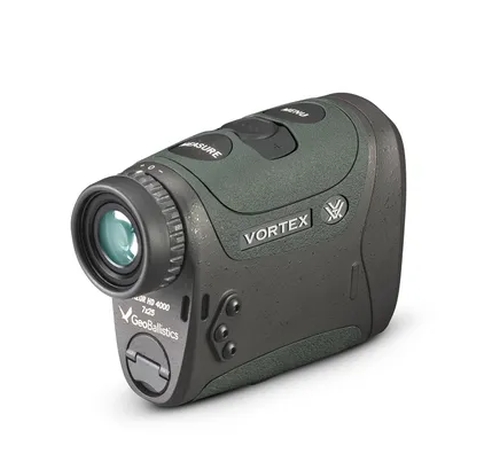

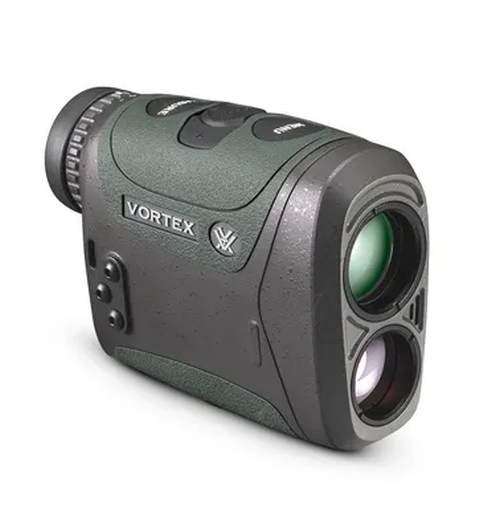

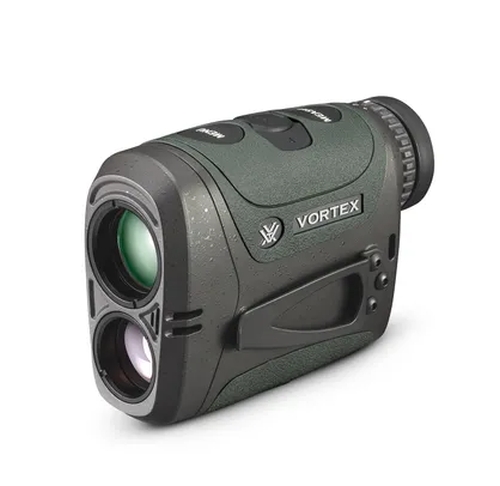

Vortex Razor HD 4000 GB Ballistic Laser Rangefinder
The Vortex Razor HD 4000 GB Ballistic Laser Rangefinder is a premium long-range ranging and ballistic solution built for serious hunters and precision shooters. Capable of ranging reflective targets out to 4000 yards, it combines fast, accurate laser readings with integrated GeoBallistics® software for real-time firing solutions. On-board environmental sensors, wind input modes, and customizable ballistic profiles help deliver precise holdovers and wind corrections directly in the display. The 7x magnification HD optical system provides a clear, sharp sight picture, while the rugged magnesium chassis and rubber armor ensure durability in harsh field conditions. Compact, weatherproof, and packed with advanced data tools, it eliminates guesswork for long-range shots. Backed by Vortex’s lifetime warranty, it’s a complete high-performance ranging system for demanding environments.
-Nathan (Technical Advisor)
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#1332
#1344
#1347
#1345
#1348
The Razor HD 4000 GB is the ultimate tool for precision shooters and long-range hunters. With this device, you can have access to all the range and ballistic data required to make that perfect shot every time. It allows you to range with first-shot confidence at the push of a button, making it easier and faster to hit your target.
The device is rugged and reliable, ensuring that you can use it across any terrain and in any weather condition. It delivers all the range, ballistic, and environmental data you need for absolute accuracy, no matter where the opportunity presents itself, whether you're targeting a trophy above the treeline, across an open prairie, or ringing steel out to 4000 yards.
- Magnification: 7x
- Objective Lens Diameter: 25 mm
- Range Reflective (yards): Up to 4000 yds.
- Range Tree (yards): Up to 2500 yds.
- Range Deer (yards): Up to 2200 yds.
- Accuracy: > 200
- Max Angle Reading: +/- 89 degrees
- Linear Field of View: 341'
- Angular Field of View: 6.5 degrees
- Eye Relief: 17.5mm
- Length: 4.4"
- Height: 3.2"
- Width: 1.7"
- Weight: 10.1 oz.
In-Display Wind/Drop Solutions:
Equipped with the accurate GeoBallistics® ballistics solver backed by a full up-to-date bullet database.
Customize Ballistics Profiles:
Customize ballistics profiles via the GeoBallistics App or use one of three preloaded profiles for popular cartridges.
On-Board Environmental Sensors:
On-Board compass, humidity, barometric pressure, and exposed temperature sensors for fast acclimations.
Two Wind Modes:
Features Full Cross Wind Mode and the Patented Wind Bearing Capture Mode.
Pairs with Third-Party Devices:
Pairs with Kestrel weather meter devices.
HD Optical System:
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Lens Coatings:
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Magnesium Chassis:
Decreases weight and increases strength.
Easy-to-Use Menu:
Intuitive, easy-to-use menus feature a simple, clean illuminated display.
Diopter:
Adjusts for differences in a user's eyes. Located on the eyepiece.
Rugged Design:
Built to handle tough situations. Compact and light weight.
ArmorTek®:
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof:
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Tripod Adaptable:
Compatible with a tripod adapter, allowing use on a tripod or car window mount.
Rubber Armor:
Provides a secure, non-slip grip, and durable external protection.
Ranging Format:
Range in yards or meters.
In-Display Wind/Drop Solutions:
The Razor HD 4000 GB utilizes the on-board GeoBallistics solver to provide in-display wind/drop solutions and line of sight range when in Ballistics (BAL) Mode.
- Vortex Razor HD 4000 GB Ballistic Laser Rangefinder
- Utility Clip
- Carry Case
- 2mm Hex Wrench
- 1x CR2 battery
- Bunjee Cord Lanyard
- Lens Cloth
- Product Manual
1. What is the maximum ranging distance?
It can range reflective targets up to 4000 yards under optimal conditions.
2. What magnification does it have?
It features 7x magnification with a 25mm objective lens for target identification before ranging.
3. What is the GeoBallistics system?
It’s an integrated ballistic solver that provides real-time firing solutions using bullet data and environmental conditions.
4. Does it provide wind and drop data?
Yes, it can display wind holds and drop solutions directly in the unit using onboard sensors and ballistic inputs.
5. Can it be customized for different rifles?
Yes, it supports custom ballistic profiles and multiple cartridge presets via the GeoBallistics app.
6. Is it good for hunting?
Yes, it is designed for western hunting, long-range shooting, and precision field use.
7. Does it work in bad weather?
Yes, it is waterproof, shockproof, and built with a rugged magnesium chassis for harsh environments.
8. Can it connect to other devices?
Yes, it can pair via Bluetooth with the GeoBallistics app and compatible weather meters.
9. What makes it different from standard rangefinders?
It combines ranging, environmental data, and ballistic solutions in one device instead of just distance measurement.
10. Does it come with a warranty?
Yes, it is backed by Vortex’s unconditional lifetime VIP warranty.
