SKU#V3XM Vortex

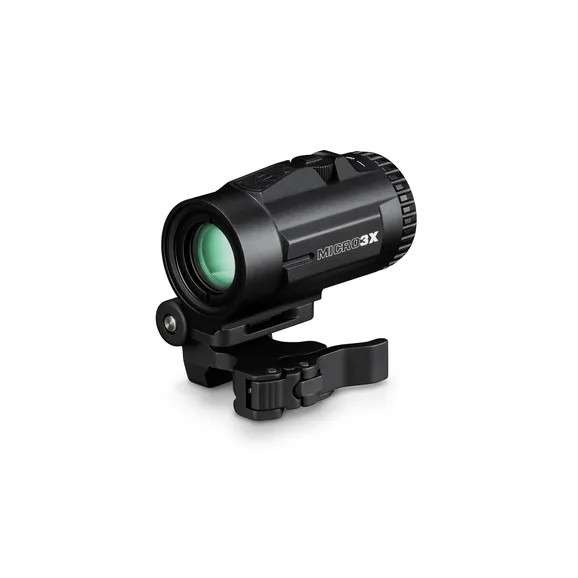

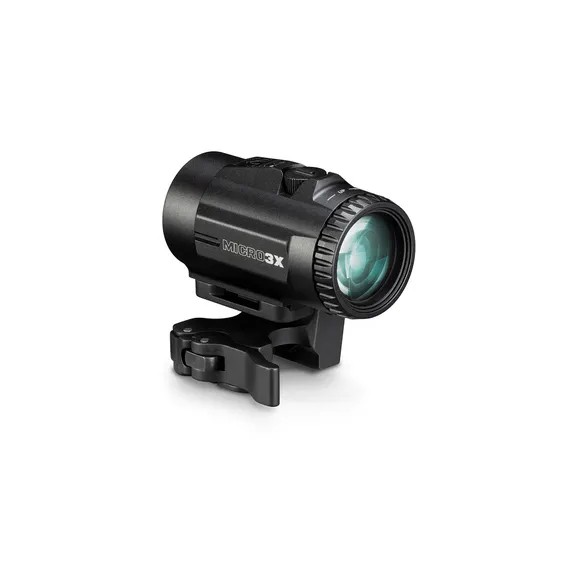

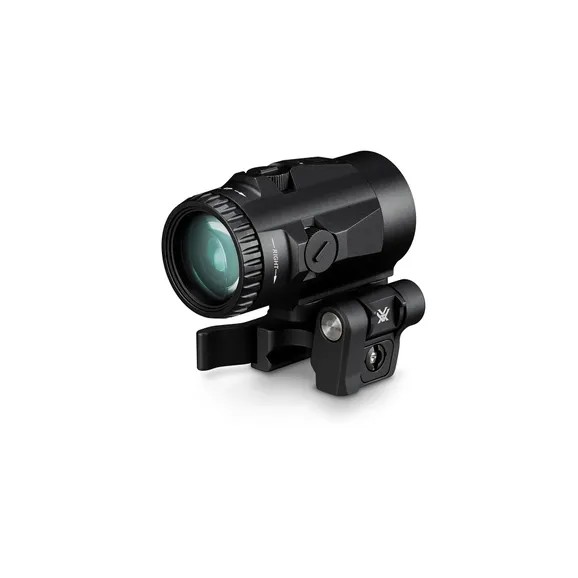

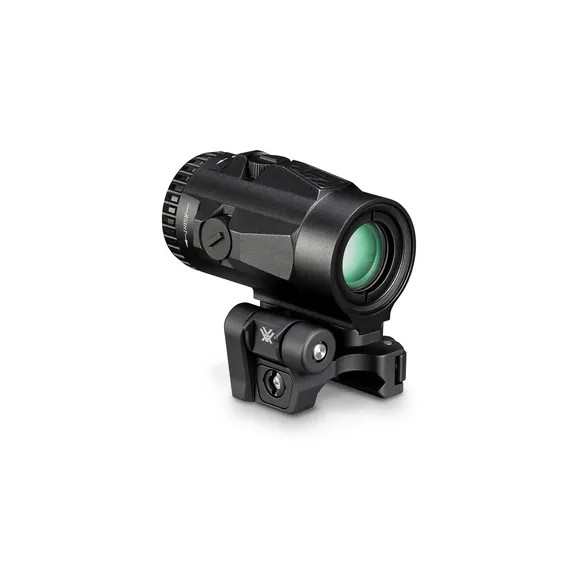

Vortex Micro 3x Magnifier Red Dot

4 in stock

Ultra-Compact & Lightweight: Measures just 2.9 inches long and weighs only 9.6 oz, keeping your rifle setup agile and nimble.
Fast Flip-to-Side Design: Quickly engages for 3x magnification to extend your range, or flips effortlessly out of the way for close quarters targets.
Fully Multi-Coated Optics: Premium anti reflective coatings maximize light transmission for exceptional clarity and low light performance.
Rugged & Shockproof: Built to withstand heavy recoil and harsh impacts in demanding field environments.
Waterproof & Fogproof: Nitrogen gas purged and O ring sealed to prevent internal fogging in all weather conditions.
Flexible Mounting Heights: Includes a quick release flip mount and riser plate to support both absolute and lower 1/3 co-witness heights.
Complete Kit Included: Comes ready to go with the QR flip mount, lower 1/3 riser, rubber lens covers, hex tool, and lens cloth.

VIEW PRODUCT INFO / SPECS

Select Model: 3x Micro

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

The Vortex Micro 3x Magnifier instantly adds extended-range precision to your red dot setup. It features a crisp, fully multi coated 3x view and a quick detach, flip to side mount for rapid transitions. Rugged, waterproof, and lightweight, it delivers maximum capability with minimal rail space.

Nathan, Sales and Support 20 years' experience in long-range target shooting and pest hunting, shooting since the age of five.

Product Information FIND OUT MORE

DESCRIPTION

The Vortex Micro 3x Magnifier is purpose-built for rapid, close-quarters transitions while giving you the extra reach needed to extend your effective range. Compact, lightweight and instantly deployable straight from the box, it enables fast target acquisition at point-blank distances without compromising accuracy at mid-range.

Engineered to enhance situational awareness, the Micro3x pairs seamlessly with Vortex red dot sights, offering a clear, bright image and smooth switching between 1x and 3x magnification. Ideal for drills, dynamic shooting, and navigating confined spaces, it keeps your platform agile and responsive.

Supplied with a quick-release flip mount and multiple co-witness height options, it delivers reliable performance in all conditions and is rugged enough to withstand heavy recoil and real-world use.

SPECS

Magnification 3x
Objective Lens Diameter 22 mm
Eye Relief 2.64"
Angular Field of View 7.3°
Linear Field of View 38.2 ft @ 100 yds
Length 2.9"
Weight 9.6 oz

FEATURES

Compact and Agile Design – Built to keep shooters responsive when manoeuvring in tight environments or switching rapidly between targets.
Instant Deployment – The included quick-release flip mount allows the magnifier to be engaged or stowed in seconds.
Universal Red Dot Compatibility – Designed to work with all Vortex red dot sights (not compatible with prism scopes).
Enhanced Close-Quarters Performance – Provides point-blank target acquisition while retaining 3x magnification capability for distance shots.
Optimised Light Transmission – Fully multi-coated lenses ensure bright, sharp viewing even in low-light conditions.
Rugged, Field-Ready Construction – Shockproof build and weather-sealed housing offer dependable performance in harsh environments.
Flexible Height Options – Includes riser plate to achieve either absolute or lower 1/3 co-witness alignment with your red dot.

WHAT'S IN THE BOX

Vortex Micro 3x Magnifier Red Dot
Quick-Release Flip Mount
Lower 1/3 Co-Witness Riser Plate
Rubber Lens Covers
2x Screw Sets
3 mm Hex Tool
Lens Cloth

FREQUENTLY ASKED QUESTION(S)

1. What magnification does it provide?
It offers fixed 3x magnification to extend the effective range of a red dot sight

2. What optics quality can I expect?
It features fully multi-coated lenses for improved light transmission, clarity, and reduced glare

3. Is it compatible with all optics?
It is designed for use with red dot or holographic sights and does not work with prism scopes

4. How does the flip mount work?
It uses a flip-to-side design, allowing you to quickly move the magnifier out of the way when not needed

5. Does it have a quick detach system?
Yes, it includes a quick-detach mount for fast installation and removal

6. What is the eye relief?
It provides approximately 2.64 inches of eye relief for comfortable viewing

7. Is it waterproof and fogproof?
Yes, it is nitrogen purged and O-ring sealed to prevent internal fogging and protect against water ingress

8. What is the field of view?
It offers about 38.2 feet at 100 yards, giving a clear and usable viewing window

9. How compact is it?
It measures around 2.9 inches in length and is designed to be lightweight and low-profile on your rail

10. Can it be configured for left or right-handed use?
Yes, the mount can be set to flip to either side depending on user preference
