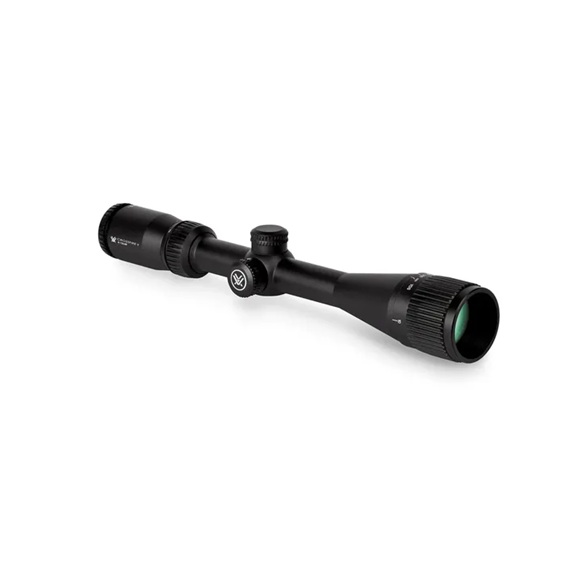

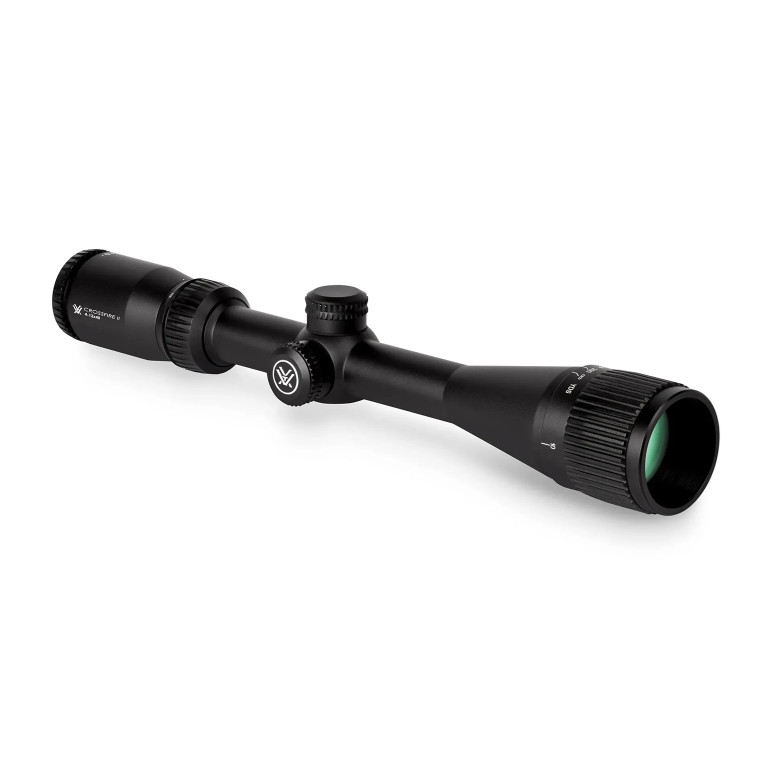

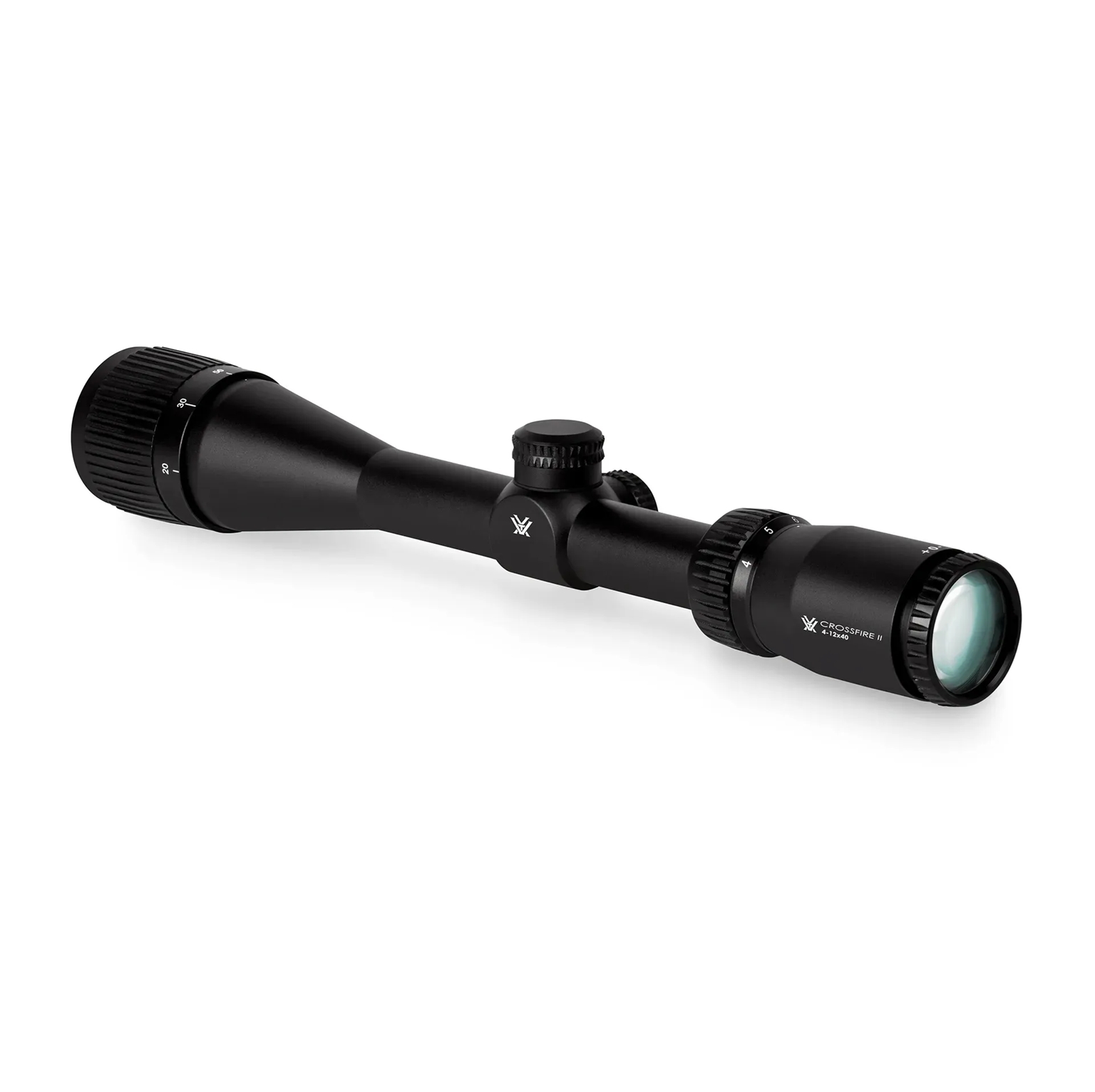

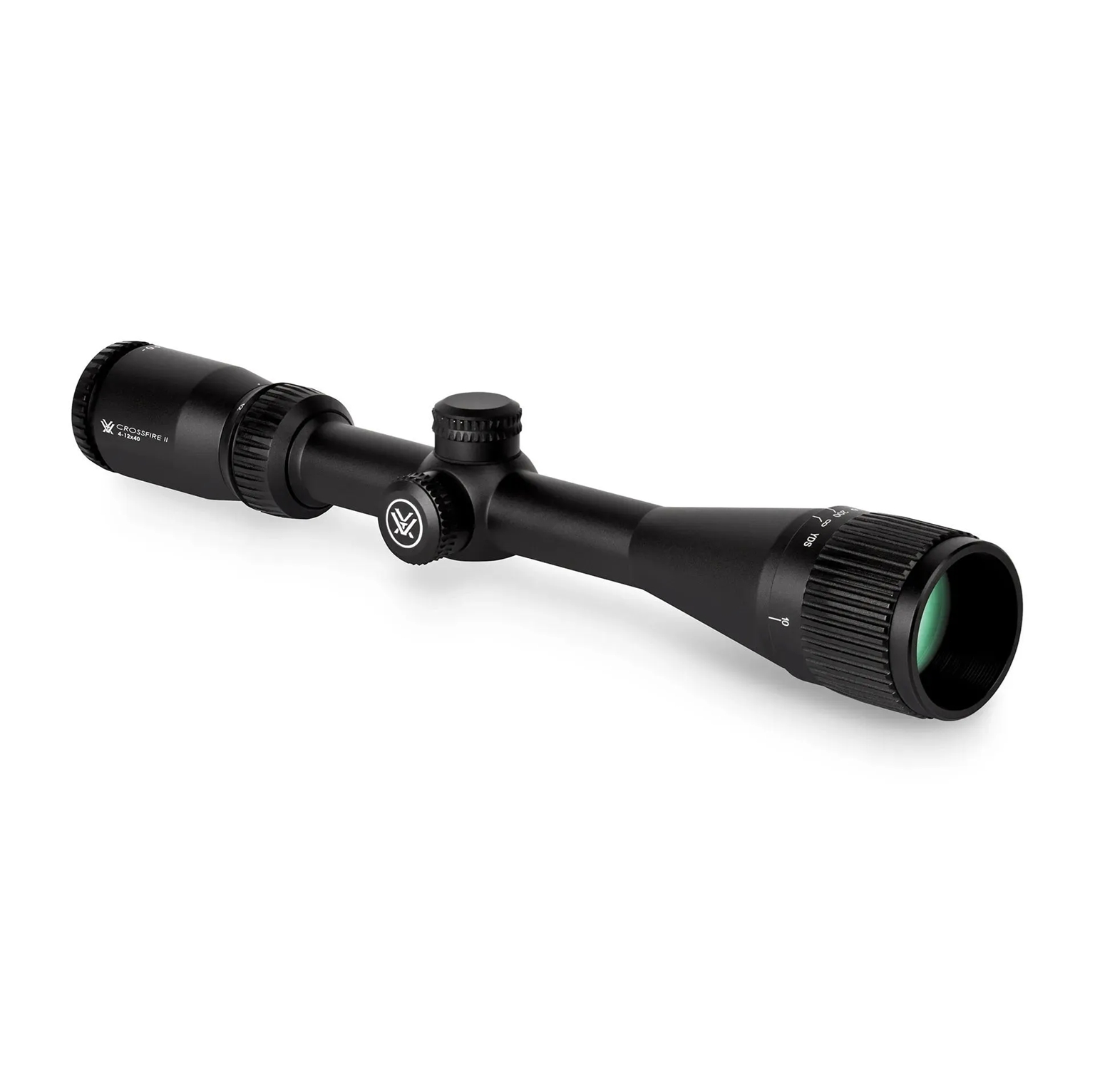

Vortex Crossfire II 4-12x40 SFP BDC AO 1/4MOA 1" Rifle Scope
- SD Optical System for bright, sharp and high-contrast image quality.
- Fully multi-coated lenses for improved clarity and enhanced low-light performance.
- Dead-Hold BDC (MOA) reticle for accurate holdover and windage at varying ranges.
- Adjustable objective for parallax correction from 10 yds to infinity.
- Wide field of view (24.7' – 8.4' @ 100 yds) for fast target acquisition.
- Fast-focus eyepiece and rugged aircraft-grade aluminium body; waterproof, fogproof and shockproof.
#1265
#1266
#1293
#1296
#1291
The Vortex Crossfire II 4–12x40 SFP BDC AO Rifle Scope delivers exceptional clarity, reliability, and performance at an affordable price. Designed for hunters and shooters who require precision across varying distances, it features the highly versatile Dead-Hold BDC (MOA) reticle to remove the guesswork from holdover and windage adjustments. The adjustable objective allows parallax correction from 10 yards to infinity, offering increased accuracy for both close and long-range shooting.
The SD Optical System reduces chromatic aberration for sharp, bright images, while fully multi-coated lenses improve low-light performance - ideal for dawn, dusk, or shaded woodland. Its fast-focus eyepiece, long eye relief, and resettable MOA turrets provide user-friendly operation in any environment. Built from aircraft-grade aluminium and fully waterproof, fogproof, and shockproof, the Crossfire II 4–12x40 AO remains one of the most reliable mid-range scopes on the market.
- Magnification 4–12x
- Objective Lens Diameter 40 mm
- Focal Plane Second Focal Plane
- Reticle Dead-Hold BDC (MOA)
- Eye Relief 3.9"
- Field of View 24.7' – 8.4' @ 100 yds
- Turret Style Capped
- Tube Size 1 inch
- Adjustment Graduation 1/4 MOA
- Travel Per Rotation 15 MOA
- Max Elevation Adjustment 50 MOA
- Max Windage Adjustment 50 MOA
- Parallax Setting 10 yds – ∞
- Length 13.6"
- Weight 18.3 oz
- SD Optical System – Reduces chromatic aberration for cleaner, sharper and brighter views across the magnification range.
- Fully Multi-Coated Lenses – Anti-reflective coatings on all air-to-glass surfaces deliver enhanced clarity and superior performance in low light.
- Adjustable Parallax (AO) – The adjustable objective allows precise parallax correction from close range to long distance, increasing accuracy at all ranges.
- Nitrogen Gas Purged – Nitrogen-filled and O-ring sealed for dependable waterproof and fogproof performance.
- Fast-Focus Eyepiece – Enables quick and easy reticle focusing for fast target acquisition.
- Aircraft-Grade Aluminium Tube – A single-piece body providing outstanding strength, durability and recoil resistance.
- Low-Glare Matte Black Anodise – Corrosion-resistant finish reduces reflections and improves shooter concealment.
- Waterproof – Designed to perform reliably in harsh and wet outdoor environments.
- Fogproof – Resists internal fogging across wide temperature fluctuations.
- Shockproof – Built to absorb heavy recoil and impact, maintaining accuracy and zero.

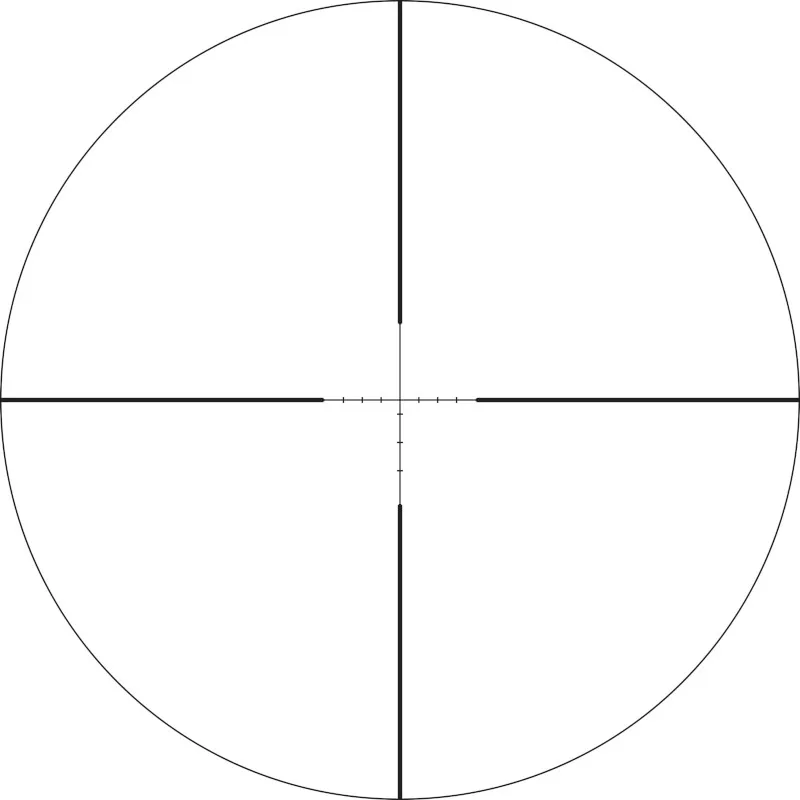

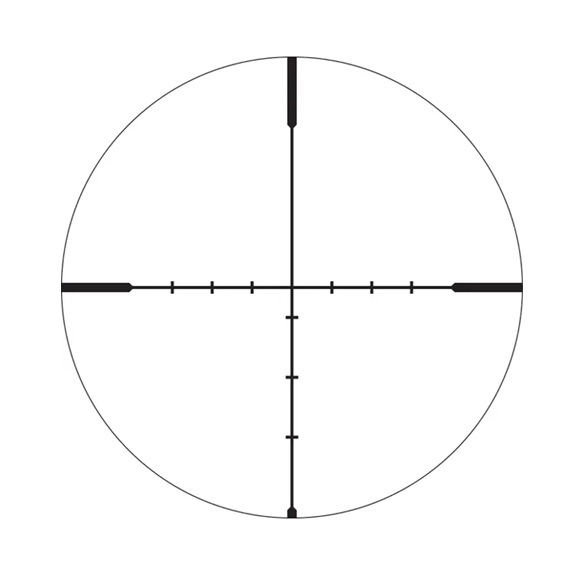

Dead-Hold® BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
- Vortex Crossfire II 4-12x40 SFP BDC AO 1/4MOA 1" Rifle Scope
- Sunshade
- Removable lens covers
- Lens cloth
What is the magnification range of this scope?
The scope offers a 4x to 12x variable magnification, making it suitable for both close-range and long-distance shooting applications.
What does “AO” stand for, and what is its function?
AO stands for Adjustable Objective. It allows for parallax correction from 10 yards to infinity, which ensures a sharp, focused image and improved accuracy at various distances.
What type of reticle does it have?
The scope features a Dead-Hold® BDC (MOA) reticle in the Second Focal Plane (SFP). This reticle helps minimize guesswork for holdover and windage corrections when shooting at varying ranges.
What is the benefit of Second Focal Plane (SFP)?
In an SFP scope, the reticle remains the same size throughout the magnification range. This provides a consistent aiming point and is ideal for general-purpose shooting and hunting.
Is the reticle illuminated?
No, this model does not feature an illuminated reticle. The Dead-Hold® BDC reticle is non-illuminated.
What are the lens features?
The lenses are fully multi-coated, meaning multiple anti-reflective coatings are applied on all air-to-glass surfaces. This enhances light transmission, providing bright and clear images, even in low-light conditions.
What is the eye relief distance?
The scope offers 3.9 inches of eye relief, which helps protect the shooter from recoil and ensures comfortable viewing.
What is the field of view at 100 yards?
The field of view ranges from 24.7 feet at 4x to 8.4 feet at 12x magnification.
Is the scope waterproof, fogproof, and shockproof?
Yes, it is:
Waterproof – O-ring sealed
Fogproof – Nitrogen gas purged
Shockproof – Built to withstand recoil and field abuse
What are the physical dimensions and weight?
Length: 13.6 inches
Weight: 18.3 ounces
This makes it lightweight and compact for easy handling in the field.
What mounting rings do I need?
The scope has a 1-inch main tube, so you will need 1-inch compatible scope rings or mounts.
What is the parallax setting?
Parallax is adjustable from 10 yards to infinity, thanks to the Adjustable Objective (AO), allowing for fine-tuned accuracy at any range.
Where is this scope made?
The Vortex Crossfire II 4-12x40 SFP BDC AO is made in China.
What warranty does it come with?
It’s covered by the Vortex VIP Lifetime Warranty, which offers full repair or replacement, no questions asked, and no receipt required. It's also fully transferable.
