Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount

SKU#SCACD-25 Vector Optics

Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount

Name: Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount
Brand: Vector Optics
Price: 29.99 GBP
Availability: InStock

23 in stock

If you’re running an 11mm dovetail setup and want a solid cantilever mount without paying premium prices, the Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount is a really strong pick. It pushes your scope forward for proper eye relief, adds a bit of extra height for clearance, and still feels properly rigid thanks to the one-piece CNC build. Basically—it’s a cheap, practical way to get a more “modern rifle” scope setup on a dovetail rail.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

The Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount is a game-changer for precision shooting enthusiasts. Crafted with the utmost precision and designed to elevate your shooting experience.

Height = 38mm

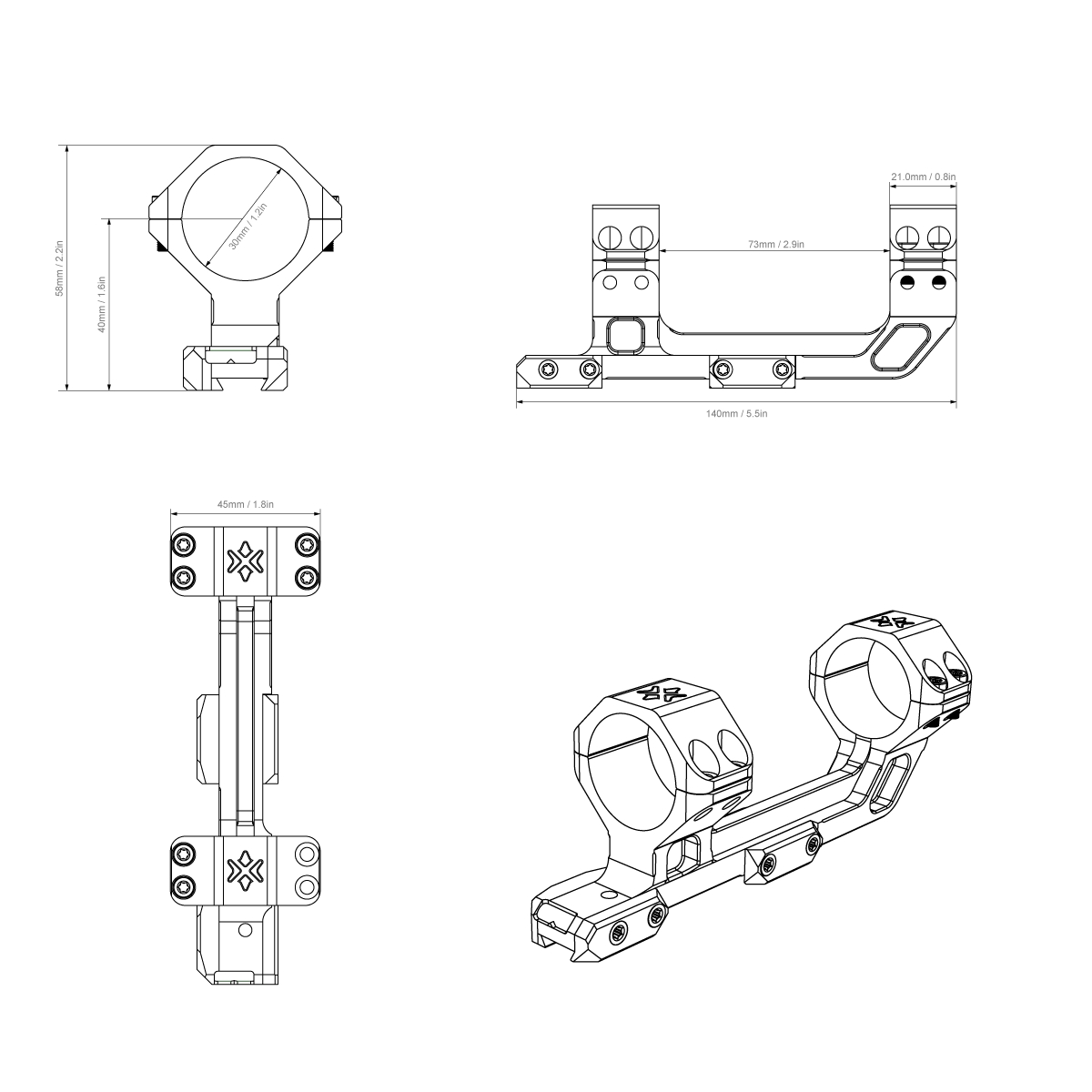

SPECS

Ring Diameter: 30mm
Length: 140mm / 5.5in
Height: 58mm / 2.2in
Central Height: 38mm / 1.5in, bottom to center
Material: 6061-T6 aluminum alloy
Weight: 130g / 4.6oz
Mount: 11mm Dovetail
Finish: Black matte
Screws per ring: 4
High-durability aluminum alloy in black matte
Do not use over 18 inch / pounds of torque on the scope rings' screws
Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the Dovetail rail.
Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.
With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.

FEATURES

Optimal Height and Precision: With a 38mm (1.5-inch) bottom to ring center measurement, this mount ensures your scope is positioned perfectly for unparalleled accuracy. Every inch of this mount is Full CNC Machined, guaranteeing top-notch precision and durability.

Secure and Reliable: This mount is equipped with four screws per ring, providing an ultra-secure and stable platform for your optics. The 11mm dovetail mount is further enhanced with an Anti-Retreat Pin to prevent any unwanted movement, ensuring your scope stays in place, shot after shot.

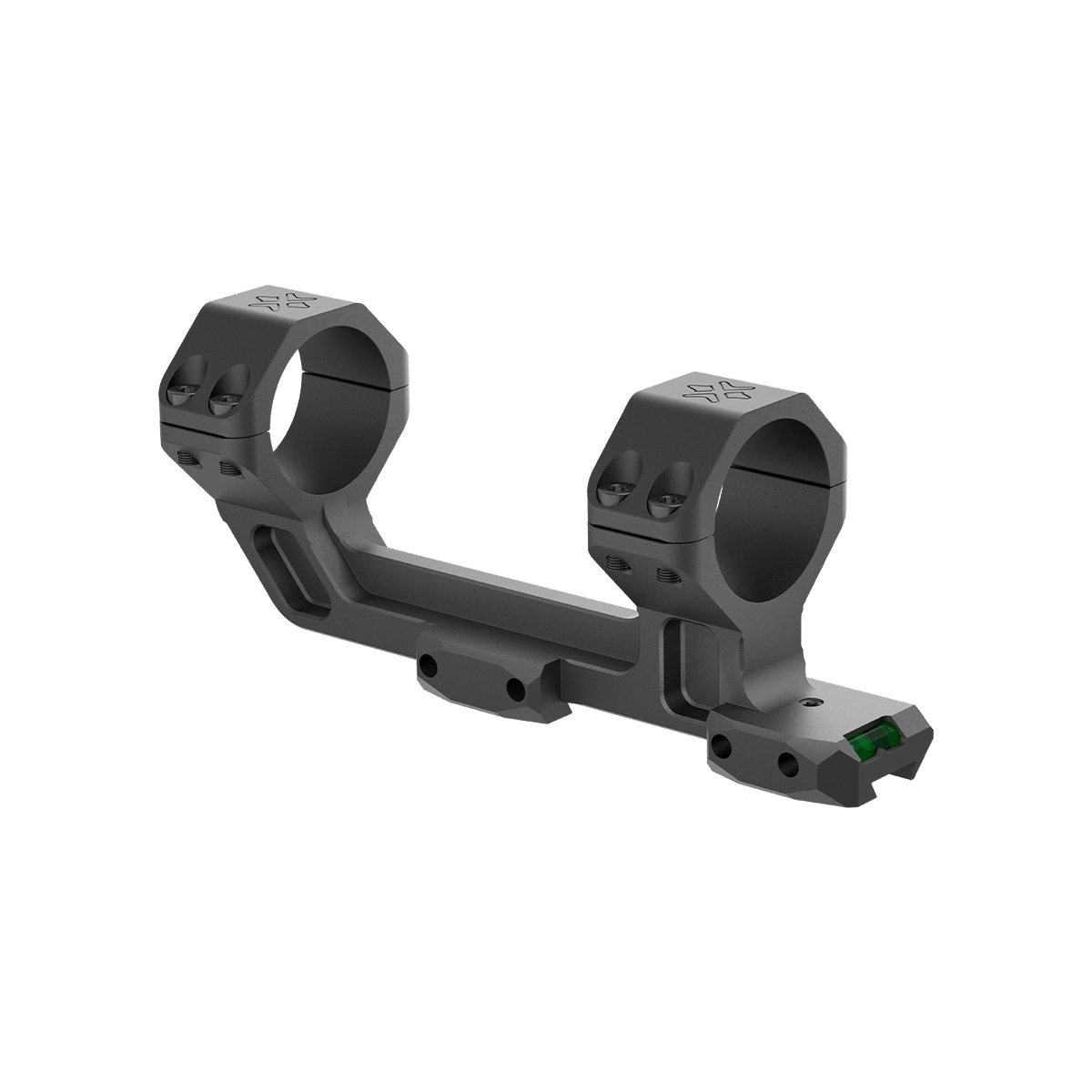

Cantilever Dual Ring Design: The innovative cantilever dual ring scope base mount not only streamlines your setup but also features an integrated Air Bubble Level. This handy addition ensures that you shoot with the utmost precision, especially at long ranges. Say goodbye to guesswork and hello to bullseyes.

WHAT'S IN THE BOX

Vector Optics 30mm One Piece Dovetail Cantilever ACD Mount
T15 torx wrench

FREQUENTLY ASKED QUESTION(S)

1. What rail does this mount fit?
It fits 11mm dovetail rails, commonly found on air rifles and some rimfires.

2. What scope tube size does it support?
It’s designed for 30mm scope tubes.

3. Why is it called a cantilever mount?
Because it extends the scope forward, helping you achieve proper eye relief, especially on shorter or awkward rail setups.

4. How high does it sit?
It has a central height of about 38mm (1.5") from rail to scope centre.

5. Is it one-piece or two-piece?
It’s a one-piece mount, which improves alignment and rigidity compared to separate rings.

6. What is it made from?
CNC-machined 6061-T6 aluminium alloy for strength and low weight.

7. Does it hold zero well?
Yes—when properly installed, the anti-recoil design and solid clamping system help maintain zero under normal air rifle recoil.

8. Is it heavy?
No, it’s relatively light at around 130g.

9. Does it come with any extras?
Yes, it typically includes a Torx wrench and mounting hardware.

10. Who is this mount best for?
It’s ideal for air rifle and rimfire shooters using 11mm dovetail rails who want a more forward, AR-style scope position without switching to a Picatinny system.
