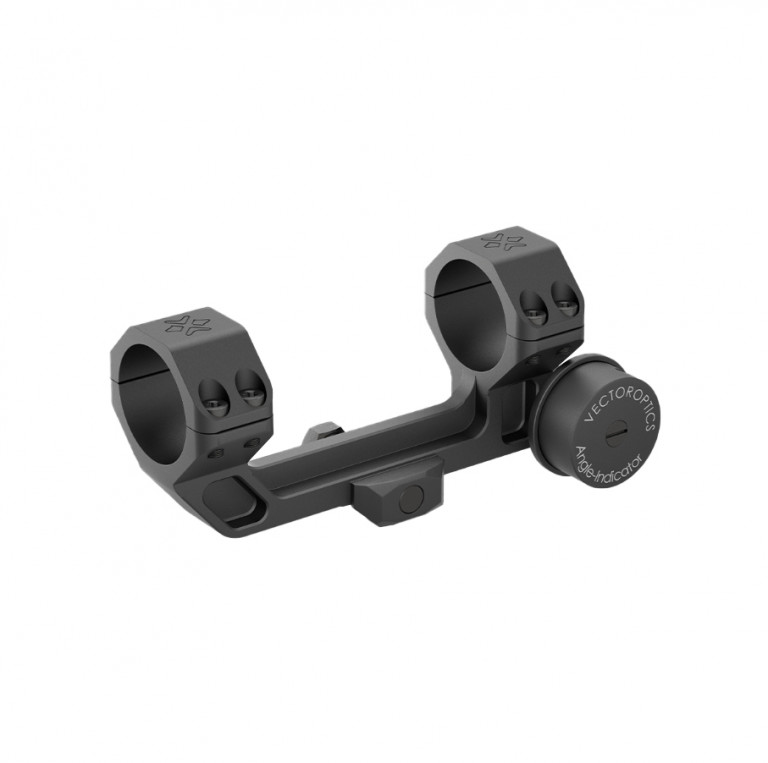

Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount

SKU#SCACD-24 Vector Optics

Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount

Name: Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount
Brand: Vector Optics
Price: 29.99 GBP
Availability: InStock

12 in stock

This Vector Optics 30mm one-piece cantilever mount is a solid, no-nonsense upgrade if you want your optic sitting rock-steady and properly aligned every time. The built-in cosine indicator helps you keep your rifle level for more consistent long-range shots, especially when angles start messing with your hold. It’s tough, lightweight, and designed to lock straight onto Picatinny rails without any fuss—just mount it and you’re good to go.

-Nathan (Technical Advisor)

VIEW PRODUCT INFO / SPECS

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

Founded in Devon in 2007, Optics Warehouse has grown to become the UK’s largest specialist optics retailer, offering an unrivalled selection of rifle scopes, thermal imagers, night vision, binoculars, red dots, mounting systems and shooting accessories from the world’s leading brands, all backed by competitive pricing, expert advice and outstanding customer service.

Shaun Ellis, Managing Director Long range target shooting and deer stalking.

Product Information FIND OUT MORE

DESCRIPTION

Introducing the Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount, a pinnacle of precision engineering for long-range shooting. With a bottom-to-ring center height of 38mm (1.5in), this mount is exceptionally accurate and fully CNC machined for durability. Featuring four screws per ring and a 21mm Picatinny mount with two crossing bolts and an anti-retreat bar, it ensures a secure and steadfast connection. The built-in angle indicator and scope level are invaluable tools, aiding shooters in achieving precision at extended distances. Elevate your shooting experience with the reliability and accuracy of the Vector Optics ACD Mount, designed to meet the demands of long-range marksmanship.

Height = 40mm

SPECS

Ring Diameter: 30mm
Overall Length: 138mm / 5.4in
Overall Height: 40mm / 1.6in
Mount Length: 120mm / 4.7in
Ring Width: 45mm / 1.8in
Central Height: 38mm / 1.5in, bottom to centre
Gap Length: 73mm / 2.9in
Material: 6061-T6 aluminum alloy
Weight: 167g / 5.89oz
Mount: 1913 Picatinny
Finish: Black matte
Screws per ring: 4

High-durability aluminium alloy in black matte
Do not use over 18 inch / pounds of torque on the scope rings' screws
Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail.
Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.

Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount Dimensions

FEATURES

38mm 1.5in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined.
Four Screws per Ring, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar.
Angle Indicator and Scope Level Help You Shoot with Precision at Long Range.

VIDEOS

WHAT'S IN THE BOX

Vector Optics 30mm One Piece Cosine Indicator Picatinny Cantilever ACD Mount
T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.

FREQUENTLY ASKED QUESTION(S)

1. What is the cosine indicator for?
It helps you measure rifle cant angle so you can make more accurate long-range shots by compensating for slope.

2. What tube size optics does it fit?
It is designed for 30mm scope tubes.

3. Is it compatible with all Picatinny rails?
Yes, it is built specifically for standard Picatinny rail systems.

4. Is it a one-piece mount?
Yes, the design is a single solid piece for better stability and zero retention.

5. Will it hold zero under recoil?
It’s built from durable materials to maintain zero even with repeated recoil, assuming proper installation.

6. Is it suitable for long-range shooting?
Yes, especially because of the cant angle reference feature which helps with elevation corrections.

7. How heavy is it?
It’s relatively lightweight for a cantilever mount, designed not to unbalance your setup.

8. Does it require special tools to install?
No, standard hex tools are typically all you need.

9. Can it be used on airsoft or real firearms?
It is designed for real firearm recoil, so it is also more than capable for airsoft use.

10. What does cantilever design mean?
It means the scope is mounted forward, giving you better eye relief and more flexible positioning on your rifle.
