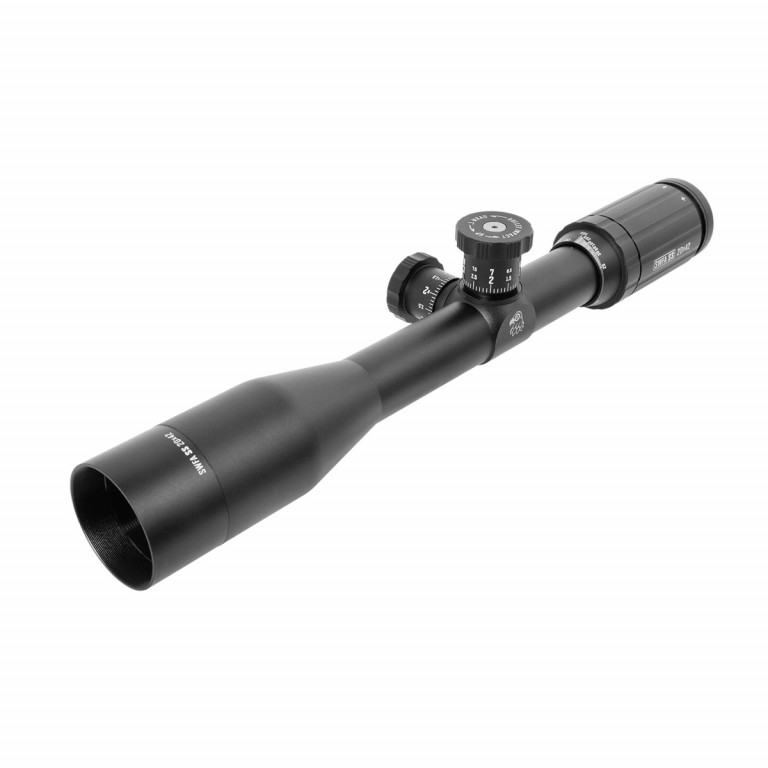

SWFA SS 20x42 SFP MQ 30mm GEN 2 Rifle Scope

SKU#SS220020 SWFA

SWFA SS 20x42 SFP MQ 30mm GEN 2 Rifle Scope

3 in stock

Modular Turret System (MTS) – Offers both capped and exposed turret configurations, allowing shooters to adapt to specific disciplines or preferences.
Zero Stop Functionality – Guarantees a return to true zero after every adjustment, ensuring total confidence in the field.
Patented Mil-Quad Reticle – Provides precision reference points for accurate range estimation and windage/elevation corrections.
Enhanced Field Usability – Updated design with clear turret markings, revolution indicators, and parallax scales for quick, intuitive adjustments.
Superior Optical Quality – Fully multi-coated lenses maximise light transmission and image contrast, delivering crisp visuals even in low light.
Rugged, All-Weather Construction – Withstands temperatures from -45°C to +55°C, immersion in water, and the toughest recoil forces.
Rear Focus Parallax Control – Fine-tune your parallax from 10 metres to infinity for precise focus at any range.
Built to Last – Constructed from aircraft-grade aluminium that’s lightweight yet as tough as steel for long-term reliability.

VIEW PRODUCT INFO / SPECS

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

The Extreme Distance Mil-Dot Master When you are aiming at targets on the horizon and need a tactical, mil-based system to get you there, the 20x42 MQ is the ultimate answer. Delivering a massive 20x magnification, this scope brings distant targets right up close, making it an elite choice for extreme long-range (ELR) precision and high-magnification tactical disciplines. The Mil-Quad reticle shines at this power level, allowing you to use precise grid holdovers for instant elevation and windage corrections. If you want maximum power, legendary SWFA durability, and flawless tracking for extreme distances, look no further.

George, Sales and Support 10+ years' experience across air rifles, full-bore firearms, hunting and target shooting.

Product Information FIND OUT MORE

DESCRIPTION

The SWFA SS 20x42 SFP MQ 30mm GEN 2 Rifle Scope is engineered for uncompromising precision and reliability in even the harshest conditions. Built to NATO specifications, this rugged optic performs flawlessly from -45°C to +55°C, enduring the elements at altitudes up to 30,000 feet or depths of 15 feet in saltwater. Whether mounted on a .223 or .50 BMG, the SWFA SS GEN 2 is built to handle extreme recoil and deliver consistent, repeatable performance.

Crafted from lightweight yet robust aluminium, this scope features fully multi-coated optics for maximum brightness and clarity. The advanced Modular Turret System (MTS) with a built-in zero stop offers over six configuration options for full customisation, while the Mil-Quad reticle provides precise measurement and holdovers. With enhanced markings for superior visibility and a rear focus parallax system, the 20x42 GEN 2 sets the standard for long-range precision shooting.

SPECS

Magnification 20x
Objective Lens Diameter 42mm
Tube Diameter 30mm
Reticle Type Mil-Quad
Focal Plane Second
Click Adjustment Value 0.1 MIL
Adjustment per Revolution 5 MIL
Total Elevation Adjustment 30 MIL
Total Windage Adjustment 30 MIL
Parallax Adjustment Range 10m – Infinity
Parallax Adjustment Type Rear Focus
Field of View @ 100 Yards 5.7 ft
Eye Relief 3.4 in
Length 14.1 in
Weight 600 g
Coating Fully Multi-Coated
Finish Matte Black
Waterproof Yes
Fogproof Yes
Shockproof Yes
Recoil Rated Up to .50 BMG
Construction Lightweight Aluminium
Operating Temperature -45°C to +55°C

FEATURES

Modular Turret System (MTS) – Offers both capped and exposed turret configurations, allowing shooters to adapt to specific disciplines or preferences.
Zero Stop Functionality – Guarantees a return to true zero after every adjustment, ensuring total confidence in the field.
Patented Mil-Quad Reticle – Provides precision reference points for accurate range estimation and windage/elevation corrections.
Enhanced Field Usability – Updated design with clear turret markings, revolution indicators, and parallax scales for quick, intuitive adjustments.
Superior Optical Quality – Fully multi-coated lenses maximise light transmission and image contrast, delivering crisp visuals even in low light.
Rugged, All-Weather Construction – Withstands temperatures from -45°C to +55°C, immersion in water, and the toughest recoil forces.
Rear Focus Parallax Control – Fine-tune your parallax from 10 metres to infinity for precise focus at any range.
Built to Last – Constructed from aircraft-grade aluminium that’s lightweight yet as tough as steel for long-term reliability.

WHAT'S IN THE BOX

SWFA SS 20x42 SFP MQ 30mm GEN 2 Rifle Scope

FREQUENTLY ASKED QUESTION(S)

1. What is the main difference between the Gen 1 and the Gen 2 SWFA SS scopes?

The Gen 2 models feature upgraded optical coatings for improved light transmission, contrast, and clarity. Mechanically, they introduce redesigned, lower-profile turrets with crisper, more distinct tactile clicks, and slightly updated reticle options, all while maintaining the legendary "bombproof" reliability of the original line.

2. Why should I choose a fixed-power scope over a variable-power scope?

Fixed-power scopes offer three major advantages: mechanical simplicity (fewer moving parts to break under heavy recoil), optical clarity (fewer glass elements mean better light transmission at a lower price point), and consistently accurate reticle subtensions. Because it is a Second Focal Plane (SFP) scope, your reticle's holdovers are always 100% accurate because the magnification never changes.

3. What is the difference between the MOA and MQ models?

It comes down to your preferred system of measurement:

MOA models use Minute of Angle adjustments (usually 1/4 MOA per click), which is ideal for traditional shooters who prefer thinking in inches (e.g., 1 inch at 100 yards).
MQ (Mil-Quad) models use Milliradians (0.1 MRAD per click). The Mil-Quad reticle uses diamond shapes for highly precise holdovers and windage reads, which is favored by modern tactical and long-range precision shooters.

4. Do these scopes feature a parallax adjustment, and what is the minimum distance?

Yes, all SWFA SS 10x, 12x, 16x, and 20x models feature a rear-focus parallax adjustment ring (located right in front of the eyepiece). The parallax can be adjusted from 10 meters (approx. 11 yards) to infinity, making these scopes incredibly popular for everything from extreme close-range rimfire/airgun shooting to ultra-long-range centerfire shooting.

5. What size scope rings do I need to mount an SWFA SS scope?

All SWFA SS fixed-power scopes feature a heavy-duty 30mm main tube. You will need high-quality 30mm scope rings. The height of the rings (low, medium, or high) will depend on your specific rifle action and barrel profile, though the 42mm objective lens generally allows for medium or low mounting on most platforms.

6. Are these scopes rated for heavy recoil or spring-piston air rifles?

Absolutely. The SWFA SS line was originally designed to meet military contracts and is famous for its ruggedness. They are fully rated for heavy-recoil calibers (like .300 Win Mag and .50 BMG) as well as the unique, harsh bi-directional recoil of magnum spring-piston air rifles.

7. What magnification should I choose (10x, 12x, 16x, or 20x)?

10x: Best all-rounder; versatile for hunting, tactical matches, and target shooting with a wider field of view.
12x: The "sweet spot" for mid-to-long-range steel and varmint hunting.
16x: Ideal for long-range target shooting and extreme-distance rimfire.
20x: Best for dedicated benchrest, F-Class, or ELR (Extreme Long Range) shooting where maximum target resolution is required.

8. Are the turrets resettable to zero?

Yes. Once you have sighted in your rifle, you can easily loosen the set screws on the outer dial of the turrets using an Allen key, align the "0" mark with your indicator line, and tighten them back down. This allows you to easily dial for distance and quickly return to your baseline zero.

9. Are these scopes waterproof and fogproof?

Yes. The SWFA SS Gen 2 scopes are nitrogen-purged and O-ring sealed. They are completely waterproof, fogproof, and shockproof, engineered to perform reliably in freezing temperatures, heavy rain, and harsh environments.

10. Does the reticle illuminate?

No, the SWFA SS fixed-power Gen 2 series utilizes a non-illuminated, laser-etched glass reticle. This ensures the reticle remains incredibly sharp, crisp, and permanently etched into the glass without relying on battery power.
