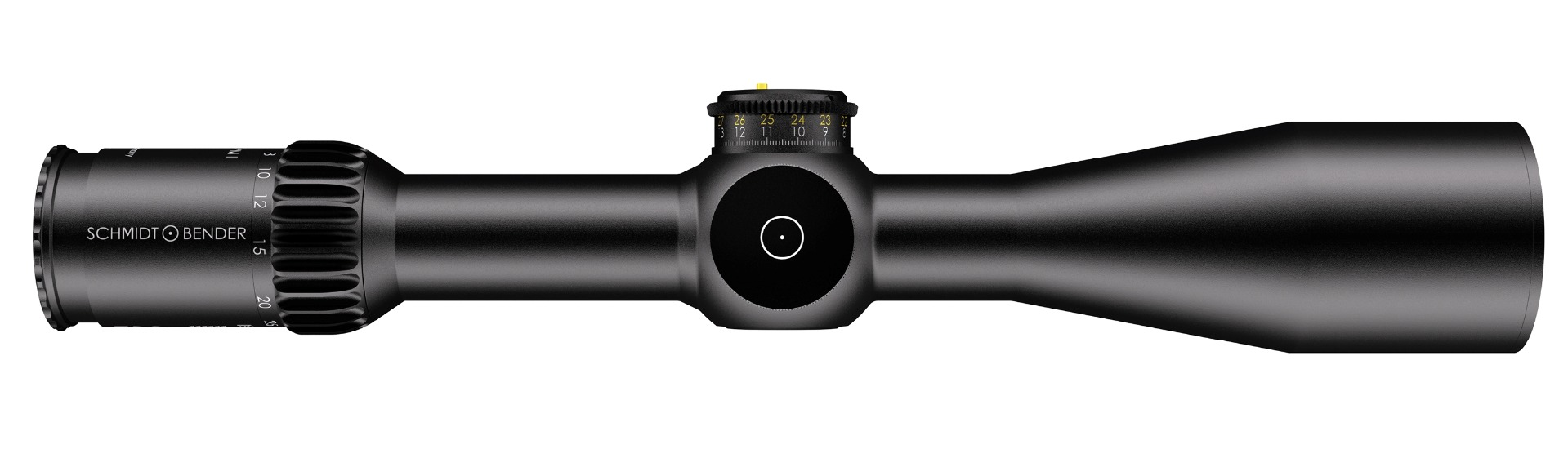

Schmidt & Bender PM II 6-36x56 High Performance LPI Illuminated FFP P5FL 1cm cw DT27 MTC CT / ST ZC CT Rifle Scope
- Versatile Magnficiation Range 6-36x
- 56mm Objective
- First focal plane
- Side focus down to 20m
- Illuminated
- LPI (Illumination Parallax Integrated):
- 34mm main tube
- Built to MIL-STD-810G
- Double Turn 27 MRAD Turret
- Zero Click
- Locking elevation
- Capped windage
- Clock wise turret adjustments
The eagerly anticipated release of the The new Schmidt & Bender PM II 6-36x56 High Performance has arrived. The Schmidt & Bender PM II 6-36x56 has taken the old PM II 5-25x56 and brings it into the new age. With brand new features that include side parallax illumination and an extra wide field of view. Other new features include rugged build quality, reduced size and weight and the ability to get 39.5 MRAD of adjustment but only with the MT 2 turret system. This unit will only provide 27 MRAD of adjustment due to the turret system. The versatile 6-36x magnification range offers the best solution for medium to extreme long-range shooting including PRS style shooting or target disciplines out to over 1 mile.
Like all of Schmidt & Bender PM II riflescopes, we designed and manufactured this 6x zoom riflescope according to MIL-STD-810G for handling the harshest environments.
The brand new optical system of the Schmidt & Bender PM II 6-36x56 offers outstanding image quality with a wide field-of-view (FOV) provides superior detail recognition. Reduced weight and size makes it very compact while the new LPI illumination also enables left handed use which its predecessor the PM II 5-25x56 did not allow.
Weight (g) | 940 - 995 |
Length (mm) | 390 |
Tube diameter (mm) | 34 |
Magnification | 6-36x |
Objective lens diameter (mm) | 56 |
Field of view (m) | 7.3 - 1.25 |
Field of view [USA] (m) | 6.2 - 1.05 |
Exit pupil (mm) | 8.3 - 1.6 |
Eye relief distance (mm) | 90 |
Twilight factor | 17.3 - 44.9 |
Transmission | >90 |
Focal plane | 1. |
Diopter | -3 to +2 |
Adjustment | DT27 MTC LT / ST ZC CT |
Adjustment value/Click | 0.1 MRAD |
Elevation (Turret) | 27 MRAD |
Windage (Turret) | ±6 MRAD |
Adjustment | DT35 MTC LT / ST ZC CT |
Adjustment value/Click | 0.1 MRAD |
Elevation (Turret) | 35 MRAD |
Windage (Turret) | ±6 MRAD |
Adjustment | DT II+ MTC LT / ST II ZC LT |
Adjustment value/Click | 0.1 MRAD |
Elevation (Turret) | 30.5 MRAD |
Windage (Turret) | ±6 MRAD |
Adjustment | MT II MTC LT / DT II+ ZC LT |
Adjustment value/Click | 0.5 cm/100 m |
Elevation (Turret) | 395 cm/100 m |
Windage (Turret) | 65 cm/100 m |
Parallax adjustment | 20 m to ∞ |
Illumination | yes |
Waterproof (m) | 3 (10 / 20 / 25 on request) |
Temperature range | |
Storage | –55 bis +71 °C |
Function | –46 bis +61 °C |
Turret Types | cw/ccw |
Colours | Black / RAL8000 |
Reticles | P5FL |
- Versatile Magnficiation Range 6-36x
- 56mm Objective
- First focal plane
- Side focus down to 20m
- Illuminated
- LPI (Illumination Parallax Integrated):
The Schmidt & Bender PM II 6-36x56 PM High Performance now features our new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity. Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.
- 34mm main tube
- Built to MIL-STD-810G
- Double Turn 27 MRAD Turret
- Zero Click
- Locking elevation
- Capped windage
- Clock wise turret adjustments

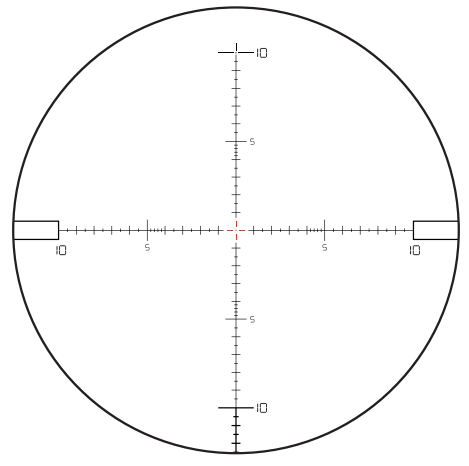

P5FL Reticle:
The new P5FL basically resembles the popular pattern of our well-known P4FL reticle which was initially designed for military snipers and has been well-proven around the globe. Reflecting the ongoing technical evolution the new P5FL represents a slight upgrade without forcing the operator to get used to a completely new reticle design. It is also perfect for competition shooters and modern hunters alike who prefer a clean reticle design which is reduced to the most important essentials without distracting features. Those who are already enjoying the P4FL reticle will find confidence in the new P5FL reticle.
- Schmidt & Bender 6-36x56 PM II High Performance LPI P5FL 1cm cw DT27 MTC CT / ST ZC CT Rifle Scope.
- Tenebraex covers
- 10 year Warranty
