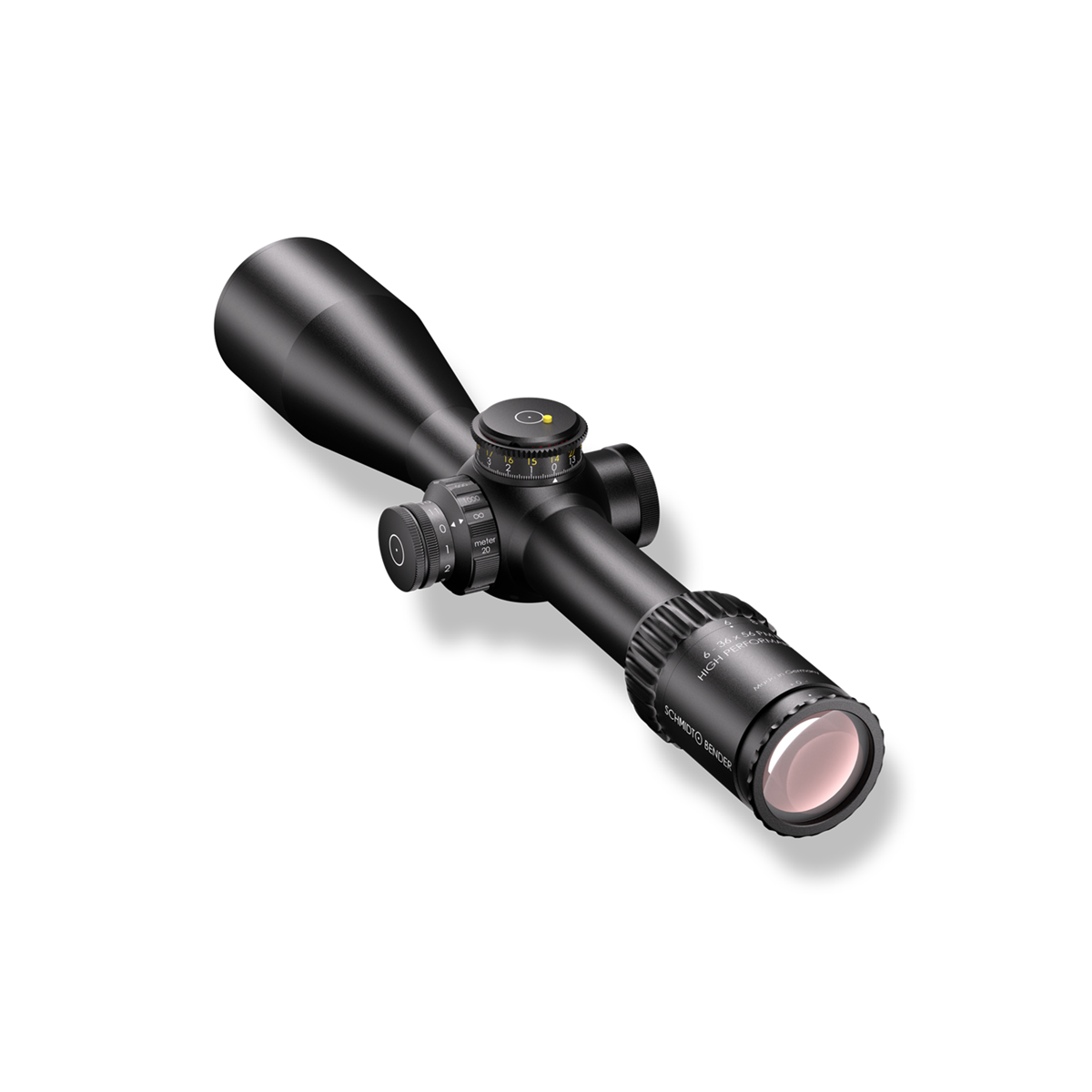

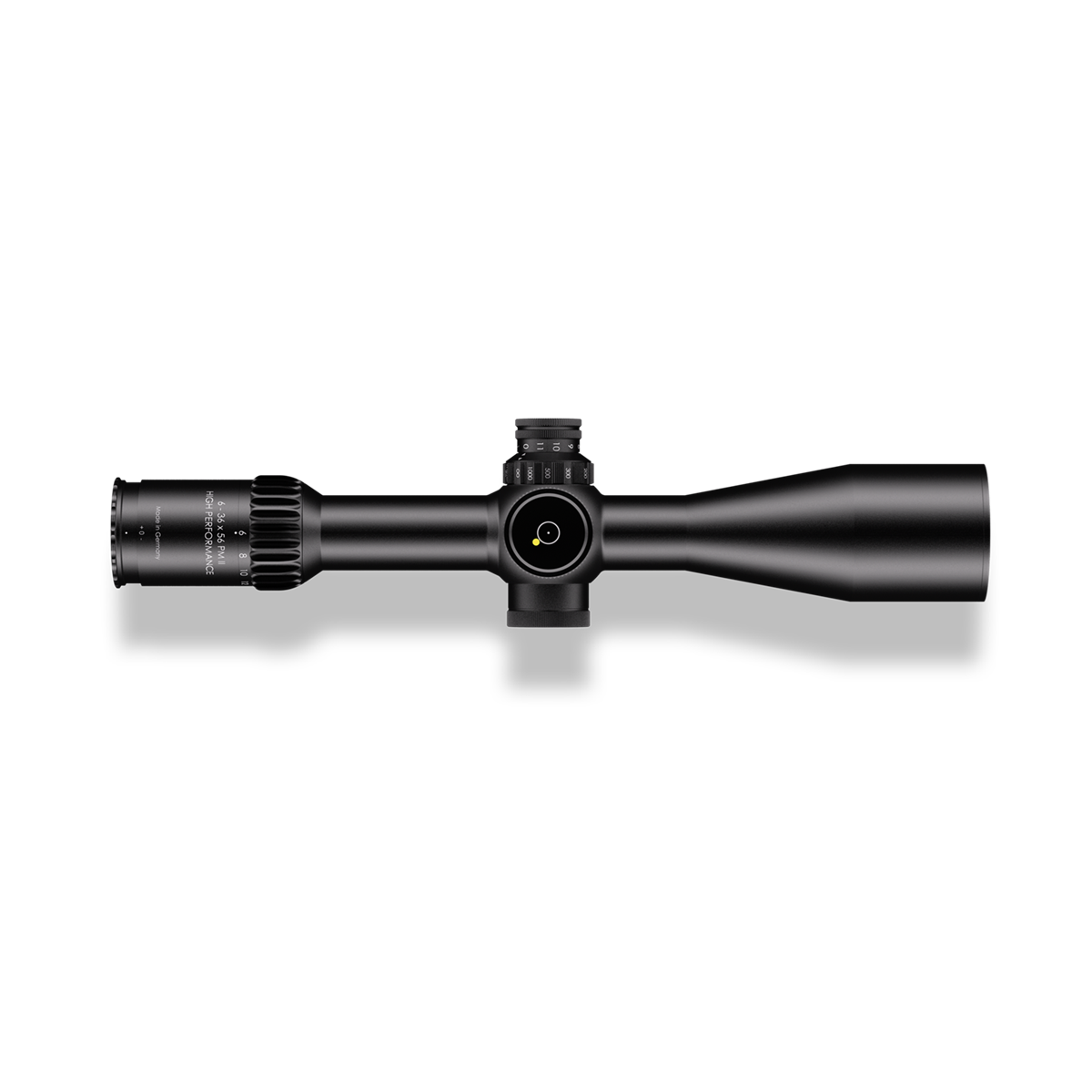

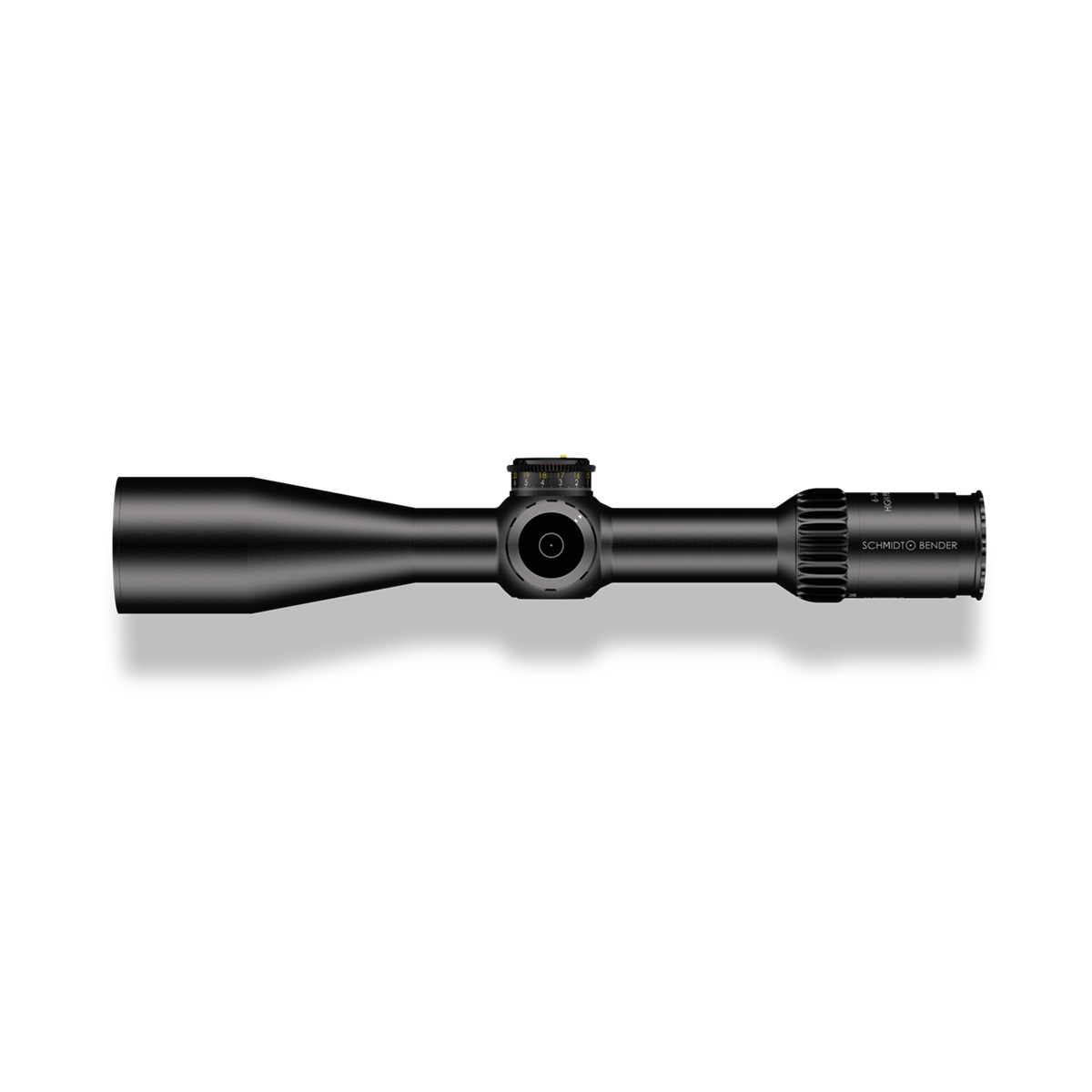

Schmidt and Bender 6-36x56 PM II High Performance LPI P5FL 1cm ccw DT27 MTC LT / ST ZC CT Rifle Scope
The new S&B 6-36x56 PM II High Performance offers the best solution for medium to extreme long-range shooting. Like all of our PM II riflescopes, we designed and manufactured this 6x zoom riflescope according to MIL-STD-810G for handling the harshest environments. Outstanding image quality with a wide field-of-view (FOV) provides superior detail recognition. Reduced weight and size makes it very compact while the new LPI illumination also enables left handed use. The efficient 6-36x magnification range is combined with a 39.5 MRAD elevation turret which supports more precise shot placements.
LPI (Illumination Parallax Integrated)
The 6-36x56 PM II High Performance now features our new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means"Illumination Parallax Integrated". This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity. Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.
- Weight (g): 940 - 995
- Length (mm):390
- Tube diameter (mm): 34
- Magnification: 6-36x
- Objective lens diameter (mm): 56
- Field of view (m): 7.3 - 1.25
- Exit pupil (mm): 8.3 - 1.6
- Eye relief distance (mm): 90
- Twilight factor: 17.3 - 44.9
- Transmission: >90
- Focal plane: 1.
- Diopter: -3 to +2
- Adjustment: DT27 MTC LT / ST ZC CT
- Adjustment value/Click: 0.1 MRAD
- Elevation (Turret): 27 MRAD
- Windage (Turret) : ±6
- MRAD Adjustment: DT35 MTC LT / ST ZC CT
- Adjustment value/Click: 0.1 MRAD
- Elevation (Turret): 35 MRAD
- Windage (Turret): ±6 MRAD
- Adjustment: DT II+ MTC LT / ST II ZC LT
- Adjustment value/Click: 0.1 MRAD
- Elevation (Turret): 30.5 MRAD
- Windage (Turret) : ±6 MRAD
- Adjustment: MT II MTC LT / DT II+ ZC LT
- Adjustment value/Click: 0.5 cm/100 m
- Elevation (Turret): 395 cm/100 m
- Windage (Turret): 65 cm/100 m
- Parallax adjustment: 20 m to ∞
- Illumination: yes
- Waterproof (m): 3
- Storage: –55 bis +71 °C
- Function: –46 bis +61 °C
- Turret Types: ccw
- Colours: Black / RAL8000
- Reticle:P5FL
P5FL Reticle
The new P5FL basically resembles the popular pattern of our well-known P4FL reticle which was initially designed for military snipers and has been well-proven around the globe. Reflecting the ongoing technical evolution the new P5FL represents a slight upgrade without forcing the operator to get used to a completely new reticle design. It is also perfect for competition shooters and modern hunters alike who prefer a clean reticle design which is reduced to the most important essentials without distracting features. Those who are already enjoying the P4FL reticle will find confidence in the new P5FL reticle.
