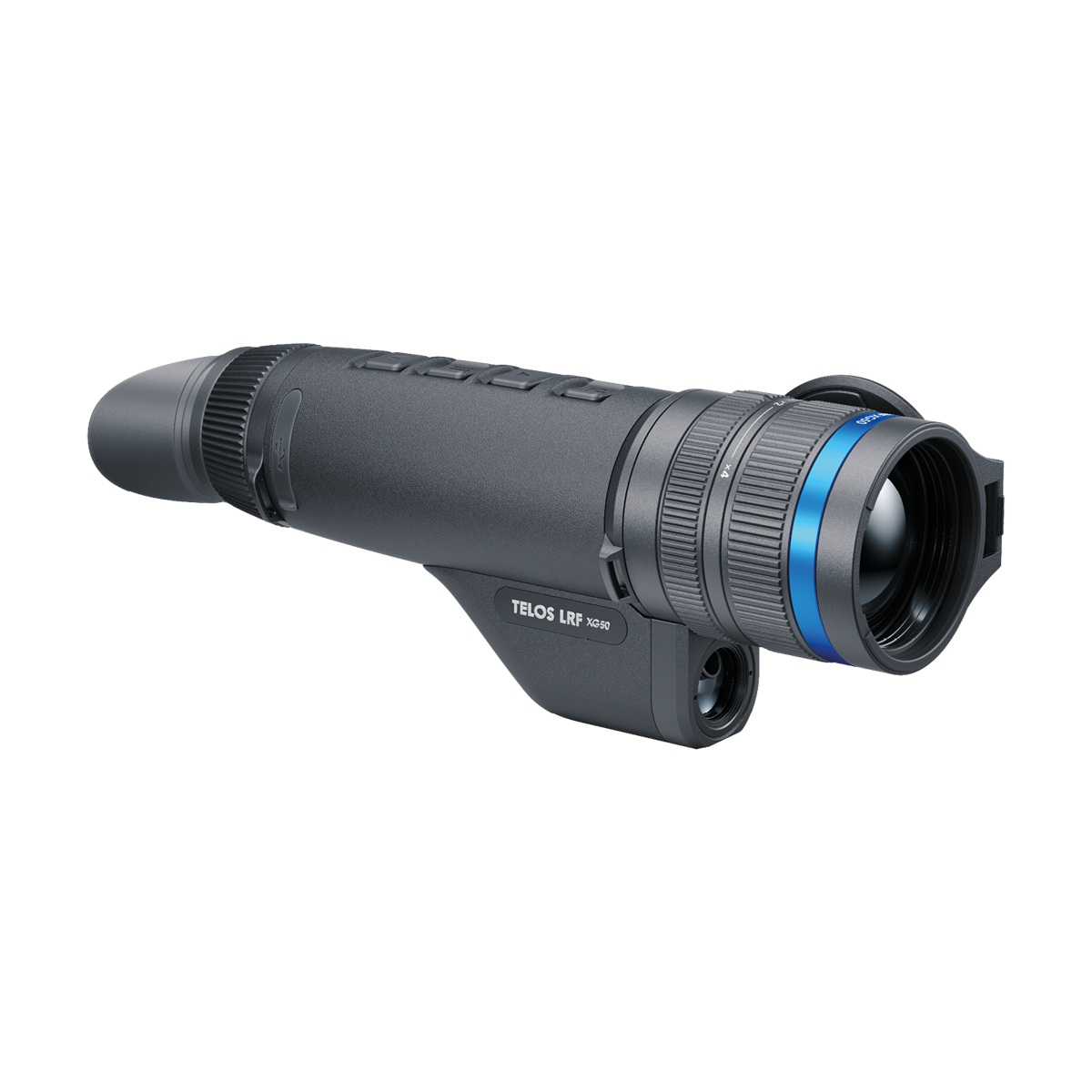

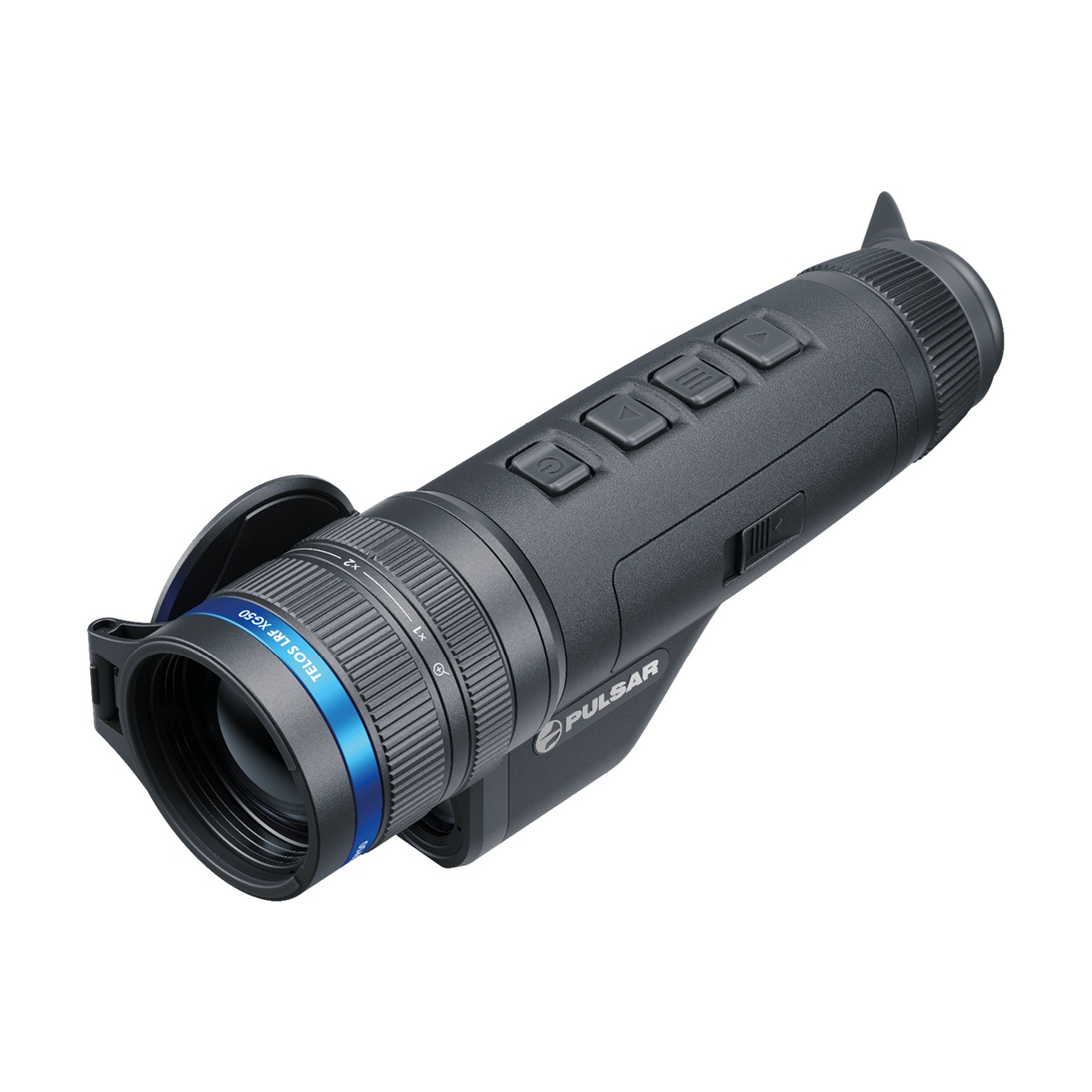

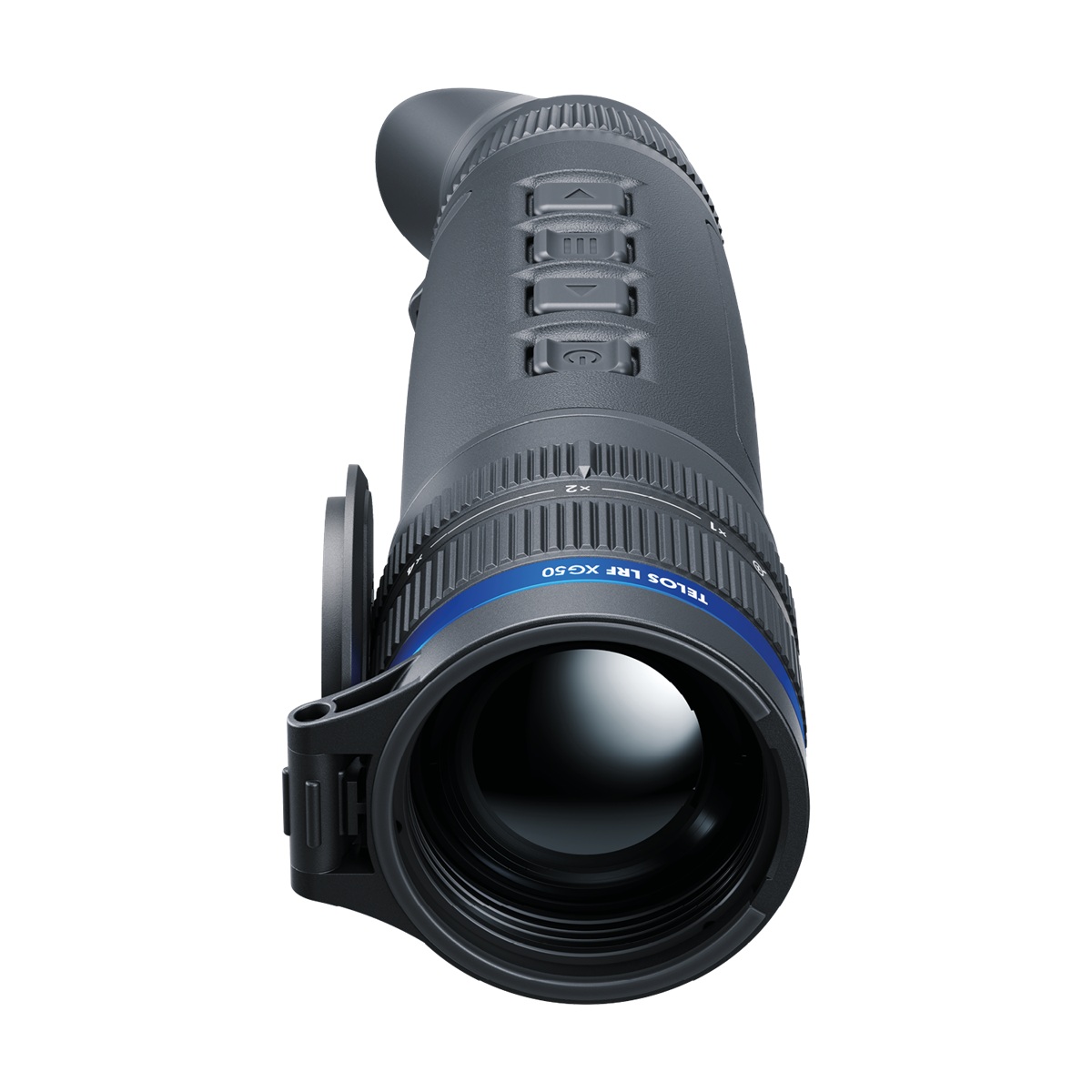

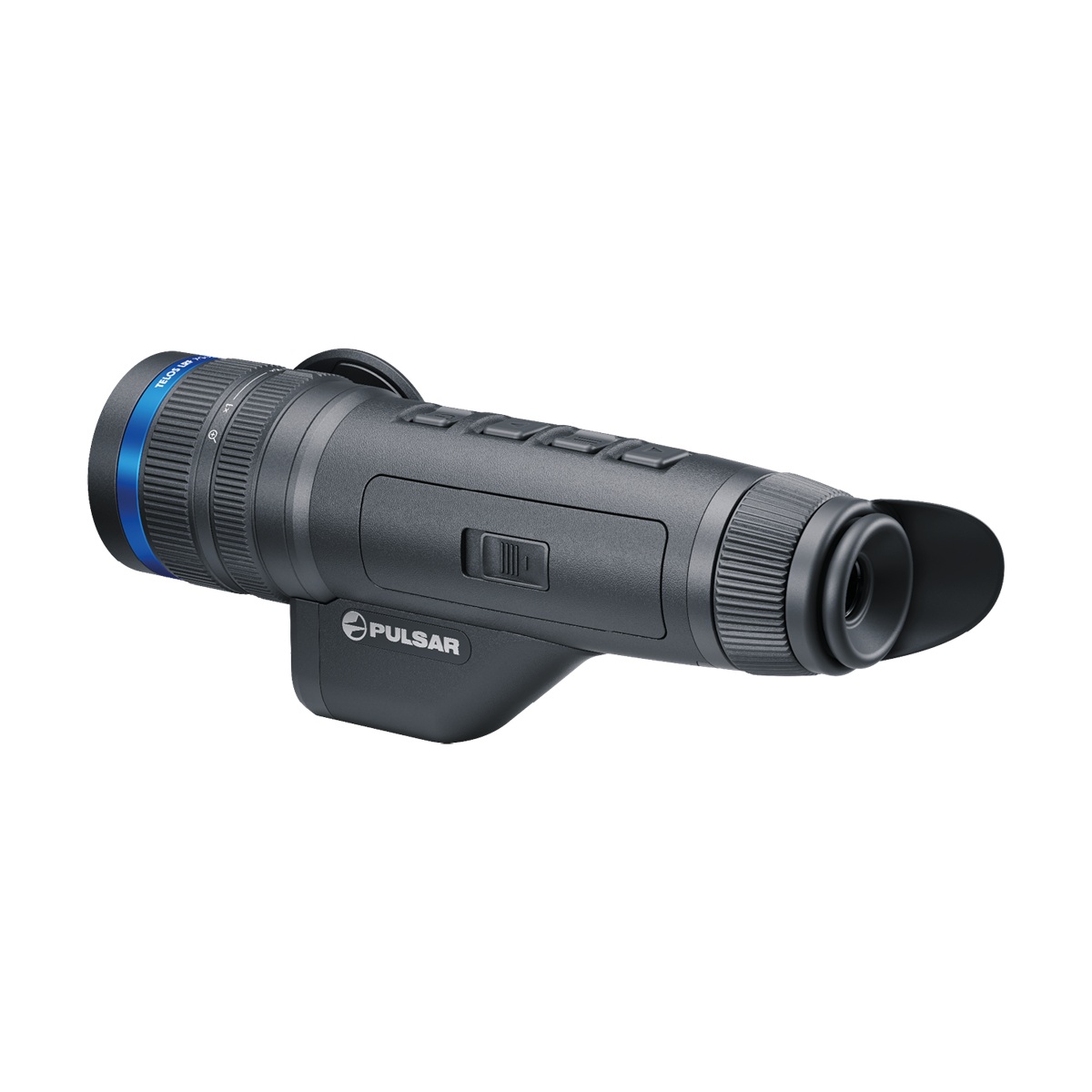

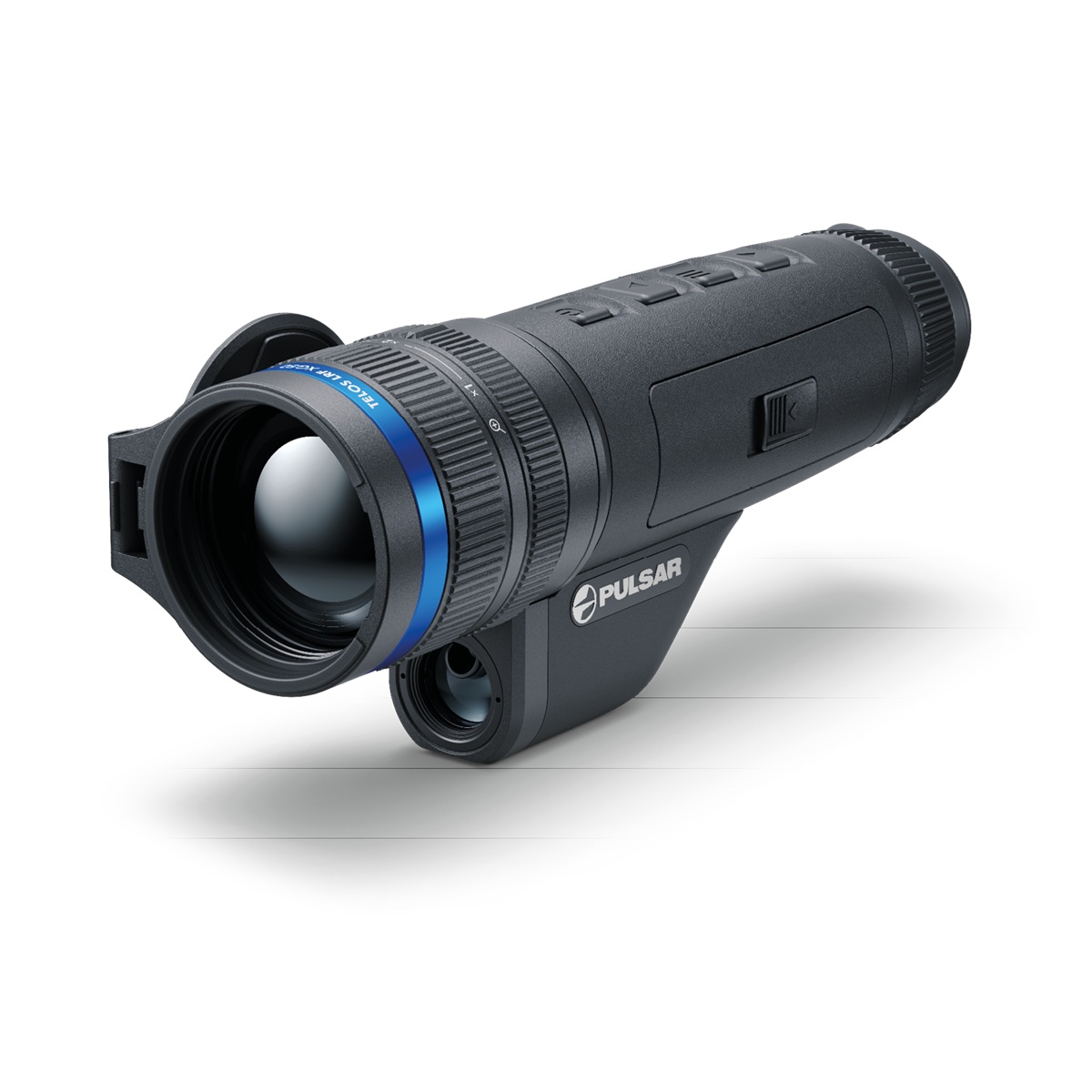

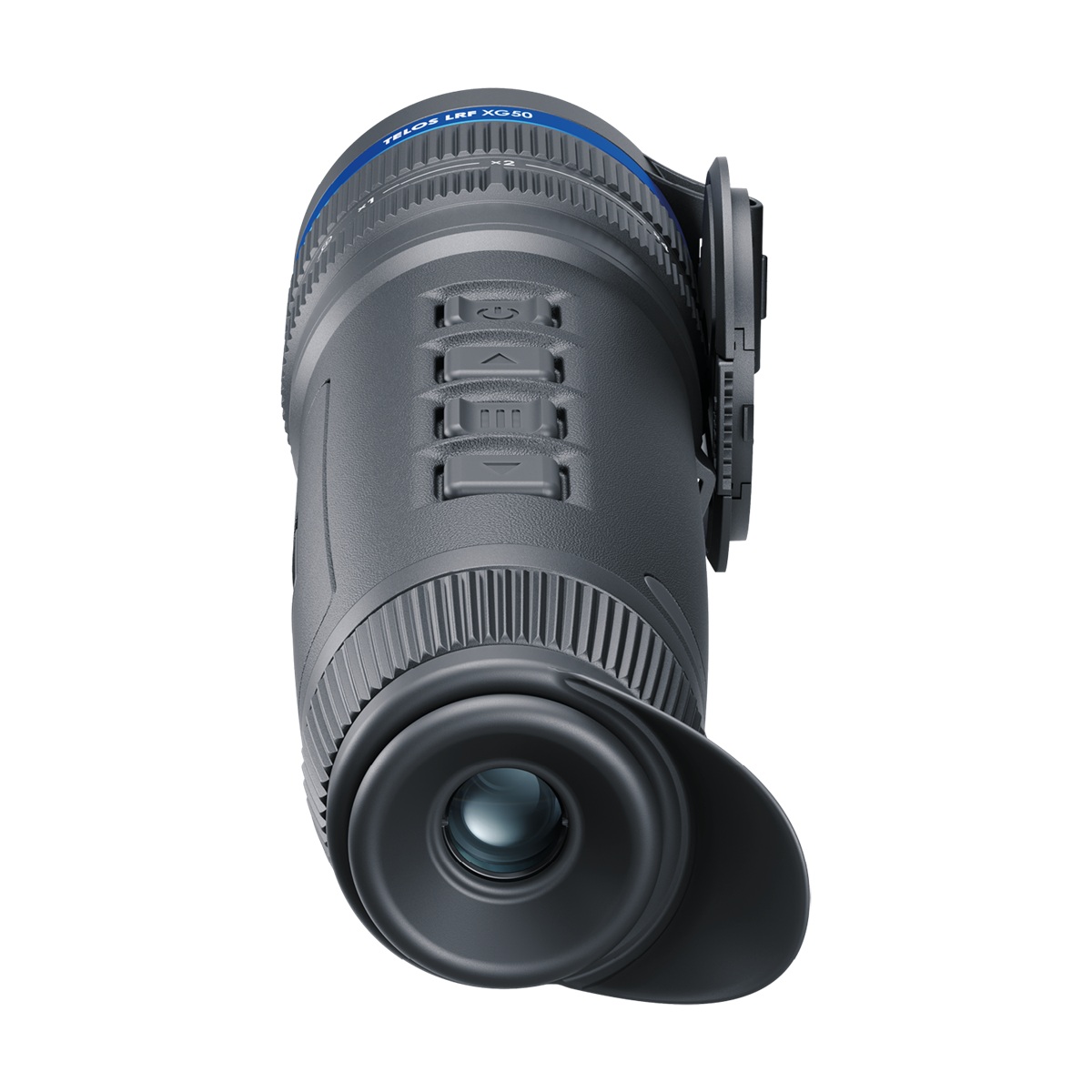

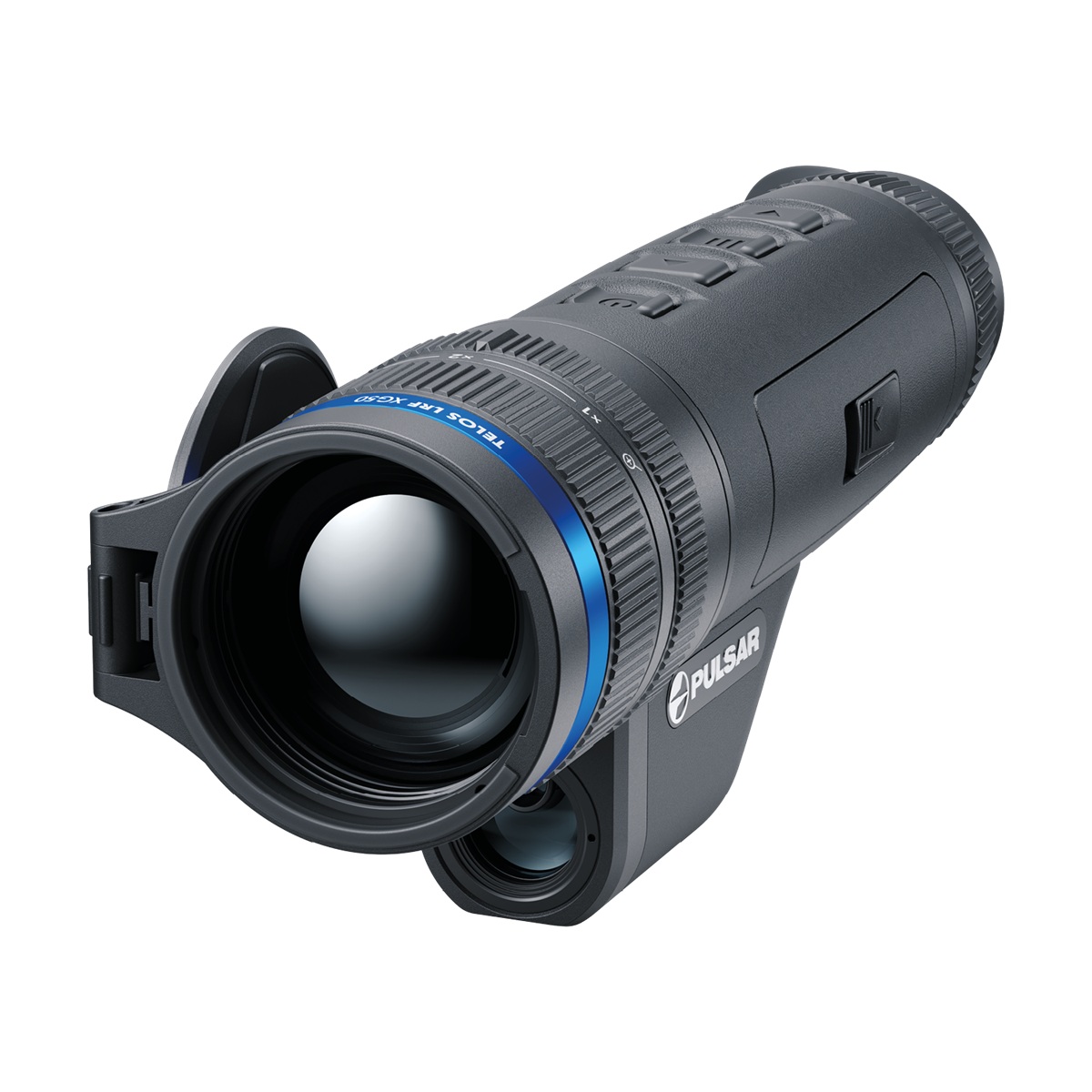

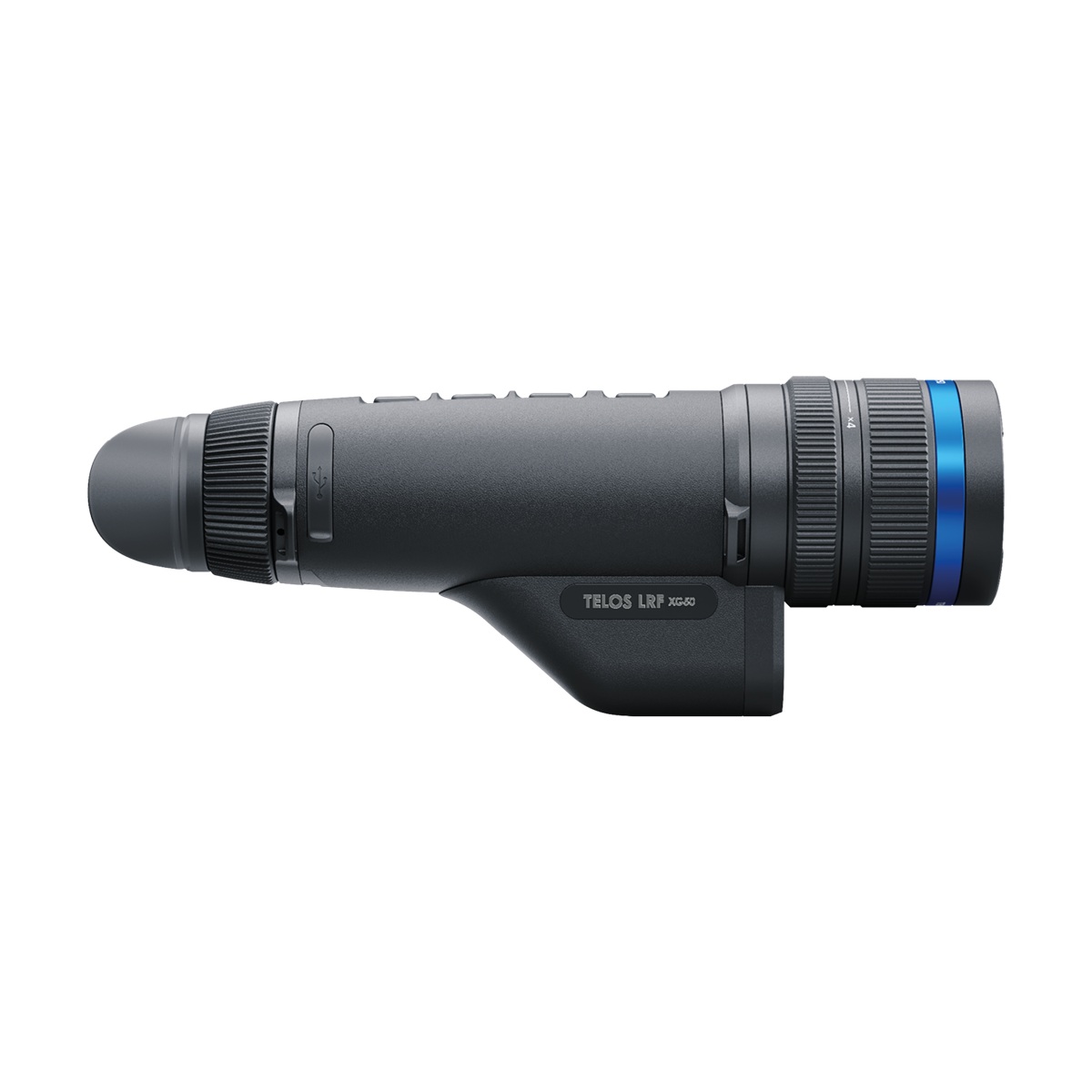

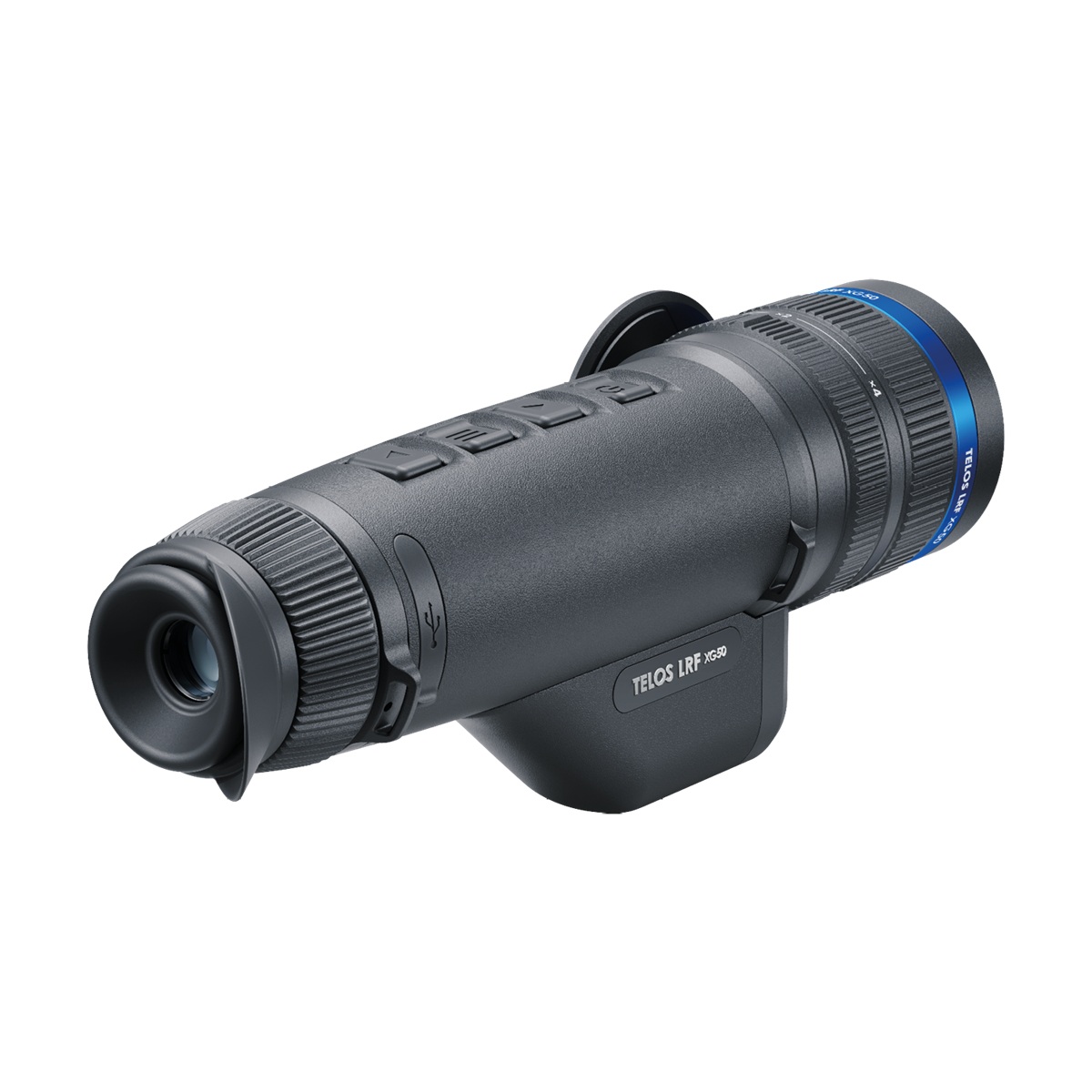

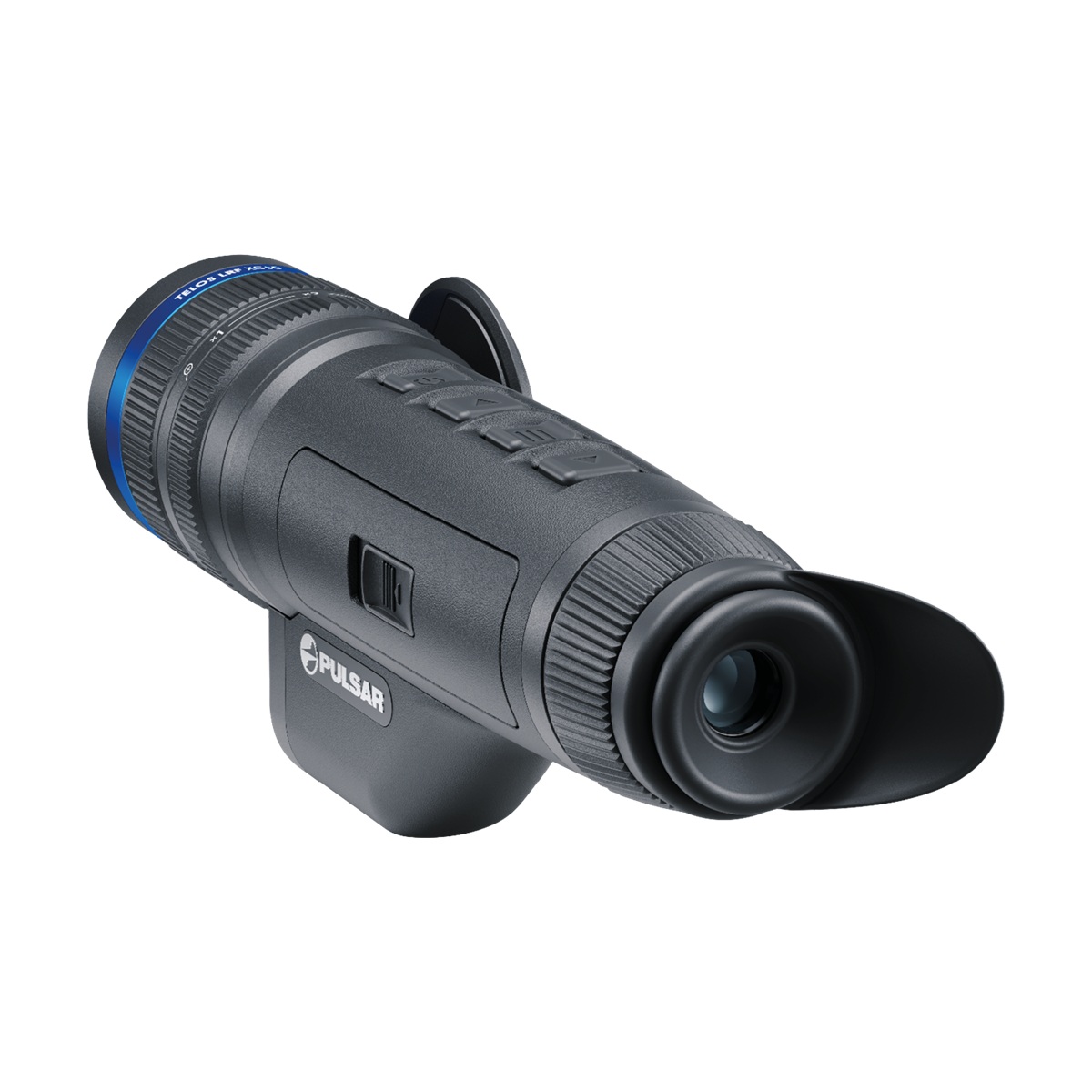

Pulsar Telos XG50 LRF Thermal Imaging Monocular
640×480, 12 µm, <40 mK NETD
The Pulsar Telos XG50 LRF is basically the top-tier version of the Telos handheld line—packing a 640×480 12µm sensor with ultra-sensitive performance (<20mK system NETD), a 50mm F1.0 lens, and a built-in laser rangefinder that gives instant, accurate distance readings out to around 1000m. It delivers serious detection capability up to about 2300m, but the real win is how clean and stable the image stays thanks to Pulsar’s processing and the smooth 50Hz refresh, especially when you’re scanning large areas for long periods. Add in the modular, upgradeable Telos platform and you’ve got a rugged, future-proof thermal spotter built for users who want maximum handheld performance without stepping into bulky binocular setups.
-Nathan (Technical Advisor)
#1403
#1432
#1428
#1413
#1411
The Pulsar Telos LRF XG50 is a next-generation thermal imaging monocular engineered for users who demand exceptional performance, adaptability, and long-term value. Featuring a European-made Lynred 640×480, 12 μm thermal sensor with <40 mK NETD sensitivity, this fully upgradeable device delivers superb thermal clarity and a remarkable 2300 m detection range , ensuring consistent performance in rain, fog, snow, and high humidity. A built-in precision laser rangefinder provides fast, accurate distance readings up to 1000 m, giving users the confidence to assess their environment with absolute clarity.
Designed around user comfort and field practicality, the Telos LRF XG50 features ergonomic controls, customisable menus, intuitive focusing and magnification rings, and a durable IPX7 waterproof housing made to withstand the toughest conditions. With Pulsar’s advanced Image Boost processing, eight viewing palettes, built-in photo/video recording, and Stream Vision 2 connectivity, the Telos LRF XG50 offers a premium, future-proofed thermal experience for professional and recreational observation.
- Sensor Type Uncooled
- Sensor Resolution 640×480, 12 μm
- Sensor NETD <40 mK
- System NETD <20 mK
- Frame Rate 50 Hz
- Objective Lens 50mm f1.0
- Magnification 3.5–14.0x (4× digital zoom)
- Field of View 8.8° × 6.6°
- Eye Relief 14 mm
- Display 1024×768 HD AMOLED
- Detection Range 2300 m
- Video Recording Yes, with audio
- Still Image Capture Yes
- Video/Photo Resolution 1024×768
- Video/Photo Format .mp4 / .jpg
- Built-In Memory 64 GB
- Wi-Fi Built-in
- Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
- Wi-Fi Frequency 2.4 GHz / 5 GHz
- Environmental Protection IPX7 waterproof
- Operating Temperature –25°C to +40°C
- Compatible Mounts 1/4″
- Supported App Stream Vision 2
- Power Output Voltage 3.0–4.2 V
- Battery Type LPS 7i Li-Ion battery pack
- Battery Capacity 6400 mAh
- Operating Time 8.5 hours at 22°C
- External Power Supply 5V / 9V (USB Type-C Power Delivery)
- Body Material Rubber-armoured reinforced plastic
- Dimensions 238 × 72 × 90 mm
- Weight 580 g (without battery) / 720 g (with LPS7i battery)
- Fully upgradeable design allowing future enhancements to the sensor, electronics, objective lens, or LRF capability for long-term value.
- Exceptional thermal sensitivity from a European-made 640×480, 12 μm <40 mK NETD Lynred sensor paired with a fast 50mm f1.0 lens for superb detail in harsh weather.
- Pulsar Image Boost technology delivering sharper detail, enhanced contrast, and improved recognition across complex scenes, with adjustable sensitivity and smoothing filters.
- Integrated precision laser rangefinder offering accurate distance measurements up to 1000 m with ±1 m accuracy in single or continuous mode.
- User-focused ergonomic design featuring top-mounted controls, a reversible hand strap for left- or right-handed use, and intuitive focusing/magnification rings.
- Customisable user interface enabling reordering of menu items and prioritisation of key functions for faster operation.
- Eight colour palettes (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet) to optimise detection, recognition, and long-term night viewing.
- Durable rubber-armoured polymer housing offering a secure grip, long-term resilience, and full IPX7 waterproof performance.
- Built-in still image and video recording with expanded internal storage for hours of footage and thousands of photos.
- Stream Vision 2 compatibility for remote control, live viewing, firmware updates, and simple media transfer via smartphone or tablet.
- Pulsar Telos XG50 LRF Thermal Imaging Monocular (640×480, 12 µm, <40 mK NETD)
1. What resolution does it use?
It uses a 640×480 thermal sensor with a 12µm pixel pitch for strong long-range detail and target separation.
2. How sensitive is it in poor conditions?
It has a sensor NETD under 40mK, with system-level sensitivity around <20mK, which helps it pick out heat differences in fog, rain, and humidity.
3. What is the detection range?
It can detect targets out to approximately 2300 metres depending on conditions and target size.
4. Does it have a laser rangefinder?
Yes, it includes a built-in LRF with a measuring range of up to about 1000m and ±1m accuracy.
5. What magnification does it offer?
It provides 3.5–14x magnification, which is ideal for both scanning and longer-range identification work.
6. How does it differ from the non-LRF XG50?
You get integrated distance measurement, which makes target evaluation faster and more precise without needing a separate device.
7. Is the image quality better than older Pulsar monoculars?
Yes—especially in contrast handling and clarity at range, thanks to improved sensor sensitivity and processing.
8. How long does the battery last?
Up to around 8.5 hours using the LPS7i battery pack depending on conditions and settings.
9. Is it weatherproof?
Yes, it’s IPX7 rated, so it can handle heavy rain and harsh field conditions without issue.
10. What’s the main reason to choose the LRF version over standard Telos XG50?
It comes down to workflow—having instant ranging built in speeds up identification and reduces guesswork, especially at longer distances.
