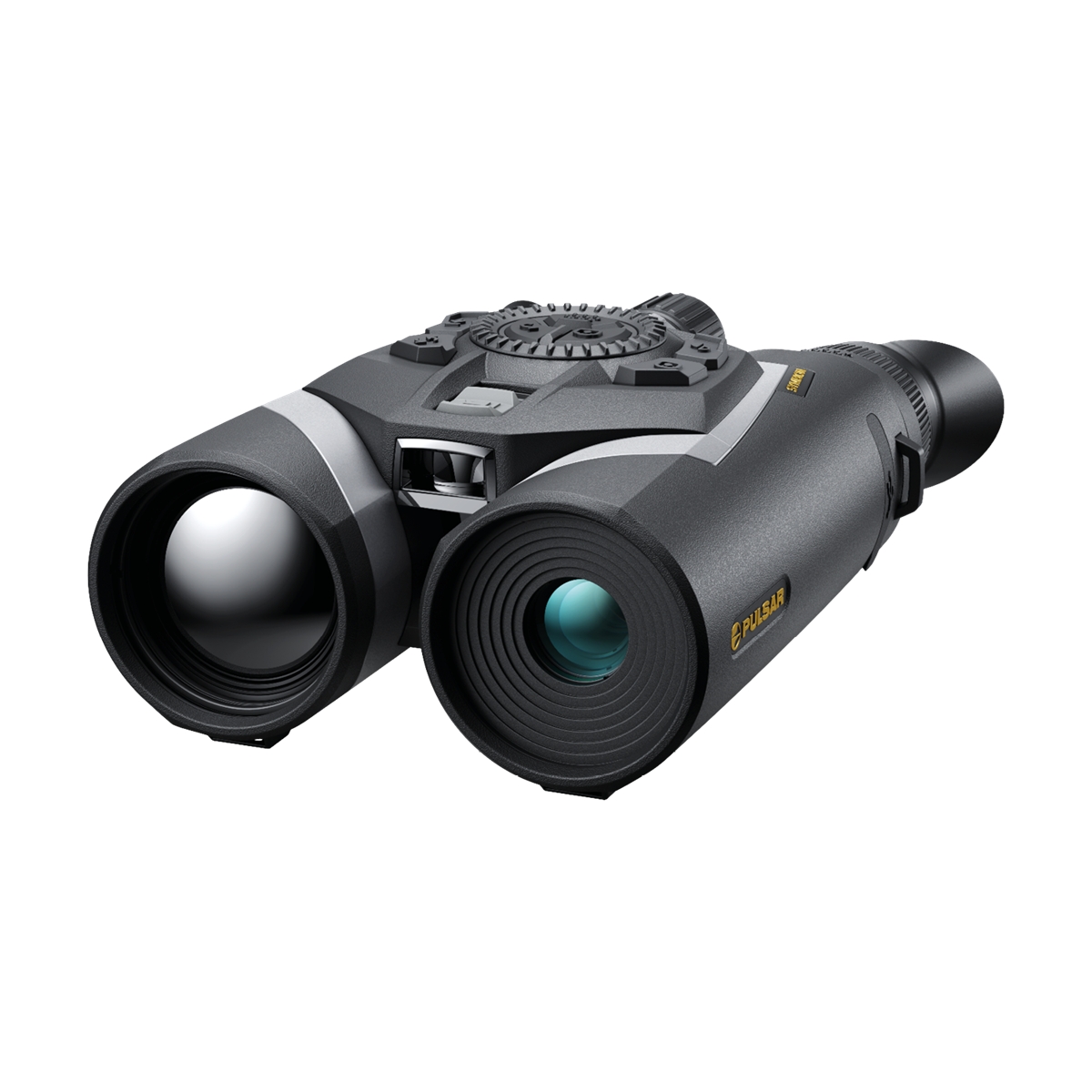

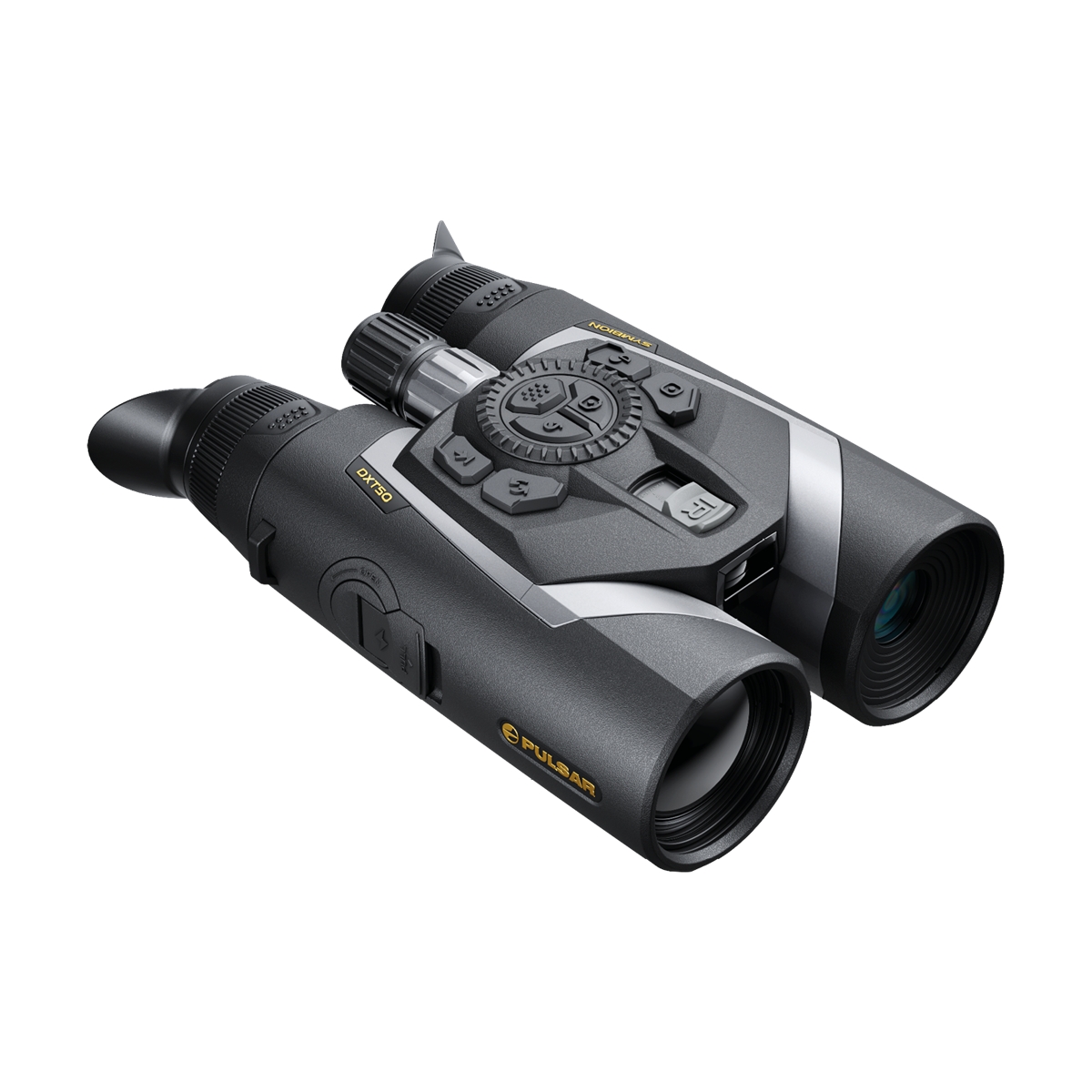

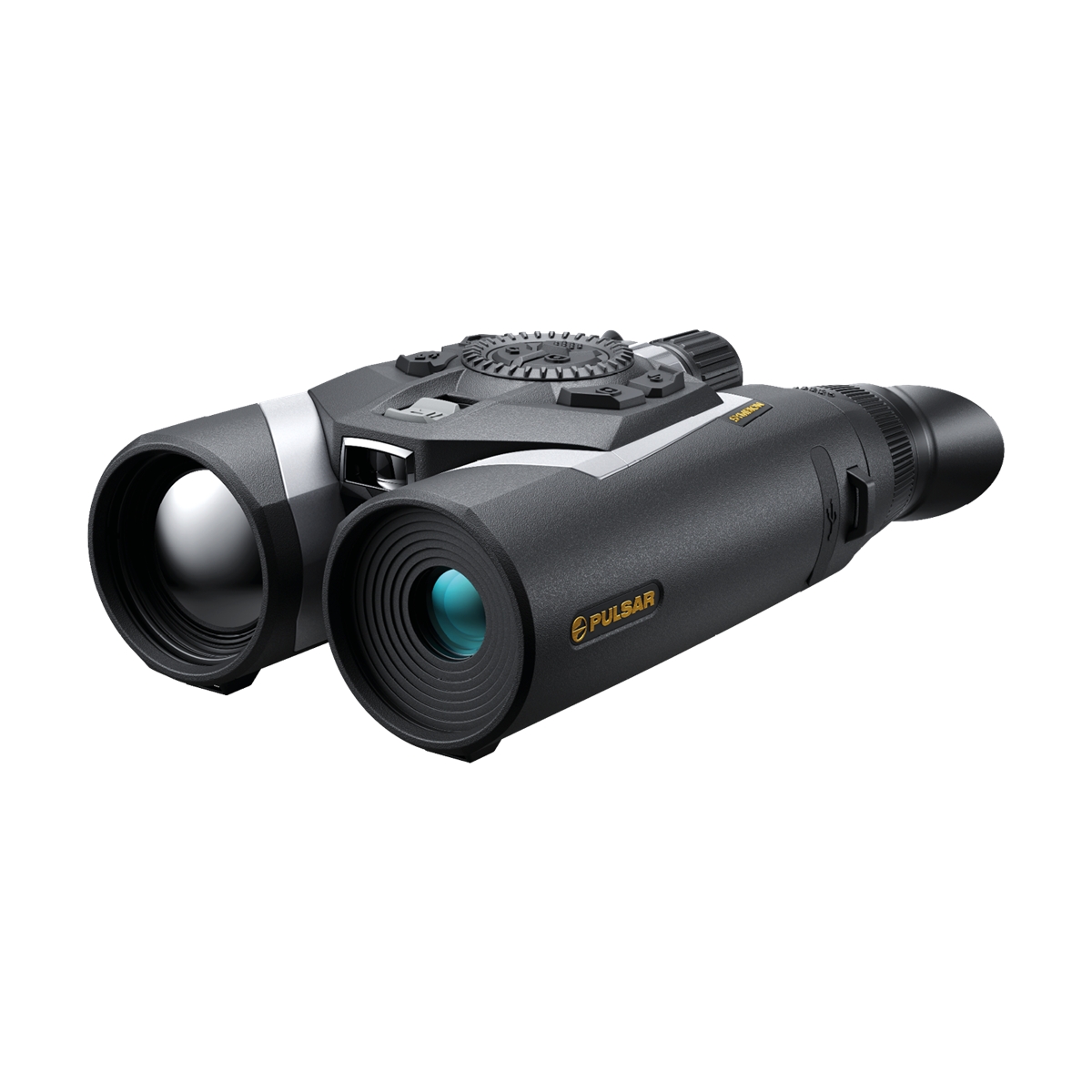

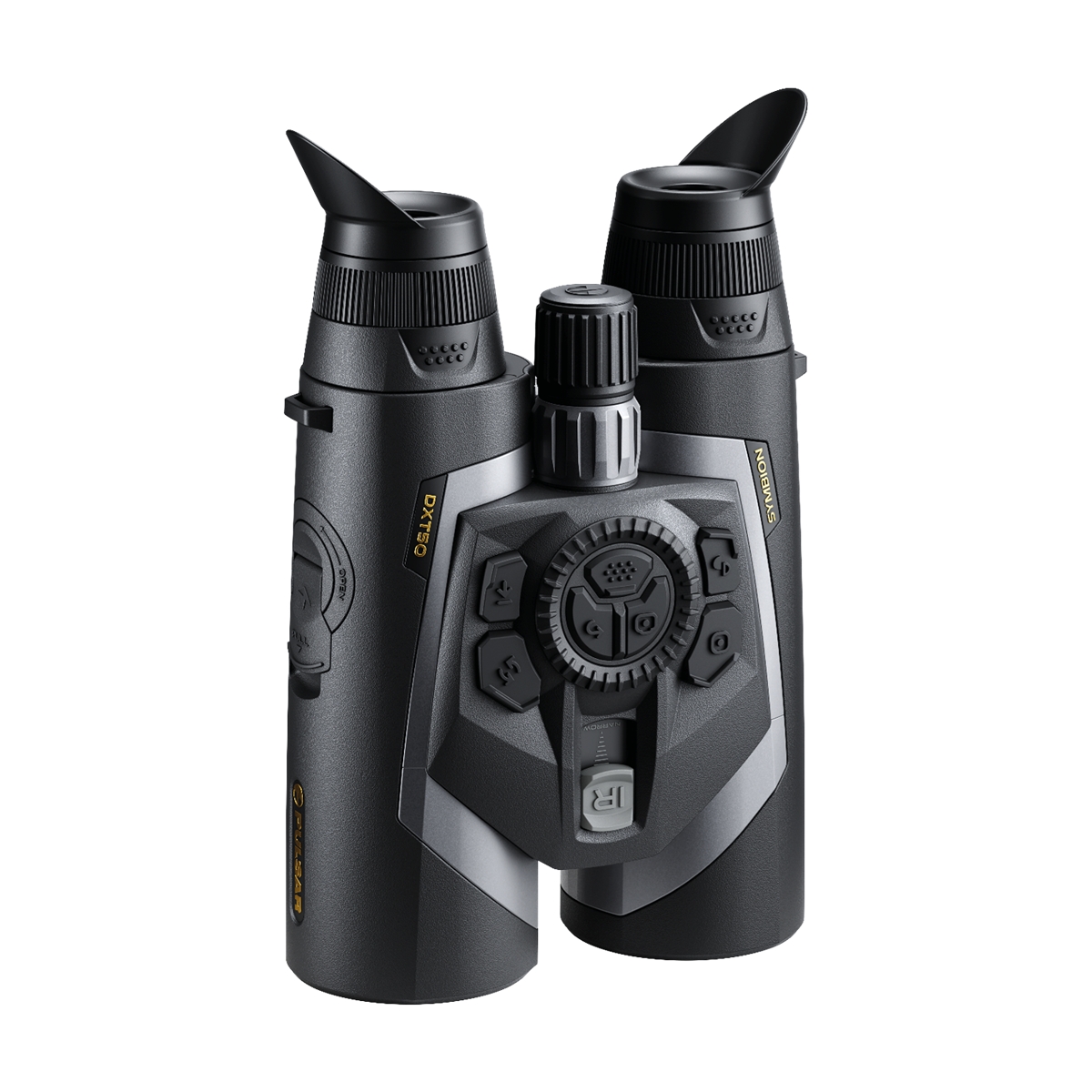

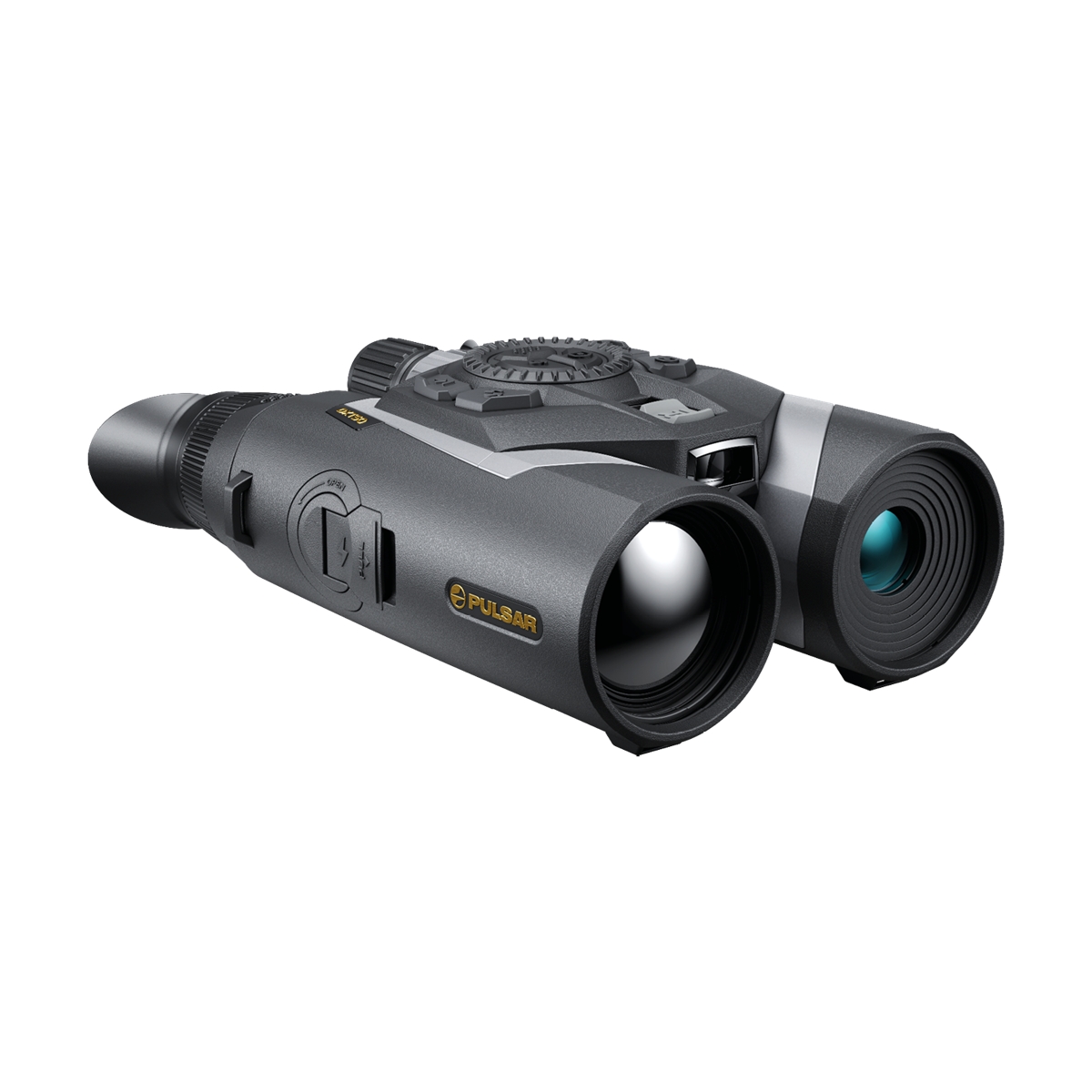

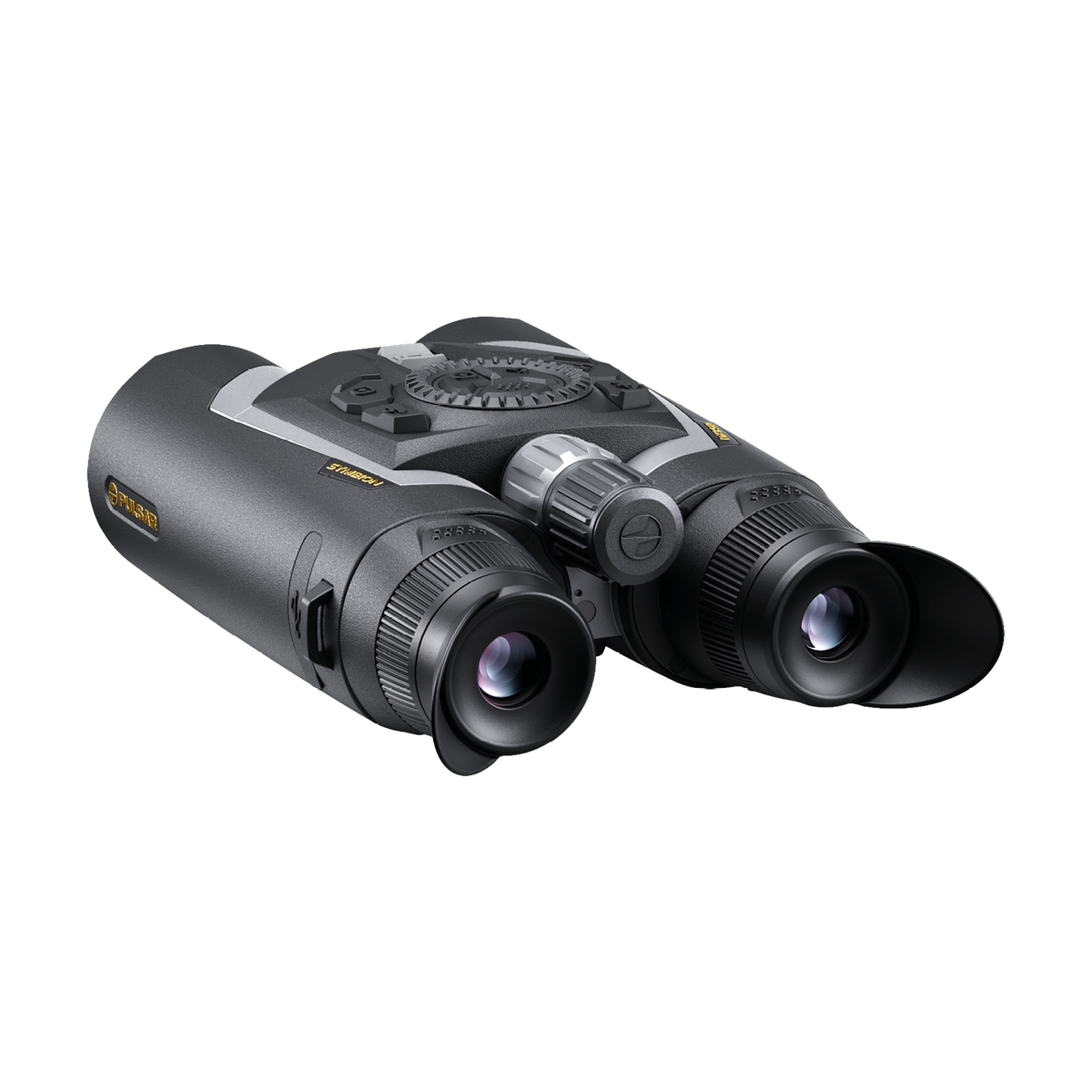

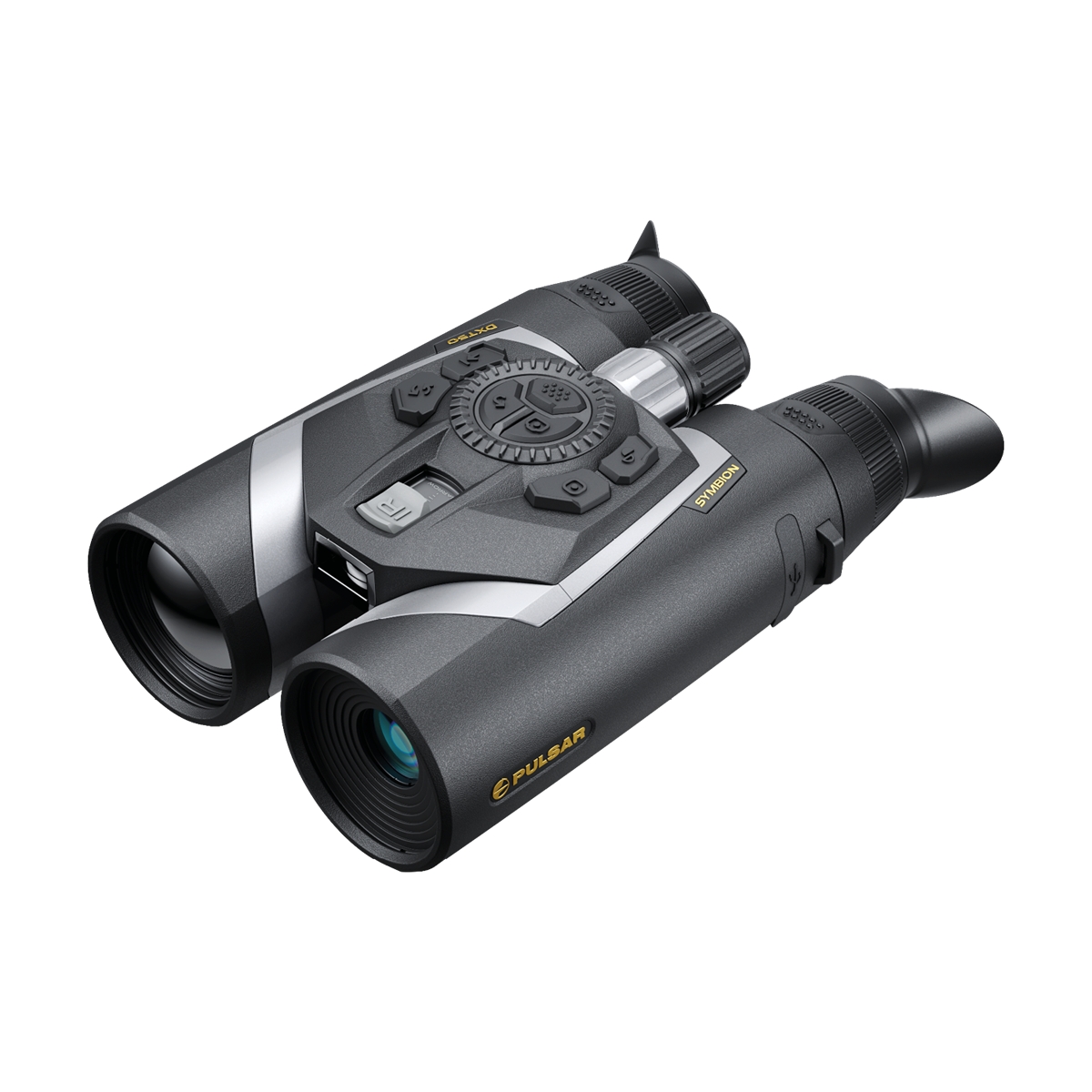

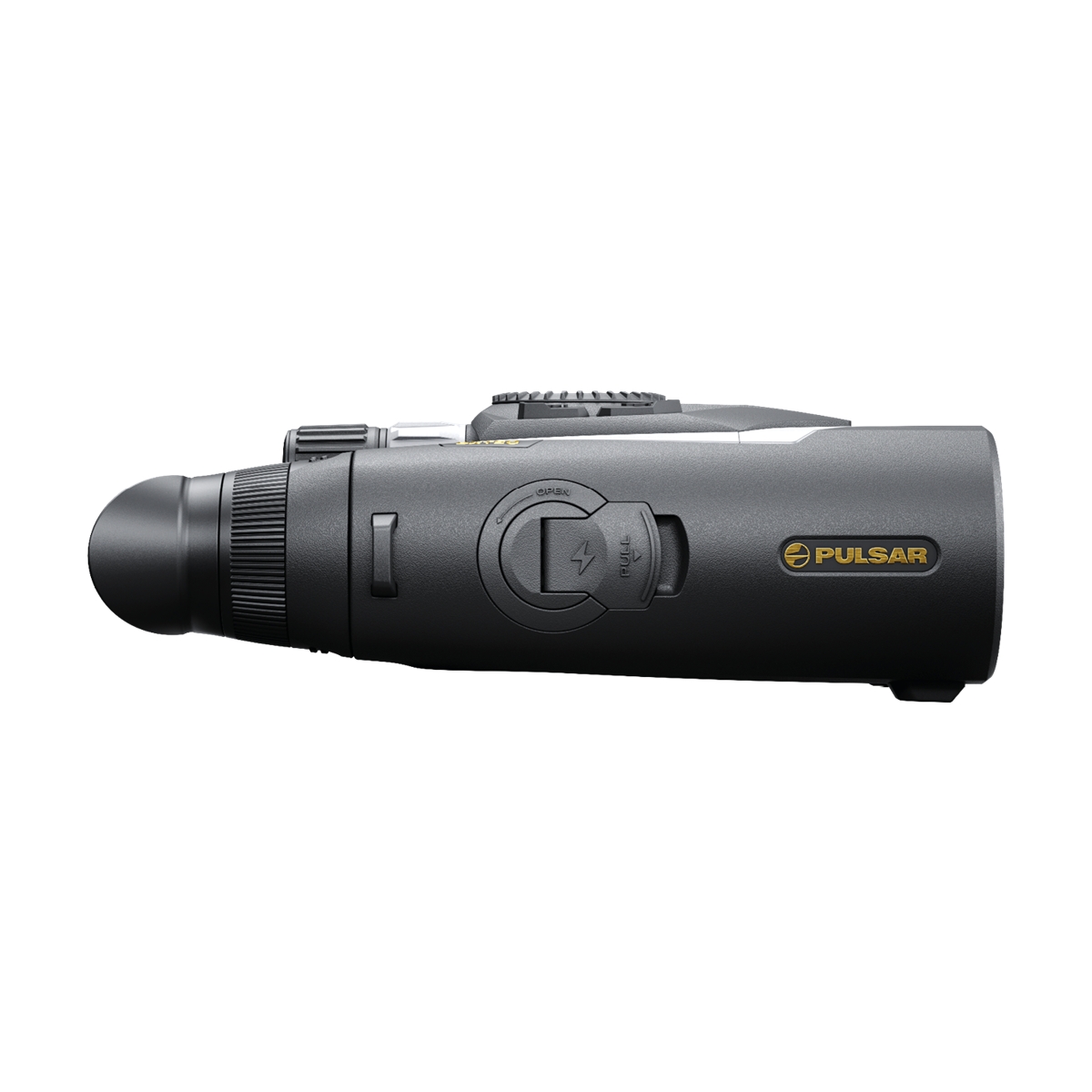

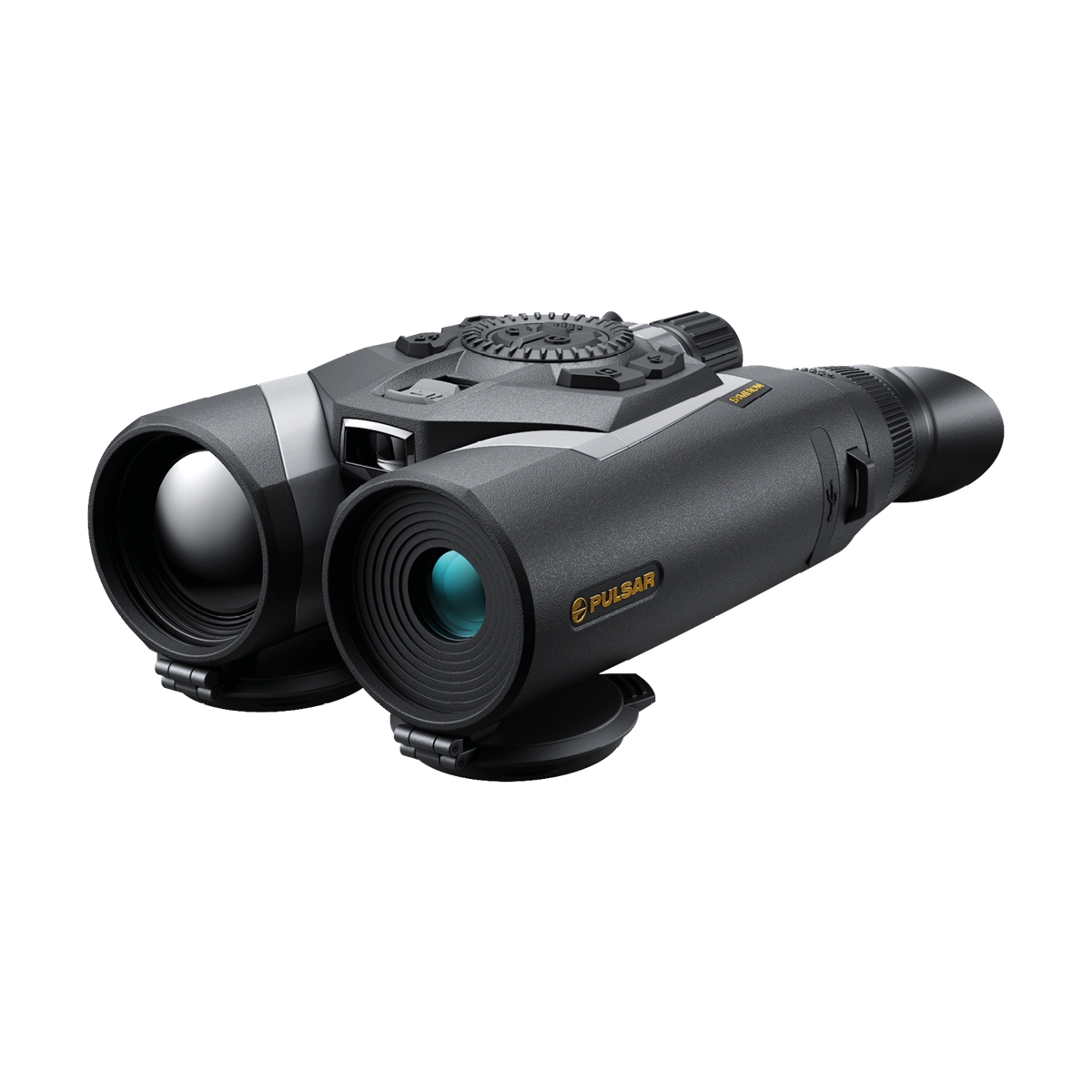

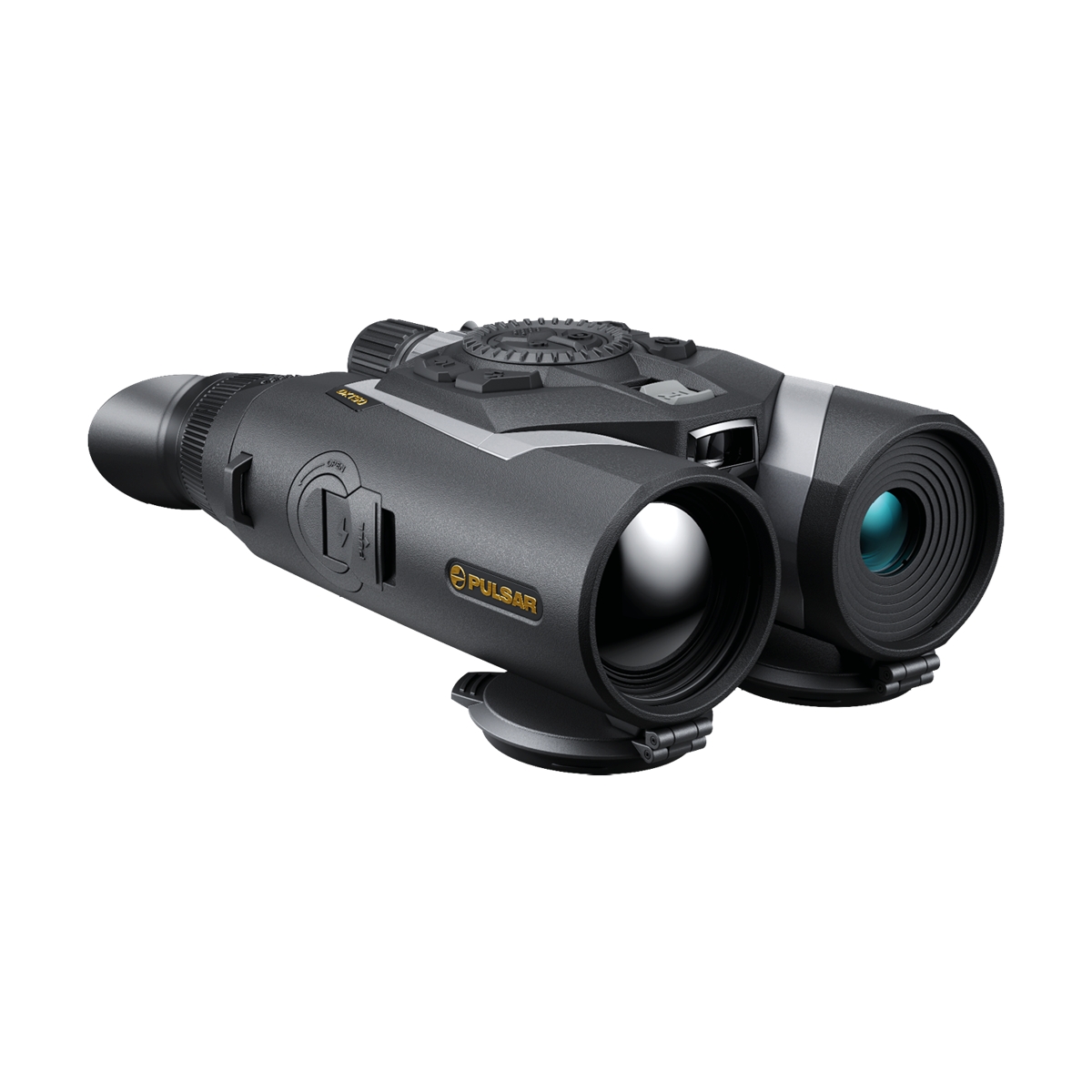

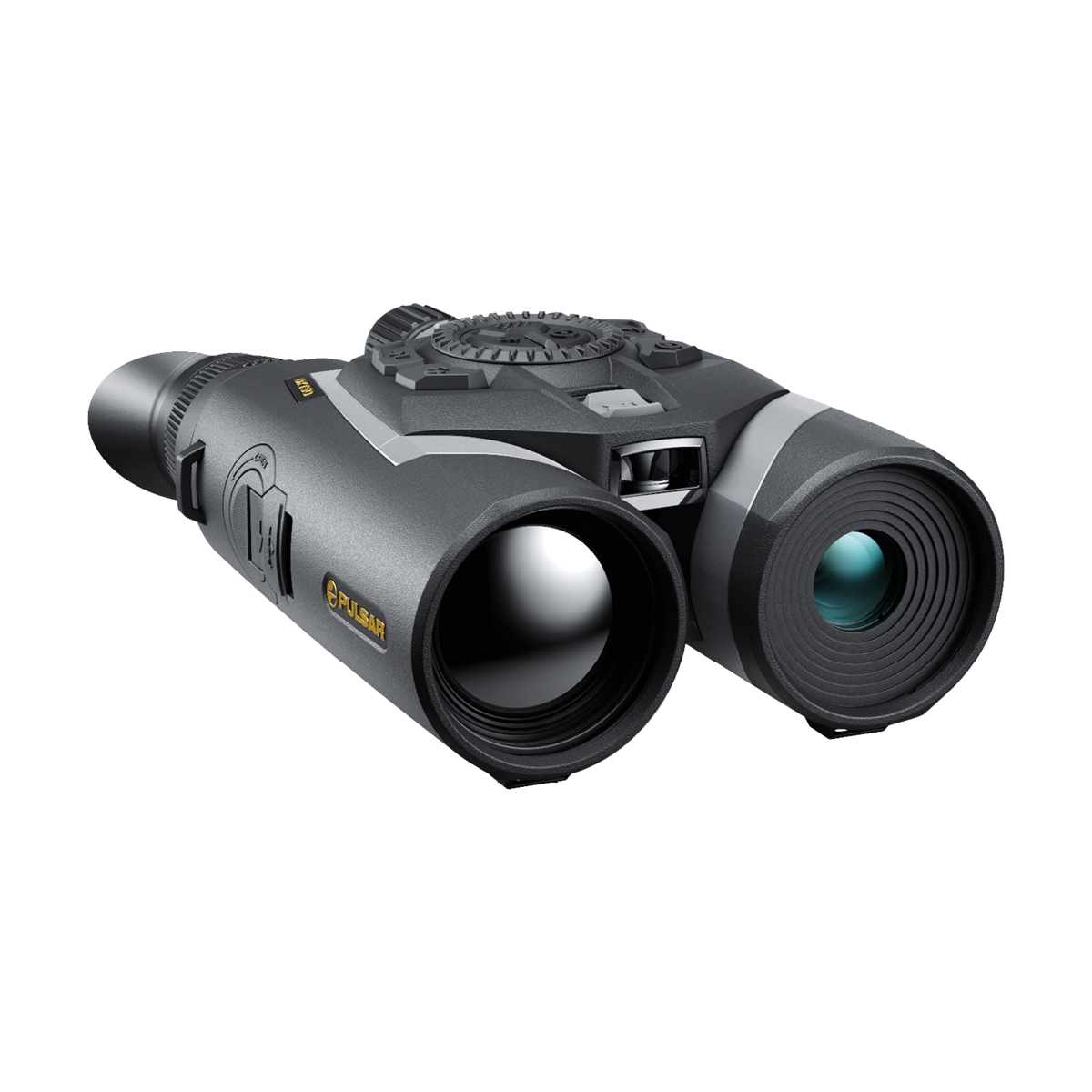

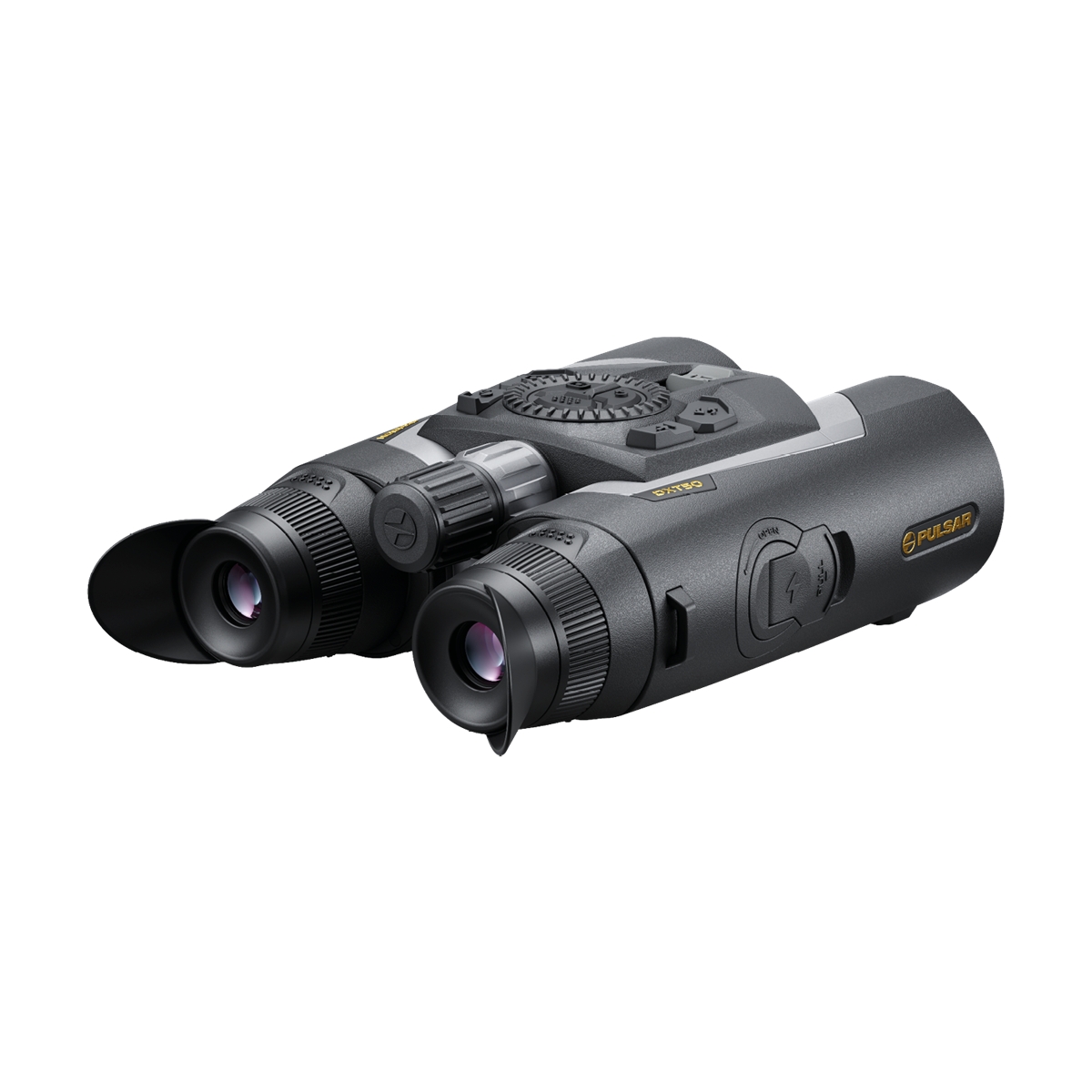

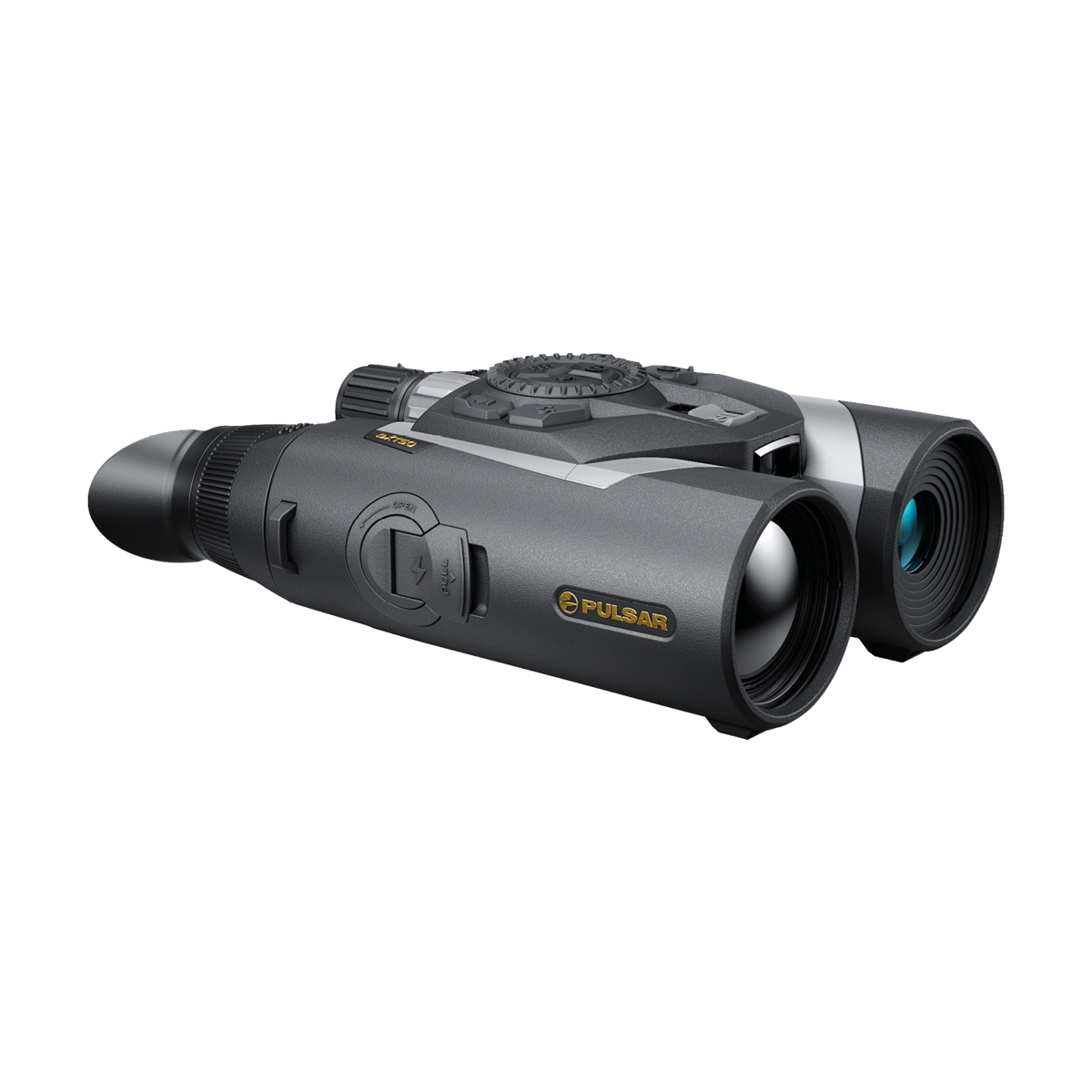

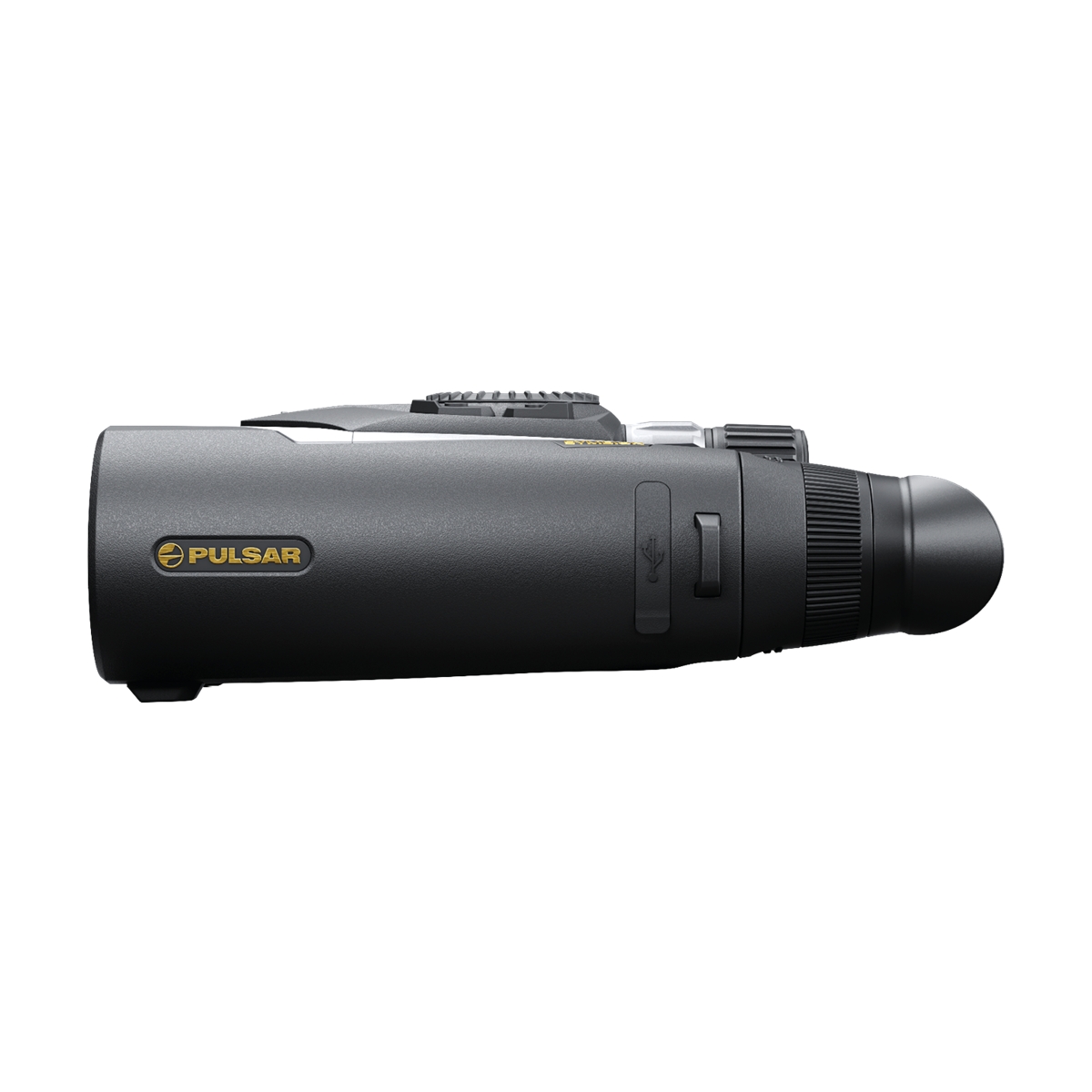

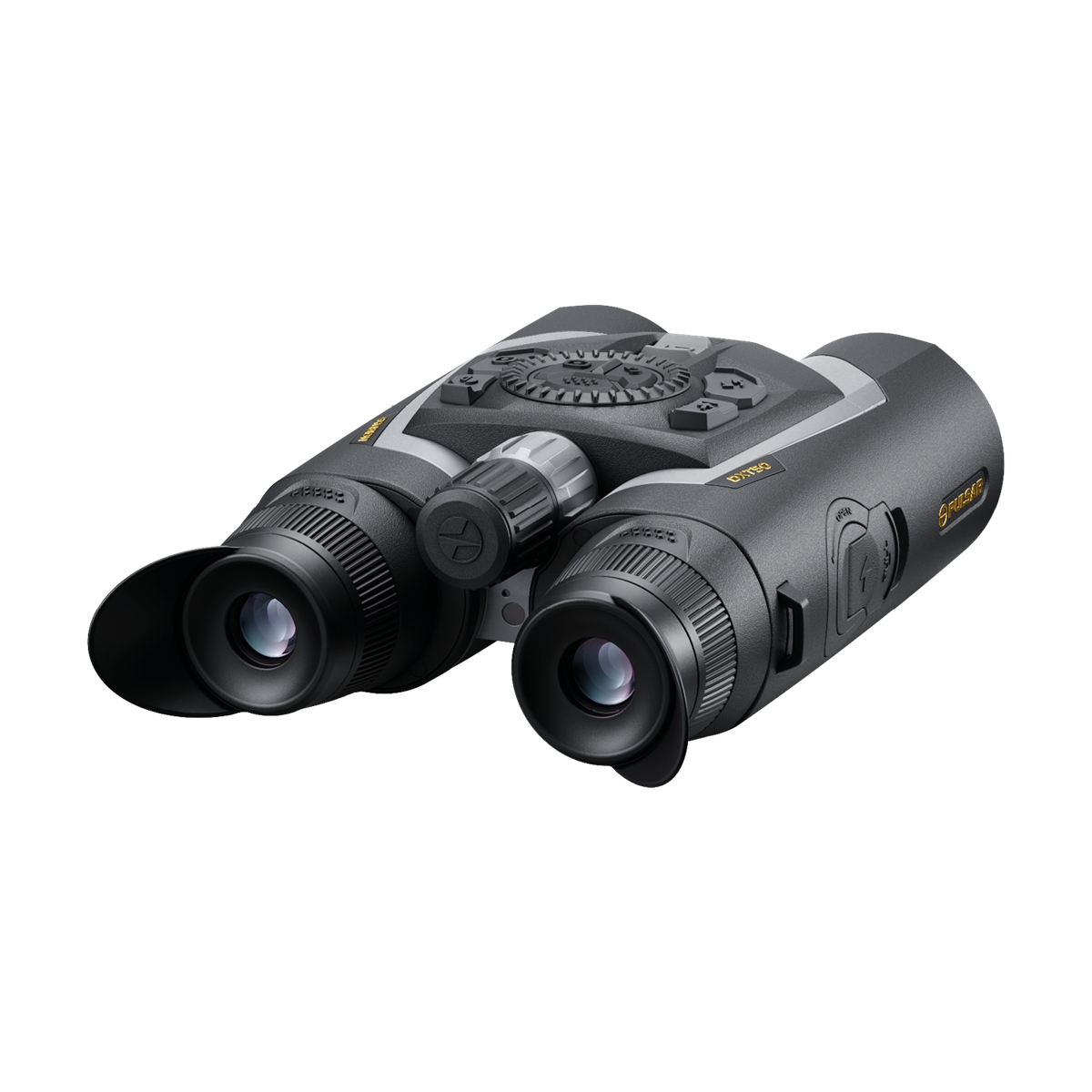

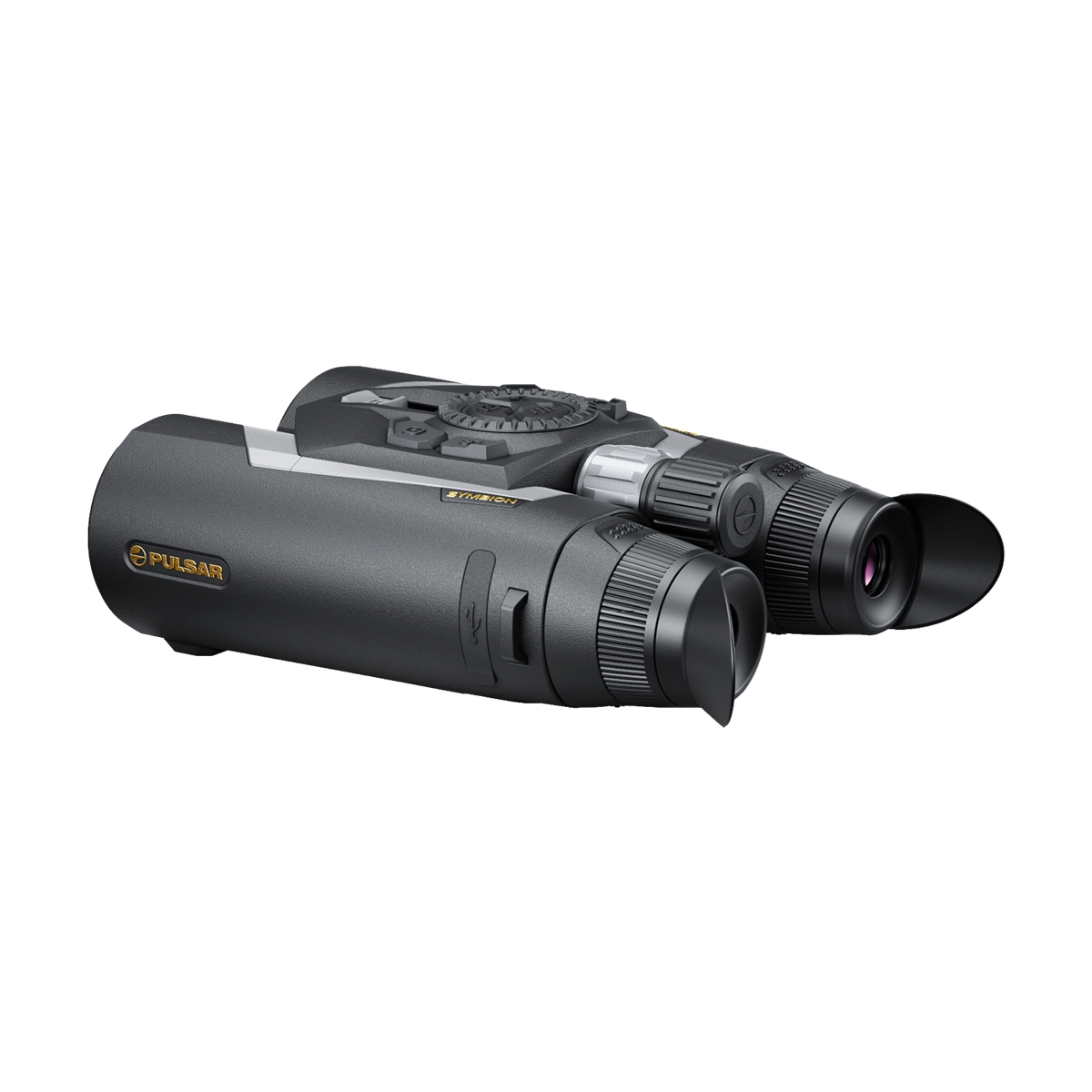

Pulsar Symbion DXT50 Multispectral Thermal Binoculars with LRF
1280x1024, <20mK, 12µm, 50mm
The Pulsar Symbion DXT50 Multispectral Thermal Binoculars with LRF combine 4K digital day and night vision with a class-leading 1280×1024, 12µm thermal sensor delivering exceptional contrast and detection out to 2300 metres. With Picture-in-Picture viewing, electronic image stabilisation, and a wide 50 mm f1.0 germanium lens, it excels in all conditions. The integrated 1500 m laser rangefinder, rugged IP67 magnesium housing, and up to 8 hours battery life make it a powerful, all-in-one observation solution
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#1146
#1159
#1154
#1157
#1155
The Pulsar Symbion DXT50 Multispectral Thermal Binoculars with LRF redefine observation by delivering three viewing modes in one premium device. Designed for complete situational awareness, the Symbion seamlessly combines 4K digital day optics, 4K digital night vision, and high-performance thermal imaging, ensuring confident observation in daylight, twilight, and total darkness. An integrated next-generation laser rangefinder accurately measures distances up to 1500 metres with ±1 m precision, providing vital data at the press of a button.
At its core, the Symbion DXT50 features a class-leading 1280×1024, 12µm thermal sensor with <20 mK sNETD, delivering exceptional thermal contrast and the ability to detect the smallest heat signatures through foliage, fog, rain, and humidity at distances up to 2300 metres. Paired with a powerful 4K digital channel, it produces vivid full-colour daytime images, clear low-light performance, and high-contrast black-and-white night vision supported by a built-in, focusable IR illuminator for precise night-time observation.

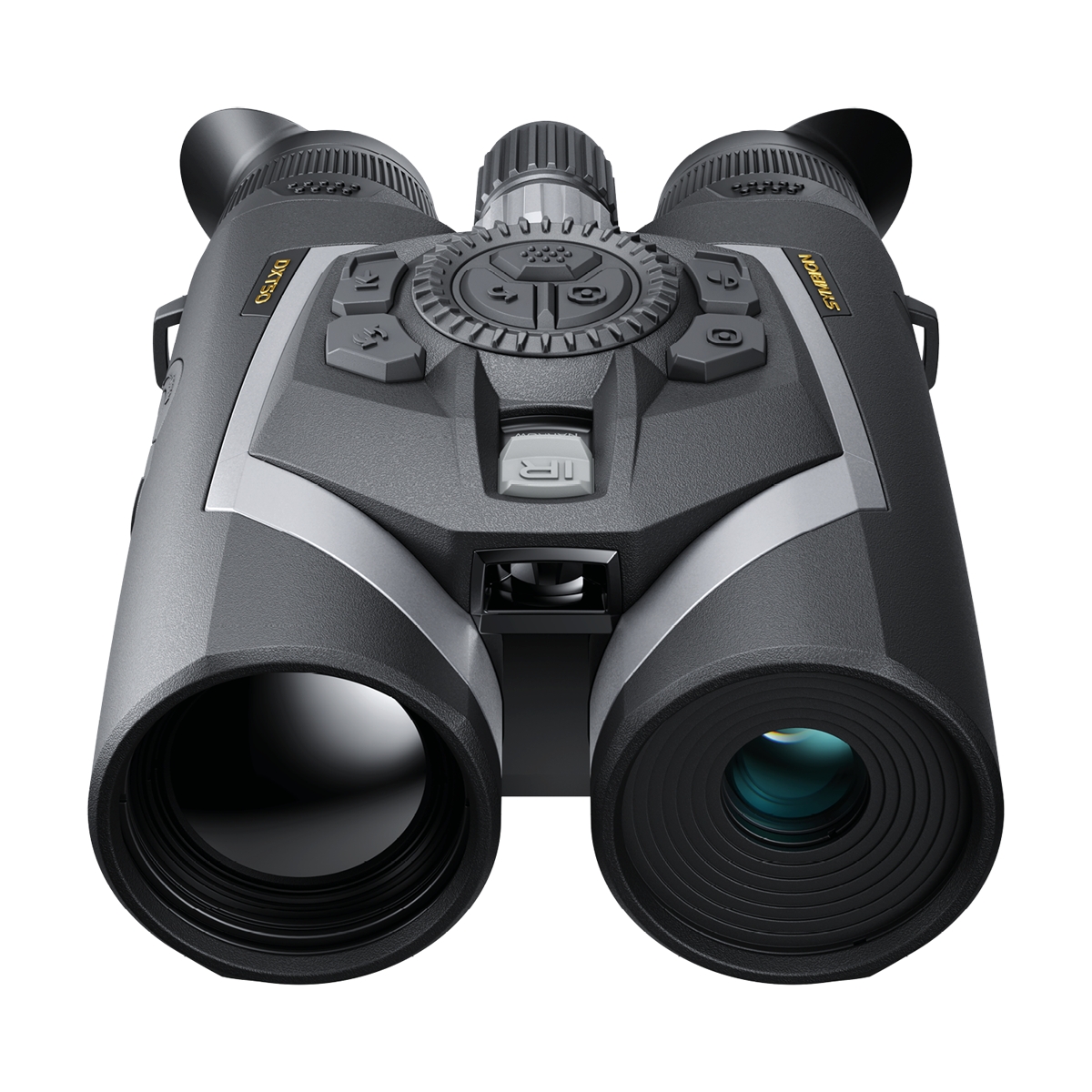

Switching between channels is instant, and with Picture-in-Picture functionality, both views can be displayed simultaneously, allowing detection and identification at the same time. A bright AMOLED display ensures crisp detail, while the 50 mm f1.0 germanium objective lens provides a wide 17.5° thermal field of view and a 5.8° digital field of view. Generous magnification ranges of 2–16x (thermal) and 6.5–26x (digital) maintain image clarity for close inspection without sacrificing detail.
Built for demanding environments, the Symbion DXT50 features electronic image stabilisation to keep the image steady when tracking moving subjects or observing from uneven terrain or vehicles. Nine selectable colour palettes allow the device to be optimised for detection, identification, or long-duration observation, including a green palette designed to mimic traditional night vision and reduce eye strain.

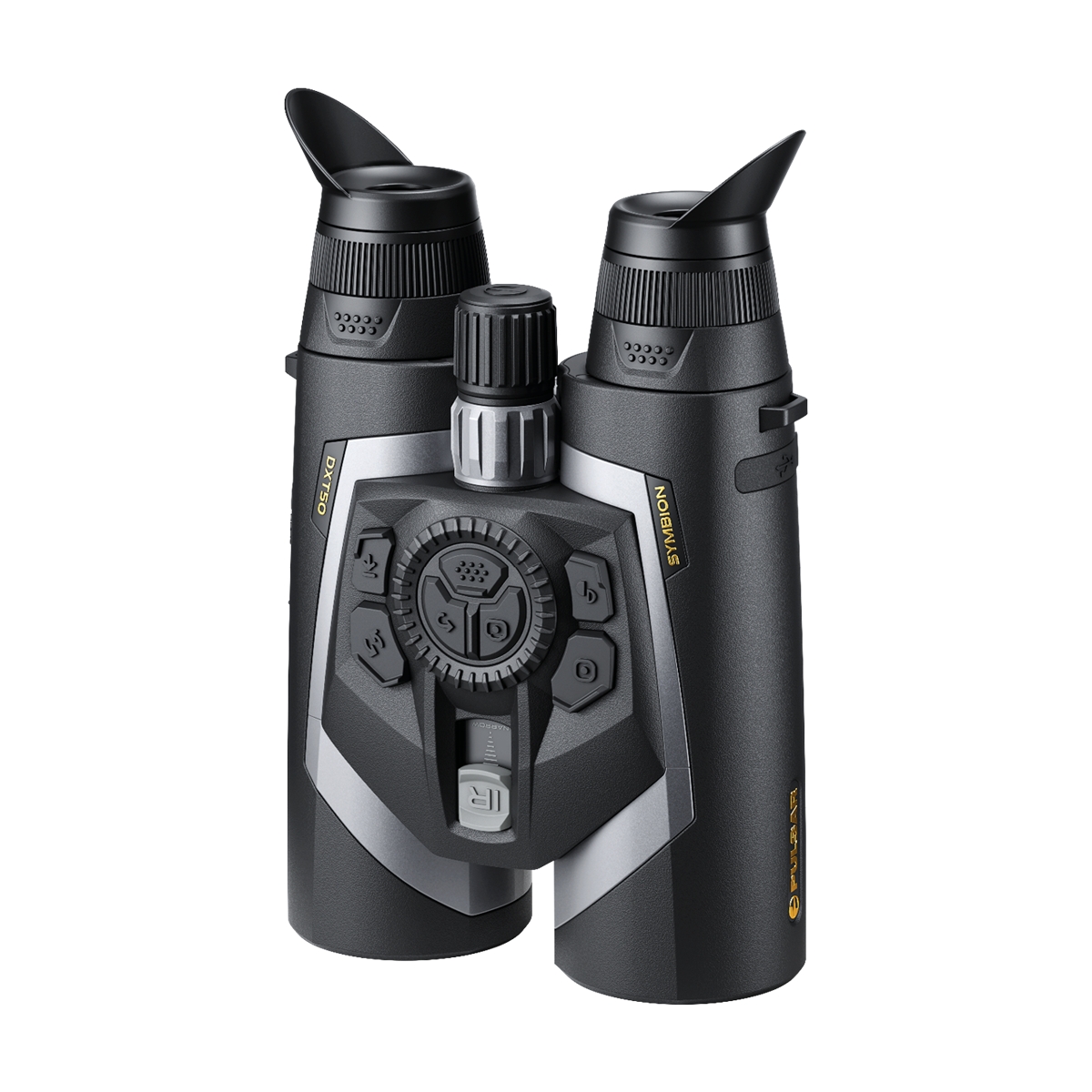

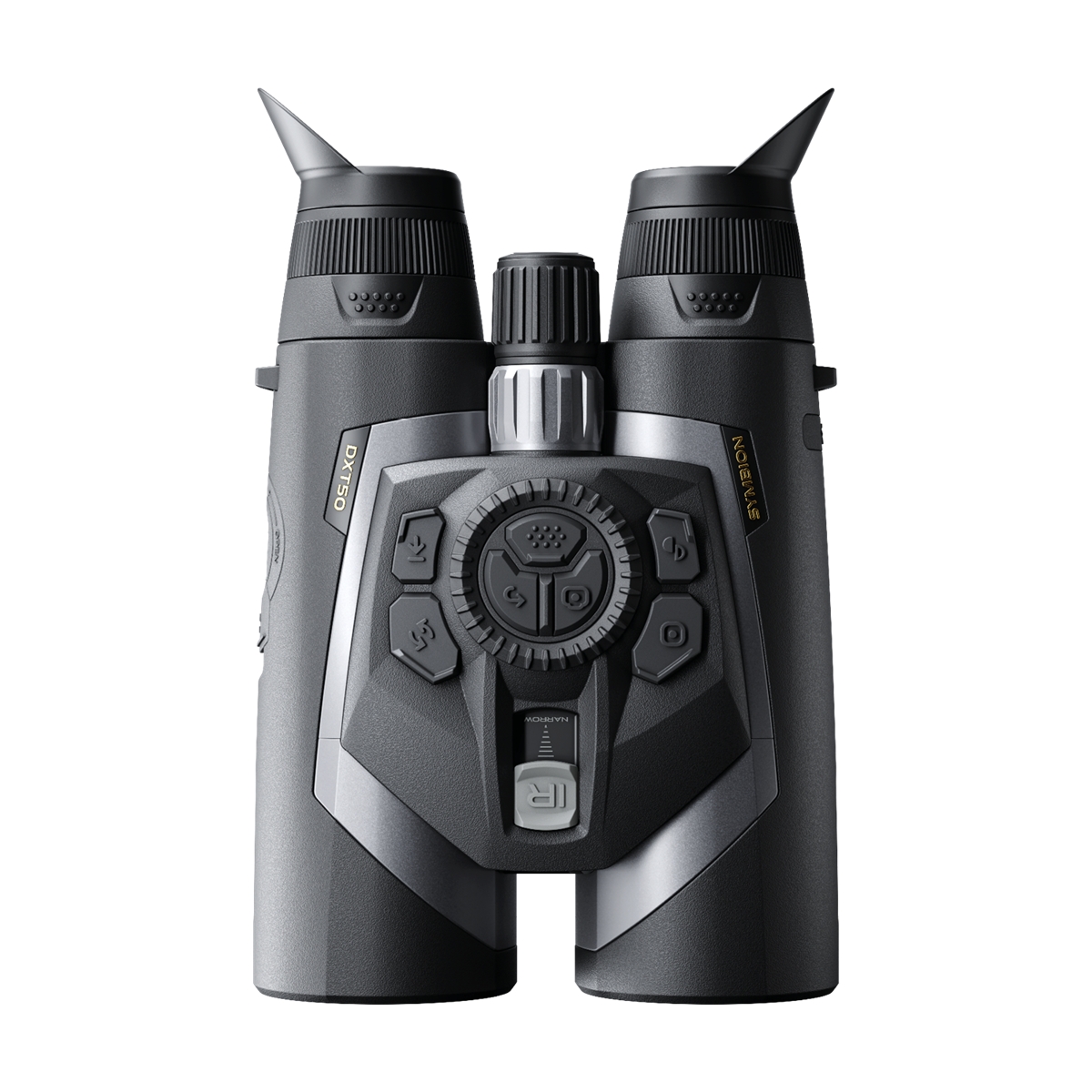

Ergonomics are central to the design, with an innovative one-handed control ring and focus system that mirrors the feel of traditional binoculars while providing intuitive access to digital functions and smooth zoom control. The rugged magnesium alloy housing, combined with an IP67 rating, ensures reliable performance in harsh conditions, from heavy rain and snow to temperatures ranging from -25°C to +50°C.
For extended sessions, the Symbion is powered by dual removable APS5 batteries, delivering up to 8 hours of runtime, and supports USB-C external power. Integrated photo and video recording with audio, backed by 64 GB of internal memory, allows you to capture and share key moments, while built-in Wi-Fi and Bluetooth connectivity enable remote control, file sharing, and firmware updates via the Stream Vision 2 app. With tripod compatibility included, the Pulsar Symbion DXT50 is equally suited to mobile observation or hands-free monitoring, making it a true multispectral powerhouse for serious observers.
- Thermal Sensor 1280×1024, 12µm
- Sensor NETD <40 mK
- System NETD (sNETD) <20 mK
- Objective Lens 50mm f1.0
- Magnification 2–16x (thermal channel)
- Field of View (Horizontal) 17.5° (thermal channel)
- Field of View (m @ 100 m) 30.7 m (thermal channel)
- Detection Range 2300 m (thermal channel)
- Digital Zoom 2 / 4 / 8 (digital channel)
- Frame Rate 50 Hz
- Dioptre Adjustment -5 / +5
- Eye Relief 13 mm
- Display Type AMOLED
- Display Resolution 1920×1080 px
- Image Capture / Video Recording Yes (with audio)
- Built-in Memory 64 GB
- USB USB Type-C
- Wi-Fi Yes (2.4 / 5 GHz)
- Bluetooth Yes
- Sensitivity Levels Normal / High / Ultra
- Colour Palettes 9
- Image Enhancement Smoothing filter
- Sleep Mode Yes
- Automatic Shut-off Yes
- Mobile App(s) Stream Vision 2, Stream Vision Ballistics
- Built-in LRF Yes
- LRF Measuring Distance 1500 m
- LRF Measuring Accuracy ±1 m
- LRF Wavelength 905 nm
- Battery Type APS5 (x2 included)
- Battery Life Up to 8 hours (depending on temperature)
- External Power 5V / 9V USB Type-C power delivery
- Housing Material Magnesium alloy

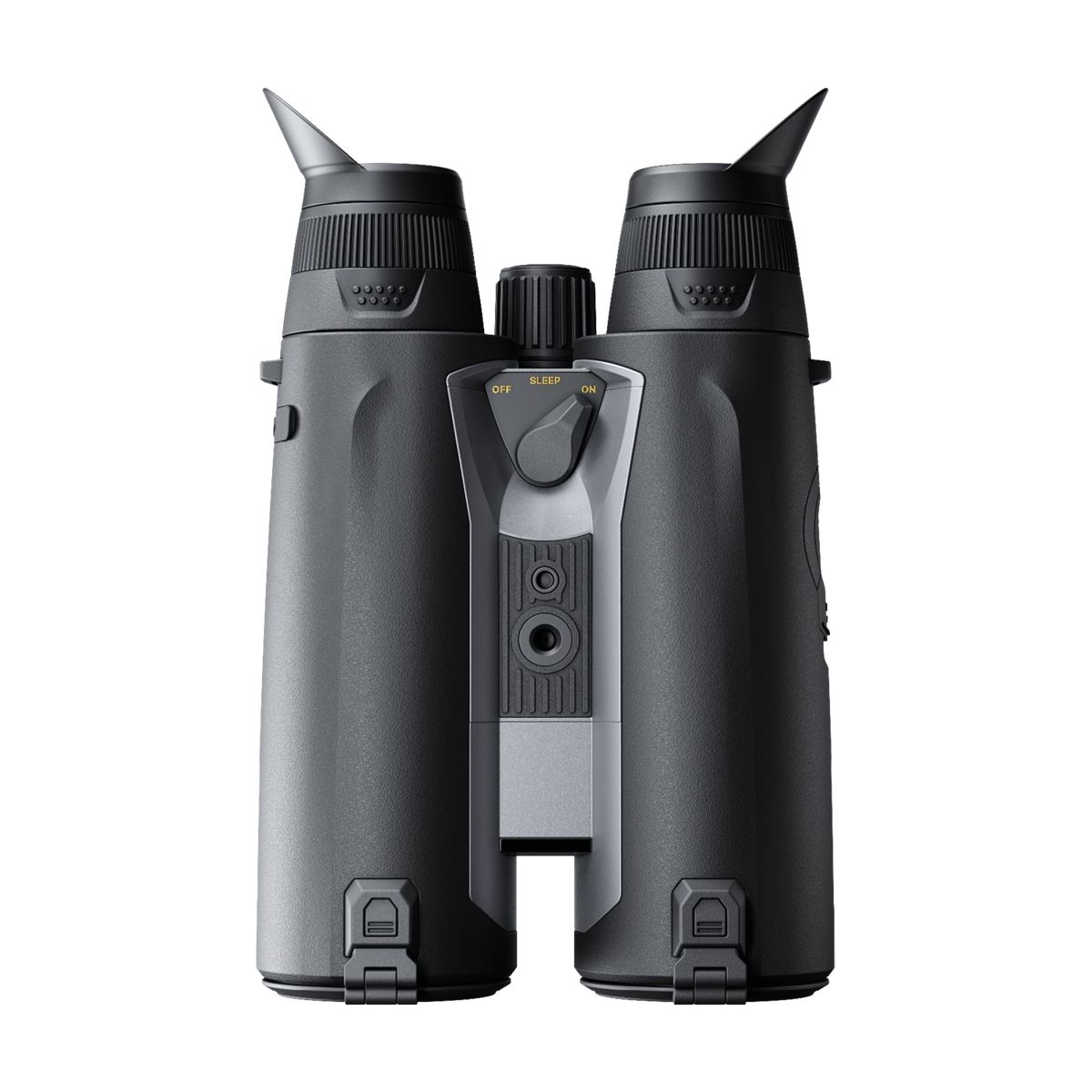

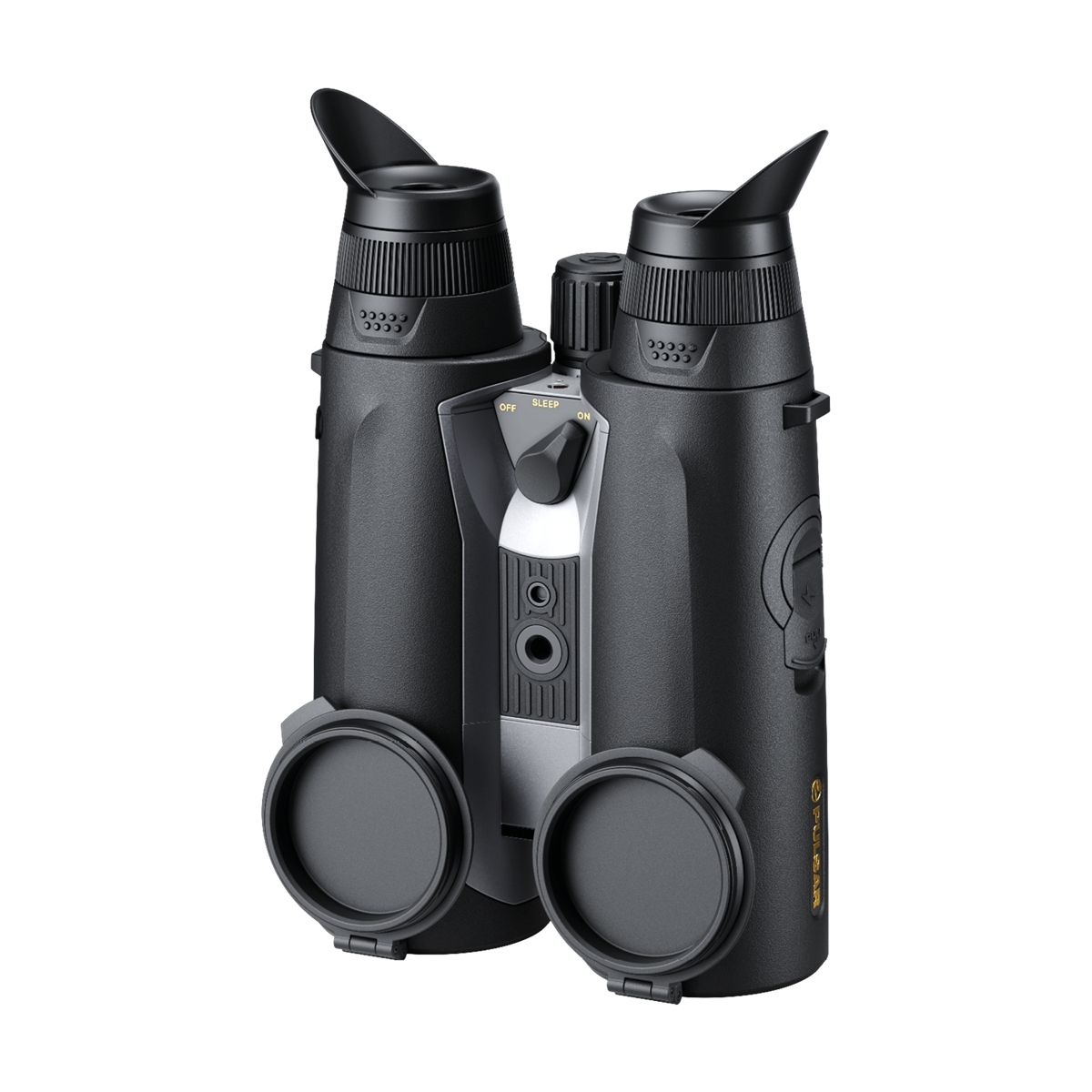

- Tripod Mount 1/4″
- Operating Temperature Range -25 to +50 °C
- Level of Protection IP67
- Calibration Manual / Auto / Semi-auto
- Dimensions 207 × 132 × 72.5 mm
- Weight 1000 g
-
Multispectral viewing system combining thermal imaging, digital day vision, and digital night vision in one device
-
Seamless switching between viewing modes to adapt instantly to changing light and environmental conditions
-
Picture-in-Picture functionality allowing thermal detection and digital identification simultaneously
-
Integrated laser rangefinder providing fast, accurate distance measurement for confident decision-making
-
Electronic image stabilisation for steady viewing when tracking movement or observing from vehicles
-
Built-in IR illuminator to enhance night-time observation and improve target clarity
-
Multiple colour palettes to optimise detection, recognition, and long-duration viewing comfort
-
Ergonomic one-handed control system with intuitive focus and zoom operation
-
Rugged, weatherproof construction designed for reliable use in harsh environments
-
Tripod-mount compatibility for hands-free observation and long-term monitoring
-
Photo and video recording with audio to capture and share observations
-
Internal storage and wireless connectivity for easy file management and sharing
-
Mobile app integration enabling remote control, live viewing, and firmware updates
-
Removable rechargeable battery system for extended field use and quick battery swaps
- Pulsar Symbion DXT50 Multispectral Thermal Binoculars with LRF
- 1/4” tripod mount
What makes the Symbion DXT50 different from standard thermal binoculars?
The Symbion DXT50 is a true multispectral device, combining thermal imaging, digital day vision, and digital night vision in one unit, allowing seamless observation from daylight through to complete darkness without changing devices.
Can I use it effectively during the day as well as at night?
Yes. The 4K digital channel provides full-colour daytime viewing, transitions smoothly into low-light conditions, and switches to night vision after dark, while the thermal channel remains effective 24/7.
How far can it detect heat signatures?
The thermal channel can detect heat signatures at distances of up to approximately 2300 metres, depending on environmental conditions.
What does the built-in laser rangefinder do?
The integrated laser rangefinder measures distances up to 1500 metres with ±1 m accuracy, helping you confidently judge distance to observed objects.
Can I view thermal and digital images at the same time?
Yes. Picture-in-Picture mode allows both channels to be displayed simultaneously, enabling thermal detection alongside digital identification.
Is the image stable when observing moving subjects or using it from a vehicle?
Yes. Electronic image stabilisation reduces shake and movement, providing a steady image when tracking targets or observing on the move.
How comfortable is it for long observation sessions?
The ergonomic control layout allows one-handed operation, while multiple colour palettes, including a green night-vision-style mode, help reduce eye strain during extended use.
Is it suitable for use in bad weather?
Absolutely. The magnesium alloy housing is IP67 rated, meaning it is waterproof and dustproof, and designed to operate reliably in harsh weather conditions.
How long does the battery last?
The removable APS5 battery system provides up to 8 hours of runtime, depending on temperature and usage, with the ability to swap batteries in the field.
Can I record photos and videos?
Yes. The Symbion can capture photos and record video with audio directly to its internal memory.
Can I connect it to my phone or tablet?
Yes. Built-in Wi-Fi and Bluetooth allow connection to the Stream Vision 2 app for live viewing, remote control, file transfer, and firmware updates.
Is it suitable for tripod use or hands-free observation?
Yes. A standard ¼-inch tripod mount is included, making it ideal for long observation sessions, surveys, or static monitoring.
Who is this product best suited for?
The Symbion DXT50 is ideal for serious wildlife observers, pest controllers, professional users, and anyone who needs a single, high-performance observation tool that works across all lighting and weather conditions.
