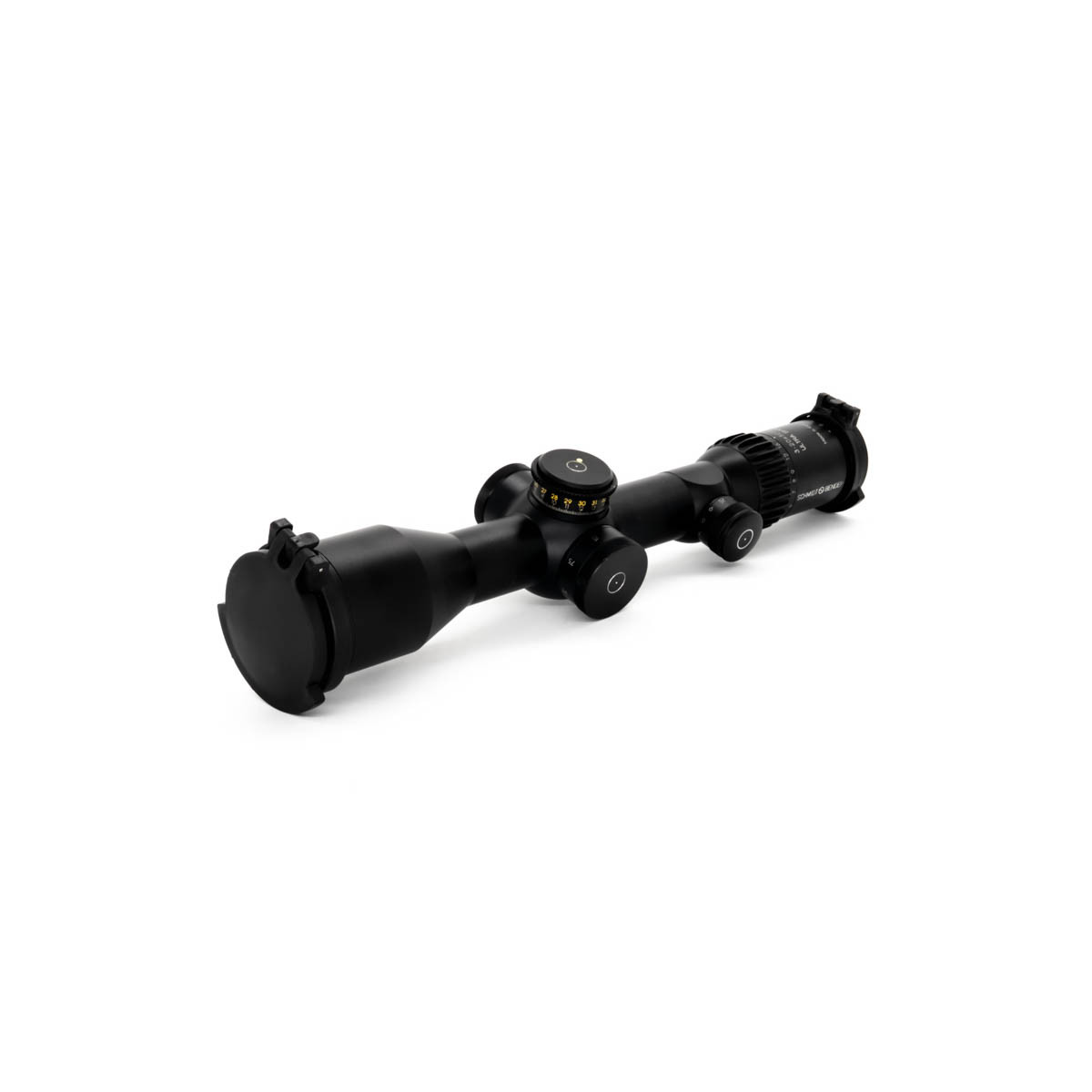

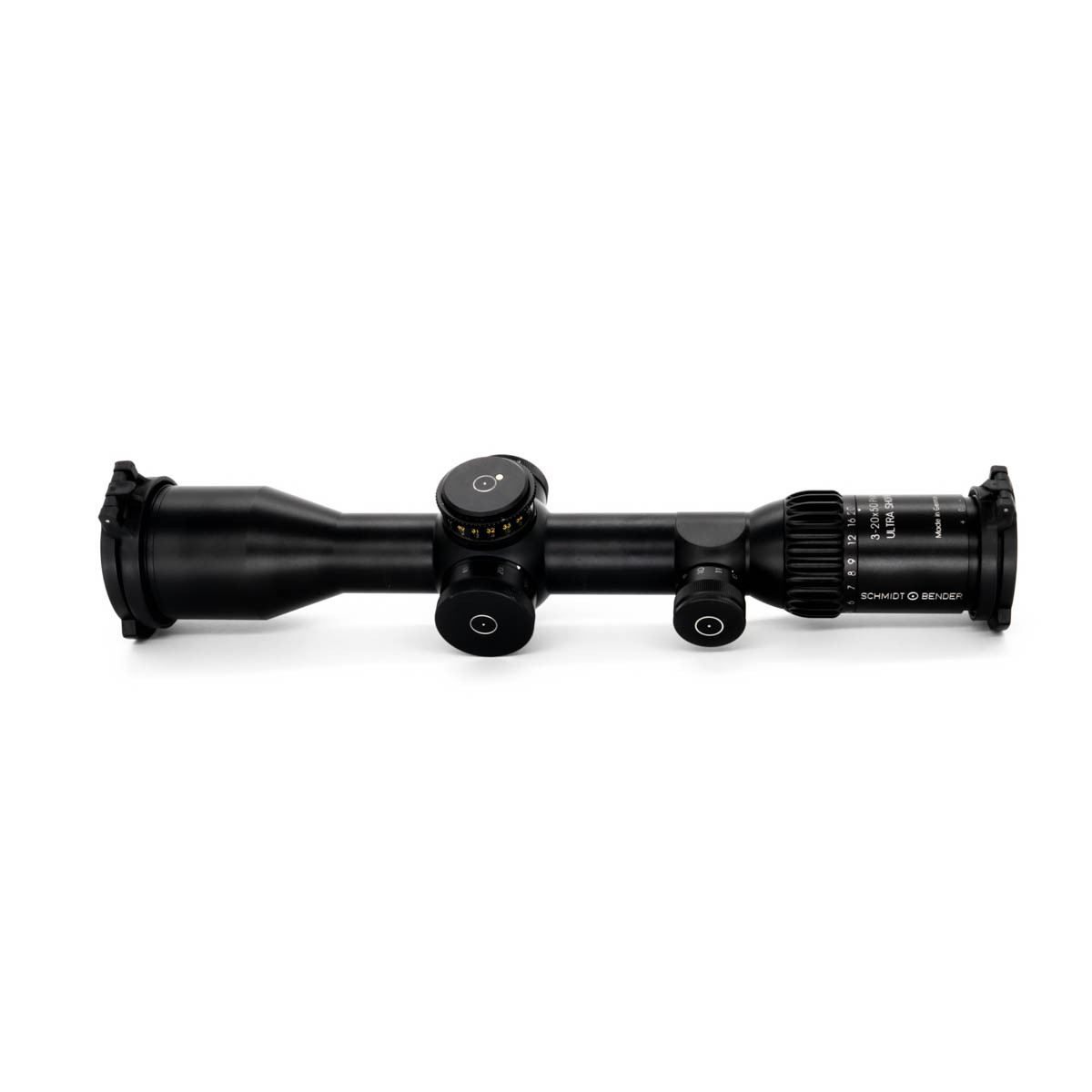

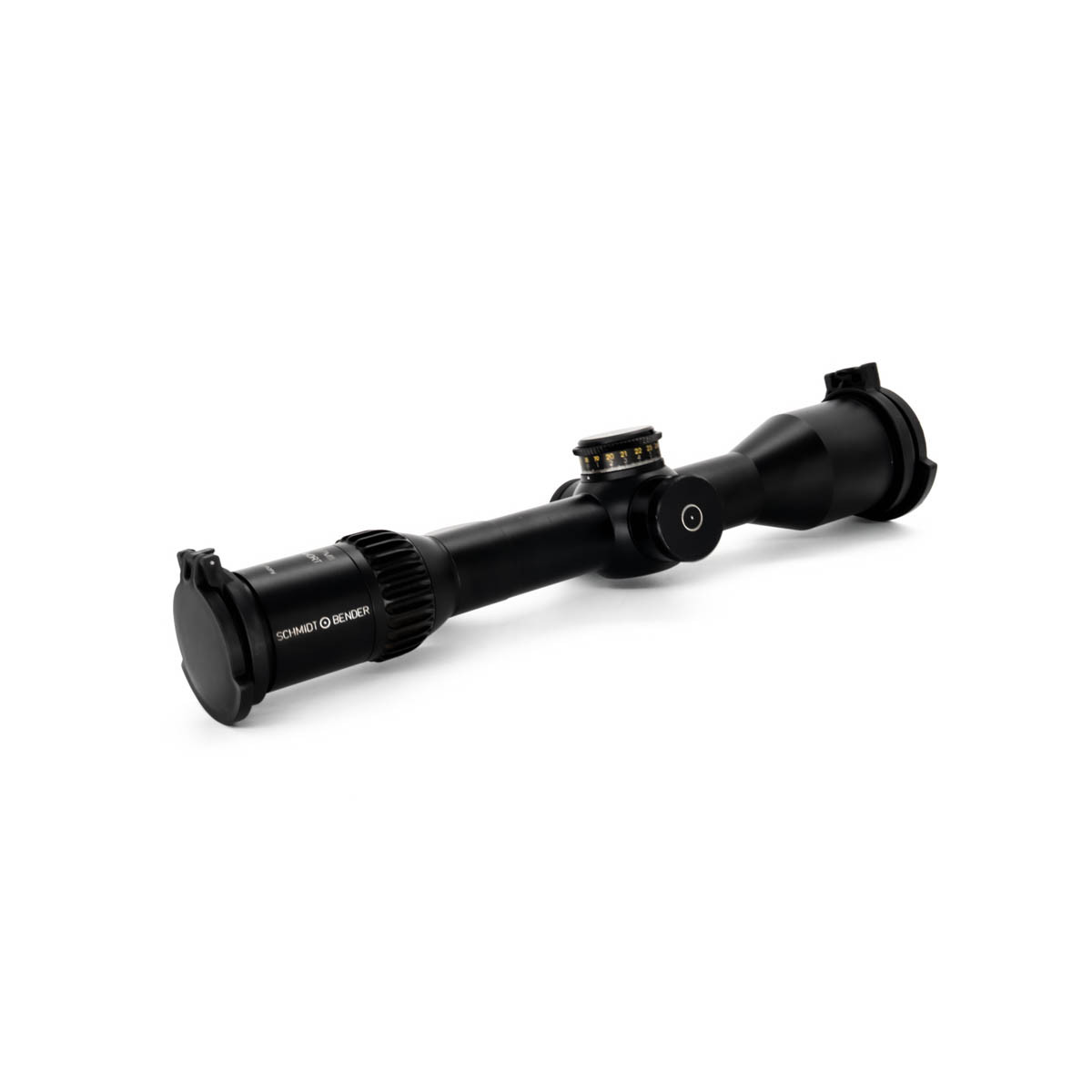

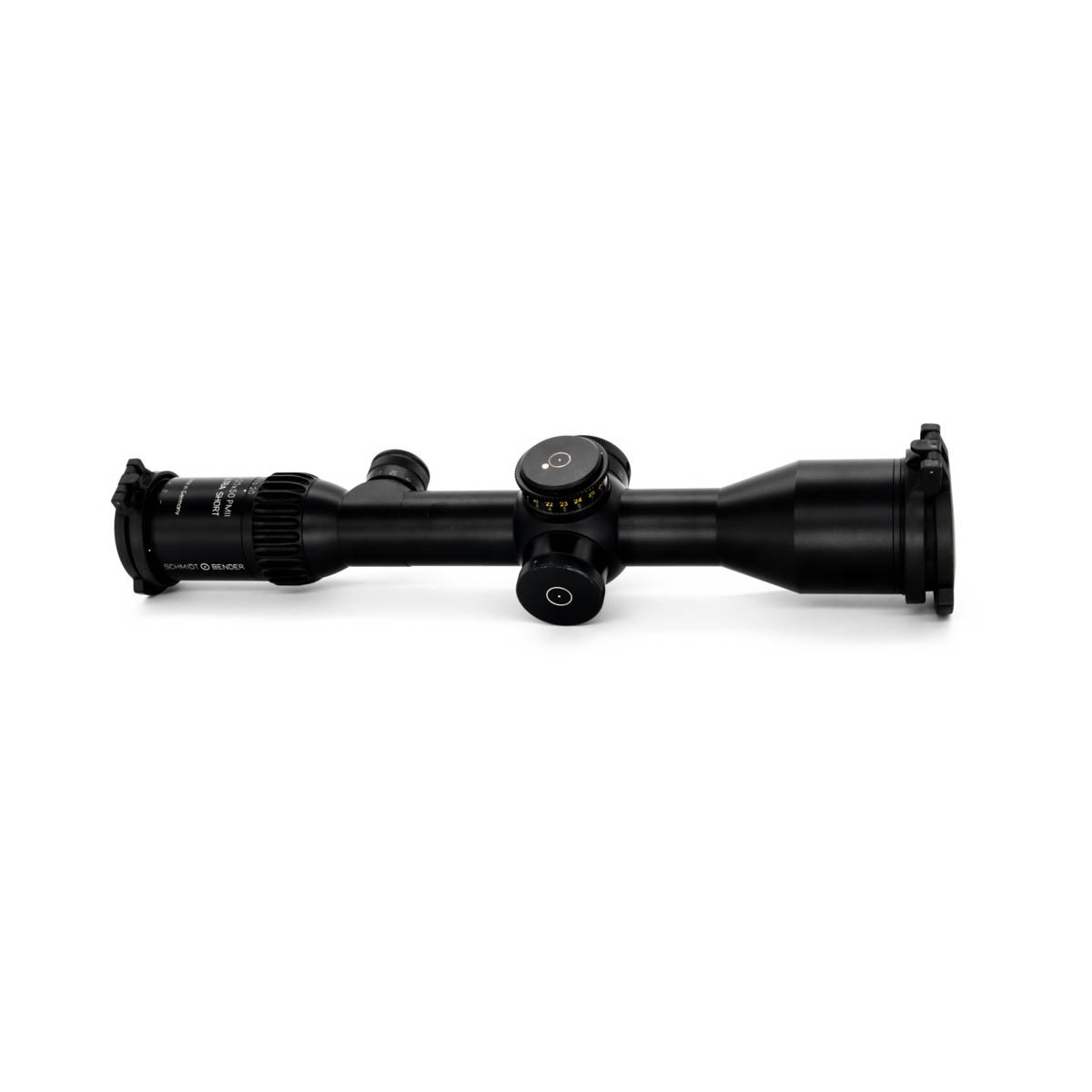

Pre-Owned Schmidt & Bender 3-20x50 PM II Ultra Short LP P4FL 1cm cw DT35 MTC LT / ST ZC CT - PO2545
The Schmidt & Bender PM II 3-20×50 Ultra Short series represents a highly specialized class of compact precision riflescopes engineered for professional military, law enforcement, and advanced long-range shooting applications. The specific configuration 667-911-972-F2-E9 integrates the P4FL illuminated reticle, clockwise (CW) 1 cm adjustment system, and DT35 MTC LT elevation turret paired with a low-profile locking windage turret, delivering exceptional ballistic control in an ultra-compact form factor.
#1332
#1385
#1388
#1386
#1389
Condition: Good

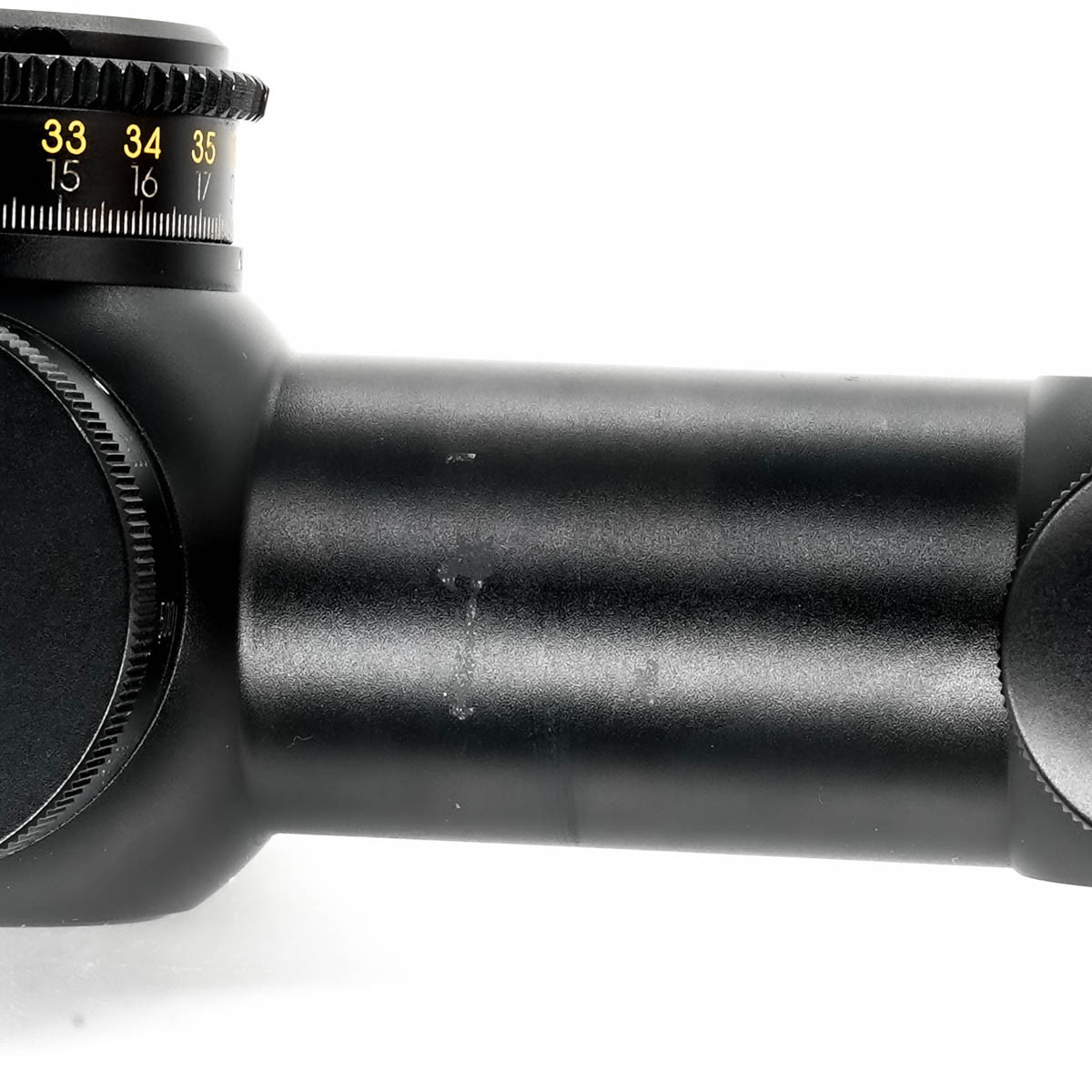

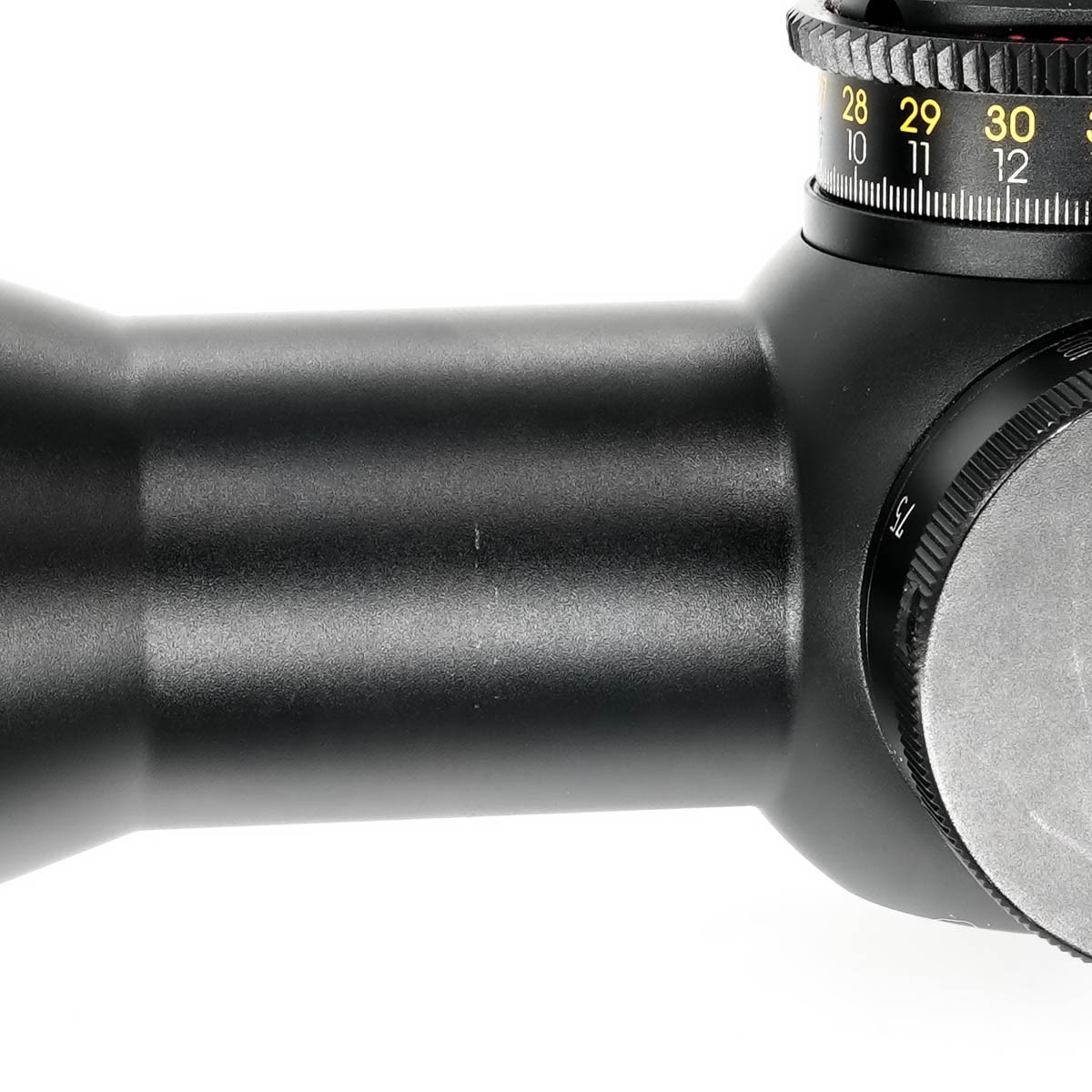

This unit remains in good overall condition with light signs of prior use.
This product comes along with an ocular & objective covers.
NO OTHER ACCESSORIES INCLUDED.
These products are sold in accordance with the VAT margin scheme for second-hand goods.
The Schmidt & Bender PM II 3-20×50 Ultra Short LP P4FL (667-911-972-F2-E9) is a compact, high-performance precision riflescope designed for demanding tactical and long-range applications where reduced system length and full optical capability are required.
It features a 3-20× magnification range with a 50 mm objective lens, delivering high light transmission, strong contrast, and sharp resolution across all zoom levels. The first focal plane (FFP) design ensures reticle scaling remains accurate throughout the magnification range for reliable ranging and ballistic correction.
The Ultra Short configuration significantly reduces overall length while maintaining full performance, making it ideal for use on compact rifles and systems paired with clip-on night vision or thermal devices.
This model includes a 1 cm (0.1 MRAD) CW adjustment system with a DT35 MTC LT elevation turret, offering extended travel, double-turn indication, tactile feedback, and a locking mechanism for secure adjustments. The low-profile windage turret provides a streamlined design with a zero-stop function for consistent return to zero.
The P4FL illuminated reticle offers a fine, uncluttered aiming structure with adjustable brightness levels for low-light and daylight conditions. Additional features include side parallax adjustment from close range to infinity, a 34 mm main tube for enhanced durability and adjustment range, and robust construction designed to withstand heavy recoil and harsh environments.
Overall, it combines compact dimensions, precision mechanics, and high optical performance for professional-grade long-range shooting systems.
- Magnification: 3–20×
- Objective lens diameter: 50 mm
- Optical system: First focal plane (FFP)
- Main tube diameter: 34 mm
- Overall length: 343 mm
- Weight: ~920–940 g
- Eye relief: 90 mm
- Diopter adjustment: −3 to +2
- Parallax adjustment: 25 m to infinity
- Field of view (100 m): 13.0 – 2.1 m
- Exit pupil: 11.4 – 2.5 mm
- Light transmission: ~90%
- Twilight factor: 10.4 – 31.6
- Click value: 0.1 MRAD (1 cm/100 m)

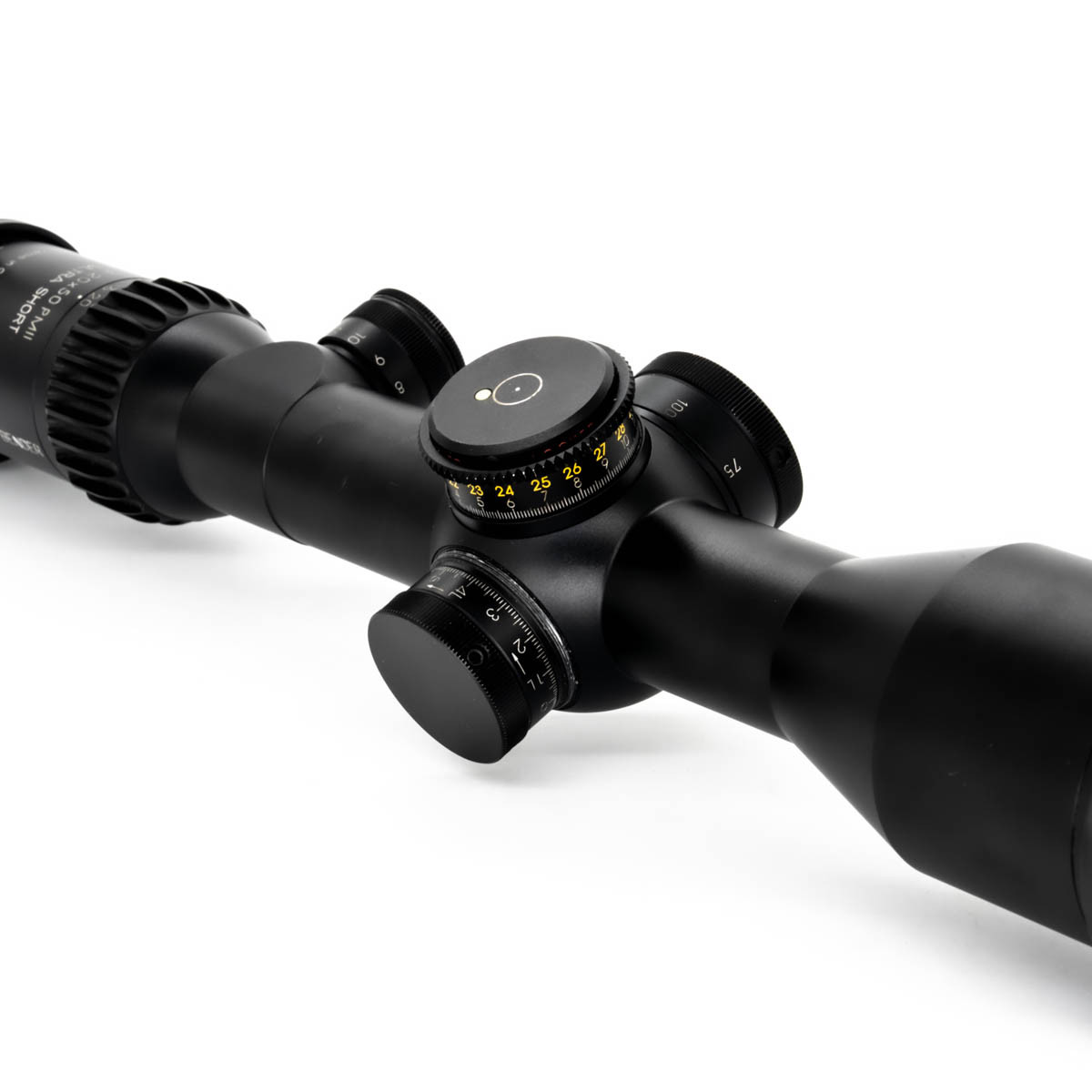

- Elevation turret: DT35 MTC LT (double turn, locking, tactile system)
- Elevation adjustment range: 35 MRAD
- Internal elevation travel: ~40 MRAD
- Windage adjustment range: ±6 MRAD

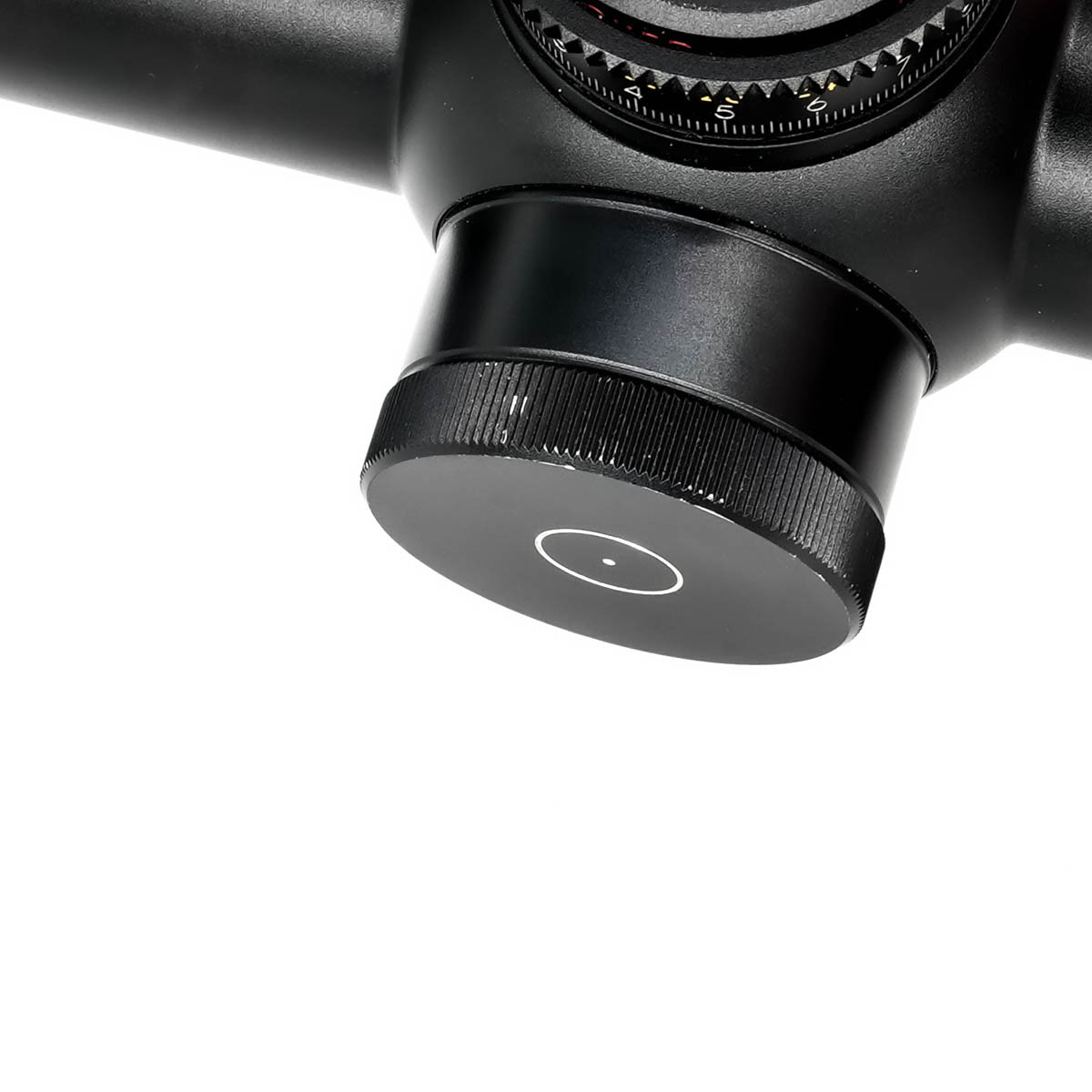

- Windage turret: Low-profile ST with zero-stop
- Turret rotation: Clockwise (CW)
- Locking turrets: Yes (elevation and windage)
- Zero stop: Yes
- Reticle type: P4FL
- Illumination: Yes
- Illumination levels: Multiple brightness settings
- Focal plane: First focal plane (FFP)
- Design: Fine crosshair precision reticle with range/holdover markings
- Ultra Short compact design: reduced overall length for enhanced modular use
- Shock resistance: extreme (military-grade, high recoil rated)
- Waterproof / fogproof: fully sealed, nitrogen filled
- Operating durability: designed for harsh environmental and combat conditions
- Mounting compatibility: ring mount / 34 mm systems
- Finish: matte black tactical coating
This product comes along with an ocular & objective covers.
NO OTHER ACCESSORIES INCLUDED.
