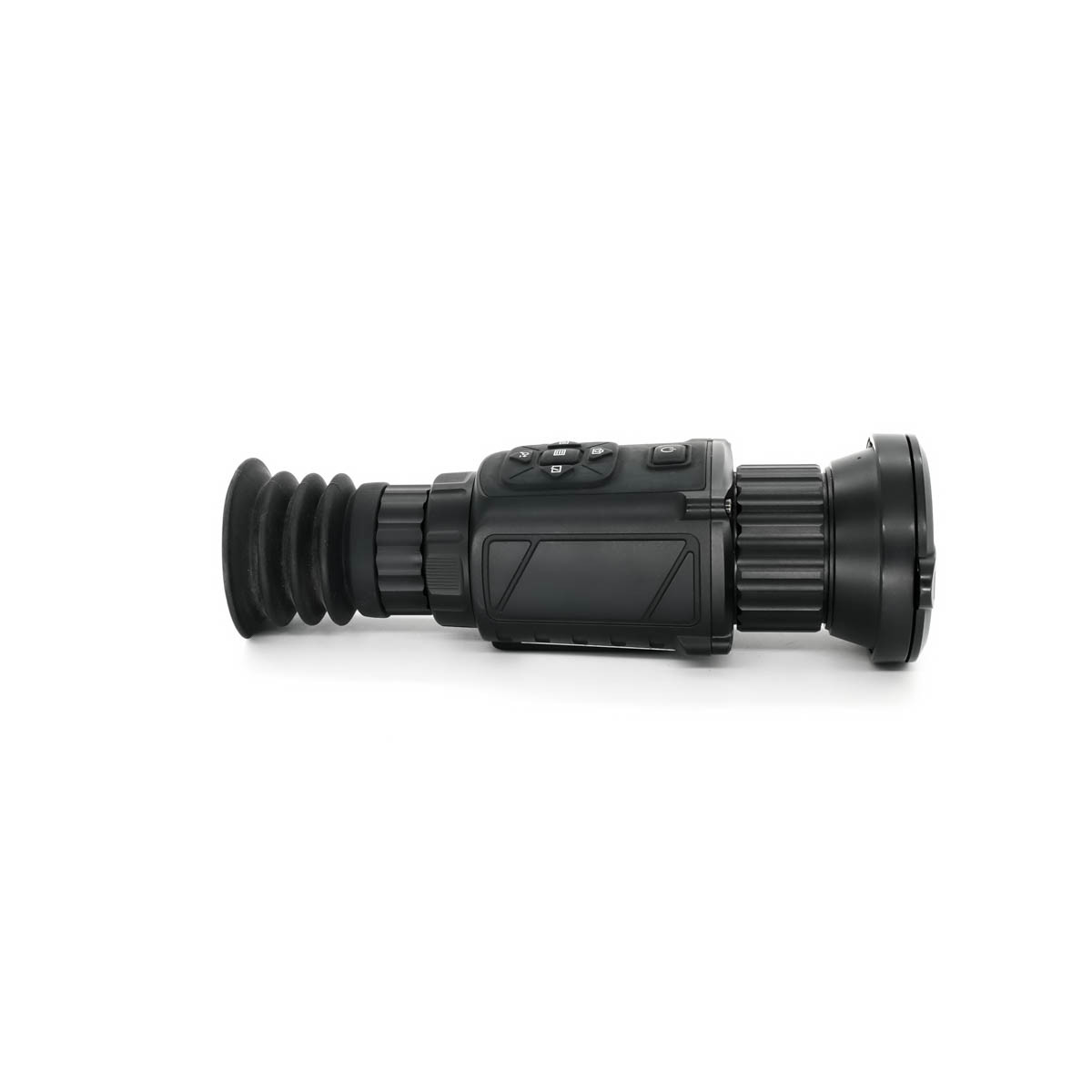

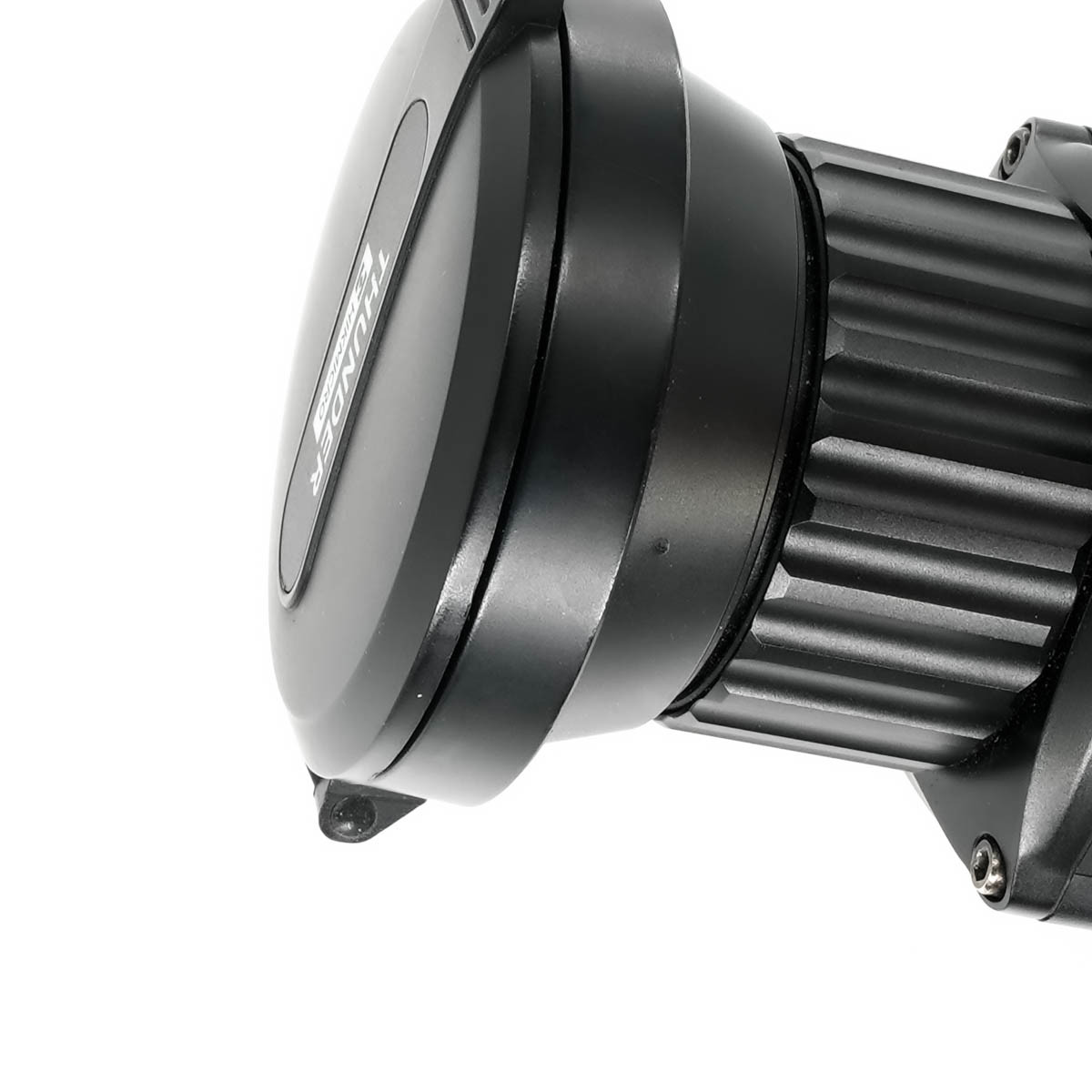

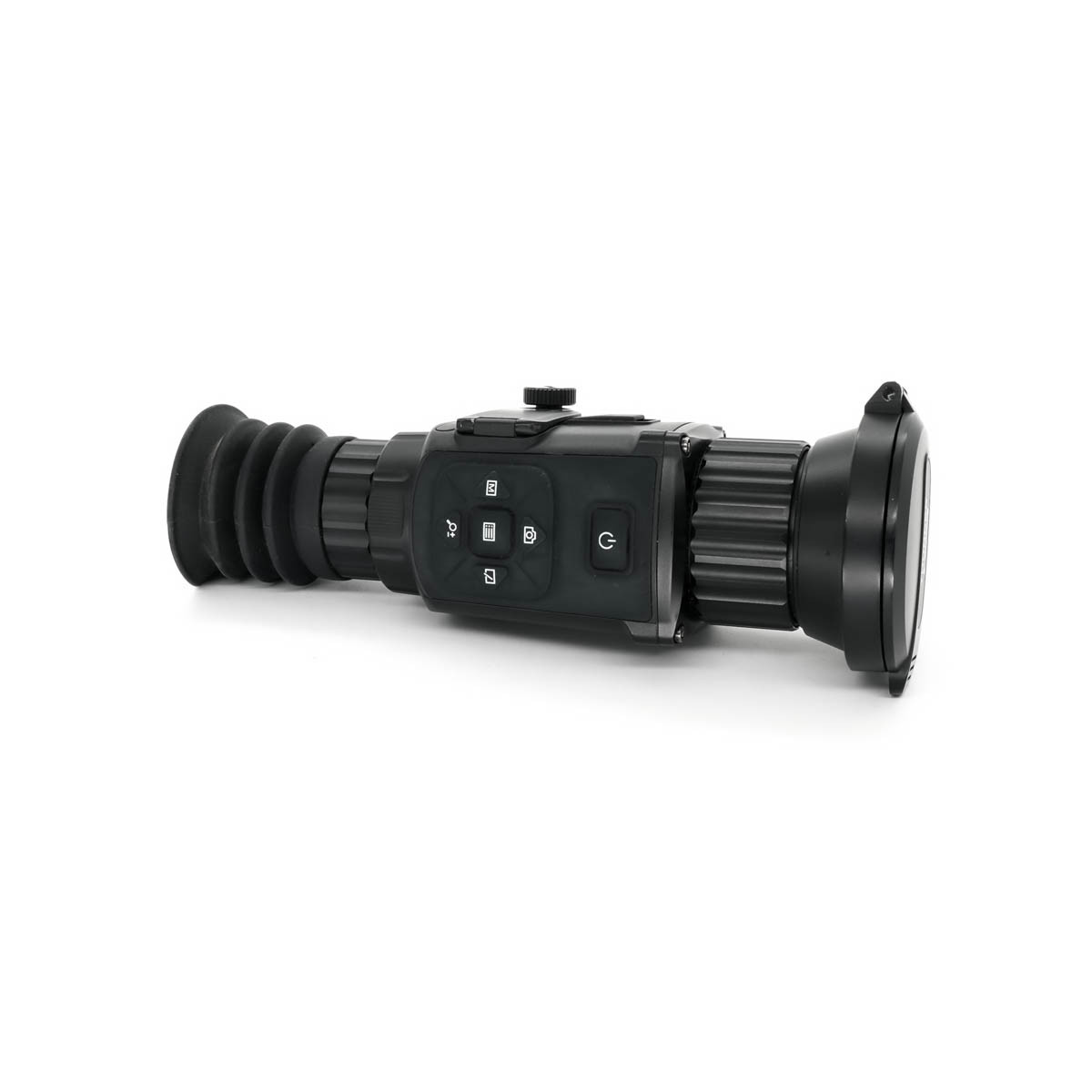

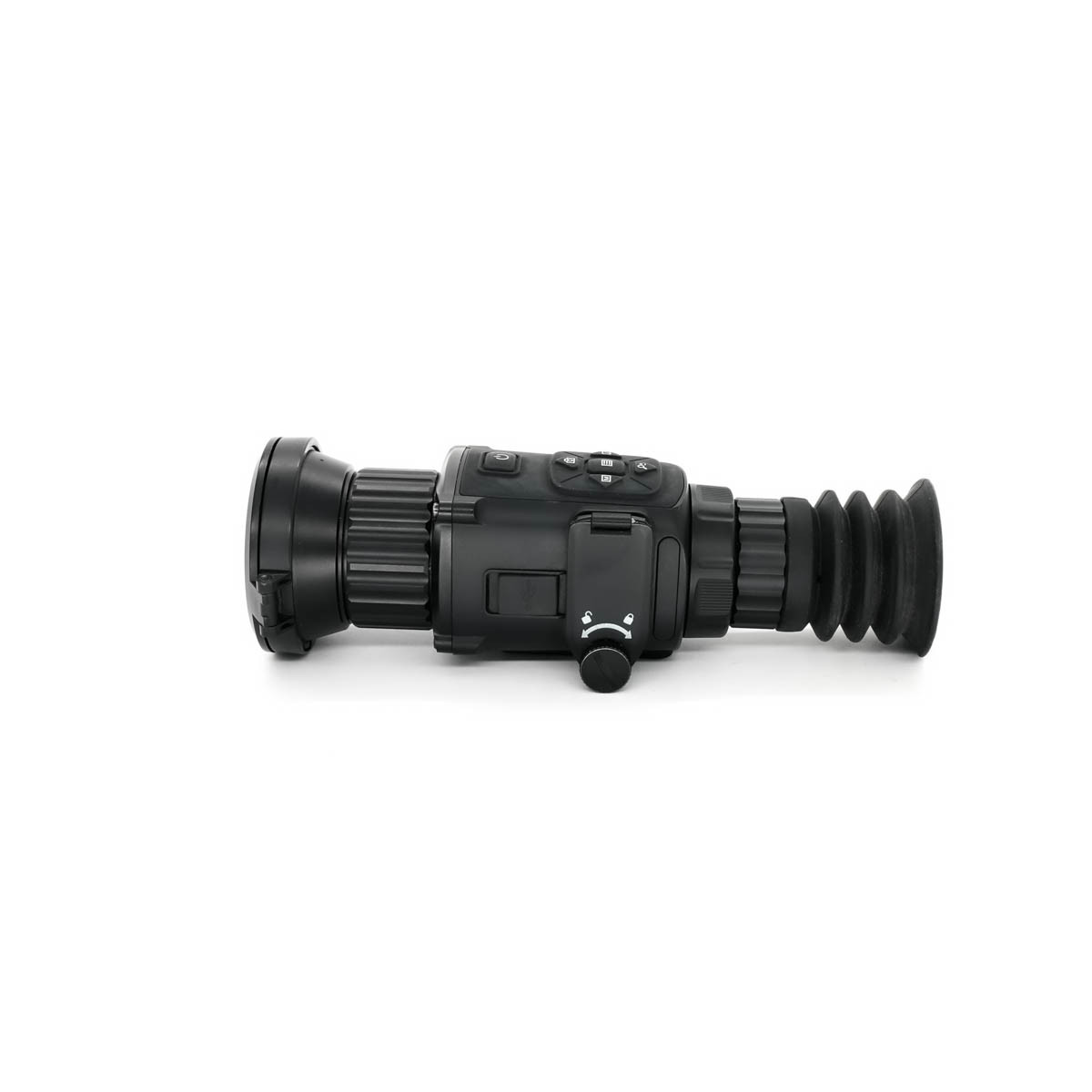

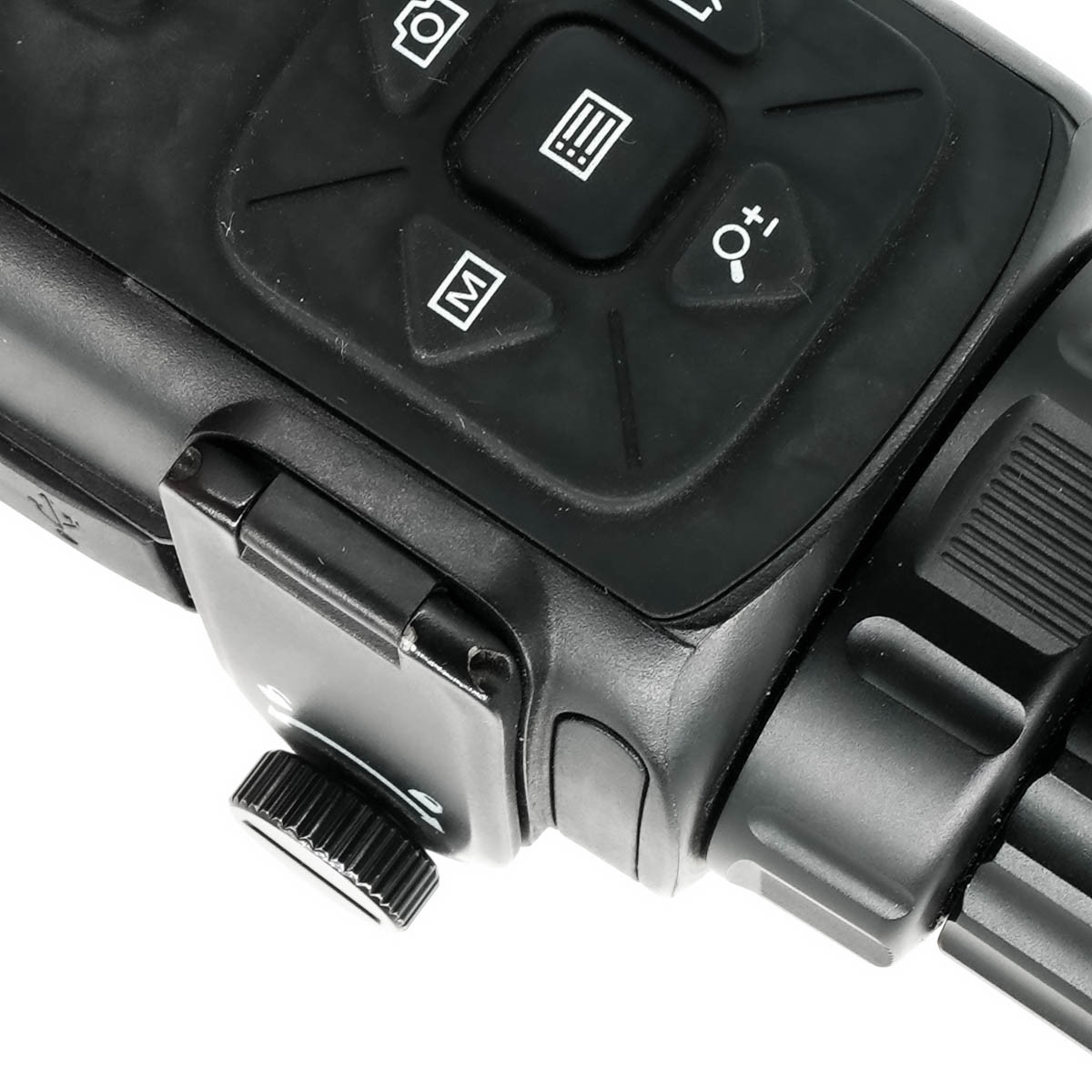

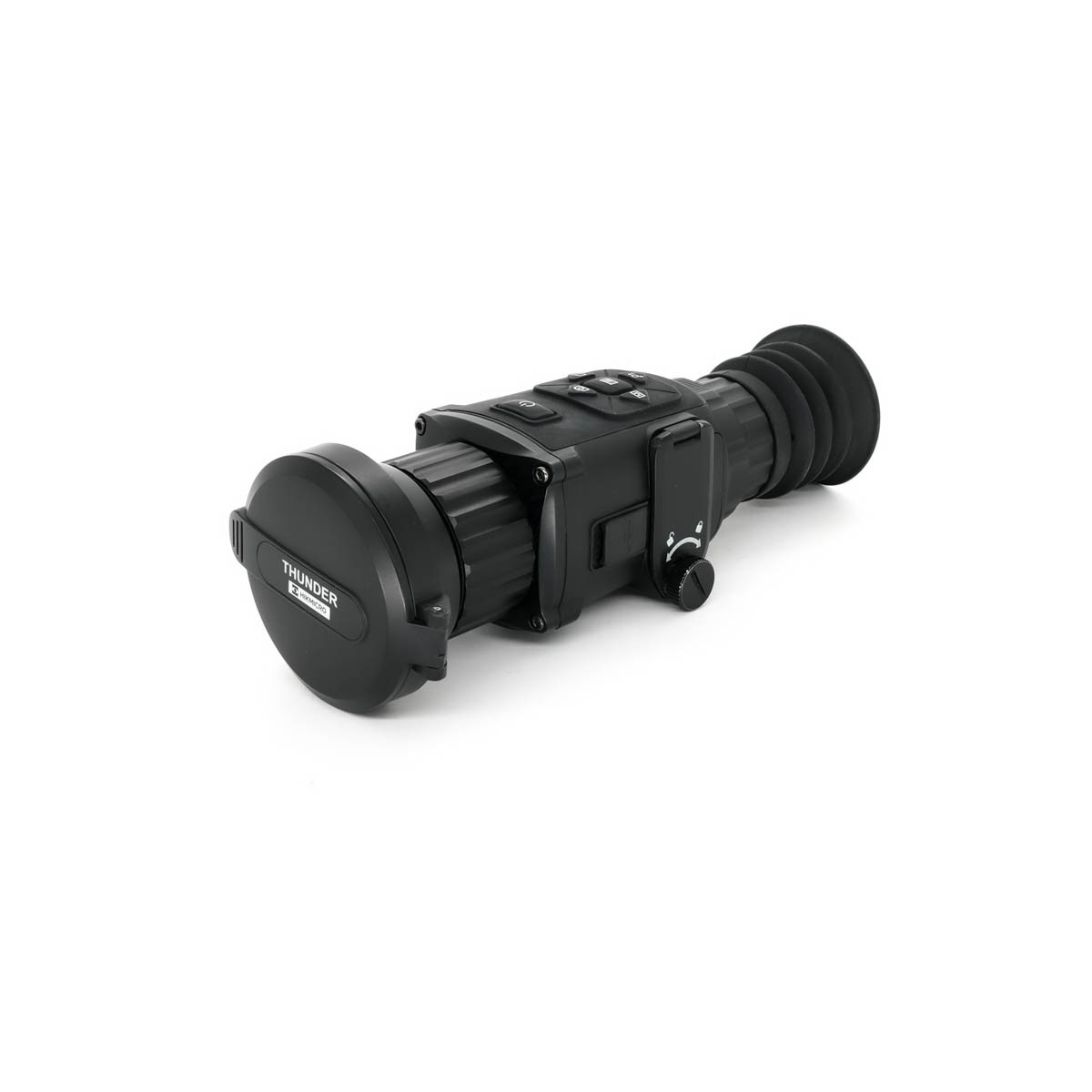

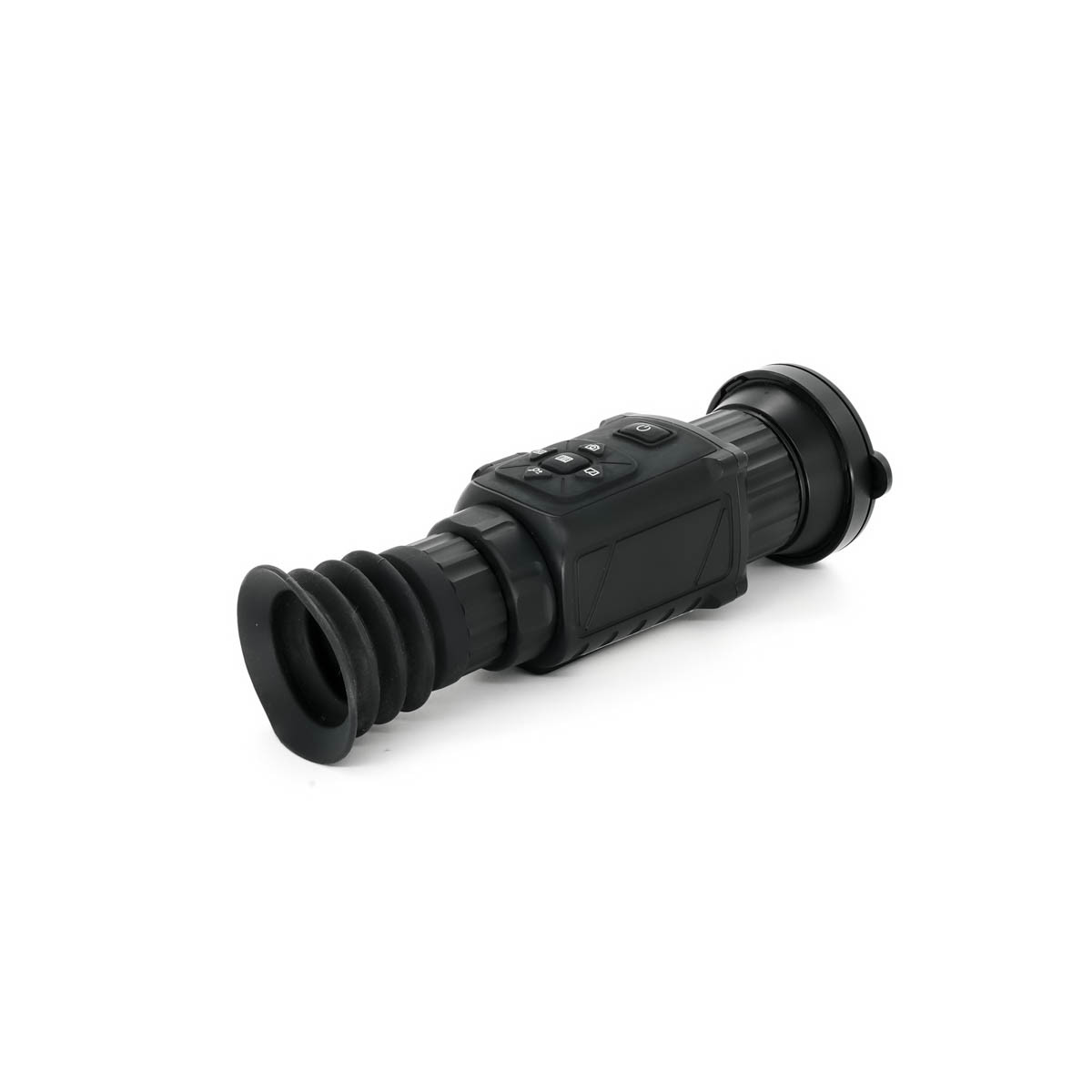

Pre-Owned HIKMICRO Ultimate Thunder Pro 2.6x 50mm 35mK 640x512px 12µm Smart Thermal Weapon Scope - PO2559
35mK NETD Rating
T-Vision App: Connect – Control – Stream
Hot Track
#1402
#1403
#1398
#1401
#1399
Condition: Good
This unit remains in good overall condition with light signs of prior use.

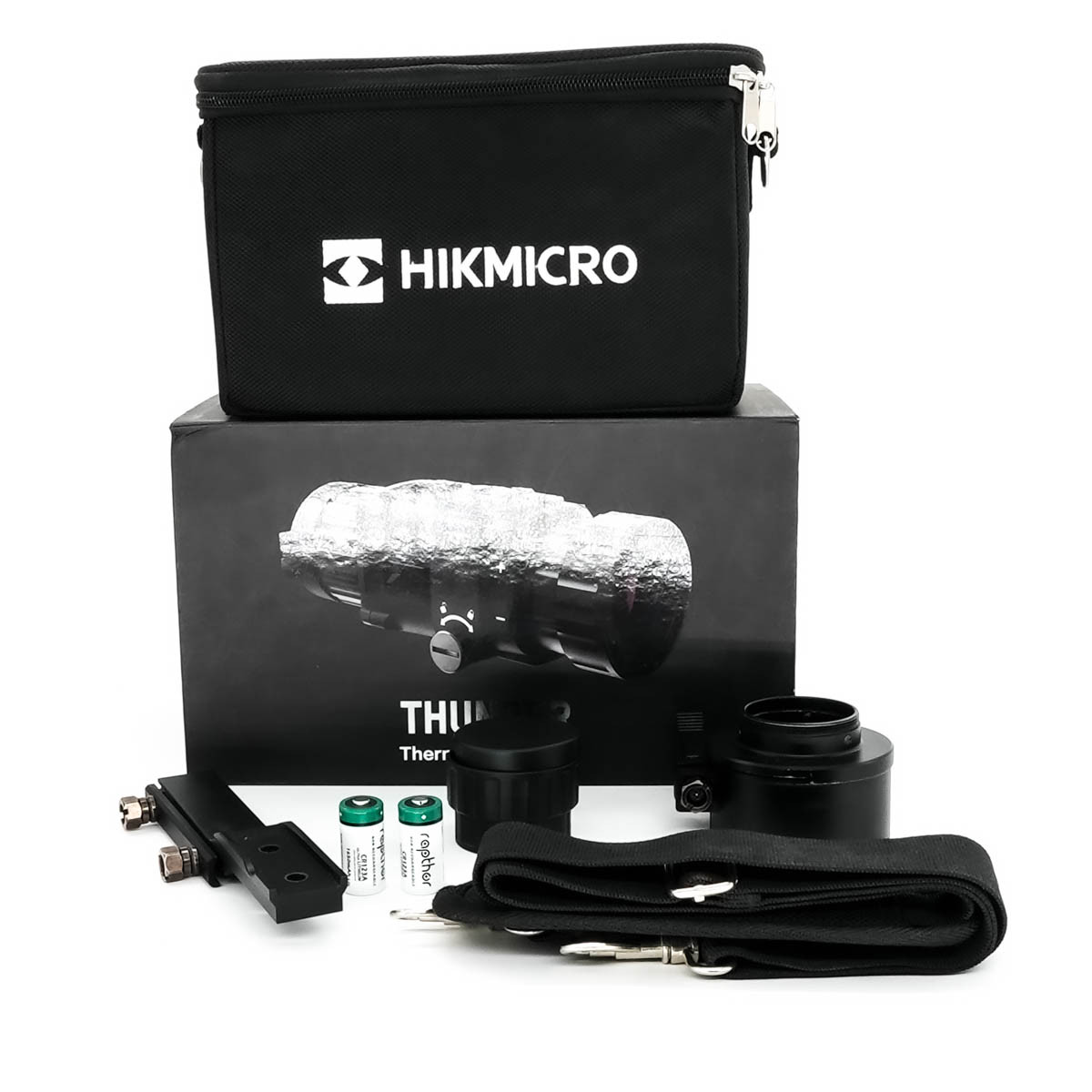

This product comes in its original box along with a soft case, 65mm clip-on adapter, eyepiece, picatinny rail, 4x batteries and a charging cable.
NO OTHER ACCESSORIES INCLUDED.
These products are sold in accordance with the VAT margin scheme for second-hand goods.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
The Ultimate Thunder packages include the Thunder Thermal module, Rifle Scope Lens and Picatinny Rail, Clip-On lens and one clamp to attach to your optical Scope.
Built on HIK Micro’s compact and ergonomic Thunder chassis with the unique interchangeable lens system to seamlessly switch between a Thermal Rifle Scope, Front Clip-On and handheld Monocular.
The Thunder 50mm delivers three high-performance products in one flexible package.
The 50mm focal length provides a base magnification of 2.6x with up to 8x digital magnification and Picture-In-Picture available to explore the detail in your surroundings. The high-quality F1.0 lens system transmits all of the available infrared signal back to the sensor, boosting the detection ability and detail in the image.
At the heart of the TQ50 is HIK Micro’s 640x520px, Sub 35 NETD thermal sensor. This extremely accurate sensor is capable of delivering a detailed, high resolution image in the harshest of conditions.
HIK Micro’s advanced algorithm processes this raw signal and delivers a detailed image to the 10mm OLED display. The Thunder automatically recognises the lens system you have attached and the configuration you are using it in (Riflescope, Clip On or Monocular) and optimises the display to match.
The powerful software built into the Thunder TQ50 offers, 5 reticle styles in a choice of 3 colours, picture in picture and hot tracking which marks the hottest point on the screen and the ability to save video and pictures to the 16gb internal memory. You can choose from 4 colour palettes, white-hot, black hot, red hot and fusion.
The Thunder also connects to the T-Vision app to seamlessly control, stream and record your shooting experience.
| MAIN | |
| Sensor | 640 x 512 @ 12µm |
| Objective Lens | 50 mm / F1.0 |
| Detection Range (Human 1.8 x 0.5m) | 2500 m |
| Magnification Riflescope | 2.6x |
| SENSOR | |
| Type | Uncooled Focal Plane Arrays |
| Resolution, pixels | 640 x 512 px |
| Pixel pitch, µm | 12µm |
| Frame rate, Hz | 50 Hz |
| NETD | <35mK |
| OPTICS | |
| Objective lens | F1.0 |
| Focal Length | 50mm |
| Magnification (Optical) | 2.6x |
| Magnification (Digital) | 1x, 2x, 4x, 8x |
| Field of view | 8.8° × 7.0° |
| DISPLAY | |
| Type | 9.9mm OLED |
| Resolution, Pixels | 1024 × 768 |
| Eye Relief | 45mm |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Picture-in-Picture | Yes |
| RETICLE OPTIONS | |
| Number of preloaded reticles | 5 Reticle choices |
| Reticle Colours | White, Green, Red |
| VIDEO | |
| Video recording | Yes |
| Picture snapshot | Yes |
| Build in memory, Gb | 16 Gb |
| ADDITIONAL FEATURES | |
| Hot Tracking | YES |
| WiFI hot spot | YES |
| T-Vision App support | YES |
| ENVIRONMENTAL | |
| Recoil resistance | 6750 J |
| Degree of protection, IP code | IPX7 |
| Water protection | Protected against temporary submersion in water |
| Operating temperature range | -20 °C to 55 °C |
| WEIGHT & SIZE | |
| Dimensions, mm | 200 mm × 78.2 mm × 66.4 mm |
| Weight, kg | 0.48 kg |
| POWER SUPPLY | |
| Operating time on battery (WiFi & Hot tracking disabled) |
4 hours continuous running |
| Charging interface | USB-C |
| Battery type | Replaceable CR123A |
| WARRANTY Main Unit Battery |
3 Years 2 Years |
HIK Vision Thermal Sensor
At the heart of the Thunder is the HIK Vision 640x512px, 12µm thermal sensor (NETD Rating = 35mK).
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
This combines with the large, 35mm objective lens and focus system to achieve a crystal clear image and enhanced detection distances.
Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-Vision App: Connect – Control – Stream
Connect your smartphone and take control of all features of the Thunder.
The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.
You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.
Hot Track
Activate Hot Tracking and your Thunder will highlight the hottest spot detected in the current frame with a green crosshair.
This is useful to highlight small heat sources as you scan around.
This feature can also be deactivated in the menu or controlled in the App.
This product comes in its original box along with a soft case, 65mm clip-on adapter, eyepiece, picatinny rail, 4x batteries and a charging cable.
