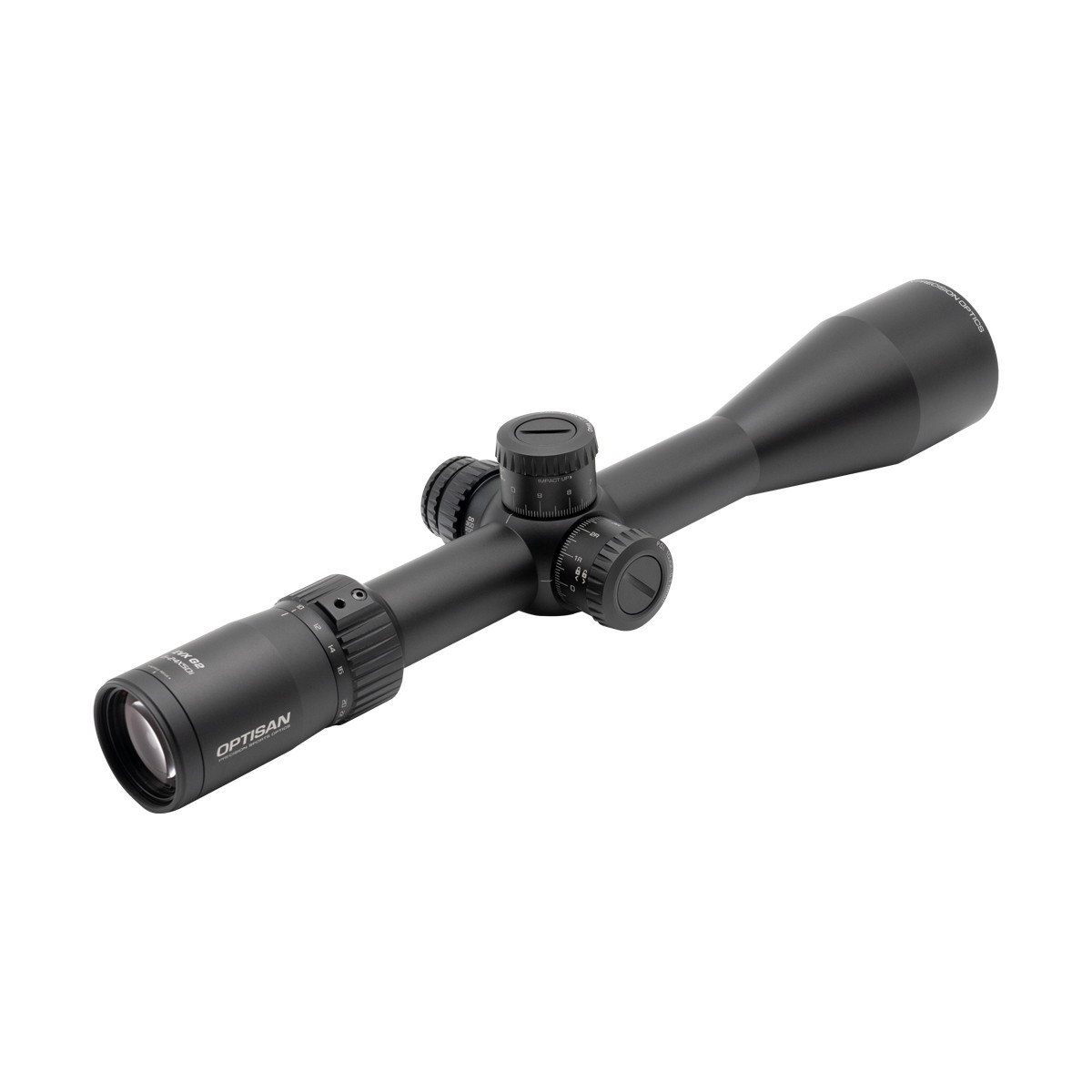

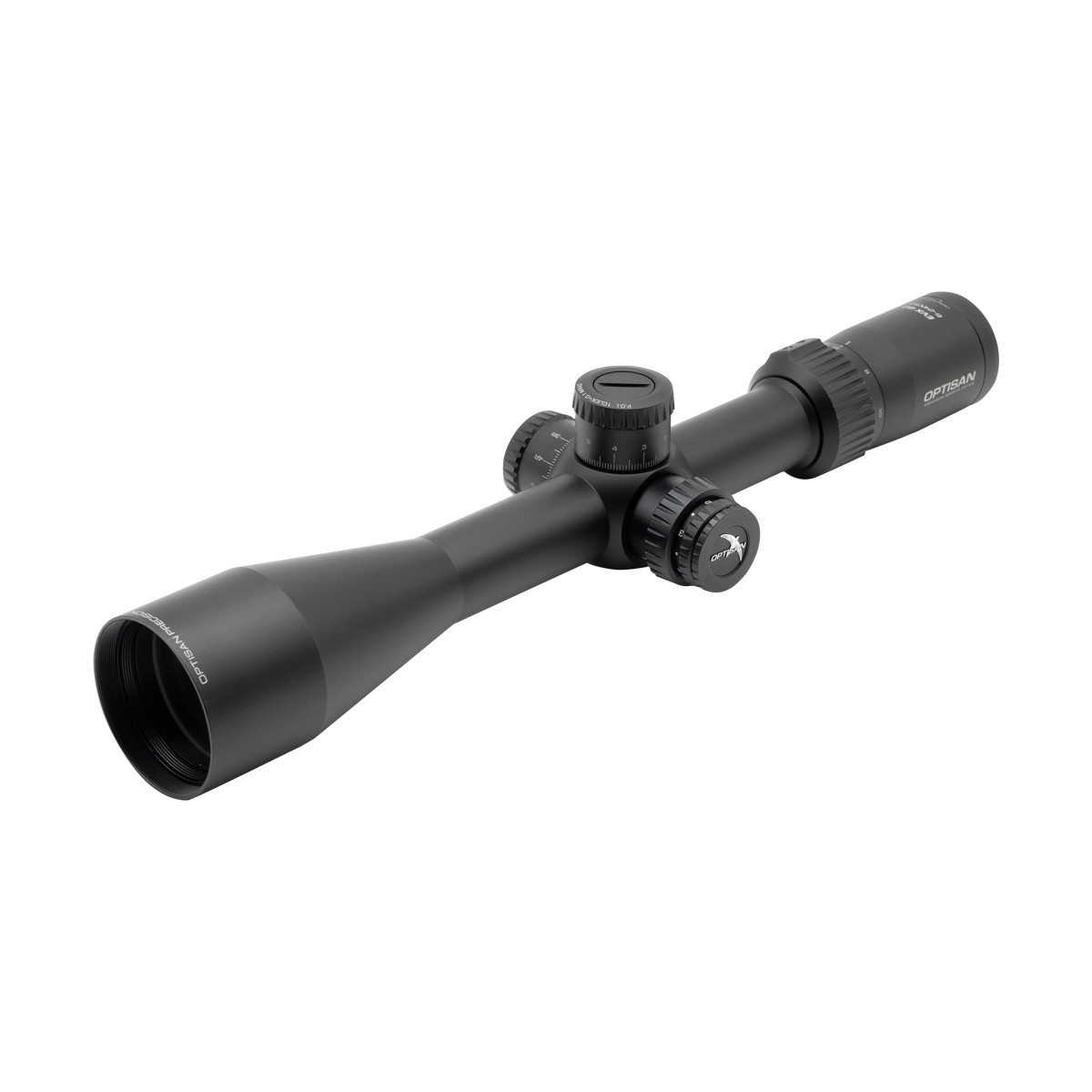

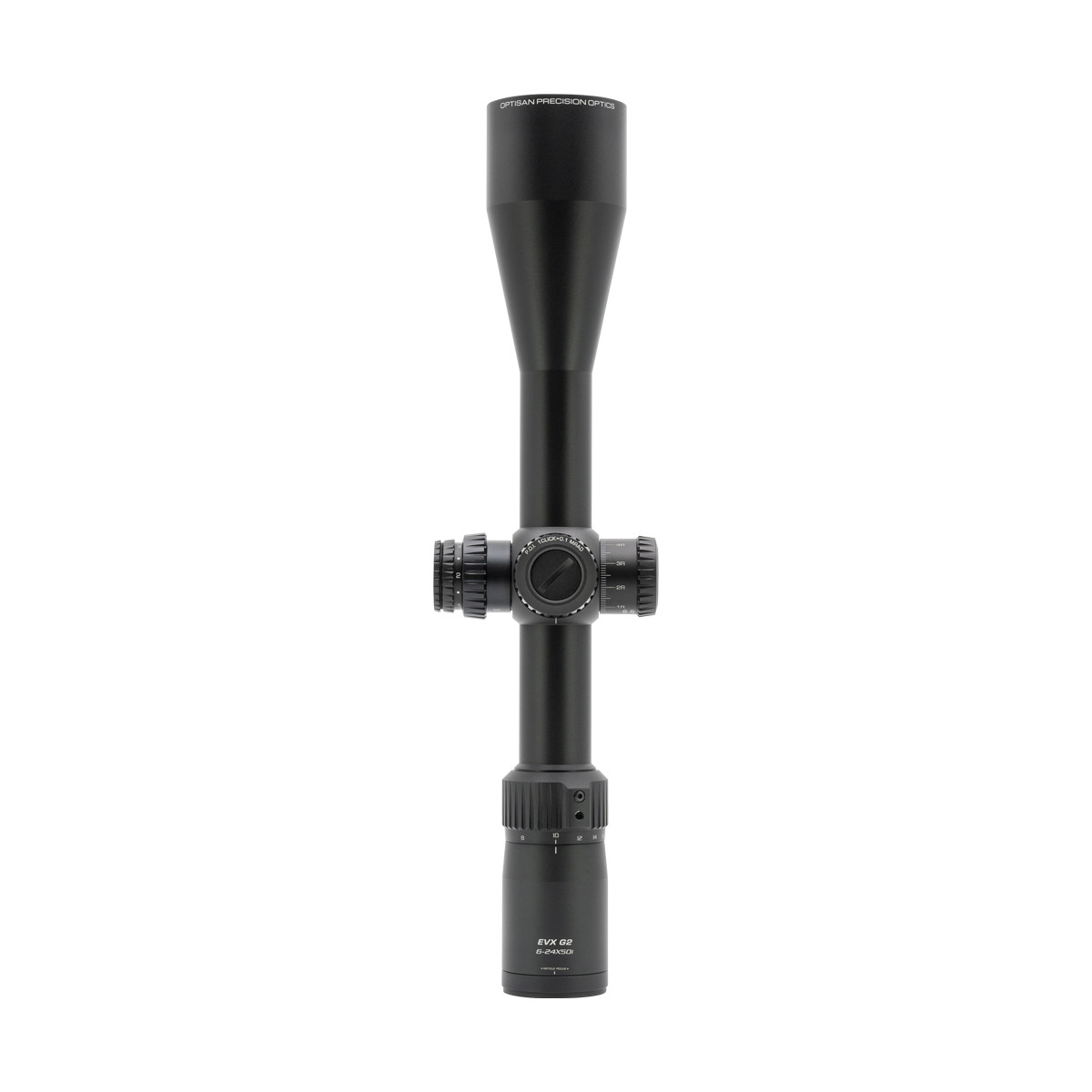

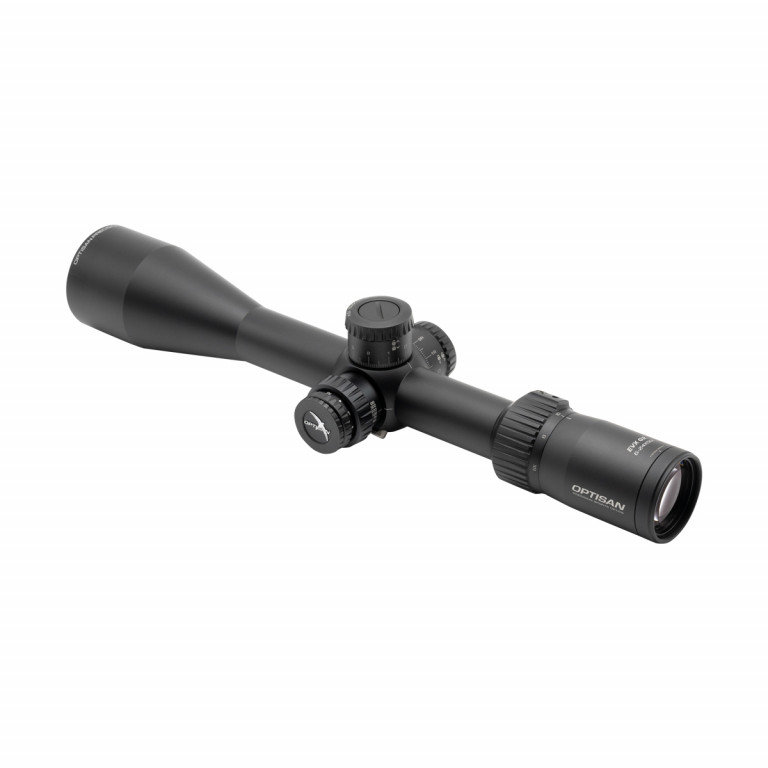

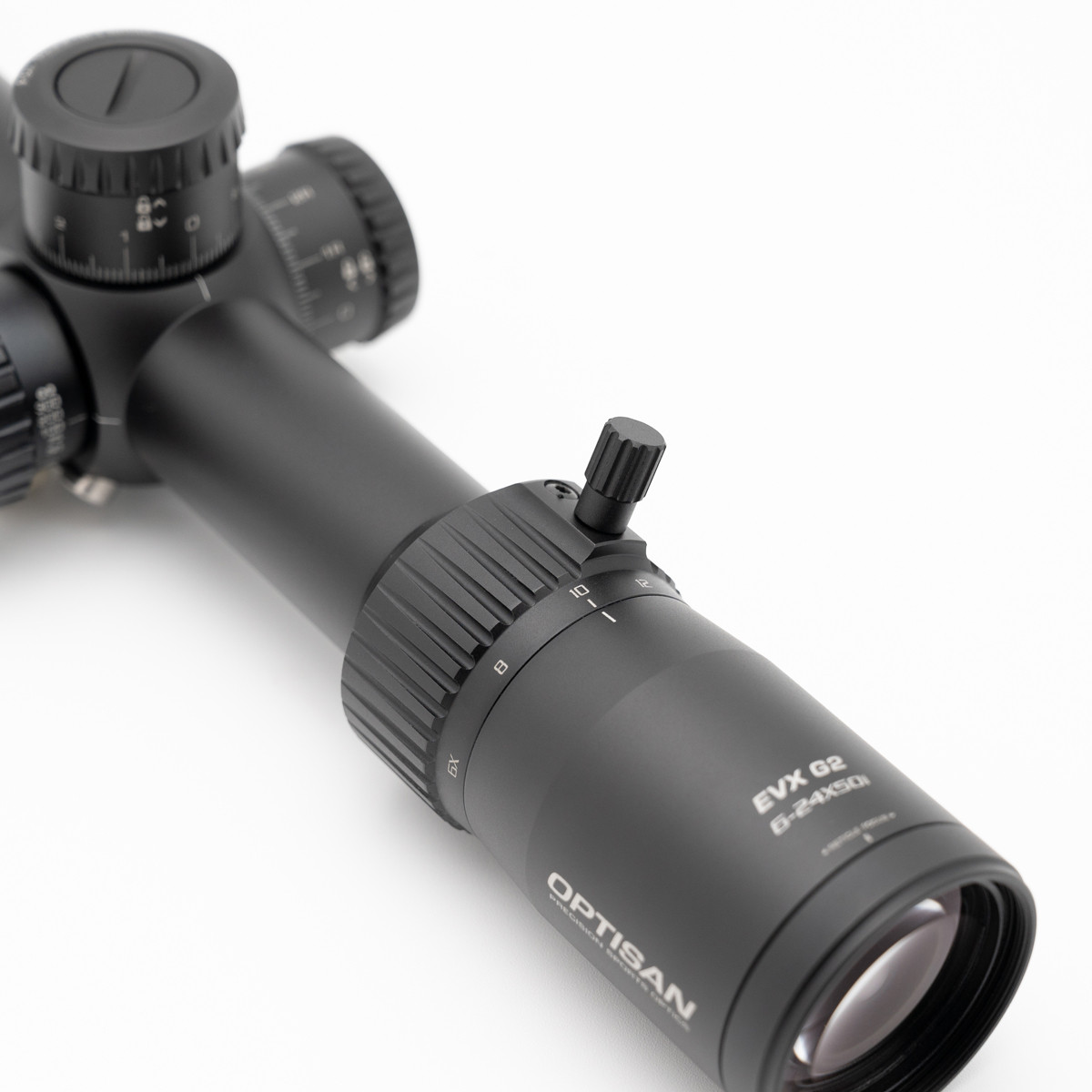

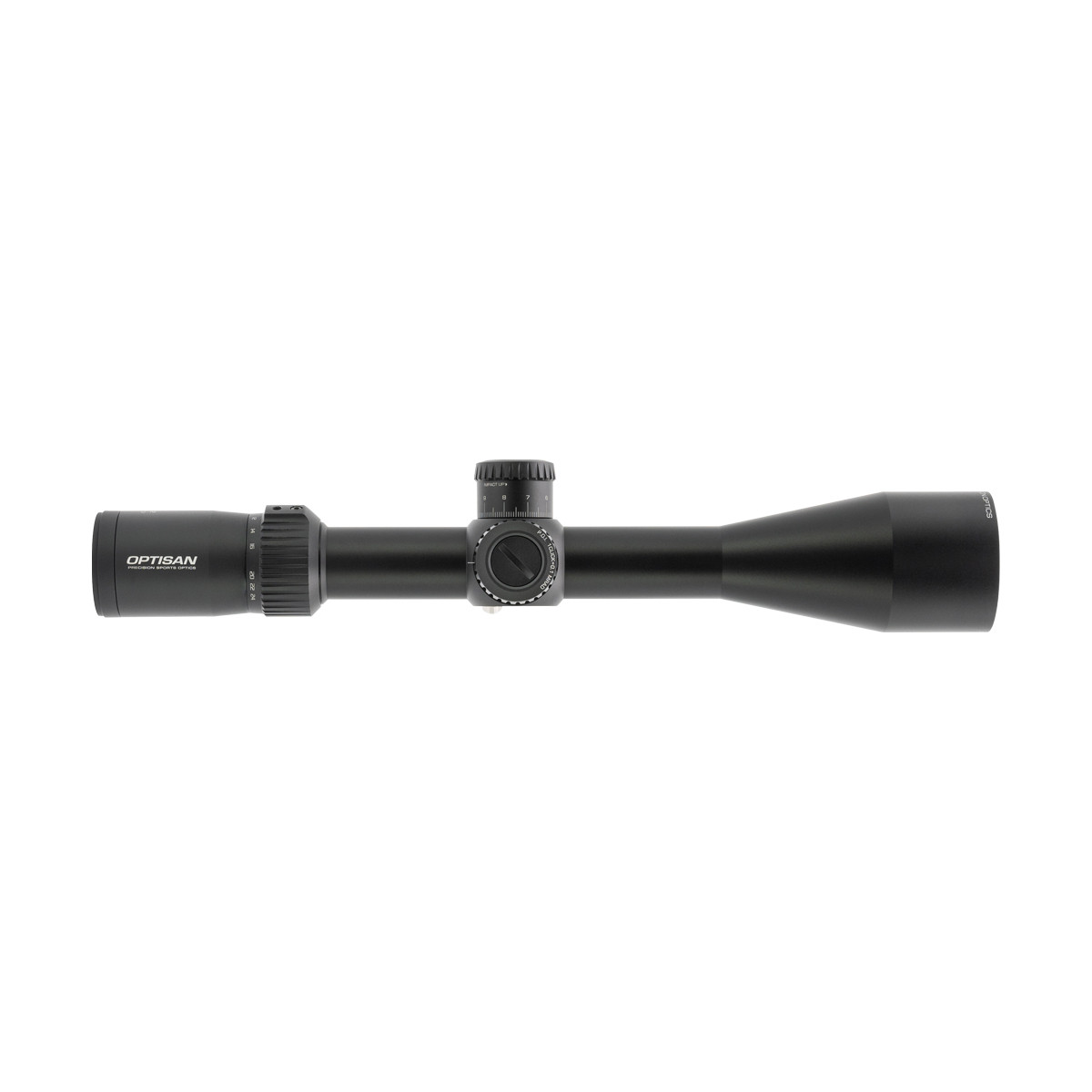

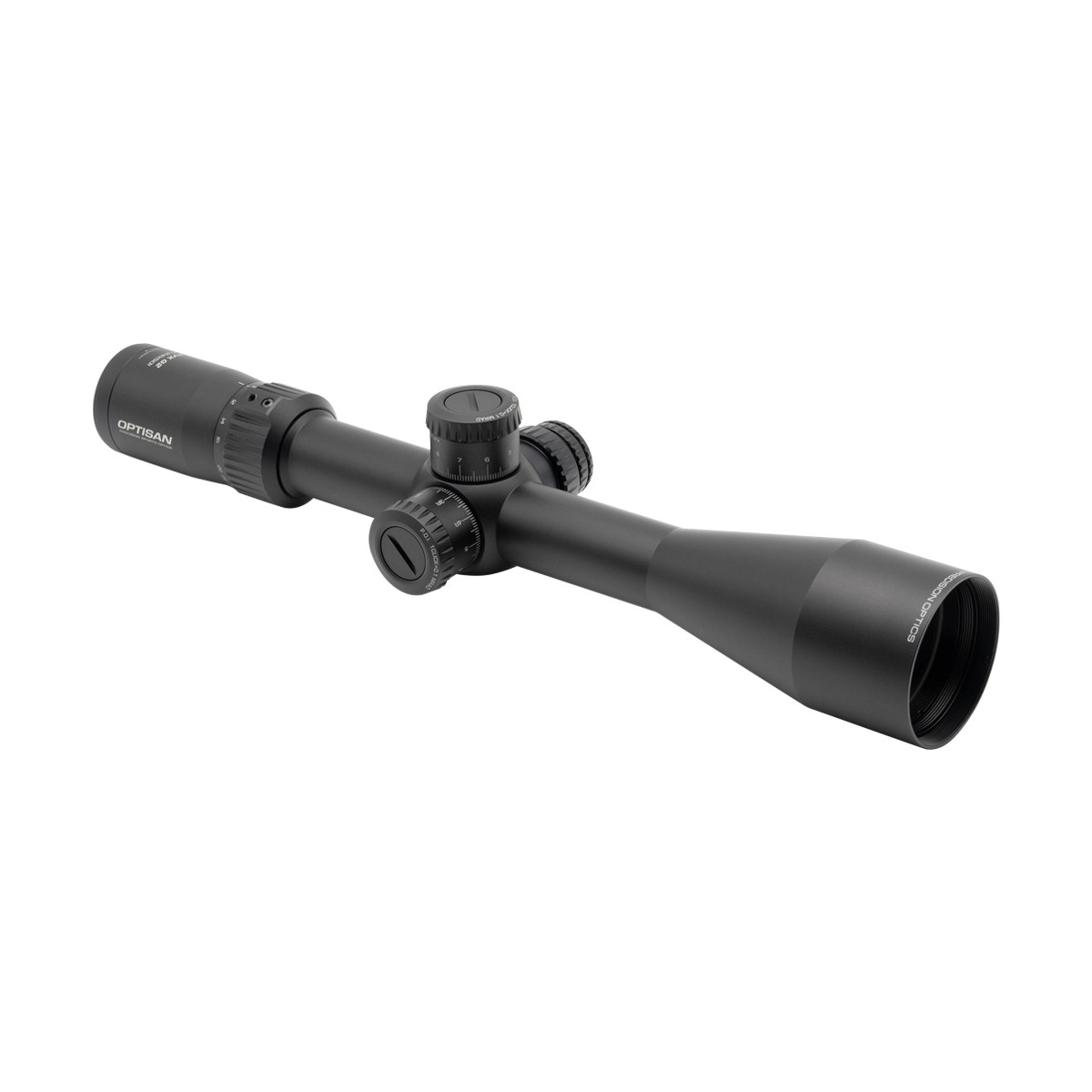

Optisan EVX Gen II 6-24X50 SFP Illuminated MHP10i 0.1 MRAD LT Rifle Scope
- Locking and zero resettable turrets
- Precise side focus from 10 yrds to infinity
- Illuminated reticle with 6 intensities
- 30mm main tube
- MHP reticle great crossover for hunting or target
- Flip up covers & blank turret included
#428
#425
#426
#427
#424
Optisan EVX Gen 2
The second focal plane EVX Gen 2 6-24x50 builds on the dependable and consistent reputation established by the EVX Gen 1 scope series during its 15 years of service. Designed for sub-MOA accuracy the EVX Gen 2 has undergone rigorous field testing to ensure it can withstand recoil up to 6000j, making this the perfect scope for an airgun, rimfire or centrefire.

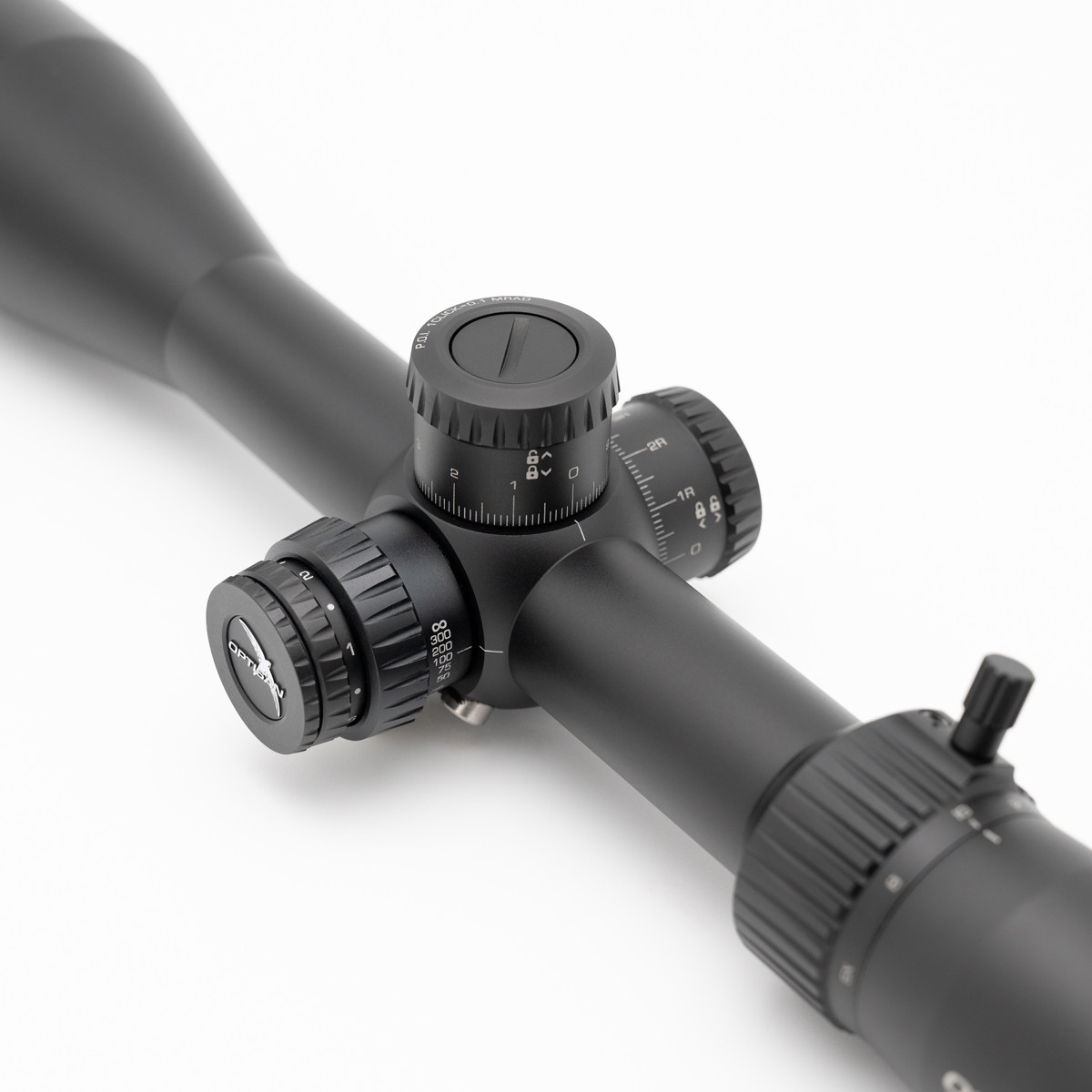

Designed to put the key functionality required for competitive shooting or extended hunting trips at your finger tips. The EVX Gen 2 built around a robust 30mm tube and equipped with locking, target style turrets that offer a precise and tactile adjustment. Lift the turret to dial your adjustments, push it down to lock. You can also reset the turret indicators to match your zero position, there is also a blank turret included in the box if you want to make your own ballistic turret. The EVX Gen2 is fitted with side focus allowing precise adjustment at the range or easy use with add-on night vision devices like the Pard NV007.
The new MHP mil-hash reticle, has been specifically designed to minimise obstruction of the shooter’s view and provide long-range holdover capabilities, with six levels of illumination (plus off).
The Optisan EVX G2 6-24x50 has an improved optical system which helps provide the shooter with better optical clarity and resolution. This versatile rifle scope is perfect for air rifle shooters and centerfire shooters; it's an ideal choice for target shooting with a smaller calibre centrefire or hunting with rear add on night vision.
Optical Data
- Magnification (High): 24X
- Magnification (Low): 6X
- Objective Diameter (mm): 50mm
- Outer dia. Objective (mm): 58mm
- FOV (min.mag - max.mag) (ft@100yds): 19.4ft - 4.9ft
- FOV (min.mag - max.mag) (m@100m): 6.46m - 1.63m
- FOV (min.mag - max.mag) (degree): 3.70° - 0.94°
- Eye relief (min.mag - max.mag) (in): 3.8'' - 3.5''
- Eye relief (min.mag - max.mag) (mm): 96.5mm - 88.9mm
- Exit Pupil (min.mag - max.mag) (mm): 8.3mm - 2.1mm
- Diopter Range (dpt): +/- 2.0 dpt
- Parallax Adjustment: 10 yds - infinity
- Coating: Fully multi-coated
Mechanical Data
- Tube Construction: One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click): 0.1 MRAD
- Windage Adjustment (value per click): 0.1 MRAD
- Turret Style (Elevation): Lockable Dialing Turret
- Turret Style (Windage): Lockable Dialing Turret
- Travel Per Rotation: 10 MRAD
- Elevation adj. range: ≥ 15 MRAD
- Windage adj. range: ≥ 14 MRAD
- Eye Piece Diameter (in): 1.73''
- Eye Piece Diameter (mm): 44mm
- Eye Piece Length (in): 2.15''
- Eye Piece Length (mm): 51.2mm
- Mounting Length rear (mm): 57.5mm
- Mounting Length front (mm): 57.5mm
- Tube Dia. (mm): 30mm
- Length (in): 14.33''
- Length (mm): 364mm
- Weight (g): 816g
- Weight (oz): 28.78oz
- Surface Finish: Matte Black
Environmental Data
- Functional temperature: -20 ~ 50 degree celcius
- Storage temperature: -20 ~ 50 degree celcius
- Submersion tightness: IPX7
Reticle Data
- Reticle: MRAD-MHP10i
- Calibrated Ranging Power: 10X
- Focal plane: Second Focal Plane
- Illumination: 6 Steps illumination with off setting in between
- Locking and zero resettable turrets
- Precise side focus from 10 yrds to infinity
- Illuminated reticle with 6 intensities
- 30mm main tube
- MHP reticle great crossover for hunting or target
- Flip up covers & blank turret included
- Download reticle information HERE
- Optisan EVX Gen II 6-24X50 SFP Illuminated MHP10i 0.1 MRAD LT Rifle Scope
- Lens covers
- Blank elevation turret dial
- 3" sunshade
- Speed lever
