Optisan Optics CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Details
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Introducing the (NEW FOR 2020!) Optisan CP Compact 10x32 MIL MH10 Rifle Scope.
Compact and lightweight - well matched to the latest generation of compact rifles.
Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.
Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.
The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.
| Brand | Optisan Optics |
|---|---|
| Product Name A-Z | Optisan Optics CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope |
| SKU | 04003 |
| Highest Magnification | 1x-10x |
| Fixed Power Magnification | 10x |
| Reticle Plane | Second |
| Tube Diameter | 30 mm |
Specs
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
| OPTICAL DATA | |
|---|---|
| Magnification (High) | 10X |
| Magnification (Low) | 10X |
| Objective Diameter (mm) | 32mm |
| Outer dia. Objective (mm) | 40mm |
| FOV (min.mag）(ft/100yds) | 10.80 |
| FOV (max.mag）(ft/100yds) | 10.80 |
| Eye relief (in) | 3.24" |
| Exit Pupil (Max mag.） (mm) | 3.2 mm |
| Exit Pupil (min. mag.） (mm) | 3.2 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| MECHANICAL DATA | |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 0.1 mrad |
| Windage Adjustment (value per click) | 0.1 mrad |
| Turret Style (Elevation) | Low-profile, Zero-resettable |
| Turret Style (Windage) | Low-profile, Zero-resettable |
| Travel Per Rotation | 10 mrad |
| Elevation adj. range | ≥ 20 mrad |
| Windage adj. range | ≥ 20 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.65'' |
| Eye Piece Length (mm) | 42 mm |
| Mounting Length rear (mm) | 55.50 mm |
| Mounting Length front (mm) | 37.50mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 9.52'' |
| Length (mm) | 242mm |
| Weight (g) | 478 |
| Weight (oz) | 16.86 |
| Surface Finish | Matte Black |
| ENVIRONMENT DATA | |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Submersion tightness | JIS 7 |
| RETICLE DATA | |
| Reticle | SFPMH10X |
| Calibrated Ranging Power | 10X |
| Focal plane | Second |
| Illumination | Non-illuminated |
| DELIVERY INCLUDE | |
| Standard Accessories | 2.5'' sunshade Lens covers |
Features
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- Compact design
Only 25.4 cm length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.
- Minimized Parallax error
By using a 32mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances whilst experiencing minimal shift of impact, this is very helpful in many competitive and hunting shooting situations.
Parallax adjustment range is from 10 yards up to 500 yards to infinity,
- Springer rated
Field-tested by Champion shooters for more than for one year on spring air rifles it is a robust riflescope that is capable of use larger caliber rifles including centerfire

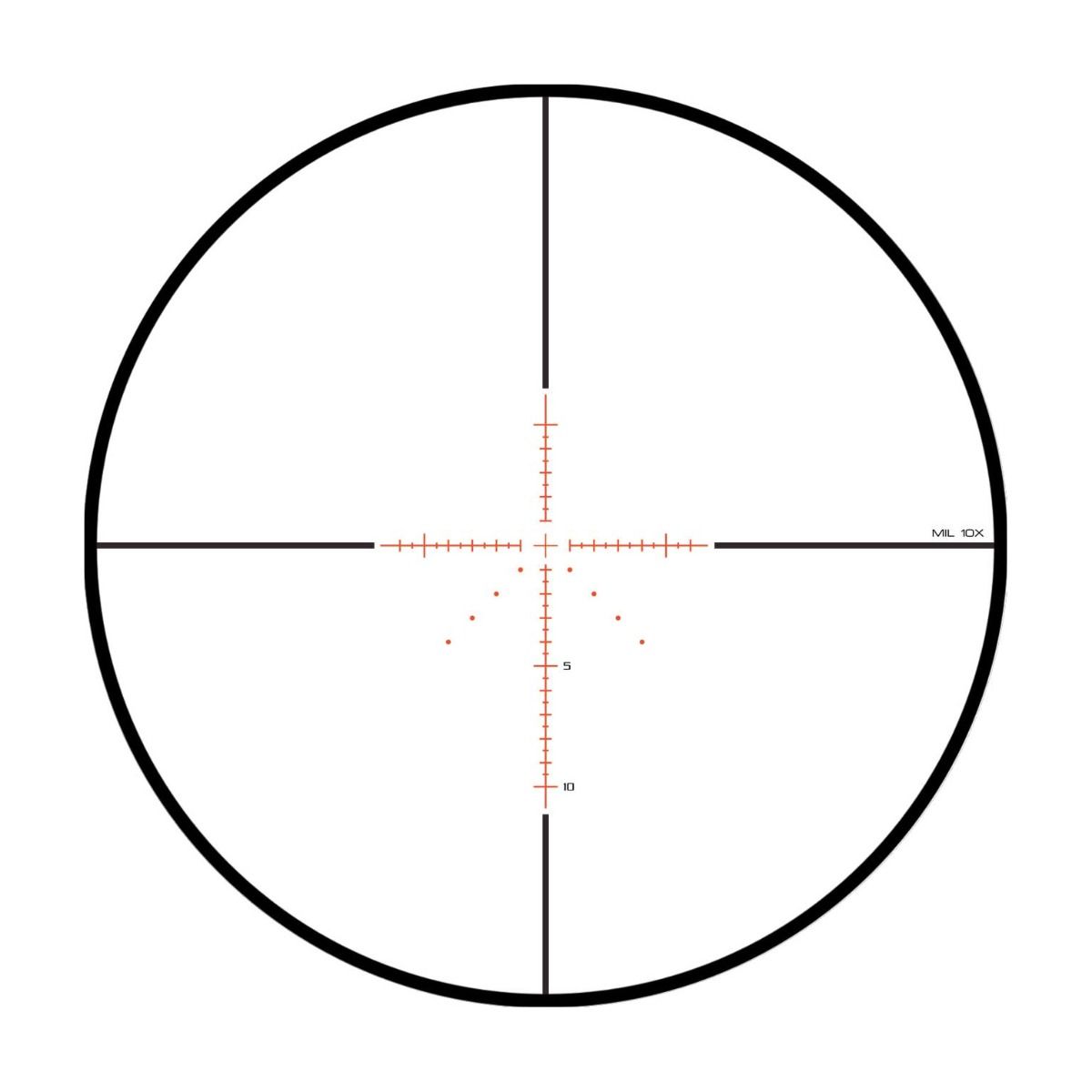

Reticle
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
MH10 (Non-Illuminated)
Video
In the box?
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- 2.5'' Sunshade.
- ABS Flip-Up Covers.
Warranty
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Optisan Lifetime Warranty
