Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

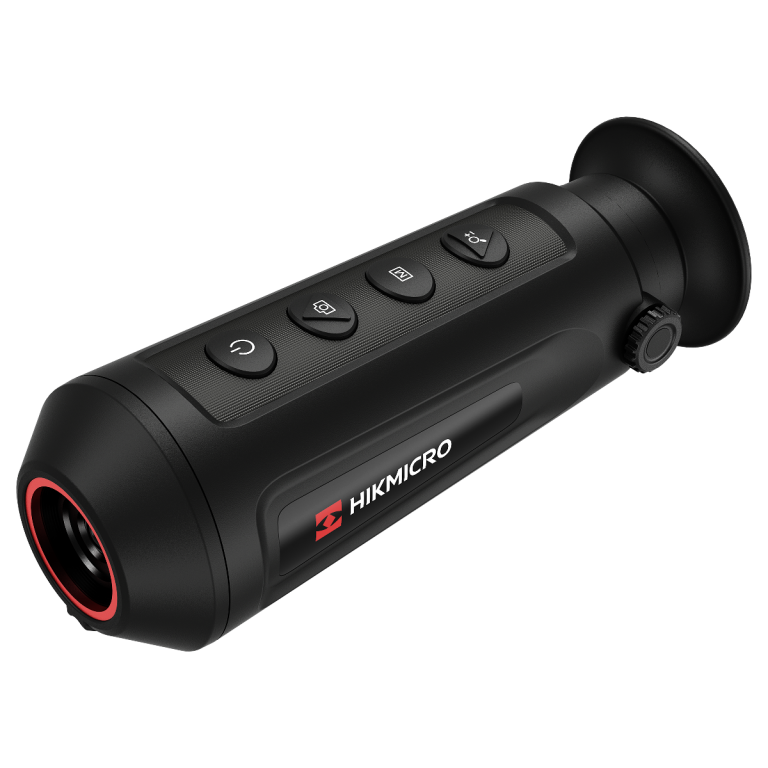

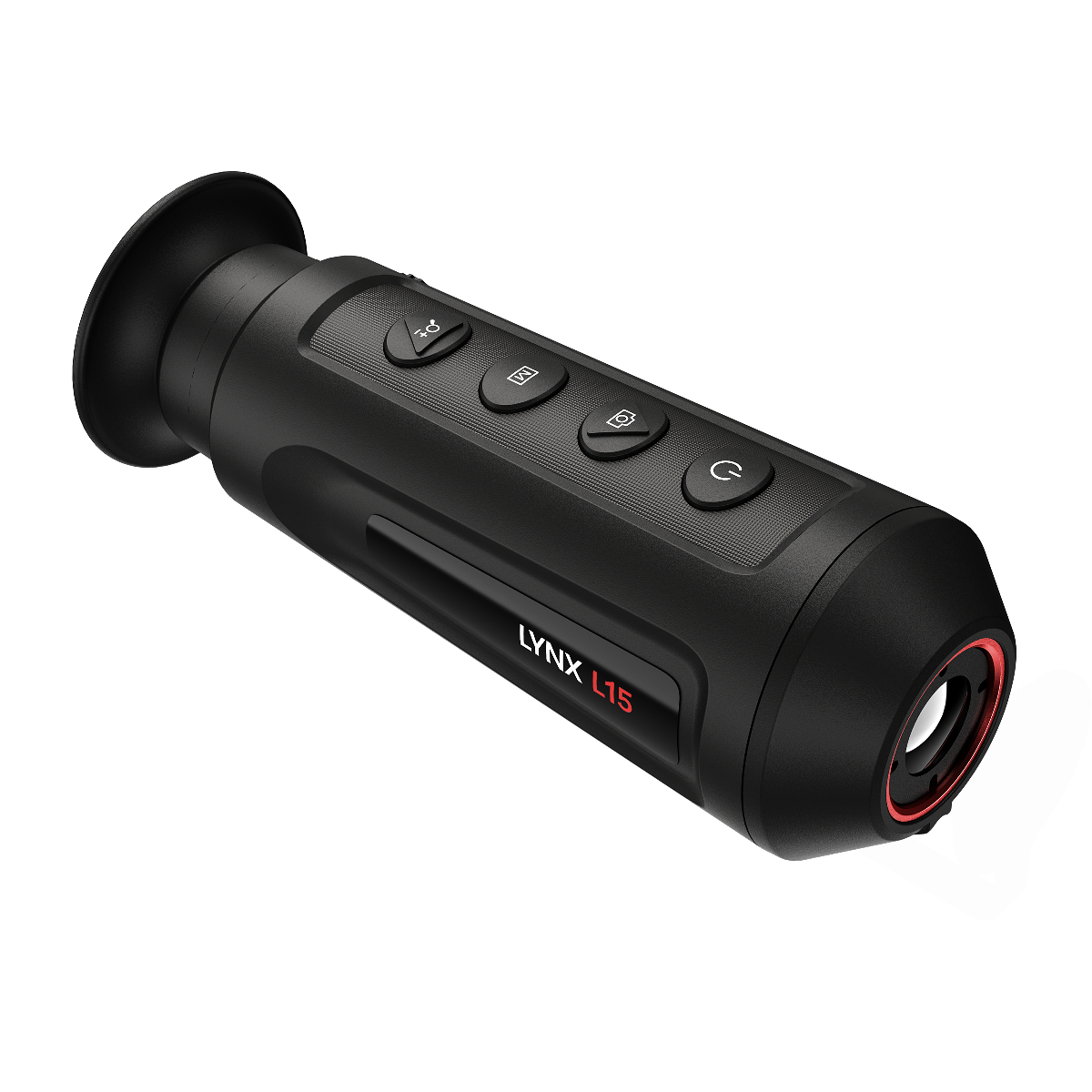

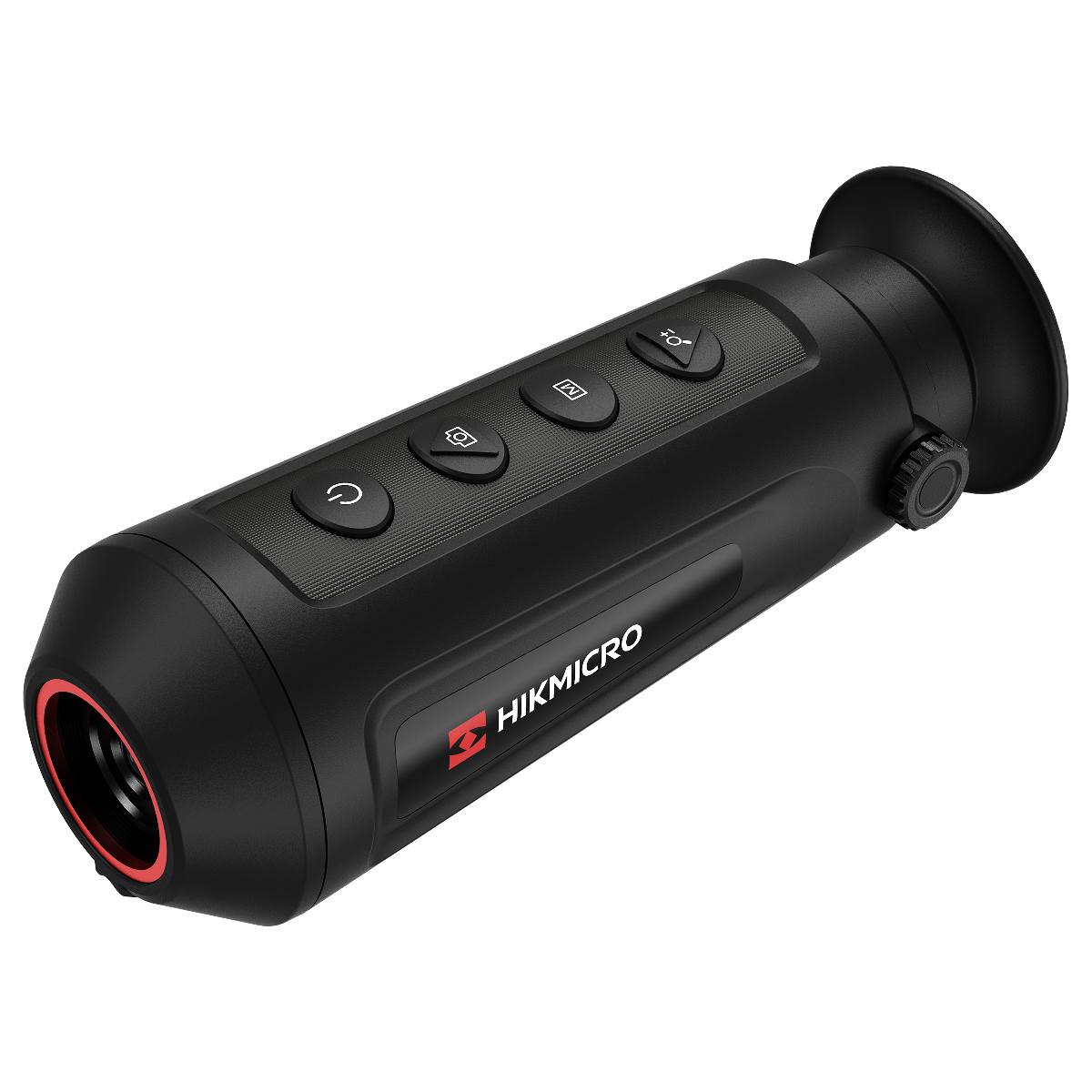

Introducing the HikMicro Lynx Pro 15mm. Building on the success of the Lynx 15mm the new (2021) Pro model introduces a few subtle improvements to boost the performance of the best-selling, entry-level Thermal Monocular in the HIKMICRO range.
The HikMicro Lynx Pro 15mm shares the larger 10mm screen that is found in the premium 19mm and 25mm Lynx Pro models. This gives you a large display that is easy to view and gives you the best view of your surroundings. The new pro uses the latest 384x288px, 12µm, sub-35mK, NETD Thermal Sensor from HIKMICRO. This highly accurate sensor delivers a detailed image while the move from 17µm to 12µm boosts the optical magnification up to 1.5x. This extra magnification is useful for identifying small heat sources and adds detail while retaining the wide Field-of-View which is useful for quickly scanning a wide area.
Outside of these changes, the Lynx Pro 15mm retains all of the features that made the original Lynx 15mm so popular! WiFi to connect to the T-Vision App and stream, record and control your monocular, 4 colour palettes, IP67 rated, and access to the HIKMICRO UK service centre should your Monocular develop a fault within its 3 year Warranty period.
| Product Name A-Z | HIK Micro Lynx 15mm Thermal Monocular |
|---|---|
| SKU | OPTICSDRAWS#1 |
Specs
Main
- Sensor: 384×288px @ 12µm
- Objective Lens (Focal Length): 15 mm
- Detection Range (Human 1.8 x 0.5m): 708 m
Sensor
- Type: VOx Uncooled Focal
- Plane: Arrays
- Resolution, pixels: 384 × 288 px
- Pixel pitch, µm: 12µm
- Frame rate, Hz: 50 Hz
- NETD: <35mK
Thermal Optics
- Objective lens: F1.0
- Magnification (Optical): 1.47x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 17.5° × 13.1° (H × V)
Display
- Type: 10 mm LCOS
- Resolution, Pixels: 1280 x 960
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Video Recorder
- Built-in memory, Gb: 8 Gb
Additional Features
- Hot Tracking: YES
- WiFI hot spot: YES
- T-Vision App support: YES
Environmental
- Degree of protection, IP code: IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
Weight & Size
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight, kg: 0.29 kg
Power Supply
- Operating time on battery (WiFi & Hot tracking disabled): 7.5 hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
Warranty Period
- Main Unit: 3 Years
Battery: 2 Years
Features
HIKMICRO Thermal Sensor
- At the heart of the Lynx 15 Pro is the HIKMICRO 384x288px, 12µm Thermal Sensor with a NETD rating of 35mK.
- 35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
- Combine this with the HIKMICRO software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-Vision App: Connect – Control – Stream:
- Connect your smartphone and take control of all features of the Lynx 15 Pro.
- The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.
- You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use App.
Hot Track:
- Activate Hot Tracking and your Lynx 15 Pro will highlight the hottest spot detected in the current frame with a green crosshair.
- This is useful to highlight small heat sources as you scan around.
- This feature can also be deactivated in the menu or controlled in the App.
- This feature can also be deactivated in the menu or controlled in the App.
Video
HIKMICRO Lynx PRO 19mm 35mK 384x288 12um Smart Thermal Monocular
HIK Micro/Vision Lynx/Owl - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
Warranty
- 3 Year Warranty
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
