WINNER: Harry Quilliam
DONATION: £72.00
Supreme Night Vision & Thermal bundle
WINNER: Harry Quilliam CHARITY: Cystic Fibrosis Trust
DONATION: £72.00
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

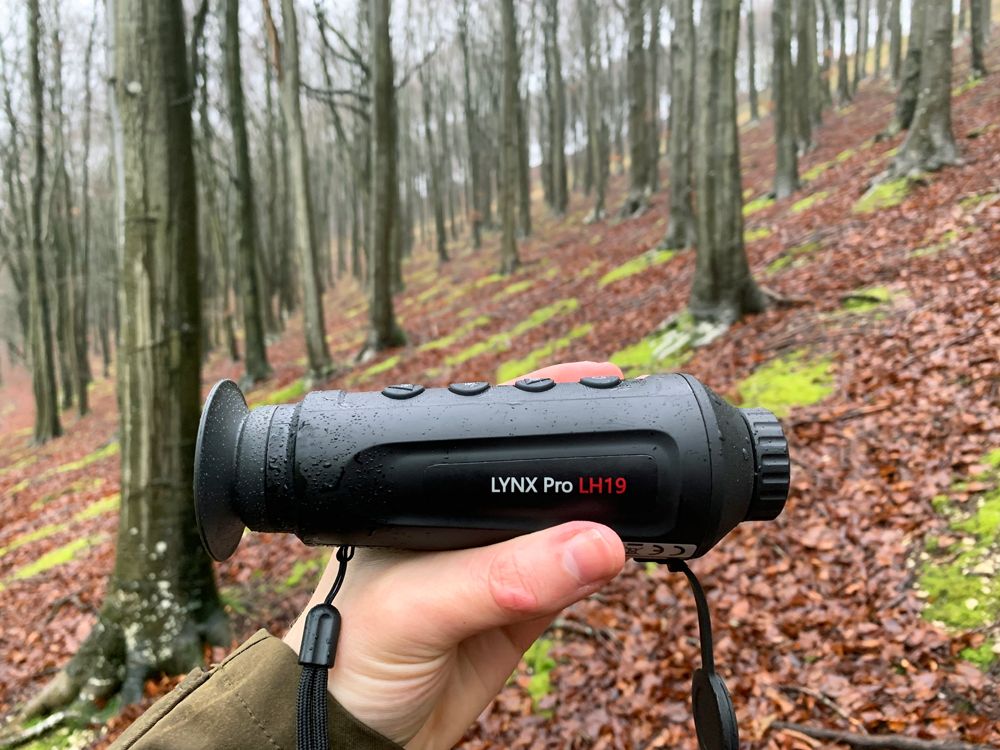

The HIK Micro Lynx Pro 19mm bridges the gap between the 15mm and 35mm models by introducing many of the features found on the premium models into a more cost-effective package.
The Lynx Pro is built on the same compact chassis as the popular, pocket-sized 15mm model from HIK Micro but with the key additional feature of a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.
The Lynx Pro is the first Thermal Monocular from HIK Micro to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target) whilst also helping to reduce the cost of the unit.
HIK has also included the large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
You will find all of the usual HIK Micro features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smartphone.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture images, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
| Product Name A-Z | Supreme Night Vision & Thermal bundle |
|---|---|
| SKU | OPTICSDRAW#11 |
Specs
Main
- Sensor: 384×288px @ 12µm
- Objective Lens (Focal Length): 19 mm
- Detection Range (Human 1.8 x 0.5m): 897 m
Sensor
- Type: VOx Uncooled Focal Plane Arrays
- Resolution, pixels: 384 × 288 px
- Pixel pitch, µm: 12µm
- Frame rate, Hz: 50 Hz
- NETD: <35mK
Thermal Optics
- Objective lens: F1.0
- Magnification (Optical): 1.86x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 13.8° × 10.4° (H × V)
Display
- Type: 10 mm LCOS
- Resolution, Pixels: 1280 x 960
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Video Recorder
- Built-in memory, Gb: 8 Gb
Additional Features
- Hot Tracking: YES
- WiFI hot spot: YES
- T-Vision App support: YES
Environmental
- Degree of protection, IP code: IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
Weight & Size
- Dimensions, mm: 171 mm x 61 mm x 57 mm
- Weight, kg: 0.31 kg
Power Supply
- Operating time on battery (WiFi & Hot tracking disabled): 7.5 hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
Warranty Period
- Main Unit: 3 Years
Battery: 2 Years
Features
- 35mK NETD Rating - one of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
- Objective Focus Ring - precisely adjust the image to optimise your view over a wide range of distances.
- 384x288px 12µm sensor - this change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target).
- 1280 x 960px LCOS Screen - featuring the same large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
- Hot Track - activate Hot Tracking and your Lynx Pro will highlight the hottest spot detected in the current frame with a green crosshair.
- 4 Colour Profiles
- 8x Digital Magnification
- T-Vision App compatibility - Connect, Stream and Record to your Smart Phone.
Video
HIKMICRO Lynx PRO 19mm 35mK 384x288 12um Smart Thermal Monocular
HIK Micro/Vision Lynx/Owl - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
In the box?
HIKMICRO Lynx PRO LH19 Smart Thermal Monocular - 19mm 35mK 384x288px 12umWarranty
- UK 3 Year Manufacturers Warranty from time of purchase.
- UK 2 Year Battery Warranty.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
