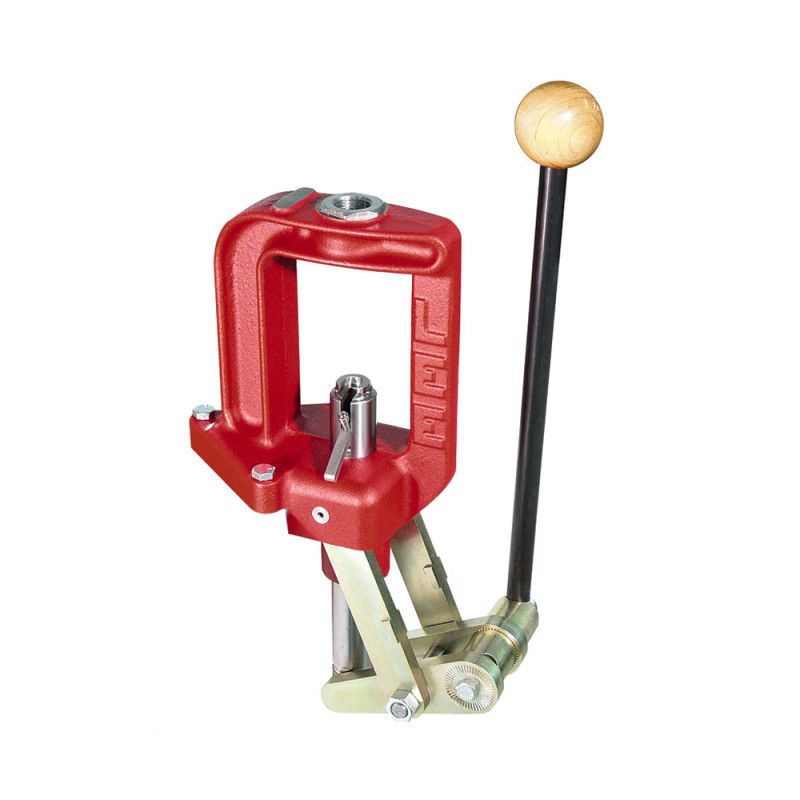

Lee Classic Cast Press
- Industry-leading large opening and long stroke for easy access and smooth operation
- Adjustable handle that can be positioned side to side for left or right-handed use
- Ratchet-type handle clamp with adjustable start and stop positions
- Adjustable handle length to reduce travel when loading shorter cases
- Rigid cast iron “O” frame for maximum strength and durability
- Durable baked powder coat finish that’s both protective and attractive
- Automatic primer arm with bottom-of-stroke priming for improved feel
- Includes both large and small primer arms for versatility
- Designed for large 1¼-12 dies with included adapter for standard 7/8-14 dies
- Through-ram primer disposal system with attached tube for clean operation
- Two-piece ram design allowing use of the 50 BMG shell holder
- Rotatable ram insert for primer installation on left or right side
- Accepts standard shell holders for broad compatibility
#1146
#1169
#1159
#1155
#1158
The Lee Classic Cast Press is engineered for strength, versatility and ease of use, featuring the largest opening and longest stroke in the industry. Its adjustable handle allows the shortest possible travel for efficient operation, while offering full flexibility to suit different cartridge types. Built around a rigid cast iron “O” frame, it delivers exceptional durability and stability, enhanced by a baked powder coat finish that is both hard-wearing and visually refined.
Designed for comfort and control, the fully adjustable handle can be positioned for left- or right-handed operation, with a 48-tooth ratchet clamp allowing precise start and stop positioning. The handle length can be shortened for handgun and short rifle cases, reducing effort and improving workflow. Priming is smooth and intuitive thanks to the automatic primer arm with bottom-of-stroke priming, supplied with large and small primer arms for immediate versatility.
The press is built to accommodate serious reloading tasks, accepting large 1¼–12 dies as standard and including an adapter for 7/8–14 dies. Its large 1⅛-inch diameter ram, supported by over 12 square inches of bearing surface, is drilled through for direct spent primer disposal via an attached tube. The two-piece ram design allows use of the 50 BMG shell holder, while compatibility with standard shell holders and a rotatable ram insert ensures flexible primer installation on either side.
- Frame Design Cast iron “O” frame
- Opening Size Largest in the industry
- Stroke Length Longest in the industry
- Handle Adjustment Side-to-side positioning for left or right-handed use
- Handle Start/Stop 48-tooth ratchet-type clamp
- Handle Length Adjustable
- Priming System Automatic primer arm with bottom-of-stroke priming
- Included Primer Arms Large and small primer arms
- Die Thread Compatibility Large 1¼-12 standard with adapter for 7/8-14 dies
- Ram Diameter 1⅛ inches
- Primer Disposal Through-ram with attached tube
- Ram Design Two-piece for 50 BMG shell holder installation
- Shell Holder Compatibility Accepts standard shell holders
- Ram Insert Rotatable for left or right-side priming
- Industry-leading large opening and long stroke for easy access and smooth operation
- Adjustable handle that can be positioned side to side for left or right-handed use
- Ratchet-type handle clamp with adjustable start and stop positions
- Adjustable handle length to reduce travel when loading shorter cases
- Rigid cast iron “O” frame for maximum strength and durability
- Durable baked powder coat finish that’s both protective and attractive
- Automatic primer arm with bottom-of-stroke priming for improved feel
- Includes both large and small primer arms for versatility
- Designed for large 1¼-12 dies with included adapter for standard 7/8-14 dies
- Through-ram primer disposal system with attached tube for clean operation
- Two-piece ram design allowing use of the 50 BMG shell holder
- Rotatable ram insert for primer installation on left or right side
- Accepts standard shell holders for broad compatibility
- Lee Classic Cast single stage press
- Adjustable operating handle
- Automatic primer arm assembly
- Large primer arm
- Small primer arm
- Through-ram spent primer disposal tube
- Die thread adapter for standard 7/8-14 dies
- Printed instructions and parts list
- Lee Precision Lifetime Warranty
