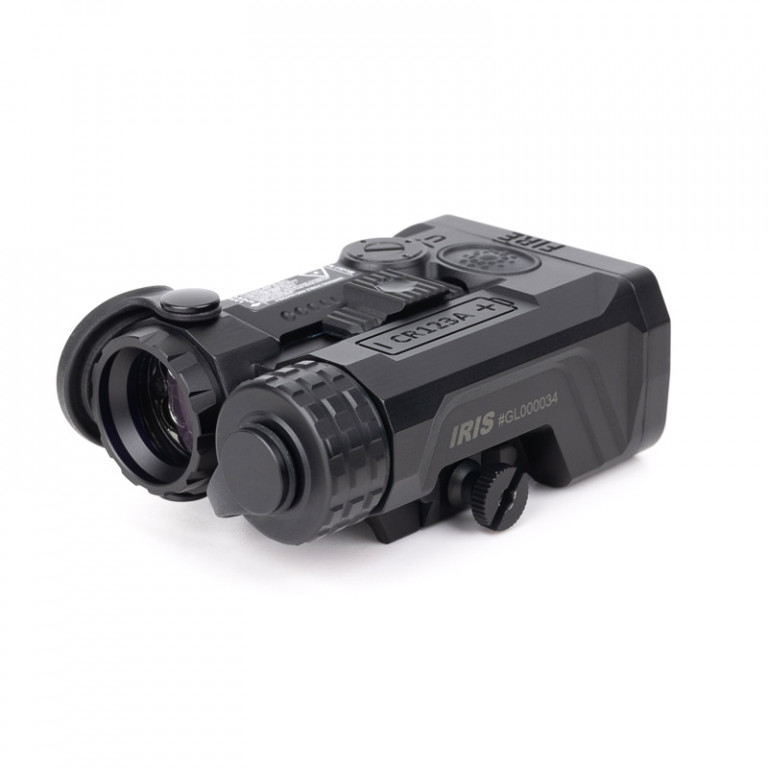

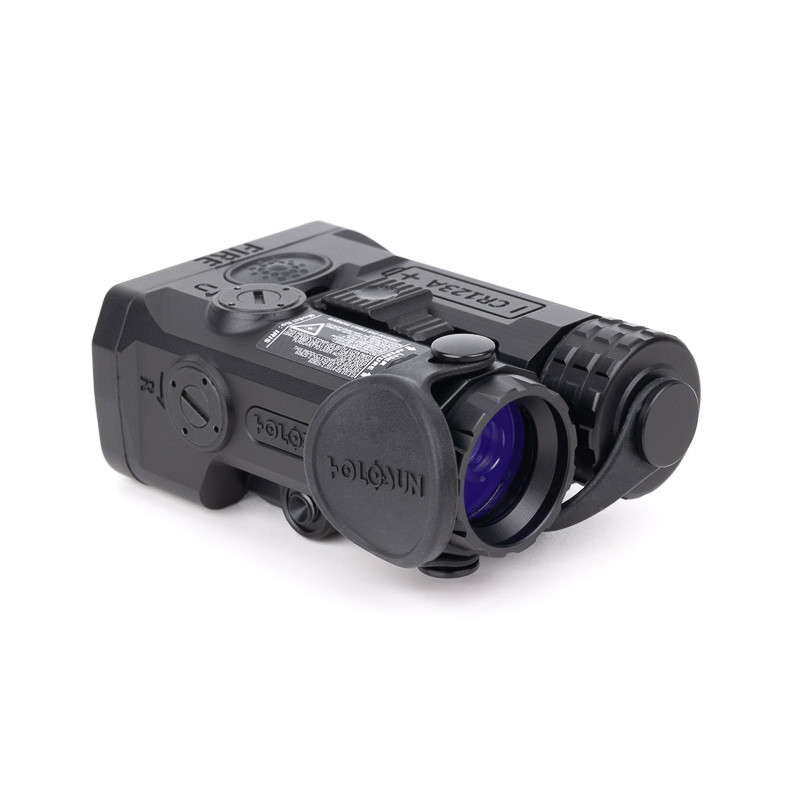

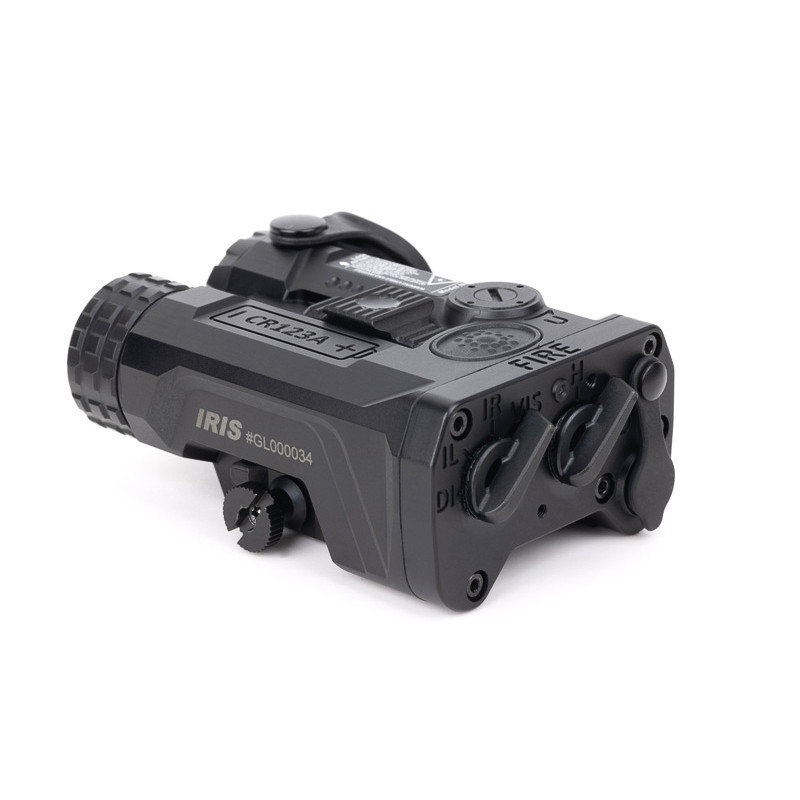

Holosun IRIS-RD-3 Red & IR Laser & IR Illuminator
- Ultra-compact triple-function laser and IR illuminator system.
- 43% lighter and 20% lower profile than the LS321 series.
- Co-aligned visible red and IR lasers for seamless day-to-night zeroing.
- High-output 60mW VCSEL IR illuminator with adjustable beam.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#1190
#1209
#1252
#1255
#1258
The Holosun IRIS-RD-3 is a professional-grade, ultra-compact multi-function aiming and illumination system designed for users who demand maximum capability with minimal footprint. Engineered from redesigned 7075-T6 aluminium, the IRIS-RD-3 is 43% lighter and 20% lower in profile than the LS321 series, offering improved handling while retaining outstanding strength, durability, and operational consistency.
Featuring co-aligned visible red and infrared aiming lasers, the IRIS-RD-3 allows users to zero accurately during the day using the visible laser before switching seamlessly to IR mode for night-time and no-light engagements. A powerful 60mW VCSEL IR illuminator delivers exceptional clarity and reach when paired with night vision, while the top-mounted beam adjustment slider provides rapid, glove-friendly control from wide flood to tight spot.
User-focused controls include a central fire button for intuitive activation from either hand, dual rear selectors for fast mode switching, and a low-profile remote switch with Crane plug and VIS override. Rugged, dependable, and highly capable, the IRIS-RD-3 offers advanced laser and illumination performance in a compact, precision-built platform.
- Power Source Battery
- Battery Type CR123A
- Battery Life (Hours) Up to modes
- Thermal Modes N/A
- Digital Modes N/A
- Video Recording N/A
- Screen Refresh Rate N/A
- Digital Screen N/A
- Brightness Setting Up to modes
- Window Size (in) 0.58 × 0.77
- Dimensions (in) 3.2 × 1.97 × 1.34
- Weight (oz) 6.4
- Housing Material 7075-T6 Aluminium
- Surface Finish Hard Anodise
- Adjustment per Click 0.5 MOA
- W&E Travel Range ±50 MOA
- Storage Temperature -40°C to 70°C
- Working Temperature -30°C to 60°C
- Submersion IPX8
- Vibration 1000G
- Laser & Illuminator Type Dual Laser & IR Illuminator
- IR Illuminator Class Class 1
- IR Illuminator Output 60mW VCSEL
- IR Pointer Class Class 1
- IR Pointer Output <0.7mW
- Visible Laser Class 3R
- Visible Laser Output <5mW
- White LED Candela N/A
- White LED Output N/A
- Redesigned Compact Housing: Constructed from 7075-T6 aluminium, offering exceptional durability with a significant reduction in weight and profile height.
- Co-Aligned Laser System: Visible red laser enables precise daylight zeroing, while the IR laser provides accurate aiming during night operations.
- 60mW VCSEL IR Illuminator: Produces a powerful, clean IR beam ideal for low-light and no-light environments when used with night vision.
- Adjustable Beam Control: Top-mounted slider allows quick and precise adjustment between wide-area illumination and long-range focused lighting.
- User-Friendly Controls: Central fire button ensures ambidextrous use; dual rear selectors offer simple mode and power switching.
- Remote Activation: Supplied with a low-profile Crane-plug remote switch featuring dual buttons and VIS override for enhanced tactical control.
- Optimised Ergonomics: Compact footprint improves weapon balance and handling, particularly on shorter platforms.
- Operational Reliability: Built to withstand harsh environmental conditions, including submersion and high vibration.
- Holosun IRIS-RD-3 Red & IR Laser & IR Illuminator
- HOLOSUN Limited Lifetime Warranty
