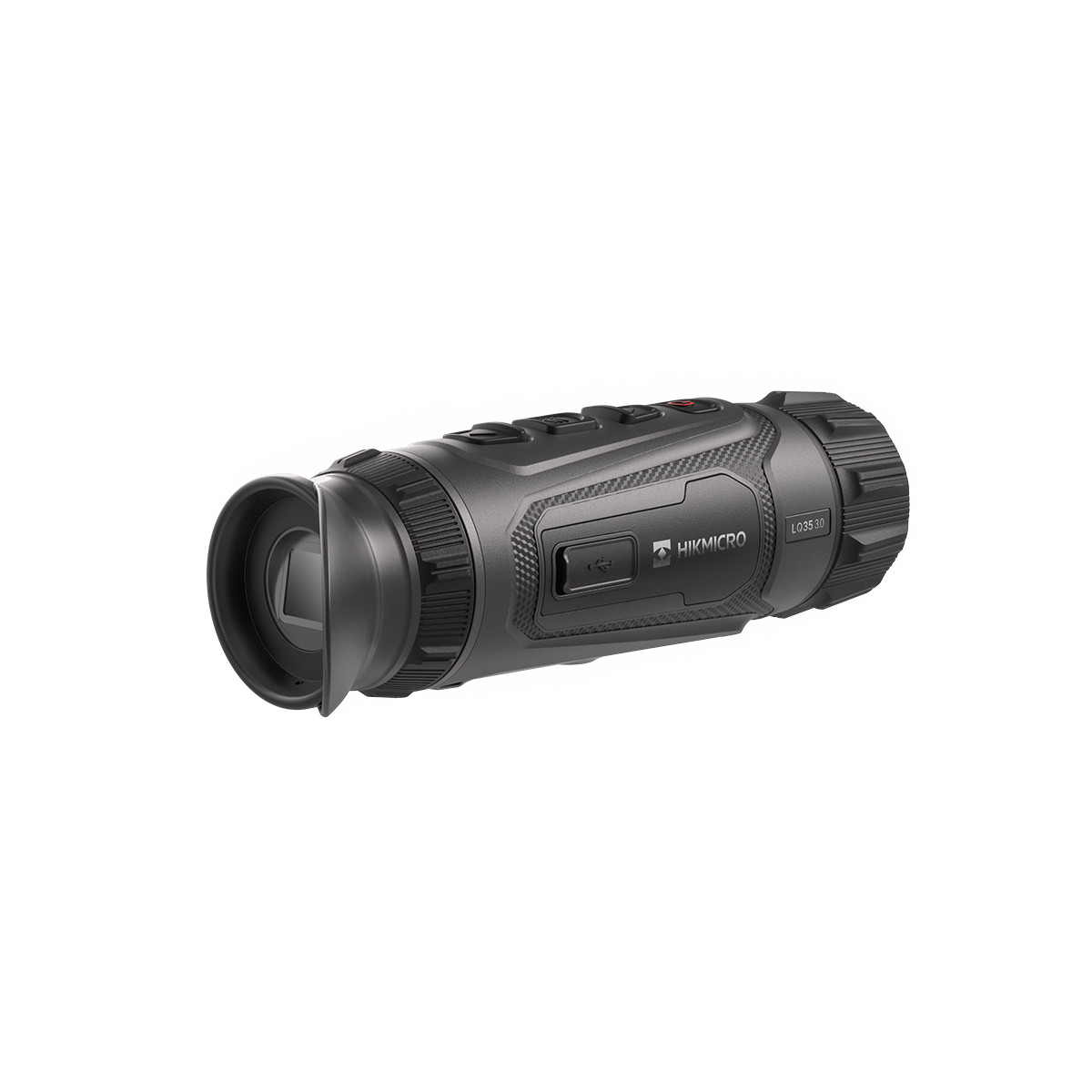

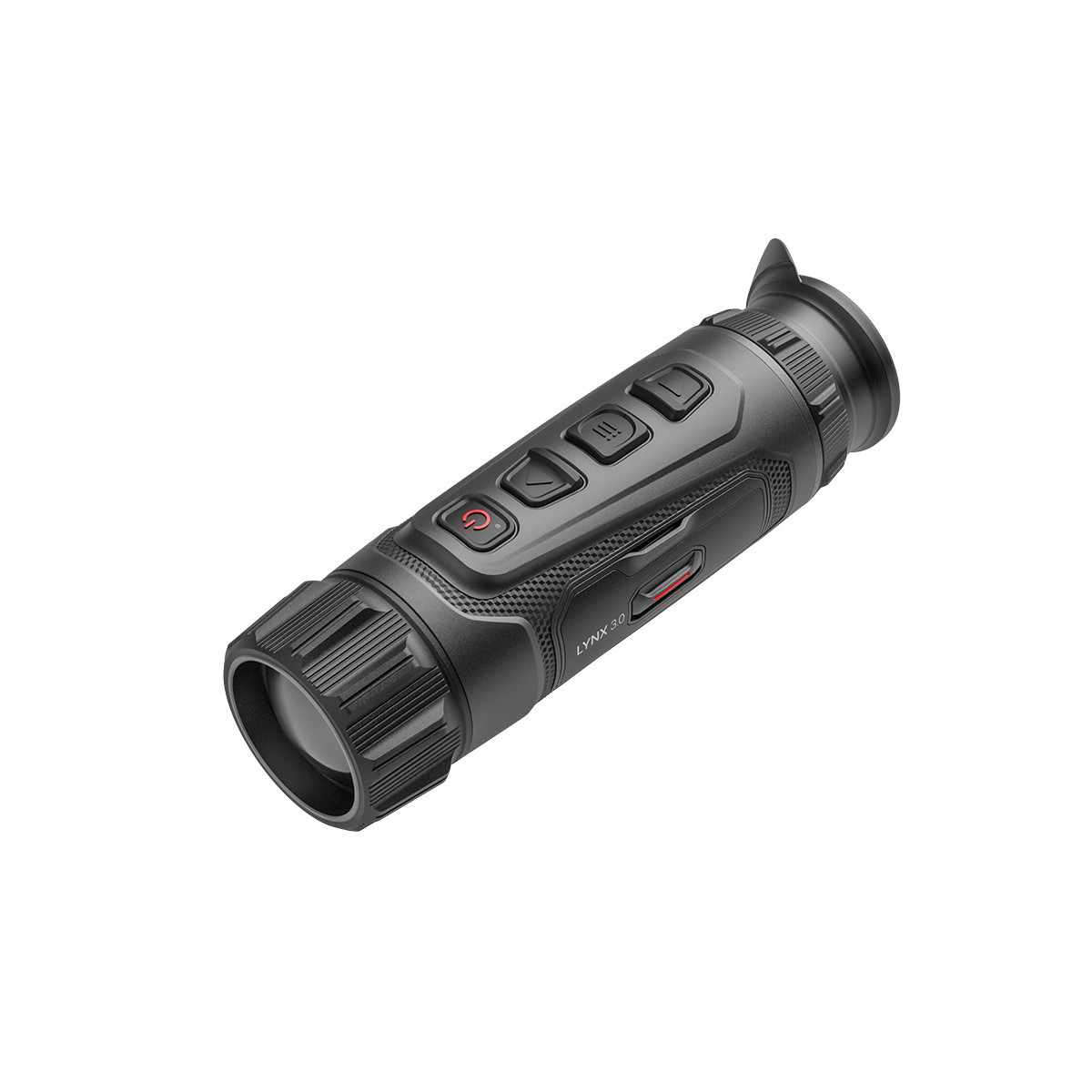

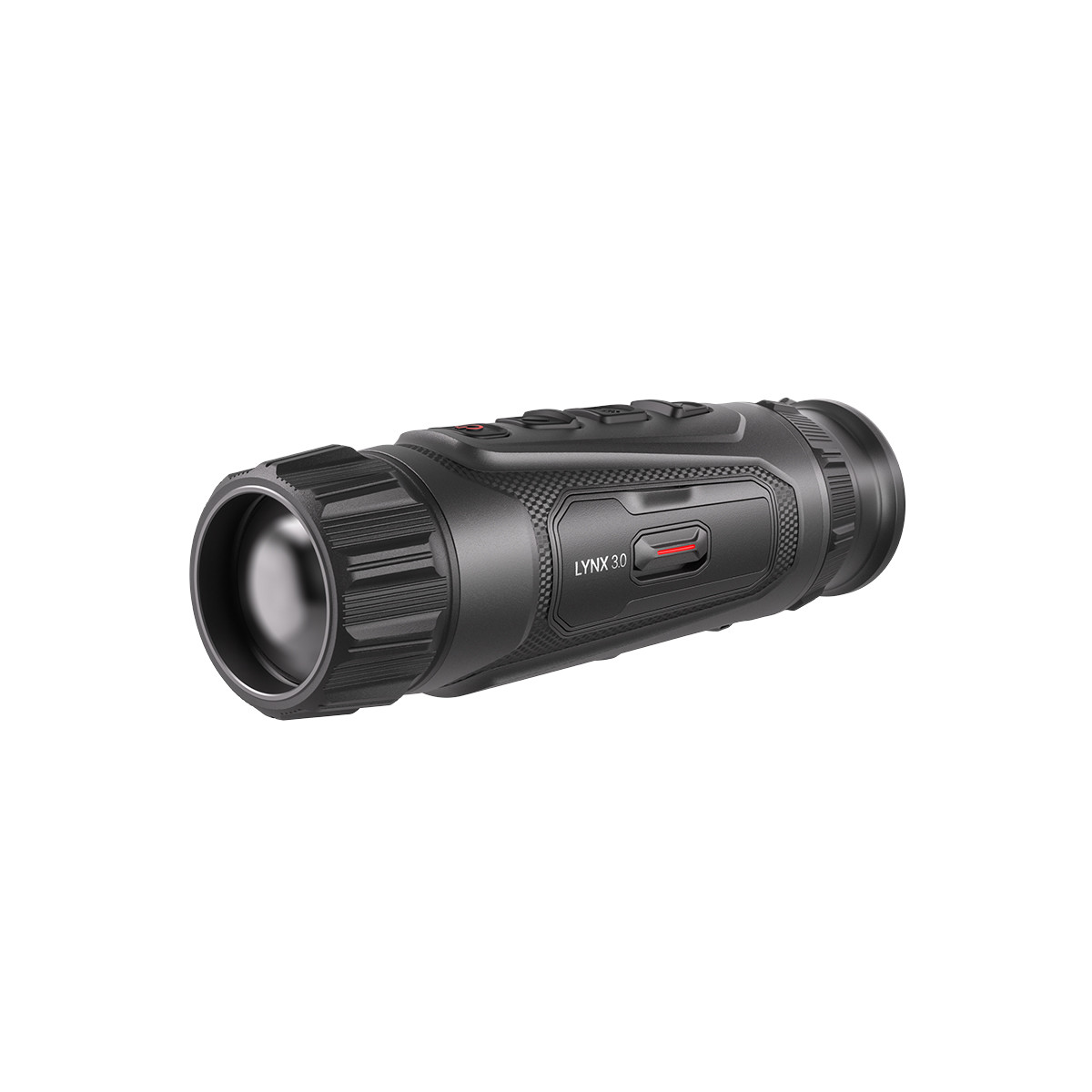

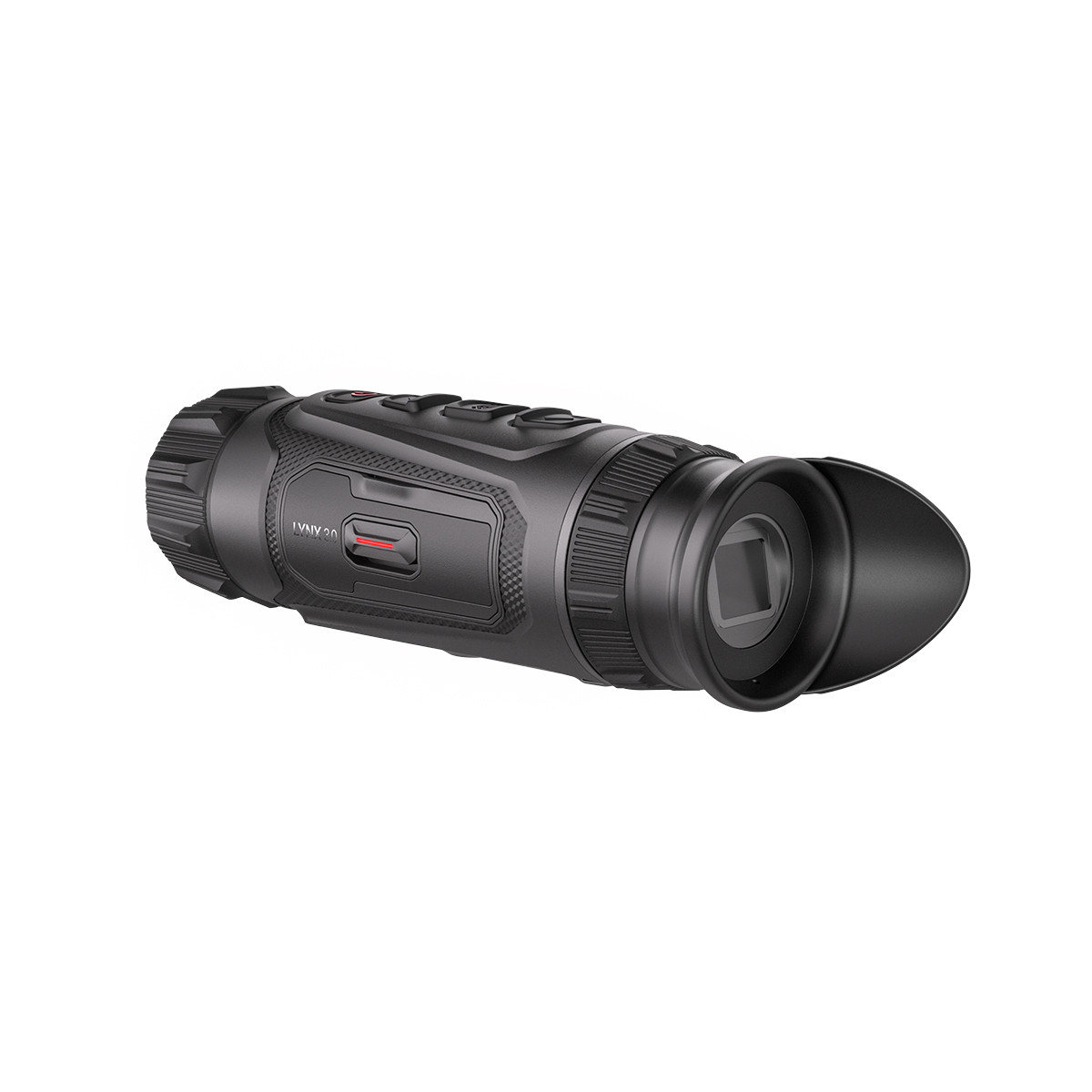

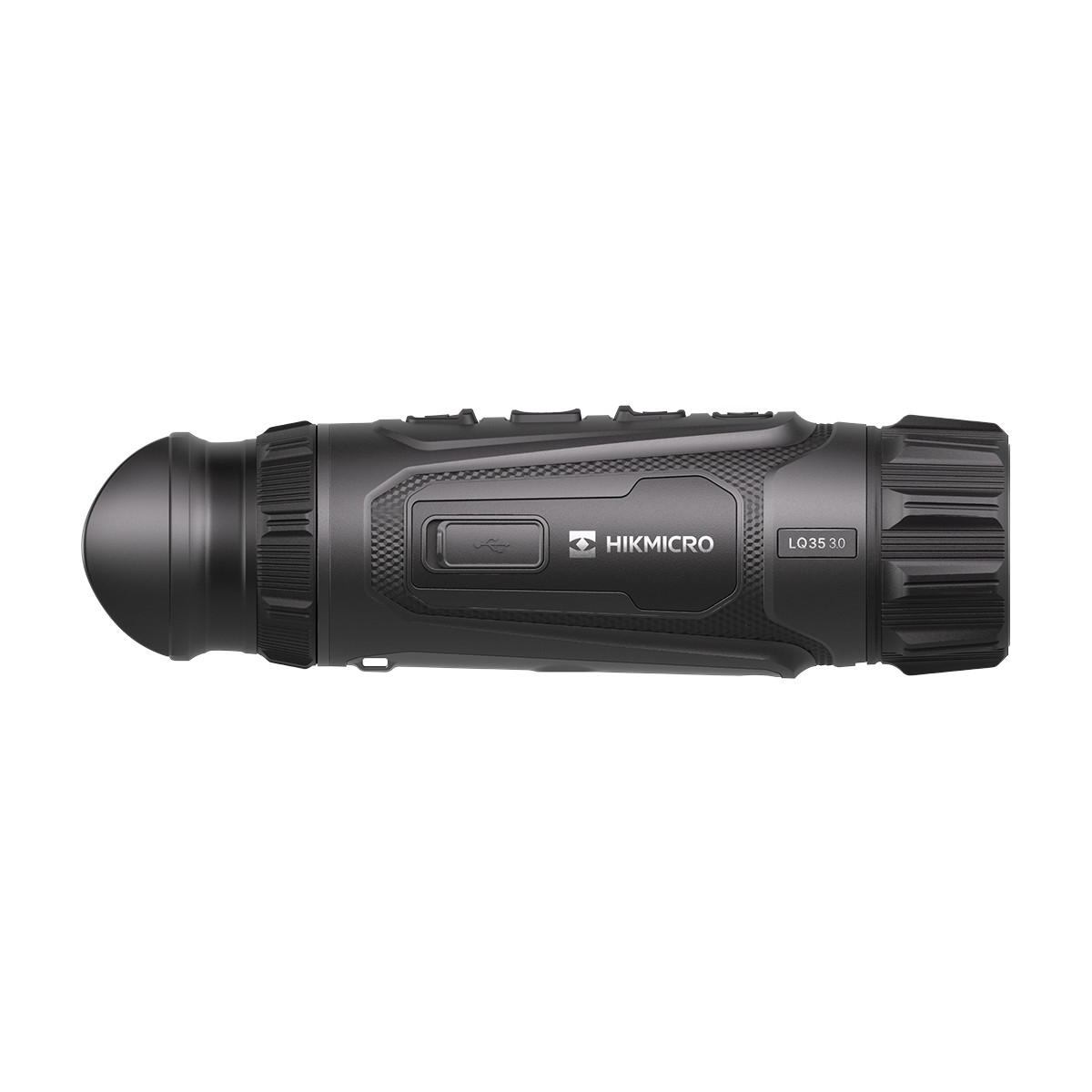

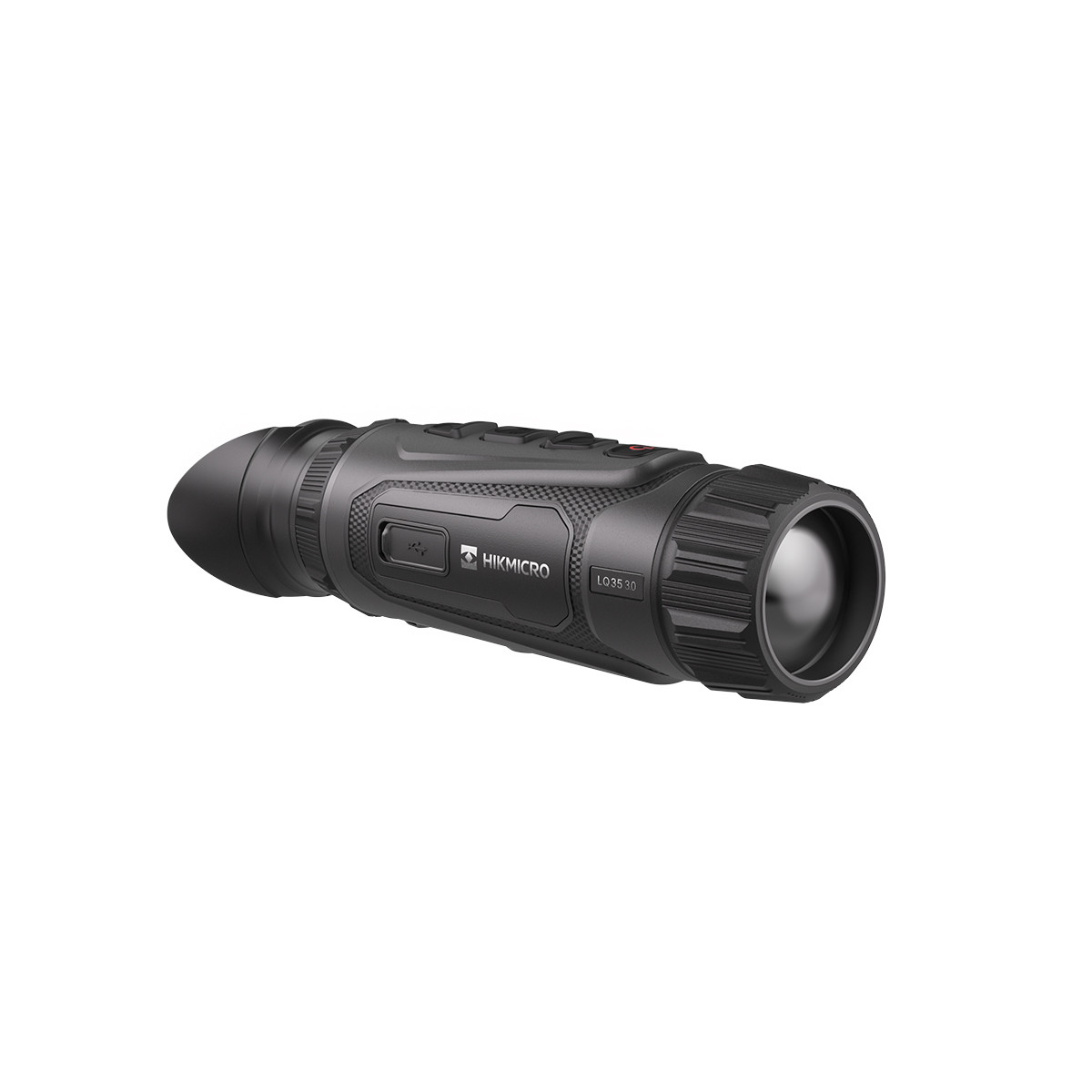

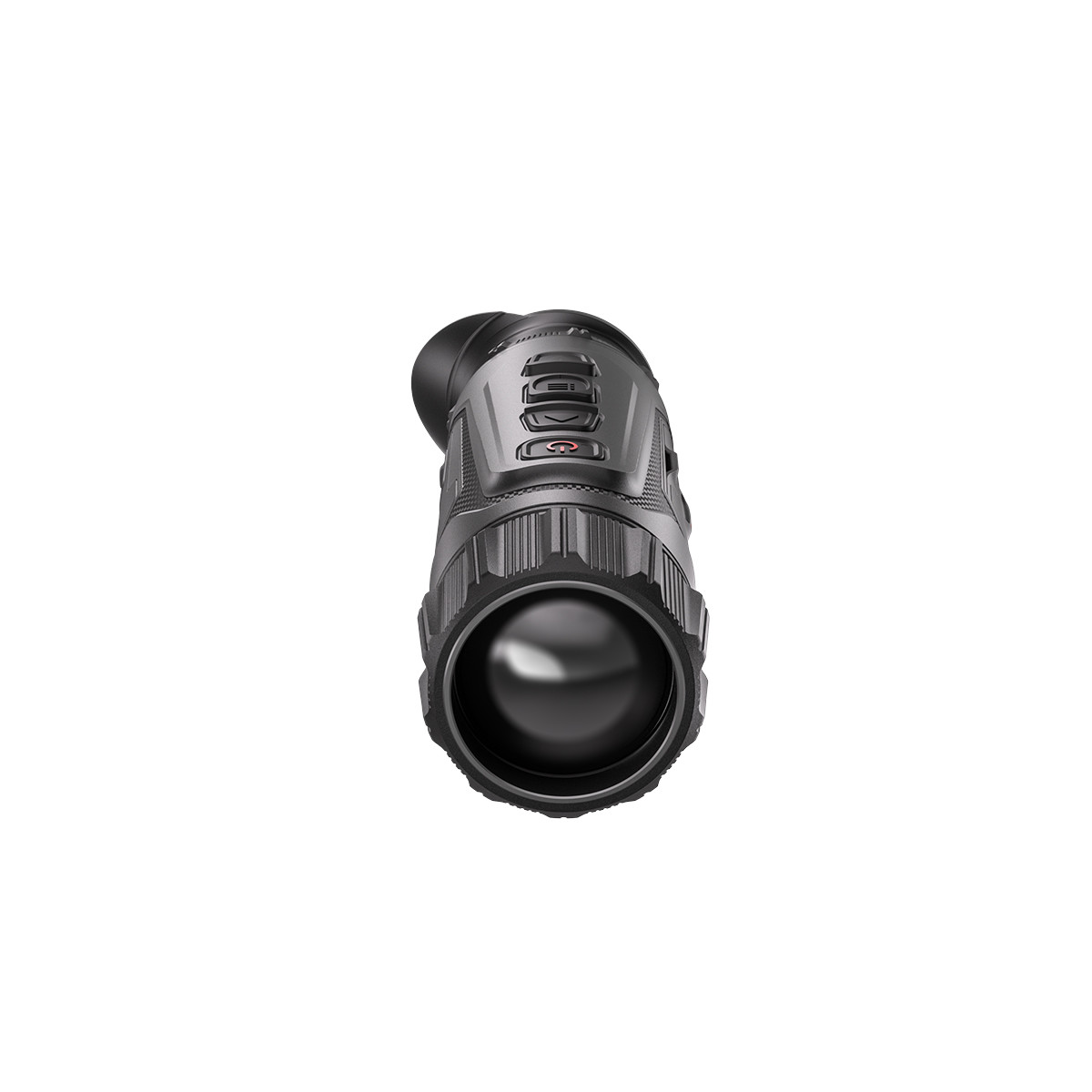

HIKMICRO Lynx 3.0 LQ35 35mm Thermal Monocular

• Image Sensor VOx Uncooled Focal Plane Arrays
• Max. Resolution 640 × 512
• Frame Rate 50 Hz
• Pixel Interval 12 μm
• Response Waveband 8 μm – 14 μm
• NETD < 15 mK (@25°C), F#=1.0
• Lens (Focal Length) 35 mm, f1.0
• Focus Mode Focus Ring
• Detection Range 1800 m
• Min. Focusing Distance 3.5 m
• Magnification 1.9× – 15.2× (8×)
• Field of View (H × V) 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
• Display 1920 × 1080, 0.49 in, AMOLED
• Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil 6 mm
• Eye Relief 20 mm
• Diopter (Range) -5D to +3D
• Brightness Adjustment Yes
• Tone Adjustment Cold, Warm
• Contrast Adjustment Yes
• Zoom Pro Yes
• HSIS (HIKMICRO Shutterless Image System) Yes
• Image Pro 3.0 Yes
• Record Video Yes
• Capture Snapshot Yes
• Audio Recording Yes
• Standby Mode Yes
• Built-in Memory 64 GB EMMC
• PIP Yes
• Hotspot 2.4 GHz / 5 GHz Wi-Fi
• Hot Track Yes
• Distance Measurement Yes
• Local Album Yes
• Battery Type Replaceable & Rechargeable Li-ion 18650
• Battery Operating Time 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
• Type-C Power Supply 5V DC, 2A
• External Power Supply Supported, Direct Charging Supported
• Protection Level IP67
• Dimension 169.6 × 53.6 × 49.5 mm
• Weight 354.5 g (with battery)
• Working Temperature -30°C to 45°C (-22°F to 113°F)
• Humidity ≤ 90%

• Up to 640×512 Thermal resolution
• High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
• 35 mm, F1.0 lens with thermal detection range up to 1800 m
• HIKMICRO Shutterless Imaging System (HSIS)
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 354.5 g, with a pocket-sized build

• 1 x Lynx 3.0 Thermal Monocular
• 1 x Quick Start Guide
• 2 x 18650 Battery
• 1 x Type-C USB Cable
• 1 x Battery Charger
• 1 x Lint Free Cloth

What is the HIKMICRO Lynx 3.0 LQ35 designed for?
The Lynx 3.0 LQ35 is a handheld thermal monocular designed for spotting, scanning, and observation. It is suited to hunting, wildlife watching, security, and general long-range thermal use.

What thermal resolution does it have?
It has a 640 × 512 thermal sensor, which gives a clearer and more detailed image than lower-resolution models.

How far can it detect?
It has a detection range of up to 1800 metres, making it a strong option for long-range spotting.

What magnification does it offer?
It offers 1.9x base magnification and can zoom up to 15.2x digitally.

How good is the image quality?
It offers excellent image quality thanks to its sub-15 mK NETD thermal sensitivity, 35 mm F1.0 lens, and HIKMICRO’s Image Pro 3.0 and Zoom Pro technology.

Does it have shutterless imaging?
Yes, it features HIKMICRO’s shutterless HSIS system, which provides a smoother and quieter viewing experience without the normal shutter freeze.

Can it record video and take photos?
Yes, it can record video, capture photos, and record audio.

How long does the battery last?
It offers up to 5 hours of continuous use at 25°C and up to 4.5 hours at -20°C. It uses a replaceable rechargeable pip-top 18650 battery.

Is it lightweight and easy to carry?
Yes, it weighs 354.5 g including the battery, so it is compact and easy to carry in the field.

Is it weatherproof?
Yes, it is IP67 rated, meaning it is well protected against dust and water ingress.

What comes in the box?
In the box you get the Lynx 3.0 monocular, two 18650 batteries, a battery charger, a Type-C USB cable, a quick start guide, and a lint-free cloth.

What warranty does it come with?
The main unit comes with a 3-year warranty.

How does this unit focus?
This unit has a manually adjustable focus wheel at the front of the unit.

• Main Unit: 3 Years

If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
