HIKMICRO Lynx-S Pro LE10S Smart Thermal Hand Held Monocular - 10mm <35mK 256x192px 12µm 50Hz
- Compact and powerful thermal monocular with a 256 × 192 resolution sensor and <35mK NETD for exceptional thermal sensitivity.
- 800 × 600 OLED display providing crisp imagery for clear thermal viewing.
- 9.7mm F1.0 lens with a 500m detection range, offering superior clarity and target identification.
- 1.5× to 12× magnification, hotspot connectivity, video recording, and hot tracking for enhanced usability and versatility.
- IP67-rated for water and dustproof protection, ensuring reliability in harsh conditions.
- Lightweight at 260g and offers up to 8 hours of battery life for extended field use.
#820
#817
#821
#818
#816
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
The HIKMICRO Lynx-S PRO LE10S is a compact and powerful smart thermal handheld monocular, designed to deliver exceptional thermal imaging performance in a variety of conditions. Whether you're out hunting, hiking through rugged terrain, or engaged in search and rescue operations, this advanced device provides a clear, high-resolution thermal view, even in total darkness.
At the core of the Lynx-S PRO LE10S is a 256 × 192 VOx uncooled thermal sensor with a pixel pitch of 12µm, ensuring sharp thermal imaging with remarkable detail. With a NETD of less than 35mK, this monocular excels at detecting the smallest temperature differences, making it highly effective in low-contrast environments. The 800 × 600 OLED display delivers crisp imagery, enhanced by adaptive AGC, DDE, and 3D DNR processing technologies for superior clarity and depth perception.
This lightweight yet durable thermal monocular features a 9.7mm F1.0 lens with a focus-free design, providing a detection range of up to 500 metres. Its 1.5× to 12× magnification allows users to zoom in on distant objects with ease, while the wide 18.0° × 13.6° field of view ensures a broad perspective for effective scanning and tracking.
Packed with intelligent features, the Lynx-S PRO LE10S supports hotspot functionality, allowing for easy connectivity and image sharing. It offers built-in video recording, snapshot capture, and audio recording, ensuring users can document their observations effortlessly. Additional tools such as Picture-in-Picture (PIP), hot tracking, and distance measurement further enhance its usability in the field.
Designed for extended use, the device houses a rechargeable lithium battery, providing up to 8 hours of continuous operation with the hotspot function disabled, and 6 hours with it enabled. A Type-C power supply ensures convenient recharging, and the device also supports external power sources for prolonged field applications.
Built to withstand challenging environments, the Lynx-S PRO LE10S is IP67-rated, offering waterproof and dustproof protection for reliable performance in extreme conditions. Despite its rugged construction, it remains incredibly lightweight at just 260g, making it easy to carry and operate for extended periods.
For those seeking a high-performance, feature-rich, and portable thermal monocular, the HIKMICRO Lynx-S PRO LE10S delivers outstanding value.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture images, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 256 × 192
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm to 14 μm
- NETD <35 mK (@25°C, F# = 1.0)
- Lens (Focal Length) 9.7 mm, F1.0
- Focus Mode Focus Free
- Detection Range 500 m
- Min. Focusing Distance 4 m
- Magnification 1.5× to 12× (8× Digital Zoom)
- Field of View (H × V) / @100 m 18.0° × 13.6° / 31.7 m × 23.8 m
- Display 800 × 600, 0.32-inch OLED
- Palettes Black Hot, White Hot, Red Hot, Fusion
- Flat Field Correction (FFC) Modes Auto, Manual, External Correction
- Exit Pupil 20 mm
- Eye Relief 6 mm
- Diopter Adjustment -5D to +4D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- Video Recording Yes
- Snapshot Capture Yes
- Audio Recording Yes
- Standby Mode Yes
- Storage Built-in 8 GB memory module
- Picture-in-Picture (PIP) Yes
- Hotspot Functionality Yes
- Hot Track (Target Highlighting) Yes
- Distance Measurement Yes
- Battery Type Rechargeable Lithium Battery
- Battery Life8 hours (hotspot function off, @25°C)/6 hours (hotspot function on, @25°C)
- Charging Interface Type-C (DC 5V/2A)
- External Power Supply Support Yes
- Protection Level IP67 (Waterproof & Dustproof)

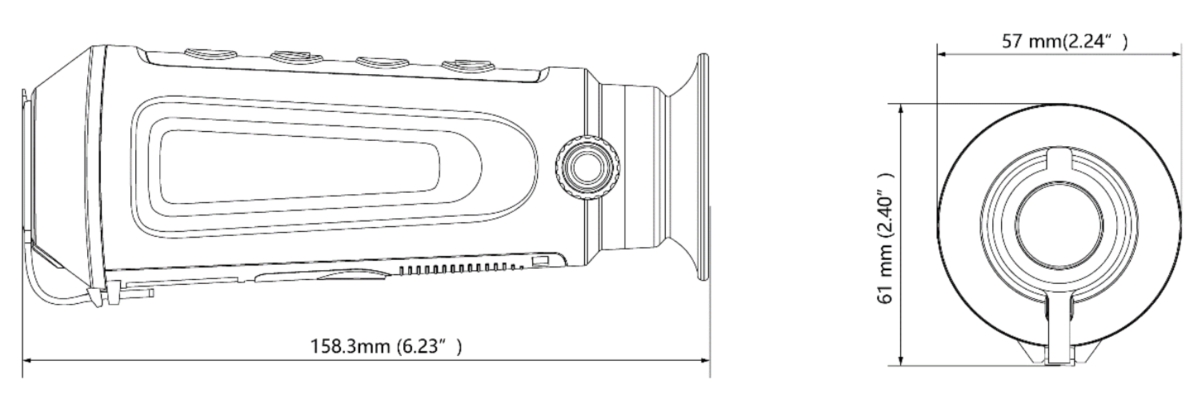

- Dimensions 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”)
- Operating Temperature -20°C to 55°C (-4°F to 131°F)
- Weight 260 g (0.57 lbs)
- 9.7mm F1.0 Lens with Focus-Free Design: Offers a detection range of up to 500 meters for clear and detailed target identification without the need for manual focus.
- 1.5× to 12× Magnification: Allows users to zoom in on distant objects, providing flexibility for a wide range of viewing situations.
- 18.0° × 13.6° Field of View: A wide field of view for effective scanning and tracking of targets across large areas.
- Hotspot Functionality: Enables easy connectivity and image sharing for improved situational awareness and collaborative use.
- Built-in Video Recording, Snapshot Capture, and Audio Recording: Effortlessly document observations with high-quality video, snapshots, and audio, ideal for field reports.
- Picture-in-Picture (PIP) Mode: Offers a magnified view of a selected area overlaid on the main display for precise target identification.
- Hot Tracking and Distance Measurement: Highlights targets and estimates distances, improving targeting accuracy in dynamic environments.
- Rechargeable Lithium Battery: Provides up to 8 hours of continuous use without hotspot function, or 6 hours with the hotspot enabled.
- Type-C Charging Interface: Allows for convenient and fast recharging, with support for external power sources for extended field use.
- IP67 Rating: Waterproof and dustproof, designed to perform reliably in extreme weather conditions and rugged environments.
- Lightweight Design (260g): Compact and portable, making it easy to carry and operate for long periods without fatigue.
- Versatile for Multiple Applications: Ideal for hunting, hiking, search and rescue operations, and other outdoor activities requiring advanced thermal imaging.
HIKMICRO Lynx PRO 10mm 35mK 256x192 12um Smart Thermal Monocular
HIK Micro/Vision Lynx/Owl - OPW Quickfire Review
HIKMICRO Lynx Range Comparison
- HIKMICRO Lynx-S PRO LE10S Smart Thermal Hand Held Monocular - 10mm <35mK 256x192px 12µm
- Quidk start guide
- Non-dust cloth
- USB cable
- Protective bag
- Wrist strap
What is it?
A compact thermal spotter that lets you see heat in total darkness.
Does it need light to work?
No. It detects heat, not light—so it works in complete darkness
What does 256 × 192 mean?
That’s the resolution of the thermal sensor. More pixels = clearer image. This is a good level for entry use.
What is NETD?
It measures how well the device sees small temperature differences. The lower the number, the clearer the image. This model has <35 mK
What is 12 µm?
Is the Pixel pitch - The space between each pixel
What is the range?
It can detect up to 500 metres away (in ideal conditions and open field of view).
Do I need to focus it?
No. It’s focus-free—just power it on and look.
Does it zoom?
Yes. It has 1.5× optical zoom and up to 12× digital zoom.
Can I change colour modes?
Yes—Black Hot, White Hot, Red Hot, and Fusion are available.
Can I take photos or videos?
Yes, and it also records sound. All files are saved to built-in memory.
Does it connect to a phone?
Yes, through Wi-Fi and the HIKMICRO Sight app. You can view live, record, and share.
What is Hot Tracking?
It highlights the hottest thing on screen—makes animals or people easier to spot.
What is Picture-in-Picture?
It gives a zoomed-in box view while still showing the full screen view.
How long does the battery last?
Up to 8 hours (or 6 hours with Wi-Fi on).
How do I charge it?
With a USB-C cable. You can also use a power bank.
How heavy is it?
Only 260 grams—very lightweight and easy to carry.
Can I buy it outside the UK?
No. It’s only available to UK customers.
Can I get spare parts?
Yes, from hikmicroassist.co.uk
What does 50 Hz mean?
This is the refresh rate of the screen. A 50 Hz refresh rate means the image updates 50 times per second, giving you a smooth, real-time view—especially useful when tracking moving targets.
- Main Unit: 3 Years
- Battery: 2 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
