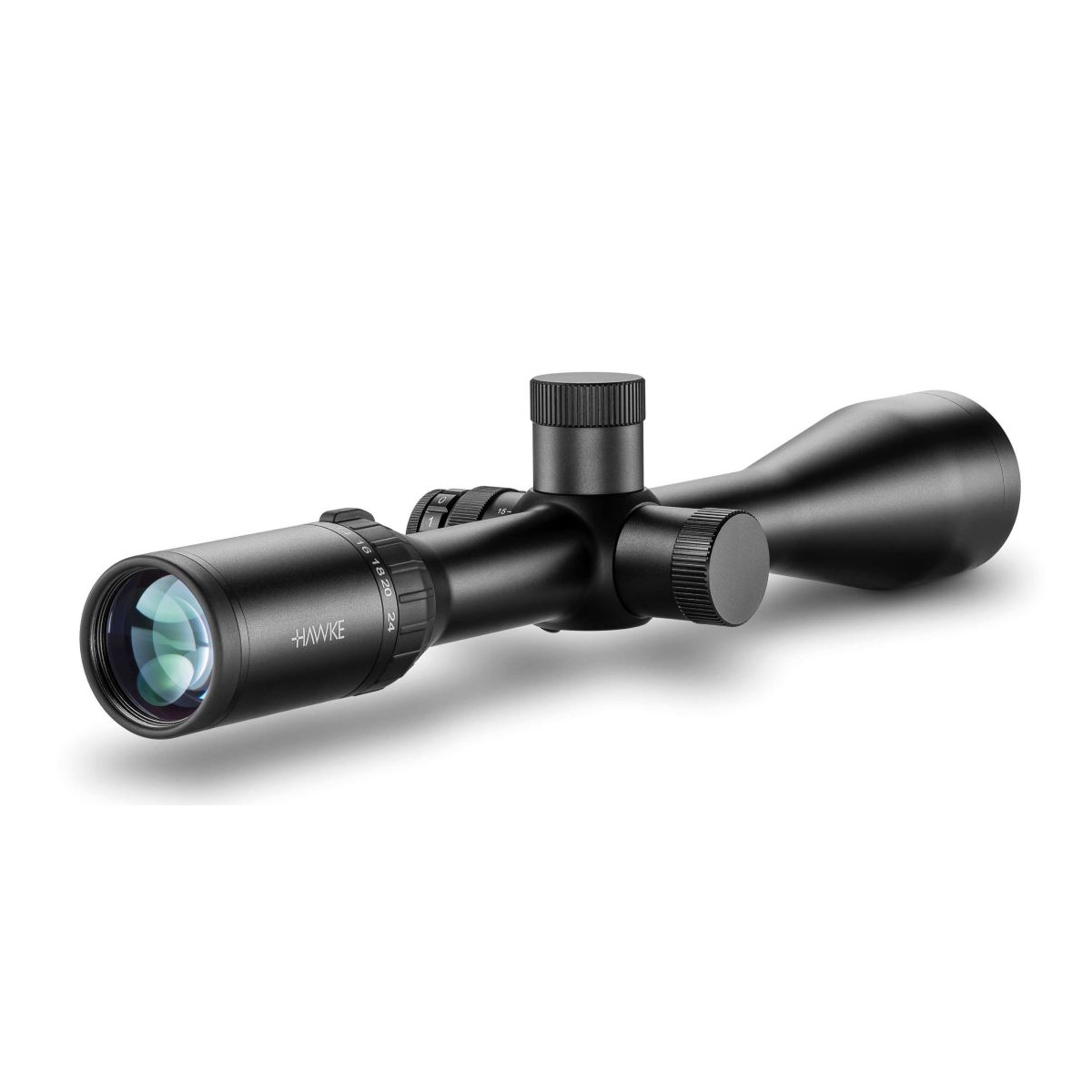

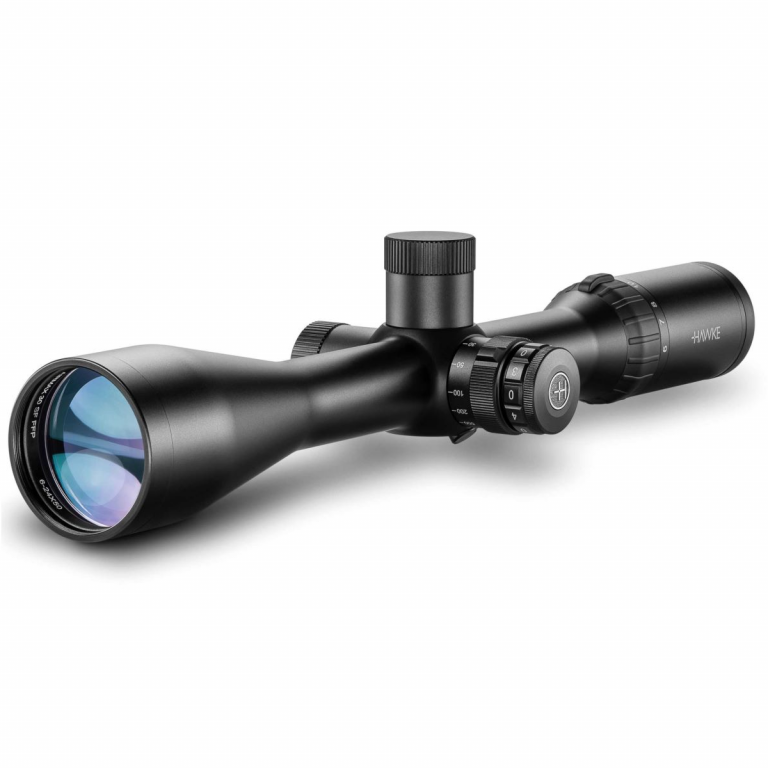

Hawke AIRMAX 30 FFP SF 6-24×50 AMX IR Reticle Rifle Scope
- First Focal Plane optical system
- Wide Angle optical system ideal for varmint/airgun
- 16 layer fully multi-coated optics for exceptional clarity
- Side focus control for parallax adjustment to infinity
- 30mm mono-tube chassis for superior strength
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1⁄10 MRAD capped, resettable target turrets
- Fast focus eyebell and high torque zoom ring
#428
#425
#426
#427
#424
The Hawke Airmax 30 FFP SF 6-24×50 AMX IR Reticle Rifle Scope features outstanding glass that is pin-sharp, a durable & well-built aluminum body, weatherproofing, and an illuminated reticle with 6 levels of red. You can have all of this at an amazing price.
The FFP AMX IR reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles.
The FFP AMX IR offers multiple aim points, useful when shooting at longer distances. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are positioned at 0.5, 1.5, 2.5, 3.5 and 4.5 Mil spacing. Hollow posts are segmented into Mil spacing and can be used for bracketing.
The mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
- Chassis: 30mm Mono-tube
- Optical System: 6-24×
- Objective Diameter: 50mm
- Reticle: AMX IR
- Illumination: Red - 6 Levels (with Off Positions In-between)
- Focus/Parallax: Side Focus - 9m / 10yds to Infinity
- Field of View: m @100m / ft @100yds 7 - 1.8m / 21.0 - 5.2ft
- Eye relief: 90mm / 3.5″

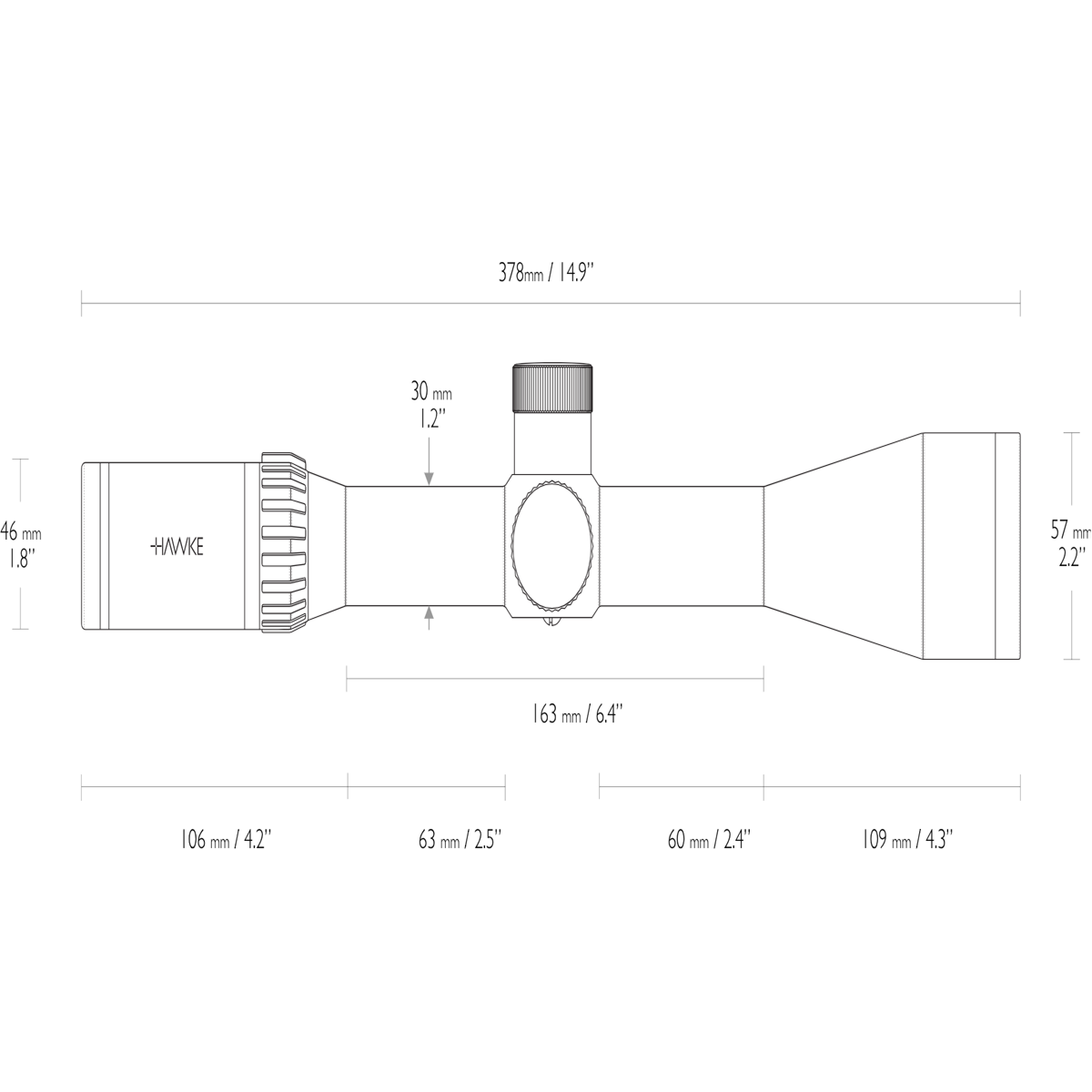

- Length: 378mm / 14.9″
- Weight: 765g / 27oz
- Waterproof
- Shockproof
- Nitrogen purged
- All calibre rated
- Material: Aluminium
- Exit Pupil: 8.3 - 2.1mm / 0.33 - 0.08
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 16 Layers
- Power Selector Style: Rubber Coated Posi-Grip
- Focal Plane: First Focal Plane (FFP)
- Warranty: Hawke Worldwide Warranty
- Elevation Increment: 1⁄10 MRAD
- Elevation Adjustment Range: 17 MRAD
- Windage Increment: 1⁄10 MRAD
- Windage Adjustment Range: 17 MRAD
- Turret Caps: YES
- Turret Type: Target
- Made in China
- First Focal Plane optical system
- Wide Angle optical system ideal for varmint/airgun
- 16 layer fully multi-coated optics for exceptional clarity
- Side focus control for parallax adjustment to infinity
- 30mm mono-tube chassis for superior strength
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1⁄10 MRAD capped, resettable target turrets
- Fast focus eyebell and high torque zoom ring

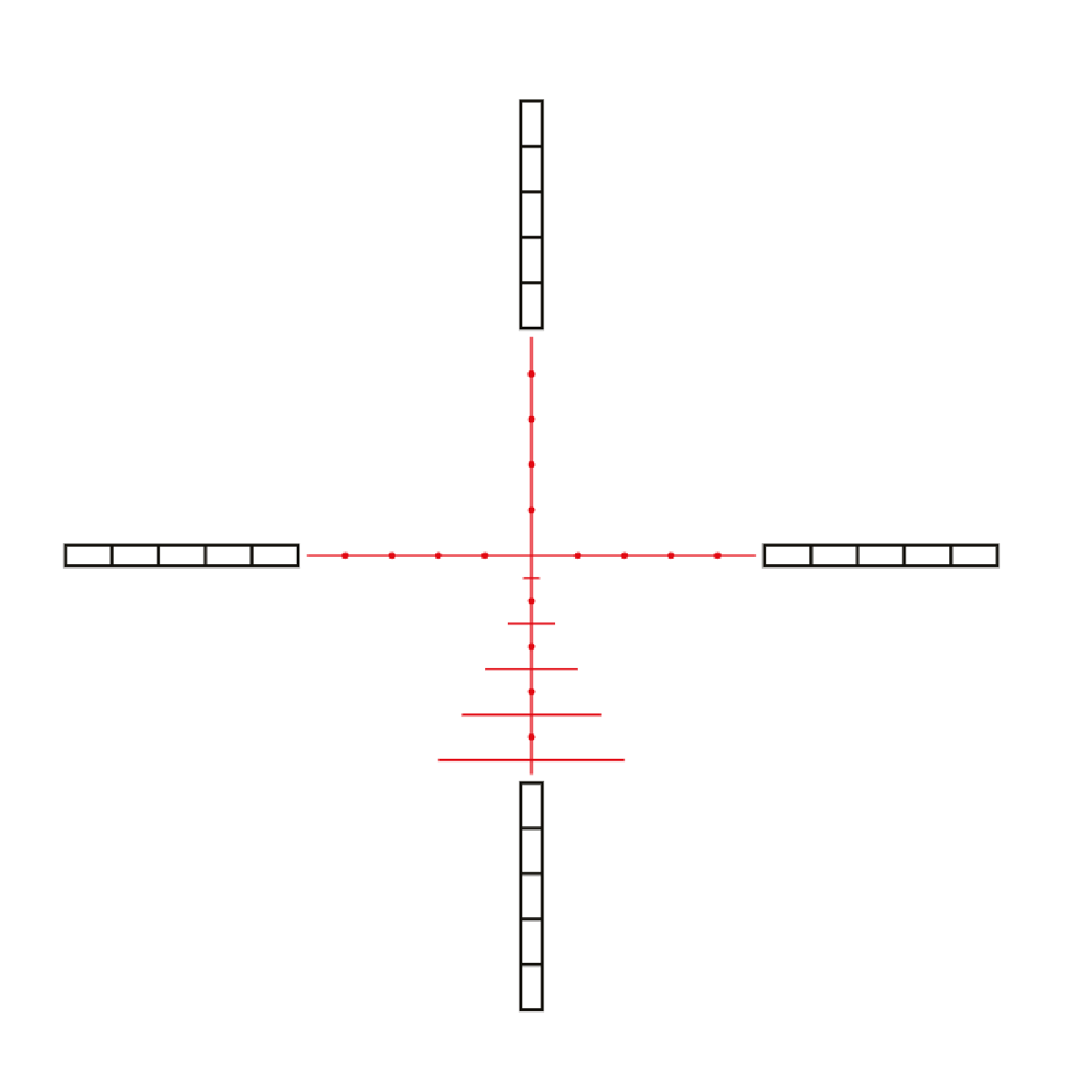

FFP AMX IR RETICLE
The FFP AMX IR reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles.
The FFP AMX IR offers multiple aim points, useful when shooting at longer distances. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are positioned at 0.5, 1.5, 2.5, 3.5 and 4.5 Mil spacing. Hollow posts are segmented into Mil spacing and can be used for bracketing.
The mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
- Hawke AIRMAX 30 FFP SF 6-24×50 AMX IR Reticle Rifle Scope
- Instruction Manual
- Lens Cloth
- 4" Sunshade
- Metal Flip-Up Lens Covers (61052 & 61009)
- Flip-Up Removal Tool
- 4" Sidewheel
- Hex Key
- CR2032 Battery
- Hawke Worldwide Warranty.
