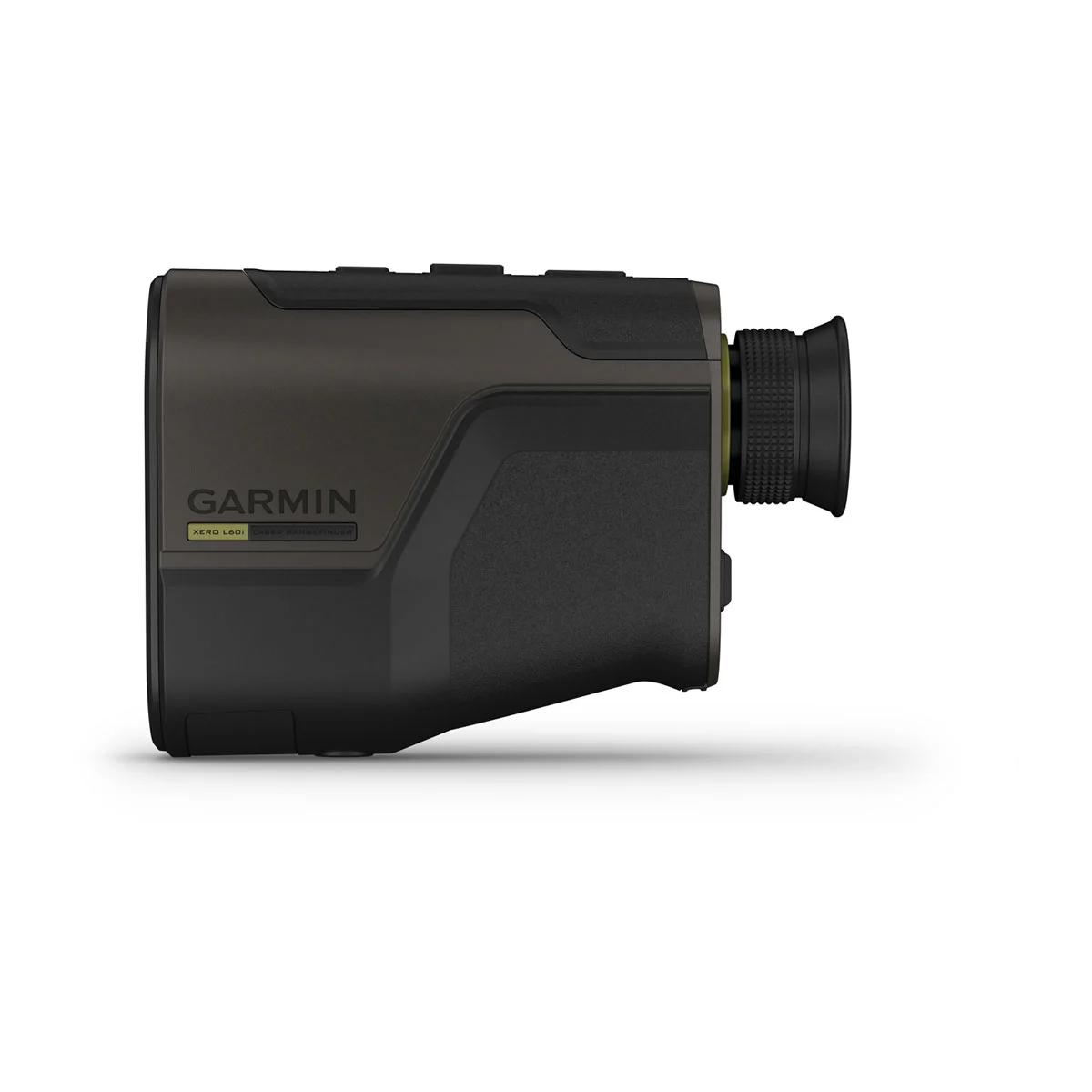

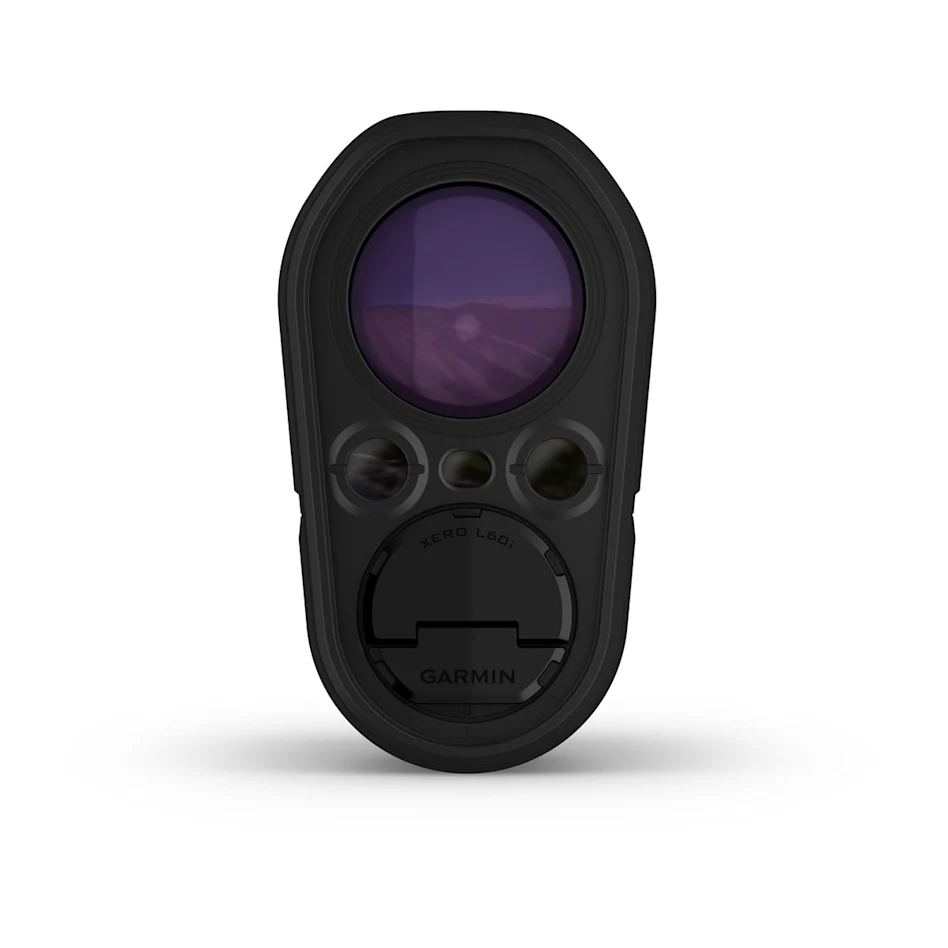

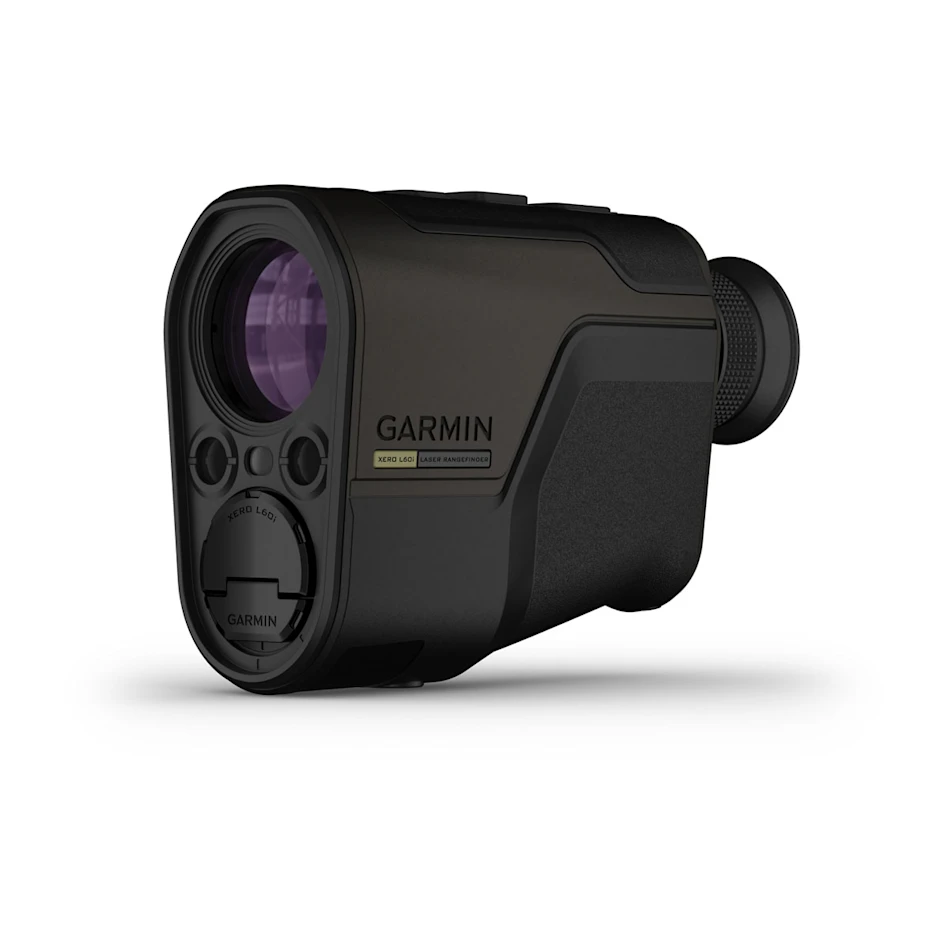

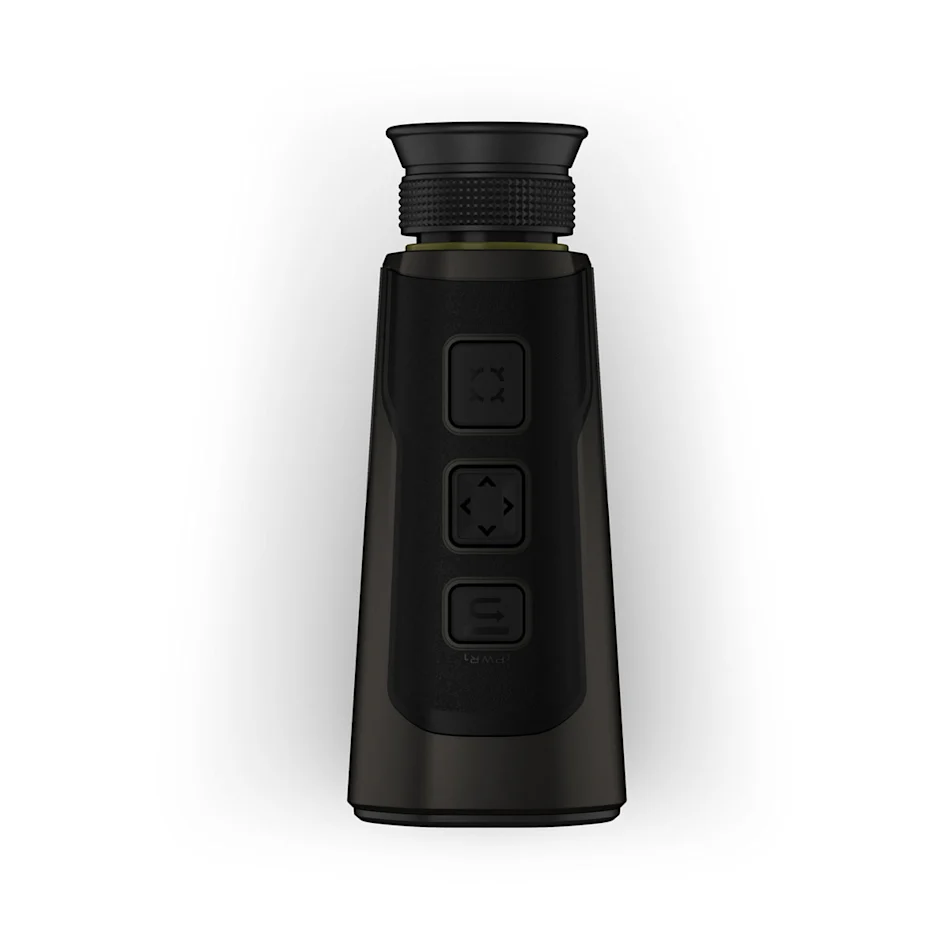

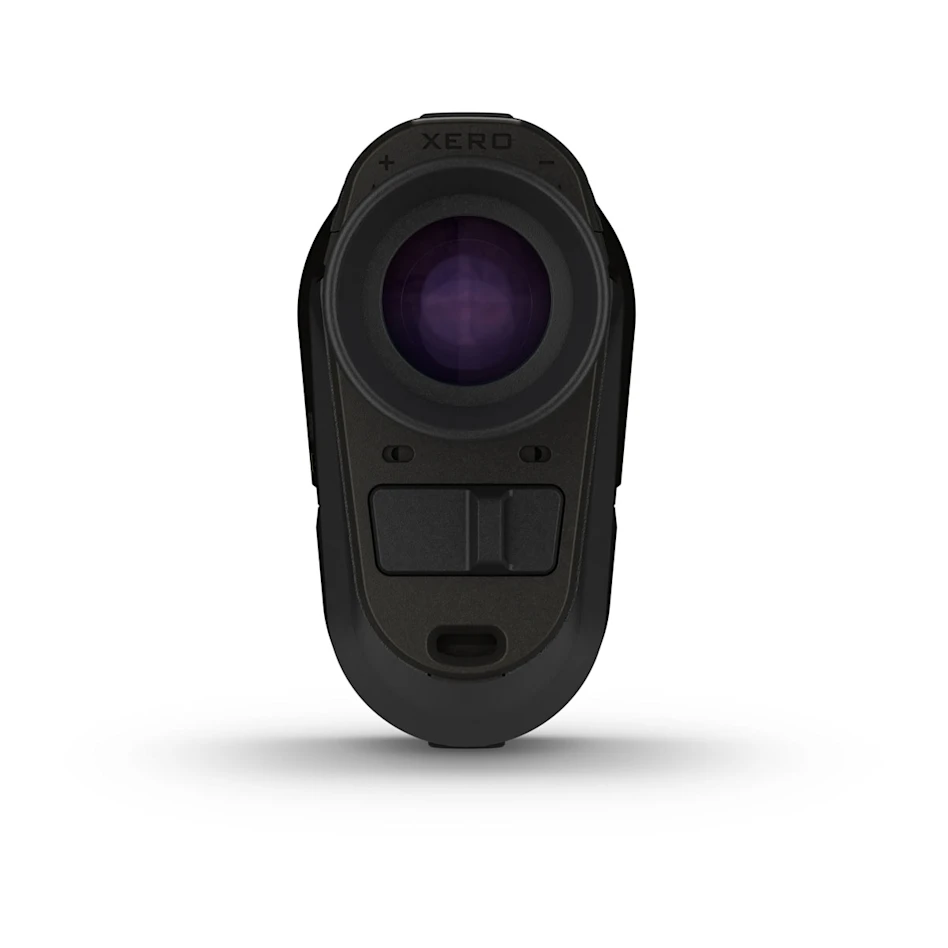

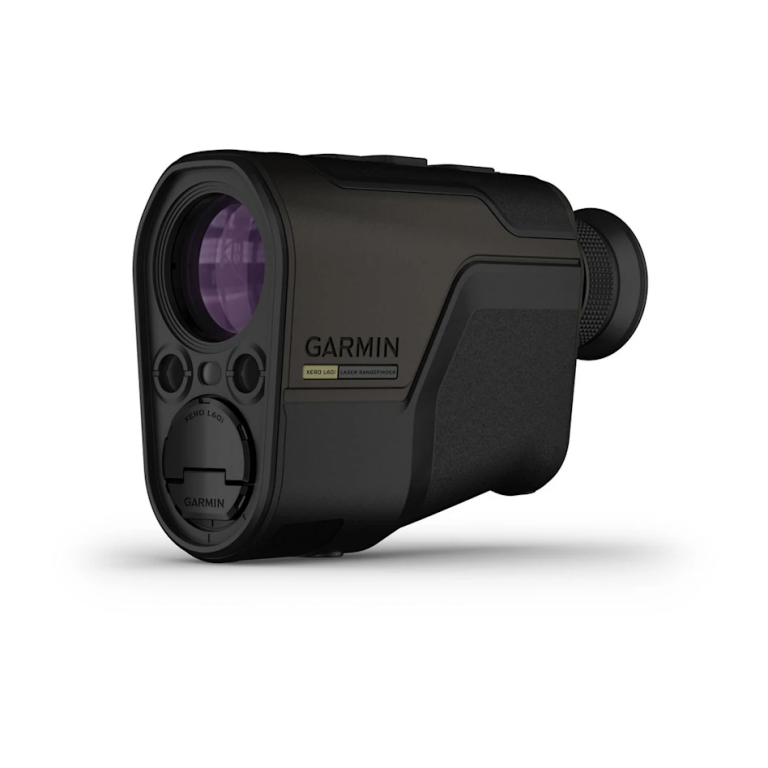

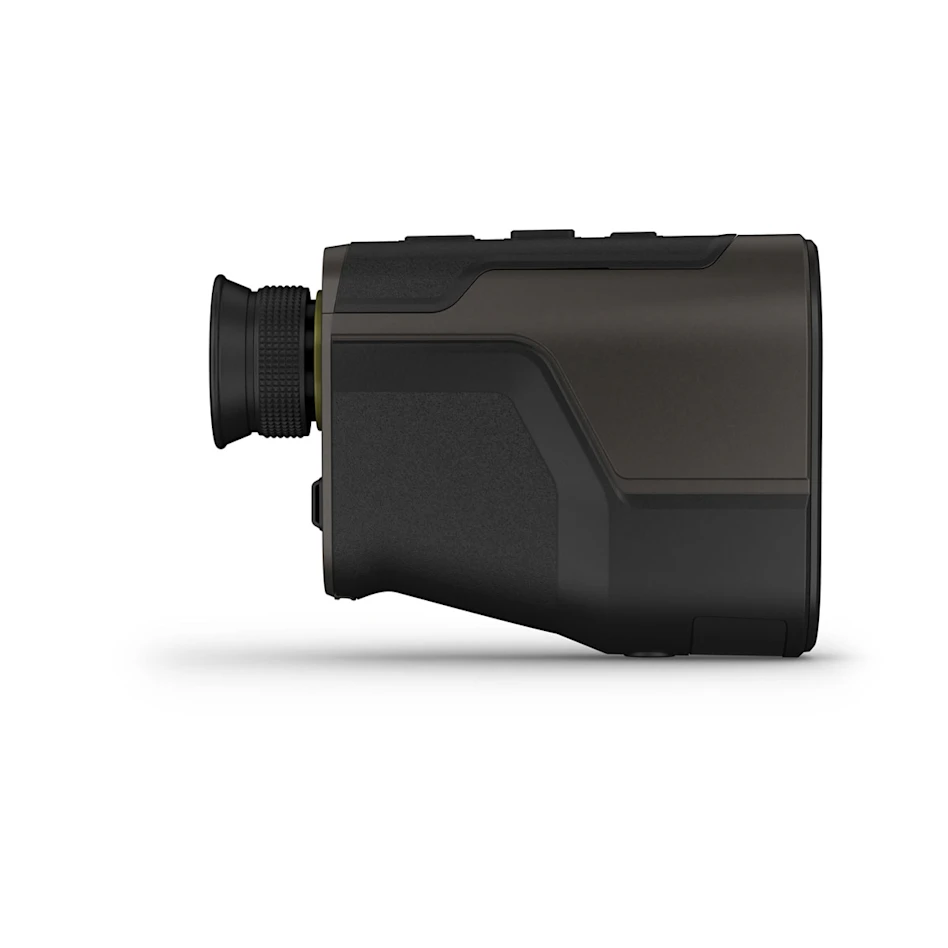

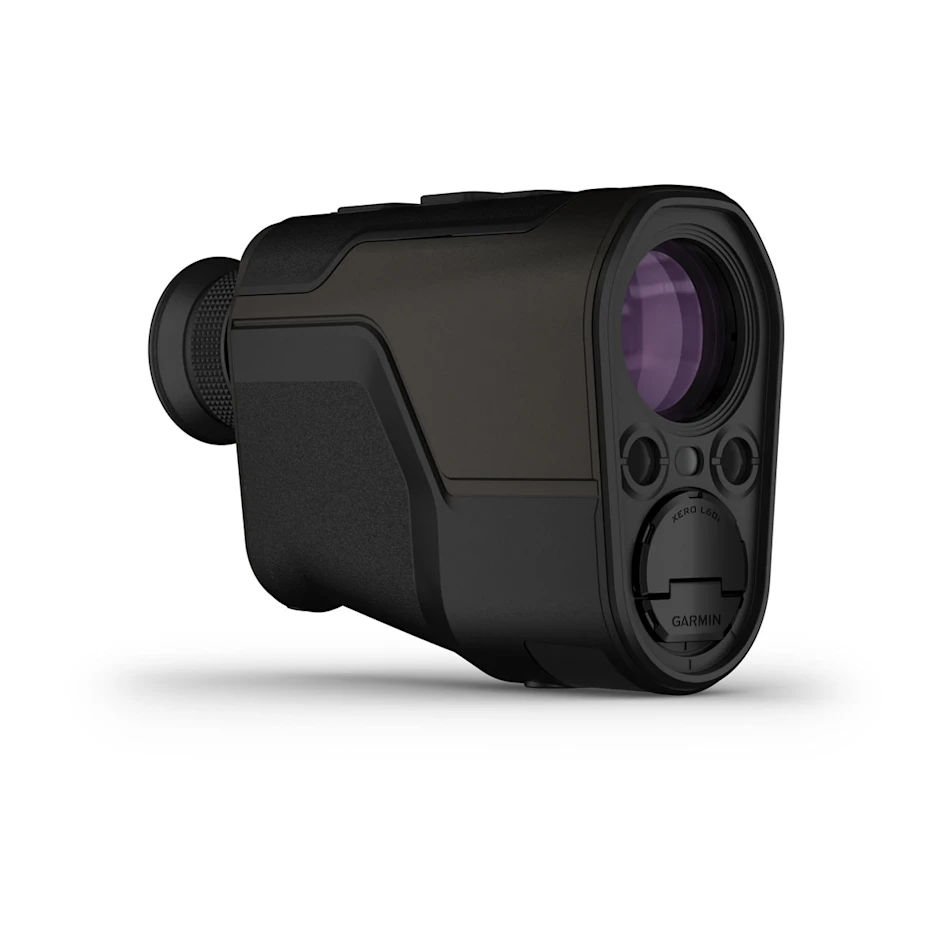

Garmin Xero L60i Laser Rangefinder

• Dimensions (W × H × D) 4.94" × 3.53" × 1.99" (125.41 × 89.66 × 50.59 mm)
• Weight (no battery) 0.80 lbs (362.88 g)
• Weight (with battery) 0.849 lbs (385.1 g)
• Display type Multi-colour DLP augmented reality
• Display size 1.2" (32 mm) diagonal
• Display resolution 960 × 540 pixels
• Battery type 2 × AAA lithium batteries (included)
• Battery life Up to 1,400 ranges (1-second range, 10-second display)
• Operating temperature -20°C to 60°C (-4°F to 140°F)
• Water rating IPX7
• Memory 32 GB internal (less file system space)
• Interface USB-C®
• Magnification 7x
• Objective lens 32 mm
• Field of view 7°
• Field of view at 1,000 yards 365 ft
• Eye relief 0.71" (18 mm)
• Exit pupil diameter 4.6 mm
• Focus adjustment ±4 dioptres
• Laser classification Class 1
• Sensors GNSS, magnetometer, thermometer, humidity, barometer, auto dimming, tilt
• Precision ±0.1 m
• Accuracy ±0.25 m up to 1,000 m; ±1.0 m beyond 1,000 m
• Range to animals (full sun) 1,500 yards (1,375 m)
• Range to trees (full sun) 2,000 yards (1,800 m)
• Range to retro-reflective targets (full sun) 5,500 yards (5,000 m)
• Range to animals (optimal conditions) 3,000 yards (2,775 m)
• Range to trees (optimal conditions) 4,000 yards (3,600 m)
• Range to retro-reflective targets (optimal conditions) 7,600 yards (7,000 m)
• Applied Ballistics® solver Onboard Ultralight, accessible via AB Quantum app
• Laser Locate™ Yes
• Sensor Locate Yes
• Onboard mapping Yes
• Visual recall Yes
• Angle-compensated distance Yes
• Garmin Share Yes
• Store locations, tracks and courses Yes
• Measures distance between two points Yes
• Area calculation Yes
• Laser beam divergence 0.5 × 0.5 mrad
• Garmin Explore app compatibility Yes

• Advanced laser rangefinding combined with GPS and onboard sensors for precise target location, not just distance

• Full-colour augmented reality display overlaying distance, mapping, navigation and ballistic data in real time

• Laser Locate™ technology to drop GPS waypoints on ranged targets

• Sensor Locate feature to project waypoints beyond rangeable distances

• Onboard TopoActive mapping with augmented navigation directly through the optic

• Visual Recall to guide you back to ranged locations if line of sight is lost

• Integrated Applied Ballistics® Ultralight solver via the AB Quantum app

• Angle-compensated distance for accurate uphill and downhill shots

• Garmin Share for sending waypoints and locations to compatible devices

• Ability to store, recall and share locations, tracks and routes

• Area calculation and point-to-point distance measurement

• Robust, waterproof design built for demanding field conditions

Compatible Devices:

• Tactix 8
• Fēnix 8,
• Epix Pro (Gen 2)
• Enduro 3
• MARQ (Gen 2)
• Instinct 3
• GPSMAP 67
• Montana 710/760i
• Alpha 10, Alpha 200, Alpha 300

• Garmin Xero L60i laser rangefinder
• carry case
• lanyard
• 2 lithium AAA batteries
• power/data cable
• documentation

Is this just a rangefinder or does it replace a GPS as well?
It does both. The Xero L60i not only measures distance but also functions as a GPS navigation tool with onboard mapping, waypoint projection and route guidance.

How accurate is the ranging?
It delivers extremely high precision, with accuracy to ±0.25 m out to 1,000 m and proprietary precision lock technology to ensure reliable target acquisition.

Can I mark a target and navigate back to it later?
Yes. You can drop GPS waypoints using Laser Locate™ or Sensor Locate and use visual recall and mapping overlays to guide you back even if you lose line of sight.

Does it work for long-range shooting and ballistics?
Absolutely. It includes an onboard Applied Ballistics® Ultralight solver, accessible via the AB Quantum app, providing shooting solutions directly through the display.

Can I use it in low light or poor weather?
Yes. The premium optics, augmented reality display and retro-reflective ranging capability allow reliable performance in low light, while the IPX7 rating protects against rain and water immersion.

Can I share locations with other devices or shooting partners?
Yes. Using Garmin Share, waypoints and data can be sent to compatible Garmin watches, handheld GPS devices and smartphones.

Is it suitable for hunting as well as precision shooting?
Yes. It is designed for both, with animal ranging modes, navigation tools, ballistic support and the ability to discreetly mark and revisit locations in the field.

How long does the battery last?
The supplied AAA lithium batteries provide up to 1,400 range readings, making it suitable for extended days or multi-day trips.

Is it complicated to use?
Despite its advanced features, the interface is intuitive, with a clear augmented reality overlay that presents information naturally within your field of view.

What devices is it compatible with?
It pairs with a wide range of Garmin watches and handhelds, including Tactix, Fēnix, Epix, Enduro, MARQ, GPSMAP, Montana and Alpha series devices.
