Garmin Xero C1 Pro Chronograph
"The Garmin Xero C1 Pro has completely changed the game when it comes to chronographs. No fiddling with alignment or light sensitivity—just set it down, shoot, and get reliable data. Whether you're tuning a load, checking factory ammo, or zeroing a new rig, this compact little unit gives you accurate velocity readings without the hassle. Built tough and packed with smart features, it's become a go-to tool for shooters who take their data seriously." - Thomas (Online Sales Associate & Product Specialist).
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#861
#858
#862
#859
#863
The Xero® C1 Pro chronograph makes ballistics calculations easy. This compact device fits in your back pocket, measures projectile velocities from 100 fps to 5,000 fps and provides the data you need to refine your equipment. Setup is simple and intuitive, thanks to the button-operated design. Compare velocity for every shot fired, track deviation and more in the ShotView™ smartphone app. It’s built to last, thanks to its IPX7 water-resistant rating. With up to 7 hours of battery life, you’ll have plenty of time at the range.

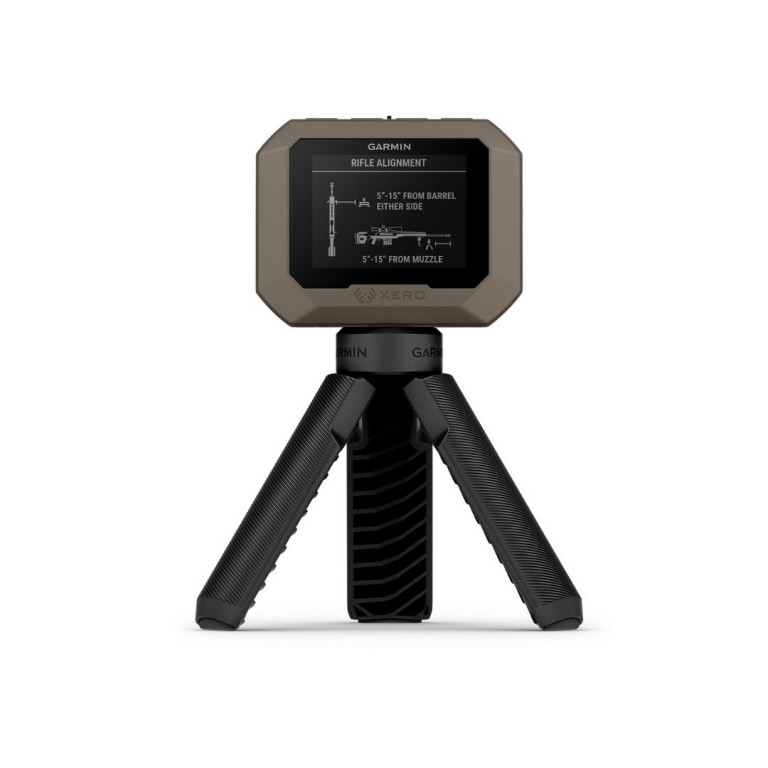

Comes complete with 1/4-20 thread tripod as shown in the gallery
The Xero® C1 Pro Chronograph requires approximately 20 yards to track fast moving projectiles, like rifle bullets, accurately. Slower, bigger projectiles (for example 9mm bullets or arrows) require less distance. Arrows can typically be tracked in approximately 7 yards, for example an indoor archery range.
- Dimensions Without tripod: 3.03″ (77 mm) x 2.38″ (60.5 mm) x 1.36″ (34.44 mm)
- Dimensions With tripod: 5.1″ (130 mm) x 4.5″ (115 mm) x 5.5″ (138.5 mm)
- Weight Without tripod: 105.6 g
- Weight With tripod: 161 g
- Water Rating: IPX7
- Display Type: Sunlight-visible, transflective, monochrome
- Display Size: 1.3″ x 1.7″ (33 mm x 44 mm), 2.2″ diagonal (55 mm)
- Display Resolution: 240 x 320 pixels
- Battery Type: Internal rechargeable lithium-ion battery; nonreplaceable
- Battery Life: 2,000 shots or up to 6 hours
- Operating Range: -10° C to 55° C (14° F to 131° F)
- Memory/History: 50 sessions at max 100 shots per round before a ShotView™ app sync is required to save data to phone
- Interface: USB-C
- Connectivity: Bluetooth® technology
- Mobile App: ShotView™ app
- Tracks rifles up to 5000 FPS
- Tracks bows and crossbows up to 600 FPS
- Tracks pistols up to 5000 FPS
- Tracks air rifles up to 2000 FPS
- Tracks airsoft up to 1000 FPS
- Tracks other projectiles up to 5000 FPS
- Calculates kinetic energy at muzzle
- Calculates power factor
- Calculates extreme spread
- Calculates standard deviation
- Calculates string average
- Ability to delete shots in the string via device or app
- Decimal precision
- Ability to add individual shot notes (on ShotView™ app)
- Ability to add session notes (on ShotView™ app)
- Ability to mark shots with clean/cold bore (on ShotView™ app)
- Ability to exclude shot from average and standard deviation calculations (on ShotView™ app)
- Tripod Compatibility: Yes, it is ¼-20 thread compatible.
- Reliable Performance: The chronograph reliably picks up shots with its sensitive and accurate sensor.
- Versatile Performance: Measures projectile speeds from 100 fps to 5,000 fps for various projectiles.
- Easy to Operate: Simple indoor and outdoor operation with a backlit display and button-operated design.
- Purpose-Built App: Pair with the ShotView app for shot tracking and deviation measurement.
- Simple Setup: Turn on, set up, point, and shoot.
- Rechargeable Battery: Provides power for up to 2,000 shots or 6 hours.
- Suppressor Support: Detects shots from suppressed firearms without being triggered by muzzle blast.
- Built to Endure: IPX7 water-resistant rating for durability.
- Accurate by Design: Does not affect firearm zero or barrel harmonics.
- Comes with tripod included as shown.
- Xero C1 Pro chronograph
- 1/4-20 thread tripod
- USB Type A to Type C cable
- Documentation
What types of projectiles can the Garmin Xero C1 Pro track?
The Xero C1 Pro can track a wide range of projectiles, including:
Rifles (up to 5000 FPS)
Pistols (up to 5000 FPS)
Bows and Crossbows (up to 600 FPS)
Air Rifles (up to 2000 FPS)
Airsoft (up to 1000 FPS)
Other projectiles up to 5000 FPS
Is it compatible with moderated firearms?
Yes. The Xero C1 Pro is designed to detect moderated shots without being falsely triggered by muzzle blast.
What data can it calculate?
The device and companion ShotView™ app provide:
Muzzle velocity
Kinetic energy
Power factor
Standard deviation
Extreme spread
String average
Decimal precision
Shot/session notes
Exclusion of shots from averages
Do I need an app to use the chronograph?
The ShotView™ app is optional but recommended. You can operate the chronograph standalone, but the app provides extended features like:
Saving session history
Reviewing data
Adding notes
Syncing and exporting data
Deleting or excluding specific shots
How is it powered and how long does the battery last?
It has a built-in rechargeable lithium-ion battery that lasts up to:
2,000 shots
Or 6 hours of continuous use
How do I charge it?
Charging is done via USB-C. A compatible cable is required (not always included).
Is the device water-resistant?
Yes, it has an IPX7 water-resistance rating, meaning it can withstand immersion in up to 1 meter of water for 30 minutes.
What are the dimensions and weight?
Without tripod:
Dimensions: 3.03″ x 2.38″ x 1.36″
Weight: 105.6 g
With tripod:
Dimensions: 5.1″ x 4.5″ x 5.5″
Weight: 161 g
How much data can it store?
The Xero C1 Pro can store up to 50 sessions with 100 shots per session before needing to sync with the ShotView™ app.
Is it compatible with other tripods?
Yes. The chronograph has a ¼-20 thread mount, making it compatible with most standard tripods. A tripod is included.
How do I operate the unit?
It’s extremely simple to use:
-
Place the device (tripod included)
-
Power on
-
Align toward the projectile path
-
Fire and view the data instantly
