Factory Refurbished Pixfra Sirius S435 Thermal Imaging Monocular - 384x288, 12µm, <18mK NETD, 35mm - FR25037
The Pixfra Sirius S435 is a compact yet powerful thermal imaging monocular built for clear, reliable detection in the field. Featuring a 384×288, 12µm, <18mK thermal sensor, a 35mm f1.0 lens, and a detection range of up to 1,800 metres, it delivers impressive thermal performance in a slim ergonomic body. A 1920×1080 OLED display, AI-powered image calibration, 64GB built-in storage, Wi-Fi connectivity, and a quick-release 18650 battery system make it a versatile and user-friendly choice.
#1403
#1432
#1428
#1412
#1413
Condition: Good

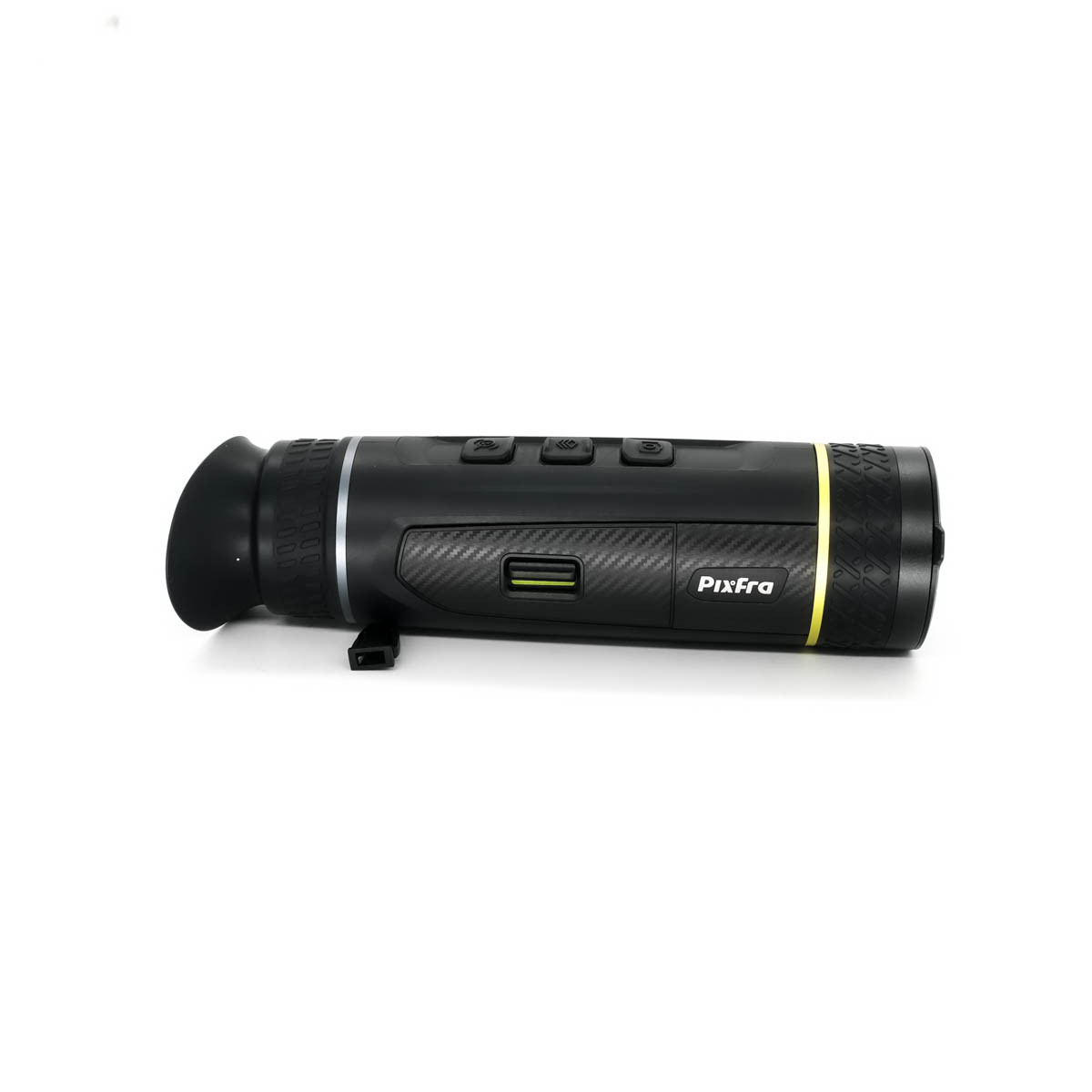

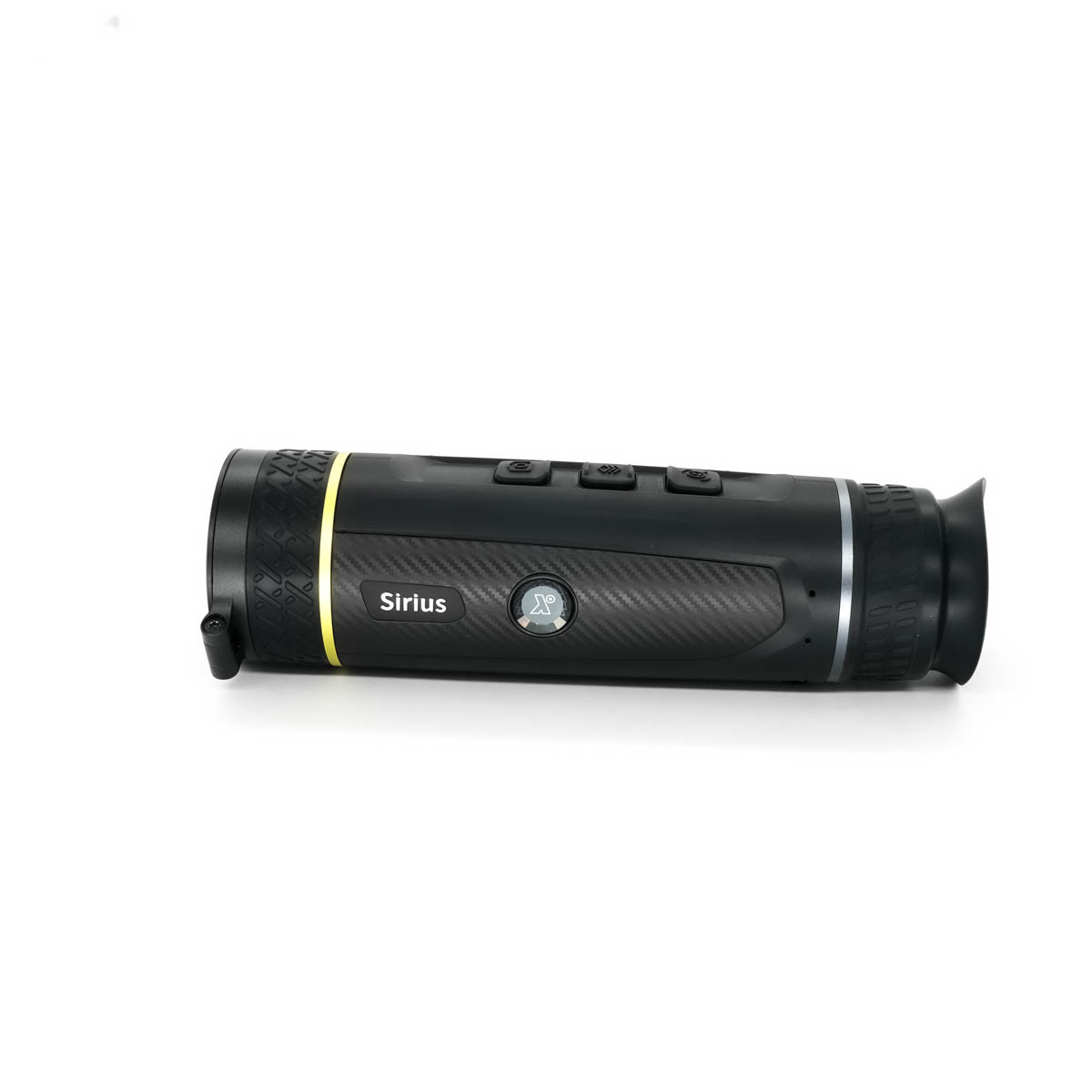

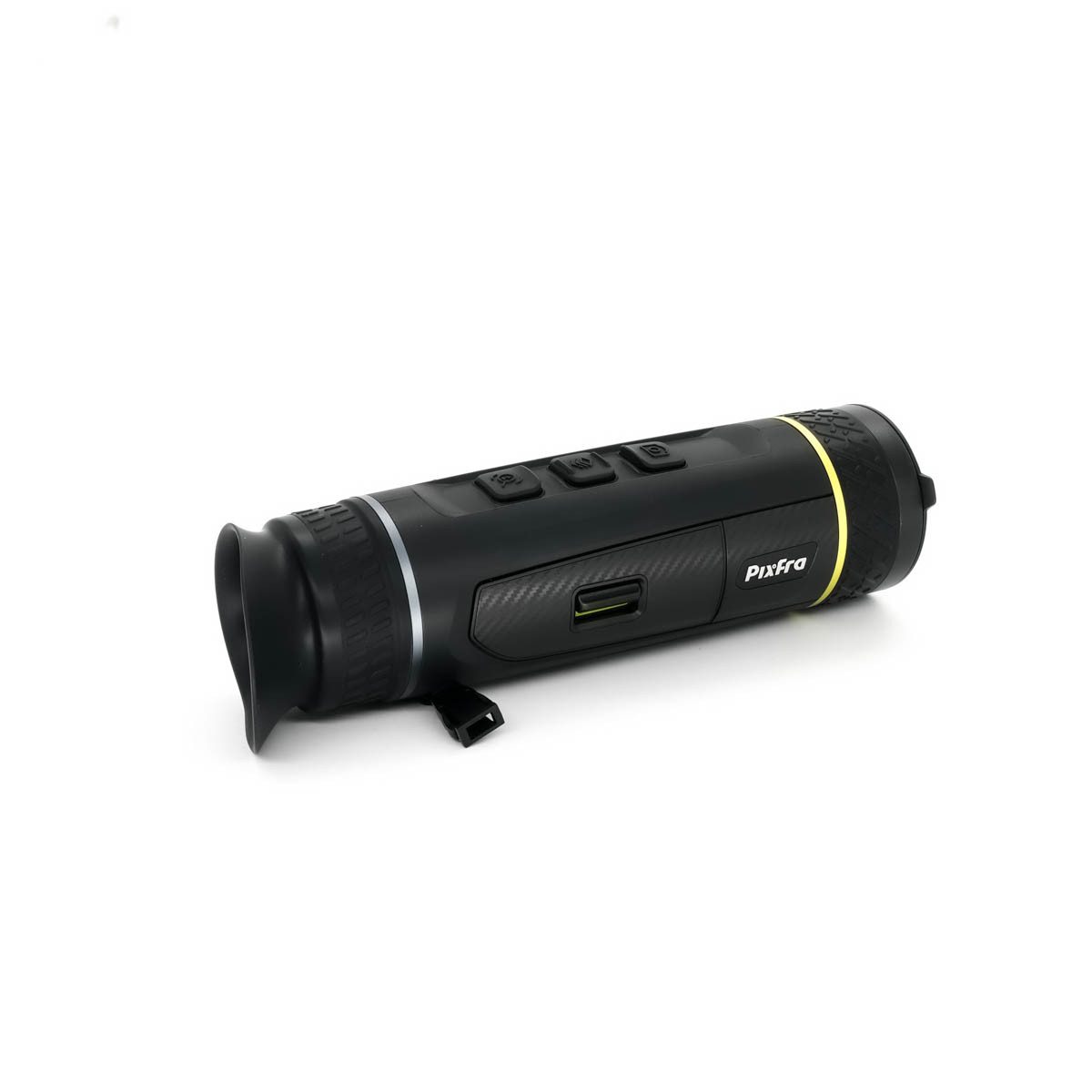

This unit is in good condition and has been very well cared for. Minor handling marks may be present. Please refer to product images for more details.

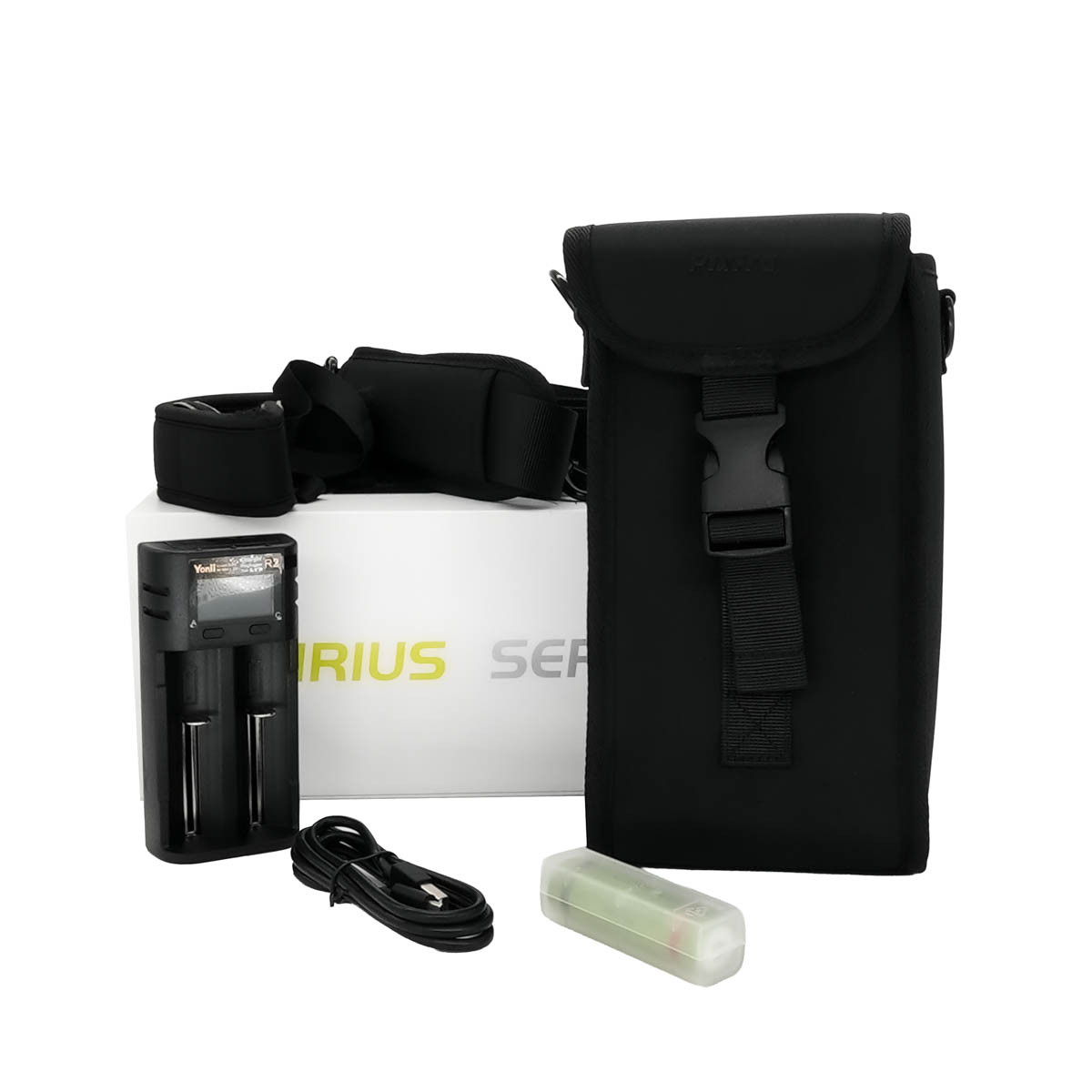

This product comes along with a neck strap and 1x battery.
NO OTHER ACCESSORIES INCLUDED.
The Pixfra Sirius S435 is a slimline thermal imaging monocular that combines advanced performance with a streamlined, ergonomic design. Built around a 384×288, 12µm thermal sensor with an impressive <18mK NETD sensitivity, it is designed to pick up even the smallest heat signatures with remarkable clarity. Paired with a 35mm f1.0 objective lens, the Sirius S435 delivers a detection range of up to 1,800 metres, making it an excellent choice for wildlife observation, conservation work, and general thermal spotting.
Image quality is a real strength of the Sirius S435. Its AI-powered image calibration continuously learns from captured images to optimise performance in changing conditions, while the 50Hz frame rate keeps the view smooth and responsive. A 0.49-inch 1920×1080 OLED display produces a crisp, vivid image that remains comfortable to view over longer sessions, helping to reduce eye fatigue. With 2.41x optical magnification and digital zoom settings of 1x, 2x, 4x, and 8x, it offers the flexibility to observe both nearby and distant targets with confidence.

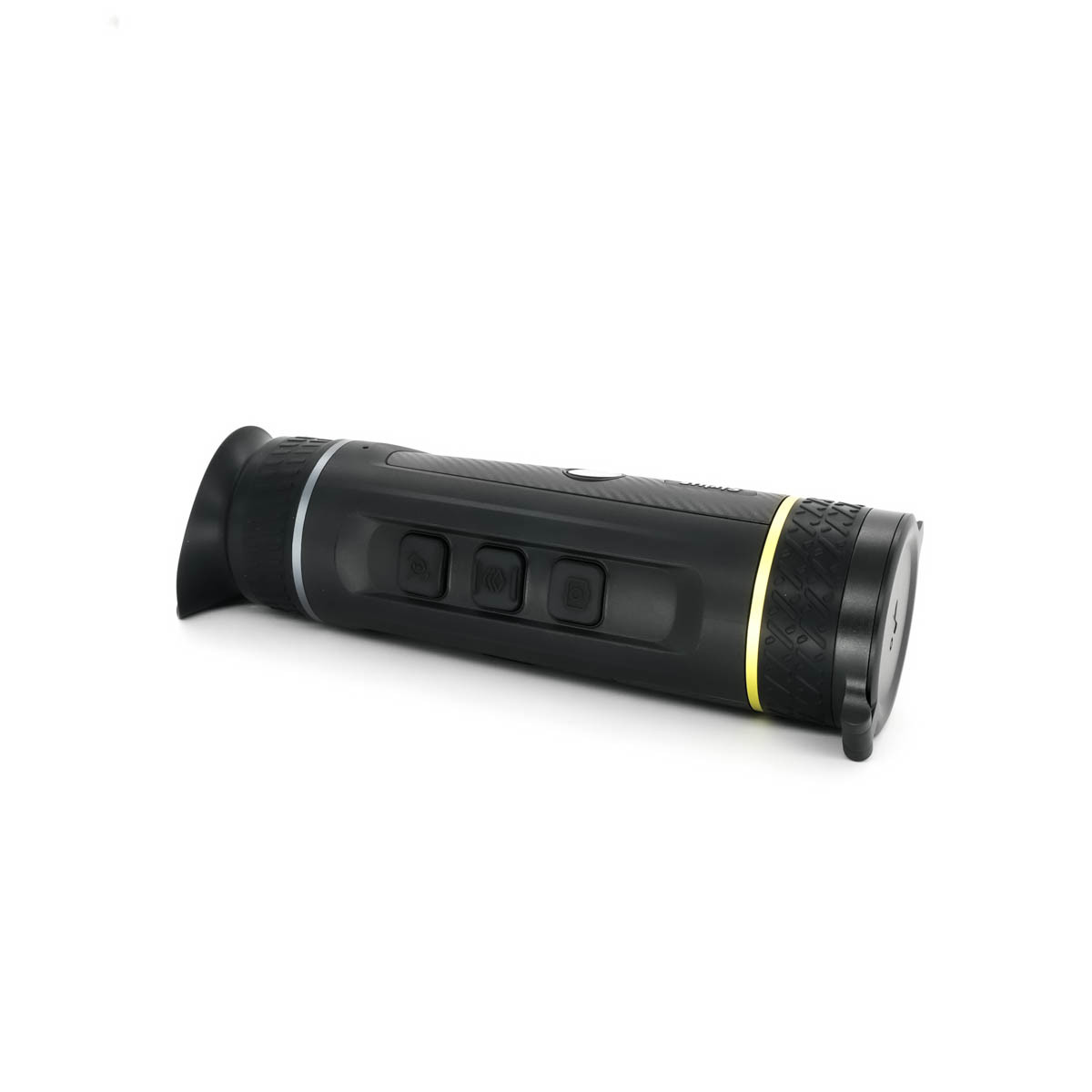

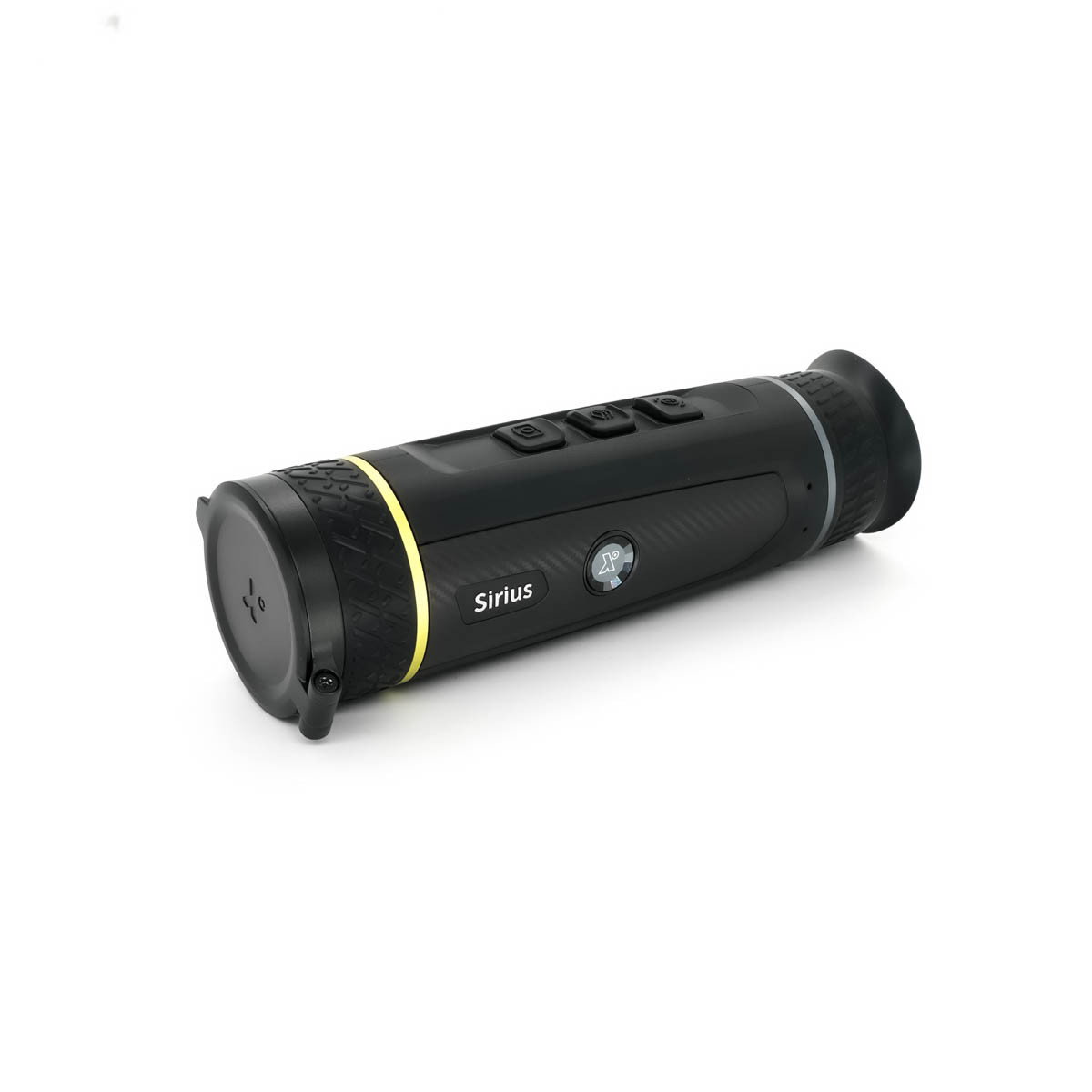

Pixfra’s signature styling gives the Sirius S435 a refined and practical feel. The monocular features a three-button control layout for simple one-handed operation, along with distinctive design touches such as carbon fibre accents, embossed details on the focus wheel, and an illuminated power button integrated into the Pixfra logo. For more discreet use, the light can be switched off completely. A metal lens cover also adds extra protection against dust, scratches, and knocks in the field.
The Sirius S435 is equally strong on features, with built-in 64GB storage, video recording, snapshot capture, Wi-Fi hotspot connectivity, and hot spot tracking all included as standard. Its quick-release 18650 battery system provides up to 6 hours of runtime, allowing batteries to be swapped quickly when needed. Finished with a robust IP67 waterproof rating, a close focus distance of 3 metres, and a lightweight build of just 421g, the Pixfra Sirius S435 is a highly capable thermal monocular that delivers serious performance in a compact package.
- Thermal Sensor: 384×288, 12µm, <18mK
- Lens: 35mm f1.0
- Focus Control: Manual
- Close Focus Distance: 3 m (9.84 ft)
- Field of View: H: 7.85°; V: 5.89° / H: 13.7 m; V: 10.3 m (@100 m)
- Detection Range: 1,800 m (5,905.31 ft)
- Digital Zoom: 1x, 2x, 4x, 8x
- Magnification: 2.41x
- Frame Rate: 50 Hz
- Display: 1920 × 1080, 0.49 inch, OLED
- Colour Palettes: 6 (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald)
- Storage: Built-in 64 GB
- FFC Calibration: Auto, Manual, External Correction
- Hot Spot Trace: Yes
- Wi-Fi Hotspot: Yes
- Video Recorder: Yes
- Snapshot: Yes
- Power Source: Replaceable 18650 battery
- Battery Life: Up to 6 hours, depending on temperature
- Power Supply: 5 VDC / 2 A
- Port: USB Type-C
- Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)
- Protection Rating: IP67
- Product Dimensions: 194.3 mm × 54 mm × 65.4 mm (7.65″ × 2.13″ × 2.57″) (L × W × H)
- Net Weight: 421 g (0.93 lb)
- Slimline, ergonomic design for comfortable handling during longer observation sessions
- One-handed operation enabled by a simple three-button control layout
- AI-powered image calibration that continuously improves image quality across changing conditions
- Crystal-clear viewing experience designed to provide a sharp, comfortable image with reduced eye fatigue
- Quick-release battery system for fast and easy battery changes in the field
- Built-in video recording for capturing observations as they happen
- Snapshot function for saving still images instantly
- Built-in storage for keeping recorded footage and images directly on the device
- Wi-Fi hotspot connectivity for connecting the monocular to compatible devices
- Hot spot tracking to help quickly identify the hottest point in view
- Multiple colour palettes to tailor the viewing experience to different environments and preferences
- Flexible calibration modes to maintain image consistency in varying conditions
- Manual focus control for precise image adjustment
- Protective metal lens cover to guard against knocks, scratches, and dust
- Illuminated logo power button that indicates device status with adjustable brightness settings
- Stealth-friendly operation with the option to switch the illuminated logo off completely
- Pixfra signature styling with premium design details including embossed elements and carbon fibre accents
- Durable, field-ready construction built for dependable use outdoors
- Suitable for a wide range of uses including wildlife observation, conservation, and general thermal spotting
This product comes along with a neck strap and 1x battery.
NO OTHER ACCESSORIES INCLUDED.
- 12-Month OPW Warranty
