Best Fittings Extended 30mm QC02 Female Socket - 1/8" BSP Male Thread
- Extended 30mm release collar for easy operation on deeply recessed fill nipples
- Eliminates the need for a coupler release tool on compatible rifles
- Compatible with “Foster Type” fill nipples
- 1/8″ BSP male thread – UK industry standard for pumps and fill lines
- Suitable for FX, Daystate, Brocock, Theoben, BSA Superten and more
- Compatible with many PCP and HPA systems, including Benjamin, Crosman, Logun Eagle, PCR1, Aselkon Ripley, and paintball/airsoft tank side fill nipples
- Maximum working pressure: 340 bar / 5000 psi (breathing air only)
#1265
#1266
#1292
#1295
#1293

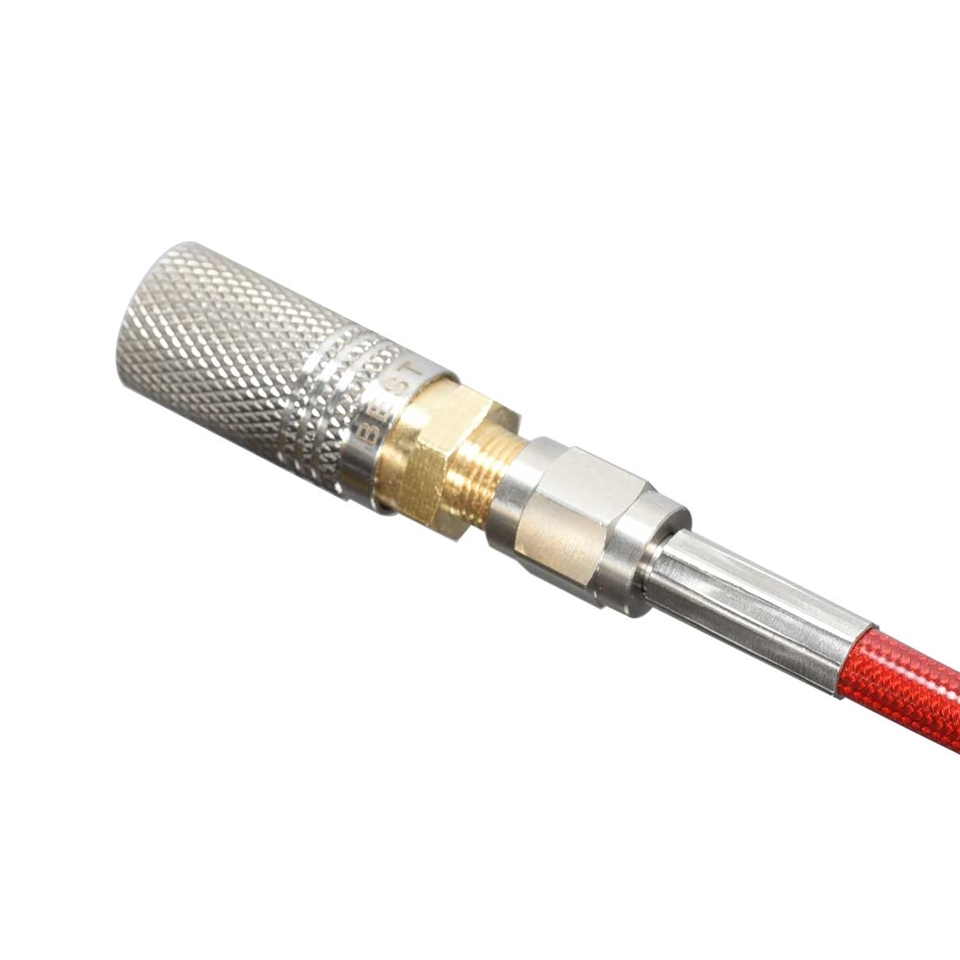

The Best Fittings Extended 30mm QC02 Female Socket – 1/8" BSP Male Thread has been specifically designed to solve one of the most common frustrations when filling pre-charged pneumatic (PCP) air rifles: accessing deeply recessed fill nipples. With a significantly extended 30mm release collar, this upgraded coupler allows shooters to easily connect and disconnect from recessed “Foster Type” fill nipples without the need for a separate coupler release tool.
Unlike standard couplers, which typically feature a 10.5mm release collar, this extended design provides far greater reach and improved grip, making it ideal for rifles with deep recess stocks or fill ports positioned inside air tubes.

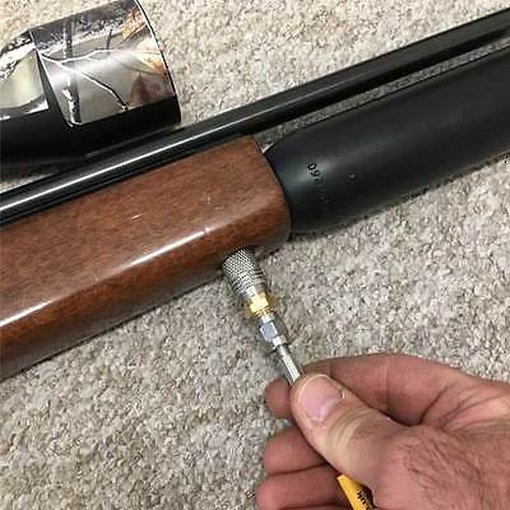

This socket is particularly well suited for FX rifles with deep recessed stocks, as well as Daystate and Brocock models with recessed fills, early Theoben “Swift” and “Dr Bob’s” style quick-fill systems, and BSA Superten rifles. It is also compatible with converted air tubes where the fill nipple has been installed in place of the pressure gauge at the recessed end of the cylinder.

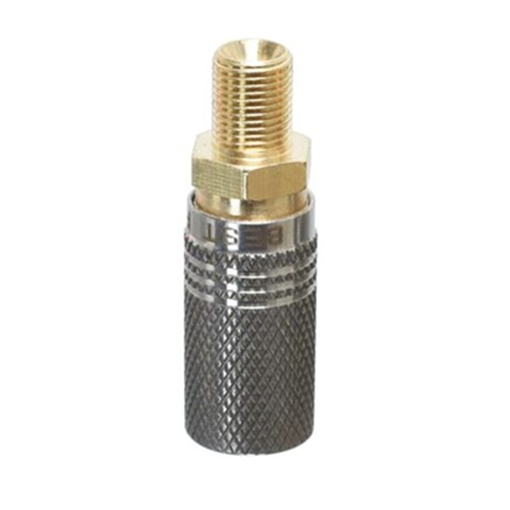

Built to industry standards, the coupler features a 1/8″ BSP male thread, making it compatible with the vast majority of UK fill lines, pumps, and air cylinders. A 1/8″ NPT threaded version is also available for users following the US standard.
Engineered for durability and reliability, the QC02 socket is safe for use on all pre-charged equipment up to a maximum working pressure of 340 bar (5000 psi) when used with breathing air.
- Extended 30mm release collar for easy operation on deeply recessed fill nipples
- Eliminates the need for a coupler release tool on compatible rifles
- Compatible with “Foster Type” fill nipples
- 1/8″ BSP male thread – UK industry standard for pumps and fill lines
- Suitable for FX, Daystate, Brocock, Theoben, BSA Superten and more
- Compatible with many PCP and HPA systems, including Benjamin, Crosman, Logun Eagle, PCR1, Aselkon Ripley, and paintball/airsoft tank side fill nipples
- Maximum working pressure: 340 bar / 5000 psi (breathing air only)
Important: Do not exceed the maximum working pressure of 340 bar (5000 psi).
