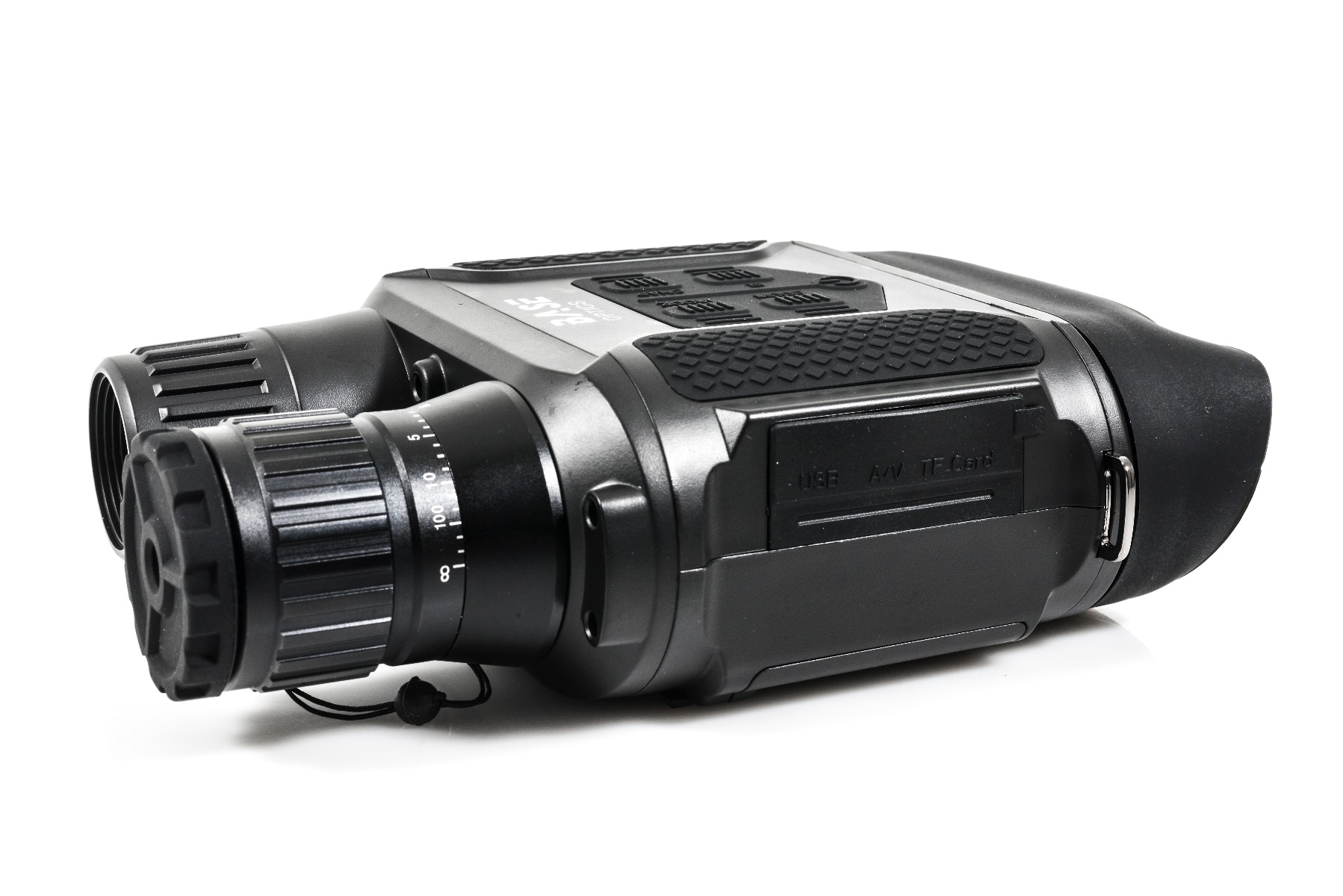

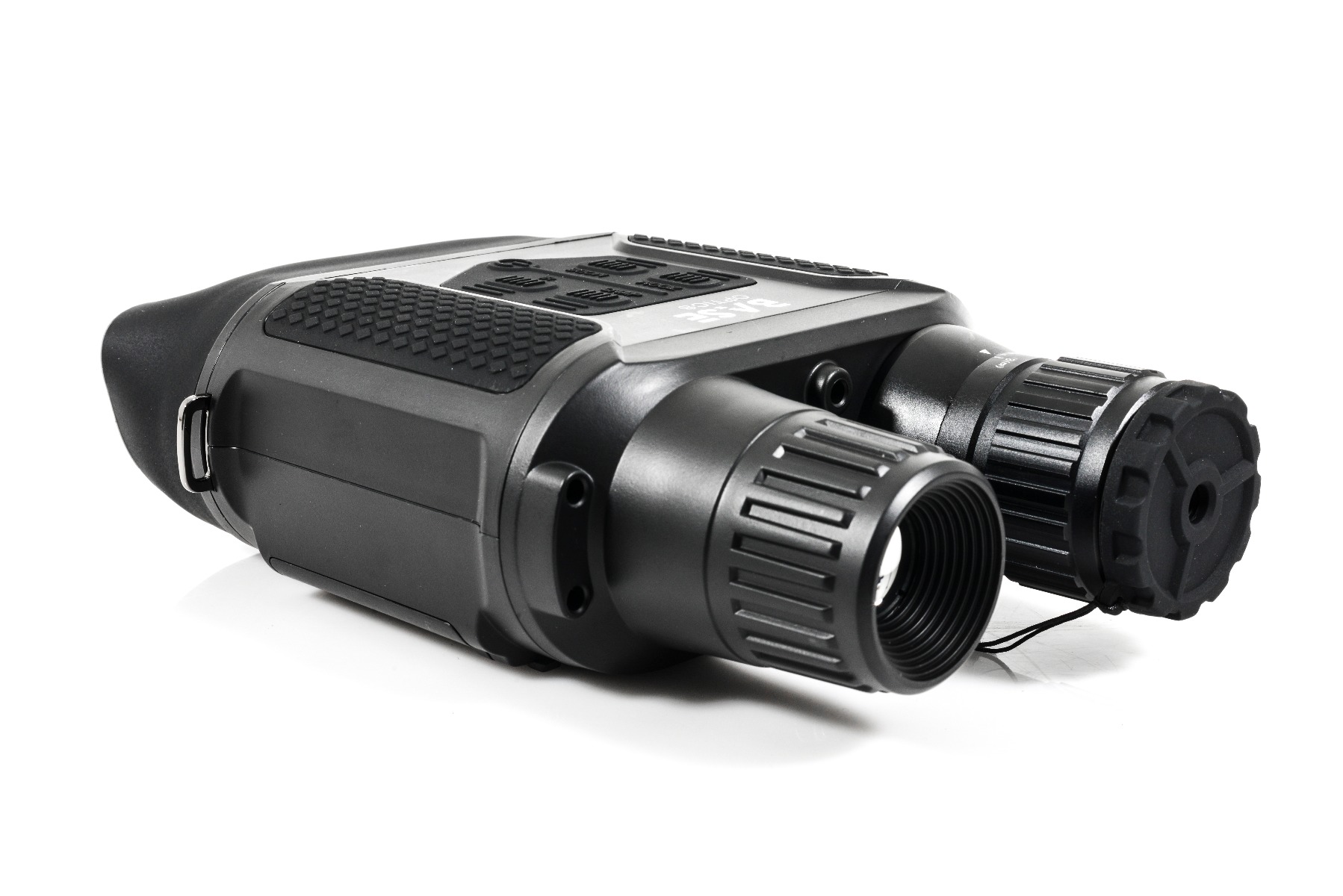

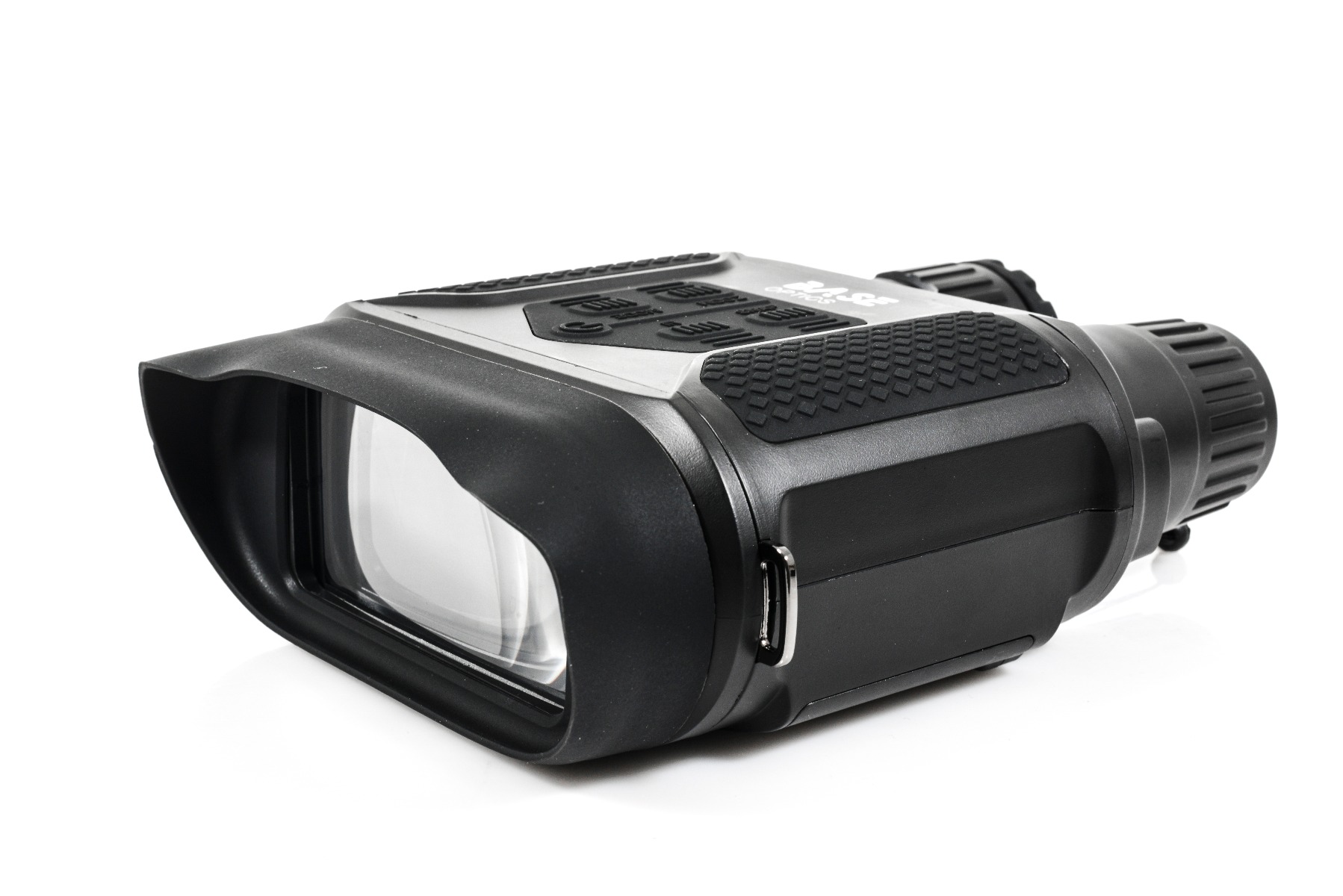

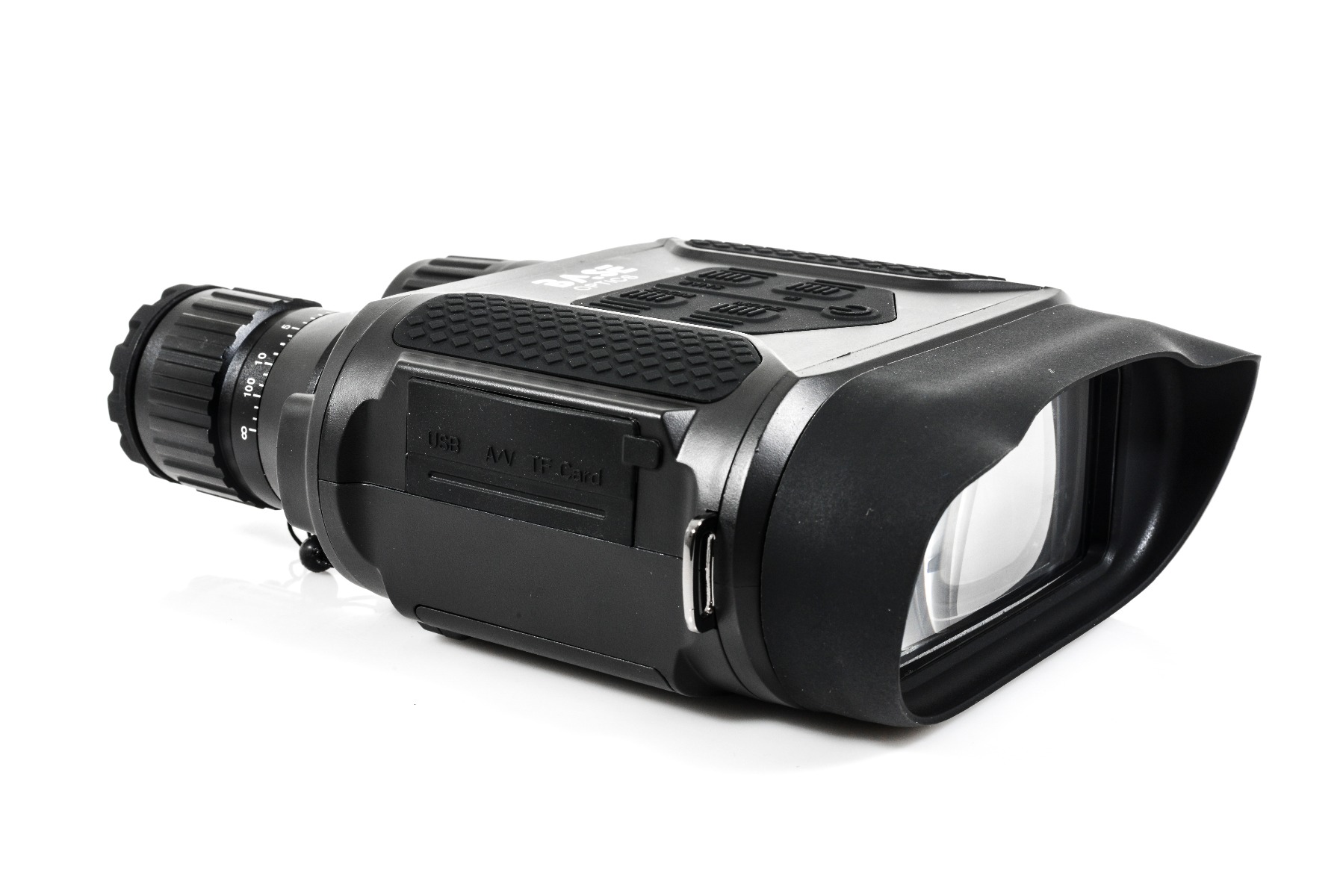

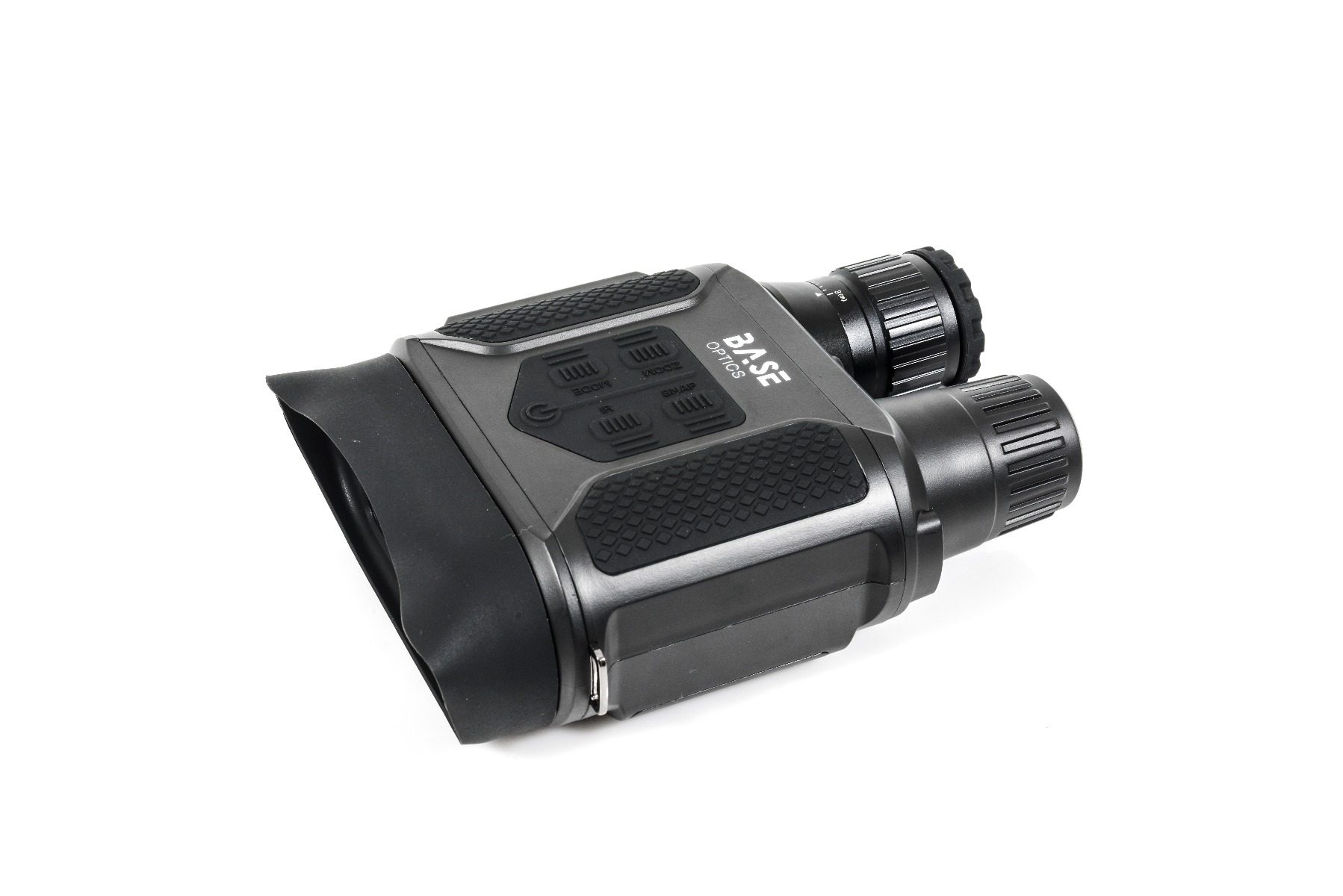

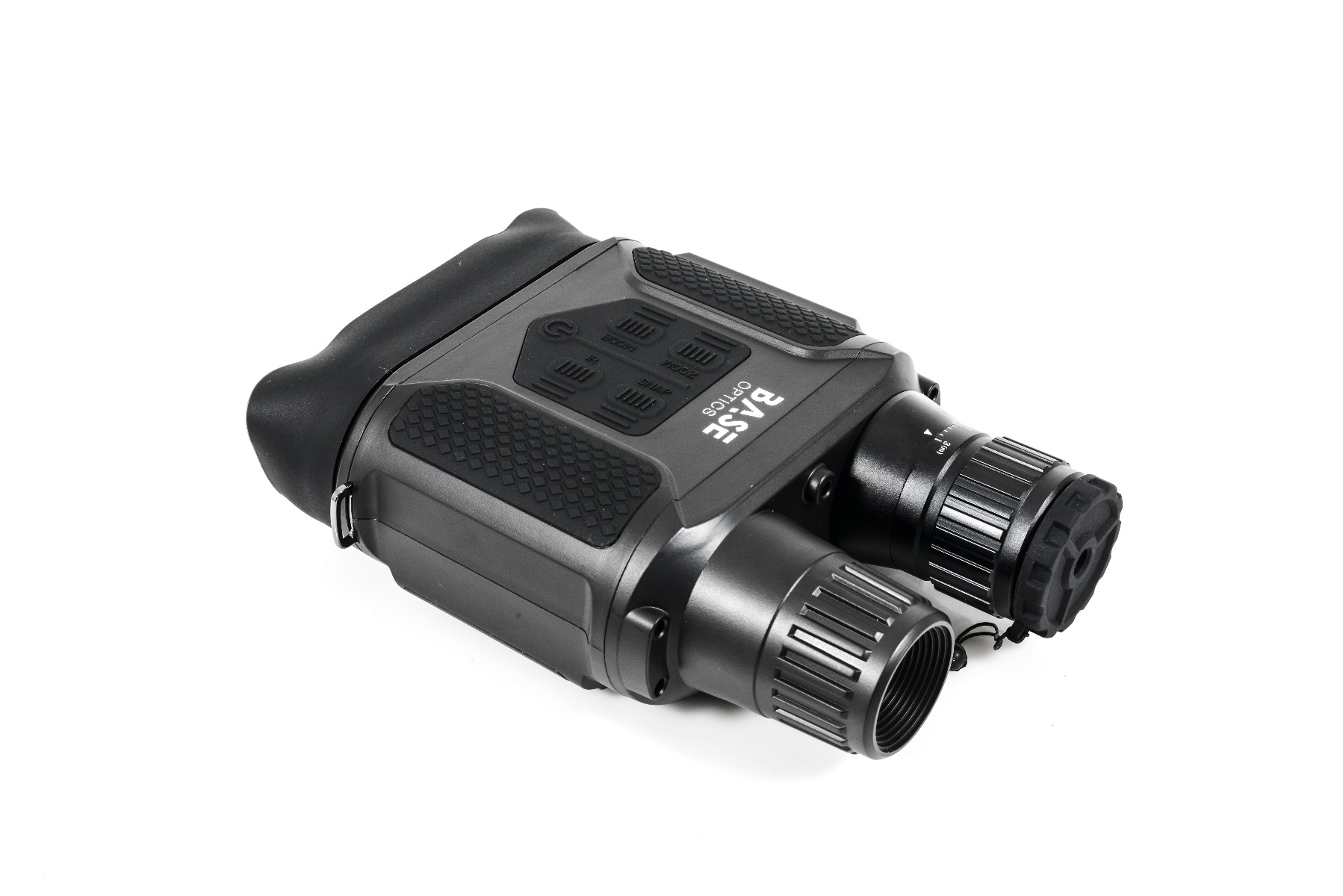

Base Optics 400m Day / Night Vision Viewer
Details
The Base Optics 400m Day / Night Vision Viewer is a fantastic affordable Night Vision unit.
Featuring a high definition CMOS sensor that provides the user with a viewing distance of 400m thanks to its 4x optical magnification and 2x digital zoom.
The Base Optics viewers come with a 640×480 resolution sensor which is paired with an on board 850nm IR to help provide a clear image at night.
| Brand | Base Optics |
|---|---|
| Product Name A-Z | Base Optics 400m Day / Night Vision Viewer |
| SKU | BA-NV400 |
Specs
| Catalog | Function Description |
| Optical performance | Magnification power 4~8 X31 (MAX 8x) |
| Digital Zoom 2 steps magnification, Max 2x | |
| Angle Of View 8.5° | |
| Objective Aperture 31mm | |
| Exit Pupil Distance 40mm | |
| F# for Objective lens 1.2 | |
| 3m~∞ in daytime; Viewing in the darkness up to 400M (monochrome) | |
| Eyepiece magnification 2x | |
| Video Output | 320×240 resolution TFT LCD |
| OSD menu display | |
| CVBS always output with VGA resolution | |
| Imager | Wide Dynamic Range High-sensitivity CMOS Sensor |
| Size 1/3” | |
| Resolution 640X480 | |
| IR LED | 3W Infared LED with 850nm |
| Micro SD Card | Support SDHC 4GB~32GB SD Card |
| Hardware Buttons | Power on/off |
| Snap | |
| Mode selection | |
| Zoom | |
| IR switch | |
| Operation | Preview |
| Record JPEG file in SD storage | |
| Capture JPEG file in SD storage | |
| Playback media file from SD storage | |
| Power | External power supply – DC 5V/1A |
| 8 pcs AA battery 4.5V-6V | |
| Battery life: 6 hours working time with IR off | |
| Battery low warning | |
| System | 4 modes (Capture, Video, Playback) |
| Single frame Image Capture | |
| Video image Record | |
| Playback image | |
| Delete image | |
| 5 level IR switch | |
| SD card format | |
| Power save (Off/1 min/ 3min/50 min) | |
| Language: English /Trad. Chinese /Simp. Chinese /Japanese / French /Deutsch /Korean /Italian /Portuguese /Russian / Spanish / Arabic |
|
| System Rest | |
| Light Freq. 50/60HZ | |
| Date Input | |
| Version | |
| Size | size 210mmx145mmx65mm |
| Net weight 750g (without battery) | |
| package | USB cable /AV cable /TF card /Bag /Manual |
Features
-
Superb Night viewing up to 400m away
-
Onboard 850nm IR Illuminator
-
Easy viewing through the single LCD screen
-
4x optical magnification
-
2x digital zoom
-
Large 320×240 viewing black & white screen
-
Wide dynamic range high sensitivity CMOS sensor with 640×480 resolution
-
Built-in photo & video recording
-
Includes 8GB TF card – allows for onboard recording
-
Specifically designed for nature observation, search & rescue, and pest control
In the box?
Base Optics 400m Day / Night Vision Viewer, user manual. carry case, lens cloth.
Warranty
2 Year Warranty
